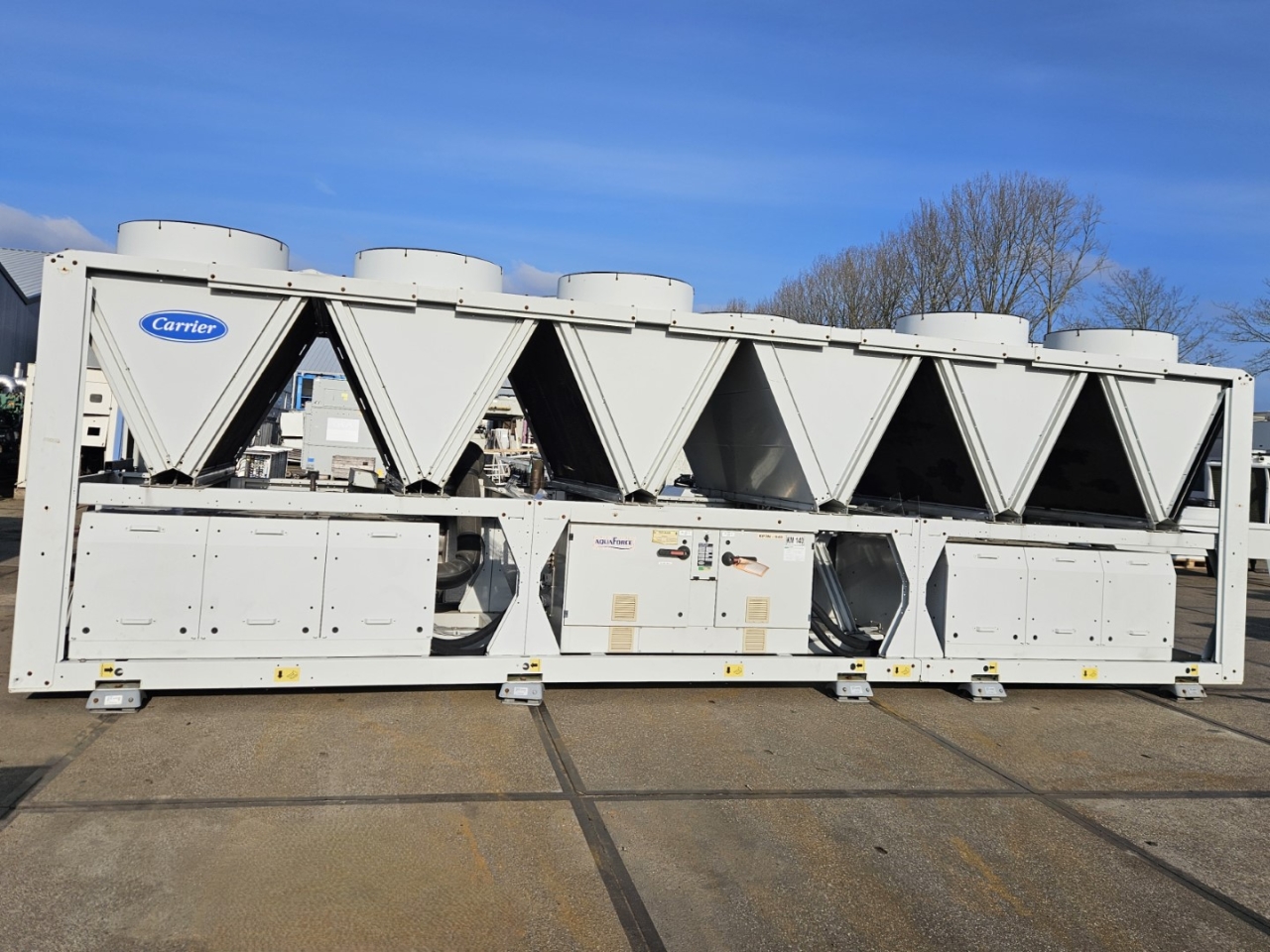

Carrier 30 XA 0602
Carrier 30 XA 0602
| 18855 | |
| Marka | Carrier |
| Typ | 30 XA 0602 |
| Typ produktu | Air Cooled Chiller |
| Ogólna wydajność w kW | 619,0 |
| Ogólna wydajność w Tonaż | 176,0 |
| Czynnik chłodzący | Freon |
| Typ czynnika chłodzącego | R134a |
| Waga kg. | 6016 |
| Rozmiary | 7200x2250x2400 mm (LxWxH) |

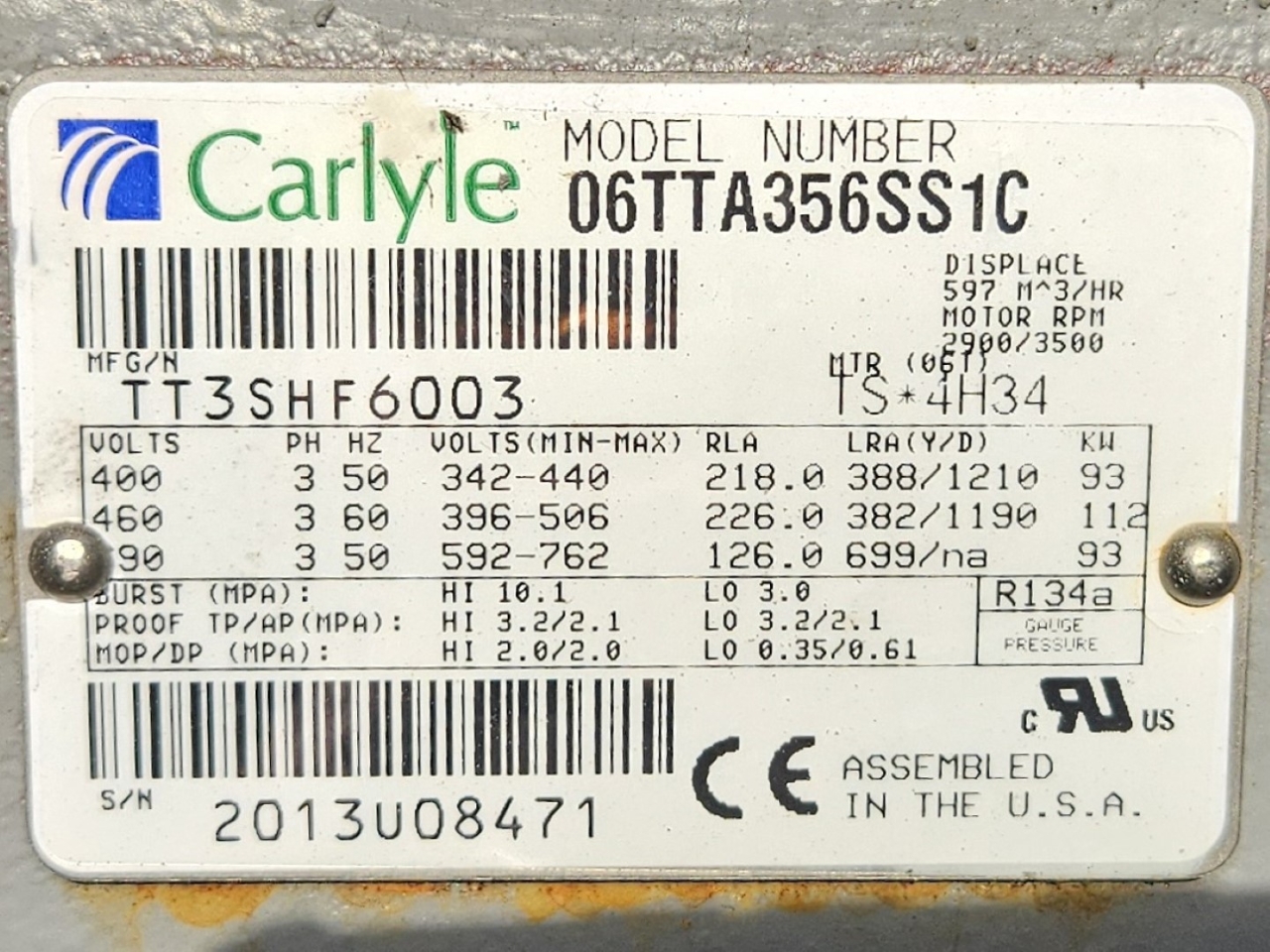

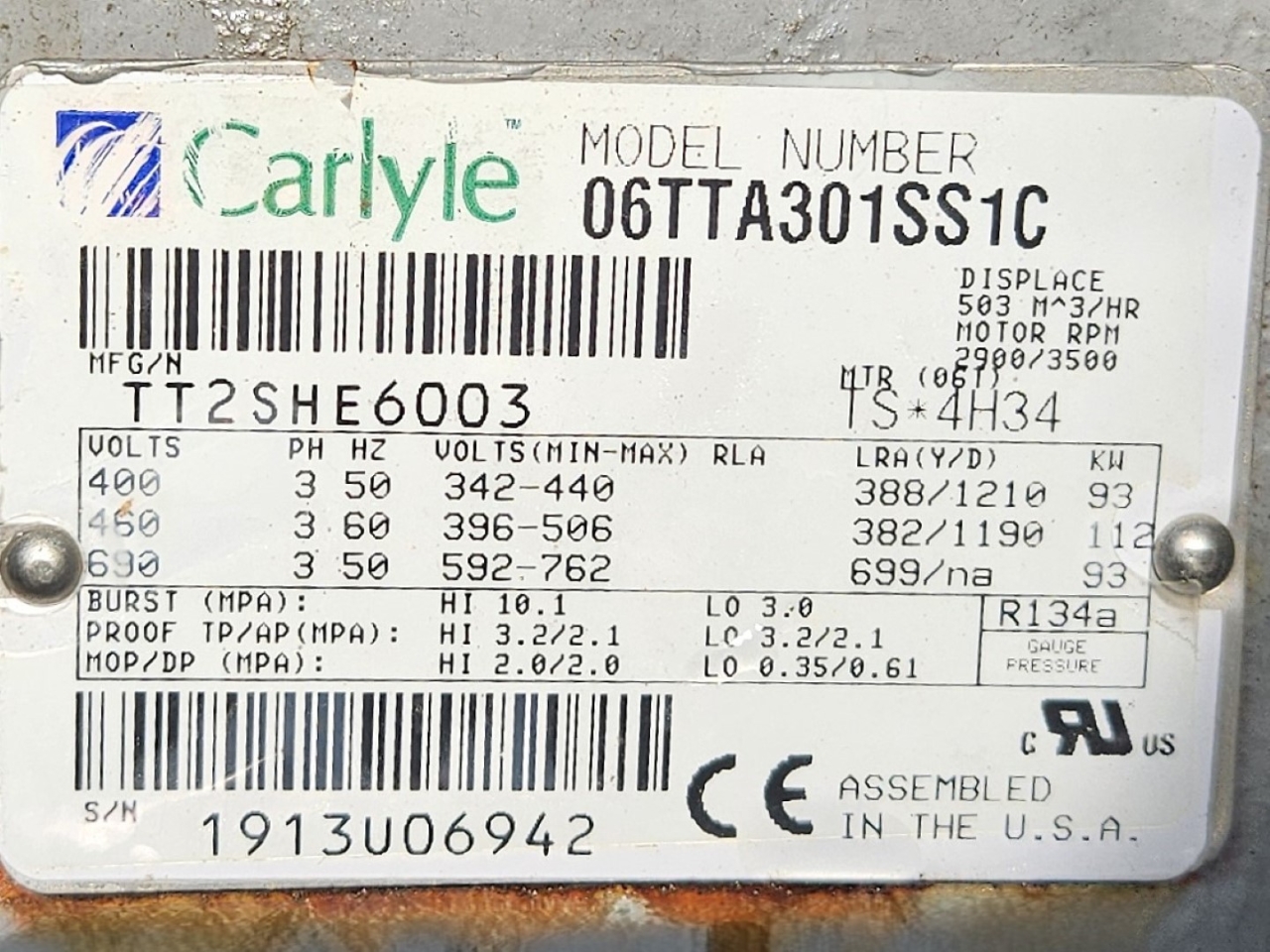

| Compressor(s) type & model | x1 Carlyle 06TTA356SS1C & x1 Carlyle 06TTA301SS1C |
| Number of fans | 11 |
| Uwagi | | Y.o.b. 2013 |
| Liczba sztuk | 1 |
Carrier 30 XA 0602

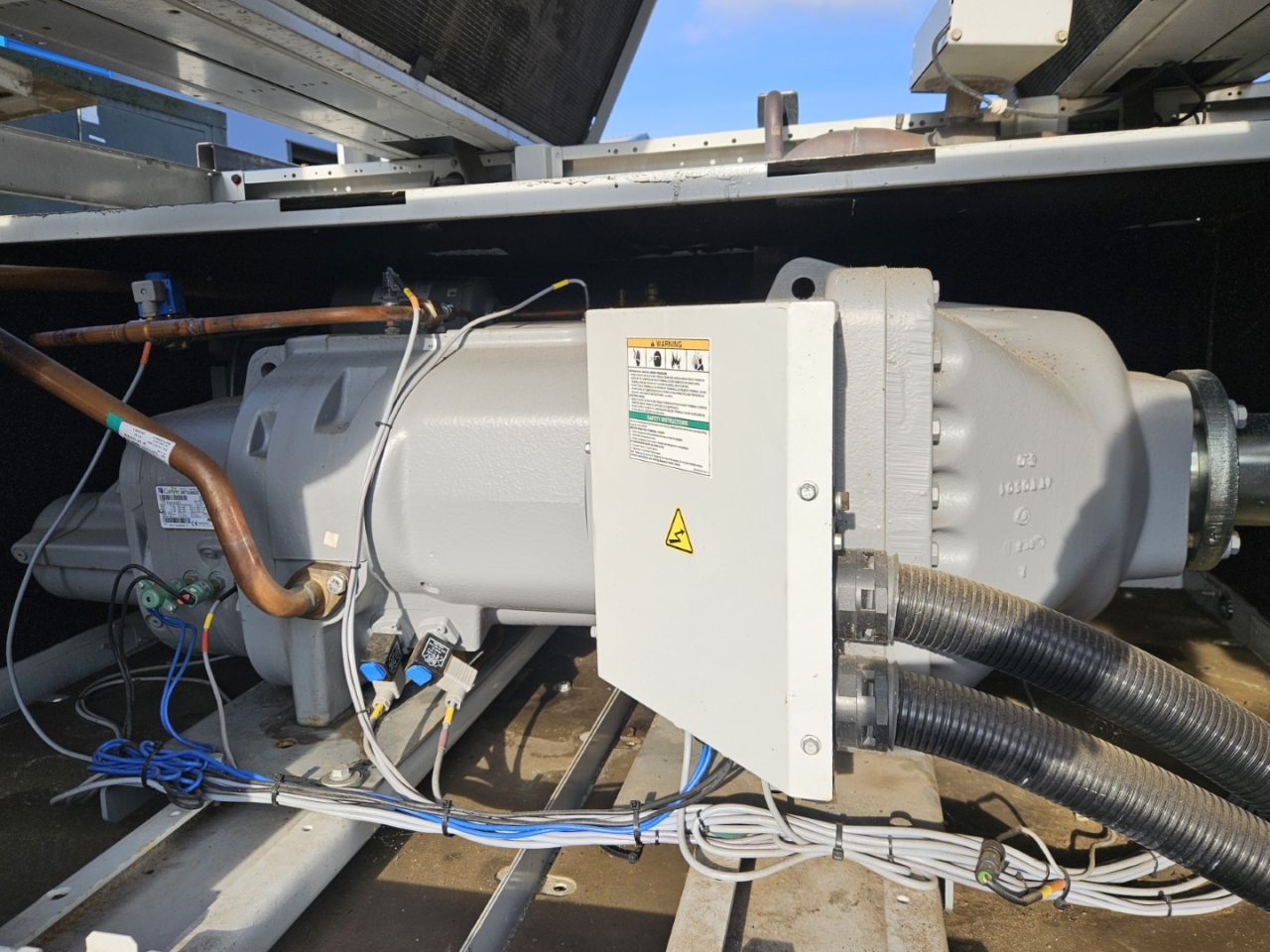

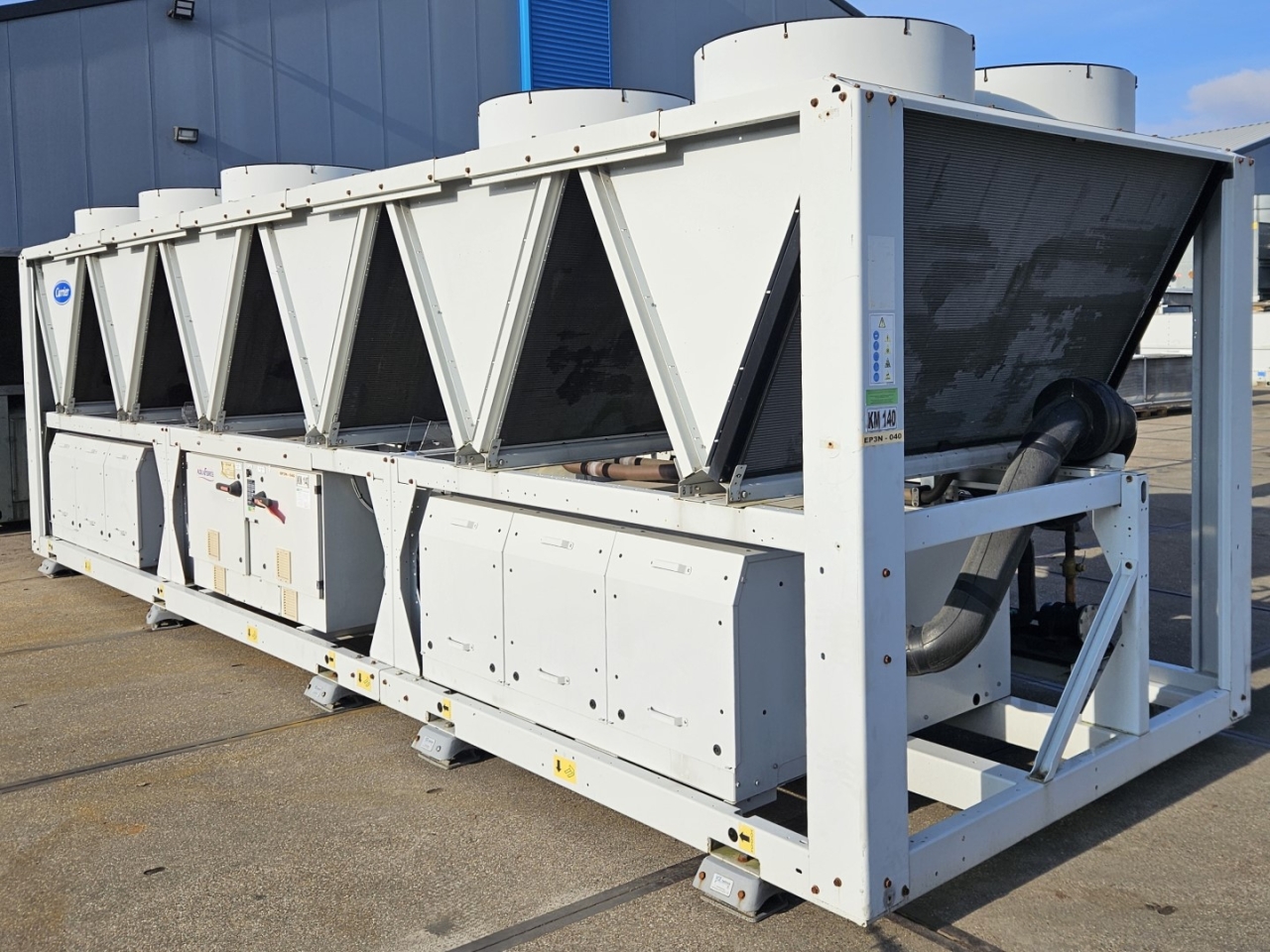

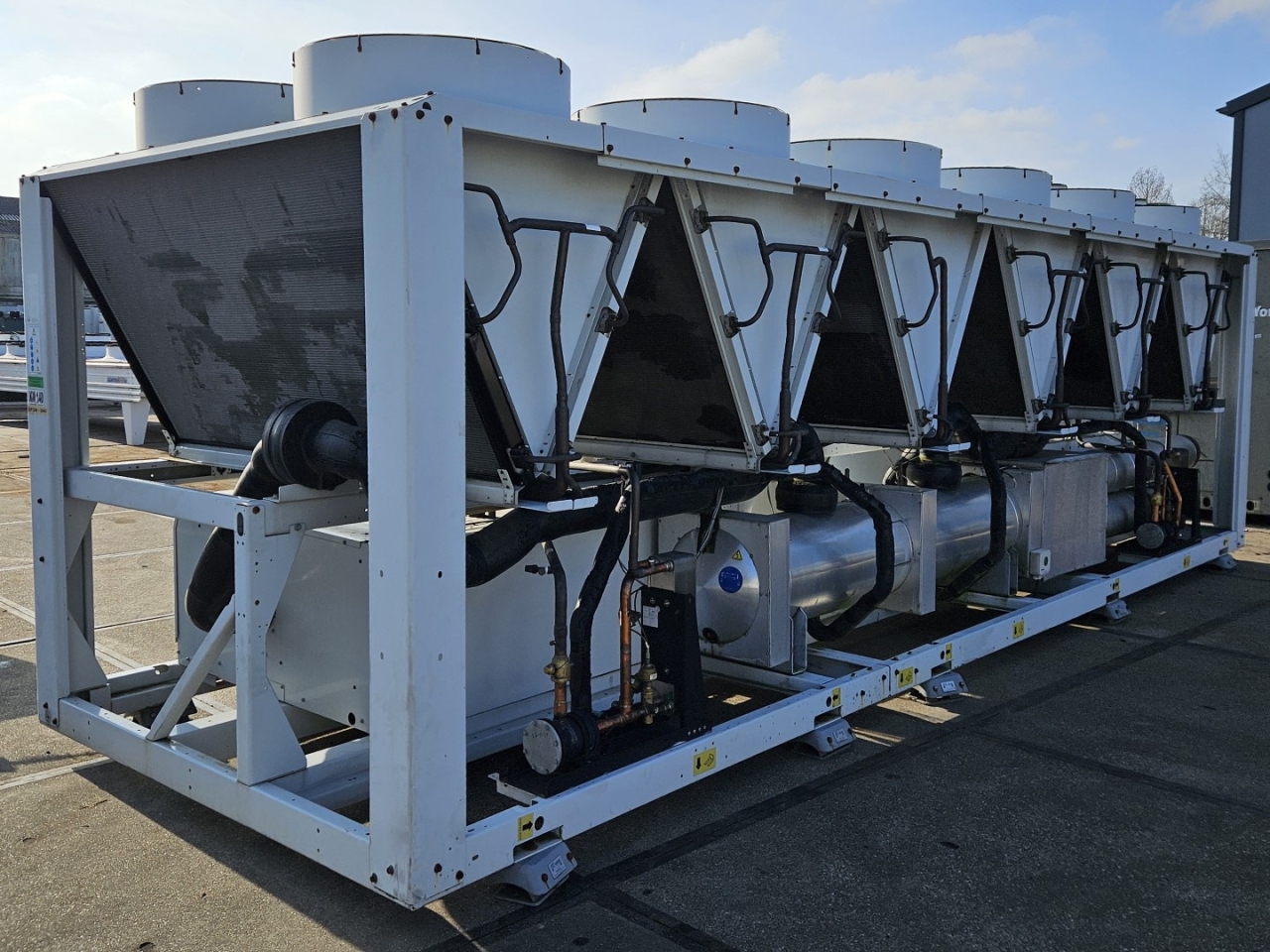

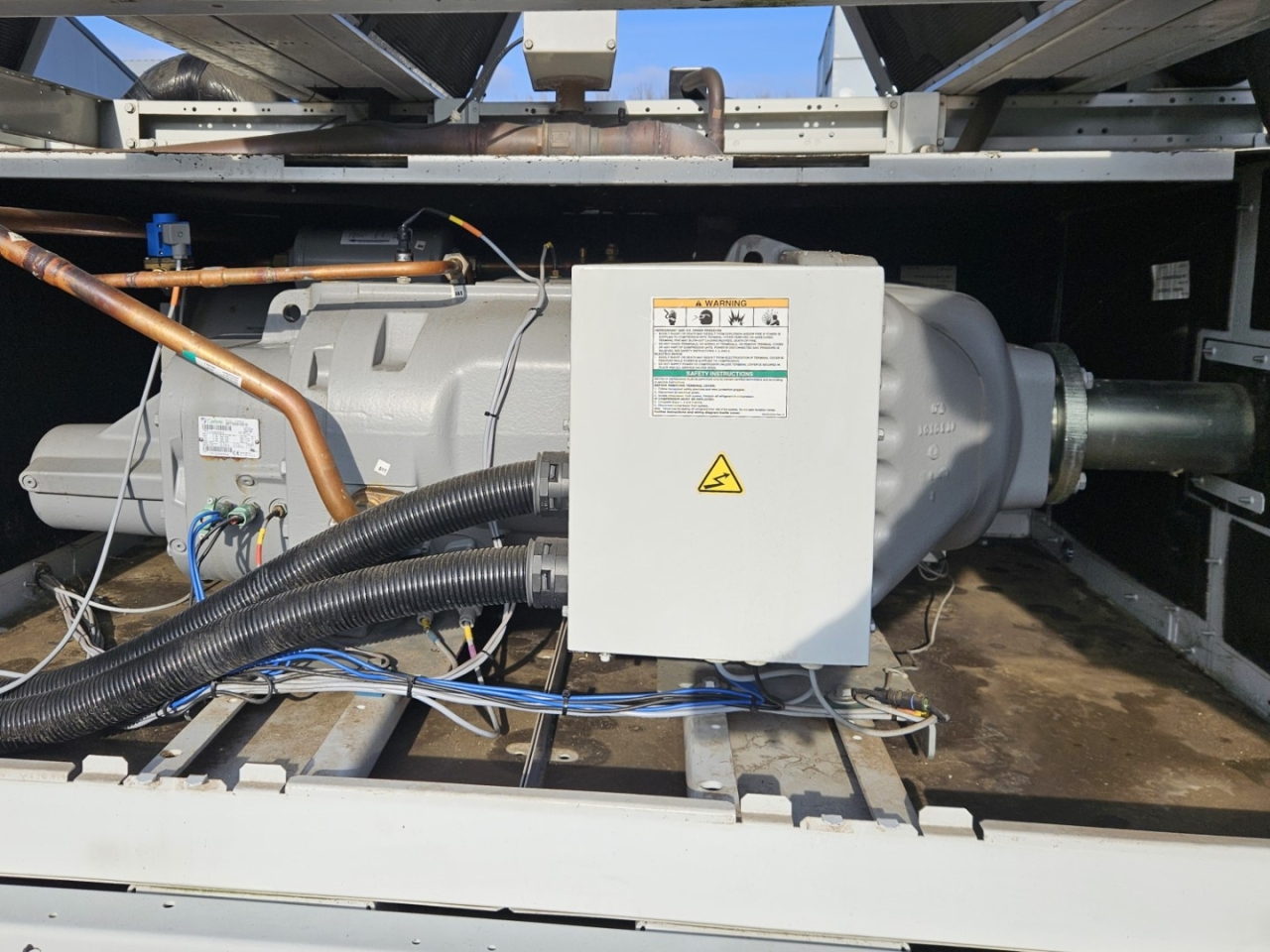

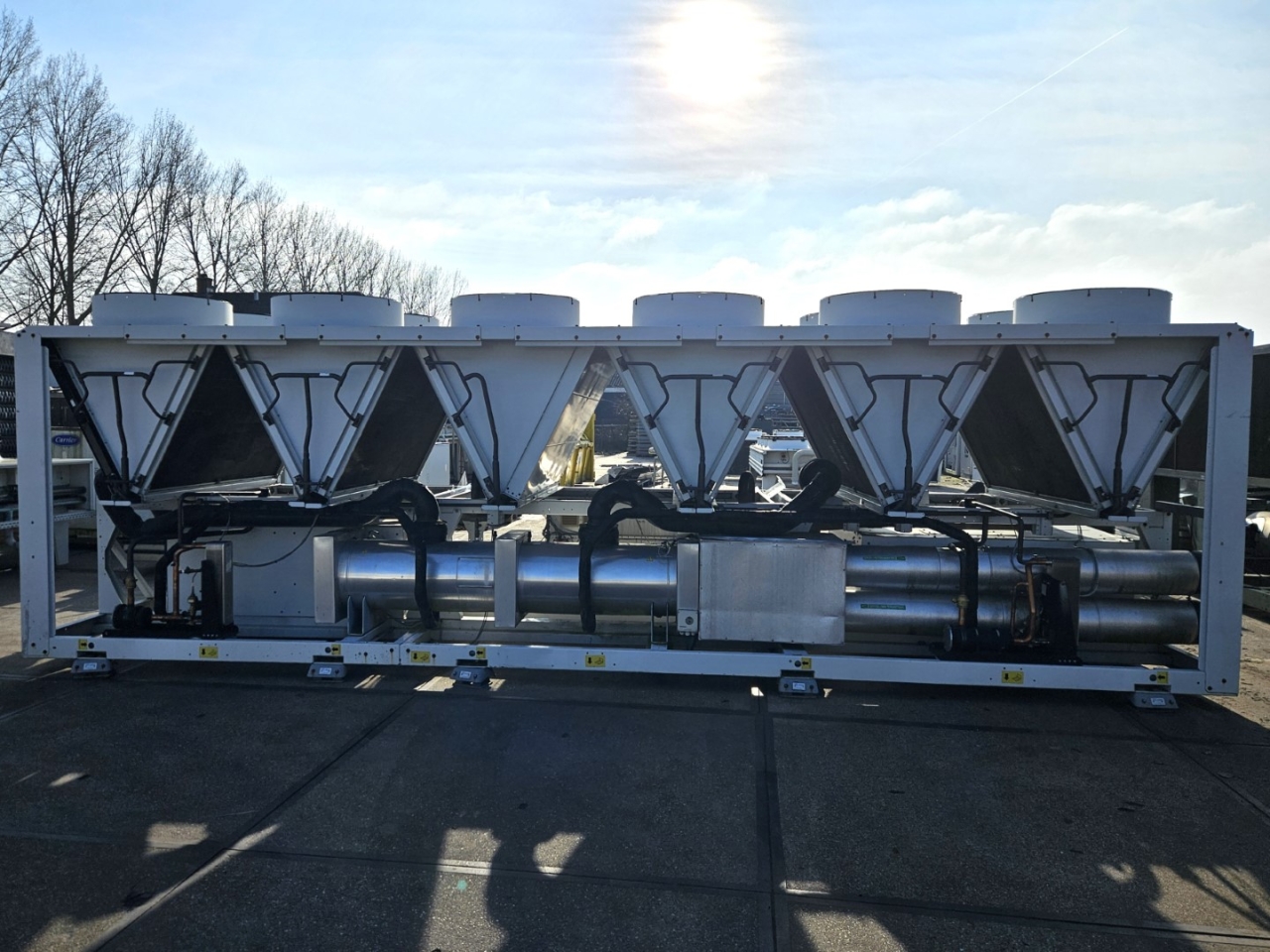

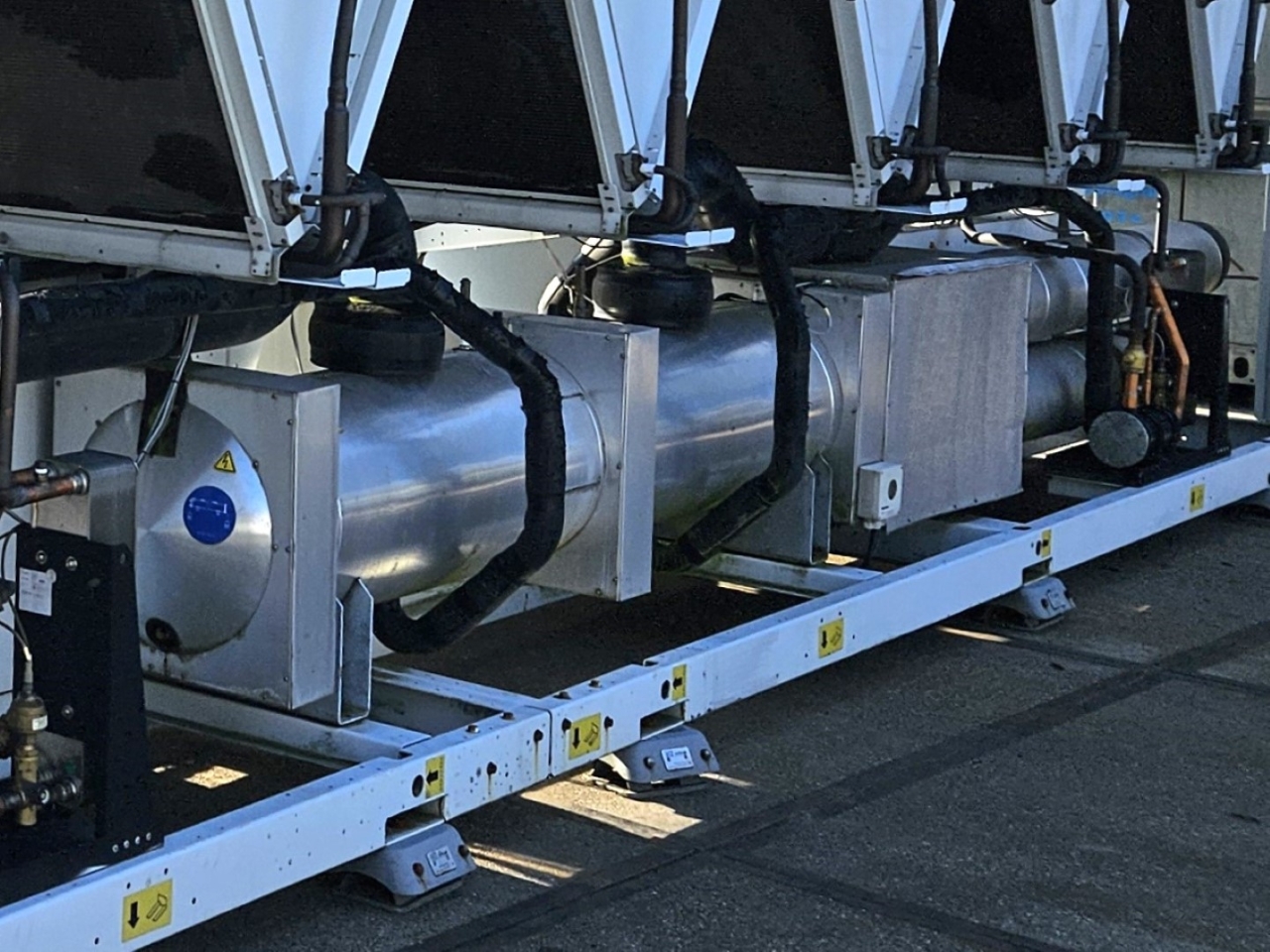

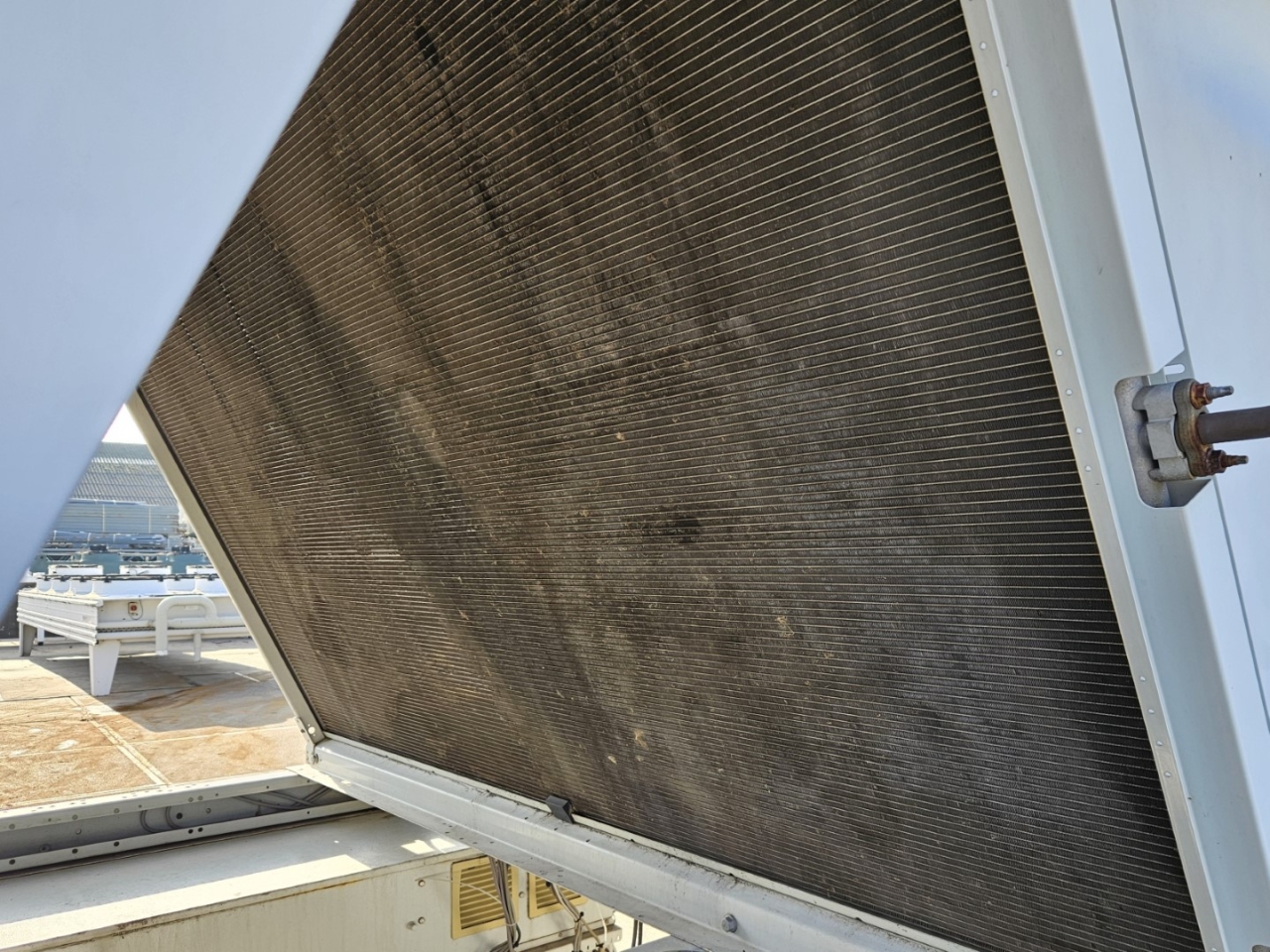

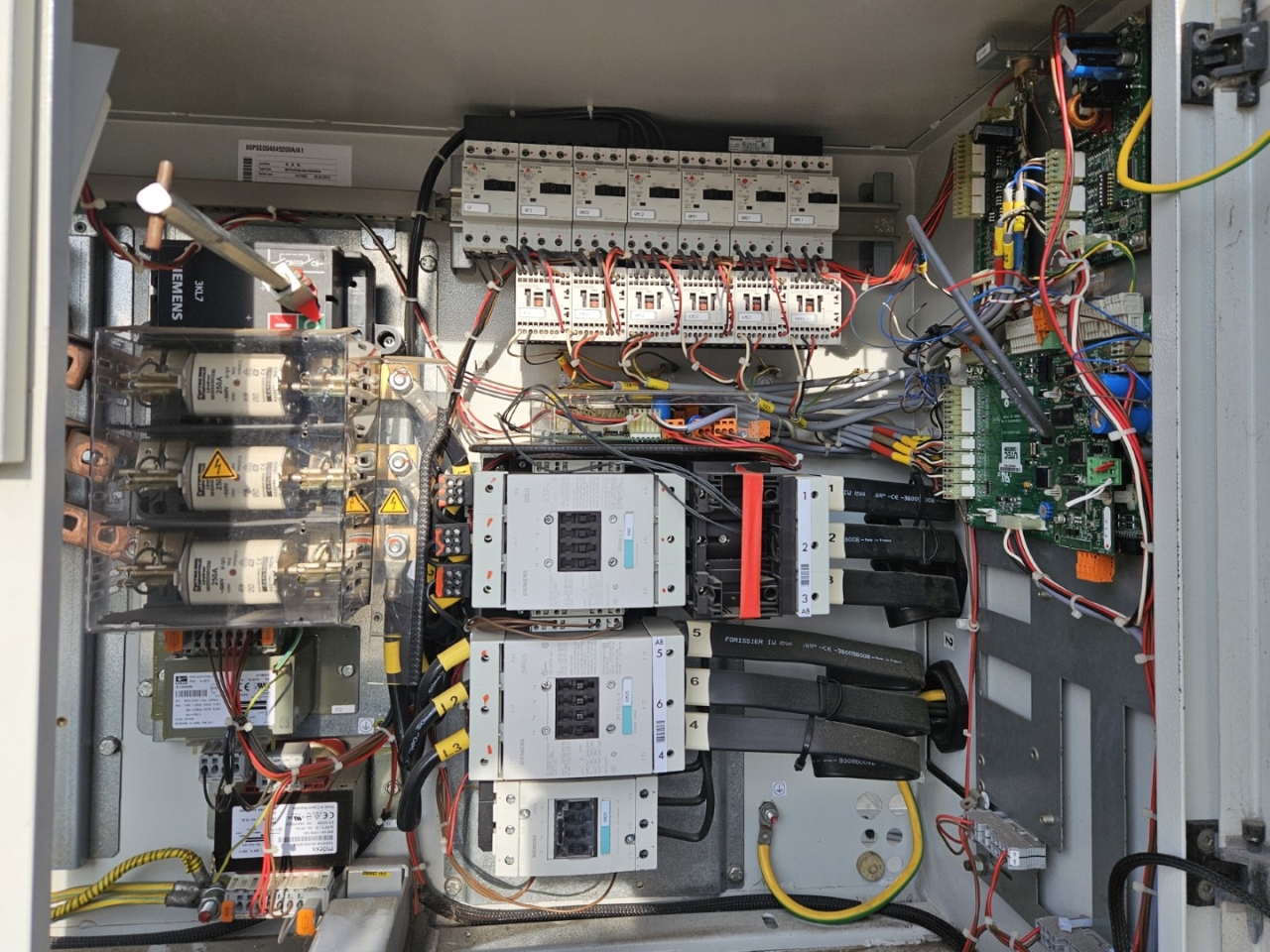

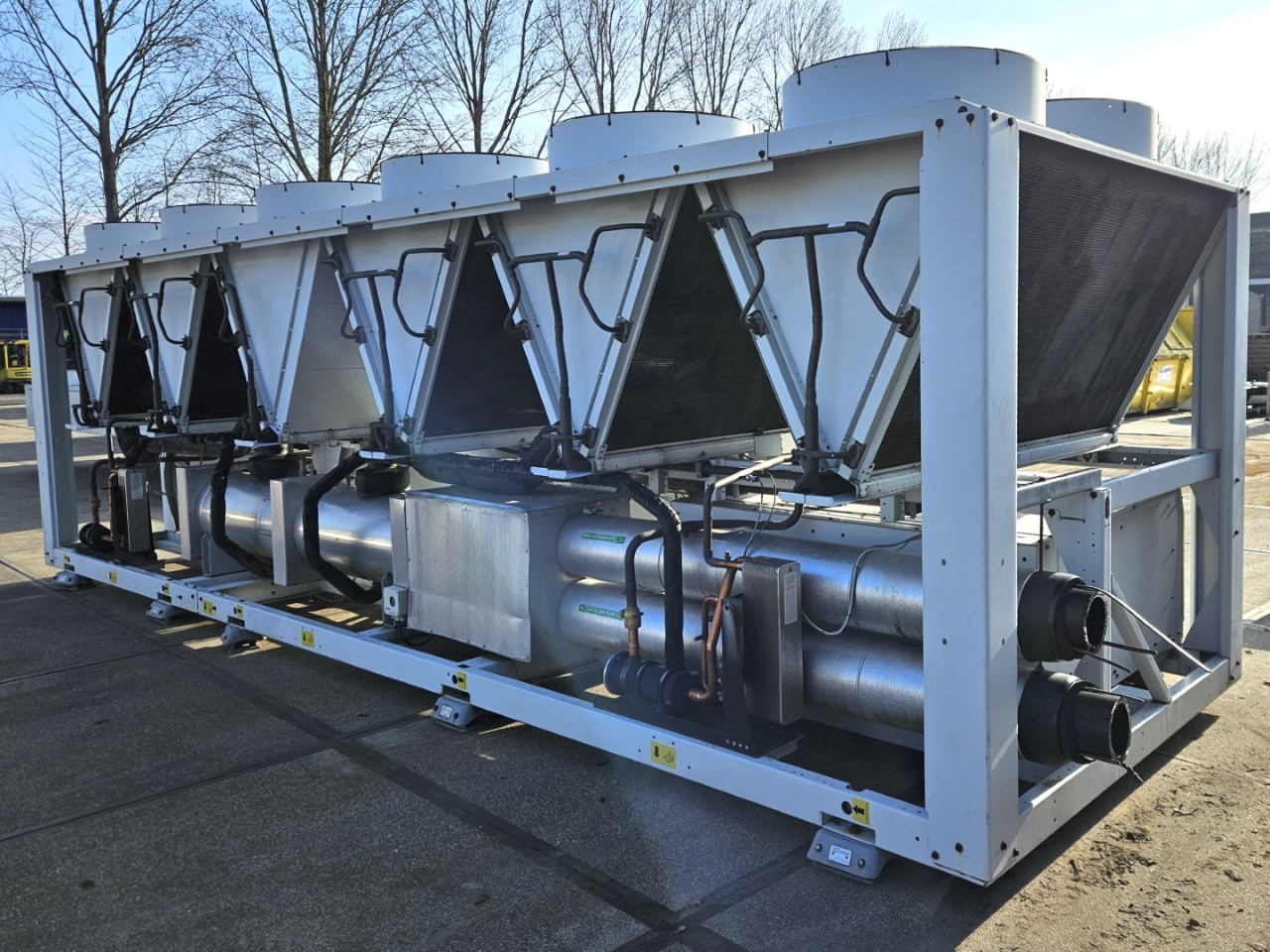

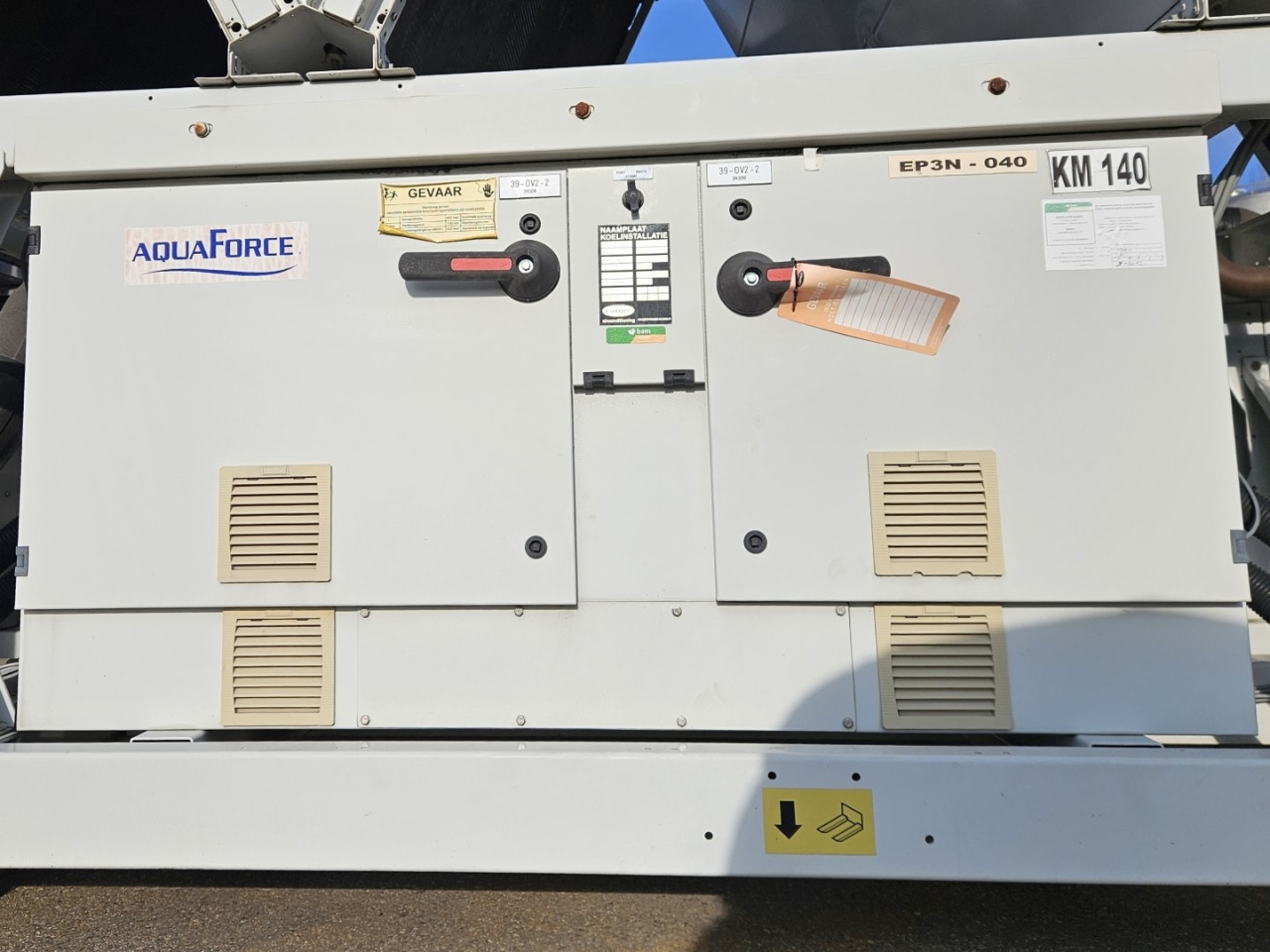

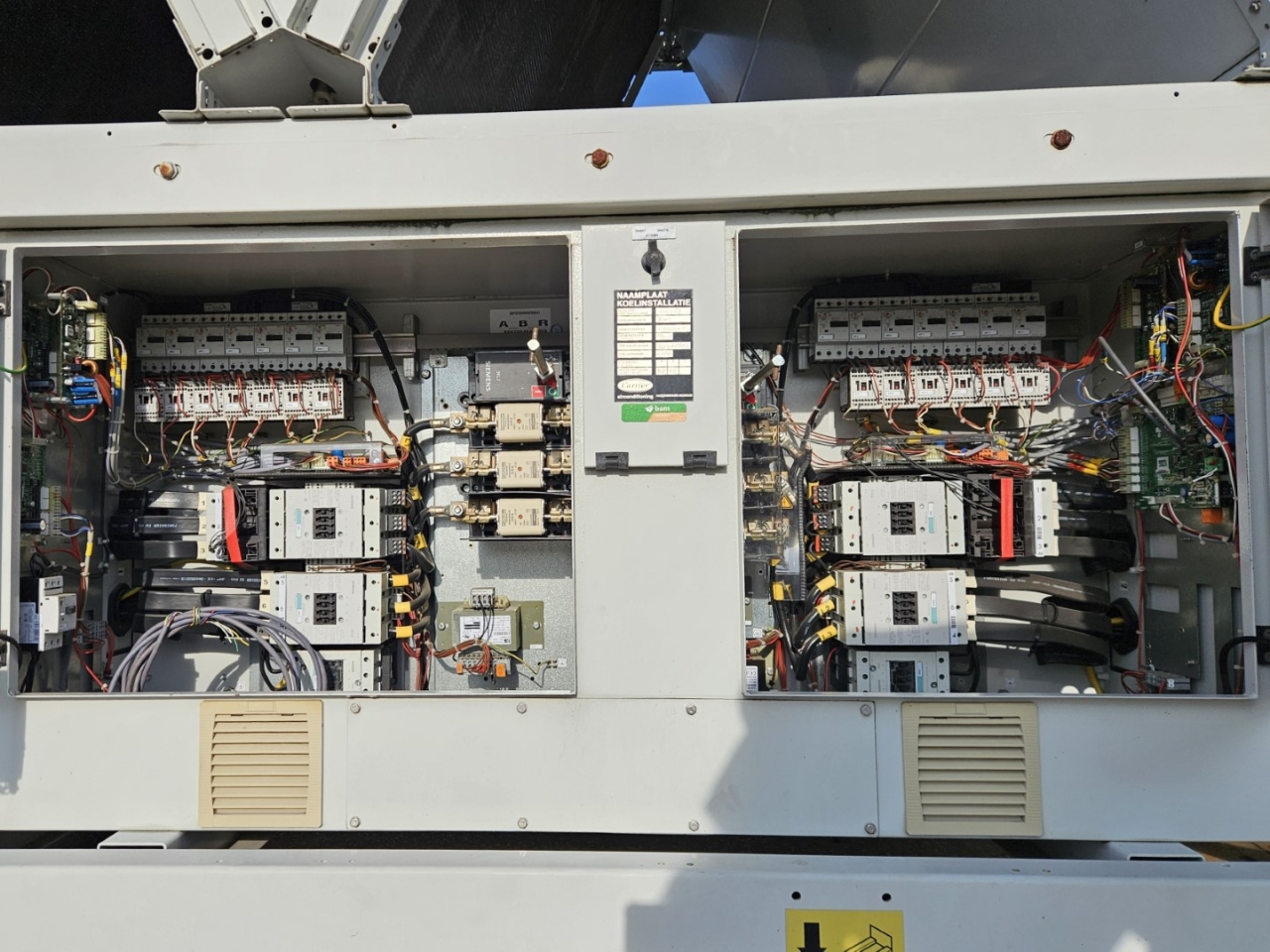

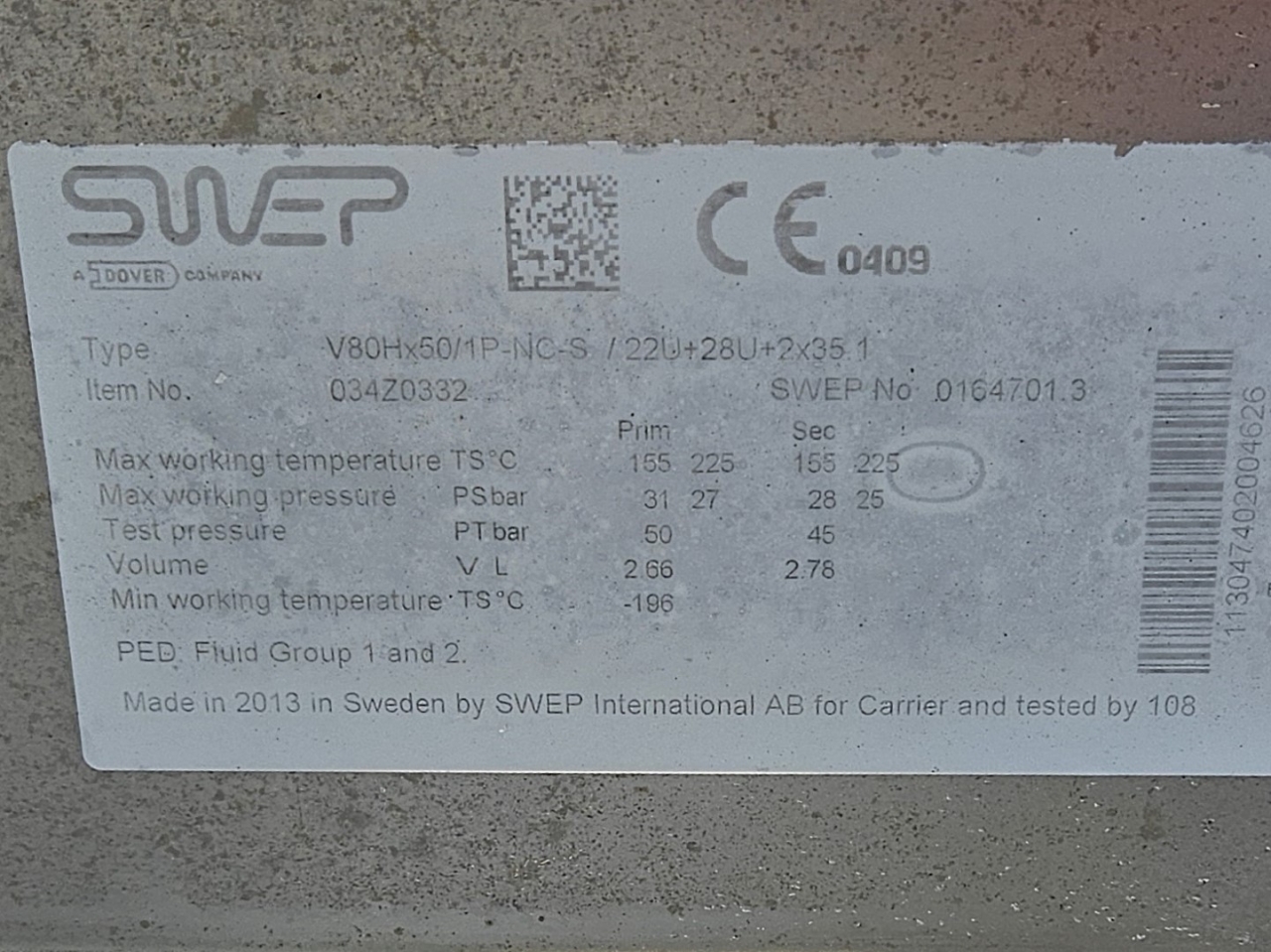

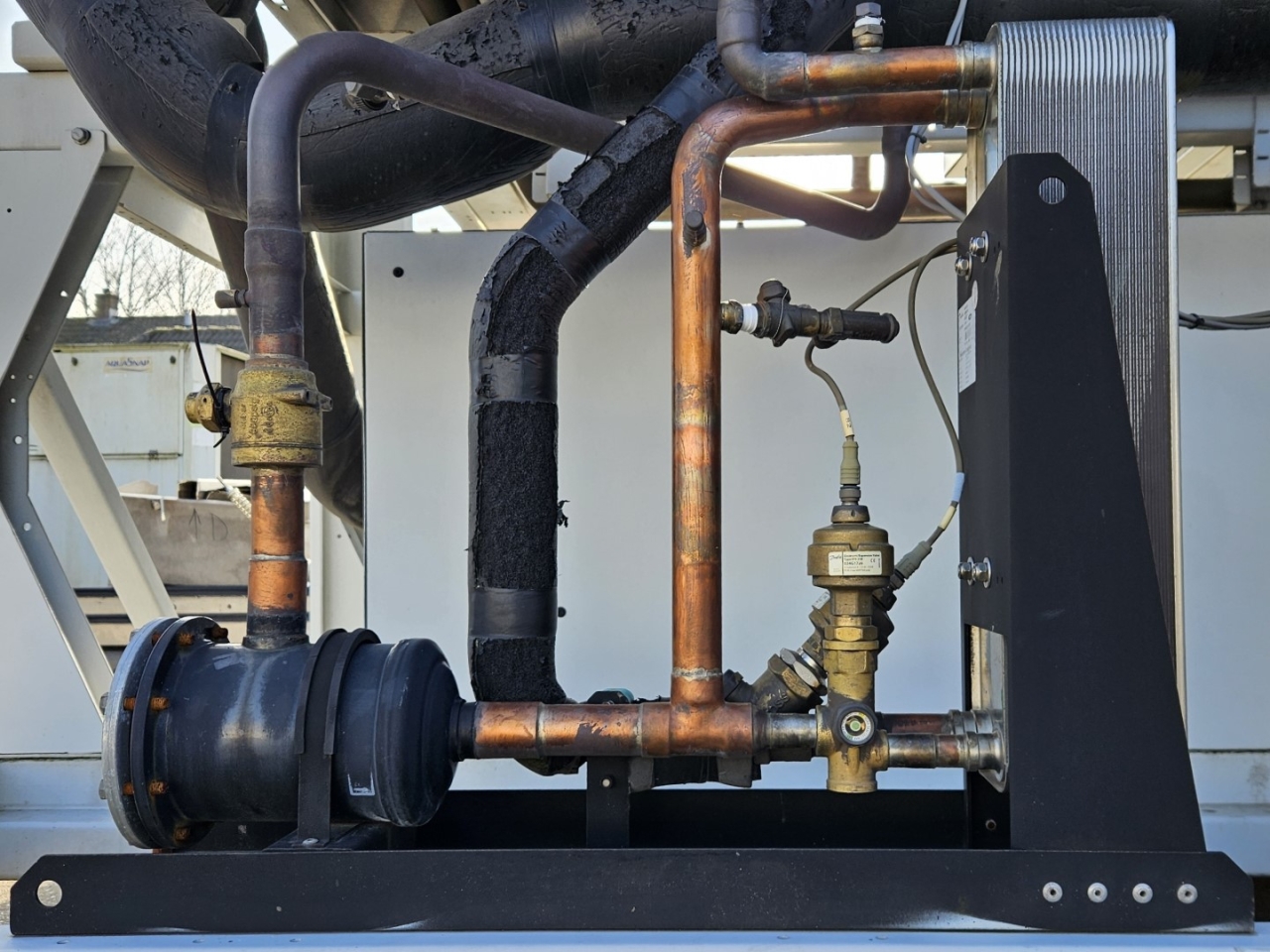

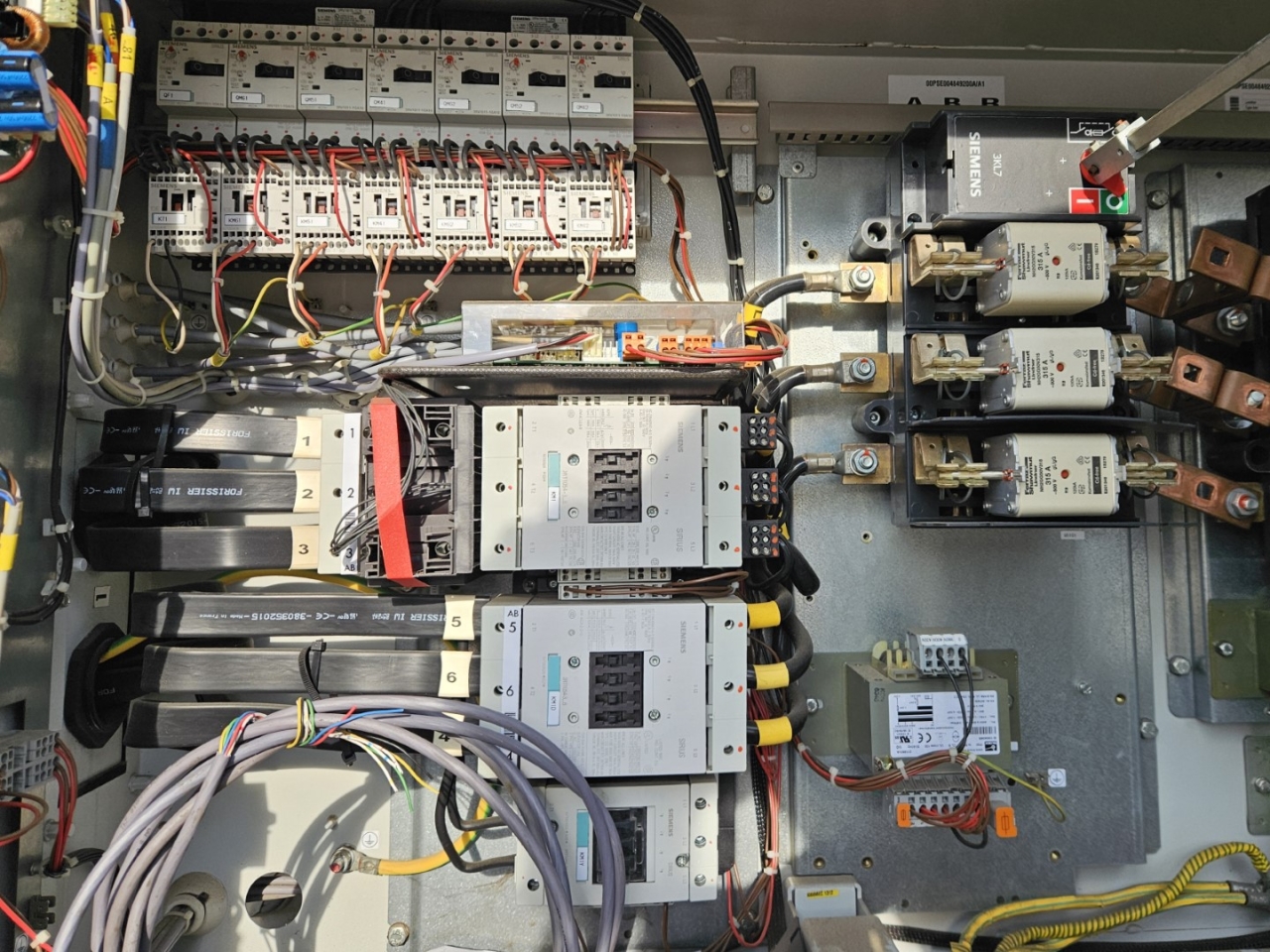

This used Carrier 30 XA 0602 air-cooled chiller is a reliable solution for commercial and industrial cooling needs. Operating on R134a refrigerant, it features two Carlyle screw compressors (06TTA356SS1C and 06TTA301SS1C) and a Carrier shell-and-tube evaporator. The chiller’s air-cooled condenser is equipped with 11 fans, producing a total airflow of 178,750 m³/h, while two SWEP heat exchangers enhance overall heat transfer efficiency. A fully integrated control cabinet ensures easy operation and monitoring, making this unit a robust and efficient choice for high-capacity cooling applications.
*All components of this used chiller will be tested on good working, leak free condition (condensing blocks, compressors, fans, control panel, etcetera). Choosing HOSBV means buying with warranty. We perform a industrial cleaning. Also, we can arrange your shipment.
