Grasso RC 3111
Grasso RC 3111
| 18942 | |
| Marka | Grasso |
| Typ | RC 3111 |
| Czynnik chłodzący | NH 3 (ammonia) |
| kW at -30ºC/+40ºC | 81,3 |
| kW at -40ºC/+40ºC | 46,8 |
| Silnik elektryczny Specs | 50 Hz - 55 kW - 1475 RPM |
| Podstawa na stalowej ramie |
|

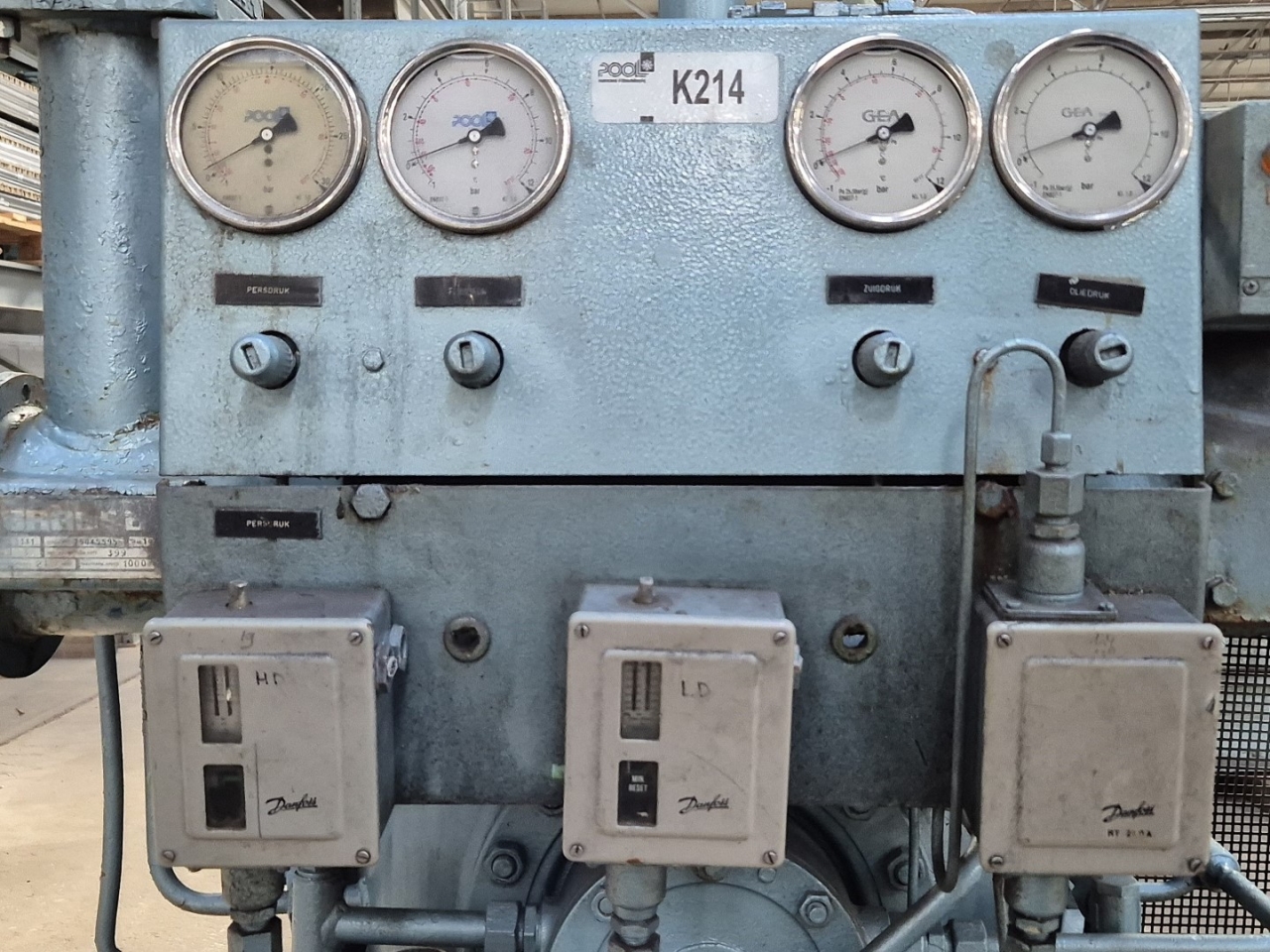

| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Wskaźniki ciśnienia |
|
| Okno widokowe |
|
| m3 / h | 399 |

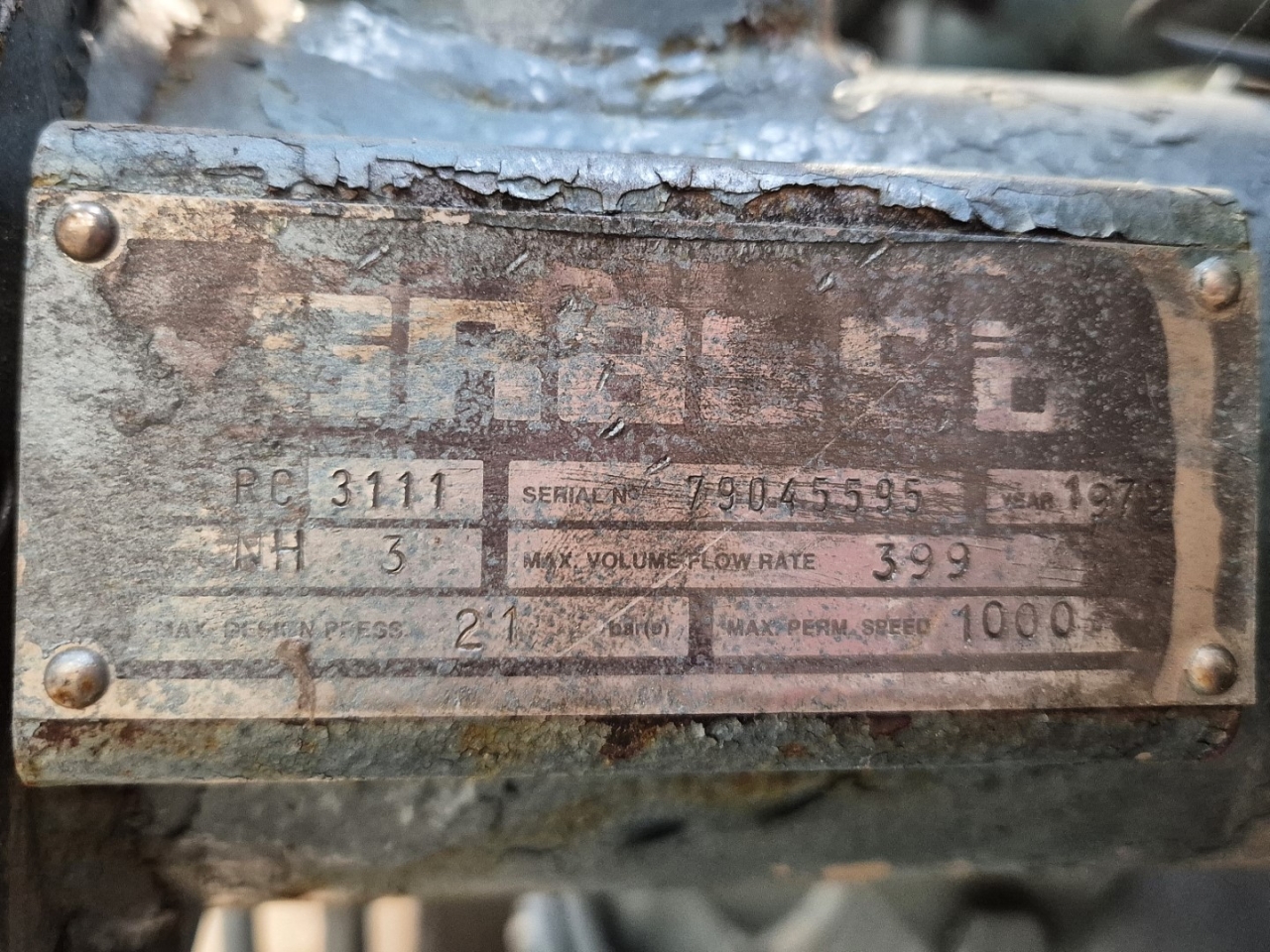

| Uwagi | | Y.o.b. 1979 |
| Uwagi || | *Capacity based on a condensing temperature of +35ºC and at 867 RPM |
| Rozmiary | 2450x1120x2350 mm (LxWxH) |
| Liczba sztuk | 1 |
Grasso RC 3111

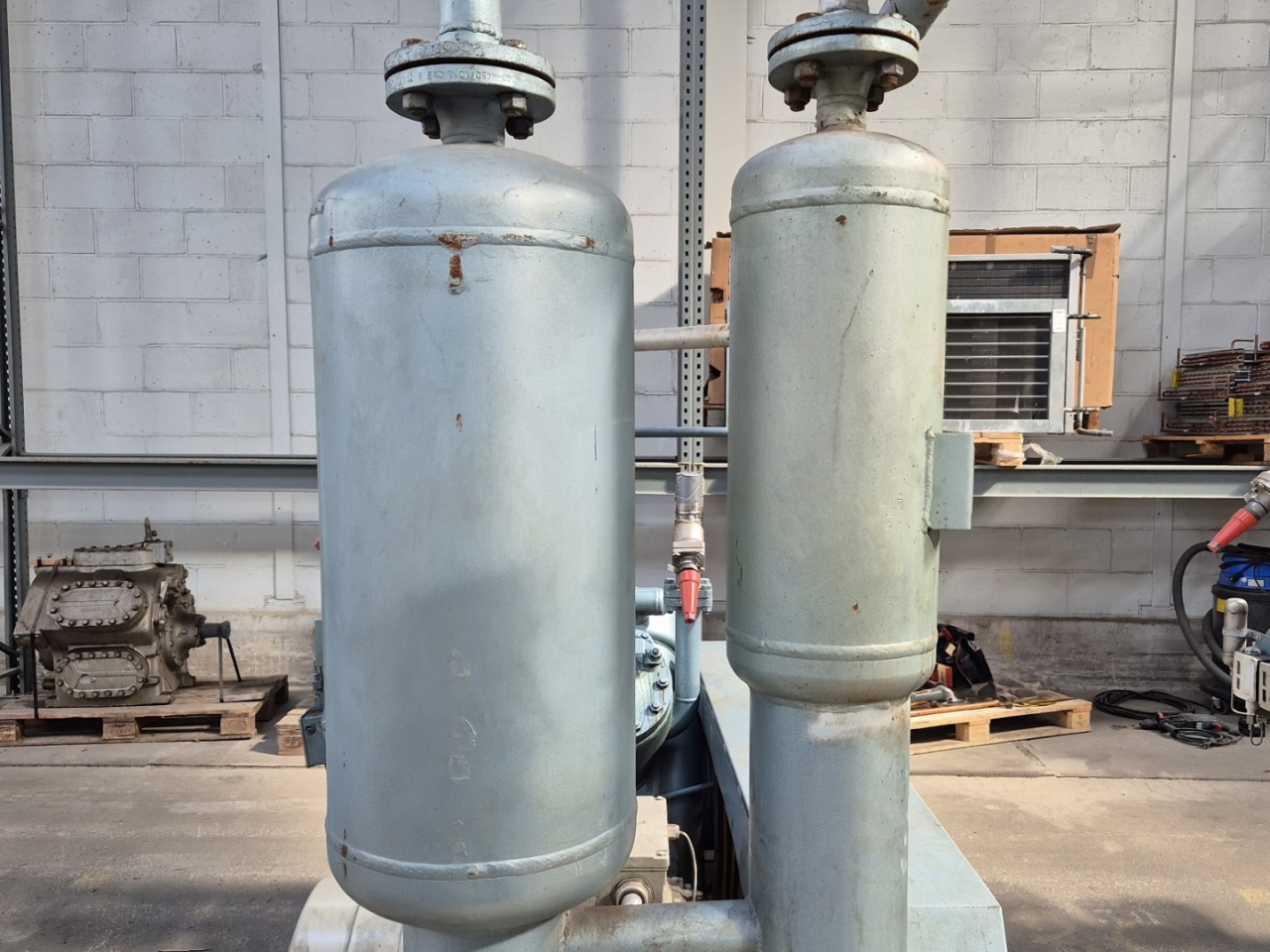

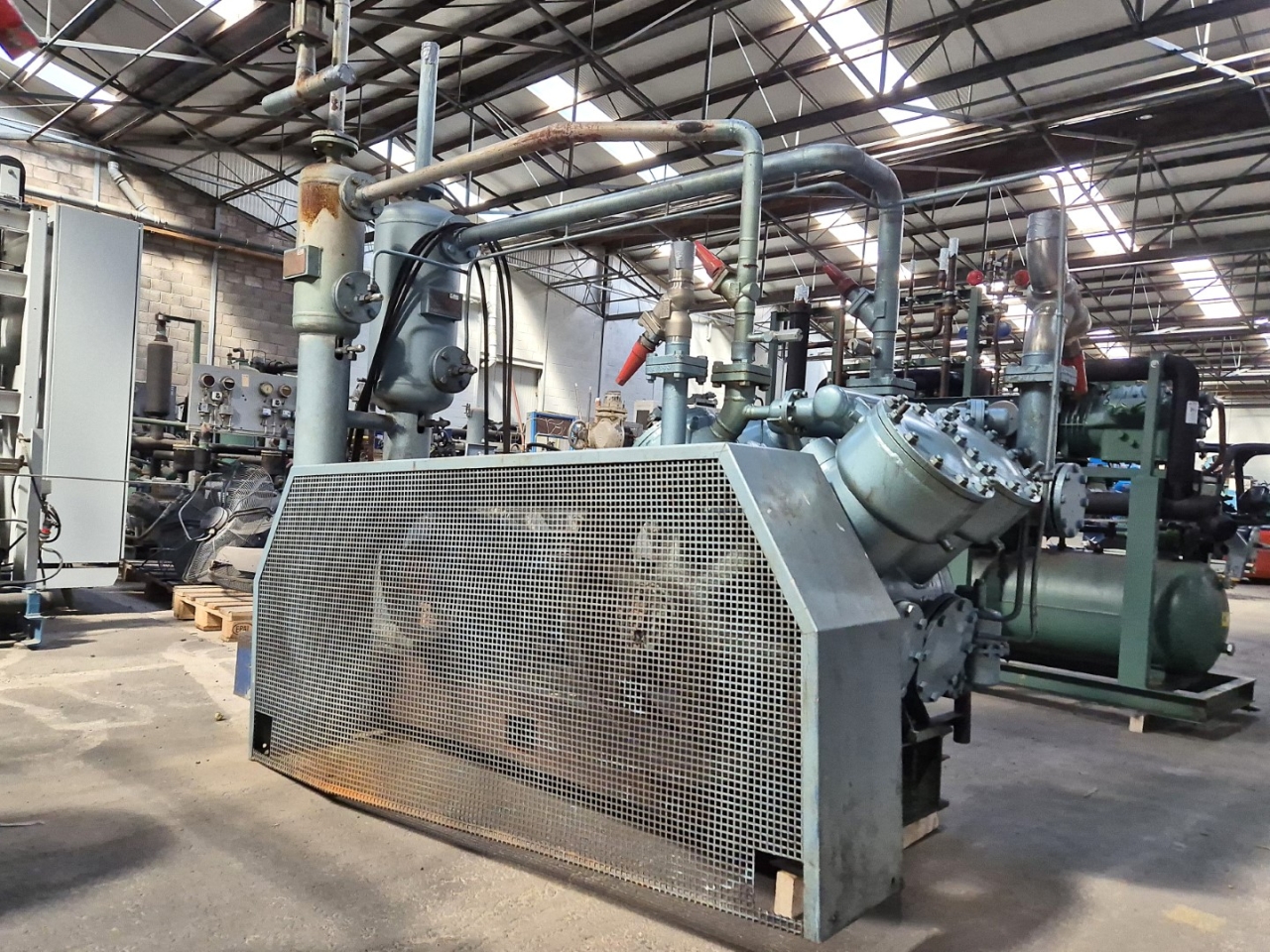

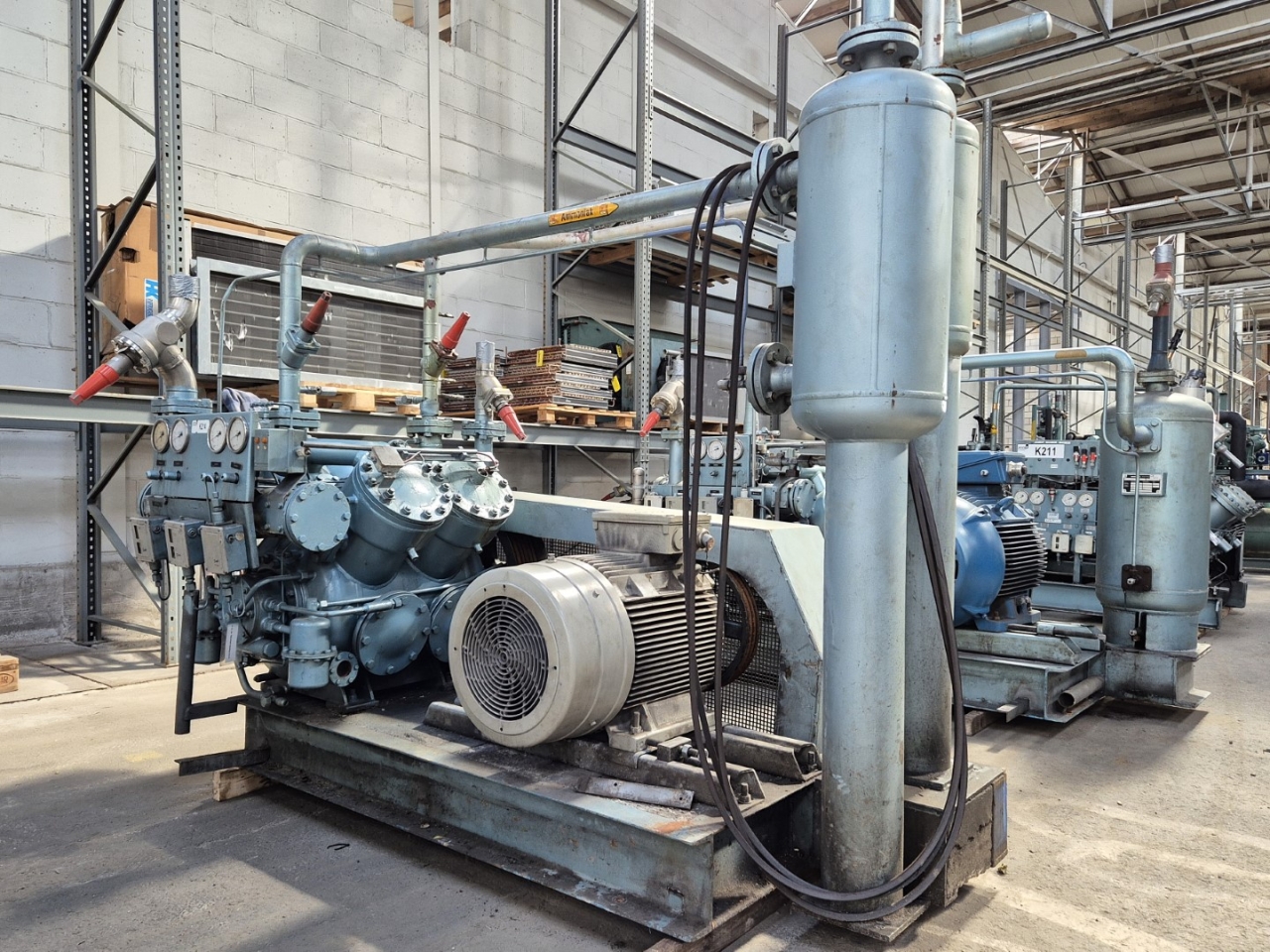

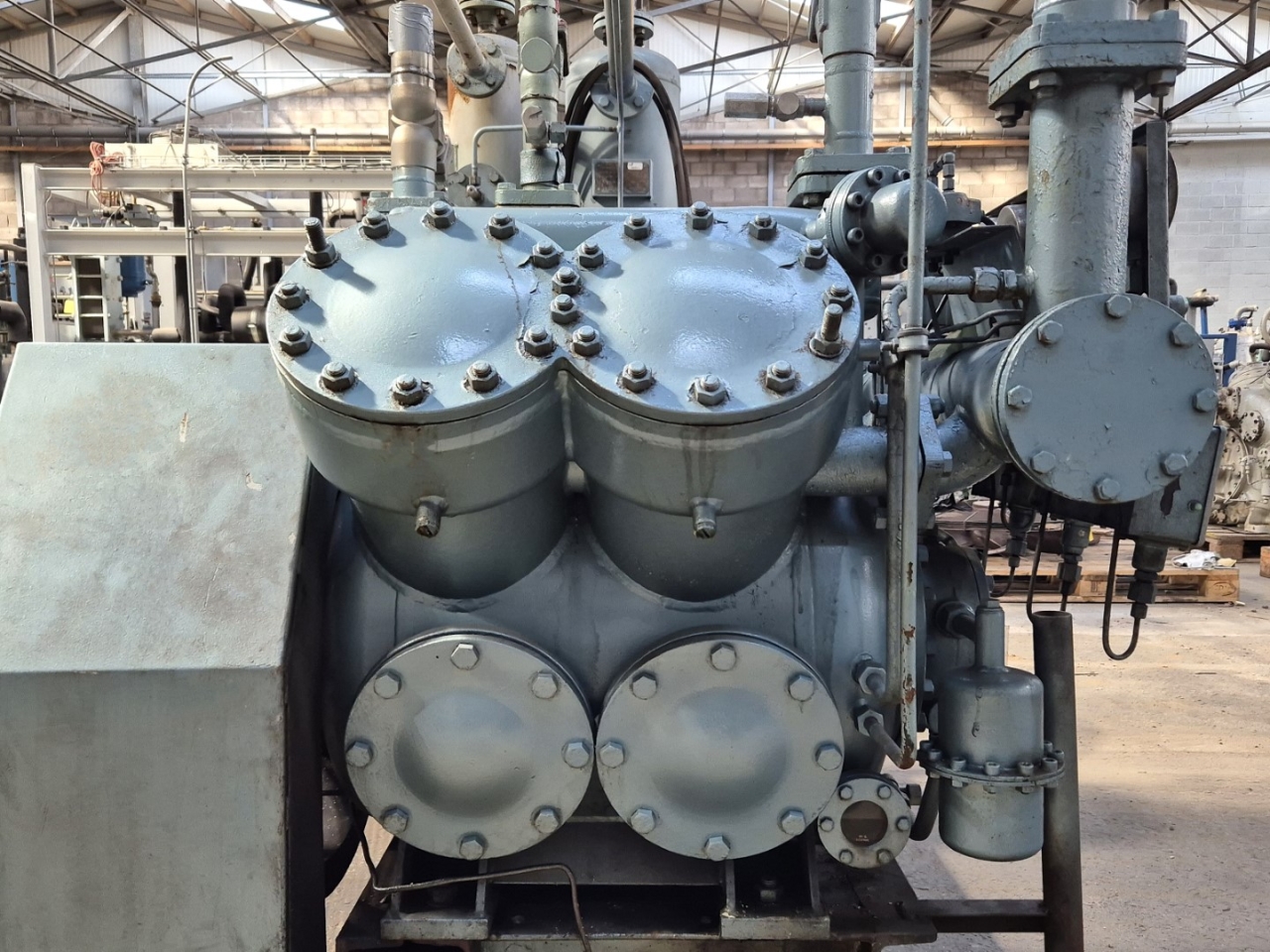

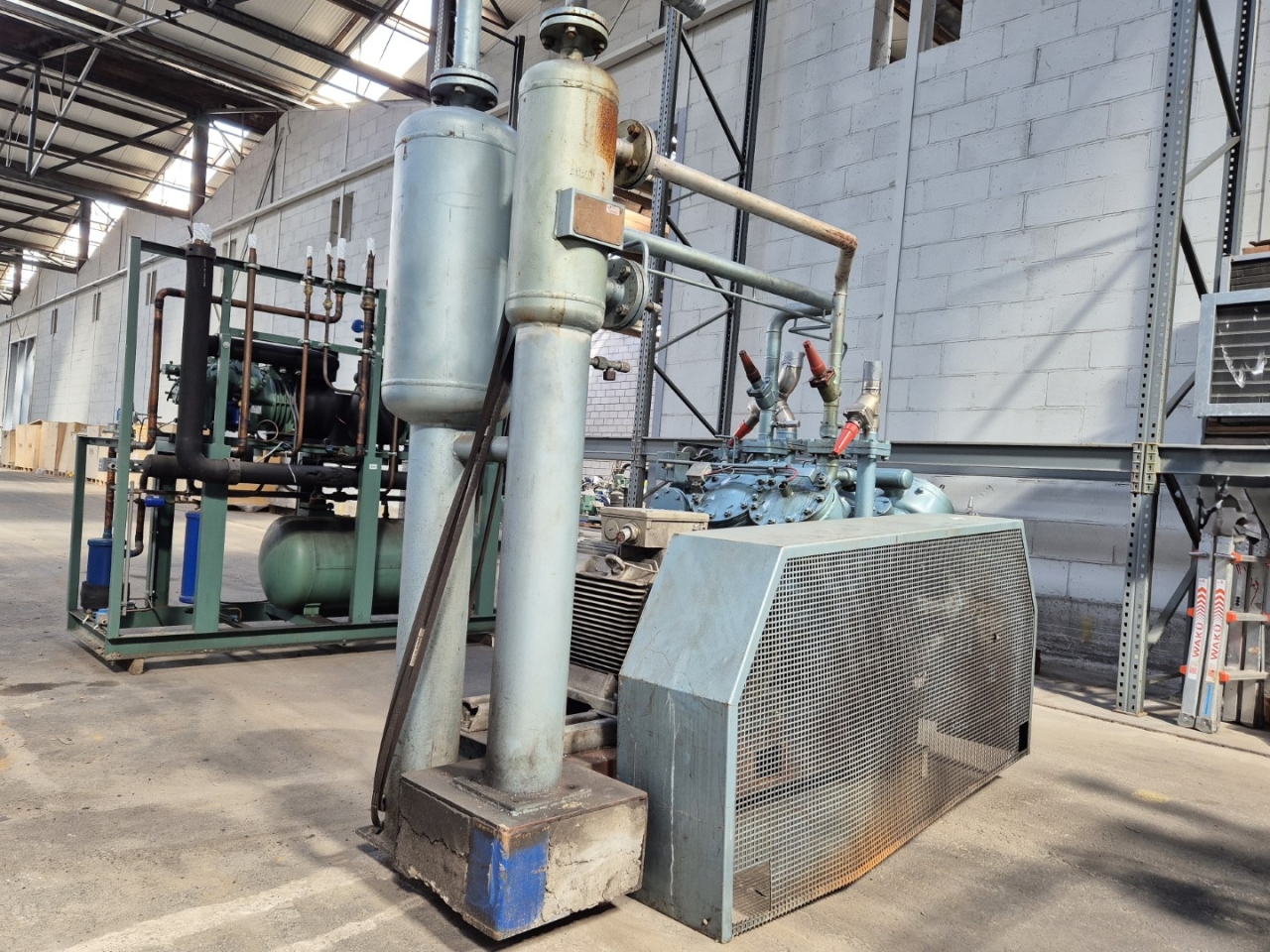

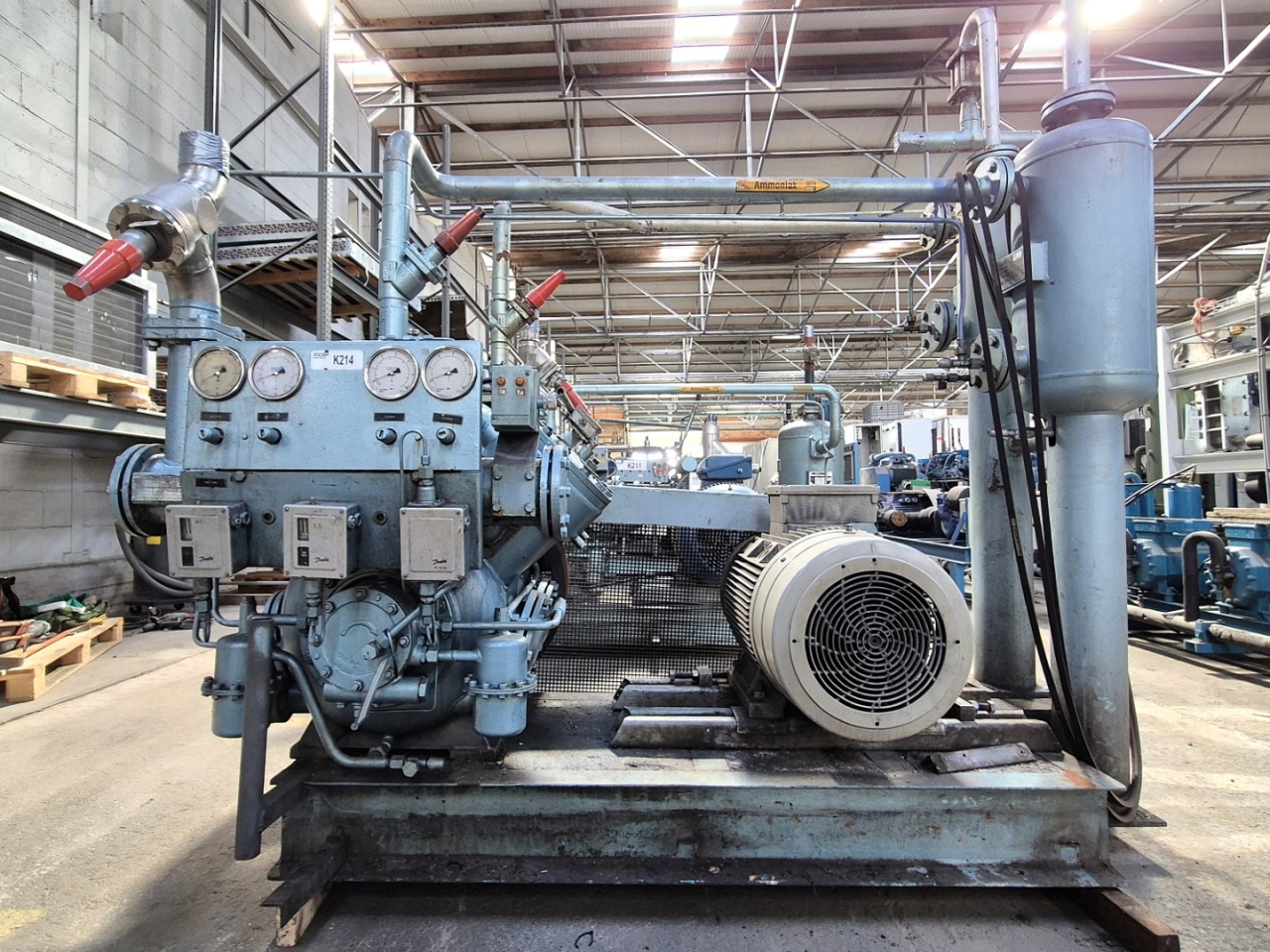

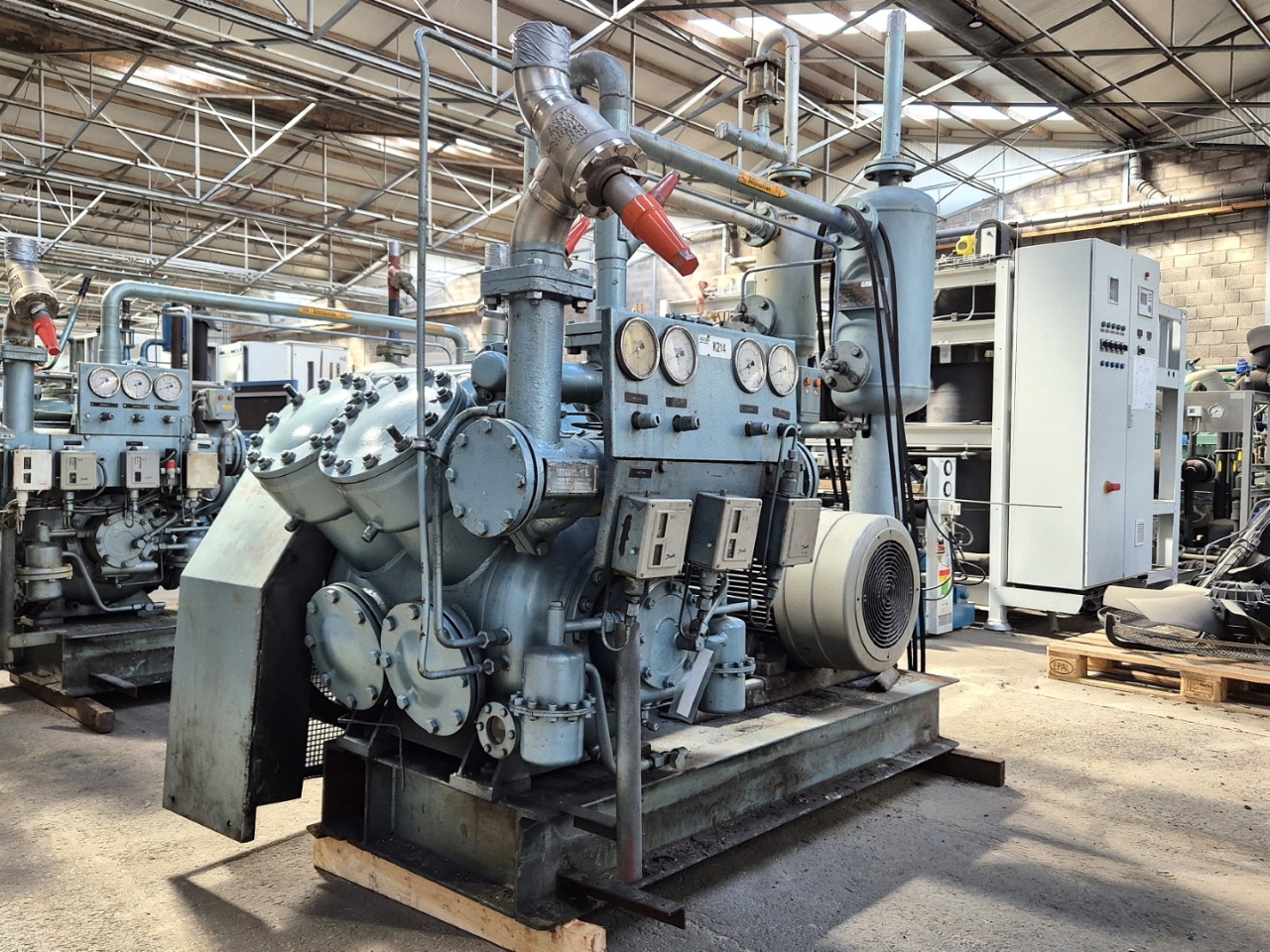

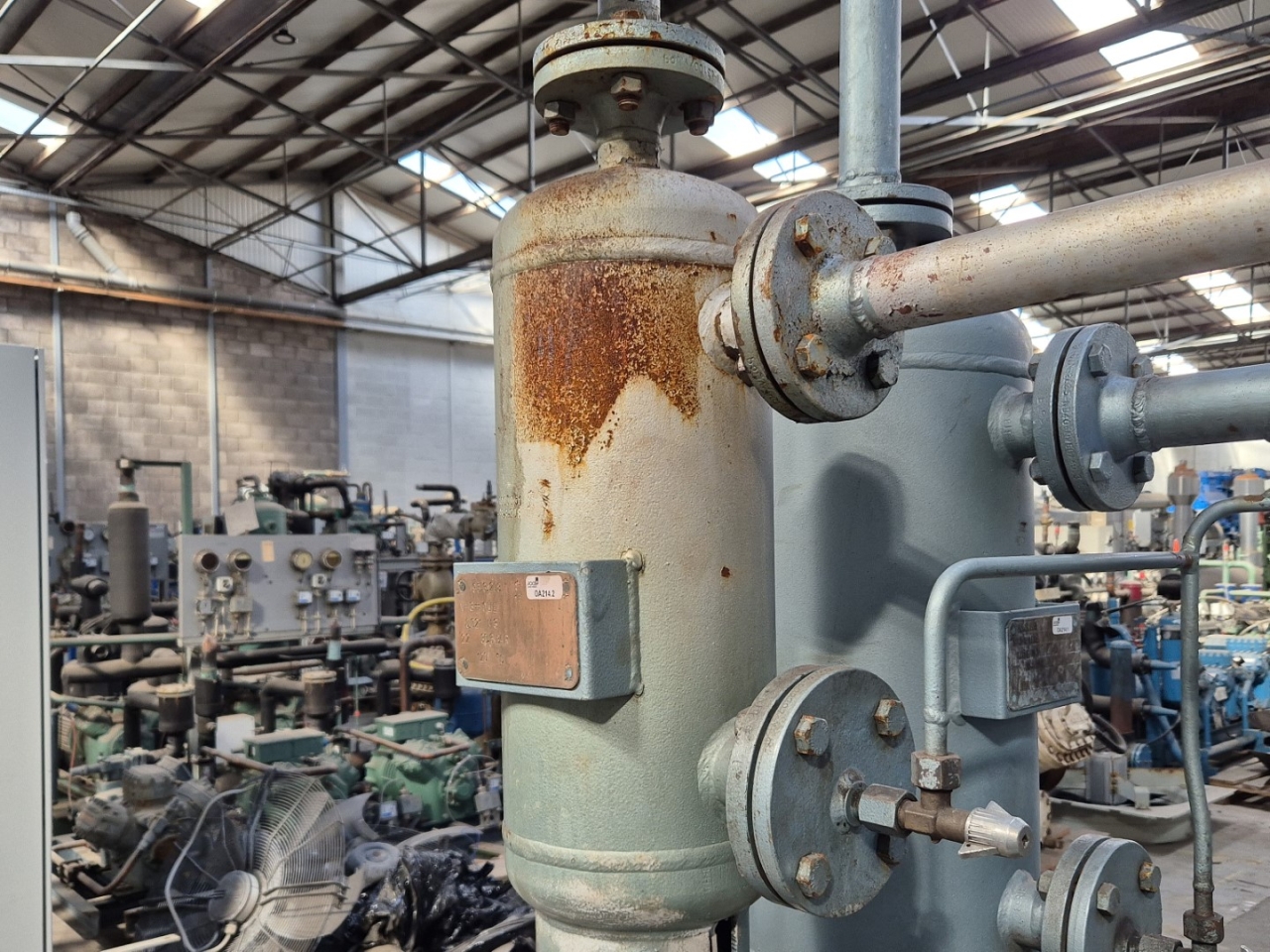

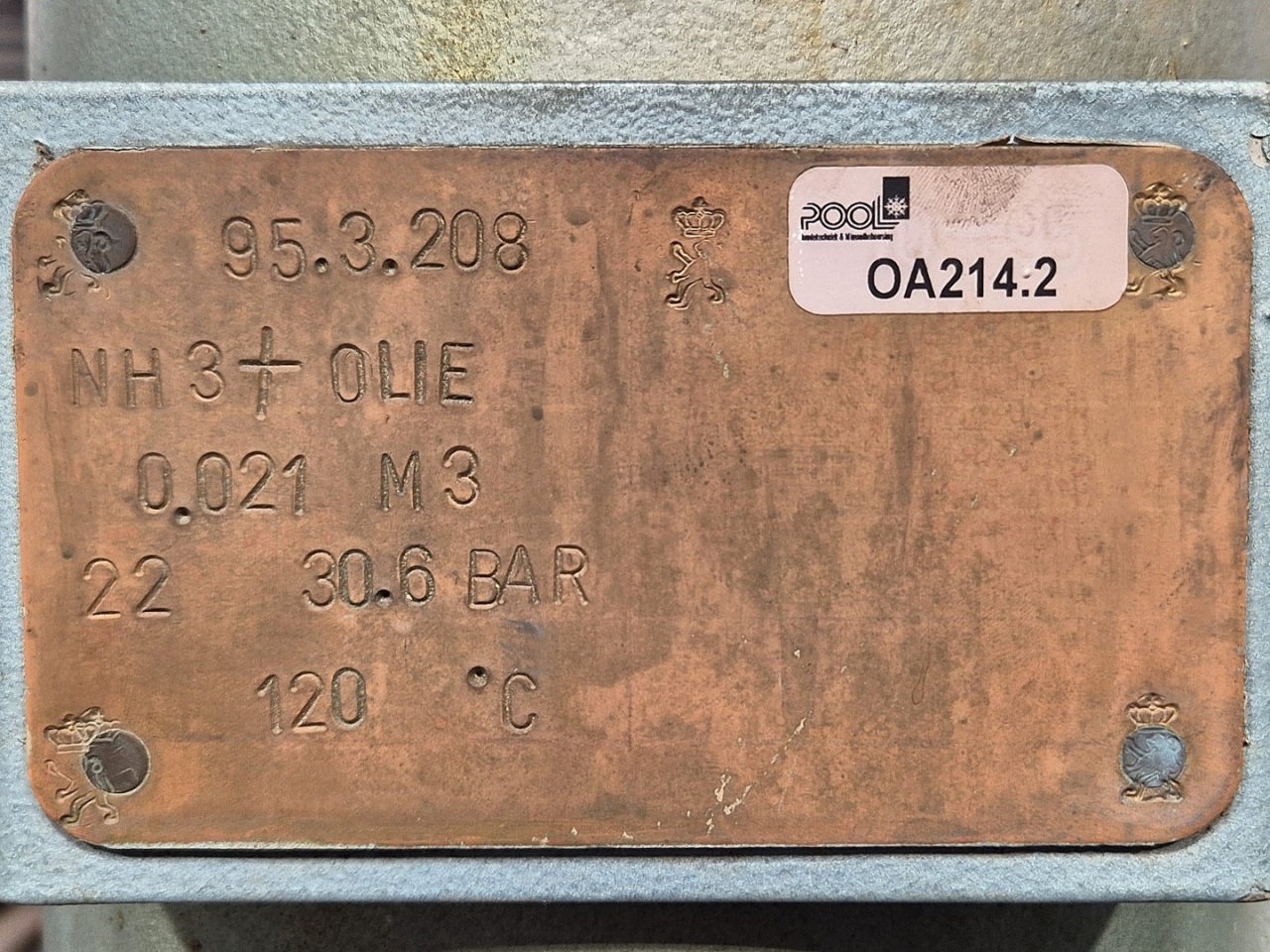

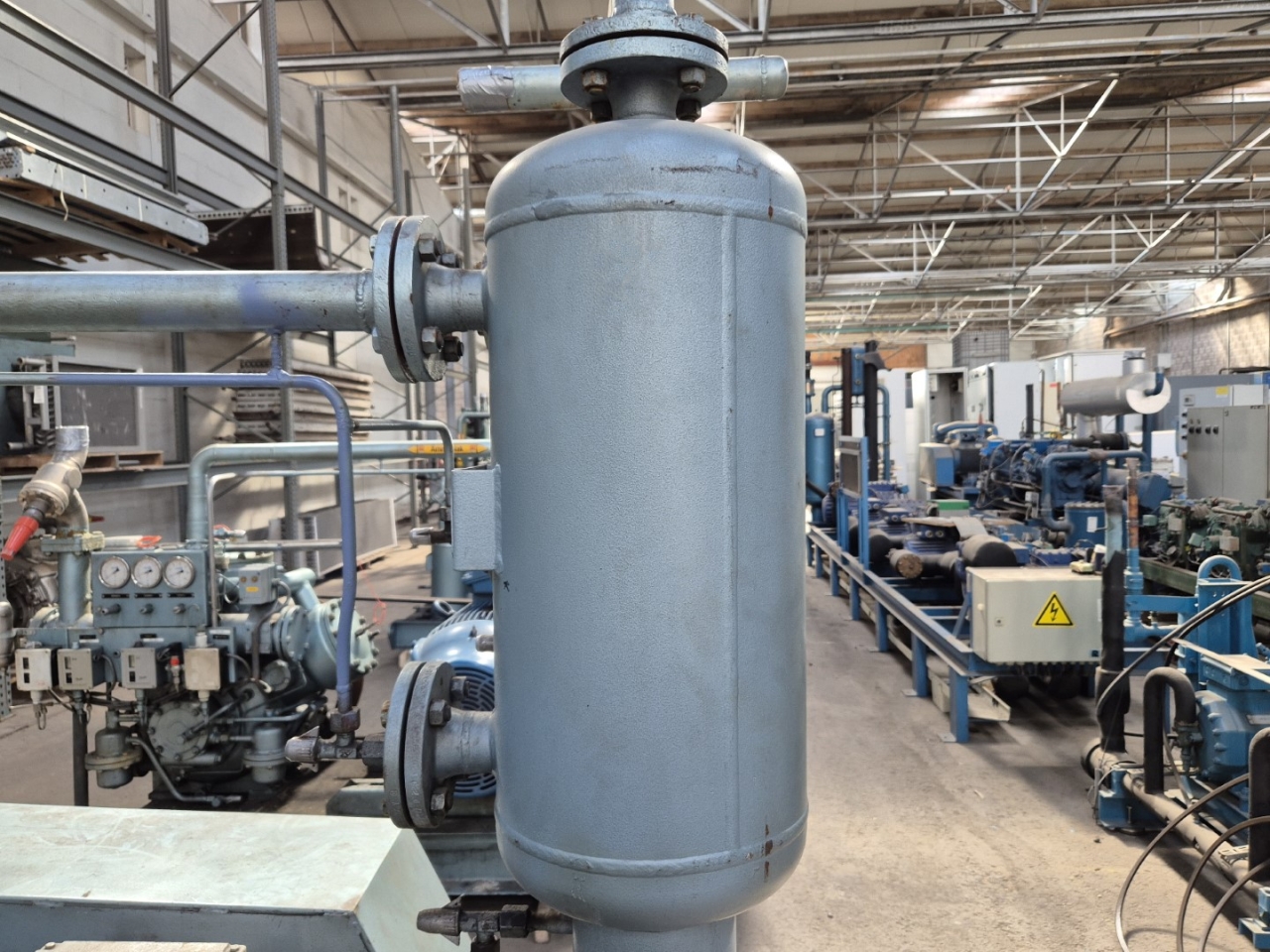

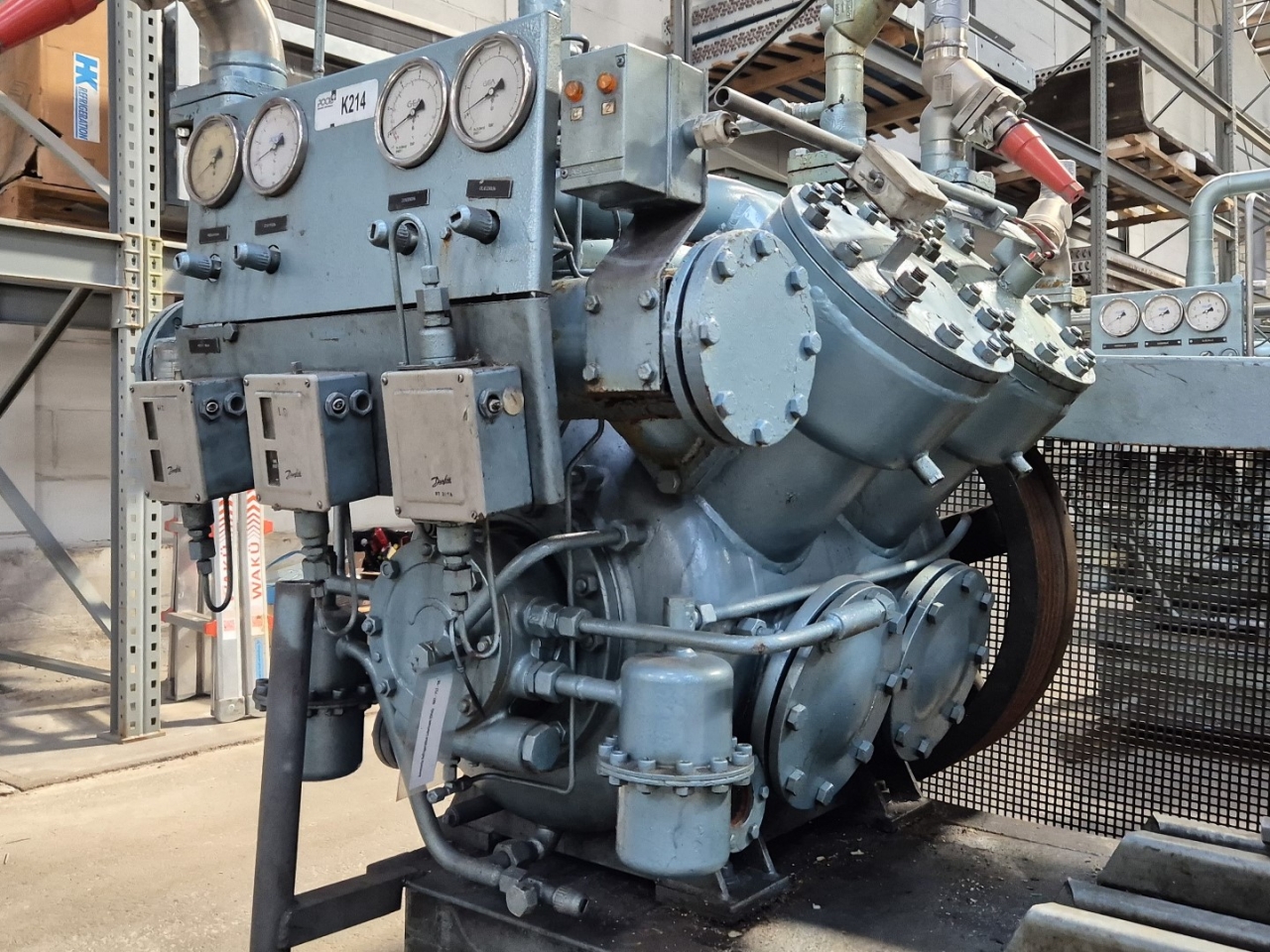

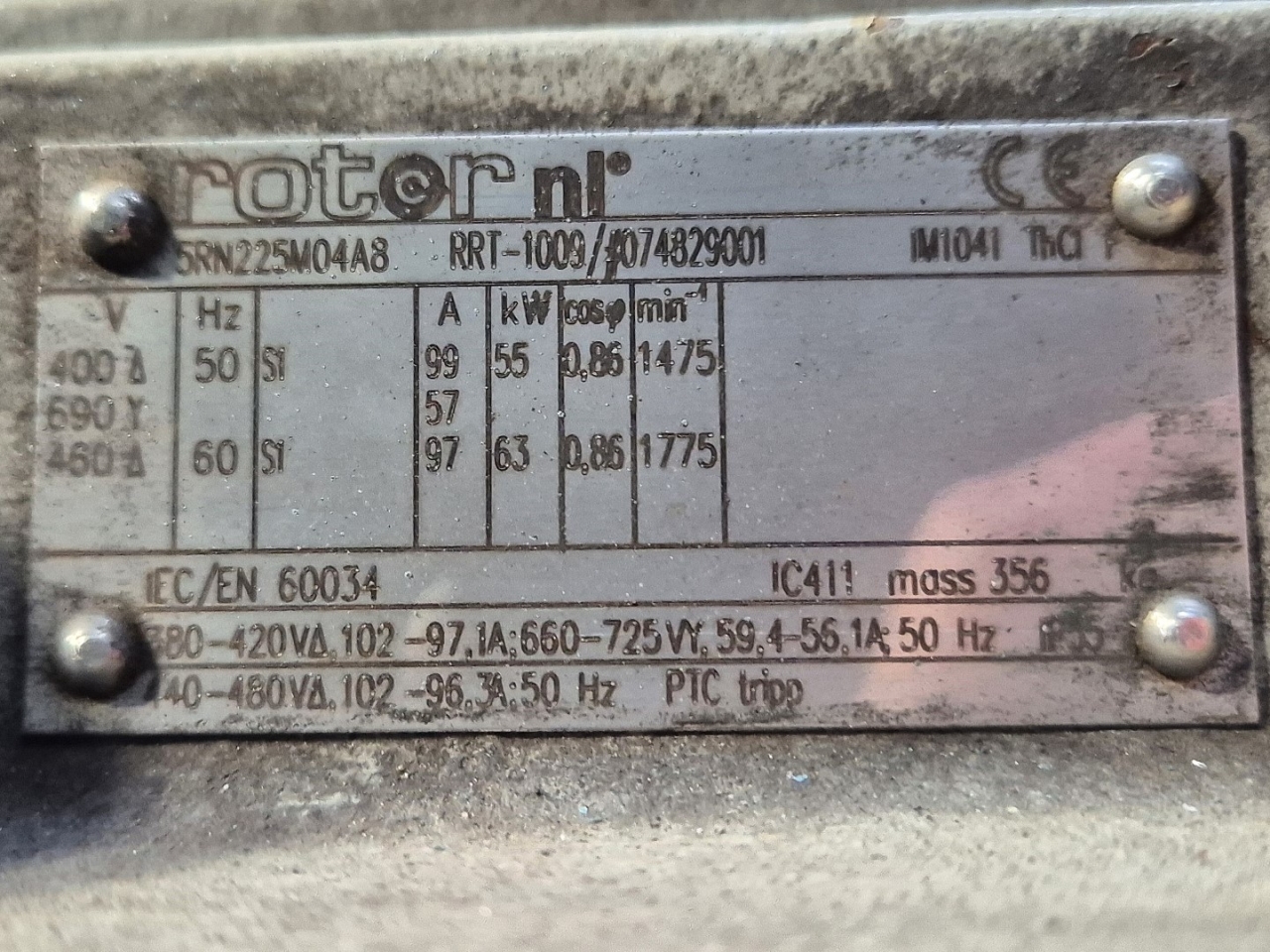

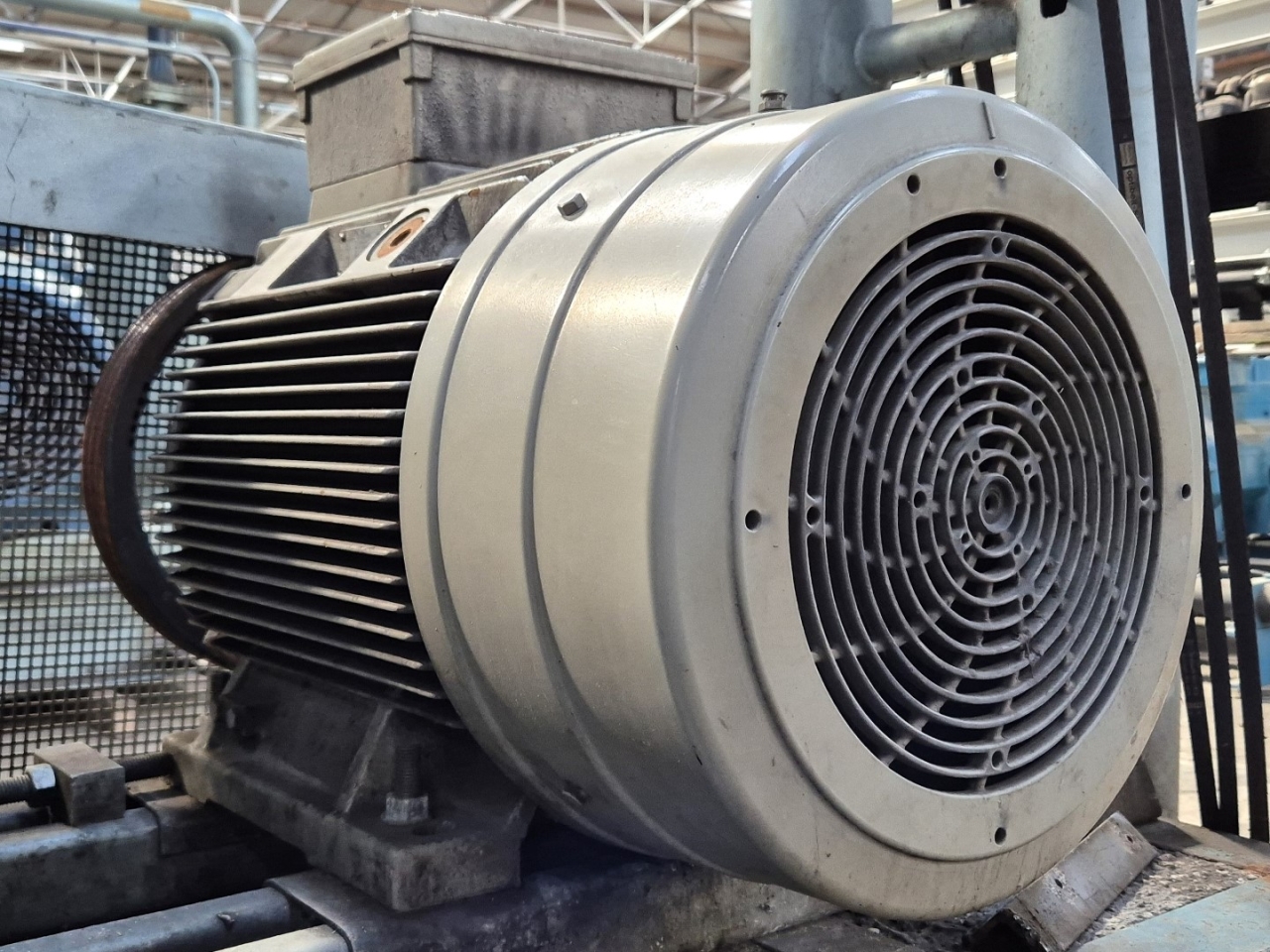

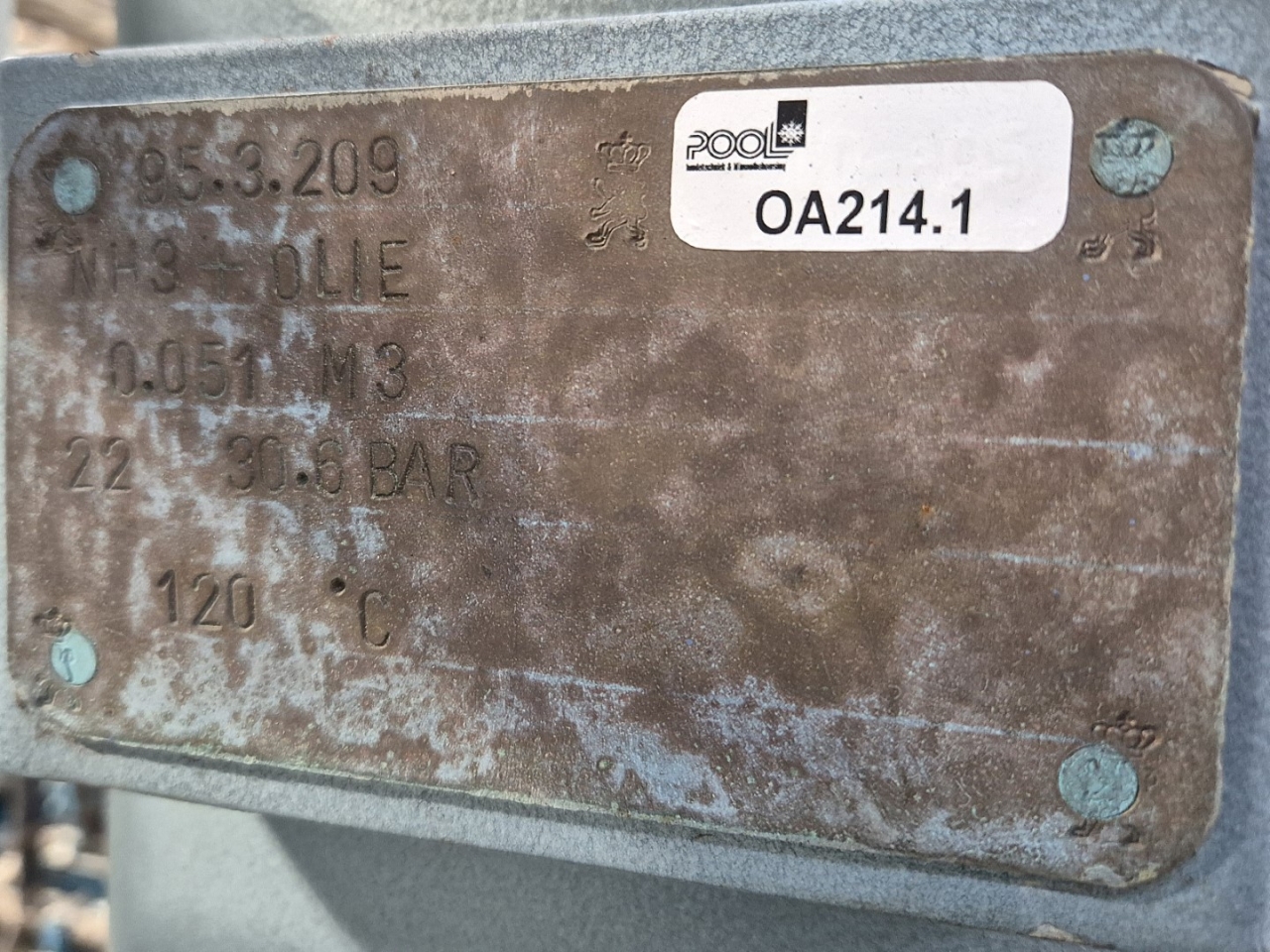

Used Grasso RC 3111 open-type reciprocating compressor on NH3 (Ammonia). Complete with a Rototr.nl electromotor: 50/60 Hz - 55/63 kW - 1475/1775 RPM, Grasso 95.3.209 oil separator with a volume of 51 liters, Grasso 95.3.208 oil separator with a volume of 21 liters, pressure and safety switches/gauges and a sight glass. The compressor has a displacement of 399 m³/h at 1000 RPM. *Capacity based on a condensing temperature of +35ºC and at 867 RPM
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we solely deliver our orders after performing an extensive test and an industrial cleaning. If requested we are happy to arrange your logistics.
