Bitzer HSN 7471-75-40P
Bitzer HSN 7471-75-40P
| 18945 | |
| Marka | Bitzer |
| Typ | HSN 7471-75-40P |
| Czynnik chłodzący | Freon |
| Refrigerant type | R404A |
| kW at -20ºC/+40ºC | 120,3 |
| kW at -30ºC/+40ºC | 82,9 |
| kW at -40ºC/+40ºC | 54,5 |
| kW at -45ºC/+40ºC | 43,0 |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Wskaźniki ciśnienia |
|
| Obiornik cieczy |
|
| Obiornik cieczy ltr. | 112 |
| Separator oleju |
|
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| m3 / h | 250 |
| Uwagi | | Y.o.b. 2011 |
| Rozmiary | 1900x1050x2030 mm (LxWxH) |
| Liczba sztuk | 1 |
Bitzer HSN 7471-75-40P

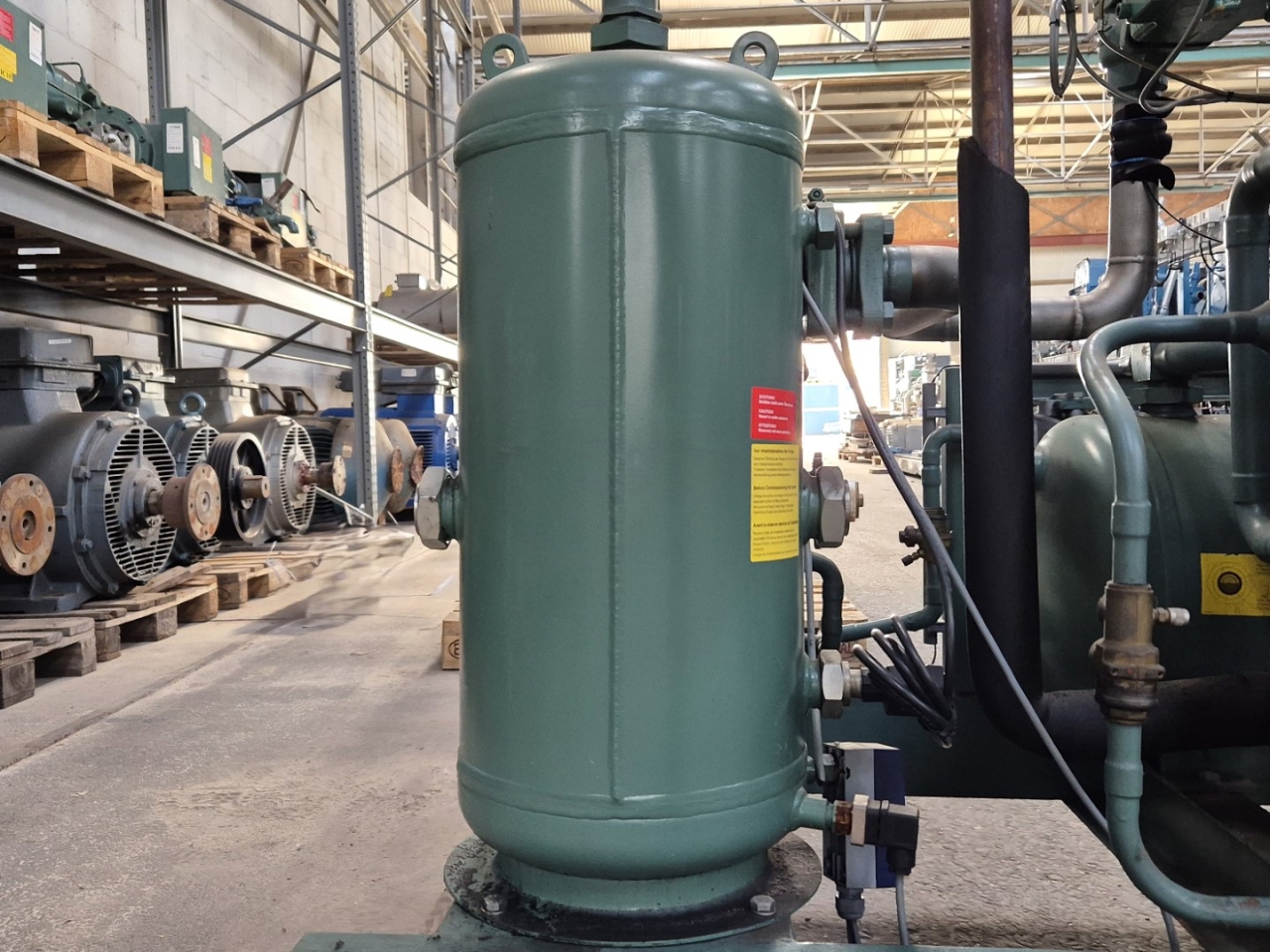

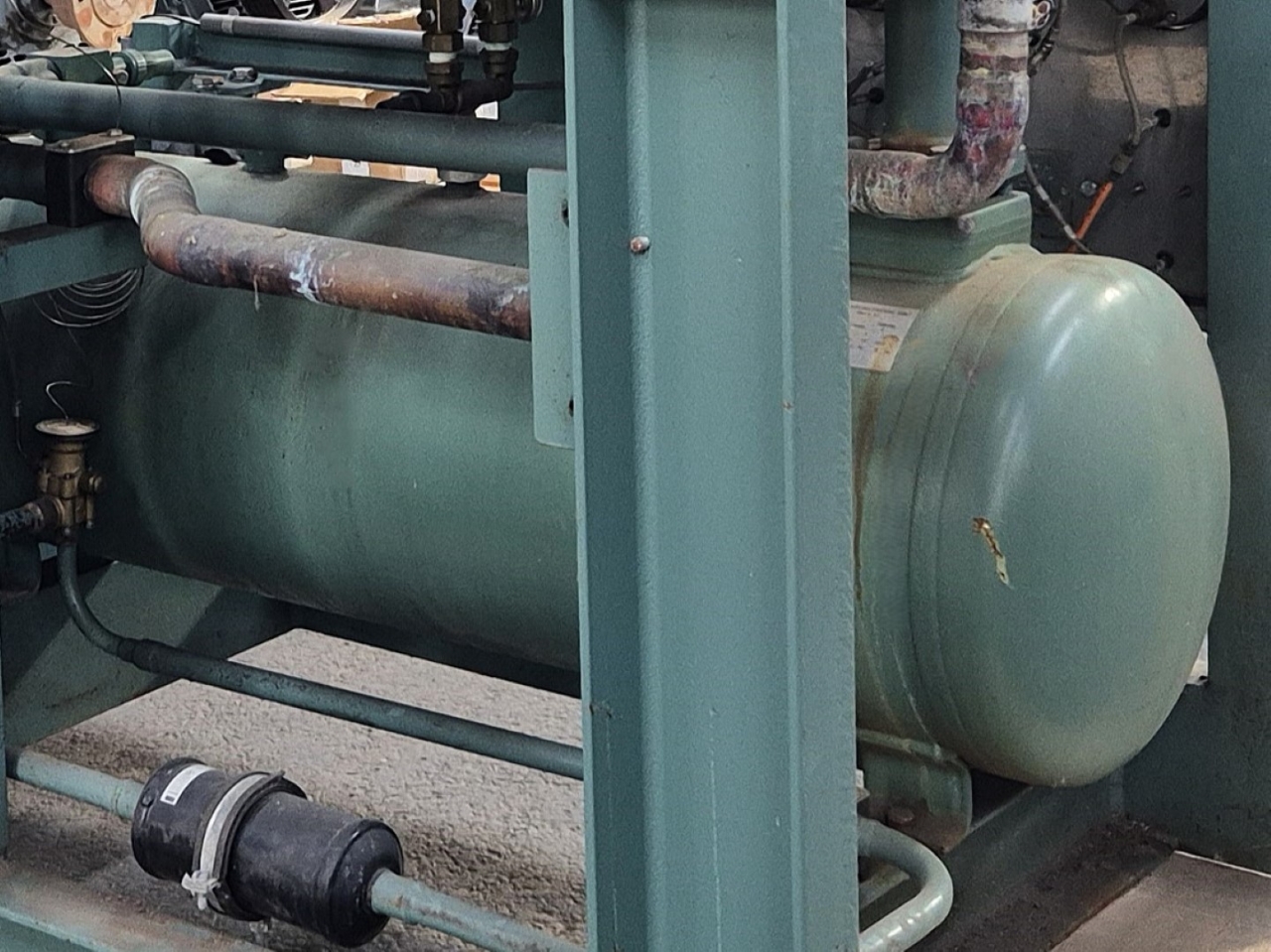

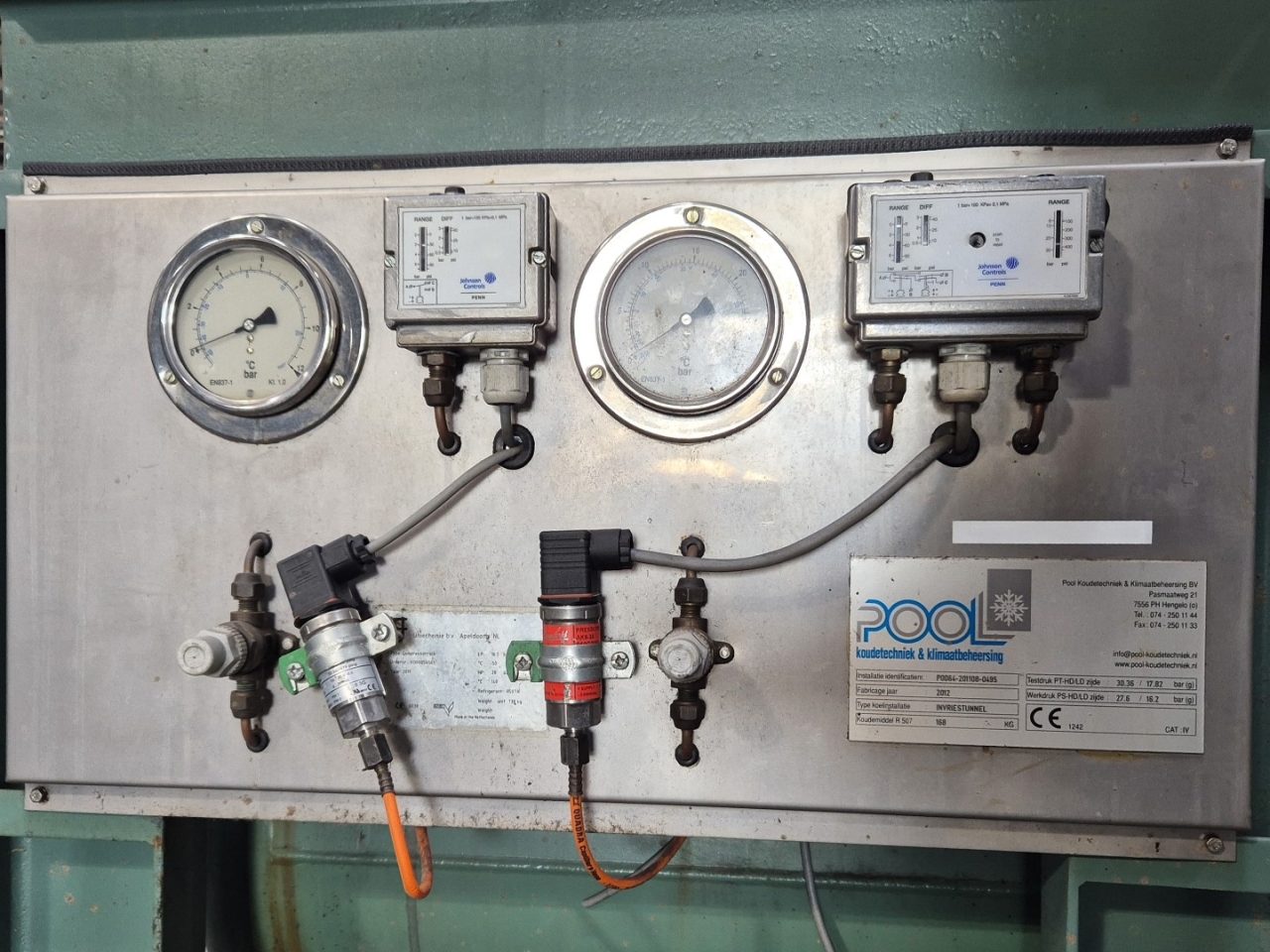

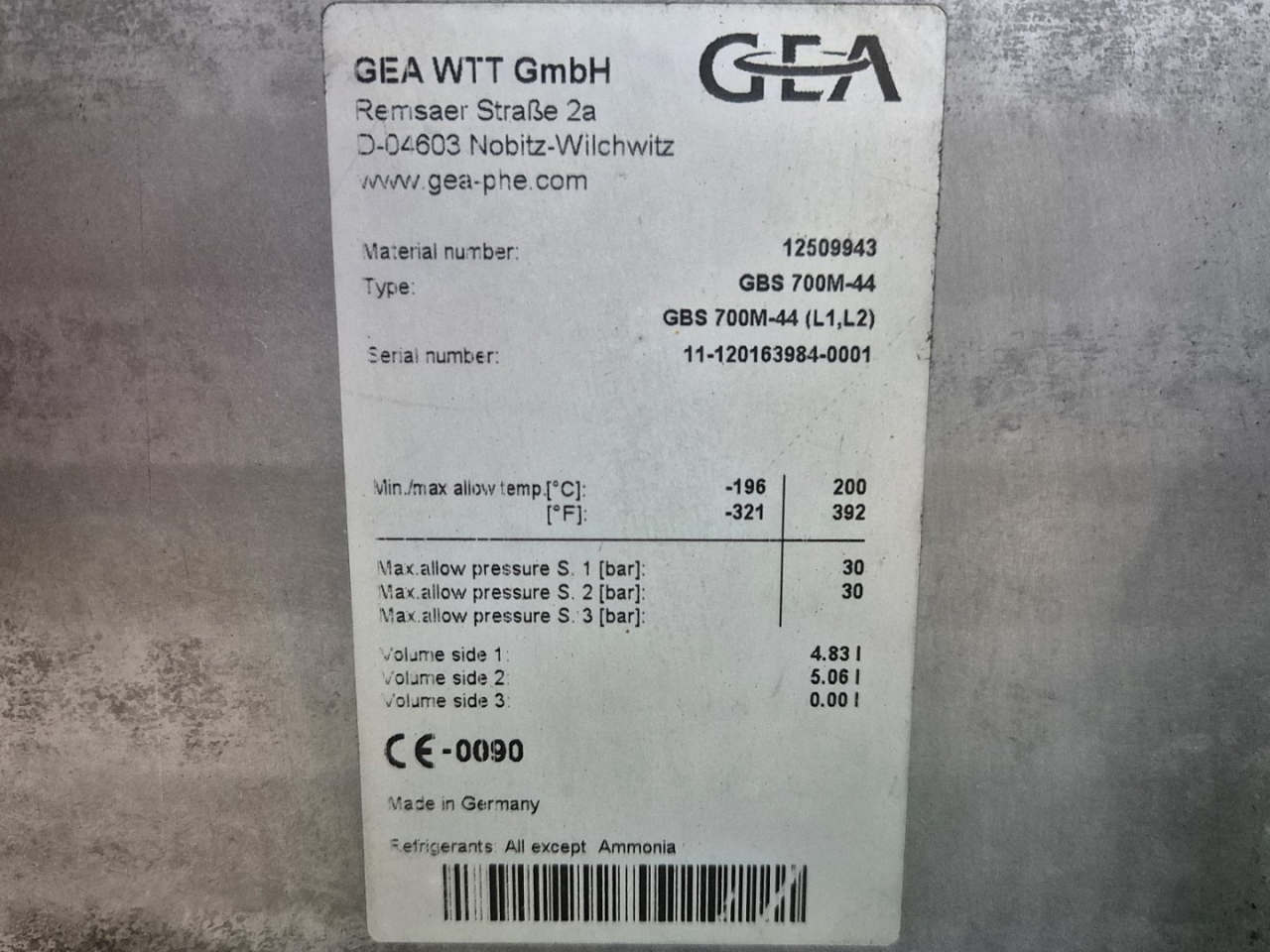

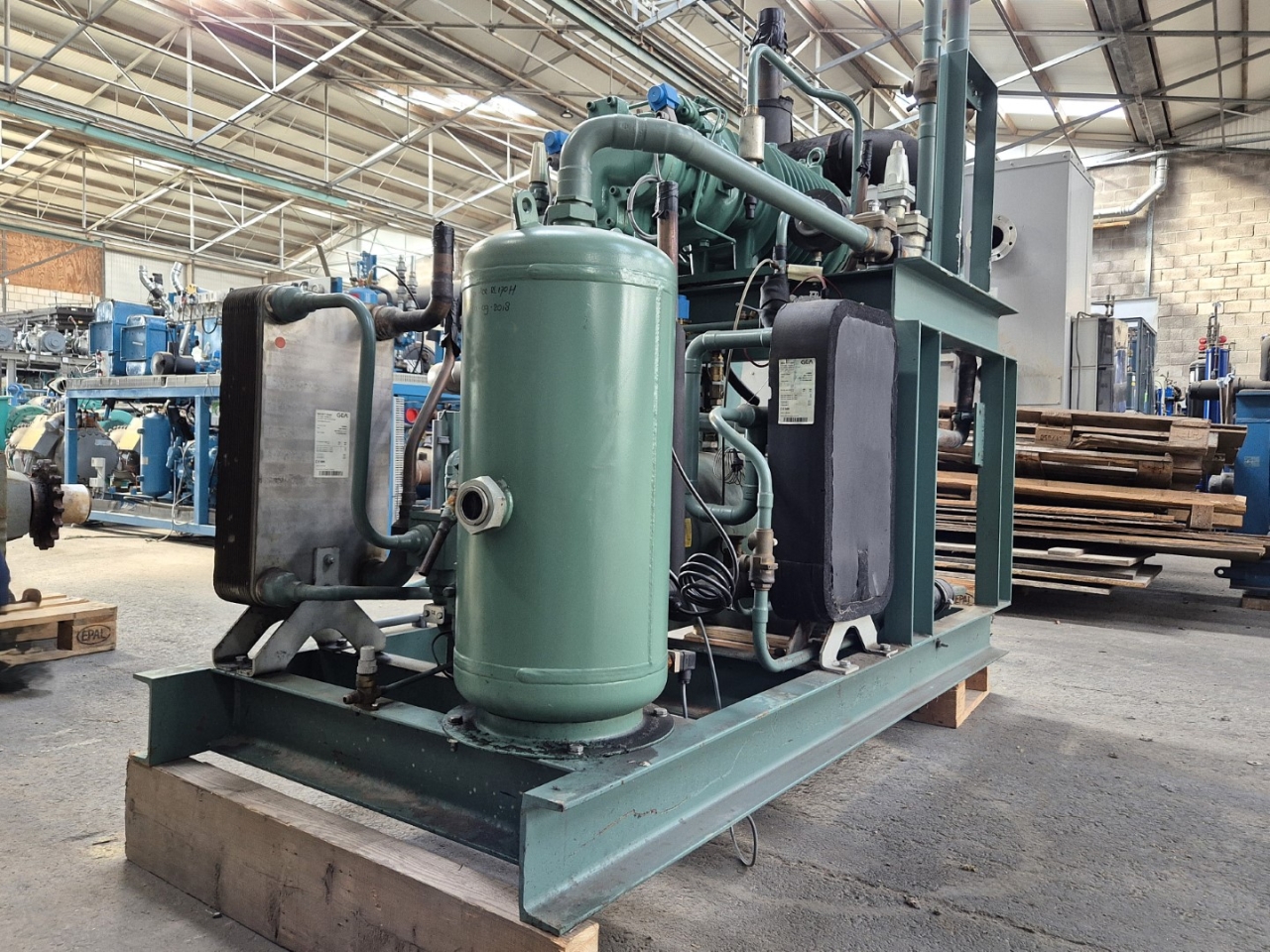

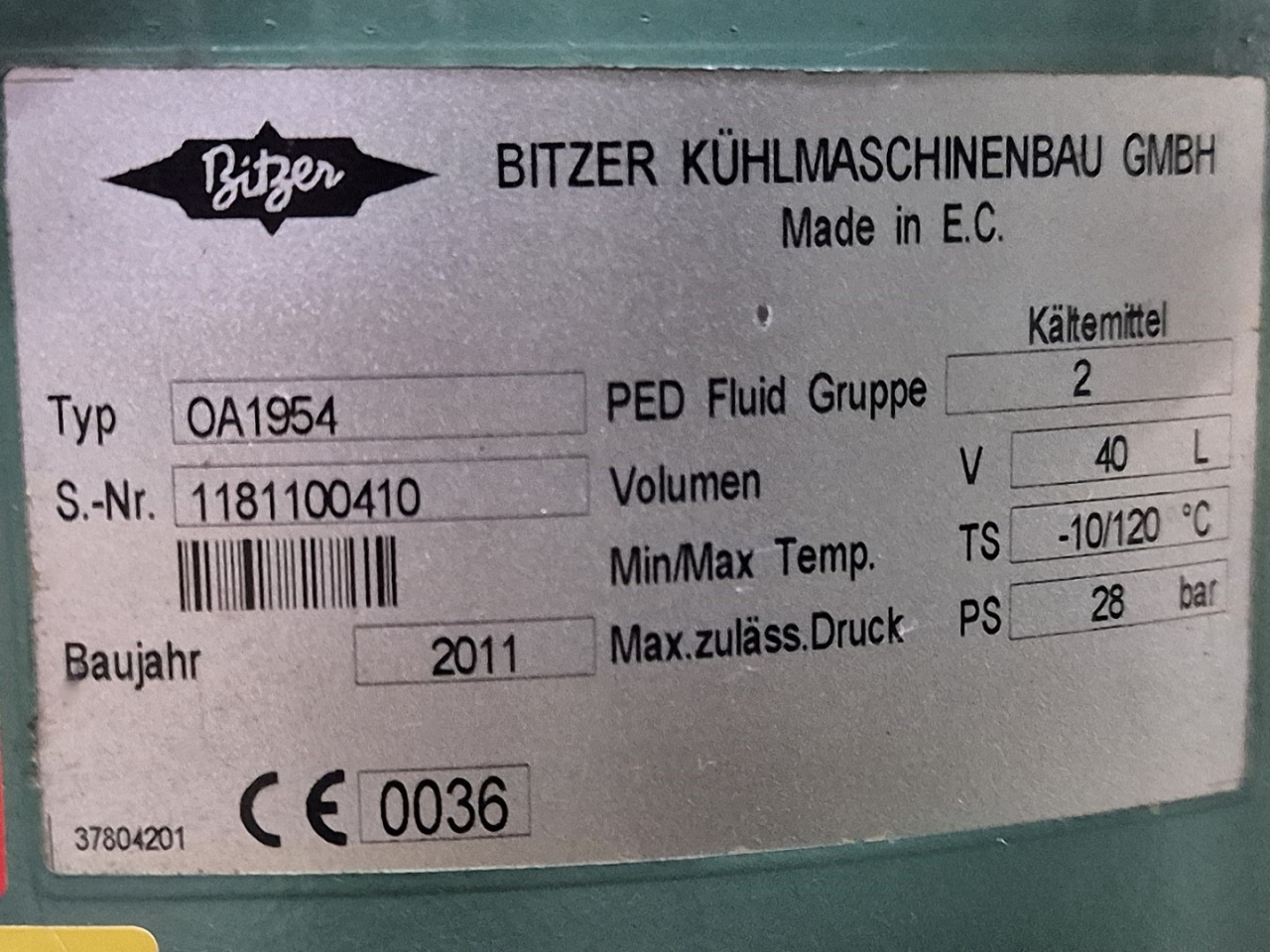

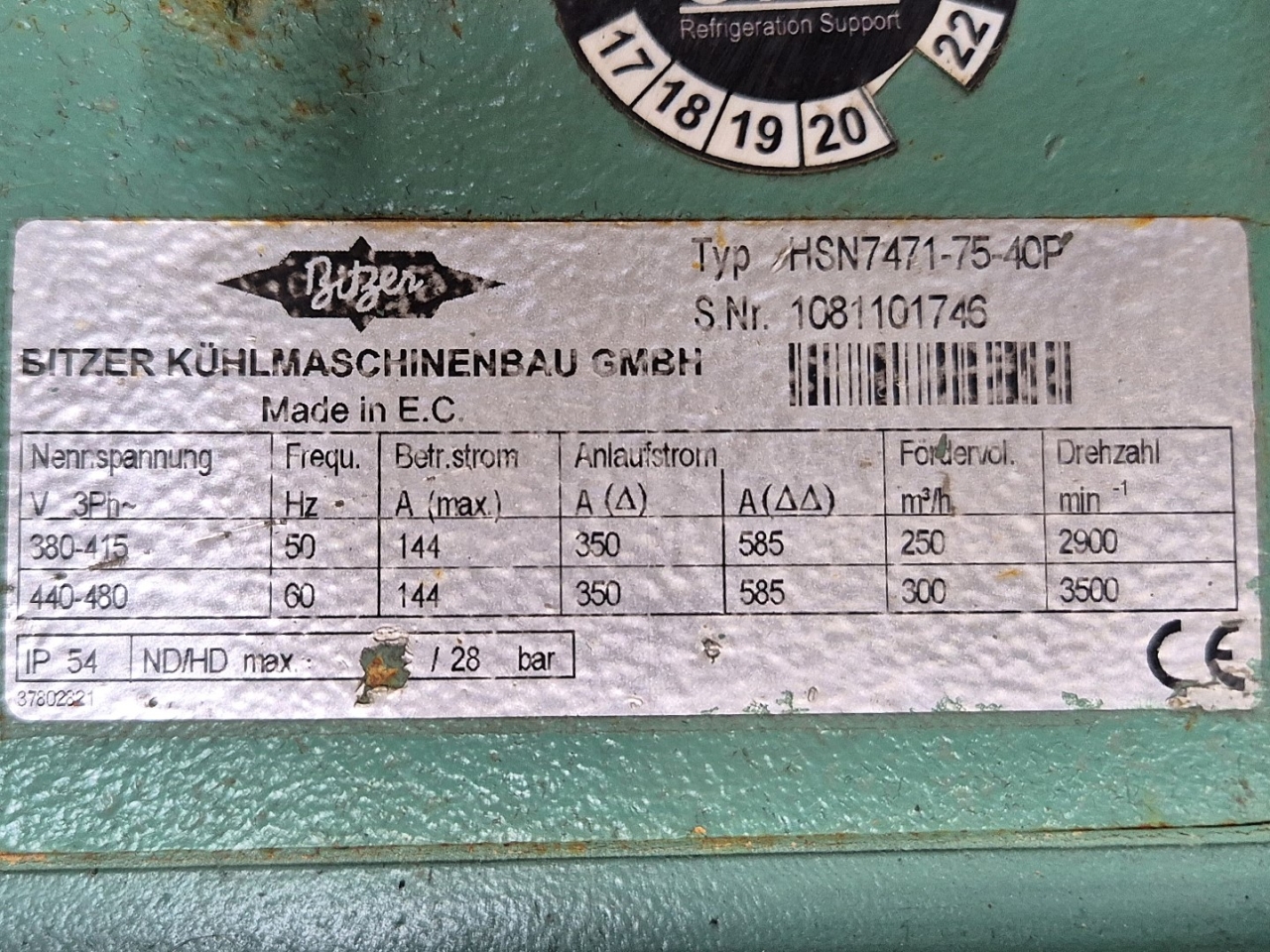

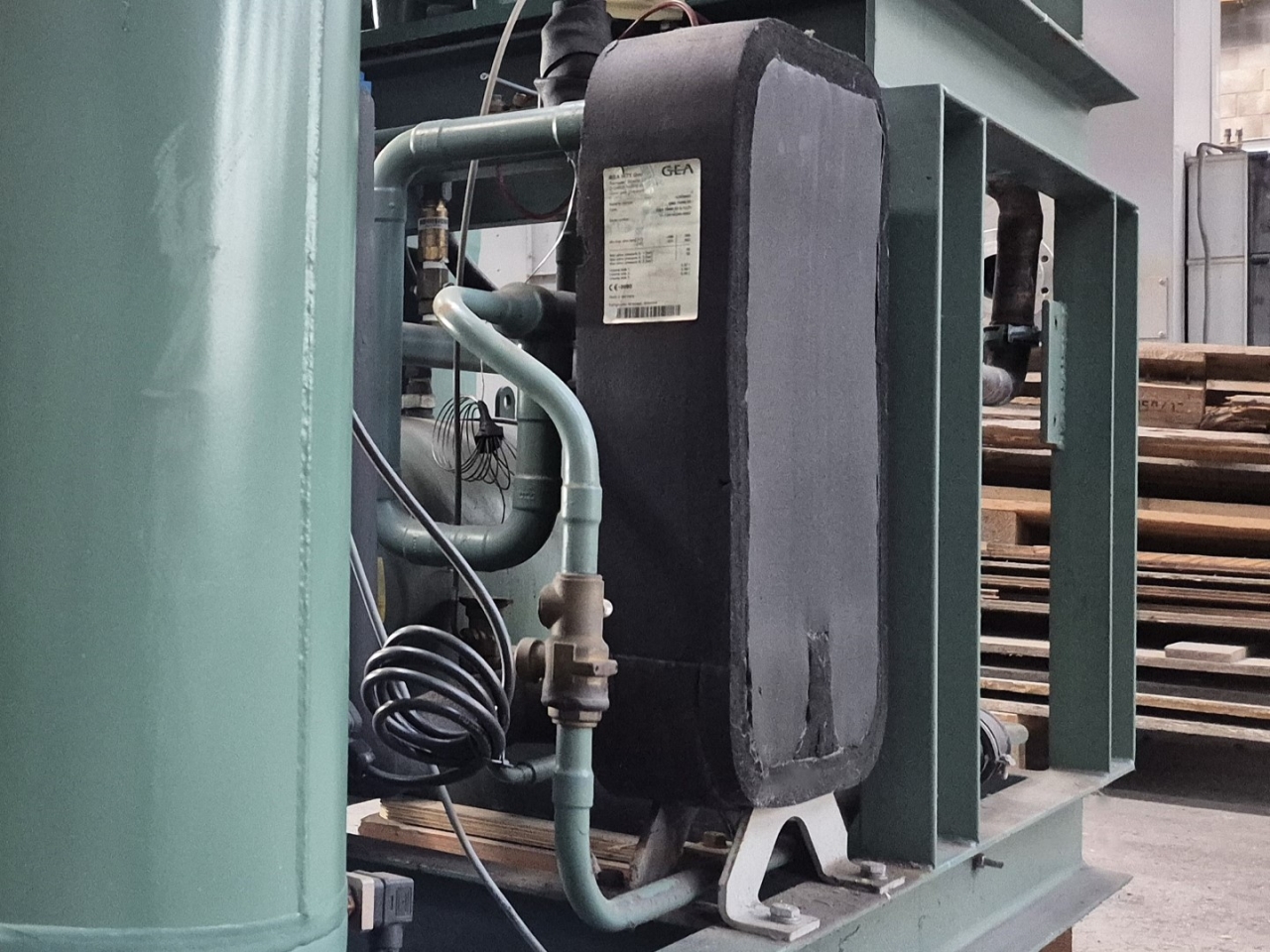

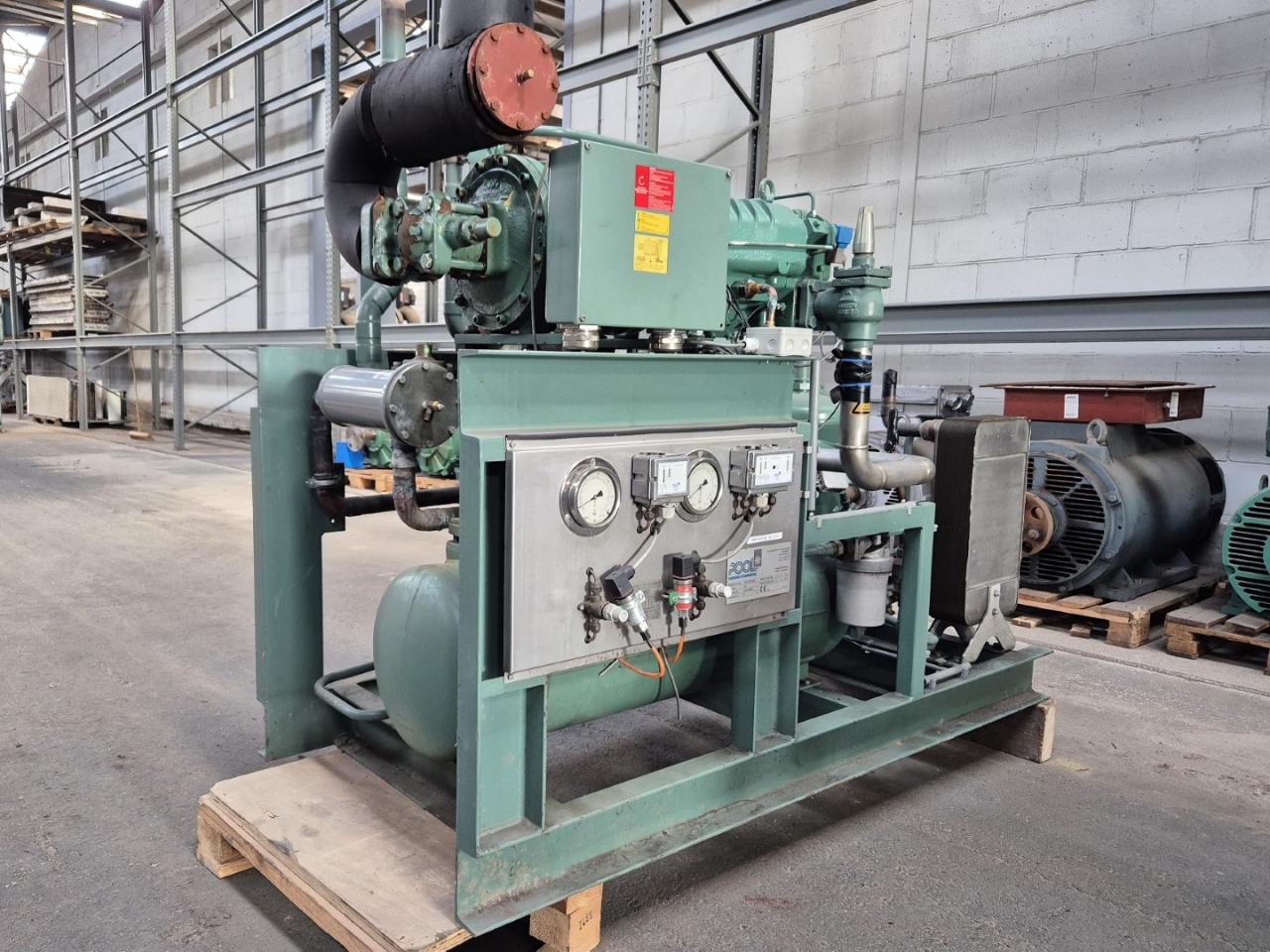

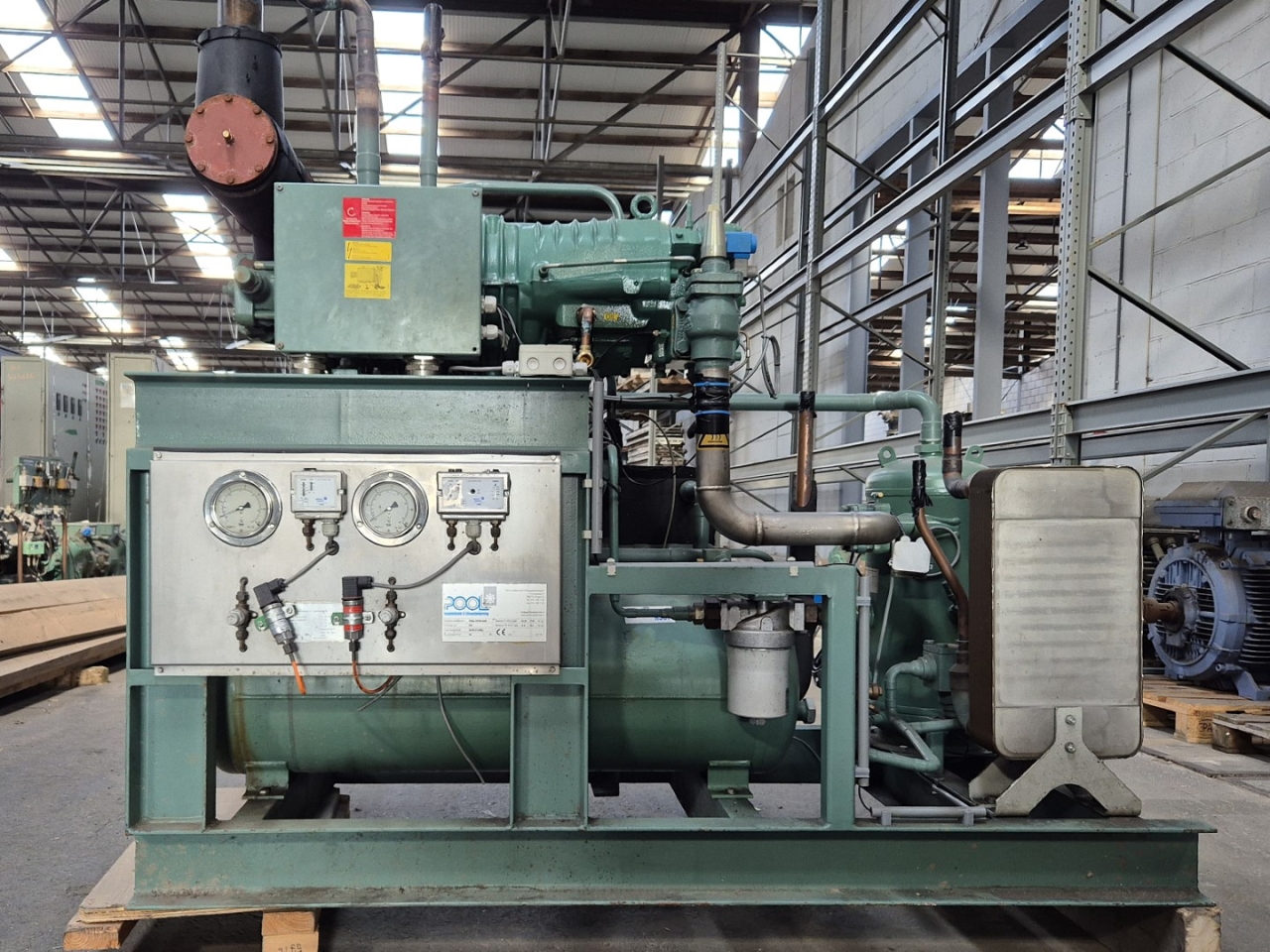

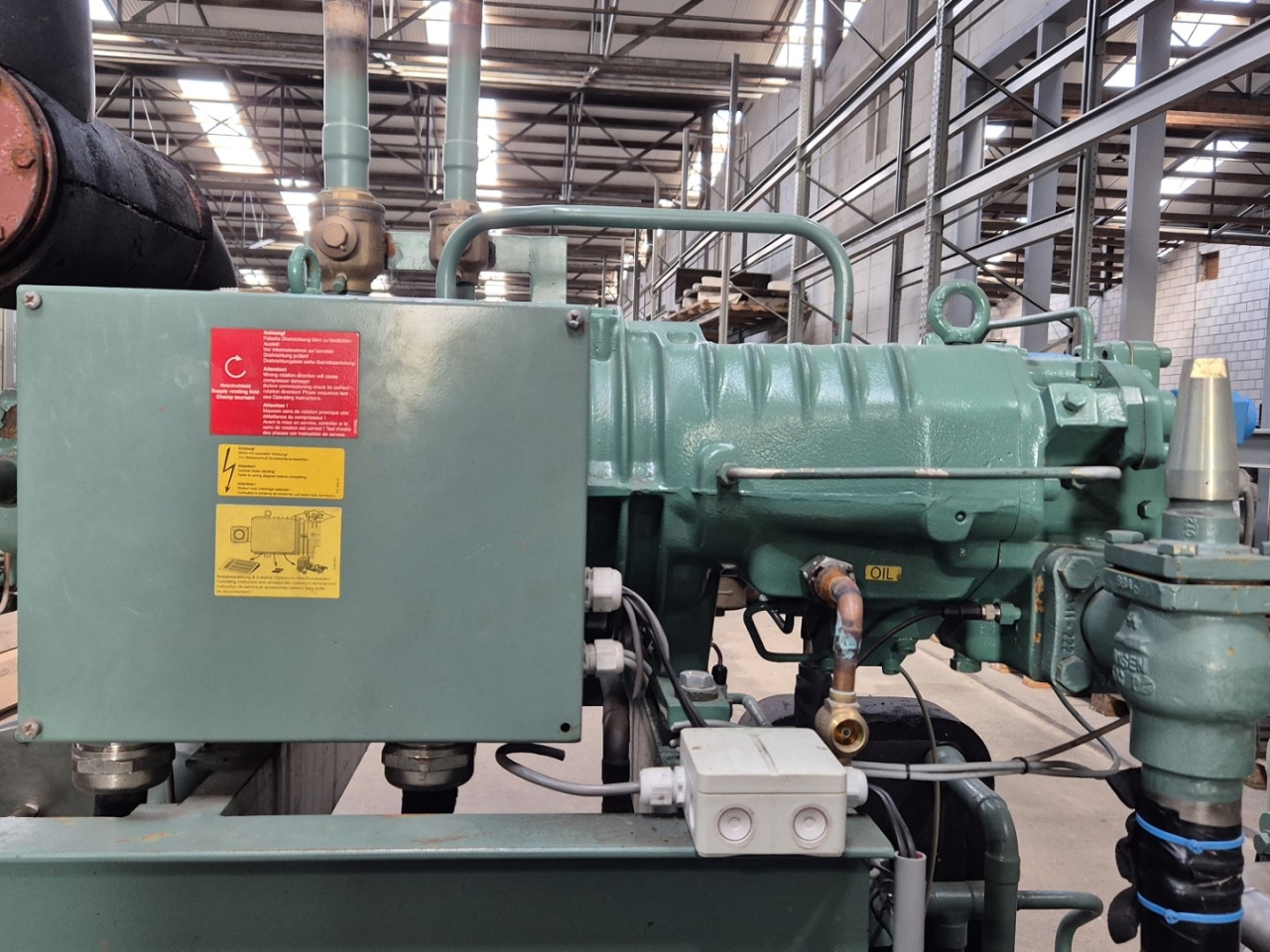

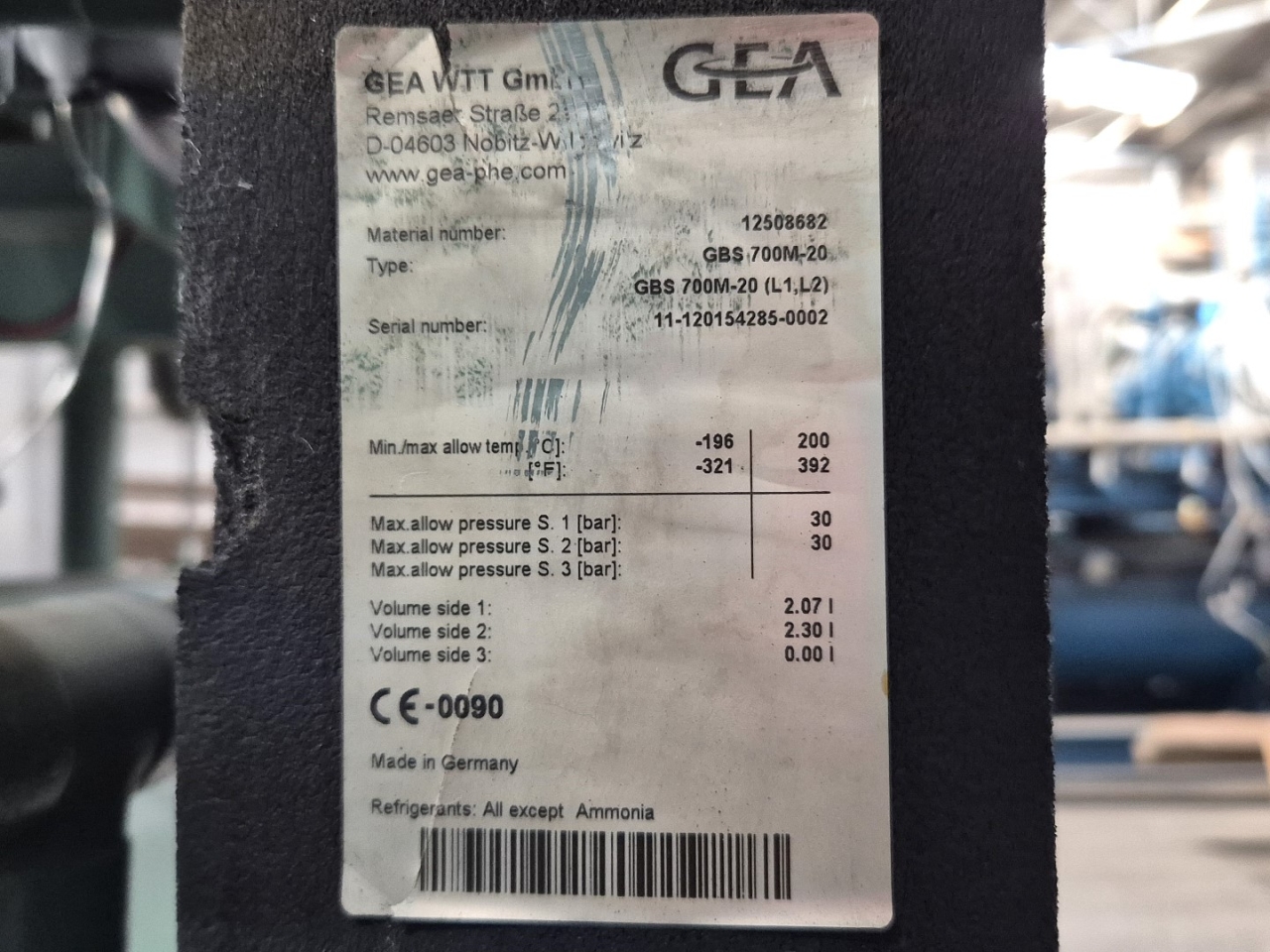

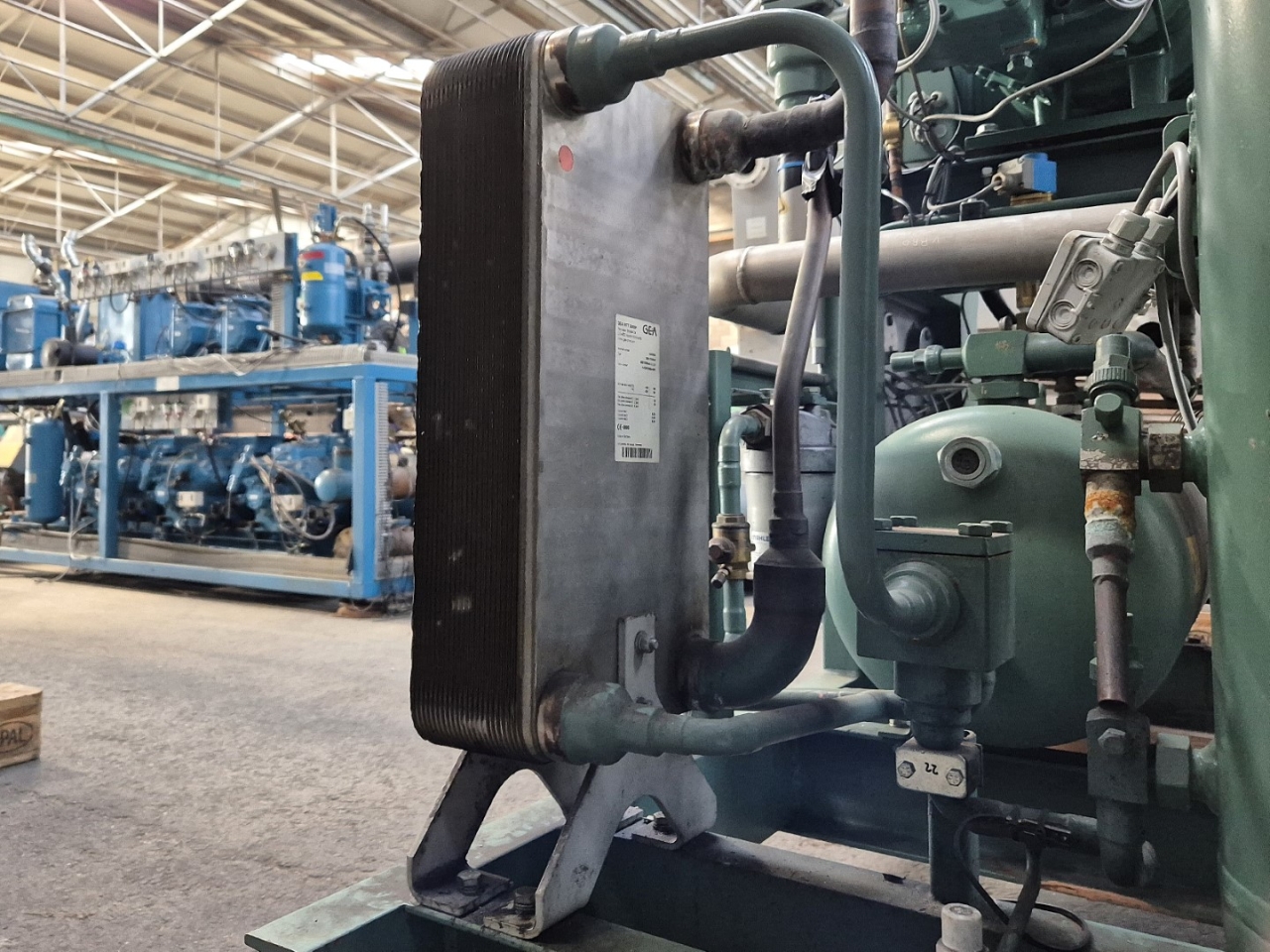

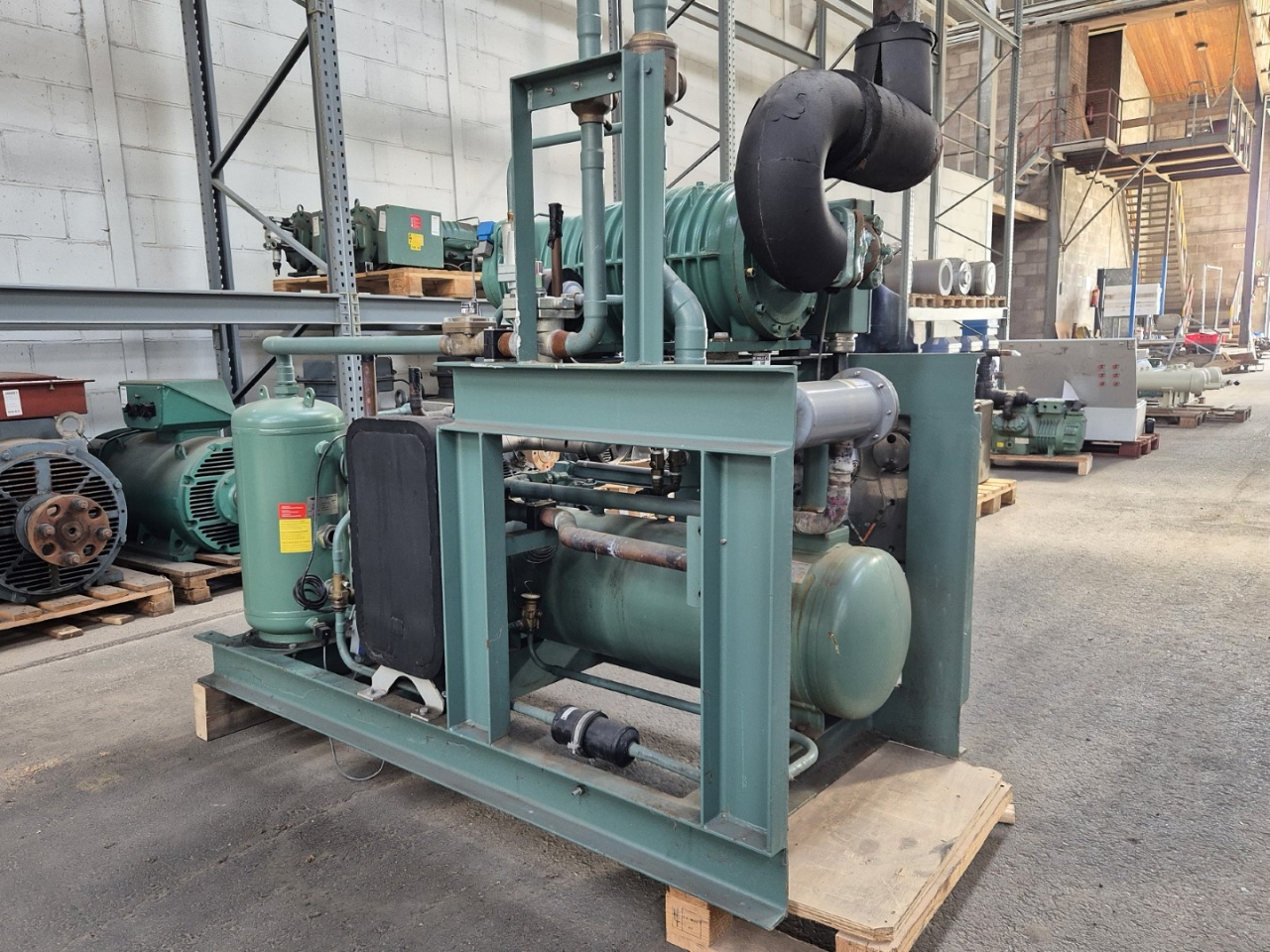

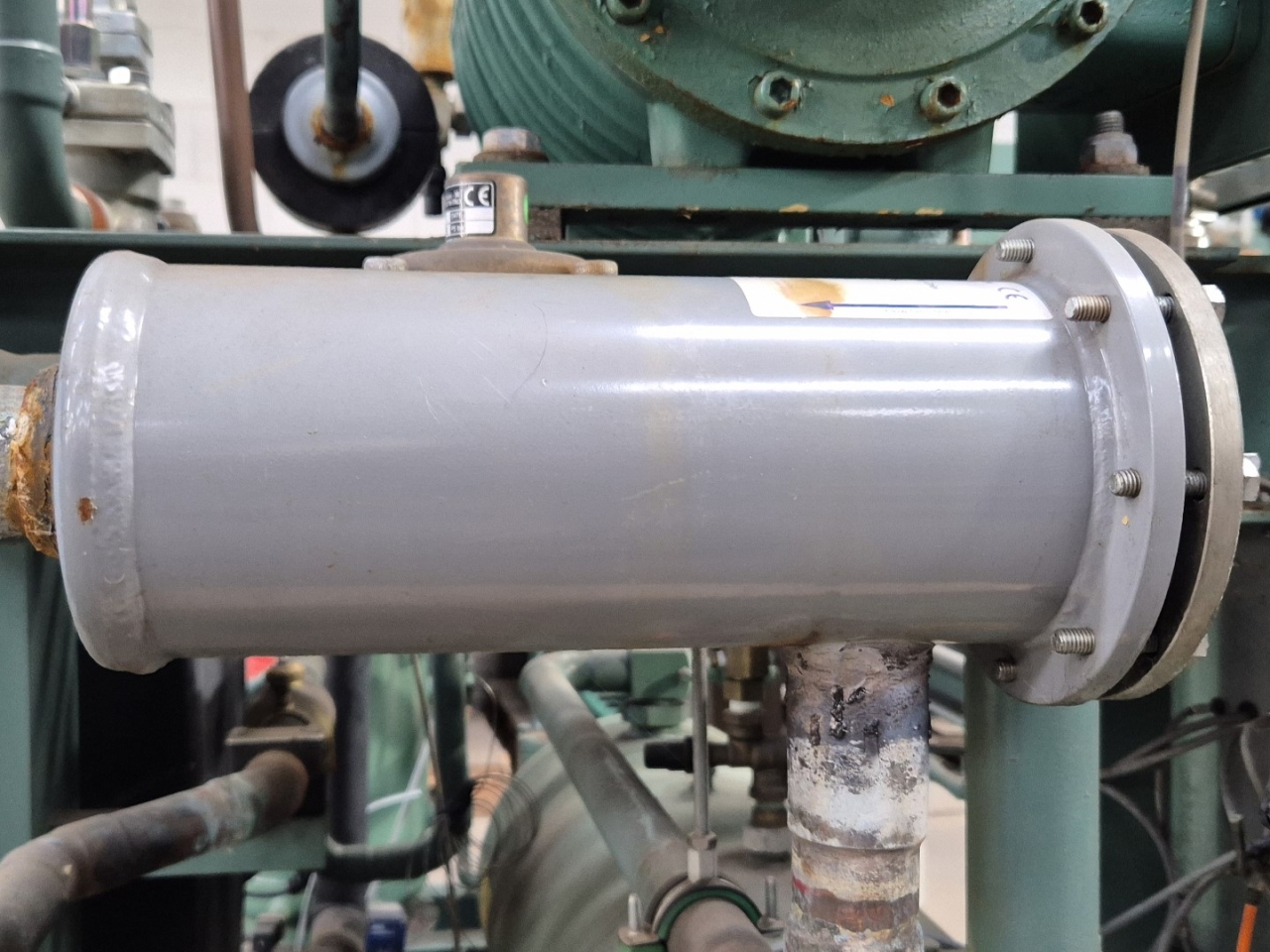

Used Bitzer HSN7471-75-40P semi-hermetic screw compressor Freon on steel base frame. Complete with Bitzer F1202N liquid receiver, Bitzer OA1954 oil separator, Gea GBS 700M-20 brazed heat exchanger as economizer, Gea GBS 700M-44 brazed heat exchanger for heat recovery, pressure and safety switches/gauges and a liquid line filter drier. The compressor has a displacement of 250 m³/h at 2900 RPM and 300 m³/h at 3500 RPM. The capacities are with a economizer.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
