Bitzer 2JSL-2K-40S (x1) & 4JTE-15K-40P (x1) & 4FTE-20K-40P (x1)
Bitzer 2JSL-2K-40S (x1) & 4JTE-15K-40P (x1) & 4FTE-20K-40P (x1)
| 18924 | |
| Marka | Bitzer |
| Typ | 2JSL-2K-40S (x1) & 4JTE-15K-40P (x1) & 4FTE-20K-40P (x1) |
| Czynnik chłodzący | CO2 |
| Refrigerant type | R744 |
| kW at -20ºC/+40ºC | 77,8* |
| Podstawa na stalowej ramie |
|
| Wskaźniki ciśnienia |
|
| Obiornik cieczy |
|
| Obiornik cieczy ltr. | 133 |
| Separator oleju |
|
| Okno widokowe |
|
| Panel kontrolny |
|
| m3 / h | 30,4 |
| Uwagi | | *Capacity based on the 2JSL-2K-40S compressor and a condensing temp. of 0°C & capacity based on the 4JTE-15K-40P & 4FTE-20K-40P compressors at a gas cooler outlet temp. of 0°C |
| Package / Rack |
|
| Rozmiary | 2970x860x2050 mm (LxWxH) |
| Liczba sztuk | 1 |
Bitzer 2JSL-2K-40S (x1) & 4JTE-15K-40P (x1) & 4FTE-20K-40P (x1)

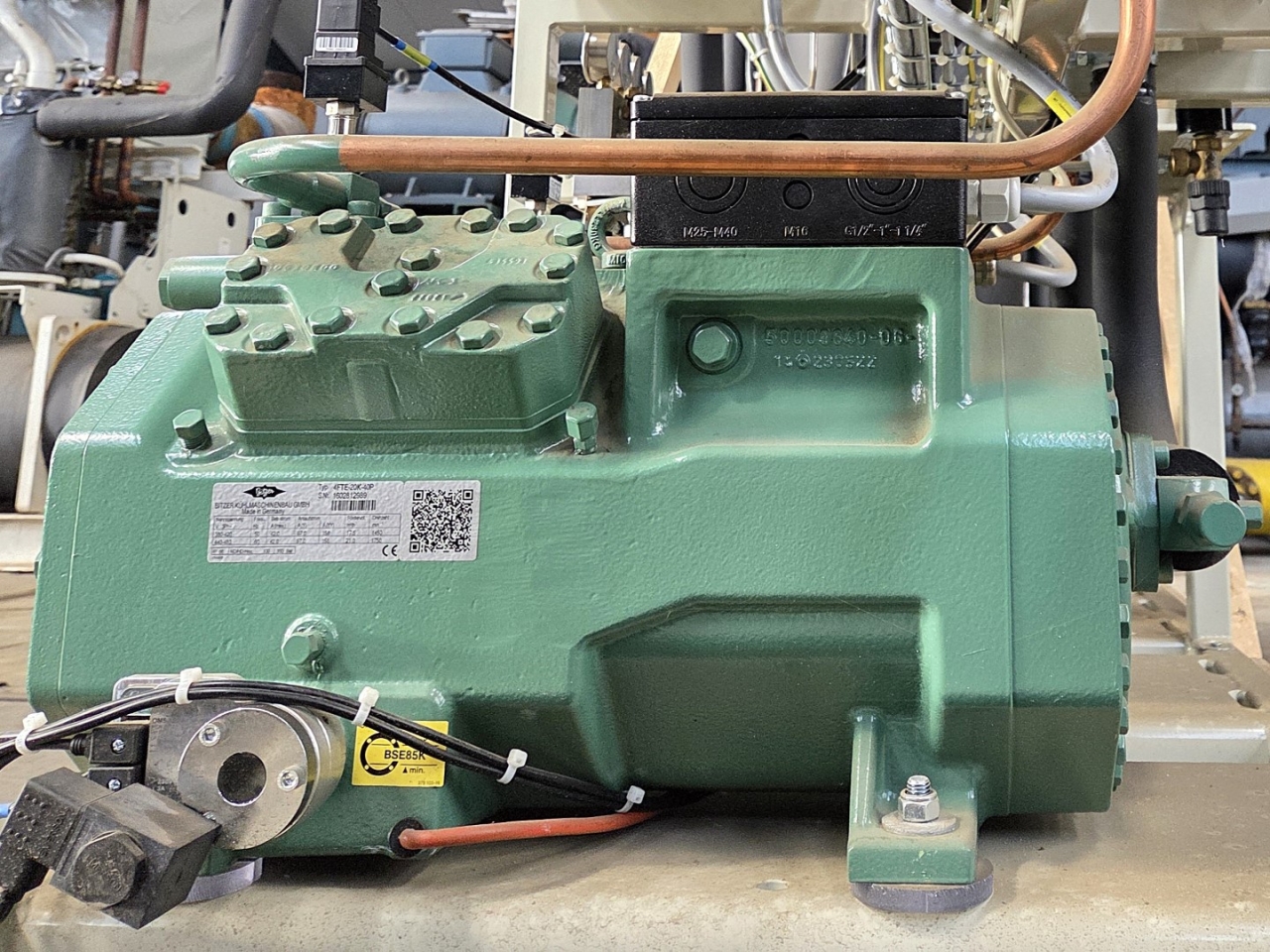

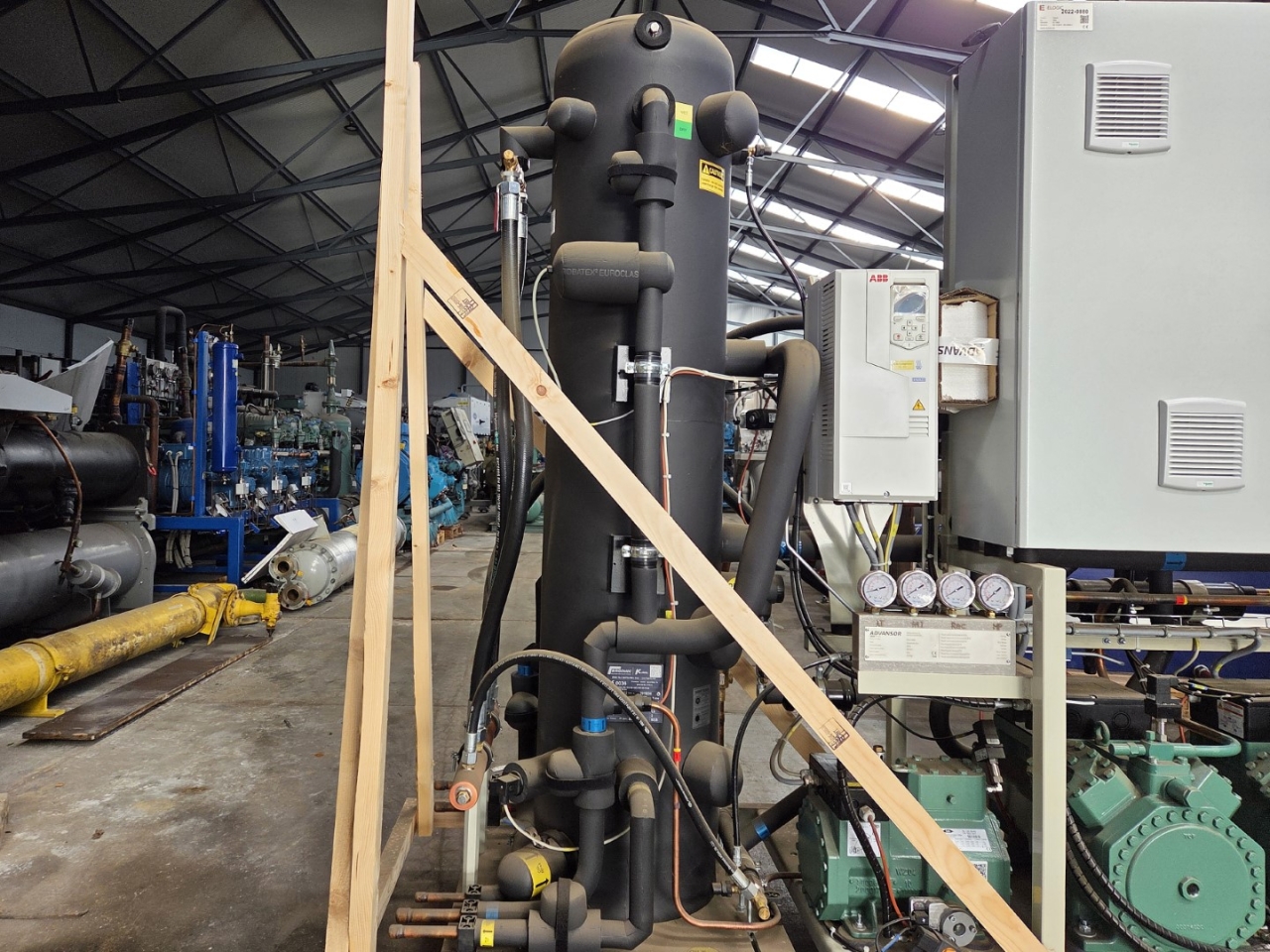

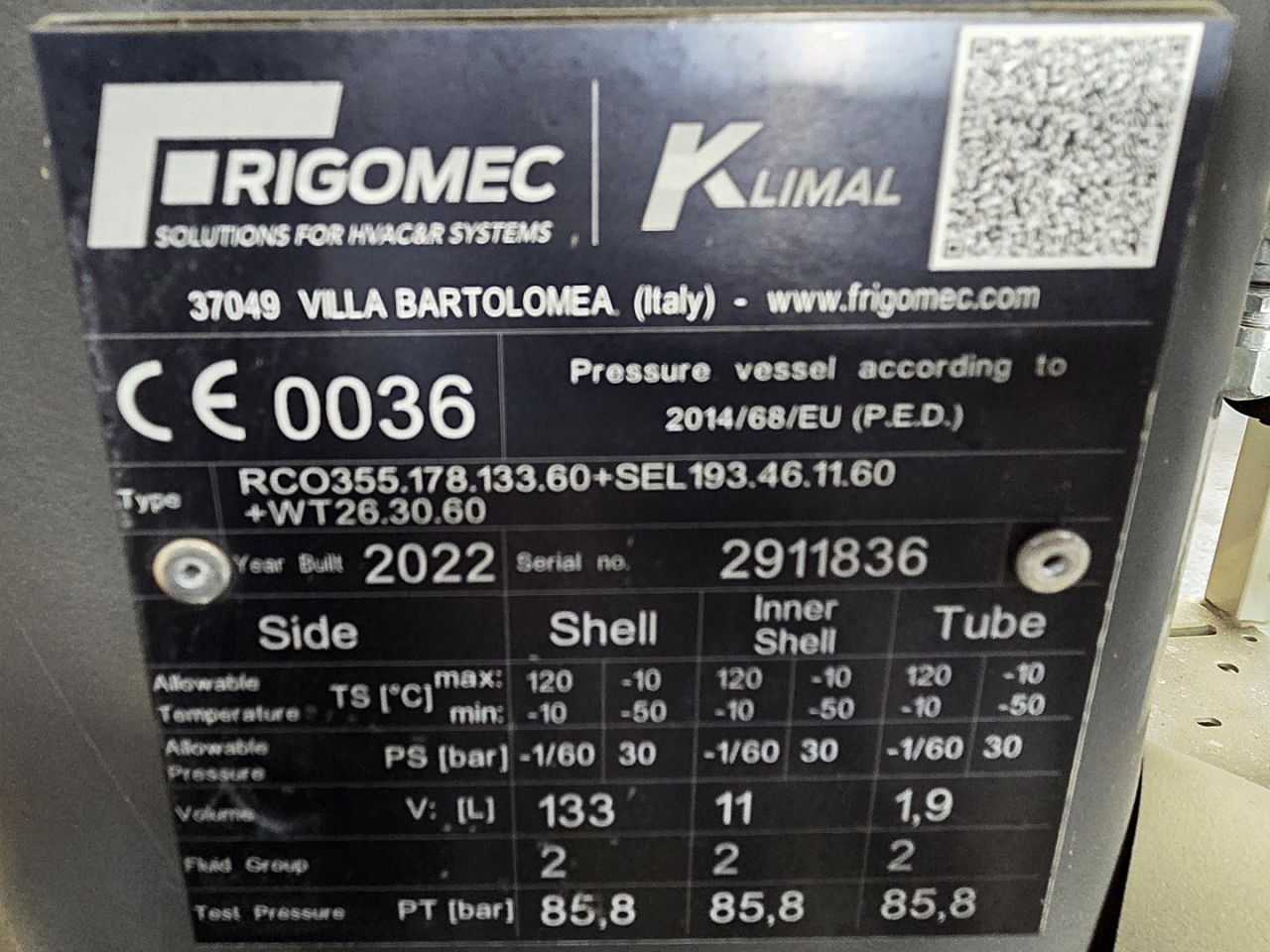

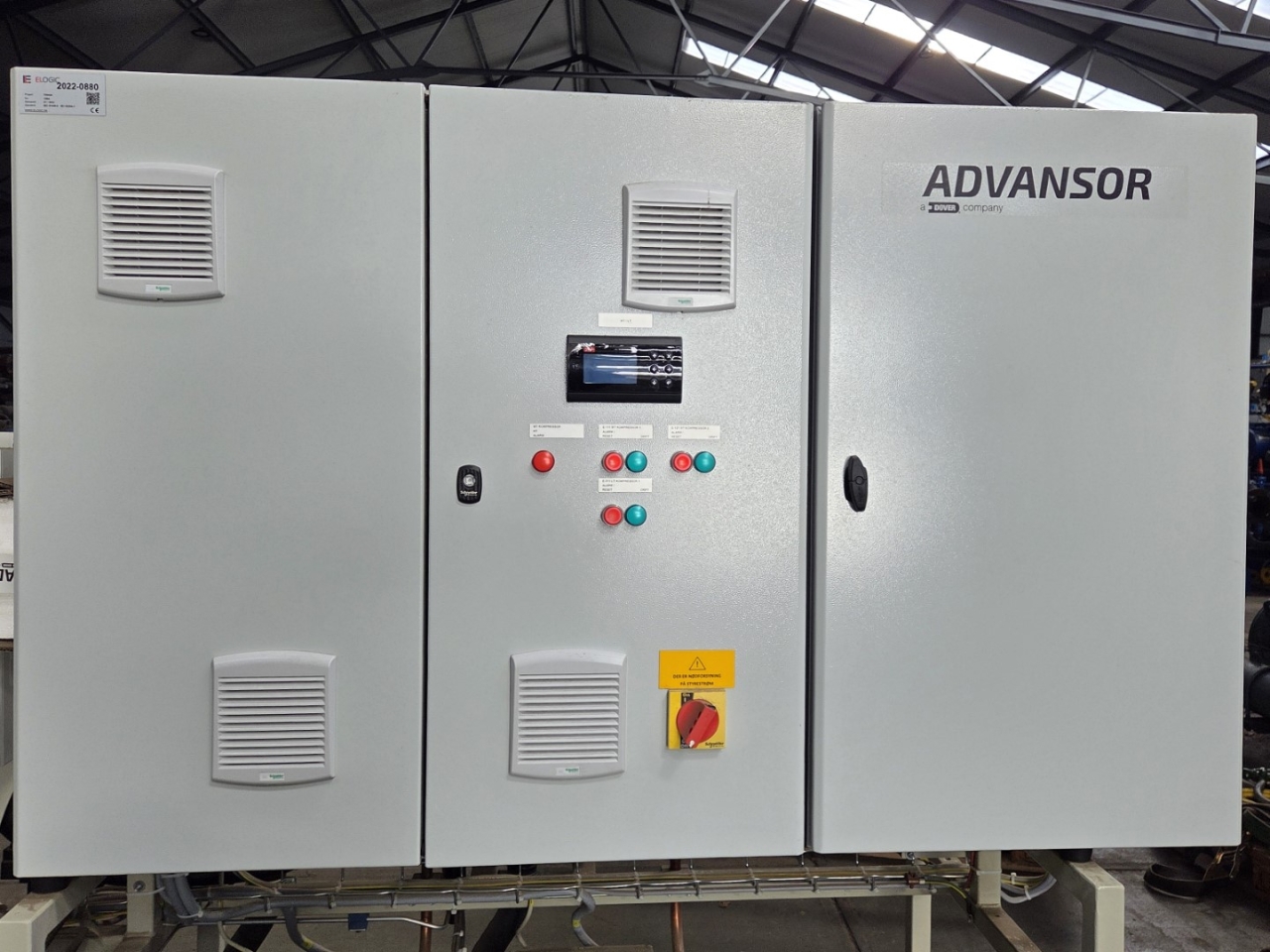

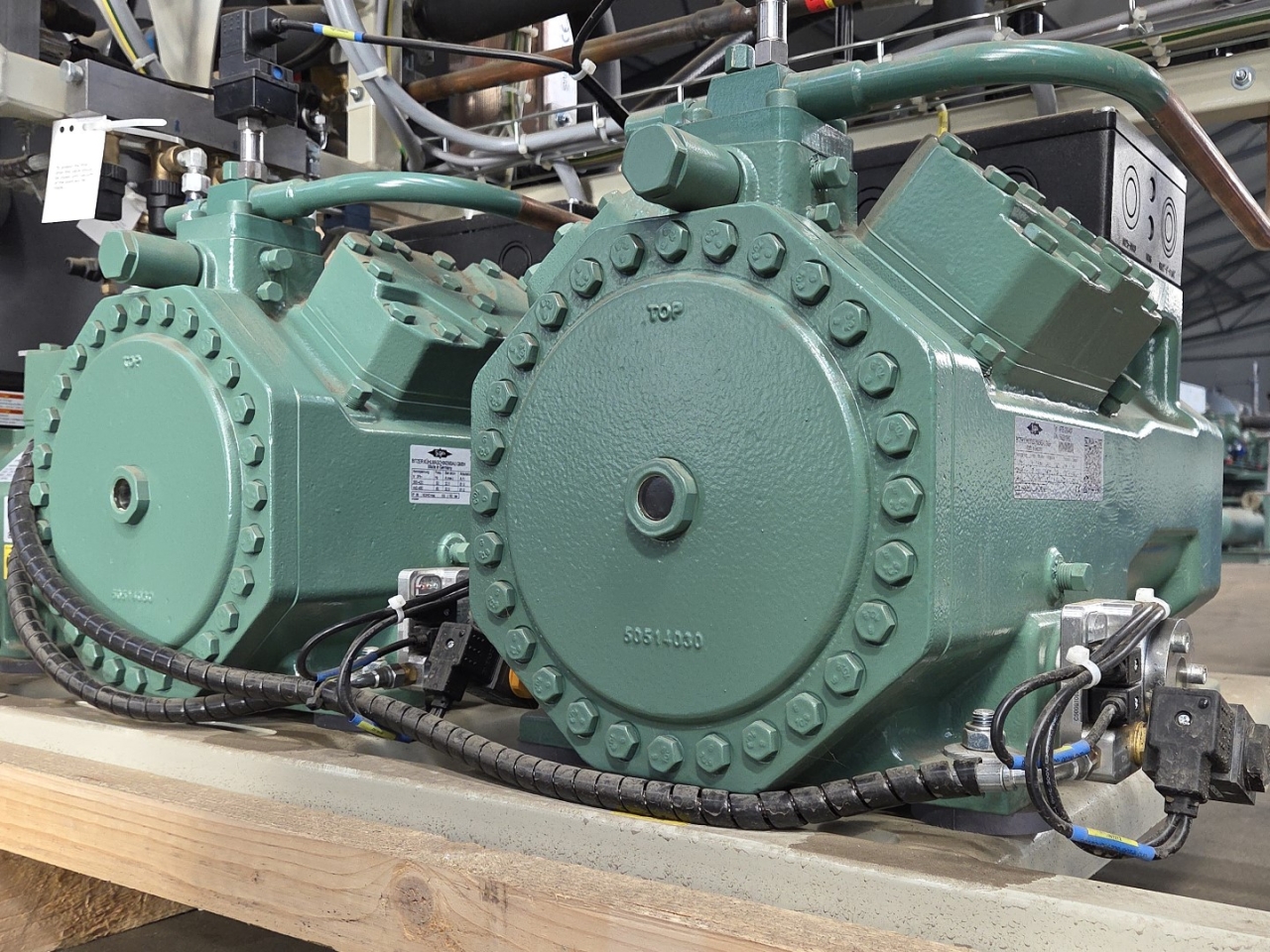

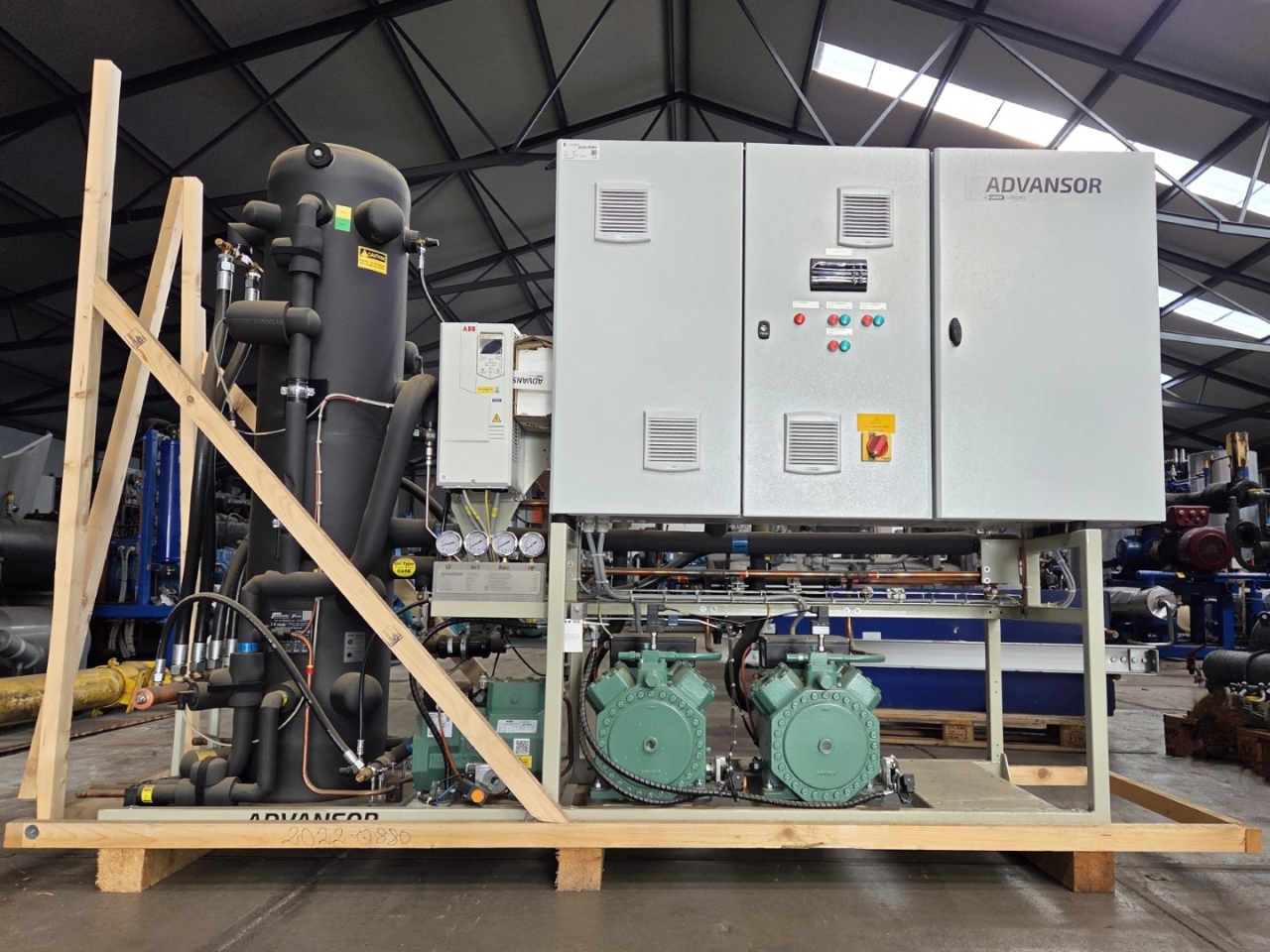

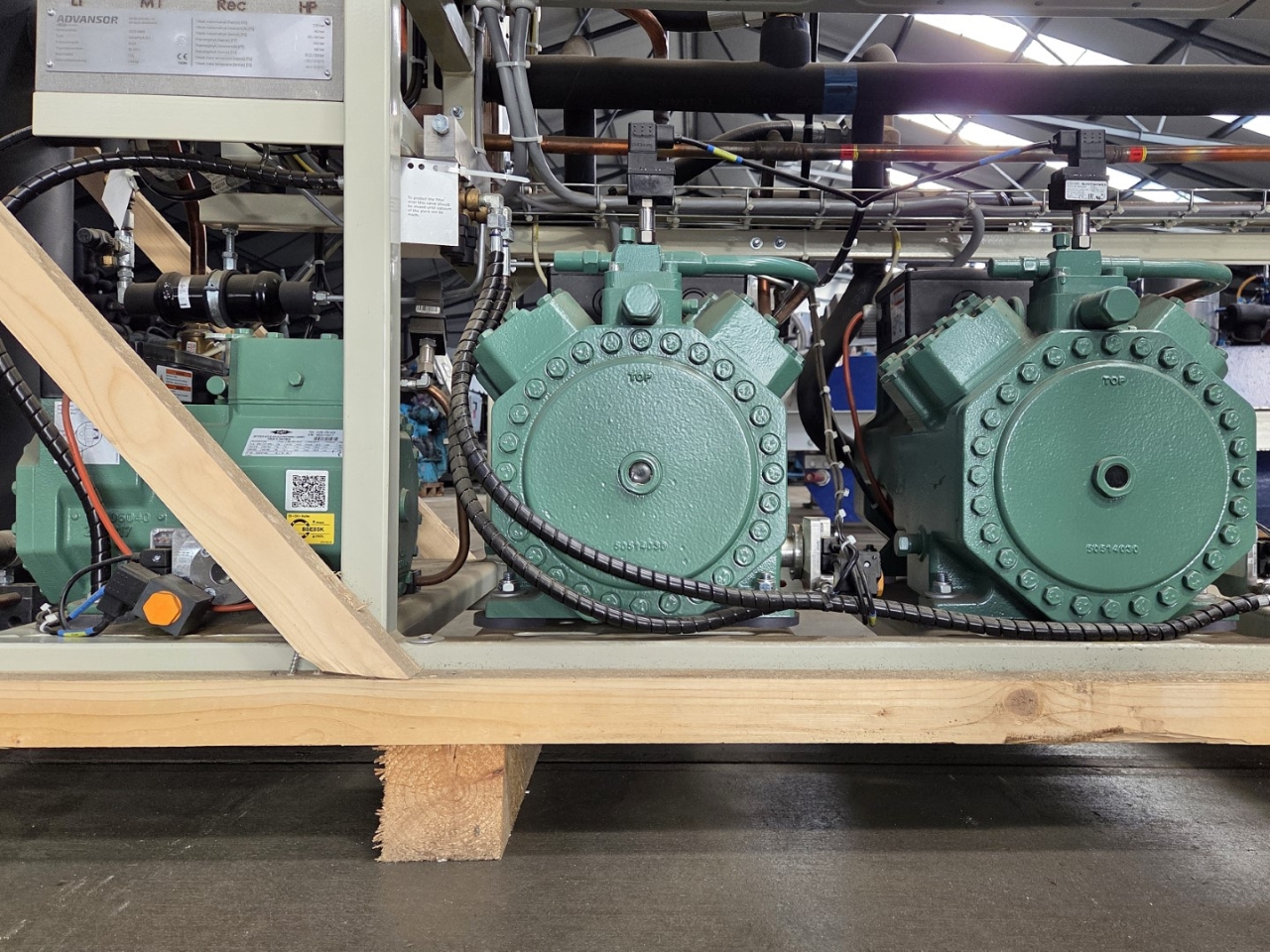

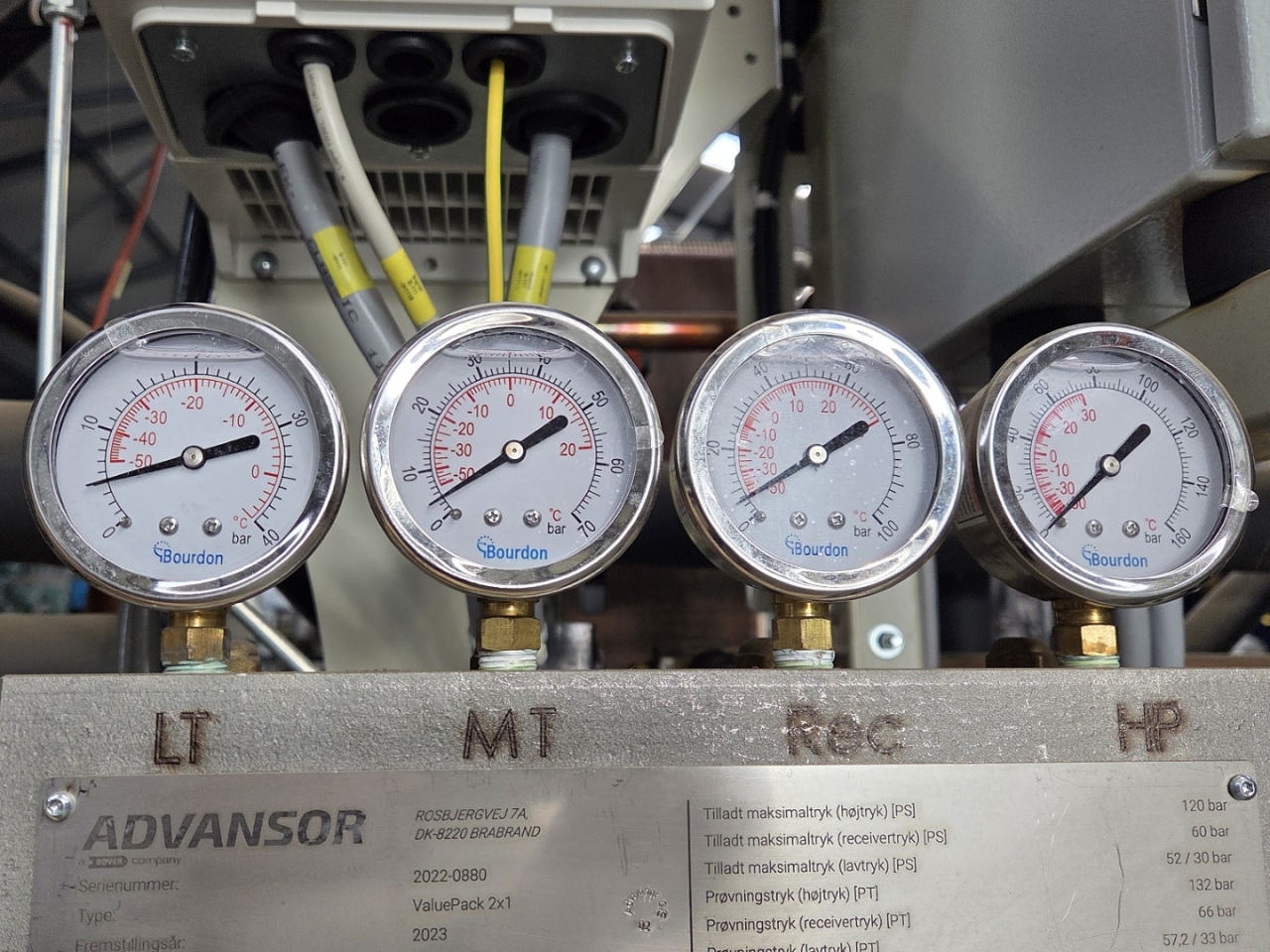

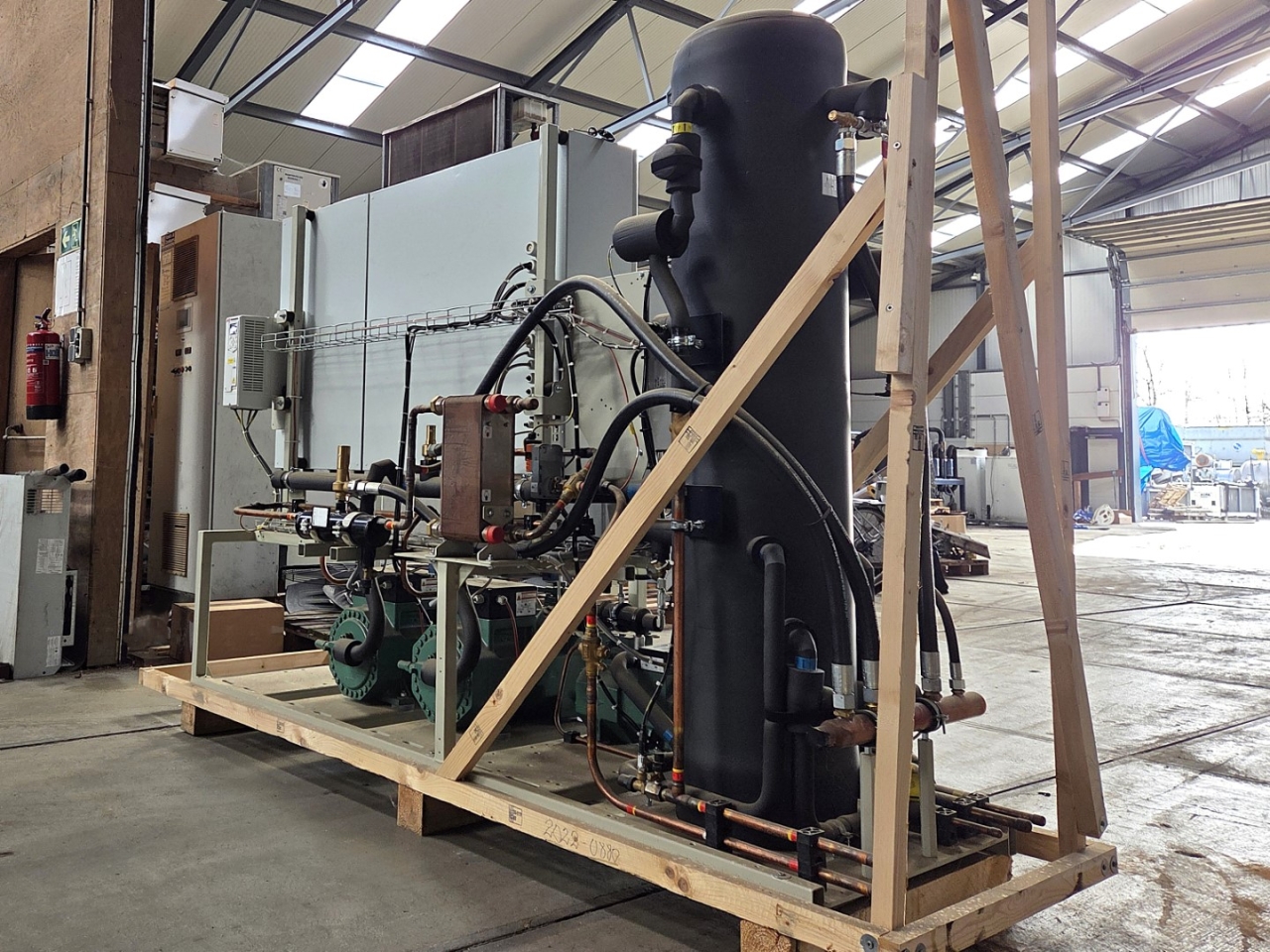

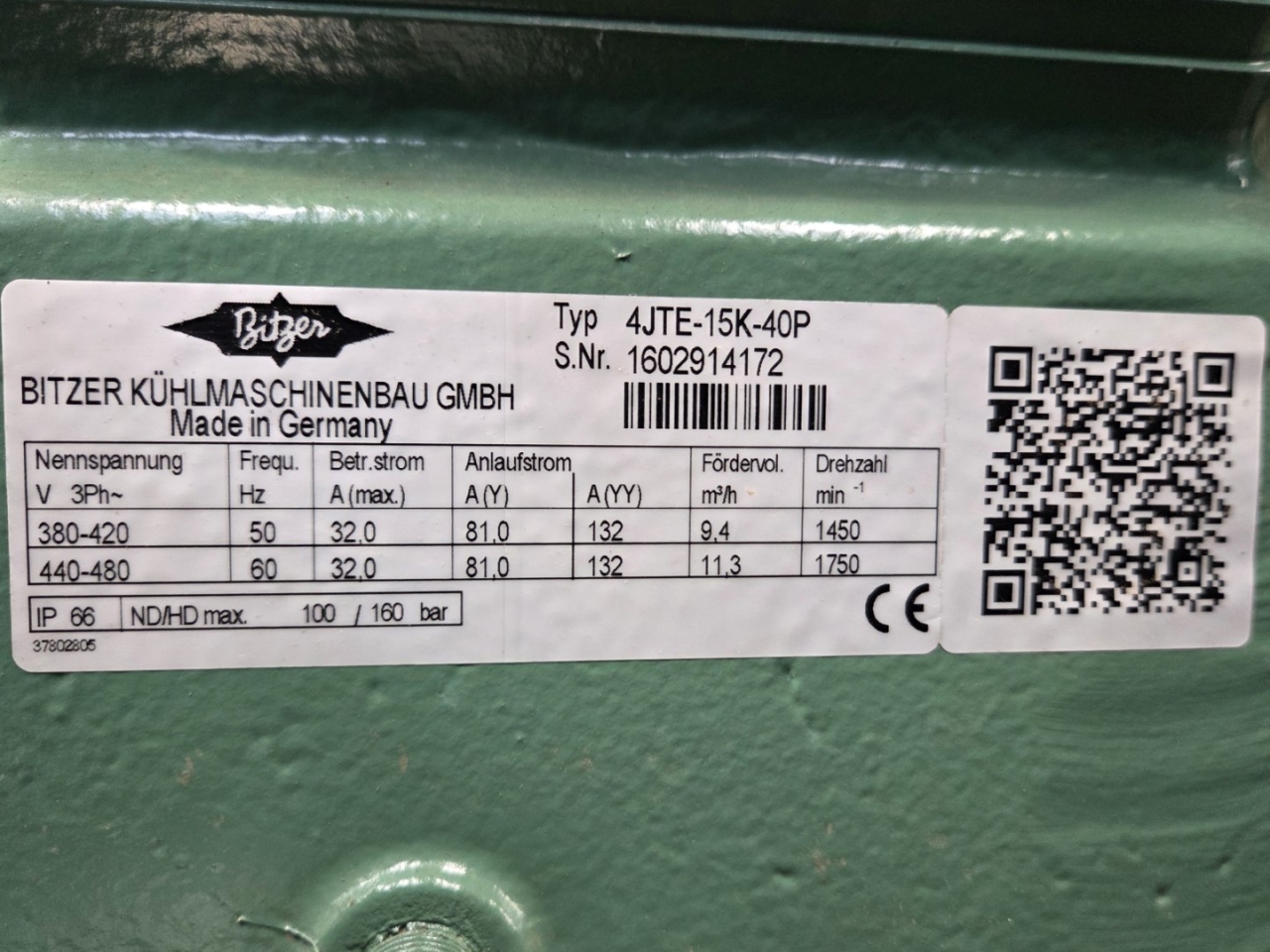

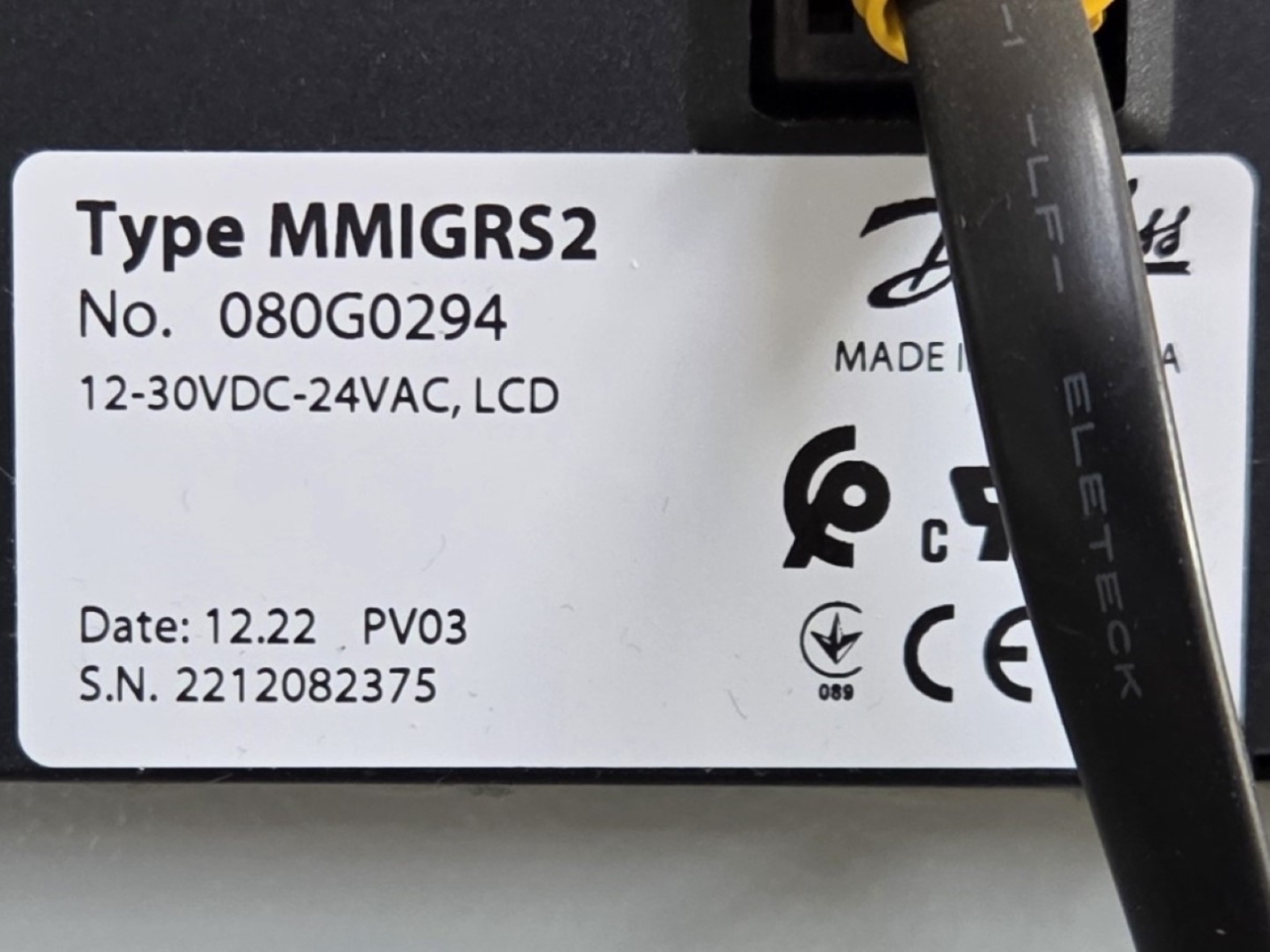

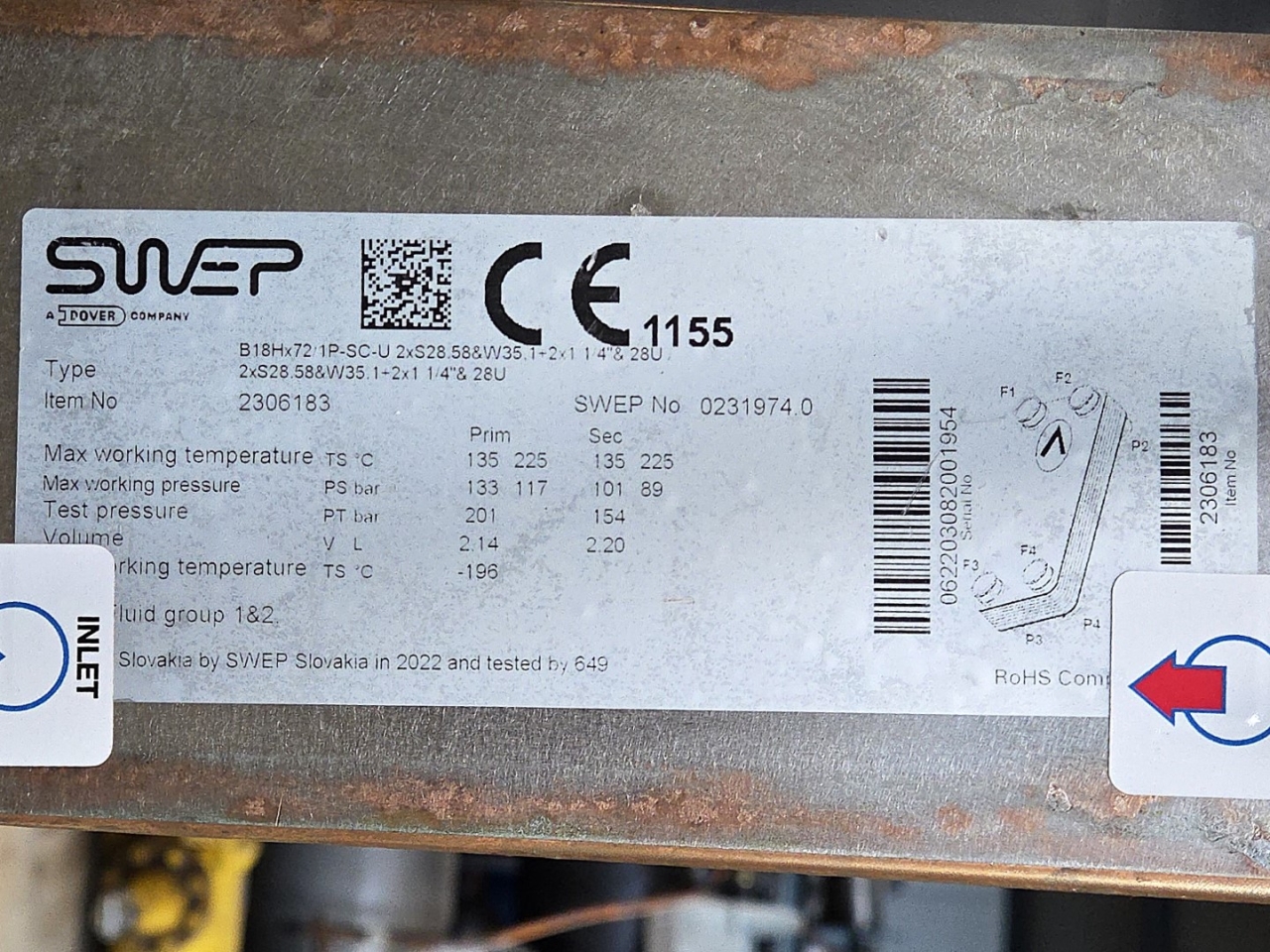

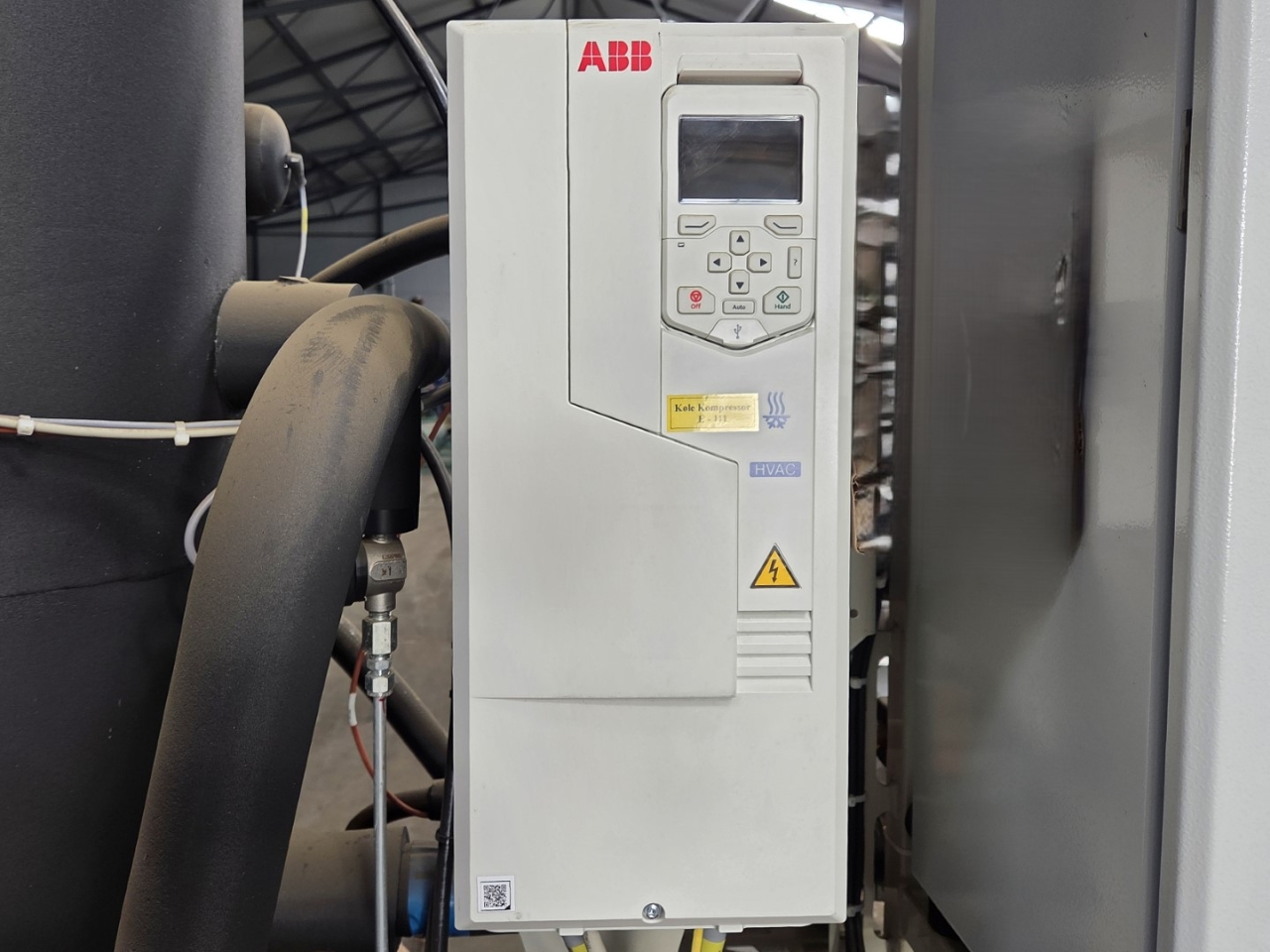

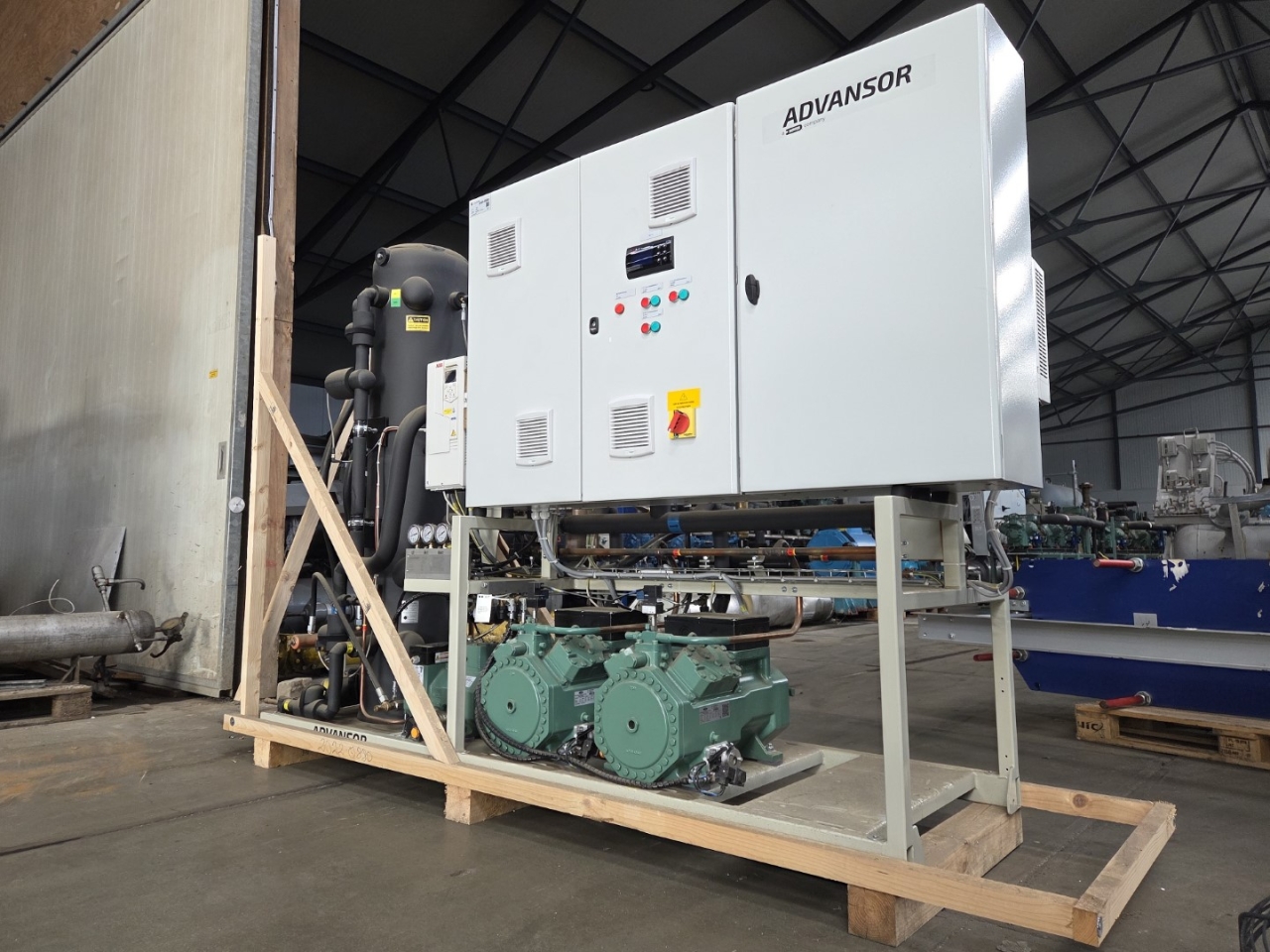

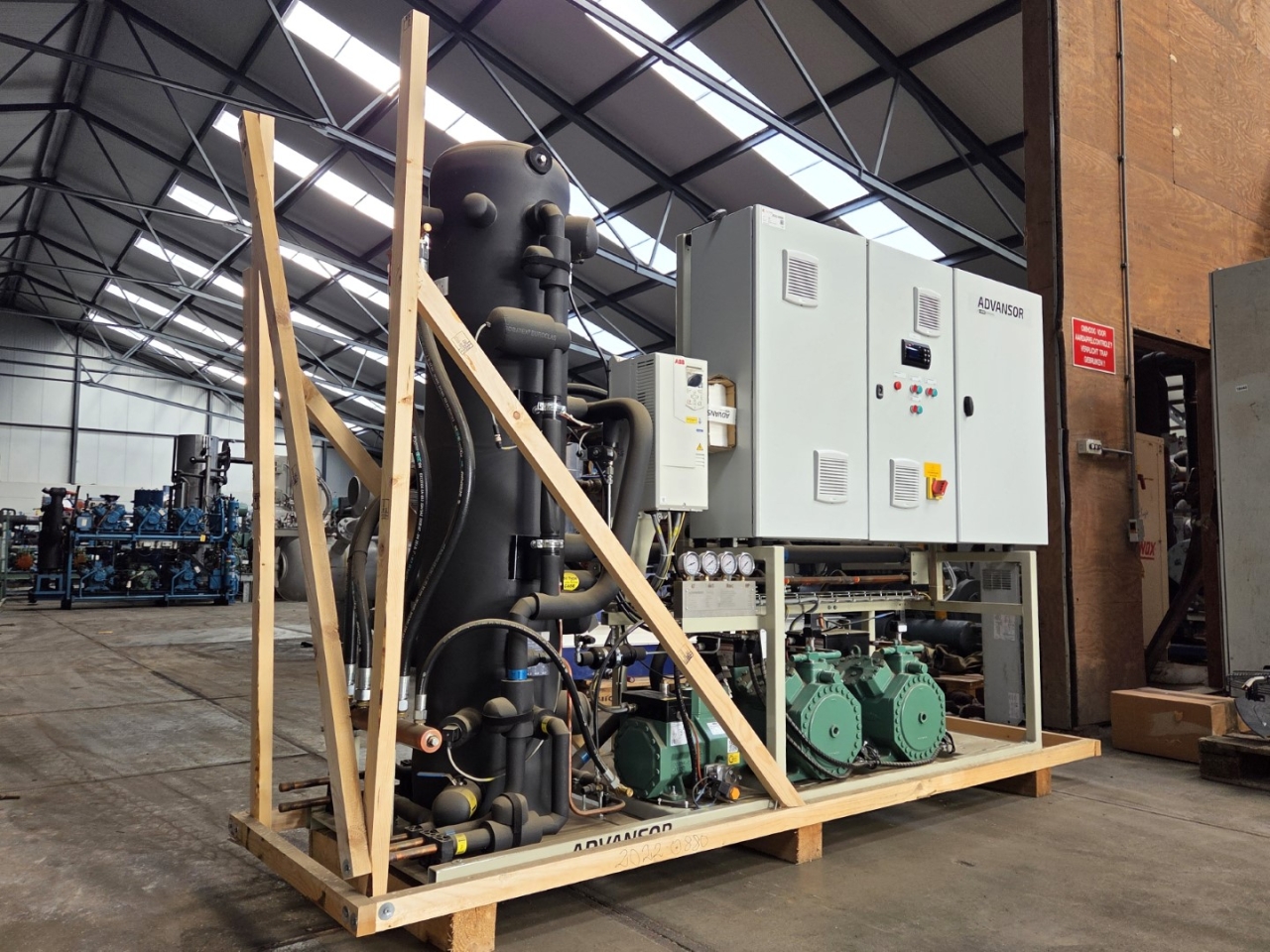

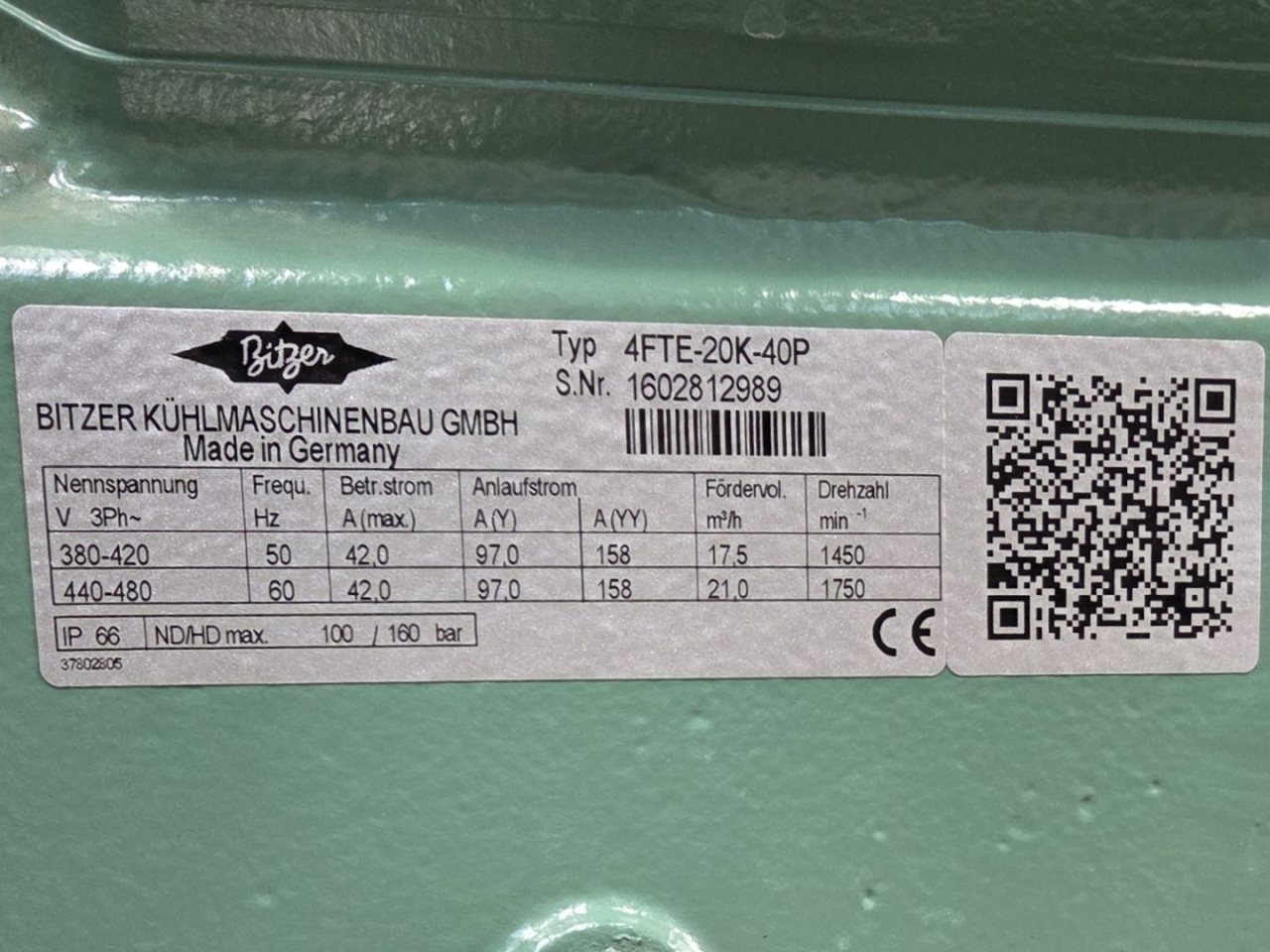

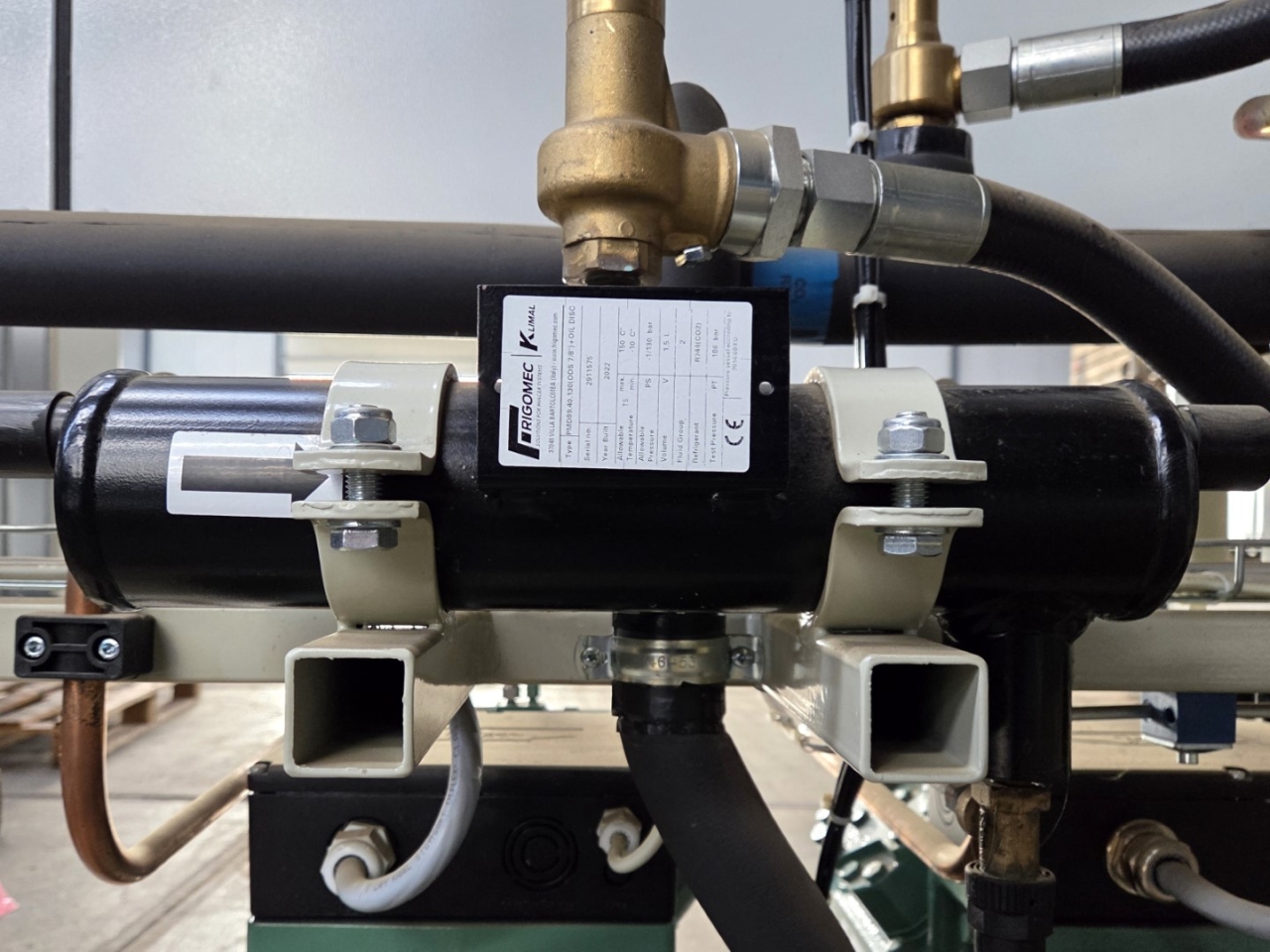

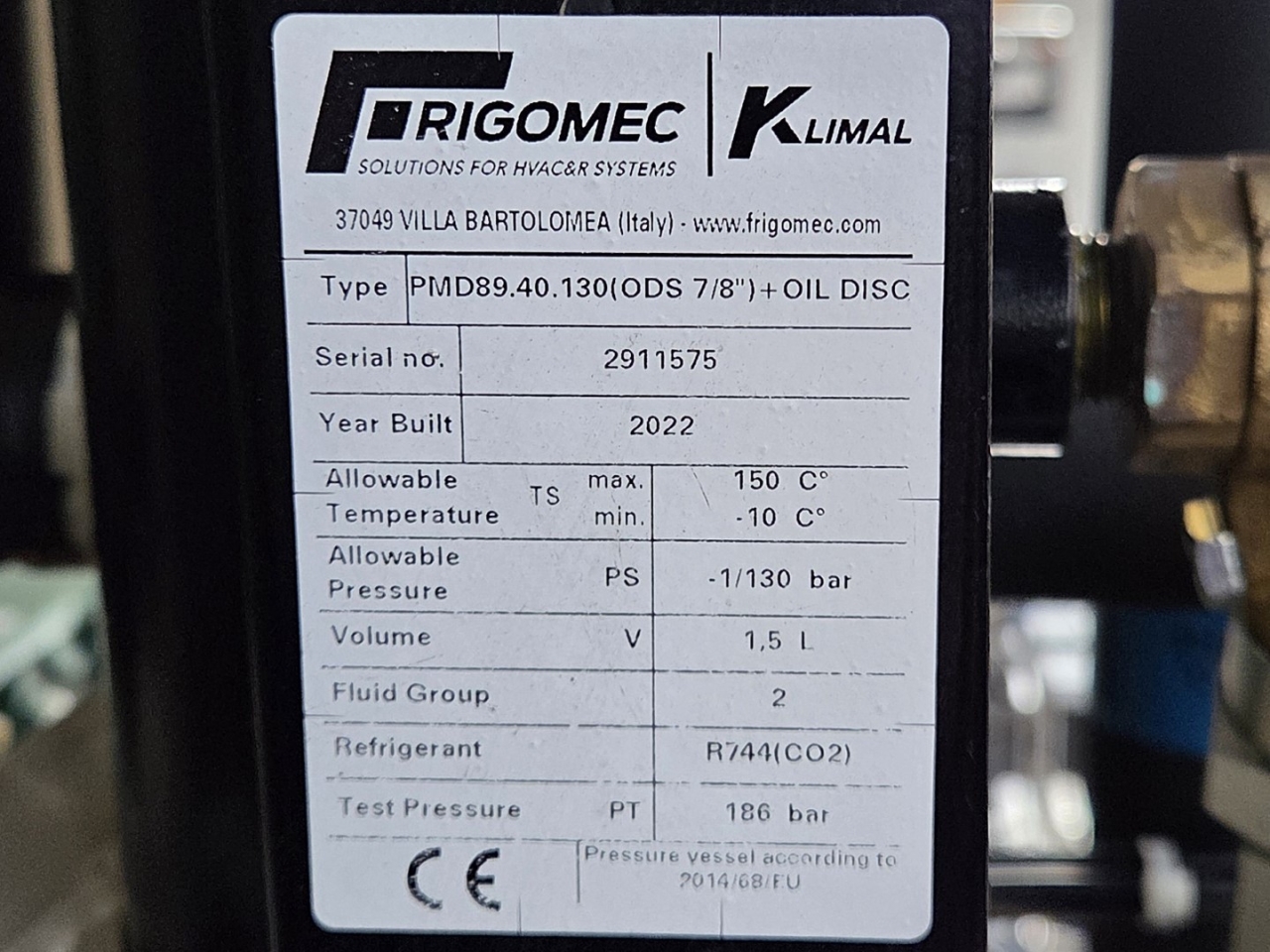

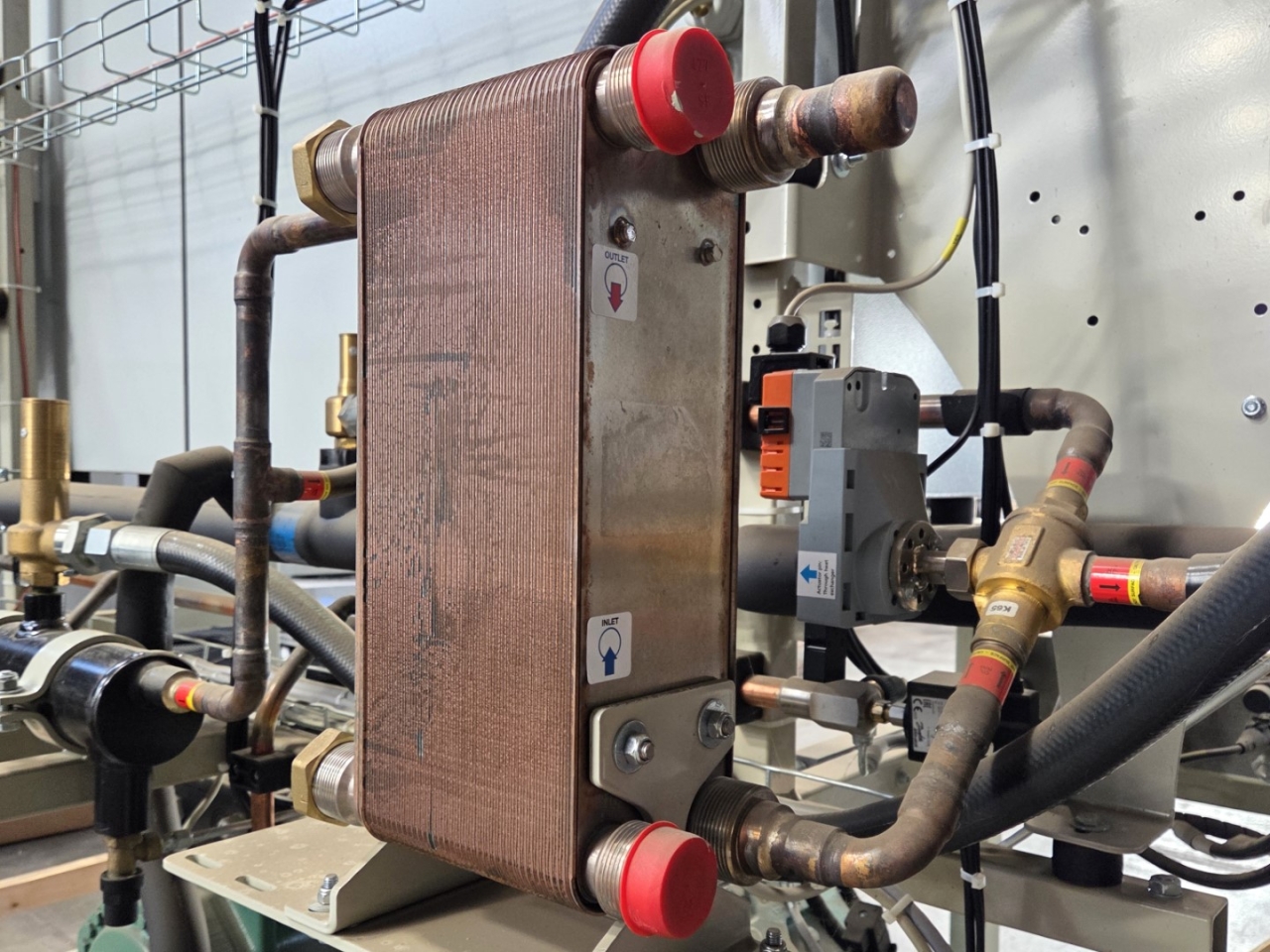

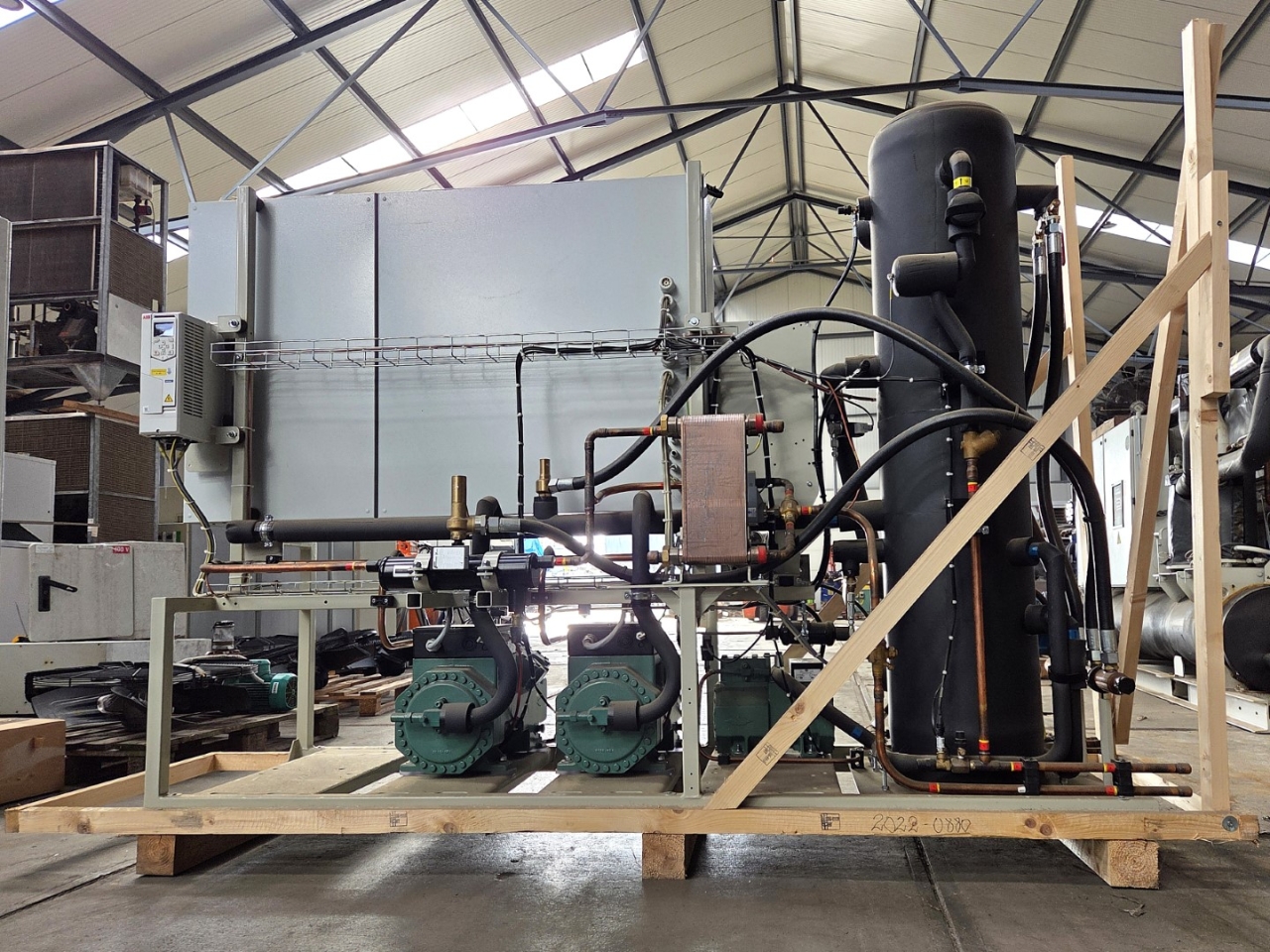

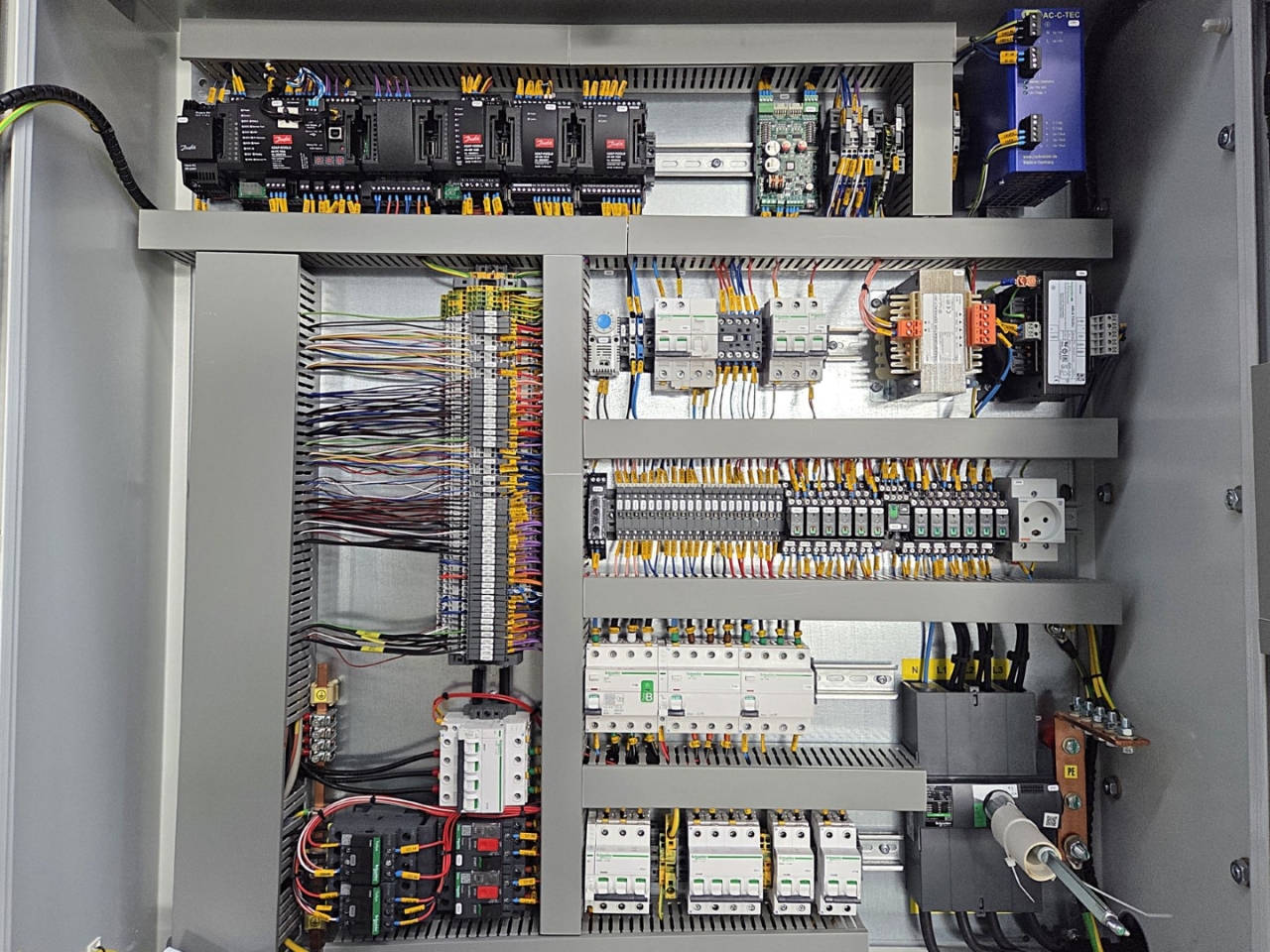

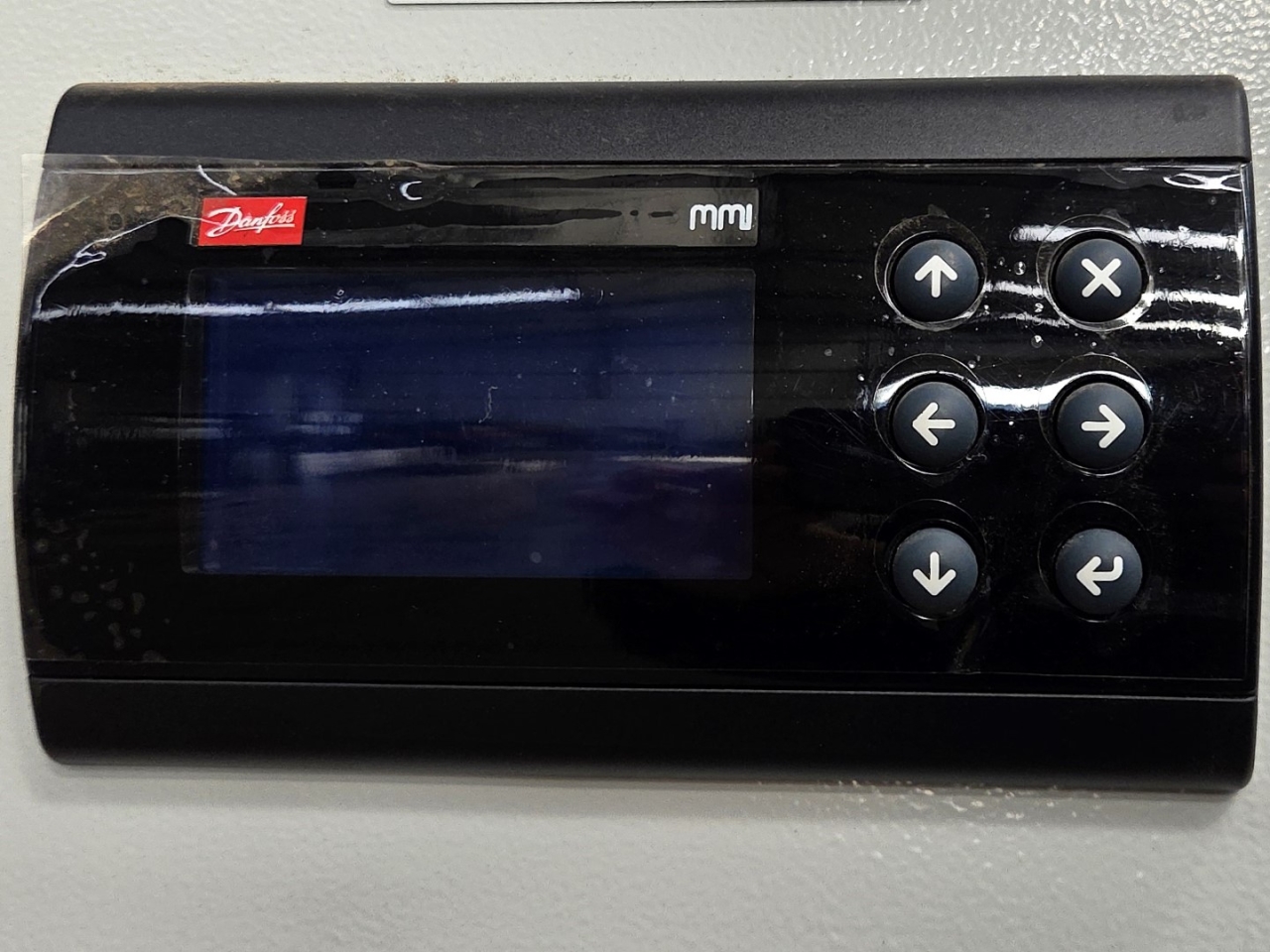

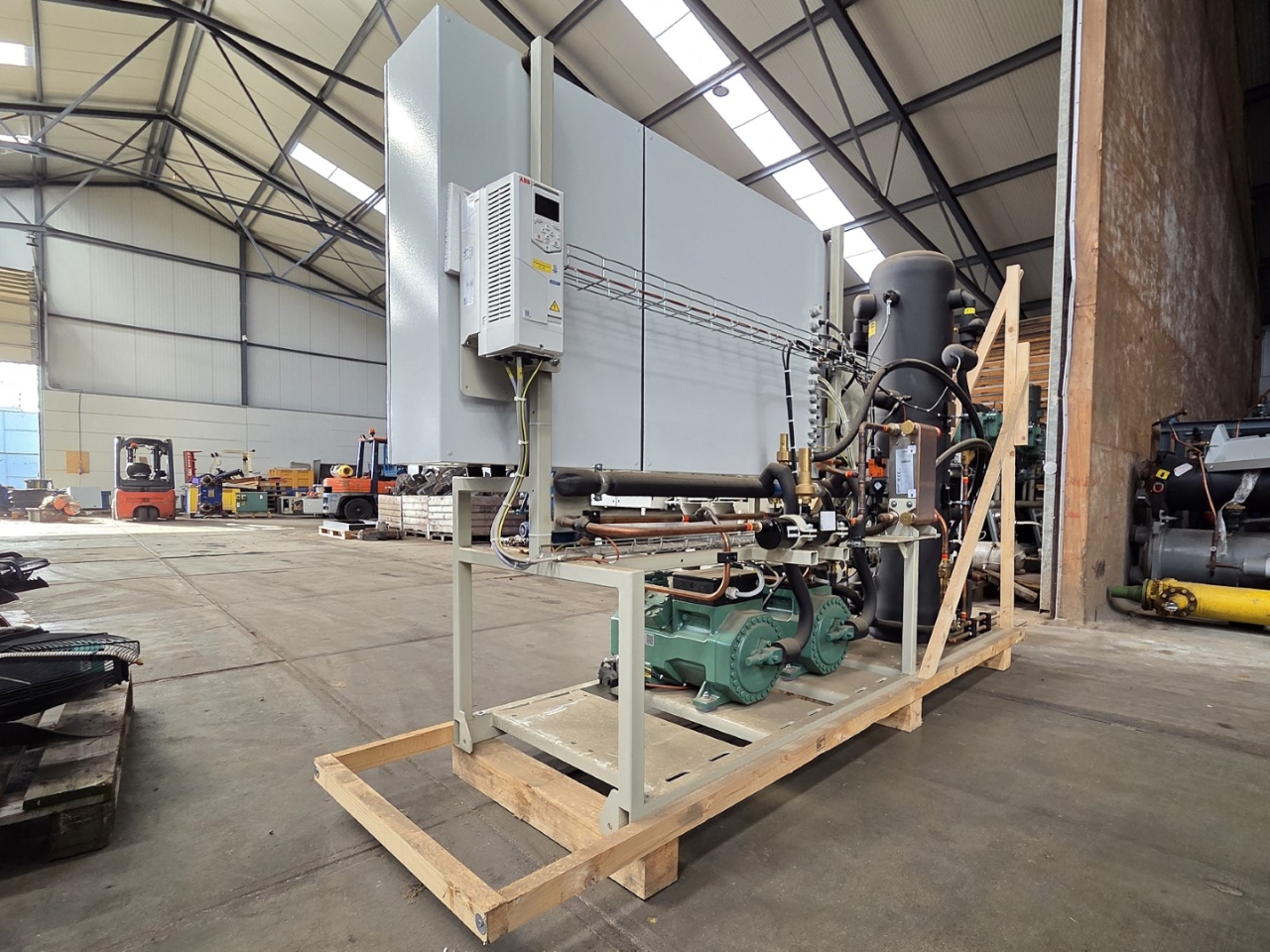

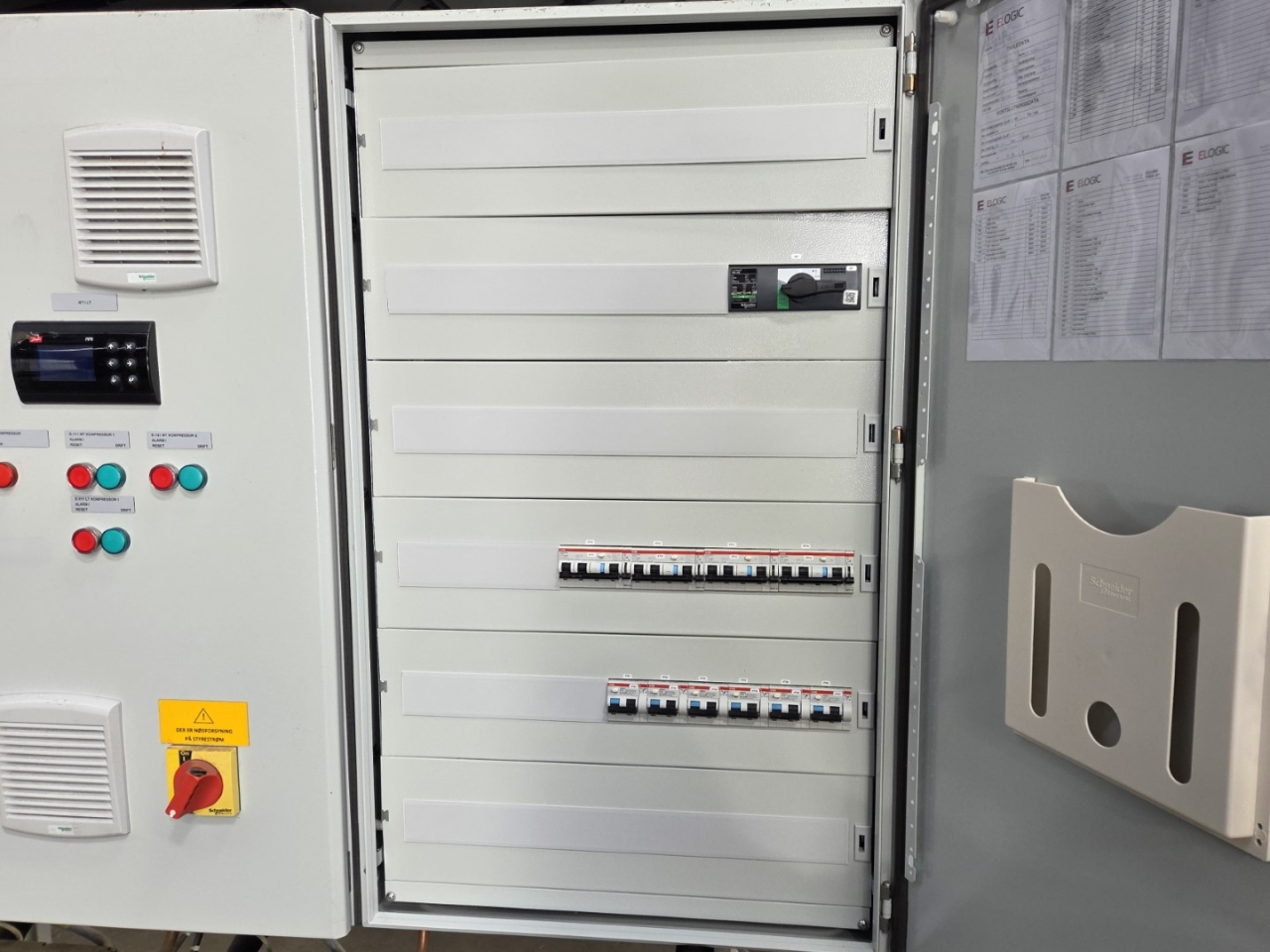

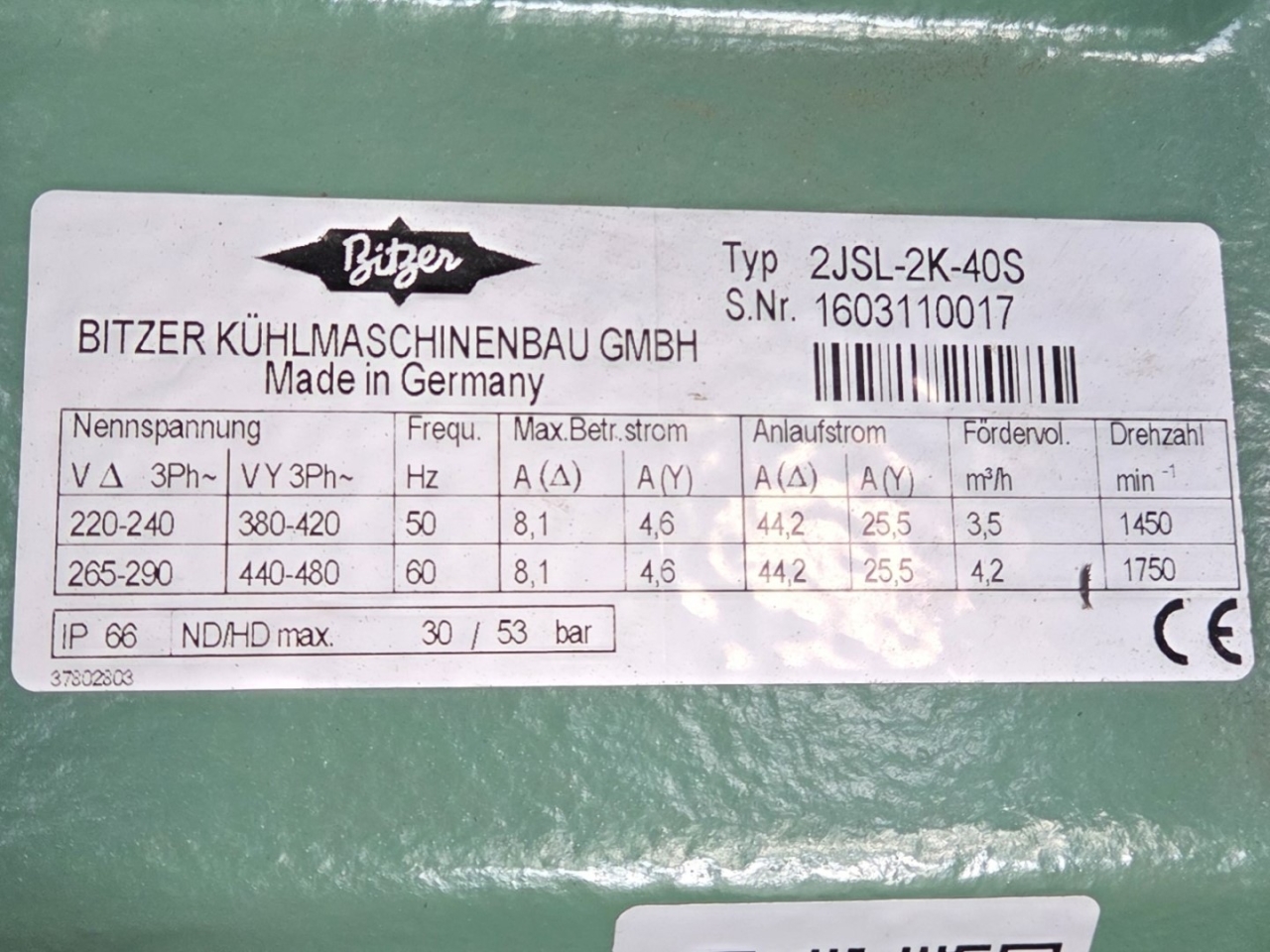

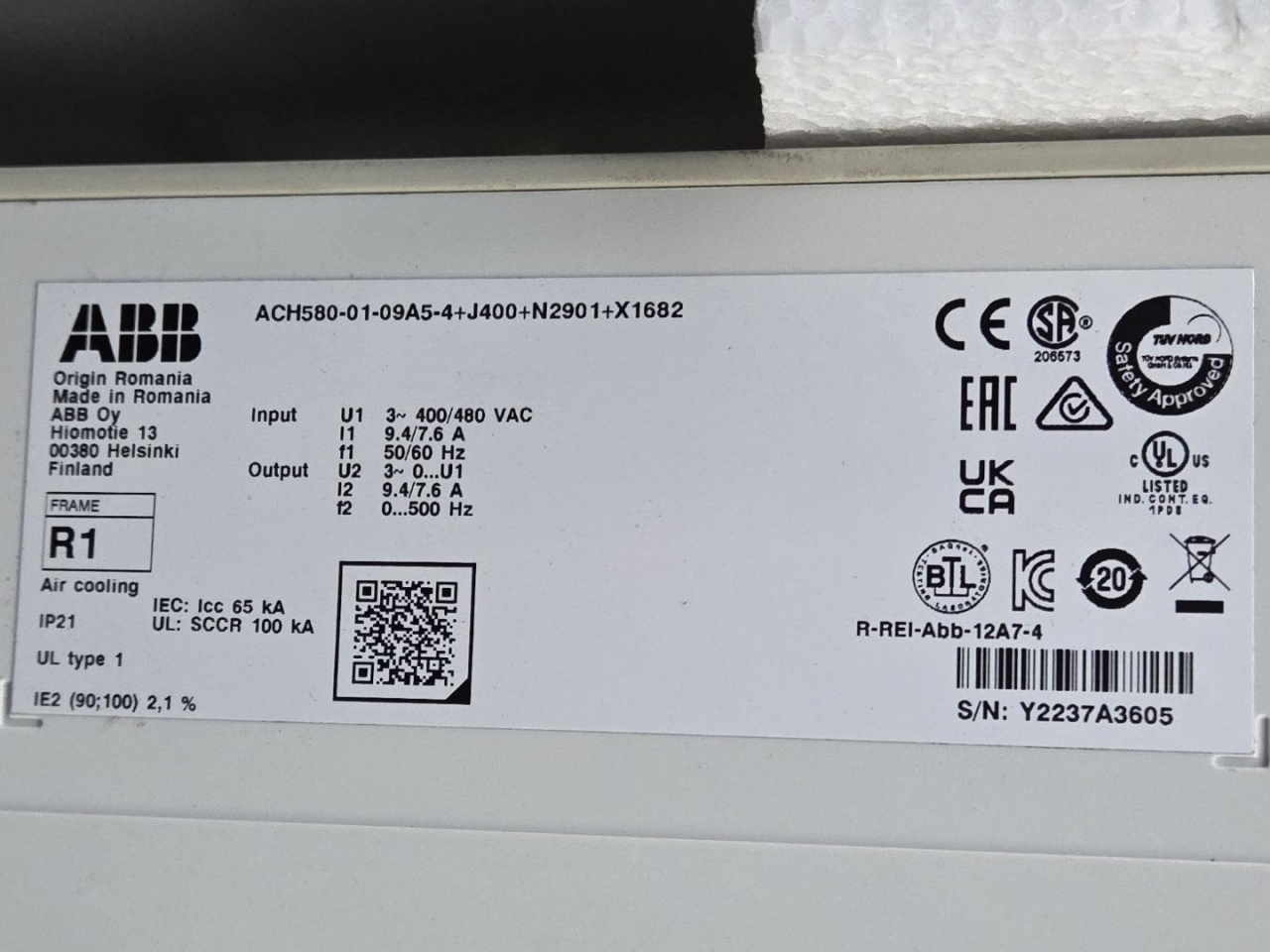

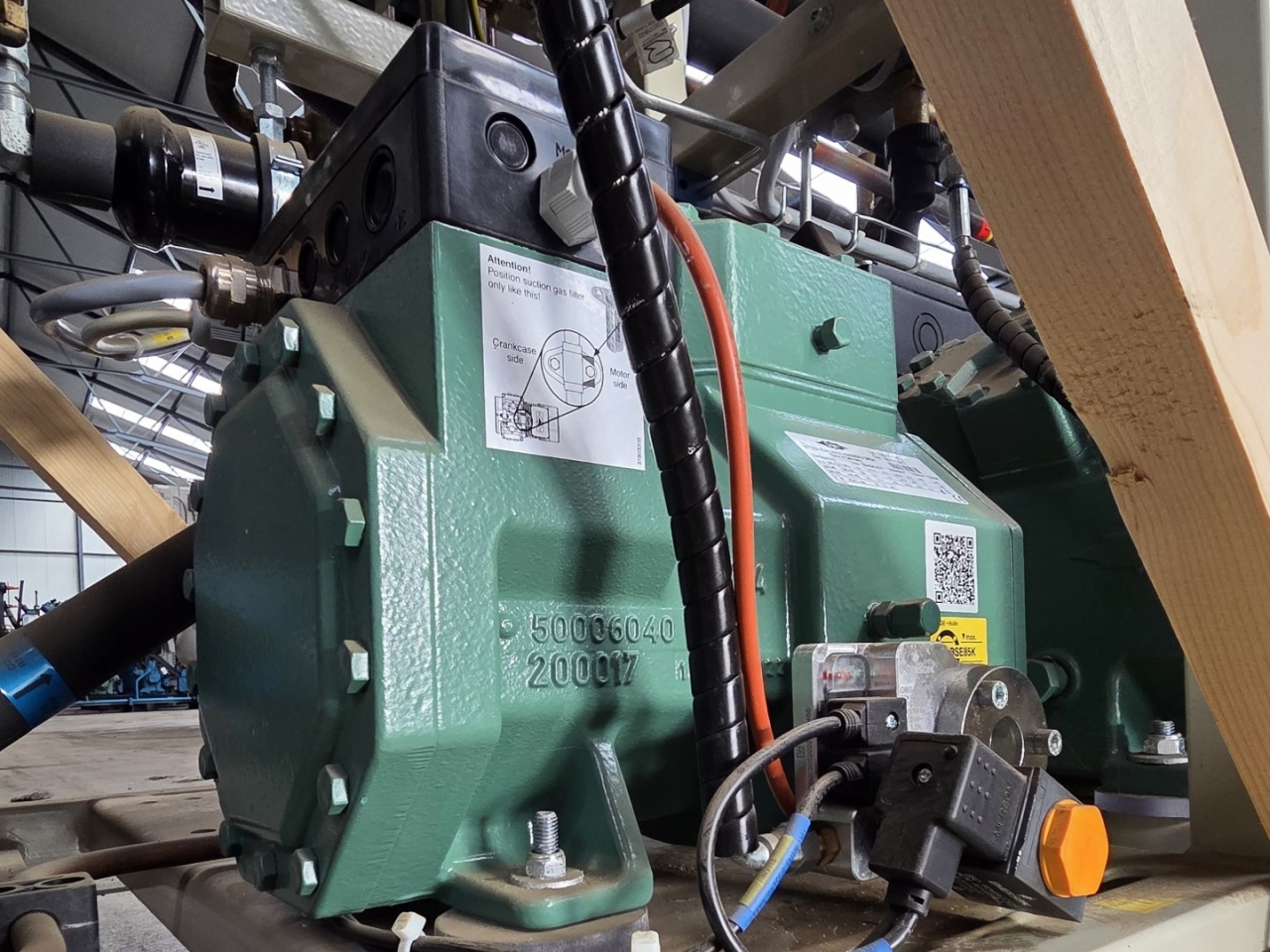

New Bitzer compressor rack on CO2 (R744). Complete with a Bitzer 2JSL-2K-40S (x1) & 4JTE-15K-40P (x1) & 4FTE-20K-40P (x1) semi-hermetic reciprocating compressors. Further the set comes with a Frigomec RC0355.178.133.60 liquid receiver with a volume of 133 liters, Frigomec PMD89.40.130 oil separator, Swep B18HX72/1P-SC-U brazed heat exchenger, pressure and safety gauges, ABB ACH580-01-0945-4+J400 frequency converter and a control cabinet with Danfoss MMIGRS2 controller.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
