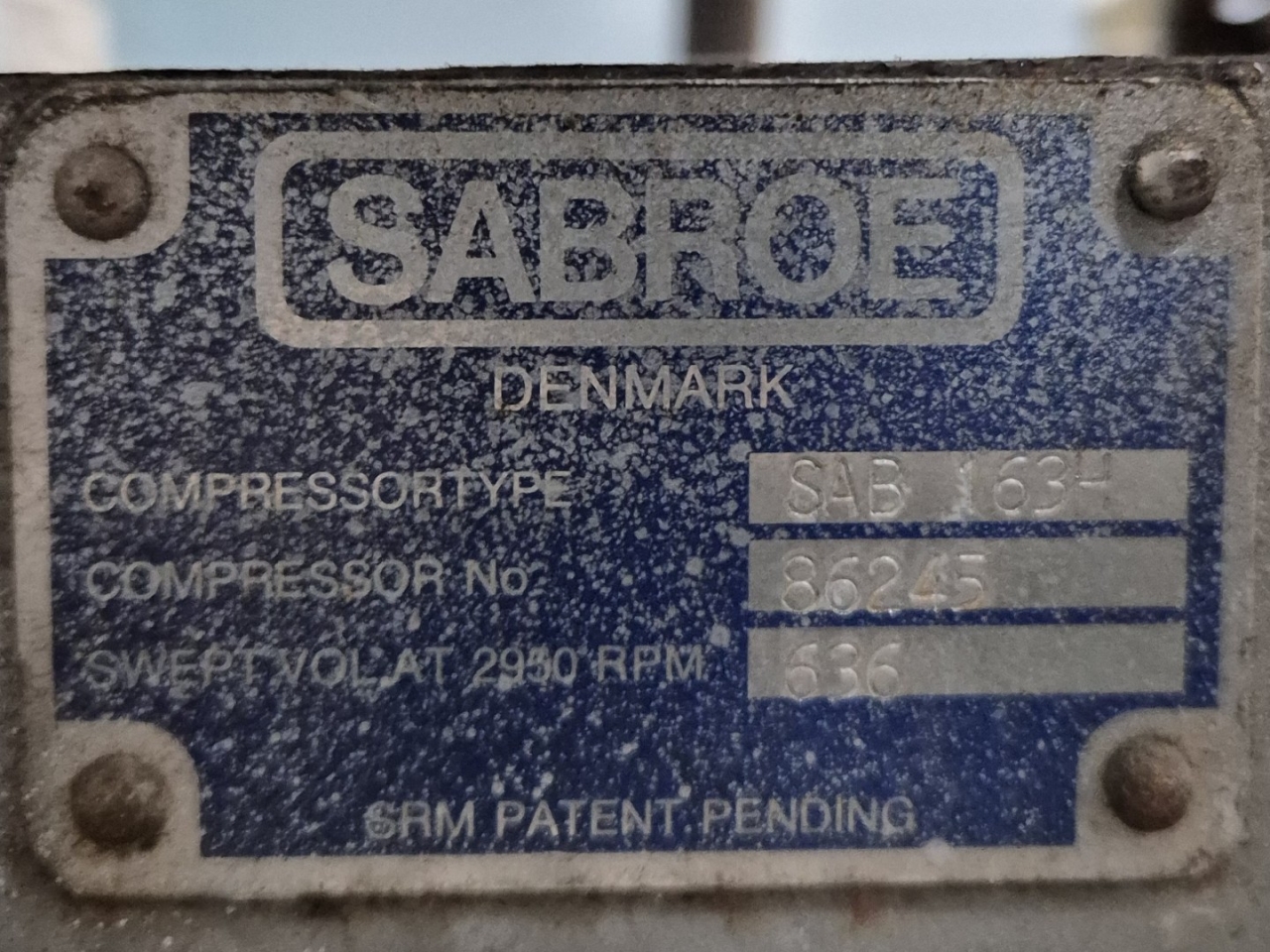

Sabroe SAB 163 HM MK1
Sabroe SAB 163 HM MK1
| 19074 | |
| Marka | Sabroe |
| Typ | SAB 163 HM MK1 |
| Czynnik chłodzący | NH 3 (ammonia) |
| Silnik elektryczny Specs | 50 Hz - 132 kW - 2966 RPM |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Separator oleju |
|
| Okno widokowe |
|

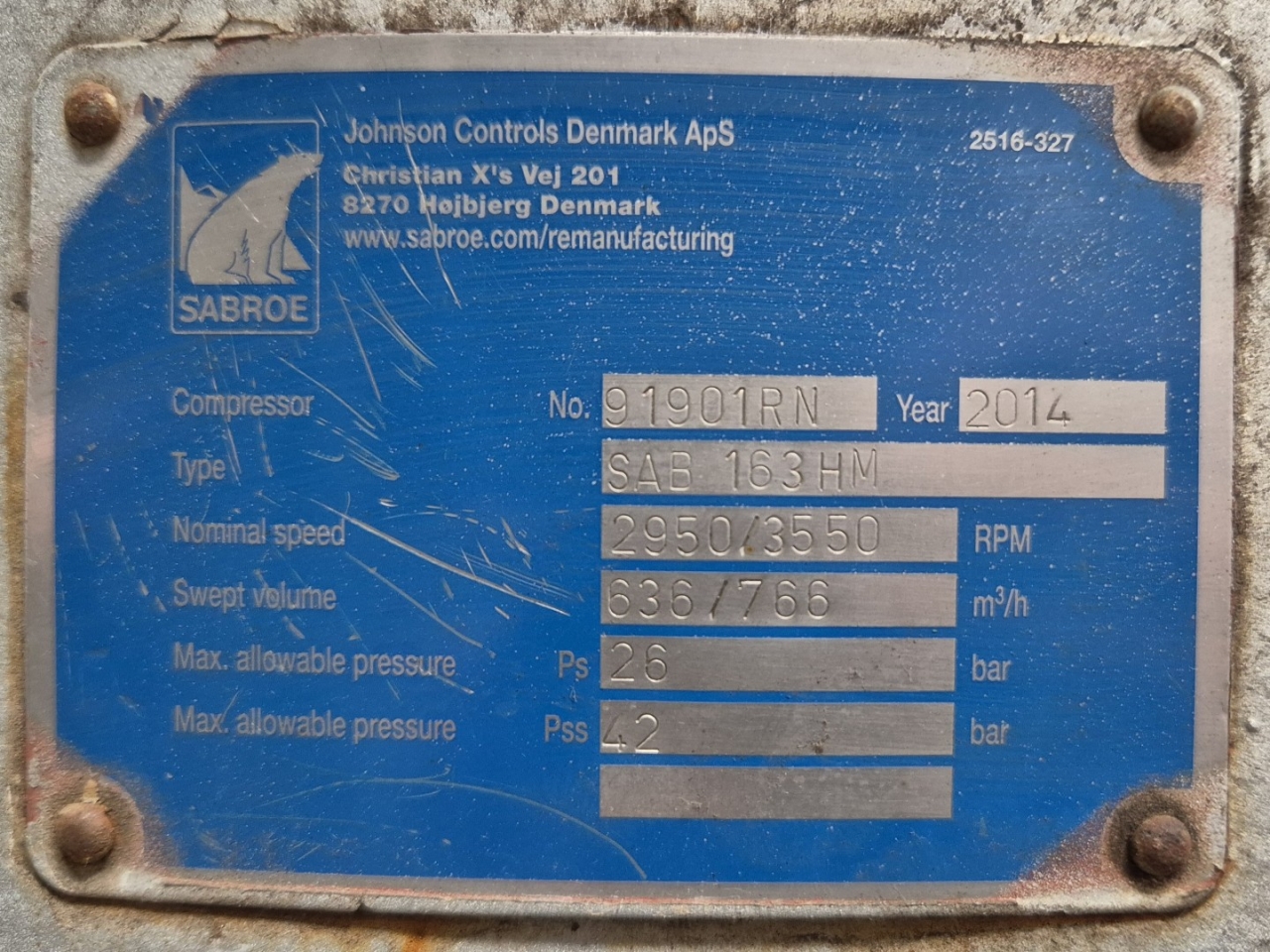

| m3 / h | 636 m³/h at 2950 RPM & 766 m³/h at 3550 RPM |
| Uwagi | | Y.o.b. 2014 |
| Rozmiary | 2700x120x2180 mm (LxWxH) |
| Liczba sztuk | 1 |
Sabroe SAB 163 HM MK1

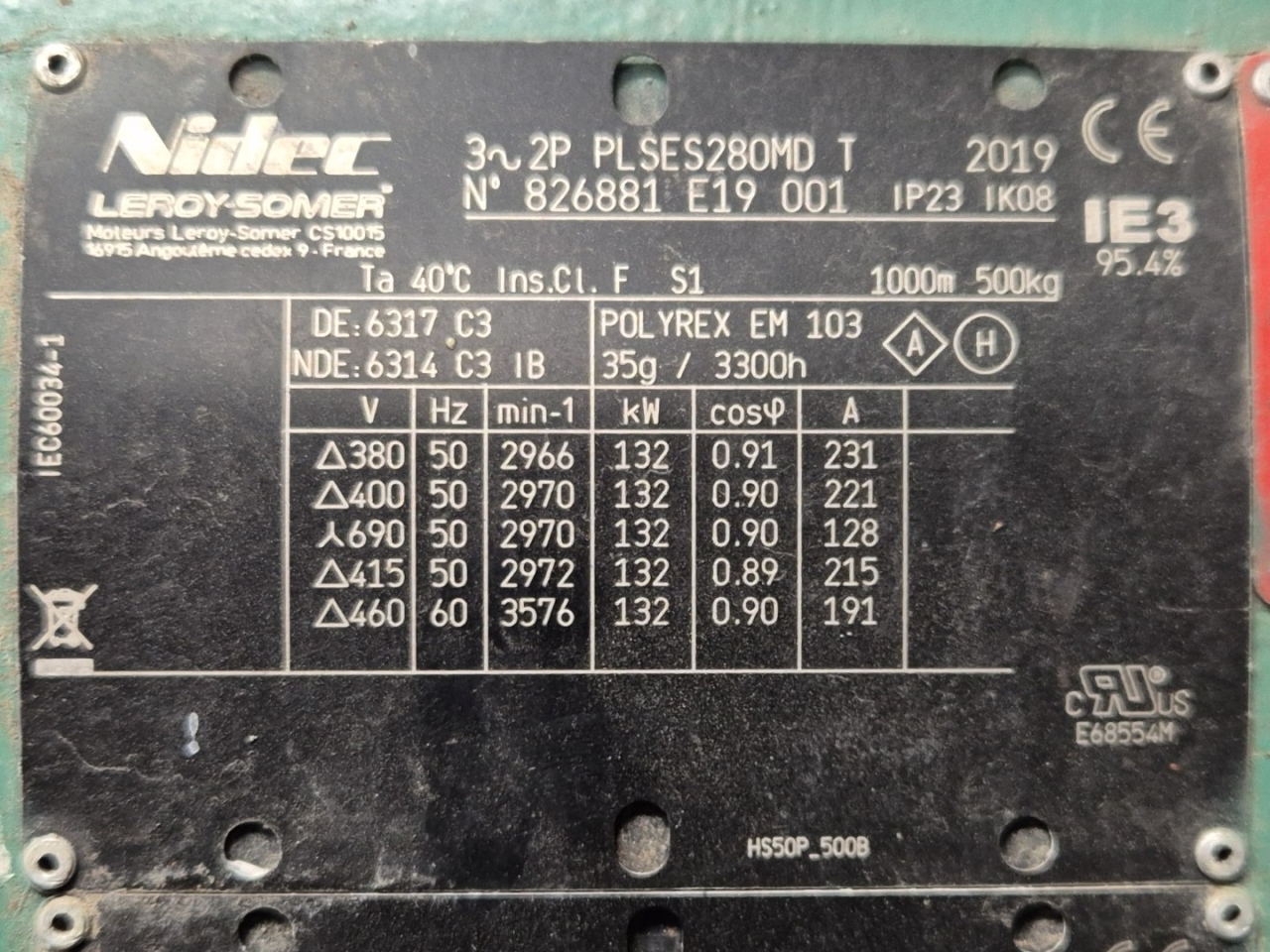

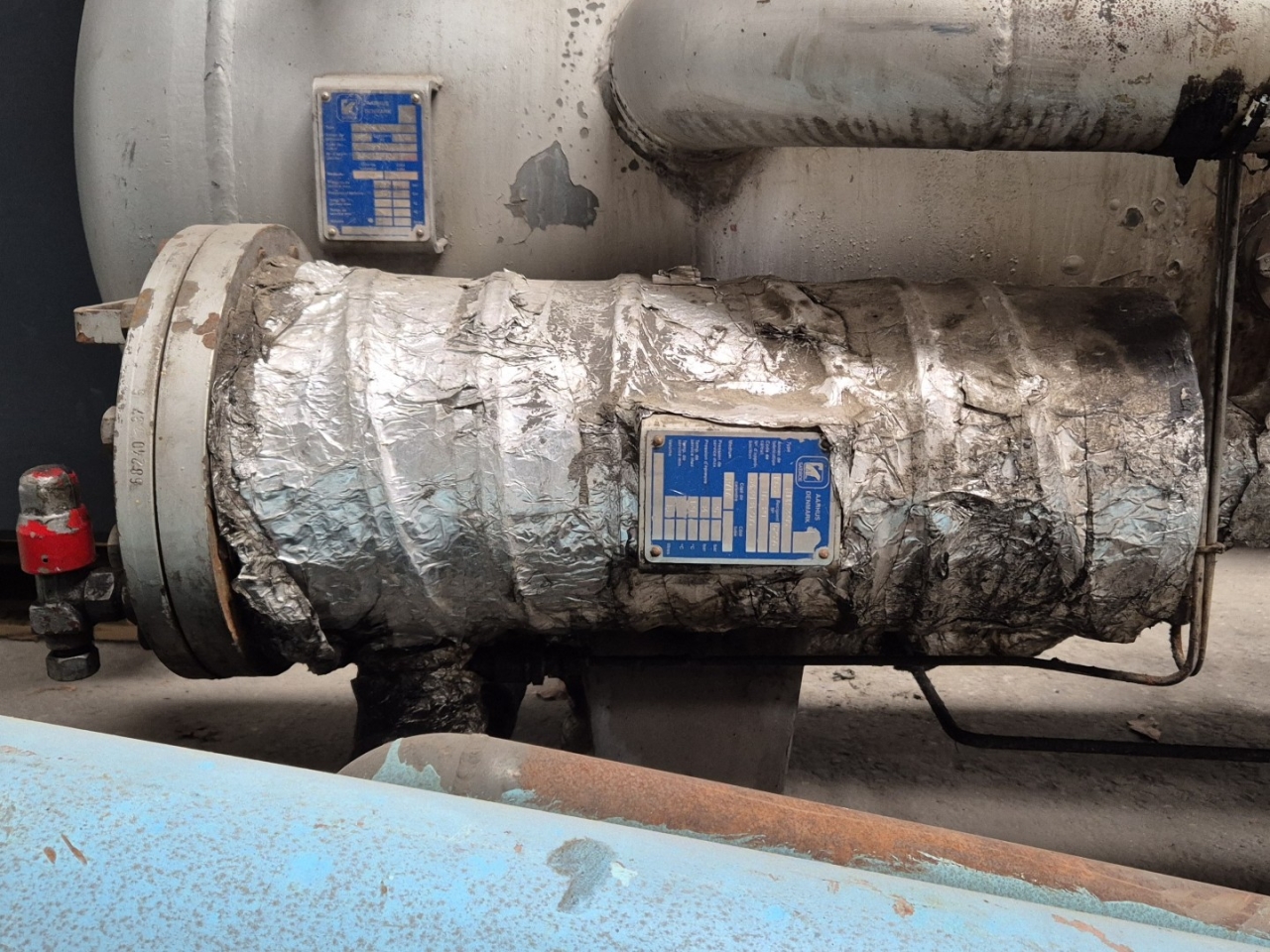

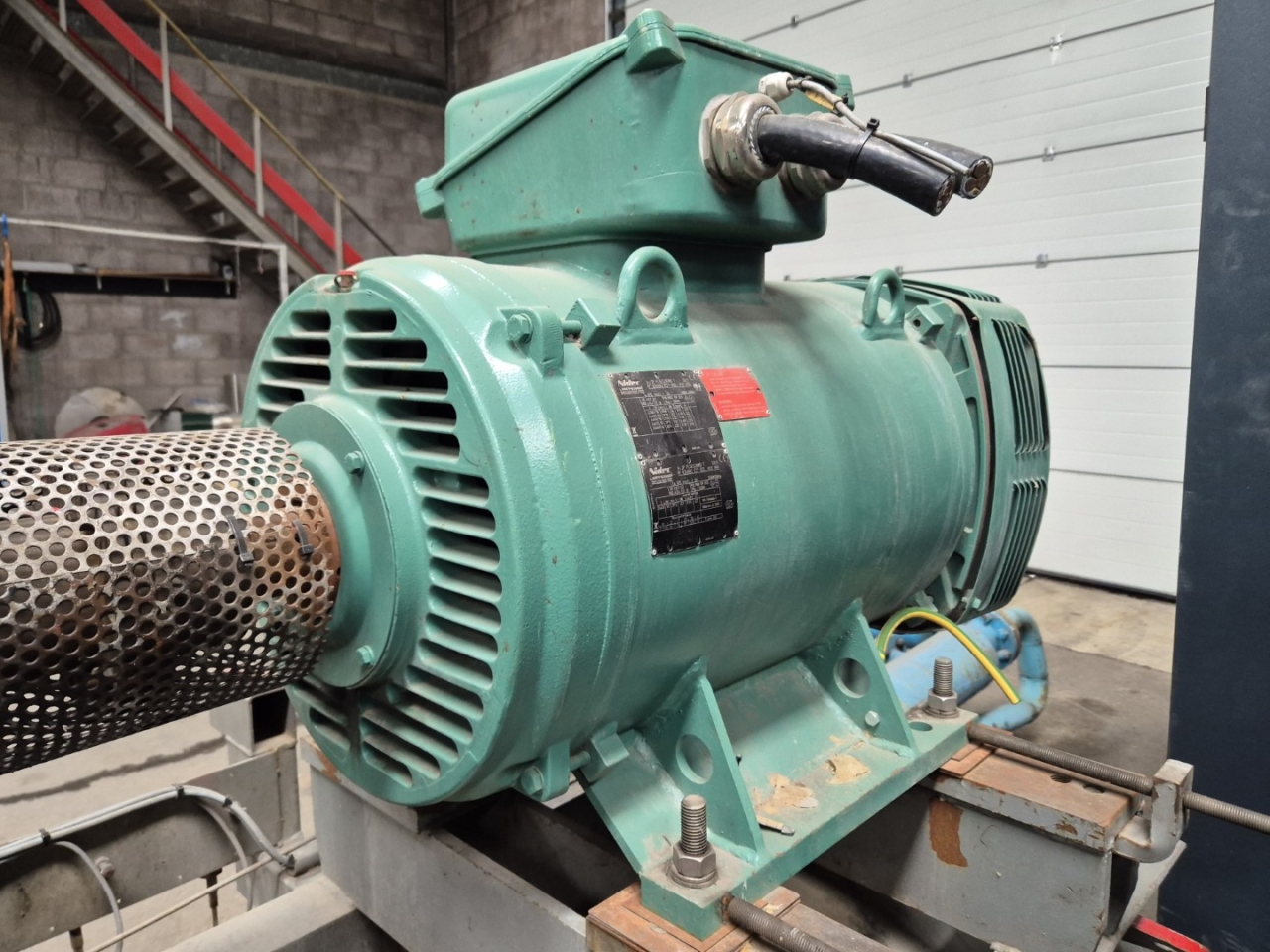

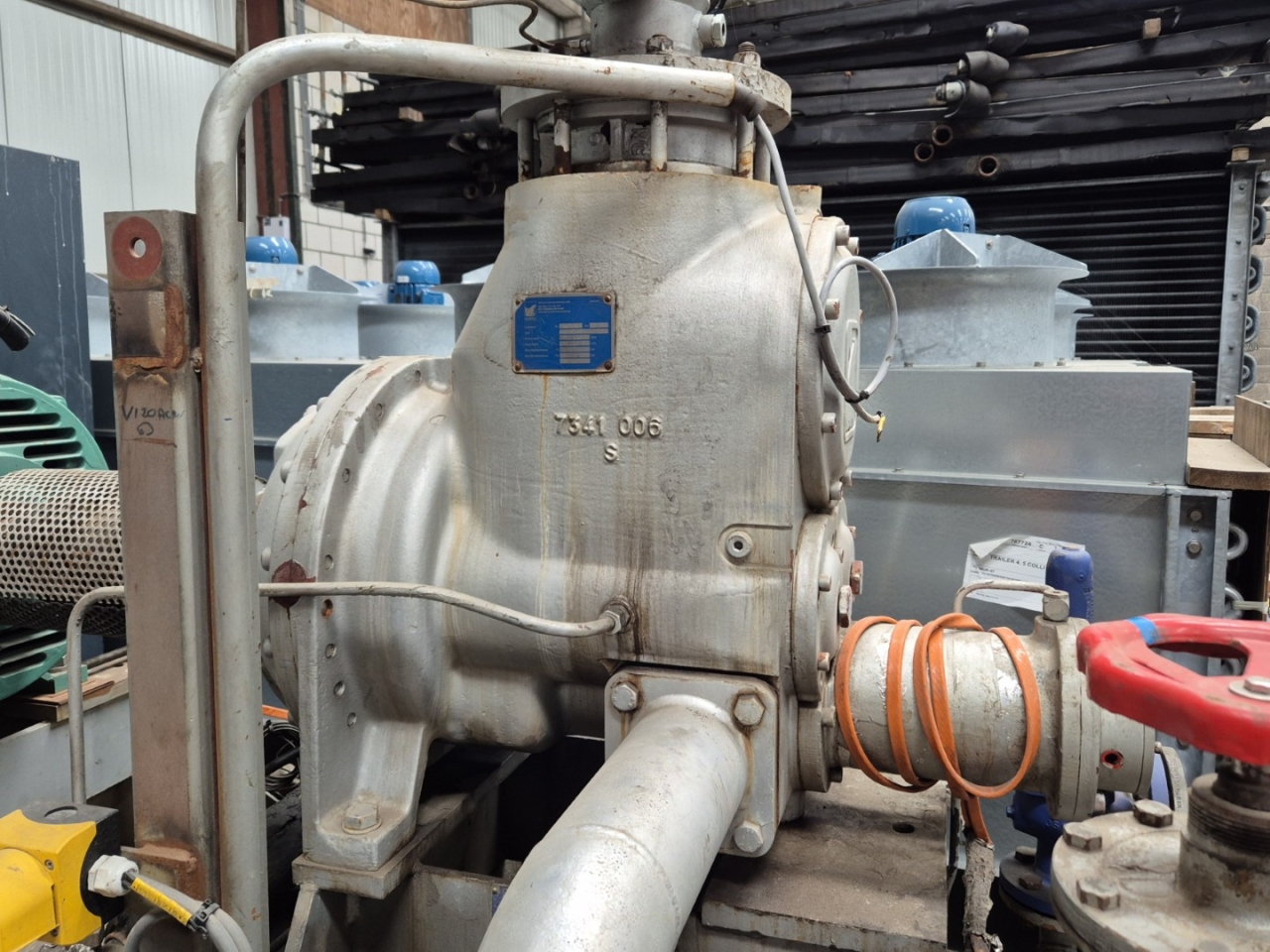

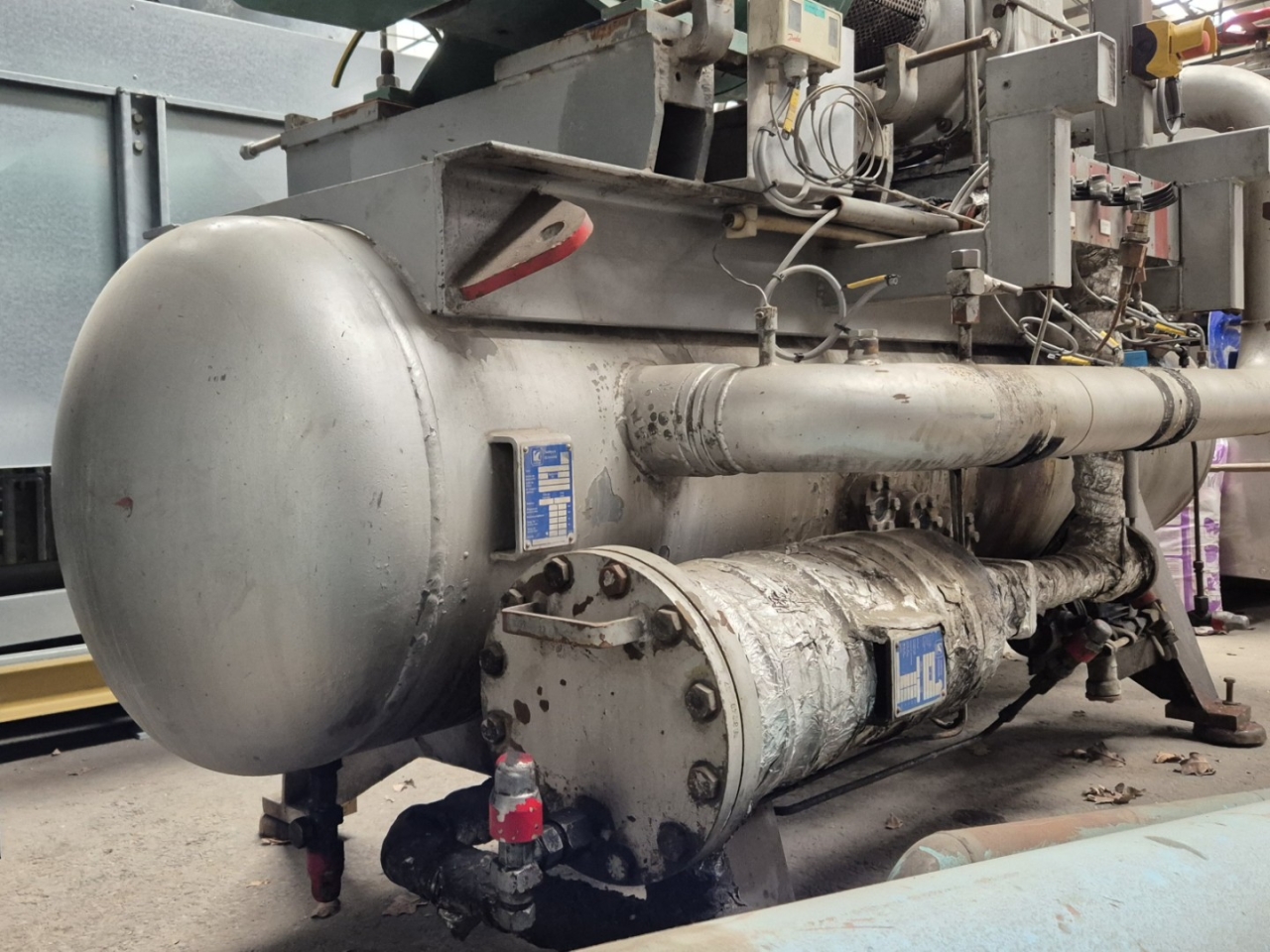

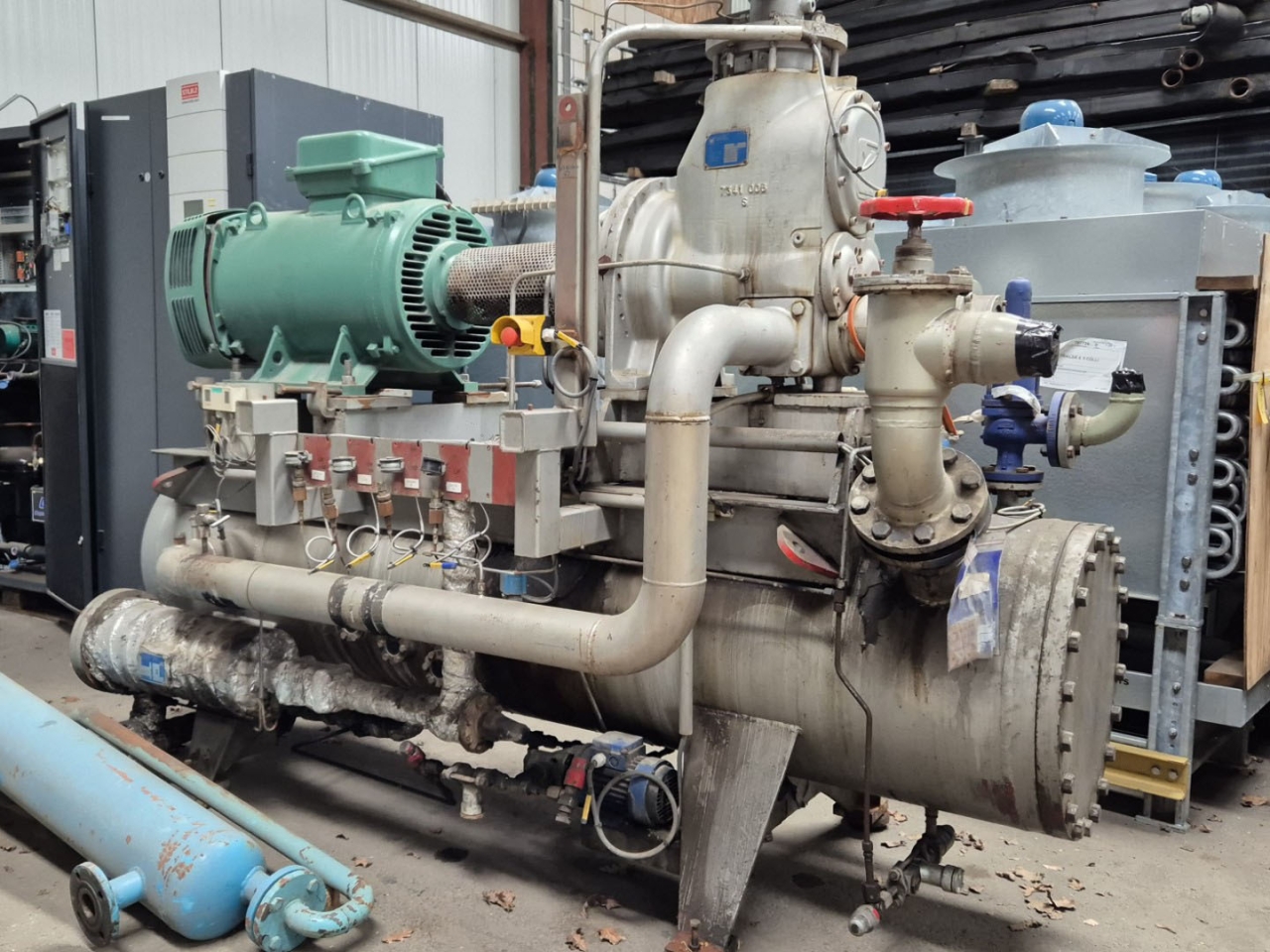

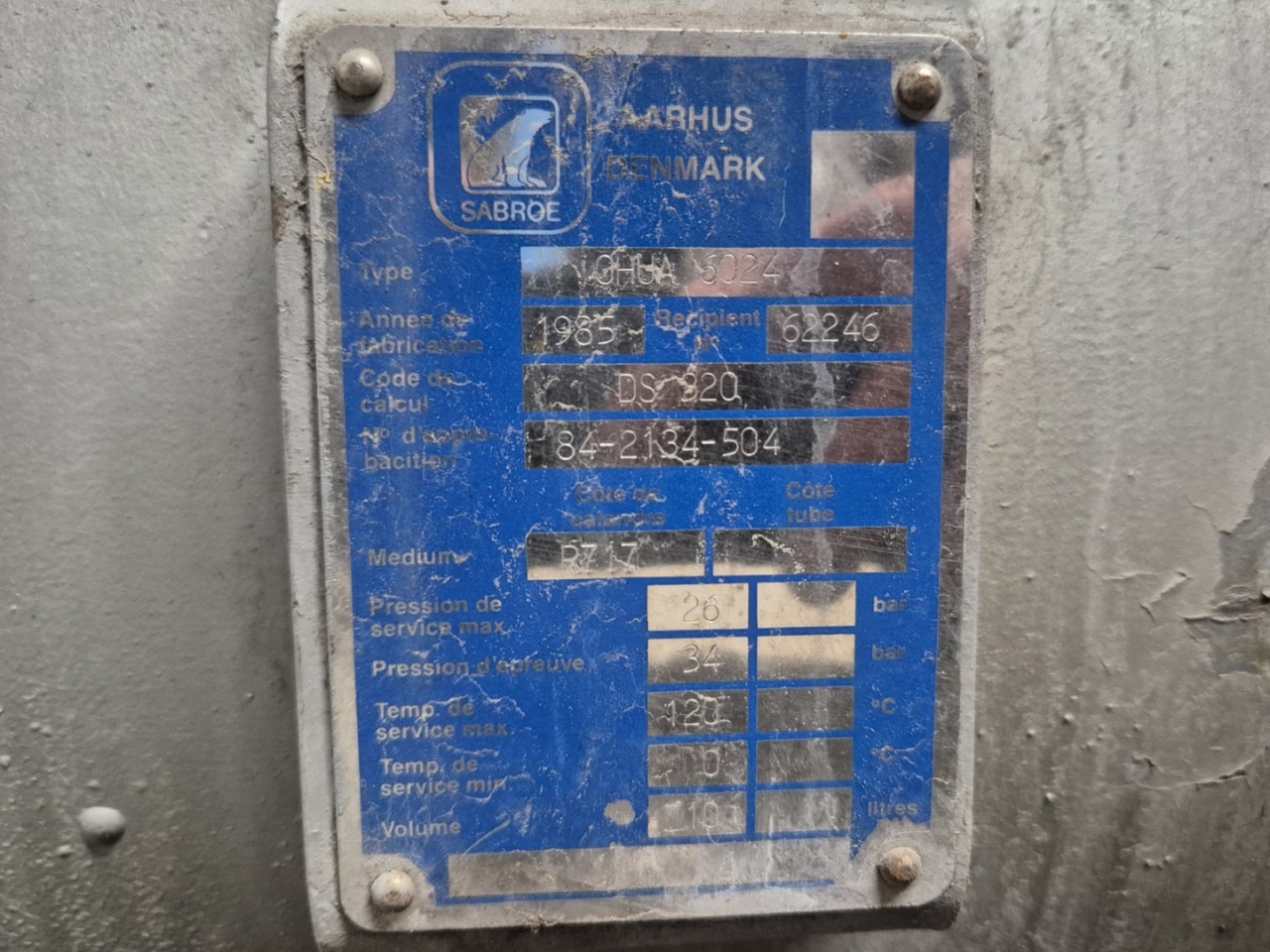

Used Sabroe SAB 163 HM MK1 screw compressor on NH3 (R717). Complete with a Nidec PLSES280MD T electric motor - 50 Hz - 132 kW - 2966 RPM, Sabroe OHUA 6024 oil separator with a volume of 710 liter, Sabroe FHUR 2205 FHUR 2205 oil filter and a Rickmeier oil pump.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
Sabroe SAB 163 HM MK1
| Sabroe SAB 163 HM MK1 - | (PDF) |
