CFS SVR 400/18/60-203 Spiral Freezer
CFS SVR 400/18/60-203 Spiral Freezer
| 10941 | |
| Marka | CFS |
| Typ | SVR 400/18/60-203 Spiral Freezer |
| Pojemność | 125 kW |
| Czynnik chłodzący |
Ammonia or freon * we can replace the evaporator(s) |
| Rozmiary | 18 Layers / 200m total belt length |
| Maximum product height | 60 mm |
| Evaporator specifications | Goedhart PLK.S 861 M2 / NH3 |
| Tiers | 18 |
| Effective belt width | 400 mm |
| Liczba sztuk | 1 |
CFS SVR 400/18/60-203 Spiral Freezer

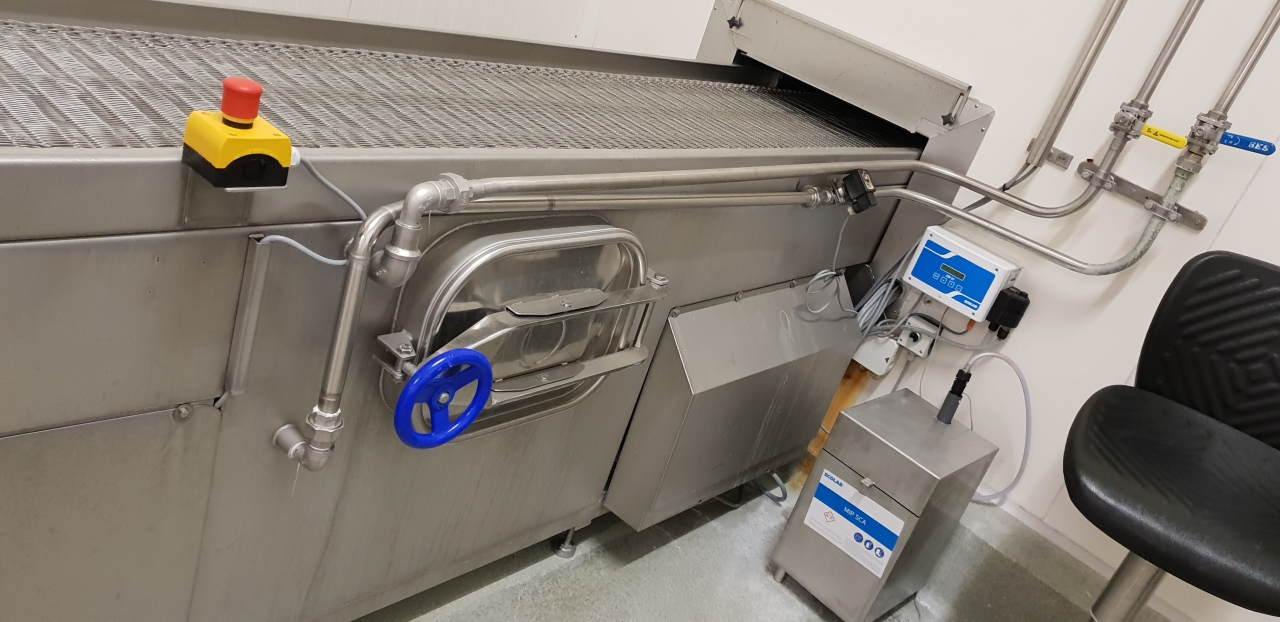

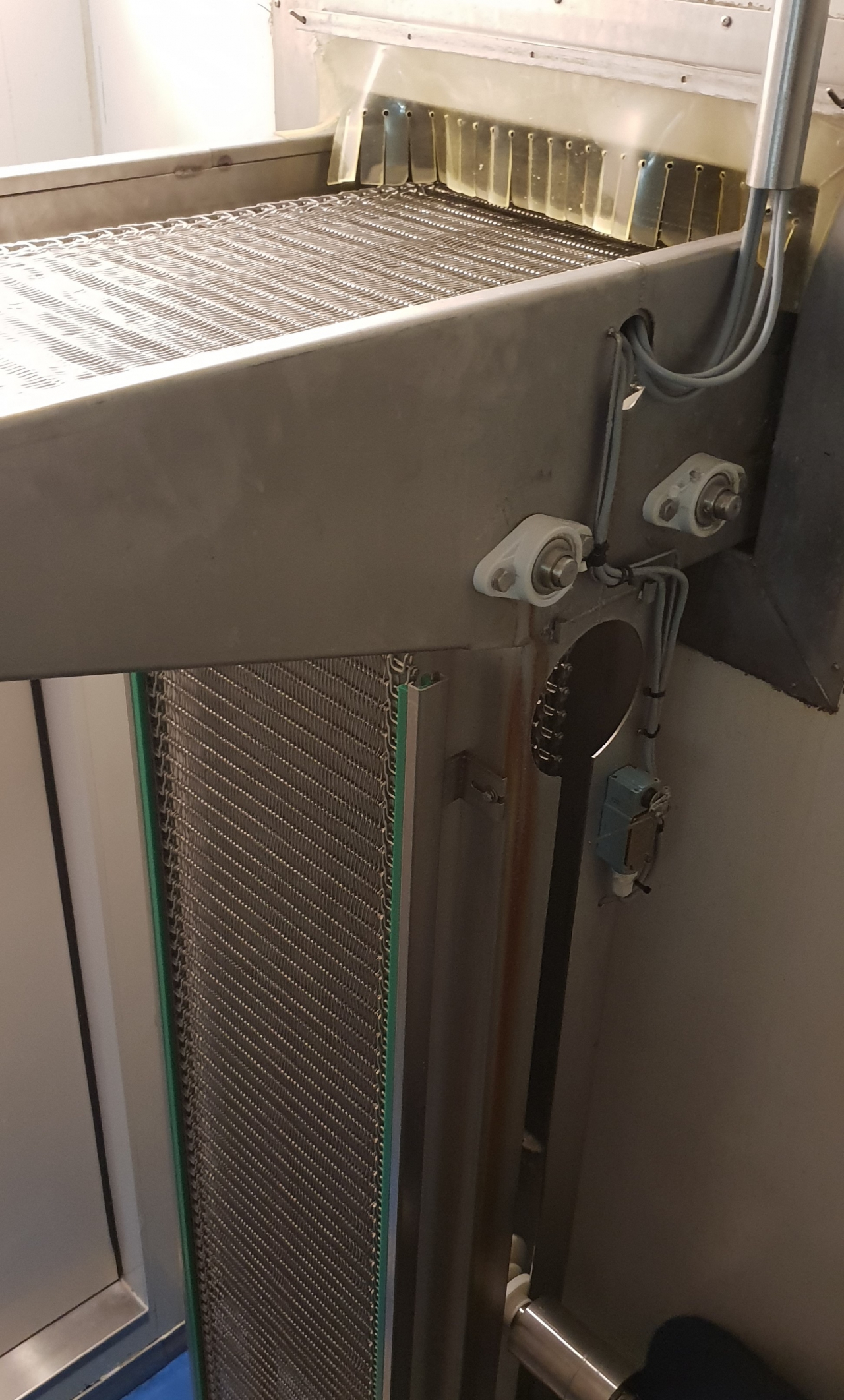

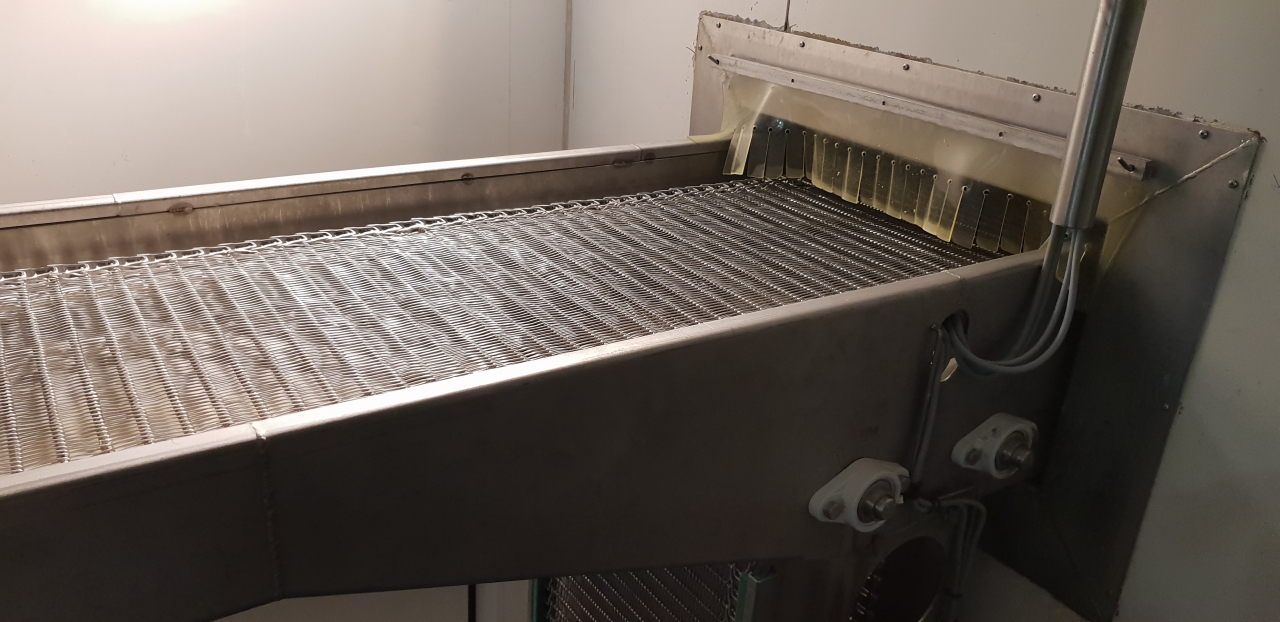

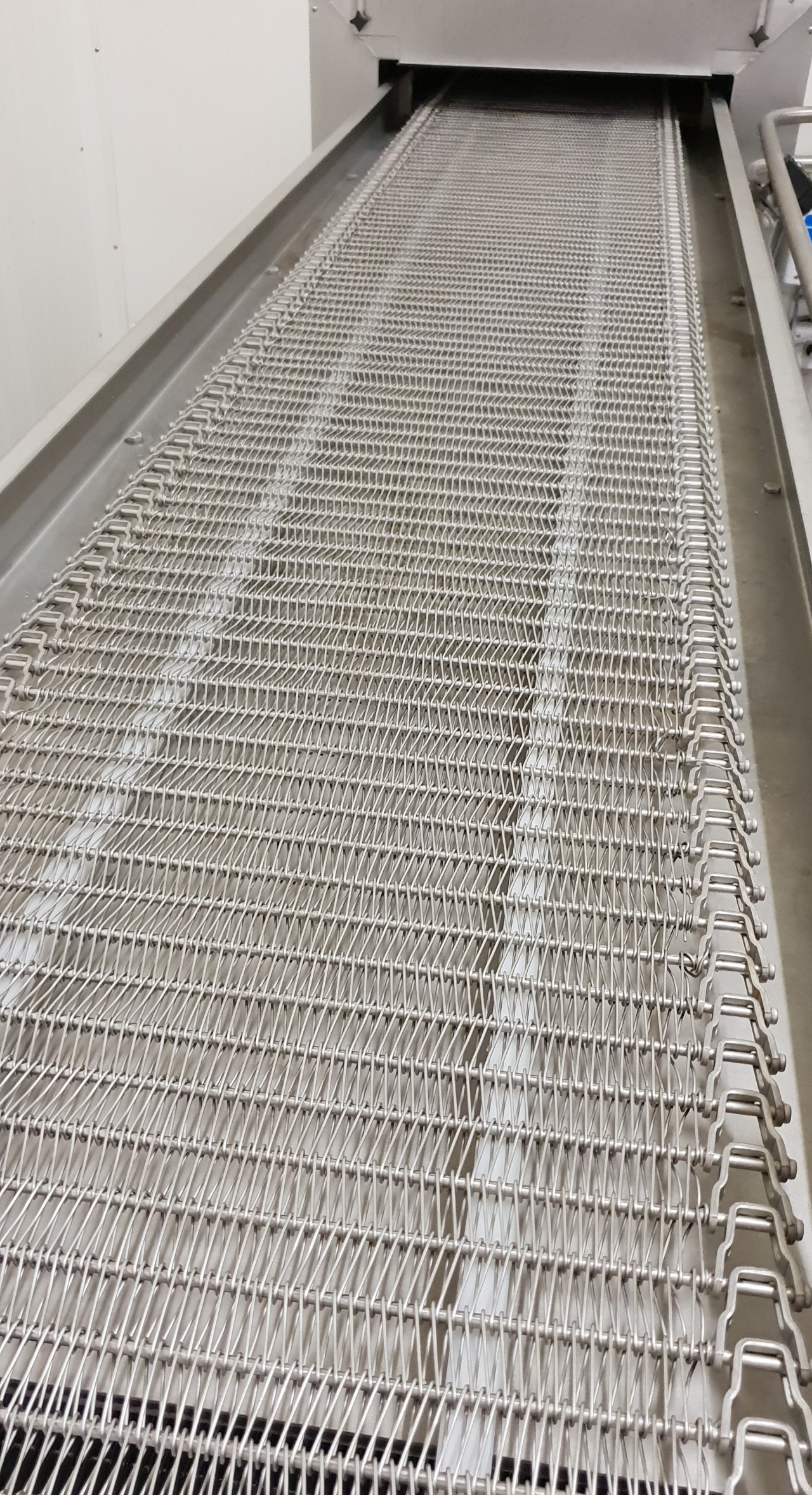

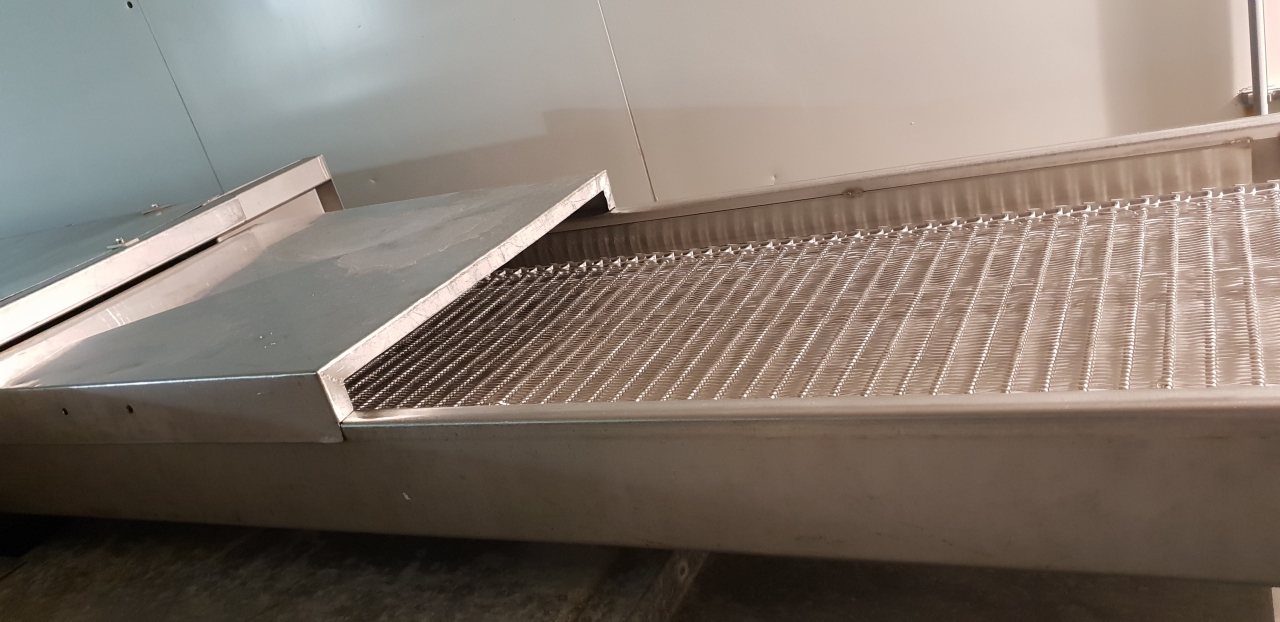

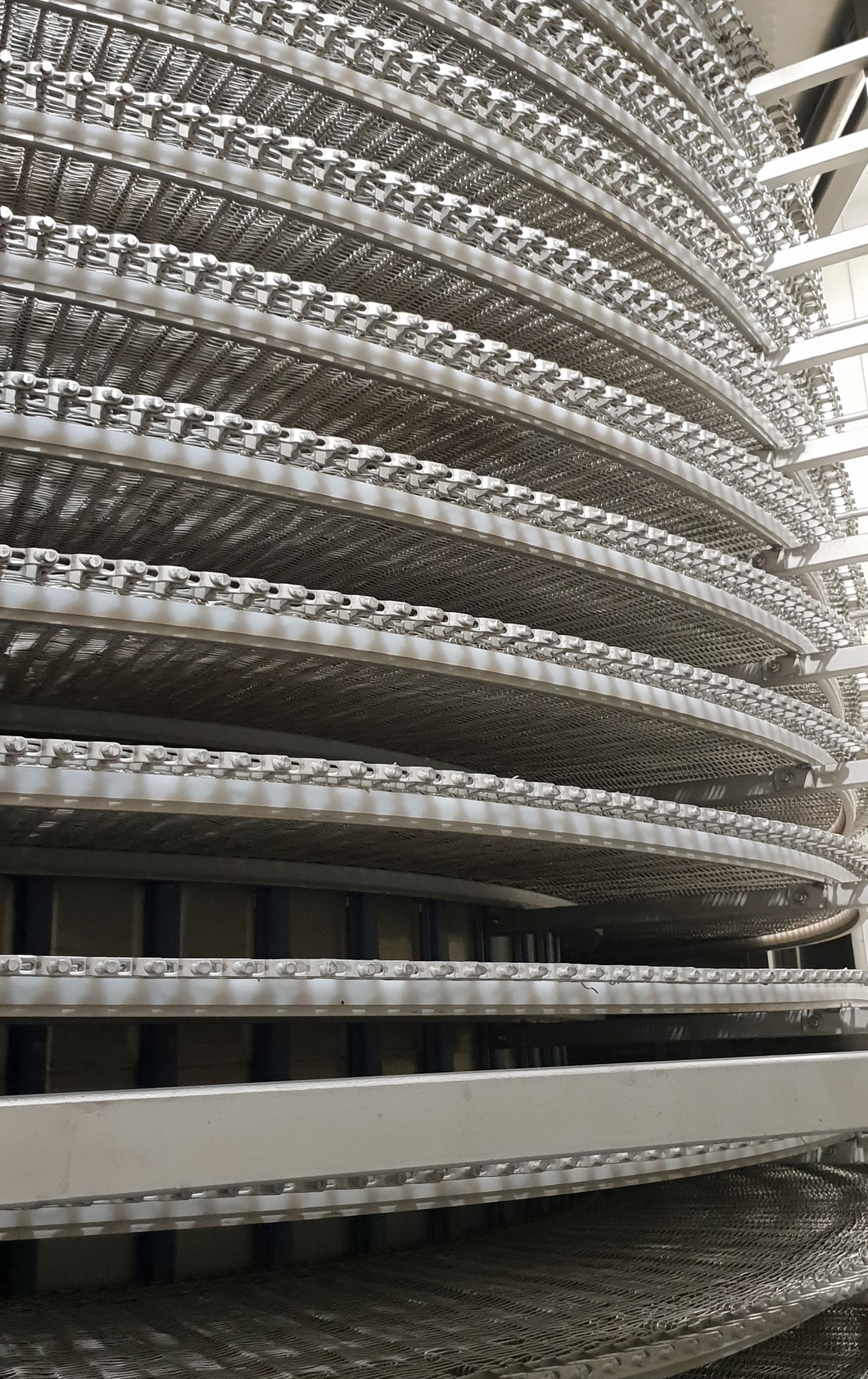

Completely de-installed working and well maintained CFS SVR 400/18/60- 203 Spiral Freezer. Drum motor: G44-22-90S4 - 1,1 kW - 5,94 RPM (Clixon/MIG 30/VLT 5003). Total belt width 450 mm and effective belt width 400 mm. Belt motor: Strater K062 MH 71-L4 F - 0,37kW - 20 RPM (Clixon /MIG 40 /VLT 5001). Complete with belt washer.

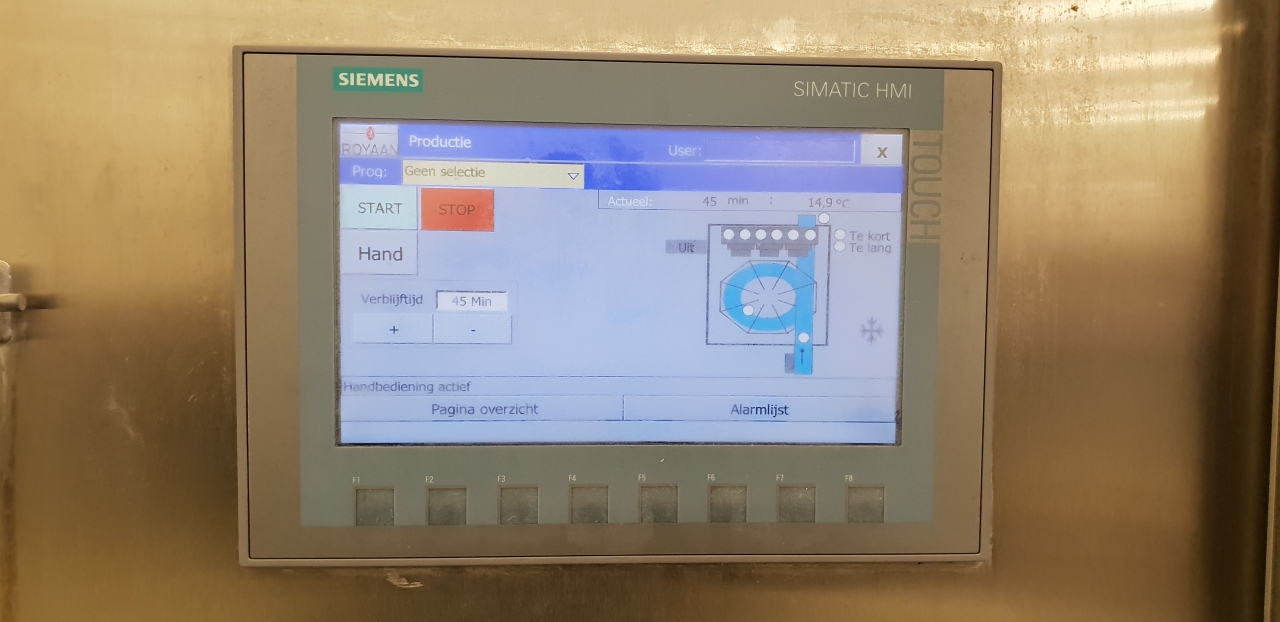

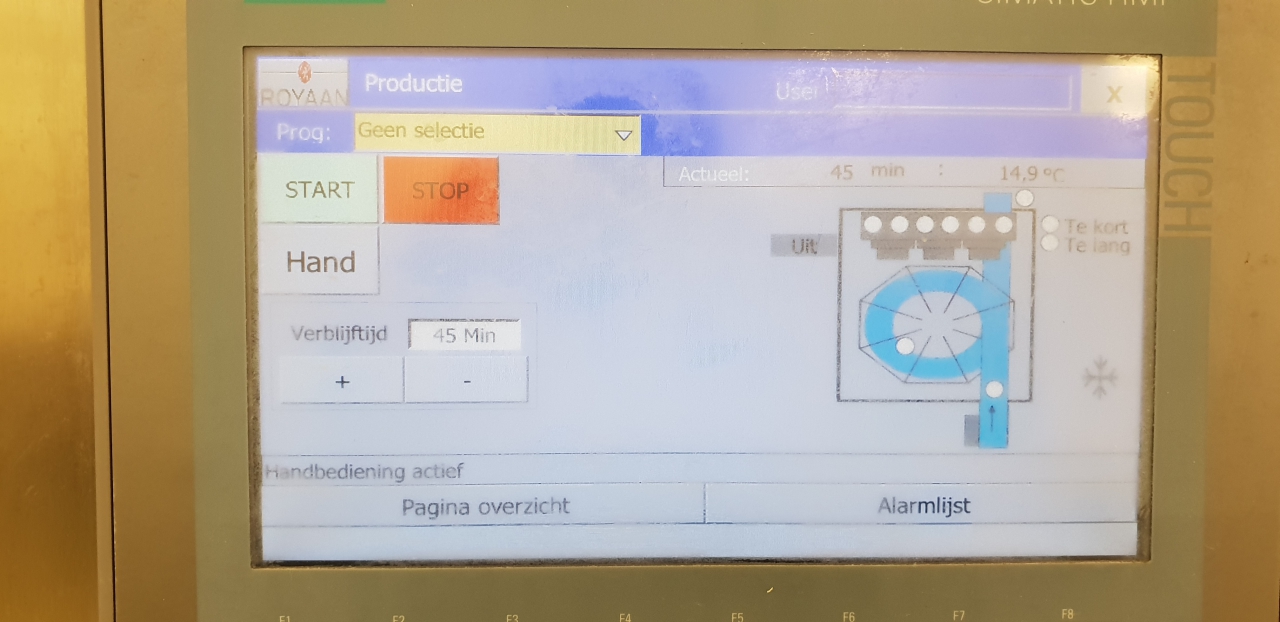

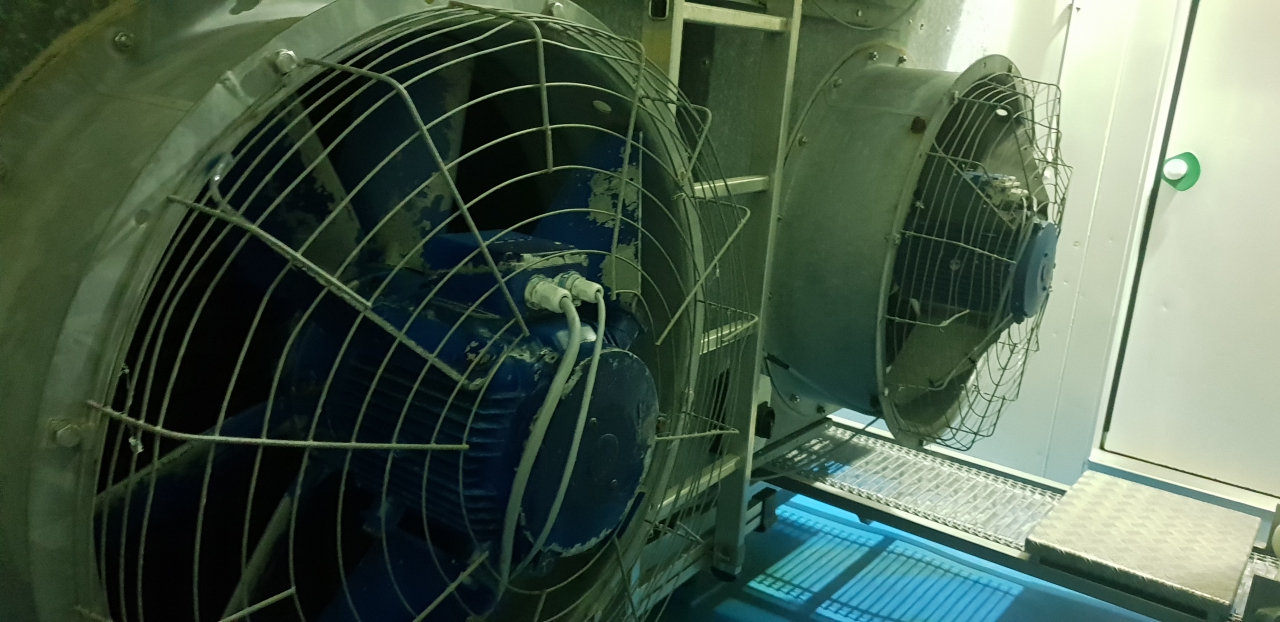

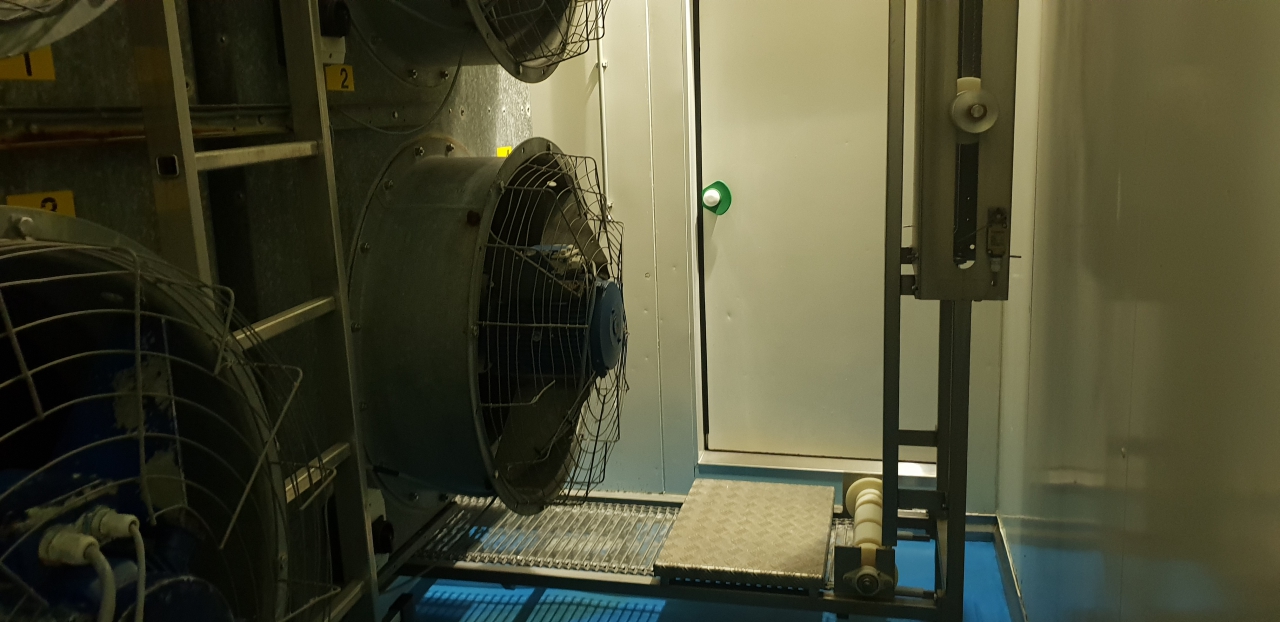

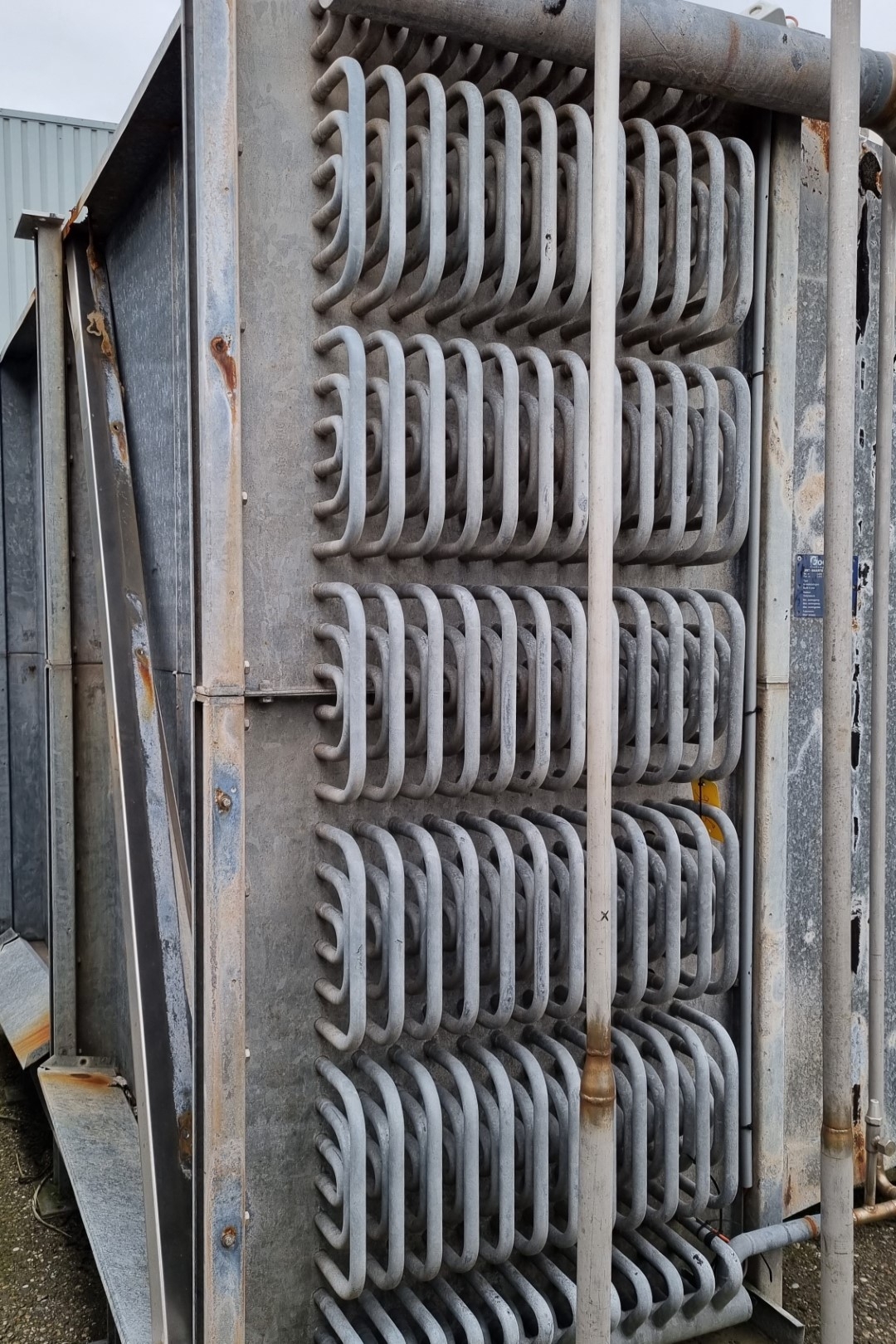

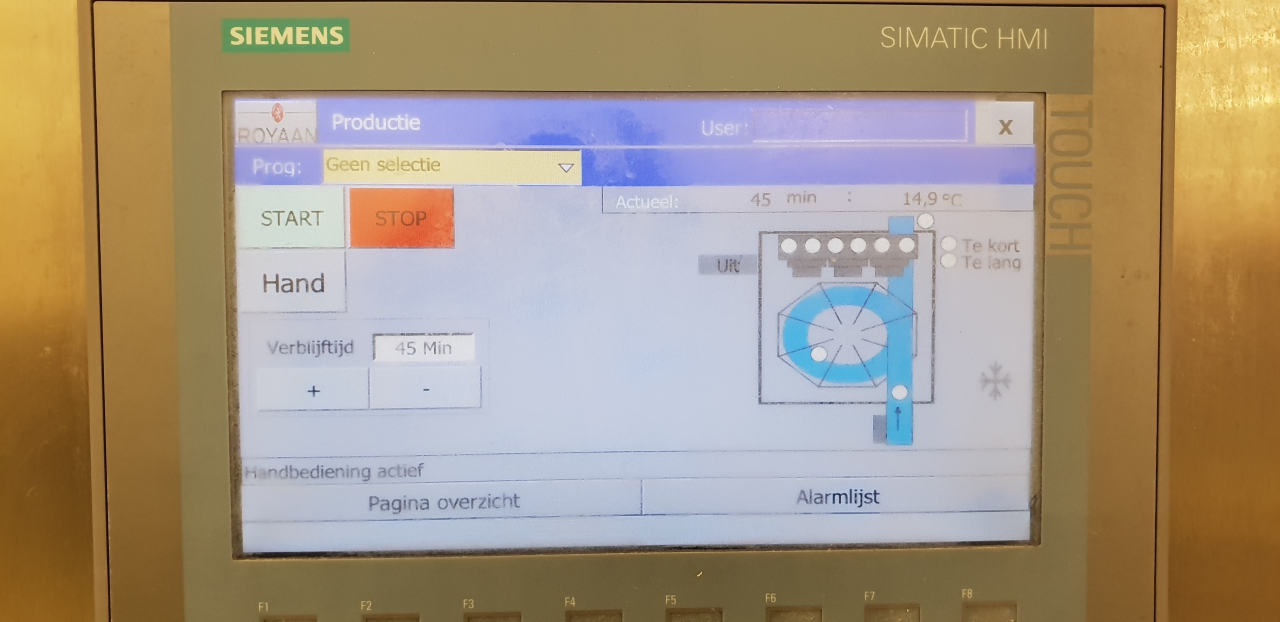

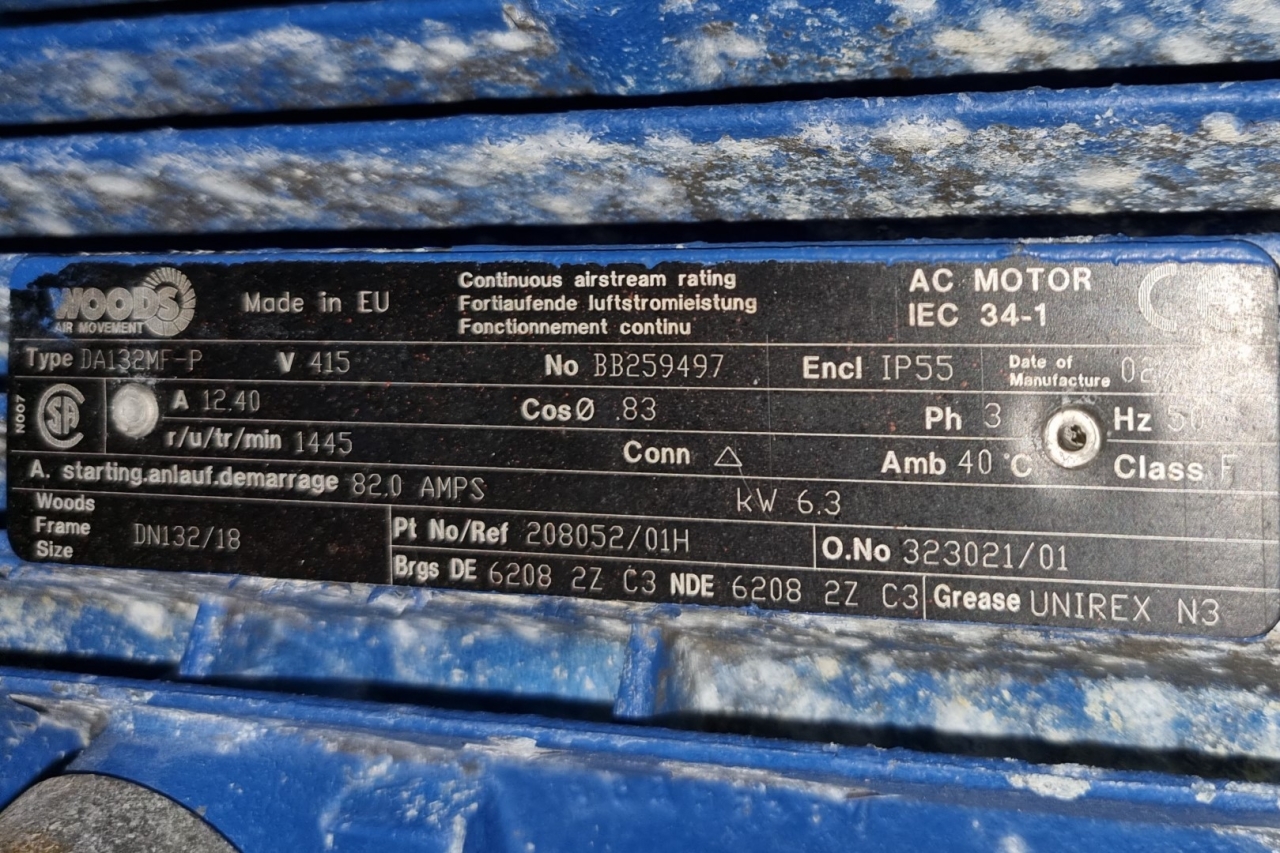

Goedhart PLK.S 861 M2 NH3 evaporator with 4 Woods fans 50 Hz - 6,3 kW - 1445 RPM - diameter 800 mm. Spiral controller Siemens Simatic OP27 panel. Danfoss VLT frequenty regulator for the belt tension motor and drum motor.
CFS SVR 400/18/60-203 Spiral Freezer
