Thermofin TCH 091.2-13-B-M(S5)-BC
Thermofin TCH 091.2-13-B-M(S5)-BC
| 12418 | |
| Marka | Thermofin |
| Typ | TCH 091.2-13-B-M(S5)-BC |
| Typ produktu | Air Cooled Condenser |
| Ogólna wydajność w kW | 282 |
| Liczba wentylatorów | 3 |
| Prdkość obrotów wentylatora (obr/min) | 890/685 |
| Czynnik chłodzący | Freon |
| Przepływ powietrza w m³/h | 72.395 |
| wentylatory o średnicy Ø | 910 mm |
| Powierzchnia (m2) | 696 |
| Objętość rurki | 68,5ziehl dm³ |
| Rozmiary | 6450x1180x1500 mm |
| Waga | 713 kg |
| Uwagi | | y.o.b. 2009 |
| Liczba sztuk | 1 |
Thermofin TCH 091.2-13-B-M(S5)-BC

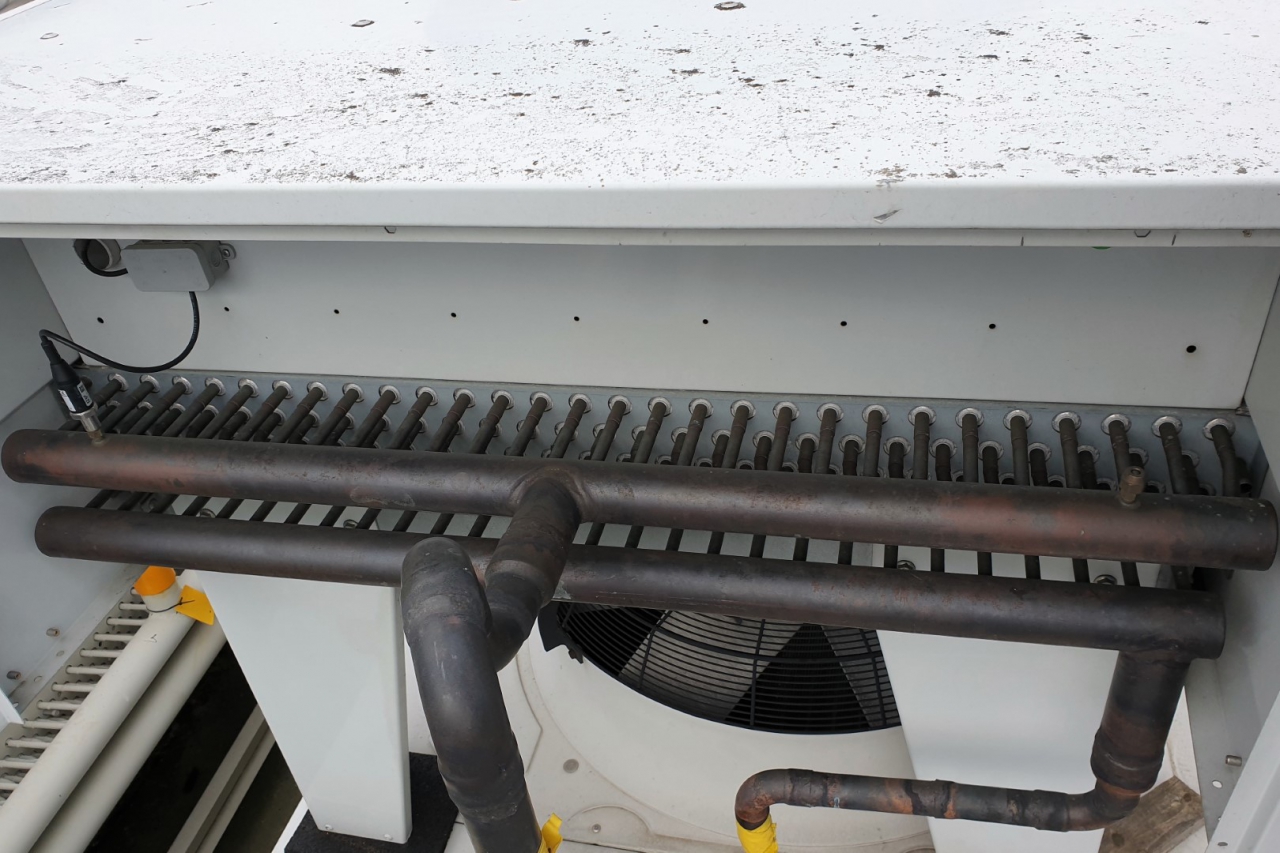

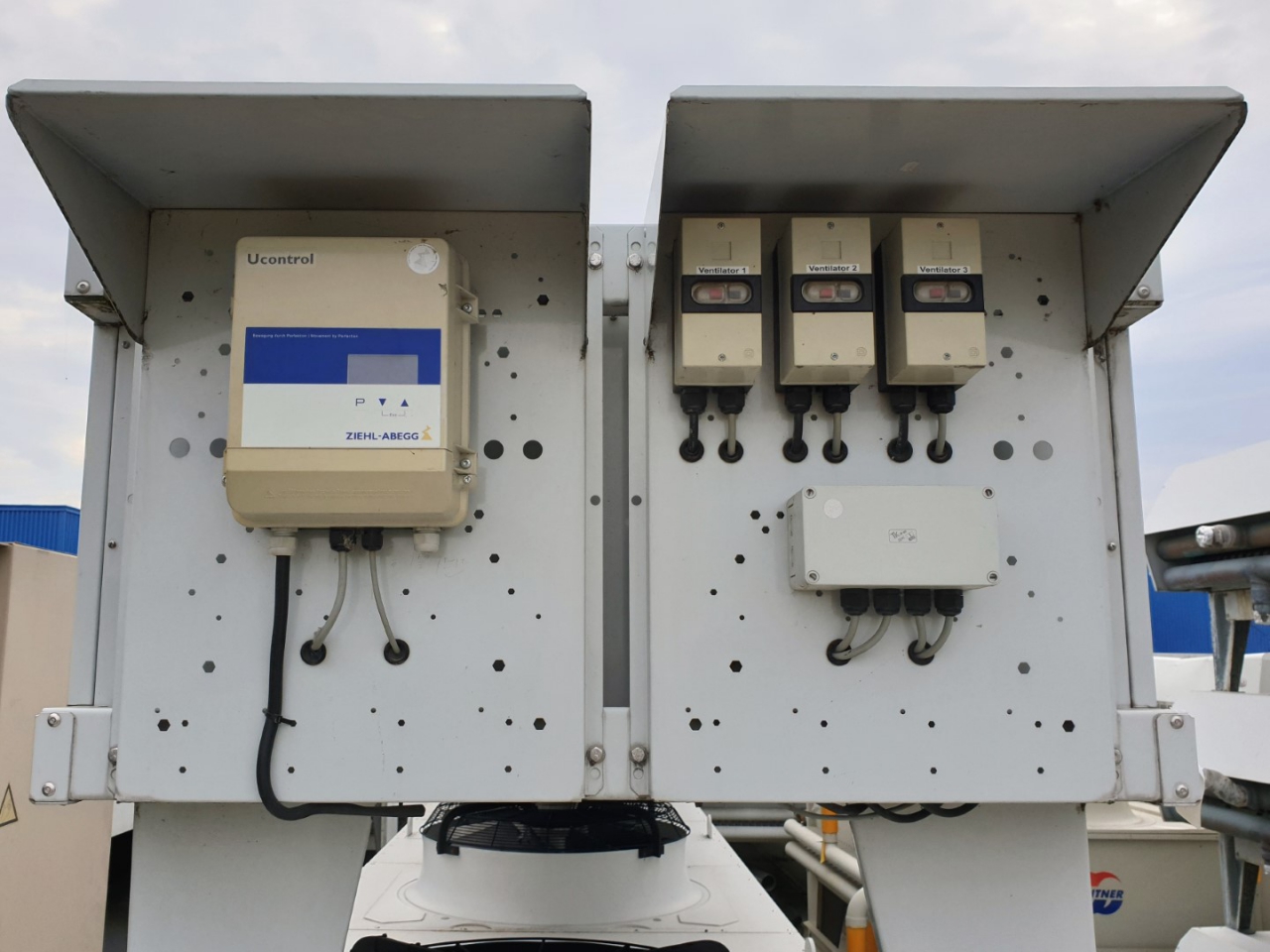

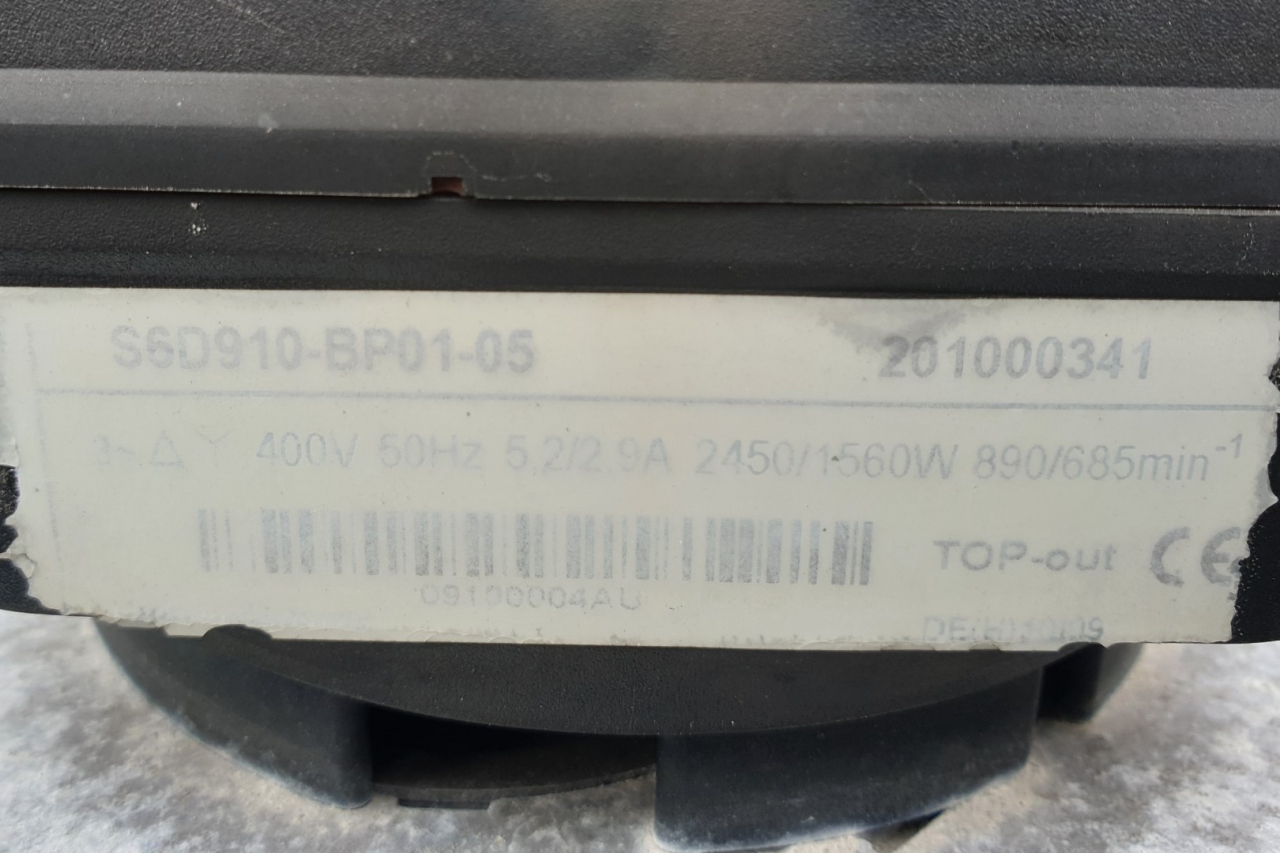

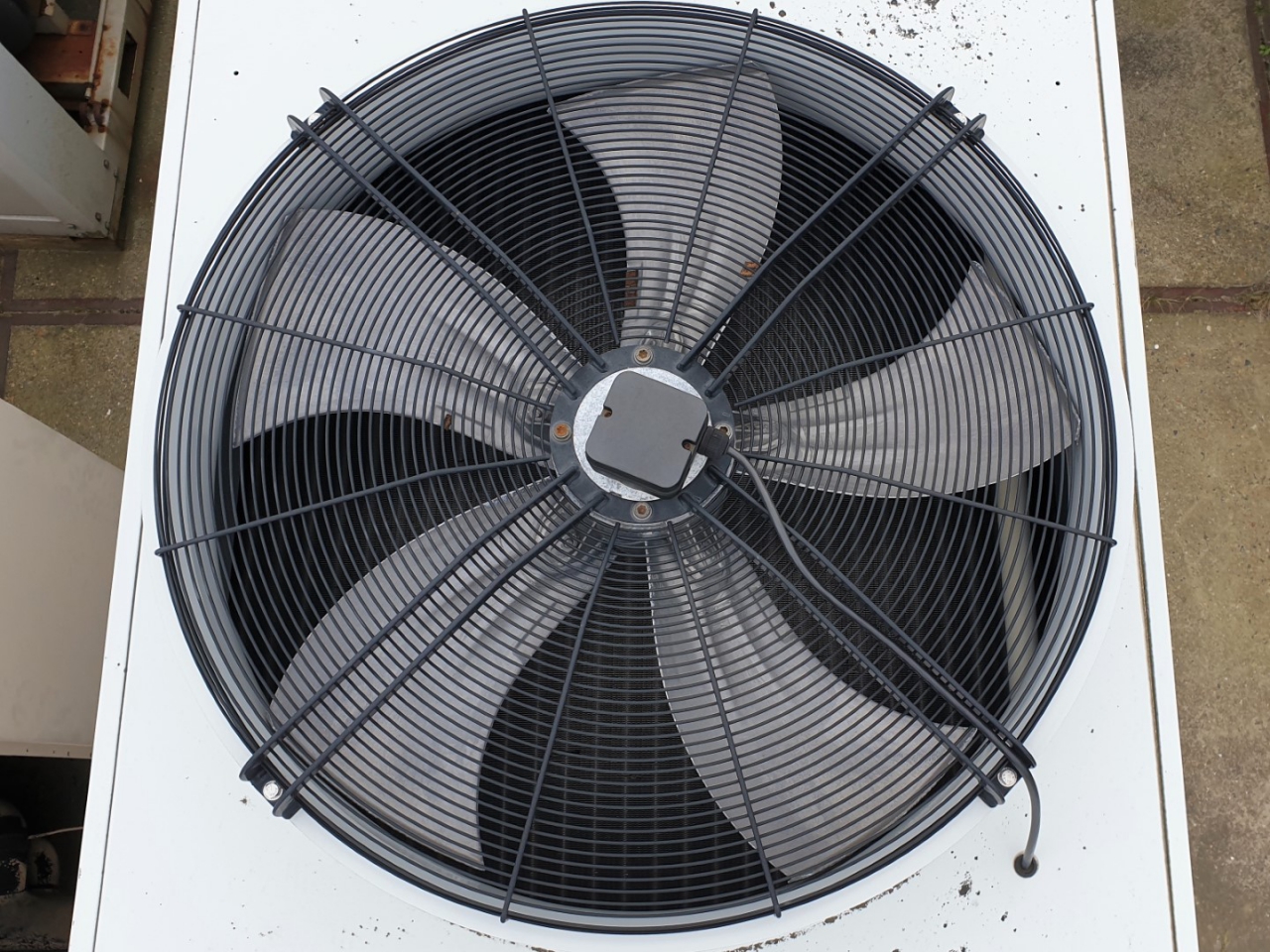

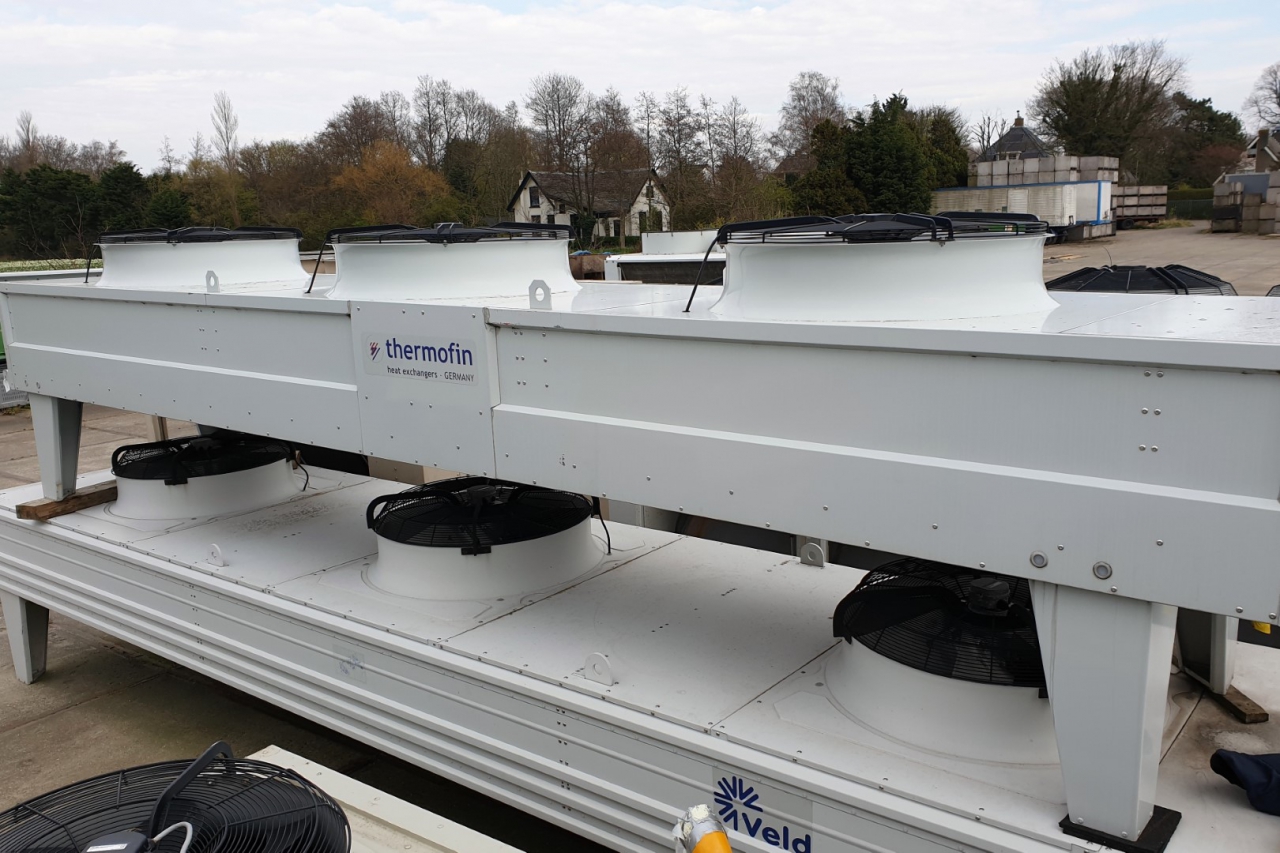

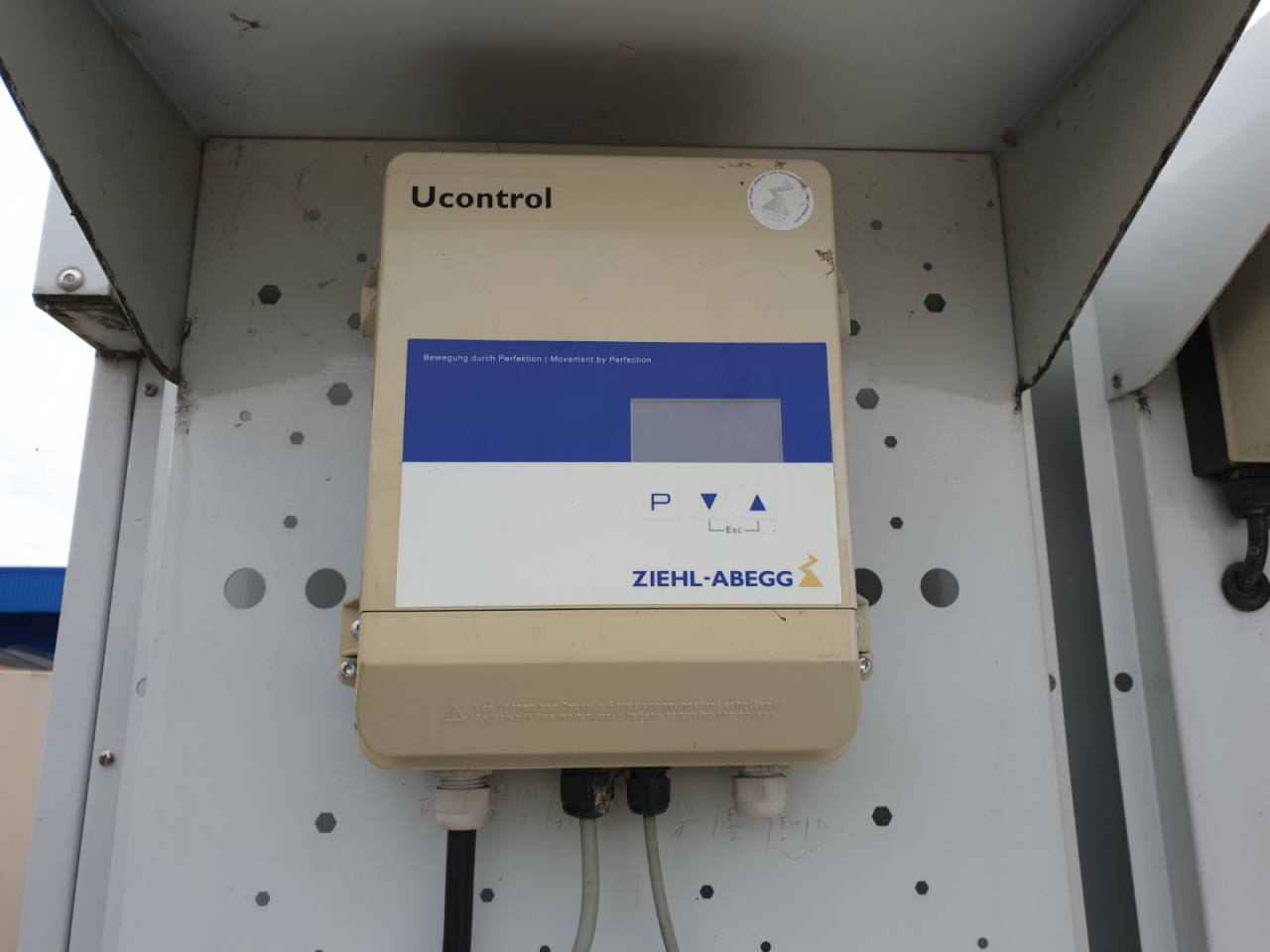

Used Thermofin TCH 091.2-13-B-M(S5)-BC air cooled condensor. 3 Ebm-papst fans 50 Hz - 2,45/1,56 kW - 890/685 RPM - diameter 910 mm. Complete with Ziehl-Abegg U control used for continuous speed adjustment on variable voltage 3~ motors to drive ventilators.
*All components of this used condensors will be tested on good working, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform a industrial cleaning and rust spots will be covered. Also, we can arrange your shipment.
