Mycom F200MUD-LE
Mycom F200MUD-LE
| 17168 | |
| Бренд | Mycom |
| Тип | F200MUD-LE |
| Хладагент | Freon |
| кВт at +10ºC/+40ºC | 1252,7 |
| kW at 0ºC/+40ºC | 890,4 |
| kW at -5ºC/+40ºC | 742,3 |
| кВт at -10ºC/+40ºC | 613,4 |
| кВт at -20ºC/+40ºC | 405,8 |
| кВт at -30ºC/+40ºC | 253,7 |
| кВт at -40ºC/+40ºC | 145,5 |
| kW at -45ºC/+40ºC | 104,6 |
| Электродвигатель Specs | 3000V - 50 Hz - 71 A - 315 kW - 2977 RPM |
| Разгруженный старт |
|
| Управление производительностью |
|
| На стальной раме |
|
| Соленоидный клапан |
|
| Размеры | 3450x1550x1950 mm (LxWxH) |
| Количество на складе | 6 |
Mycom F200MUD-LE

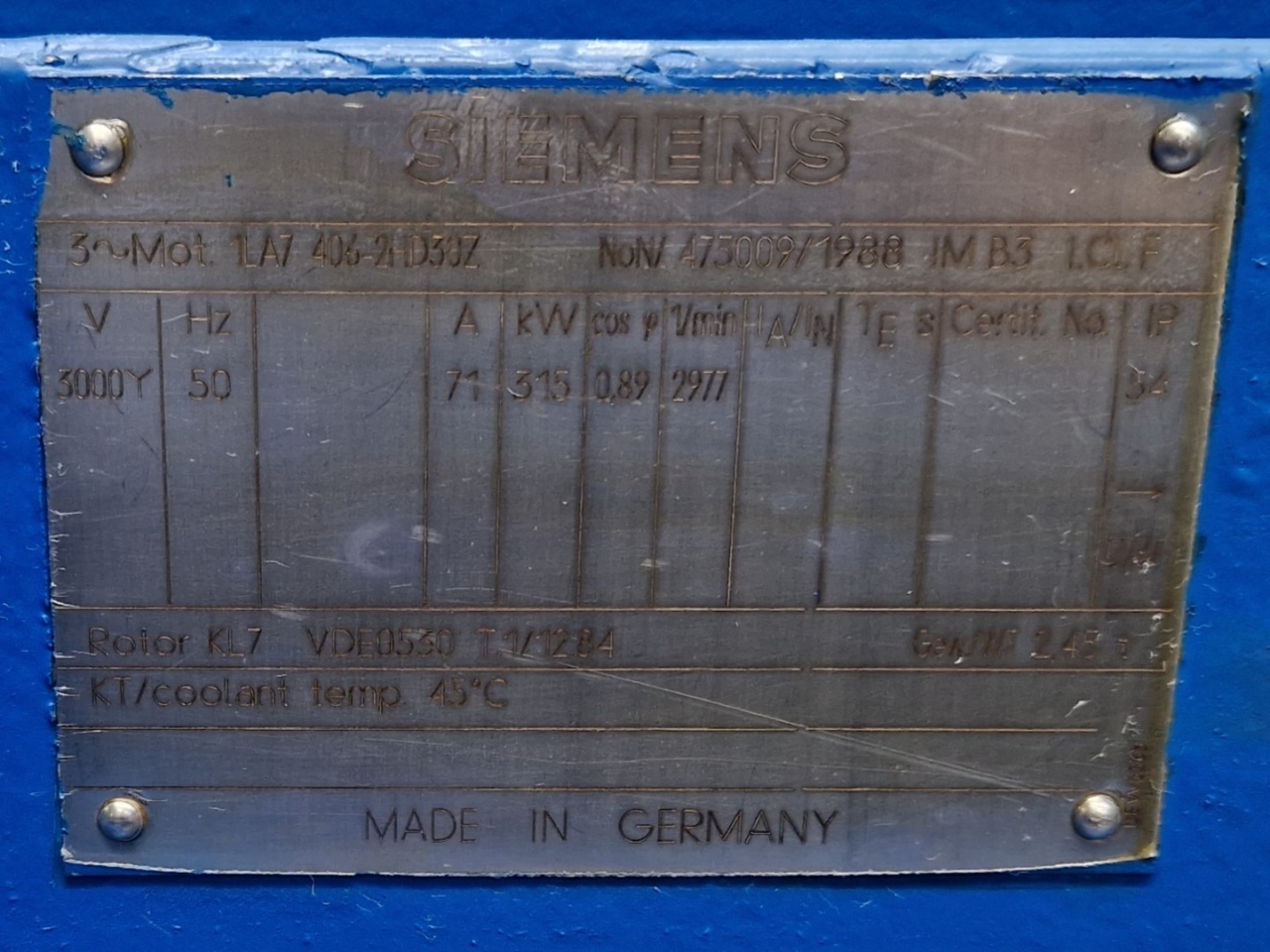

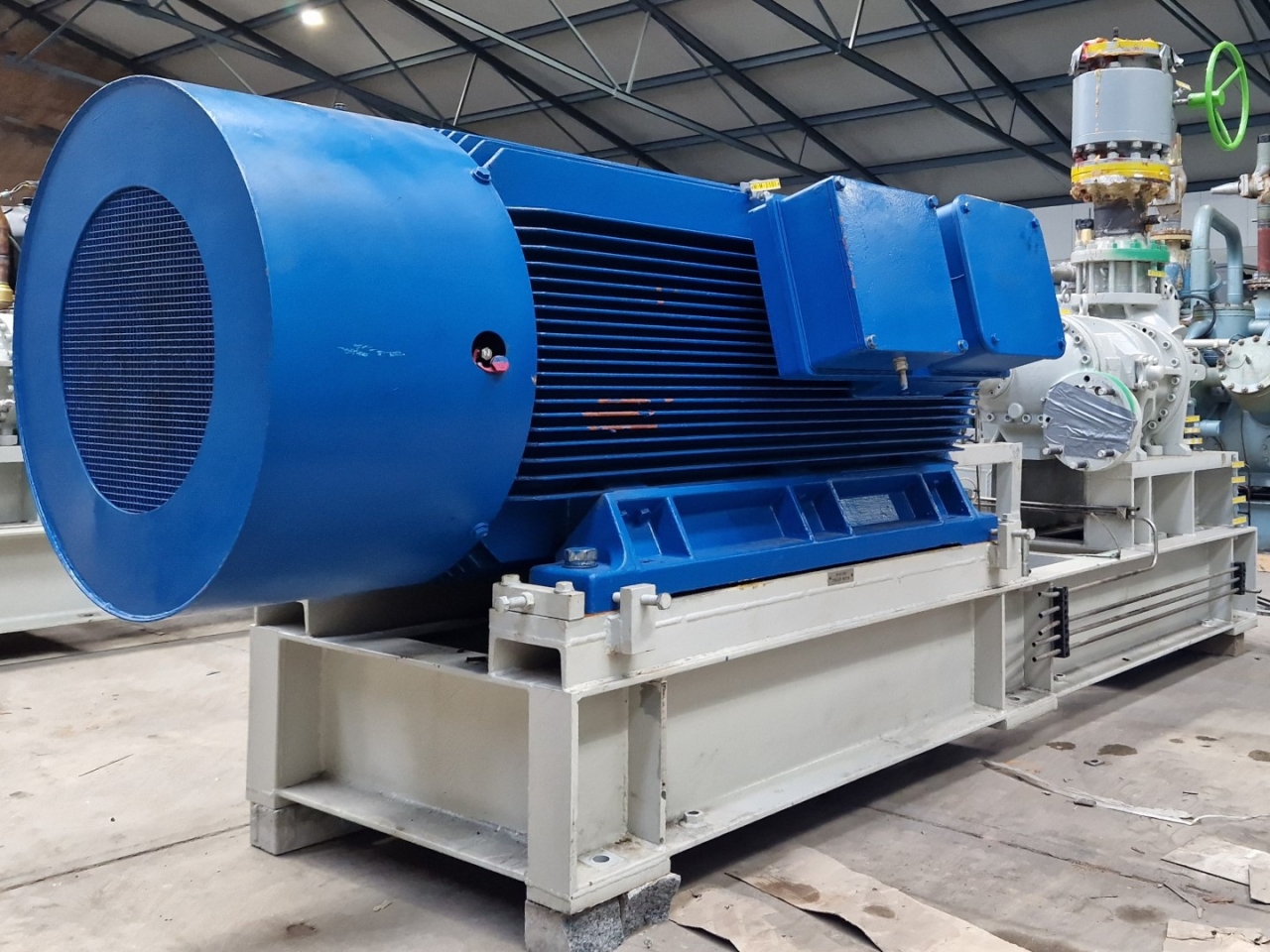

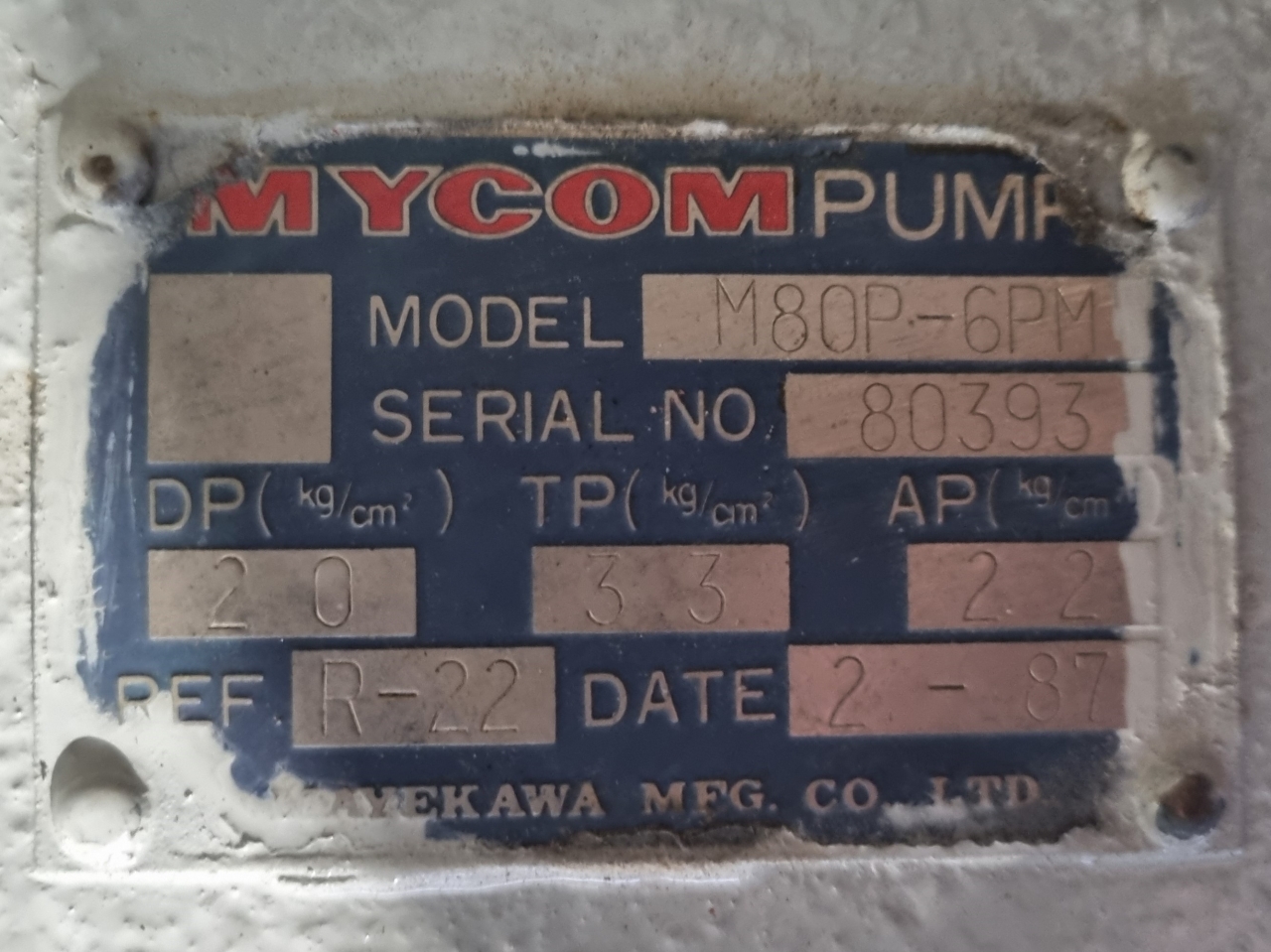

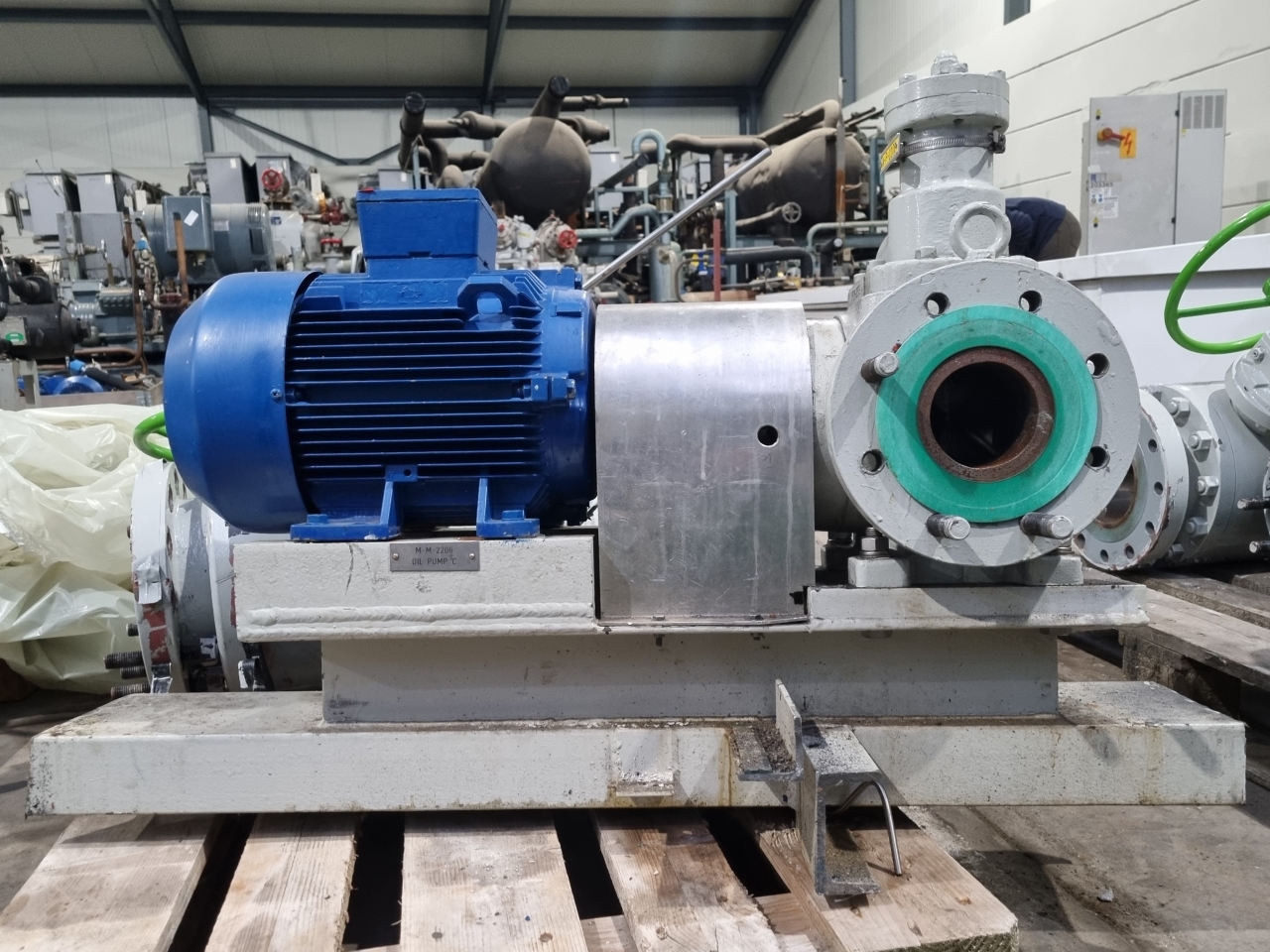

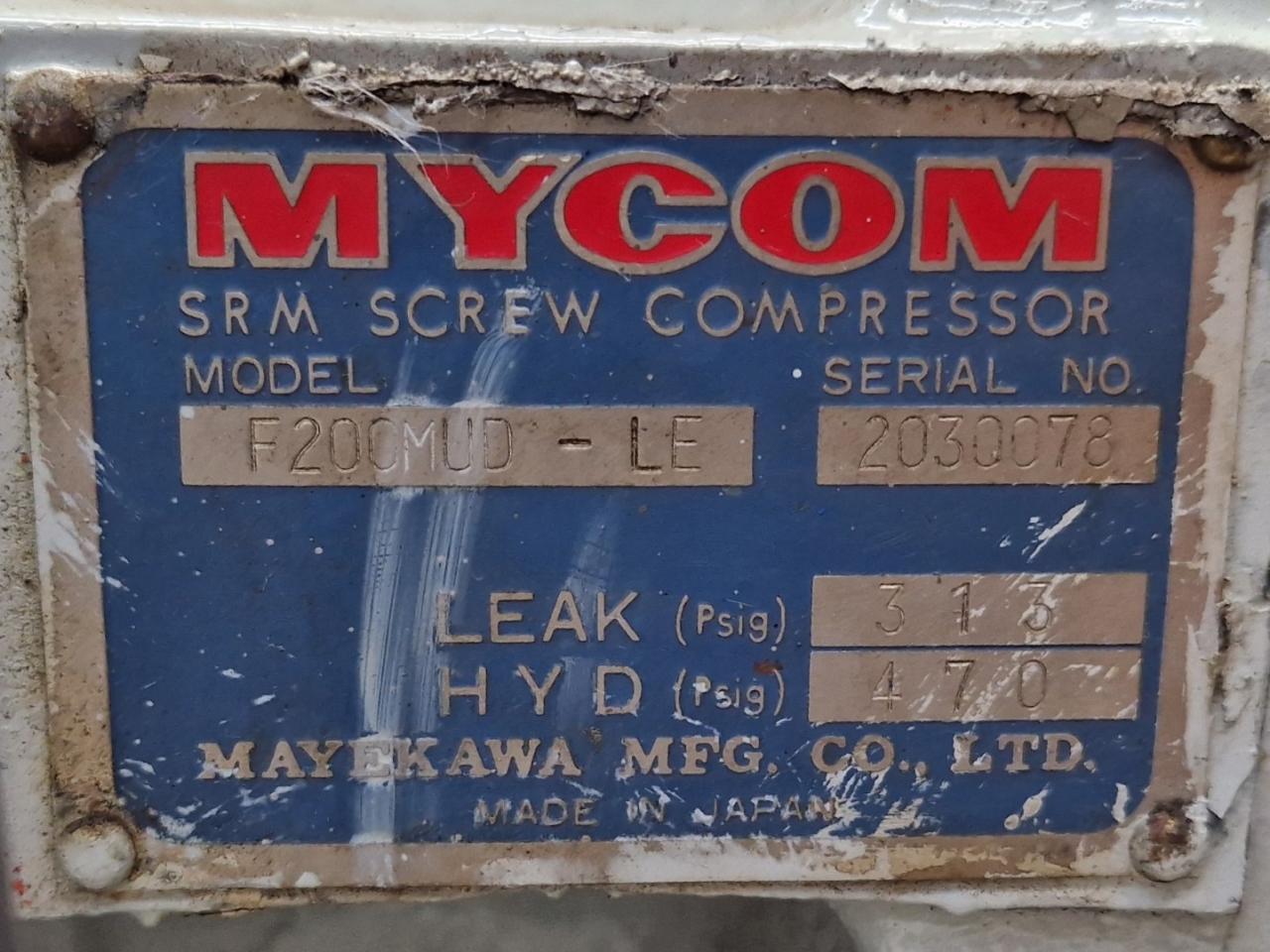

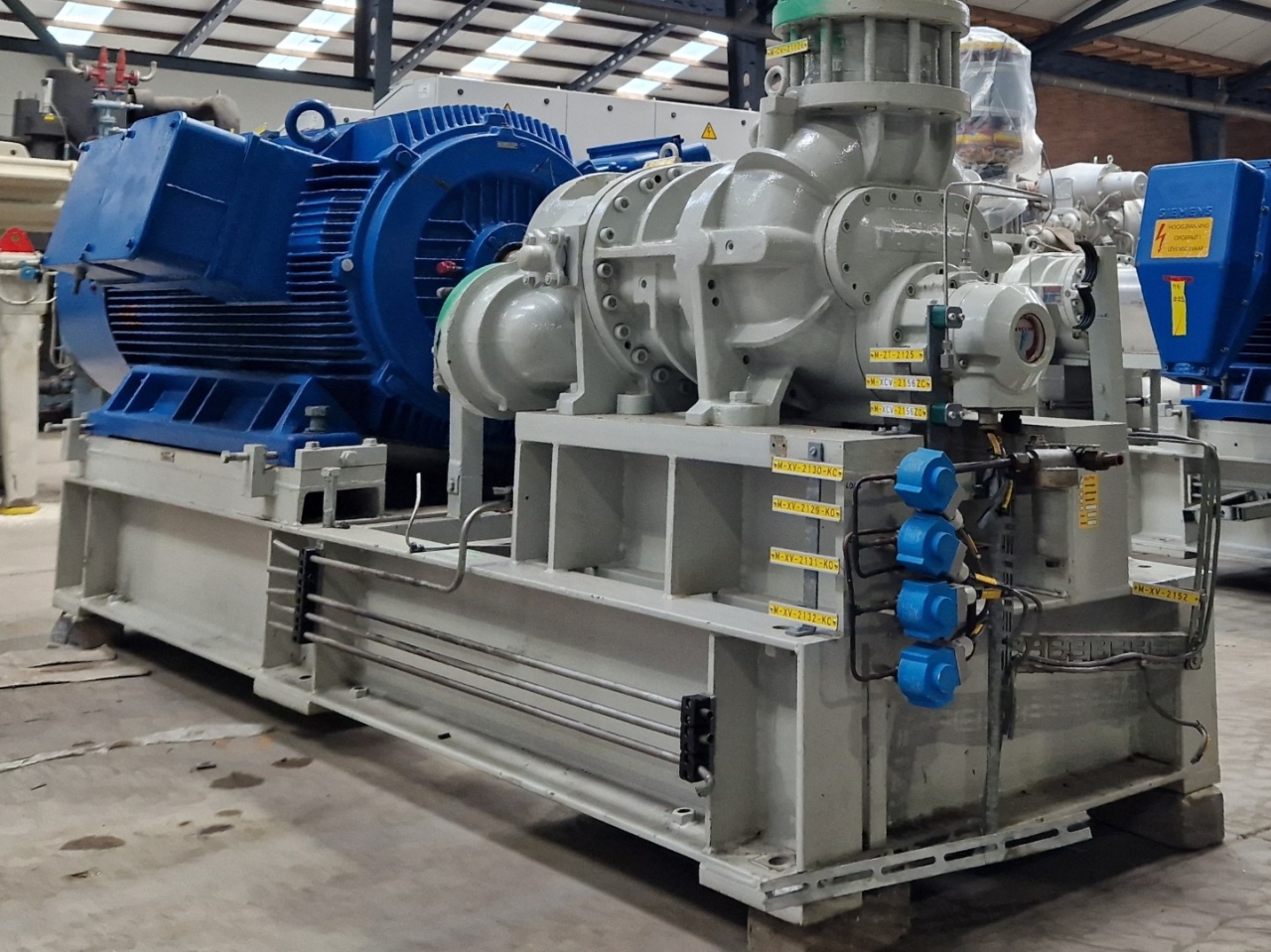

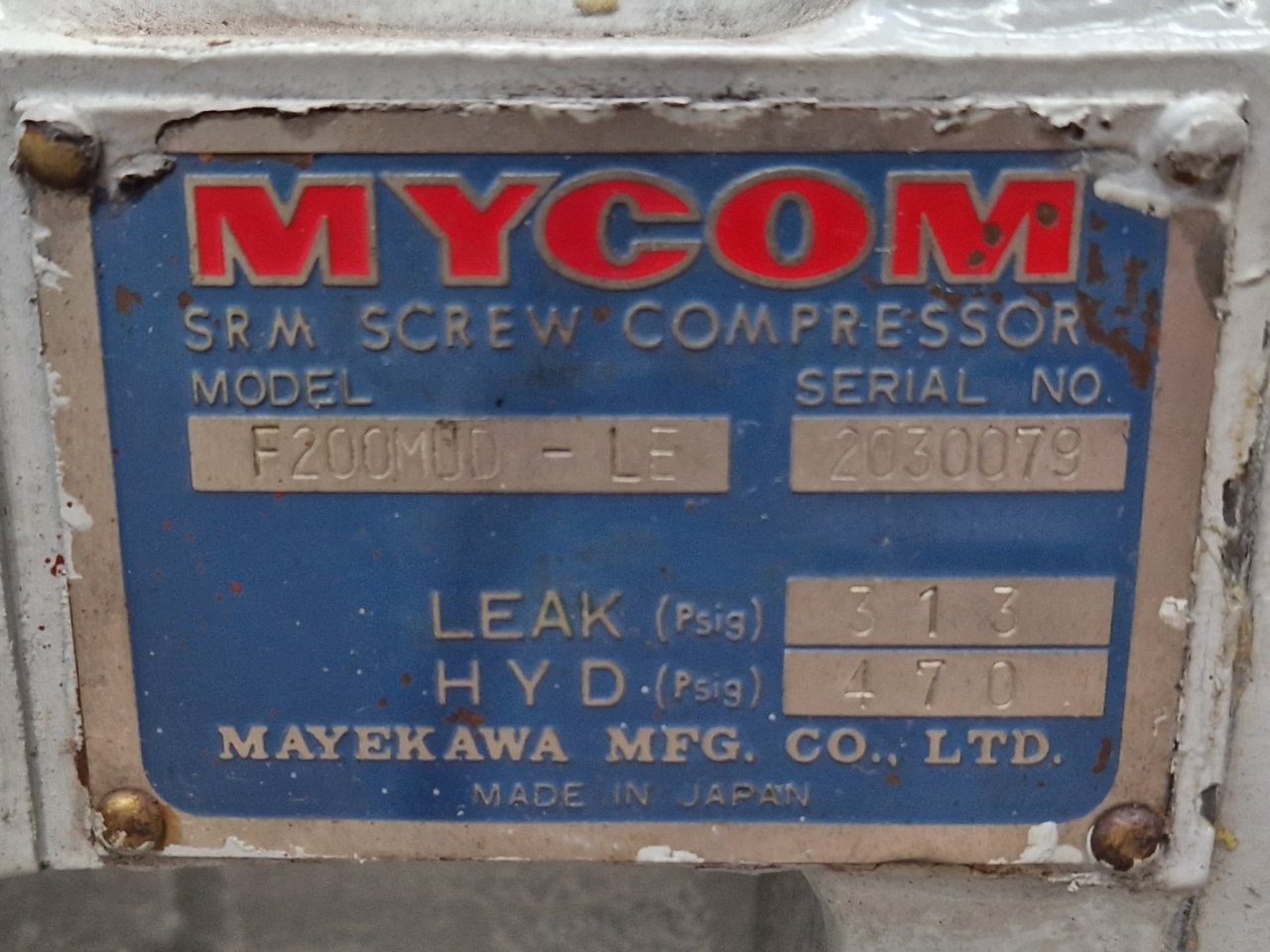

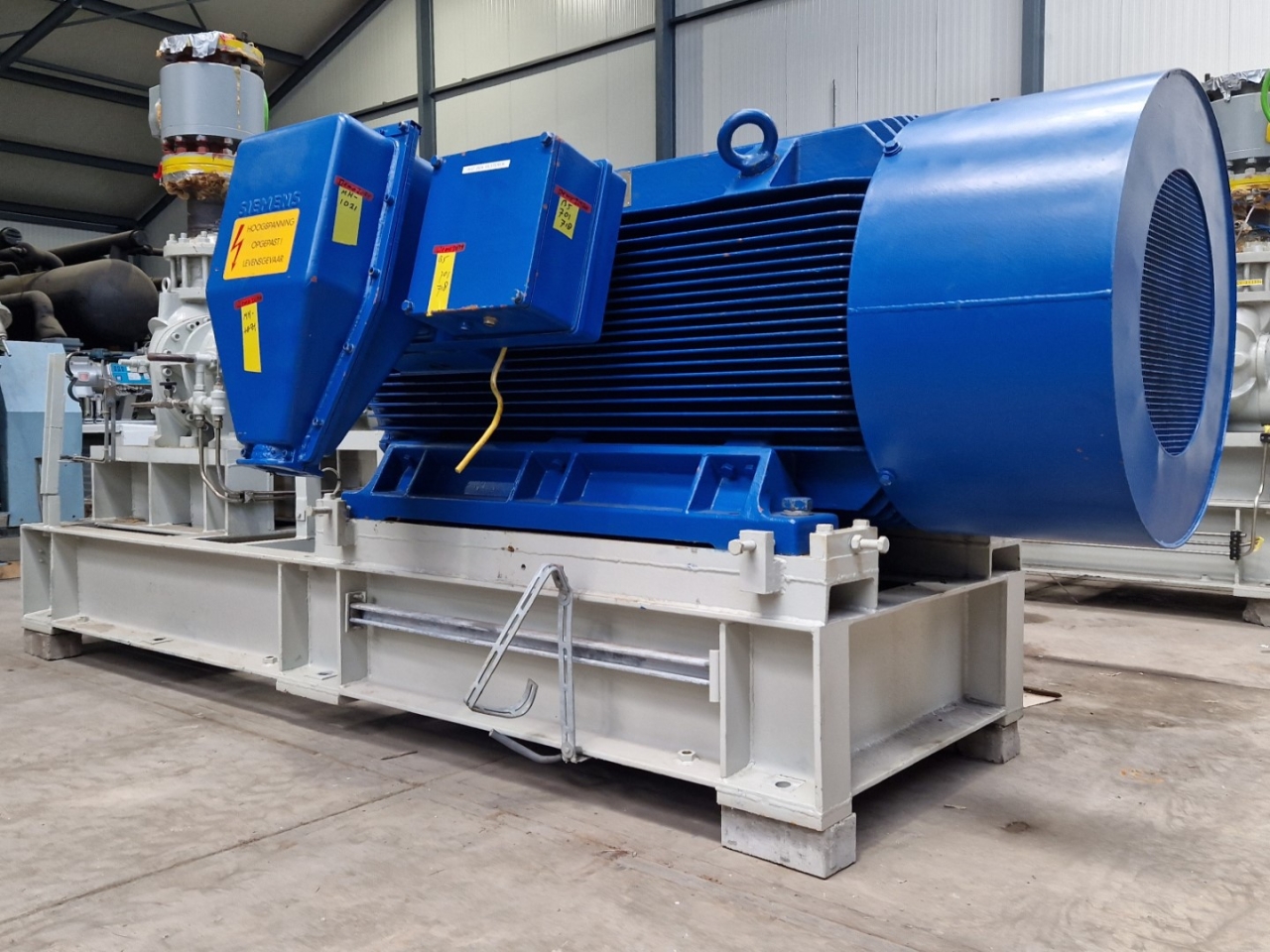

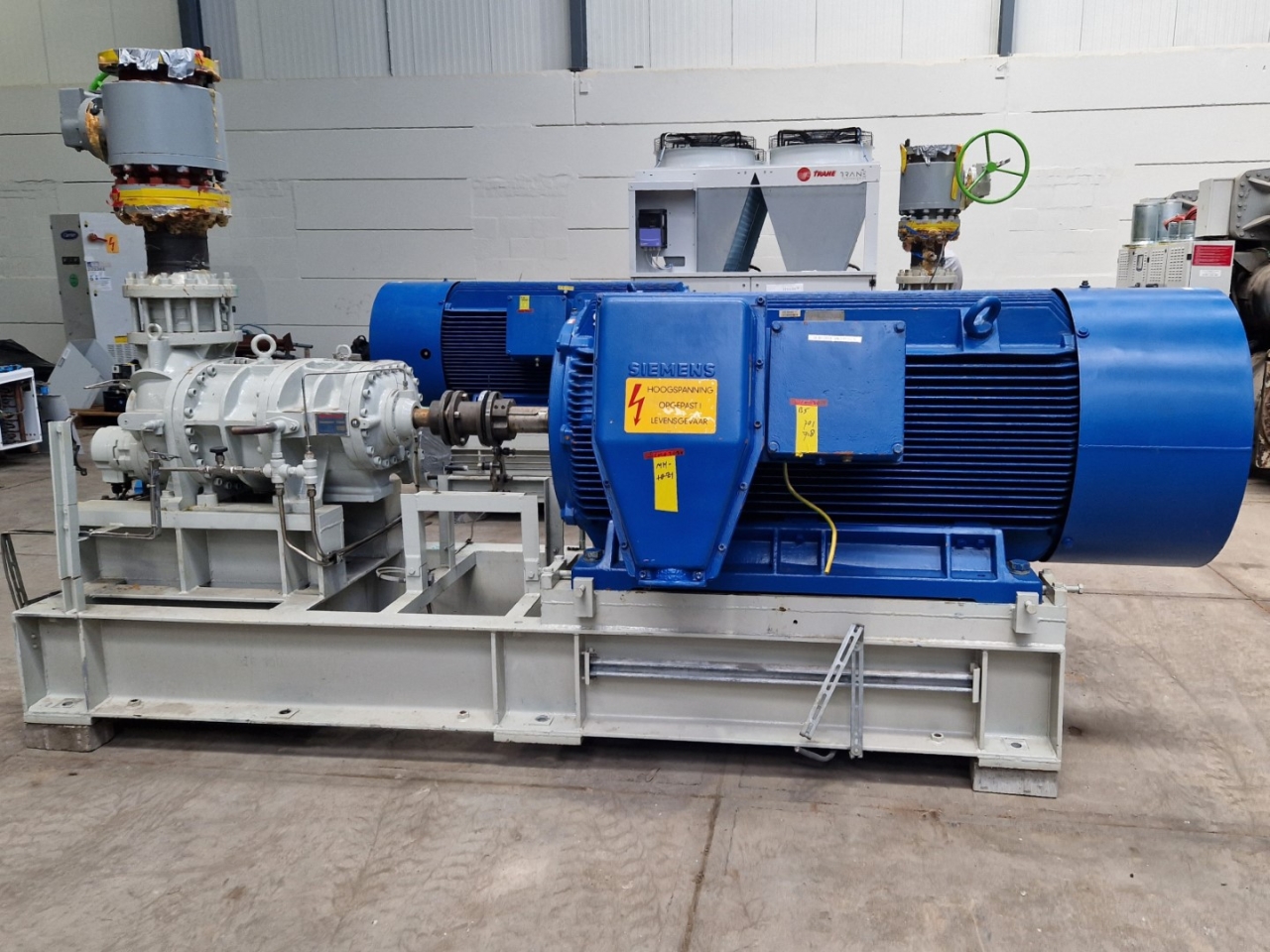

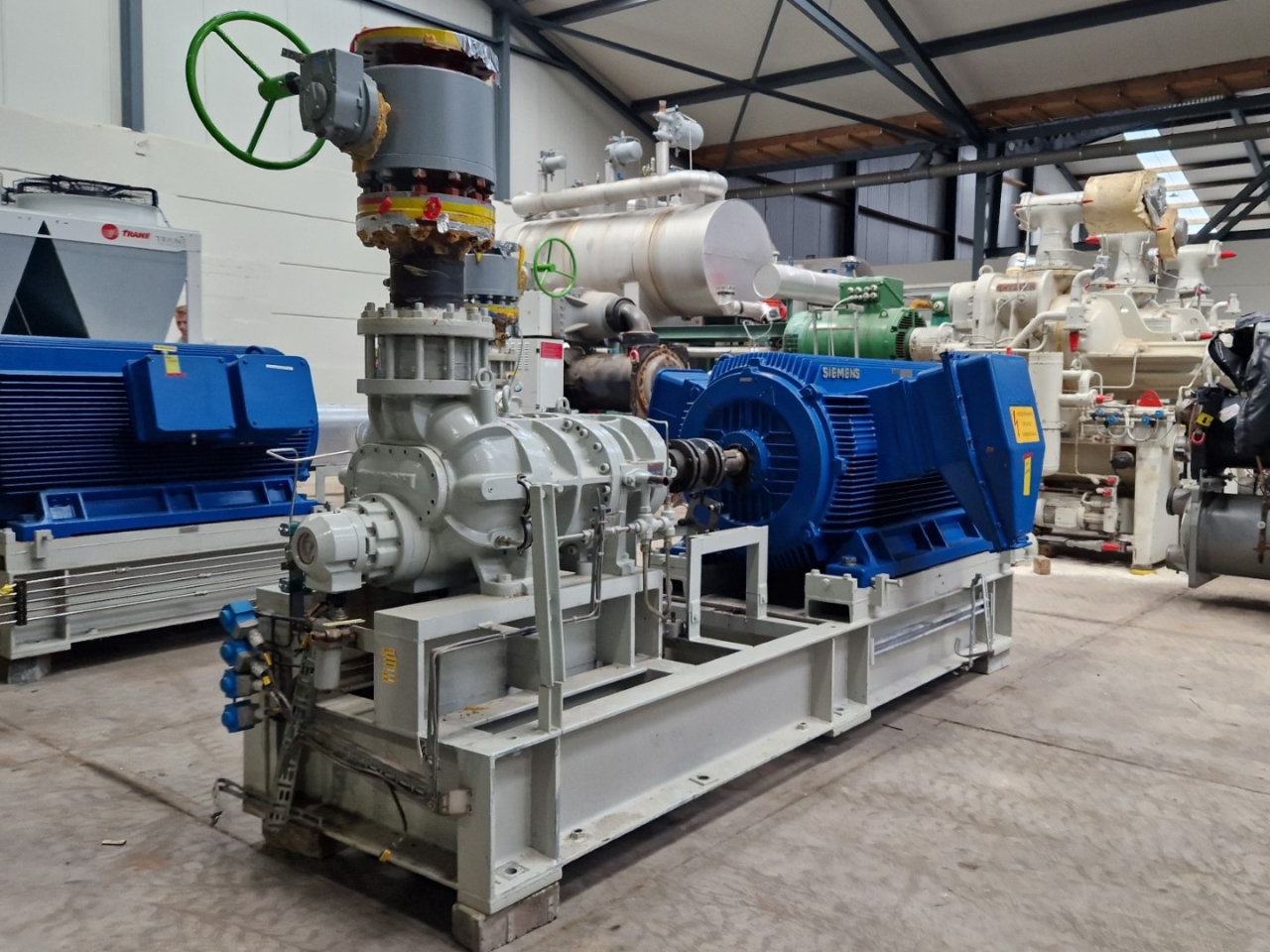

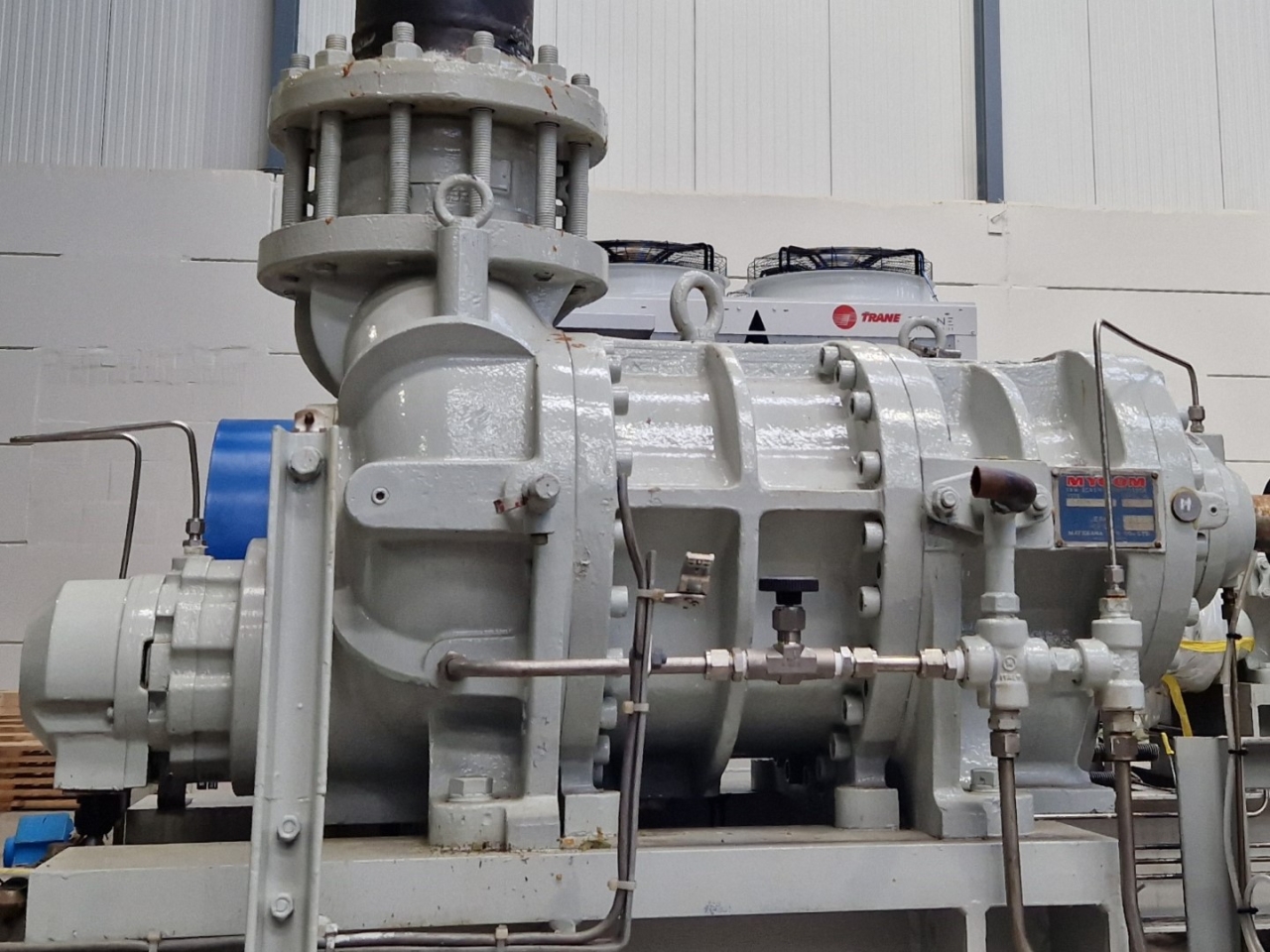

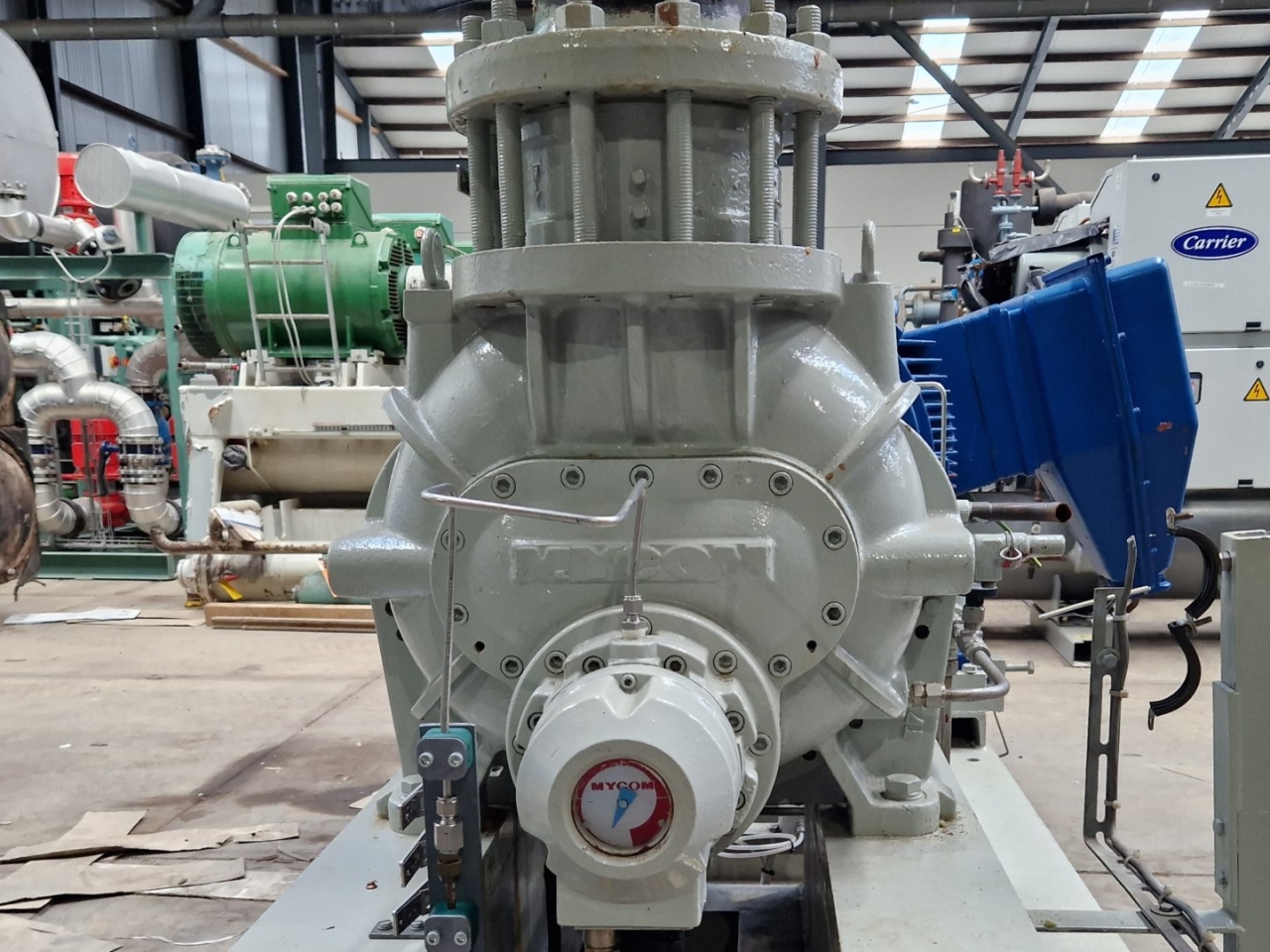

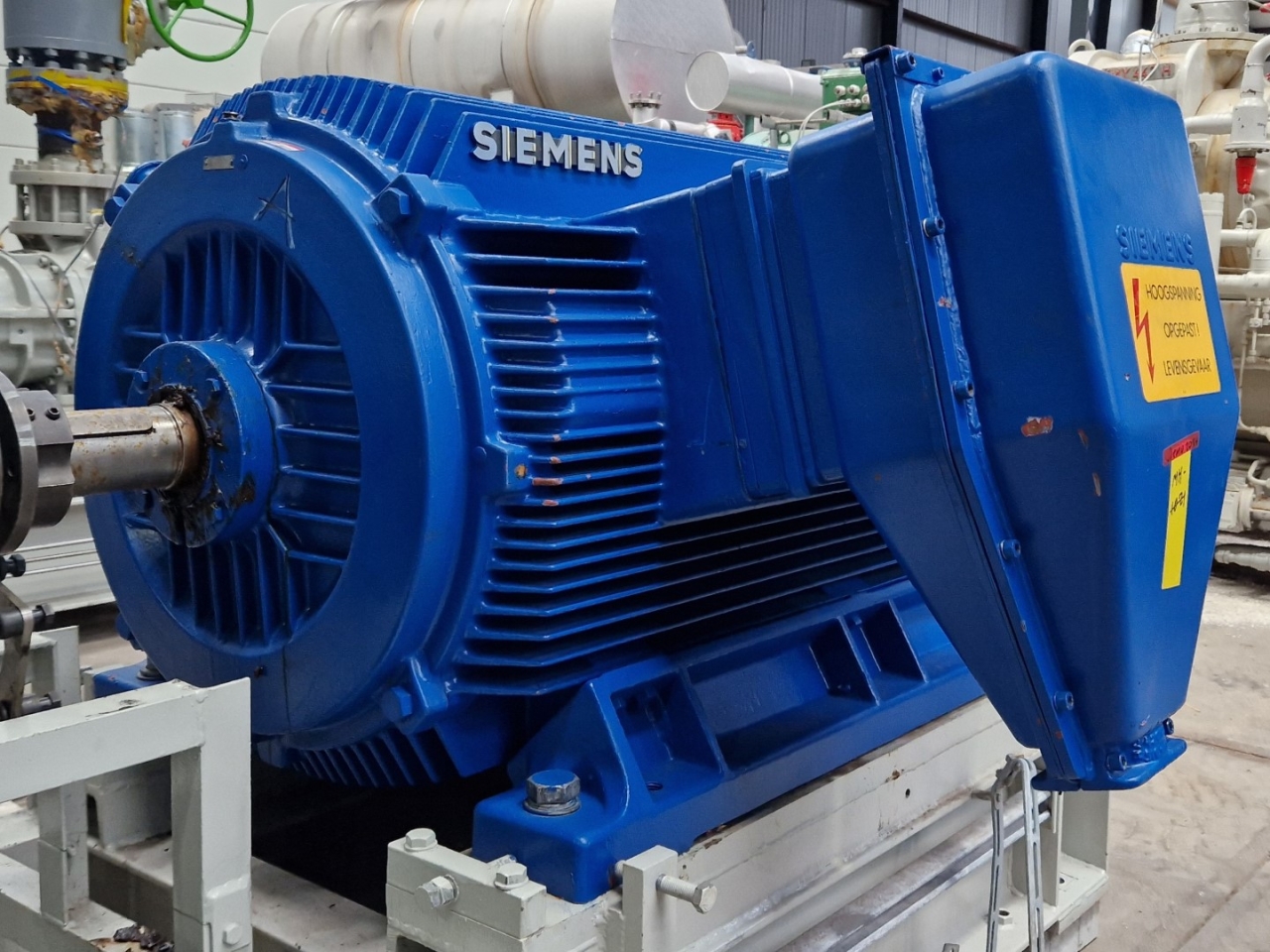

Used Mycom F200MUD-LE screw compressor unit on Freon. Complete with a Siemens 1LA7-406-2HD30Z electric motor - 3000V - 50 Hz - 71 A - 315 kW - 2977 RPM and a Mycom M80P-6PM oil pump.
We can deliver this compressor with a different electric motor. Please feel free to contact us for more information!
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we solely deliver our orders after performing an extensive test and an industrial cleaning. If requested we are happy to arrange your logistics.
Mycom F200MUD-LE
| Mycom F200MUD-LE - | (PDF) |
