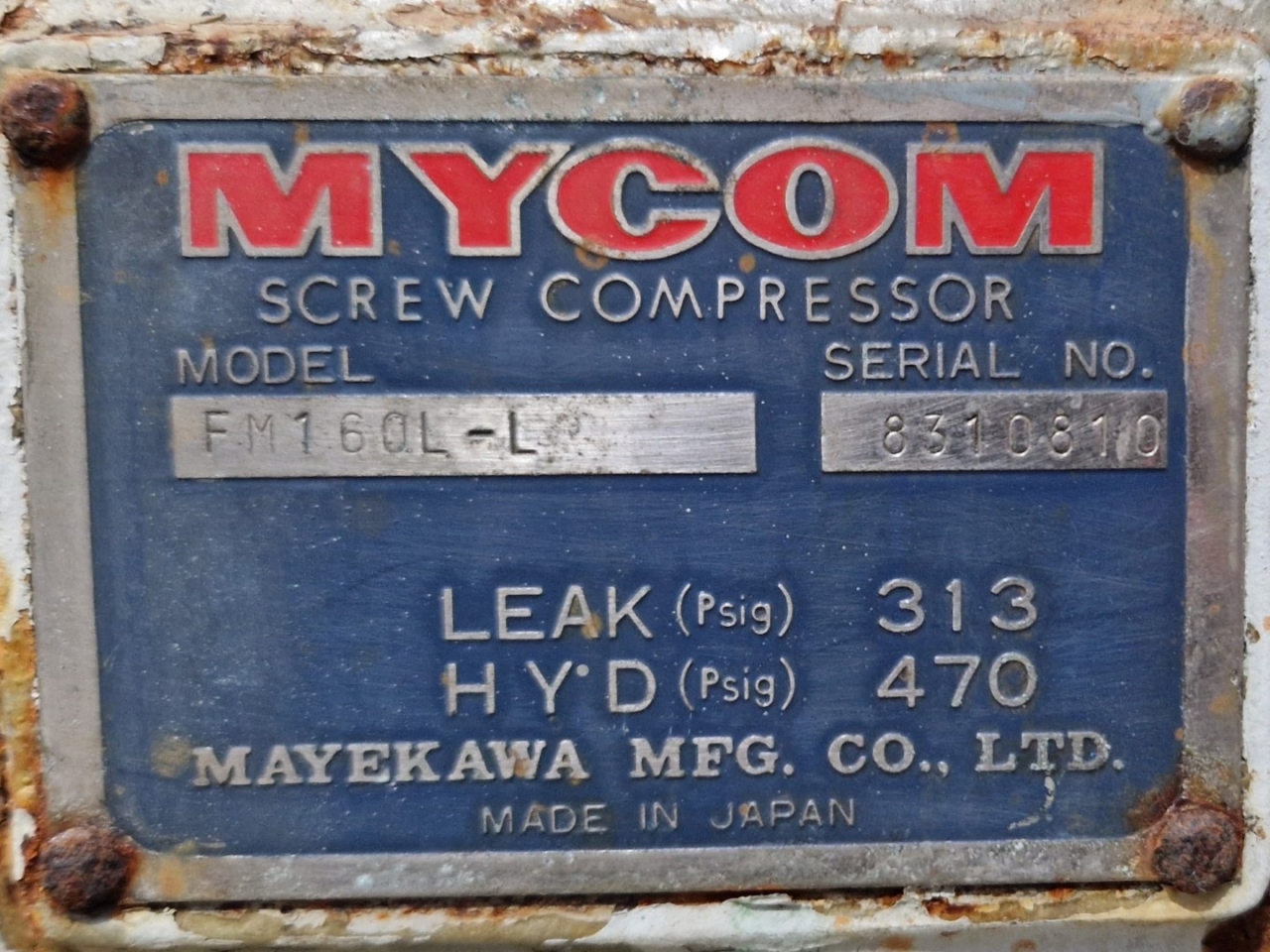

Mycom FM160L-L
Mycom FM160L-L
| 17631 | |
| Бренд | Mycom |
| Тип | FM160L-L |
| Хладагент | NH 3 (ammonia) |
| кВт at +10ºC/+40ºC | 835,4 |
| kW at 0ºC/+40ºC | 579,6 |
| kW at -5ºC/+40ºC | 475,6 |
| кВт at -10ºC/+40ºC | 385,6 |
| кВт at -20ºC/+40ºC | 242,7 |
| кВт at -30ºC/+40ºC | 140,7 |
| кВт at -40ºC/+40ºC | 70,3 |
| Разгруженный старт |
|
| Управление производительностью |
|
| На стальной раме |
|
| Манометры |
|
| Маслоотделитель |
|
| Фильтр-осушитель |
|
| Смотровое стекло |
|
| Панель управления |
|
| Condensing Unit |
|
| Размеры | 3150x1400x2300 mm (LxWxH) |
| Количество на складе | 1 |
Mycom FM160L-L

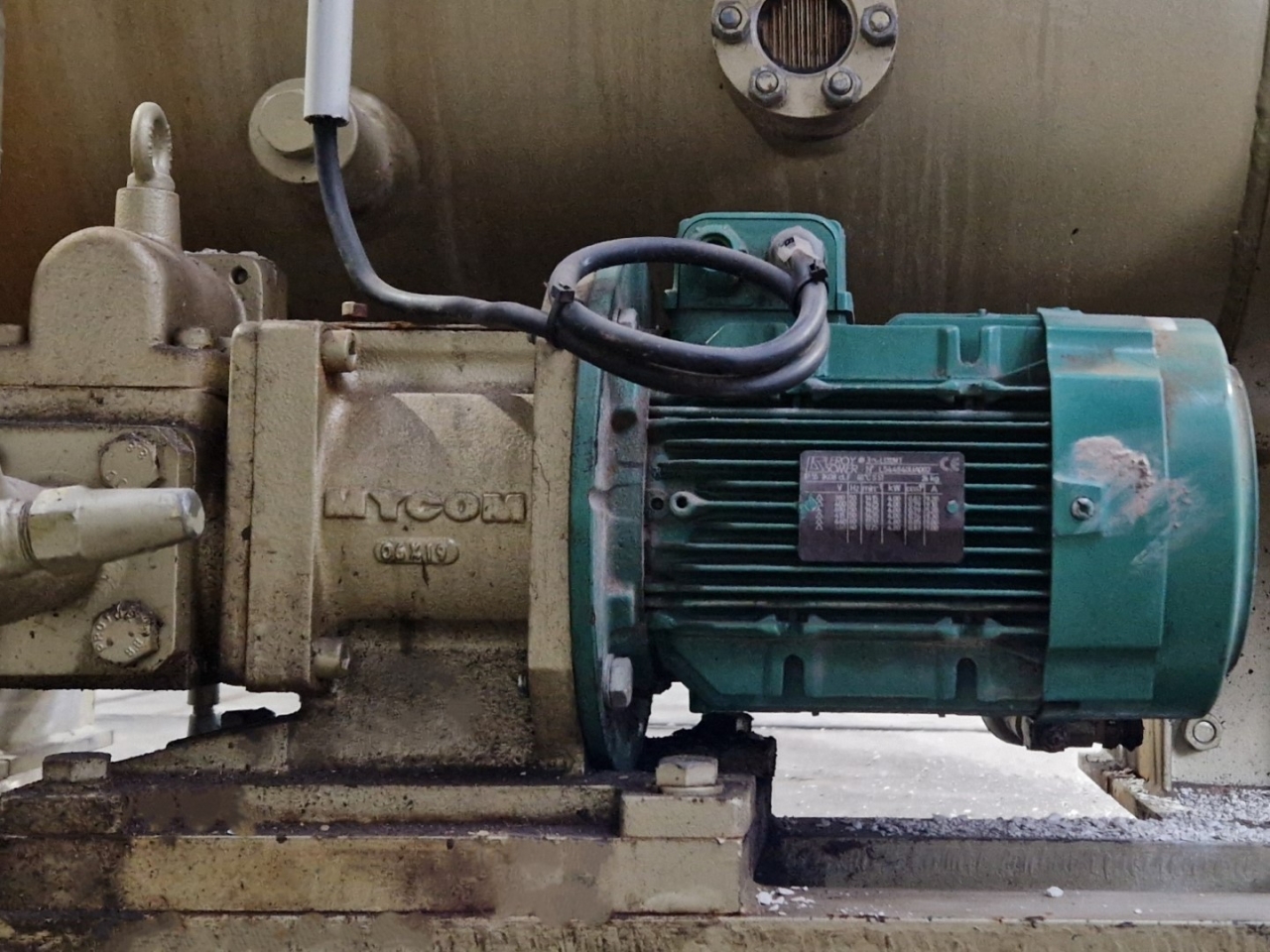

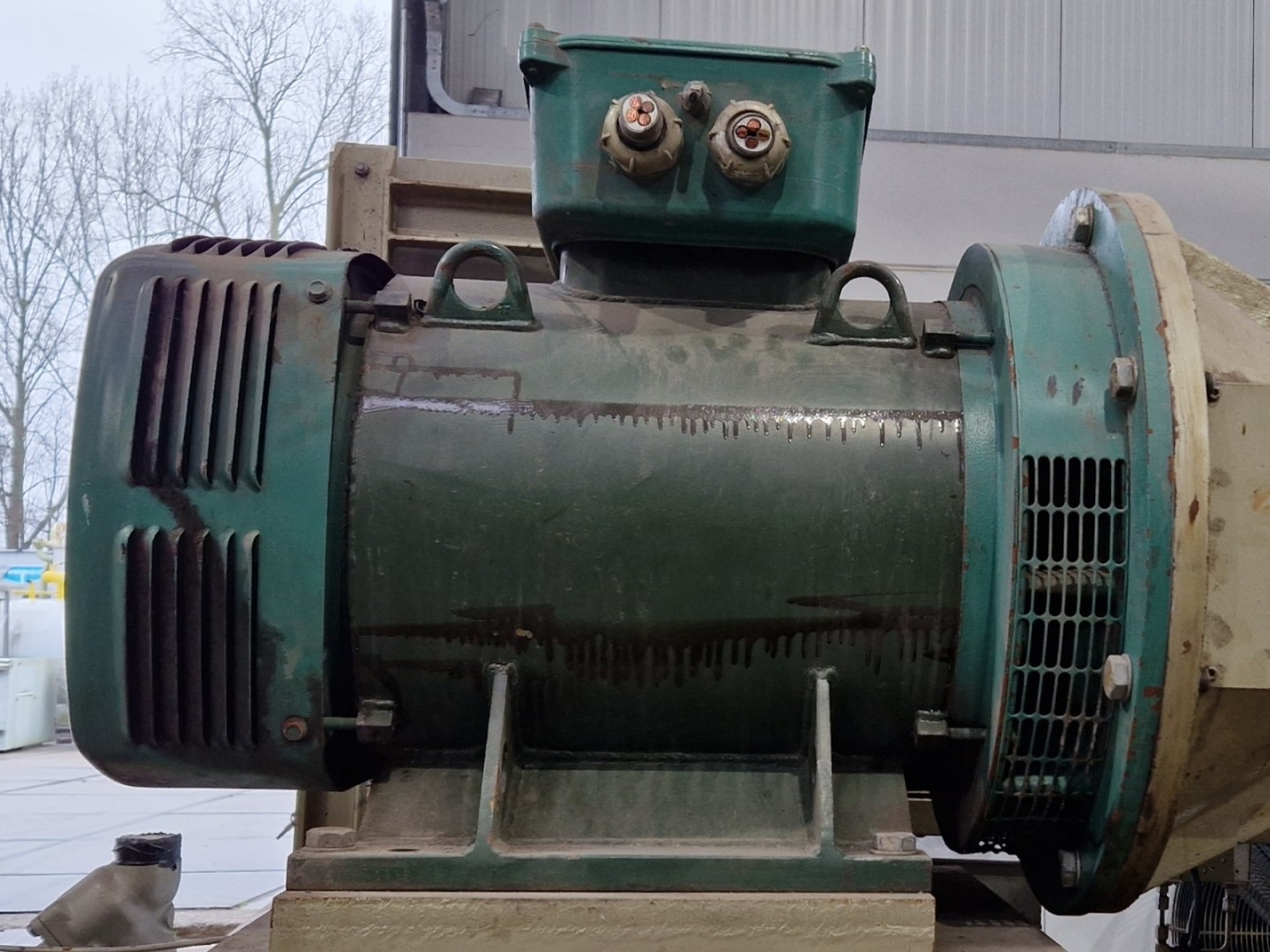

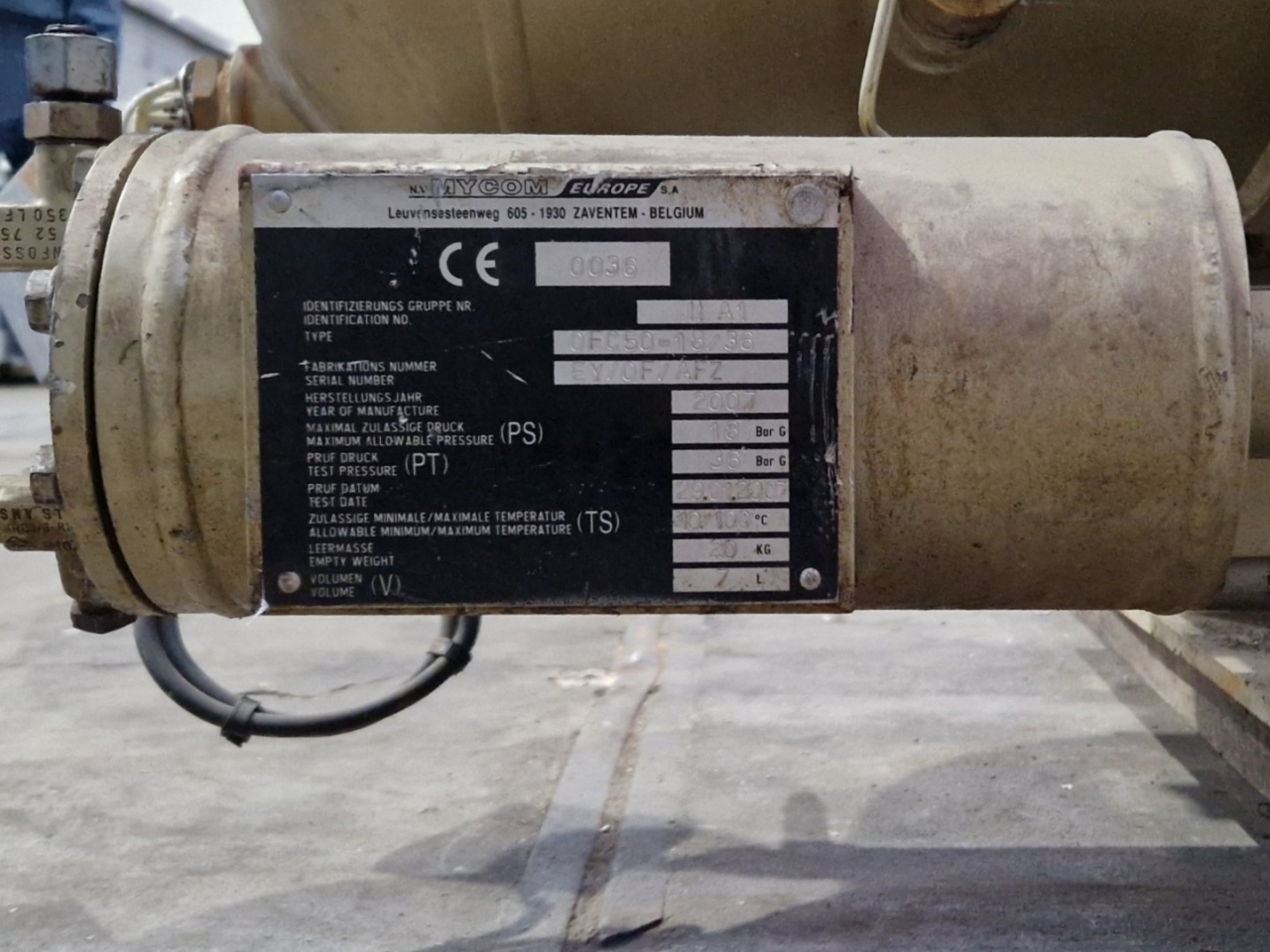

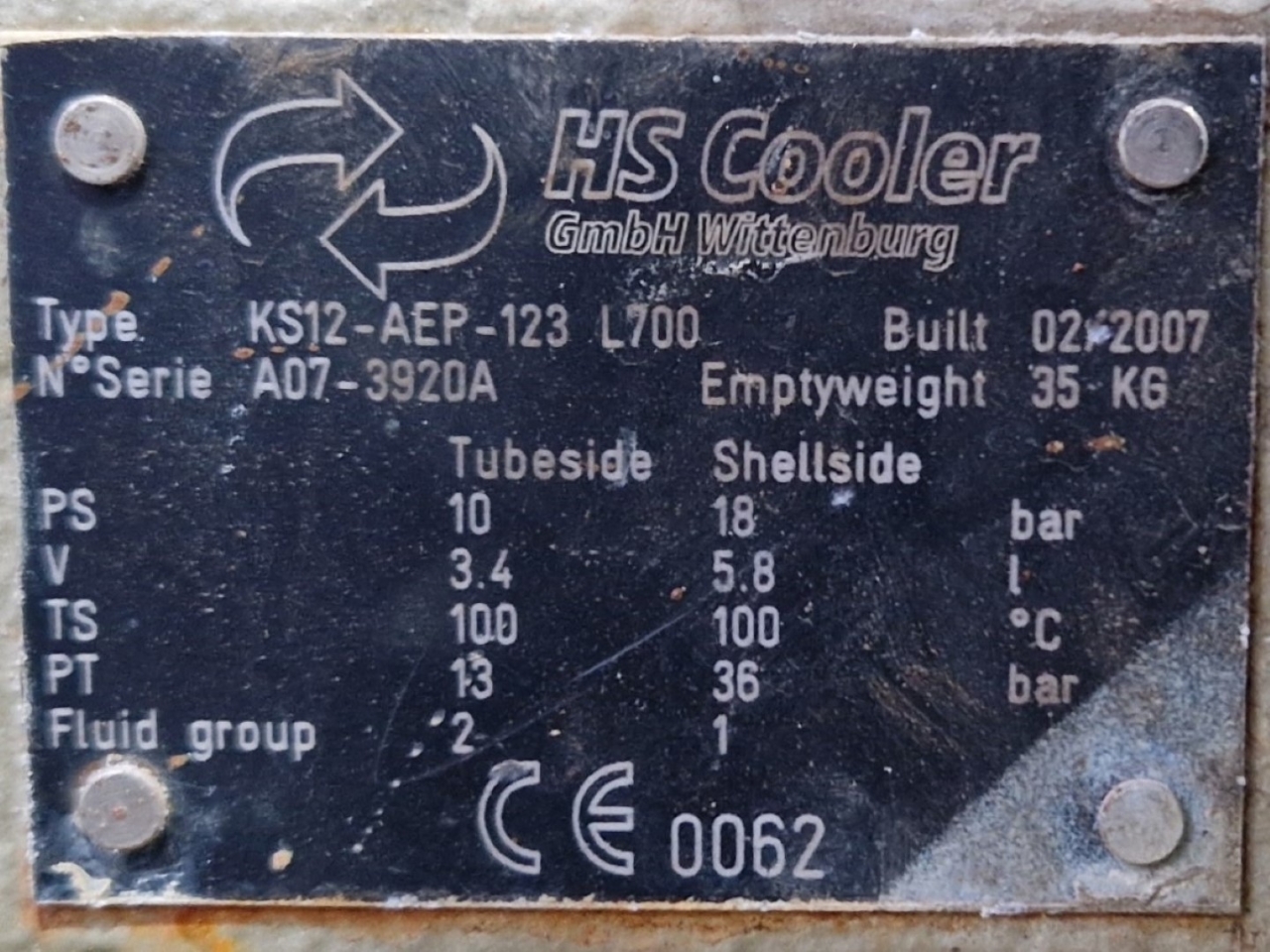

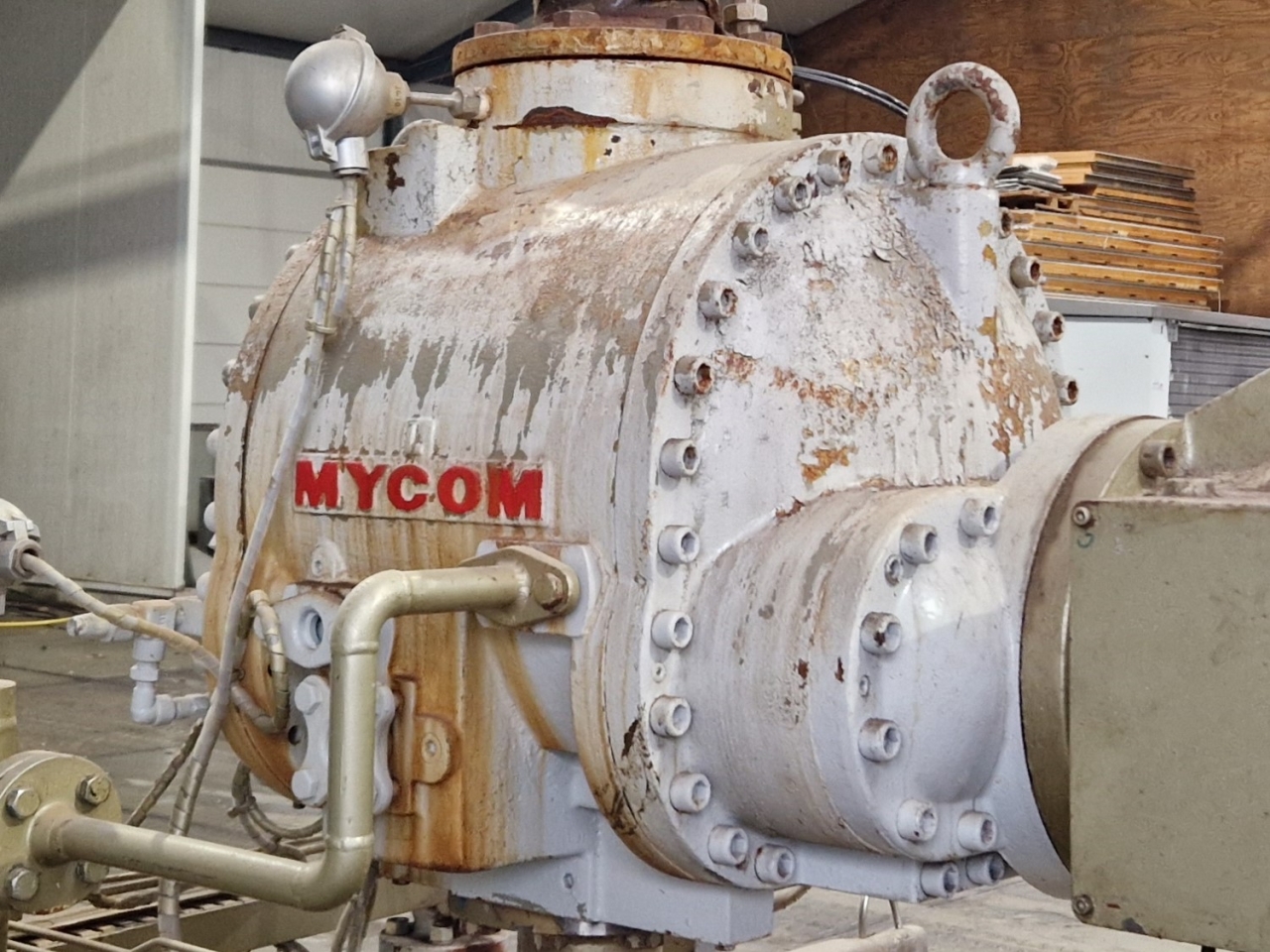

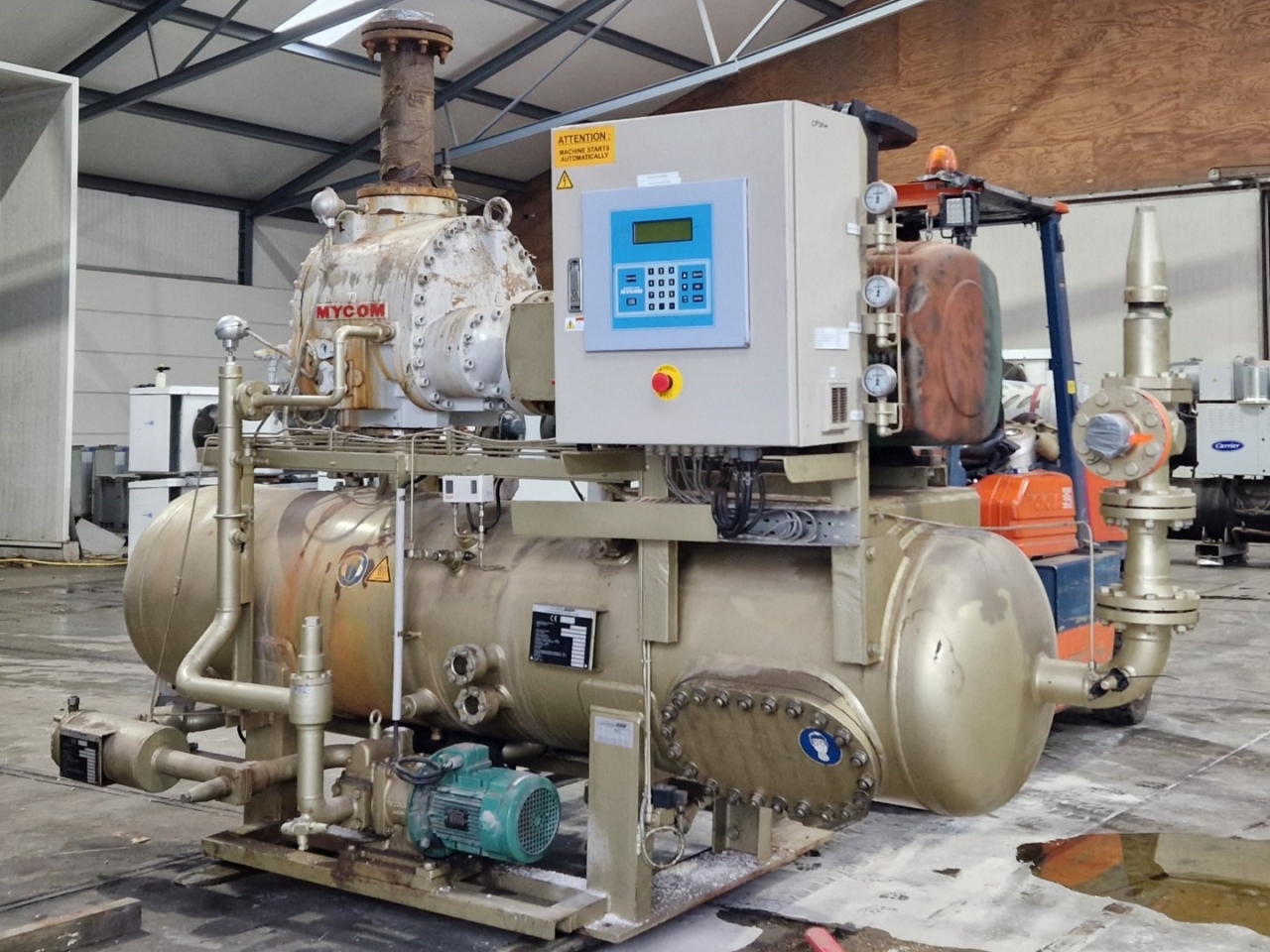

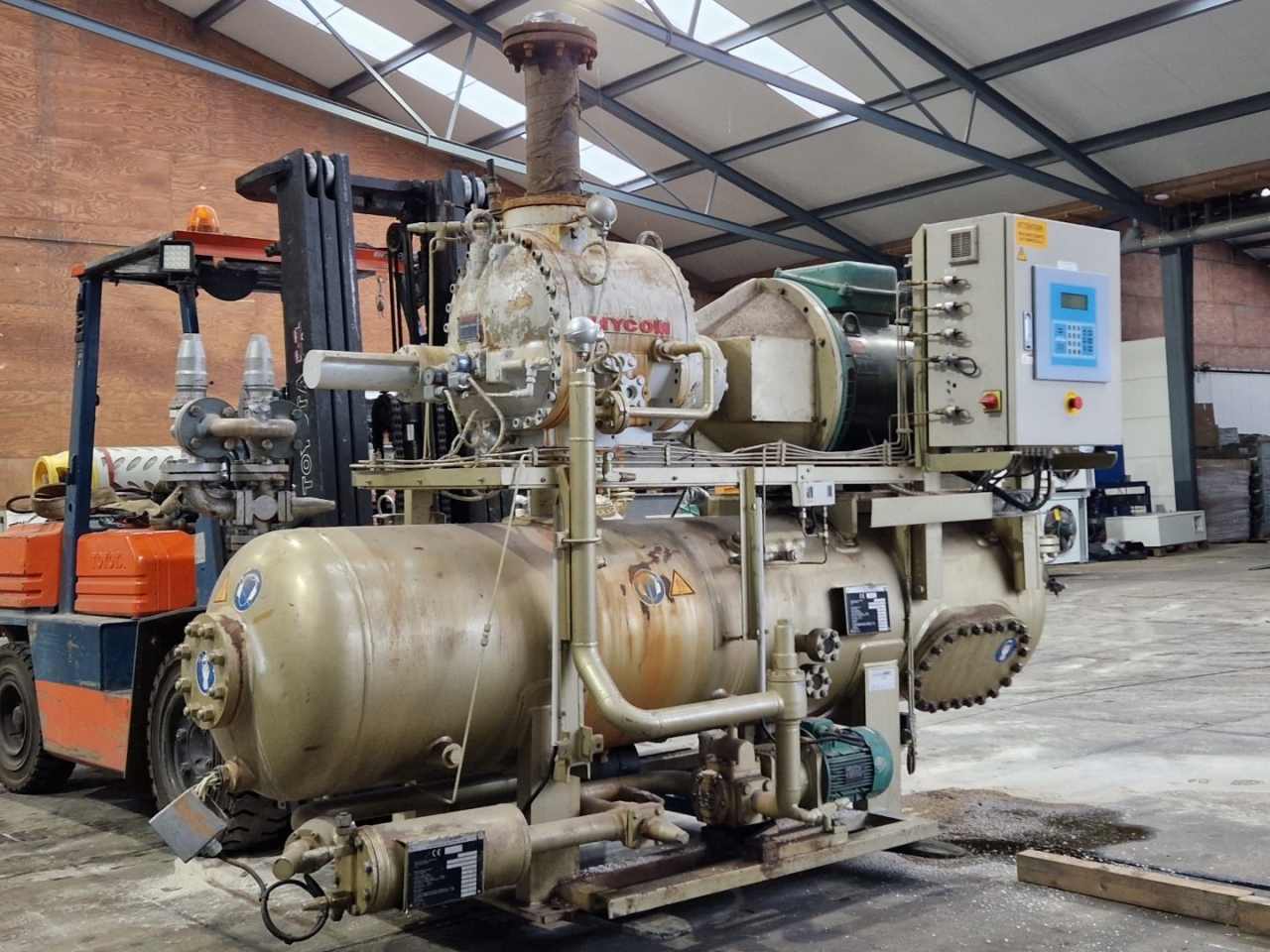

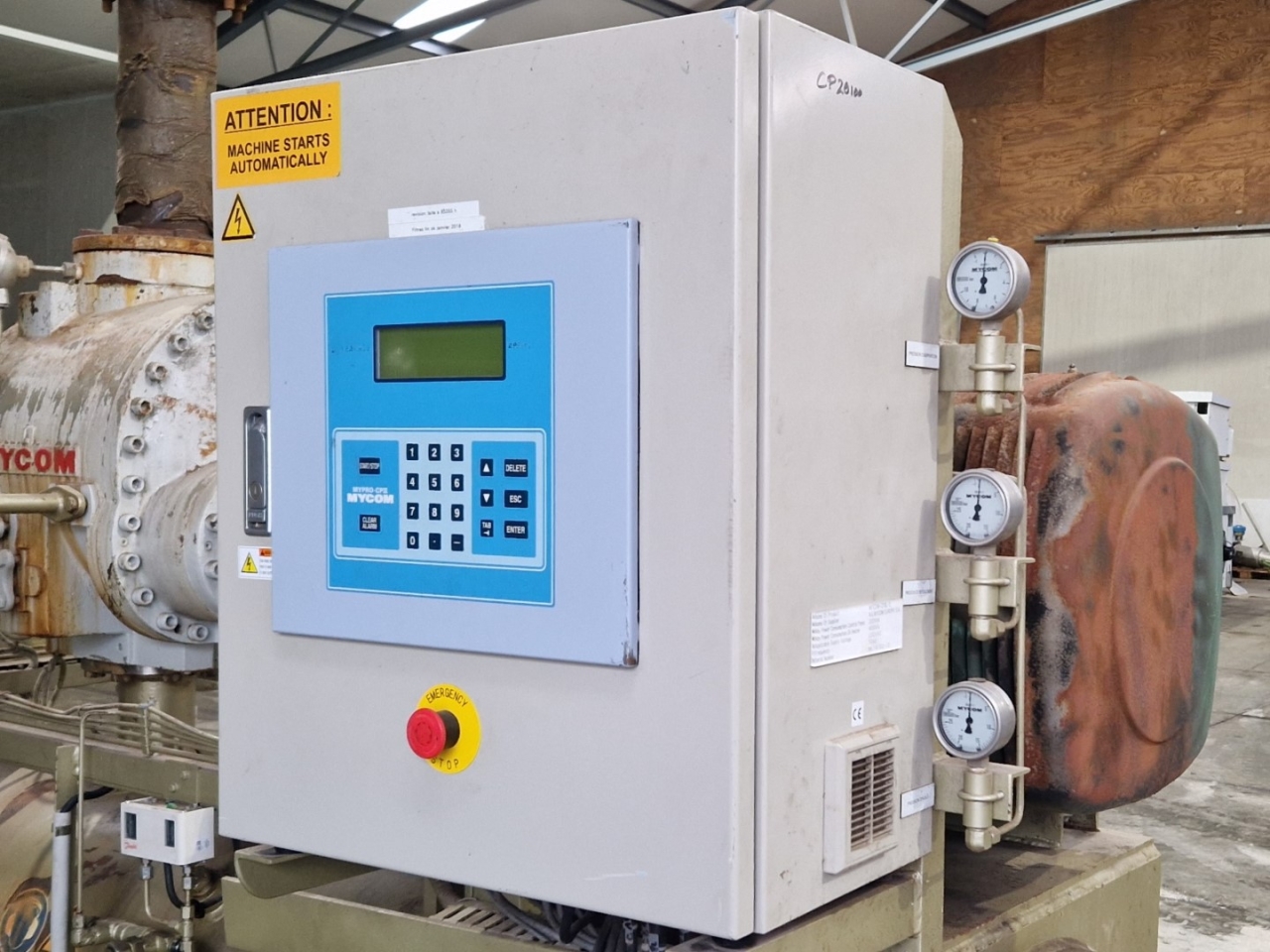

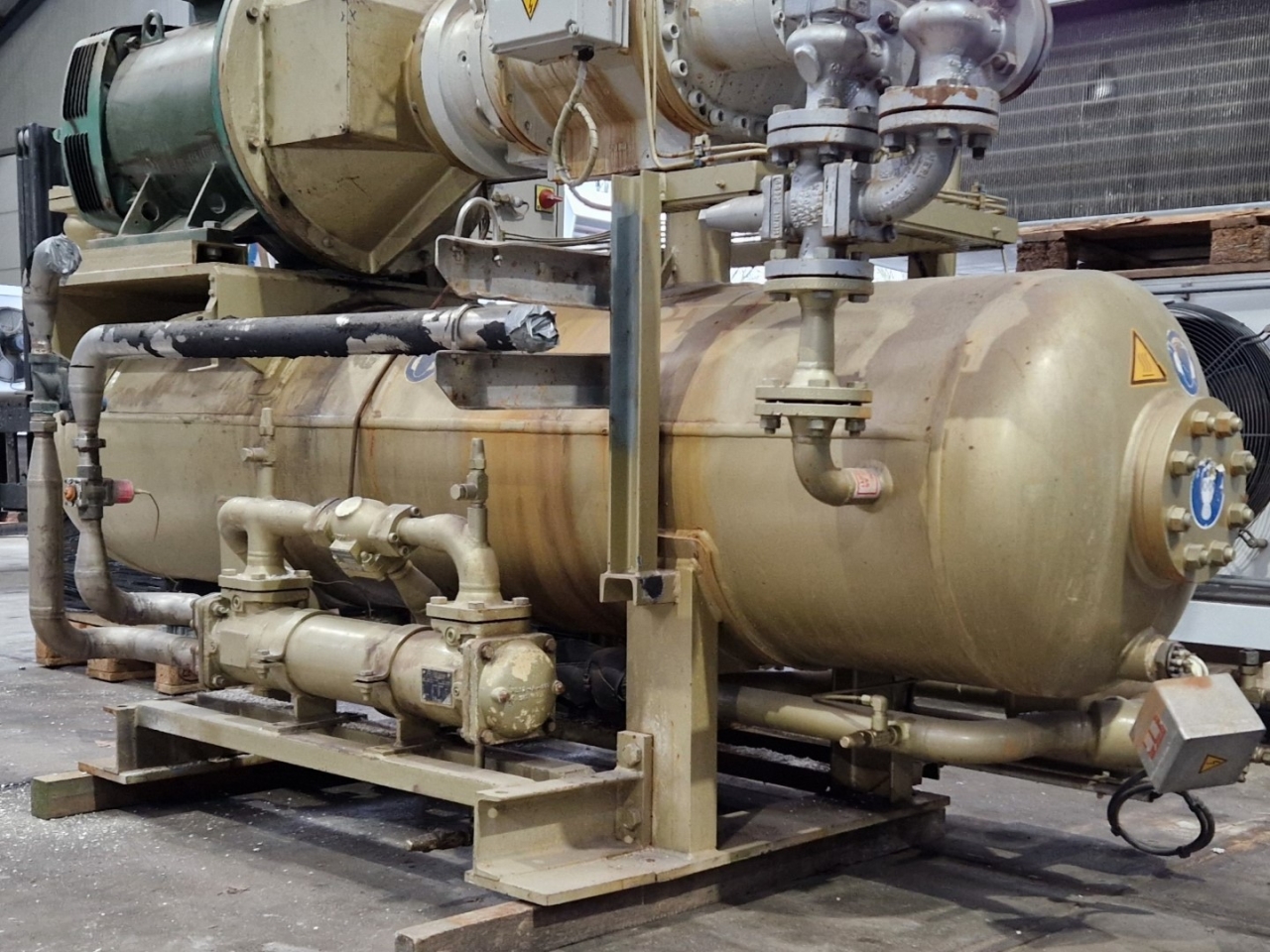

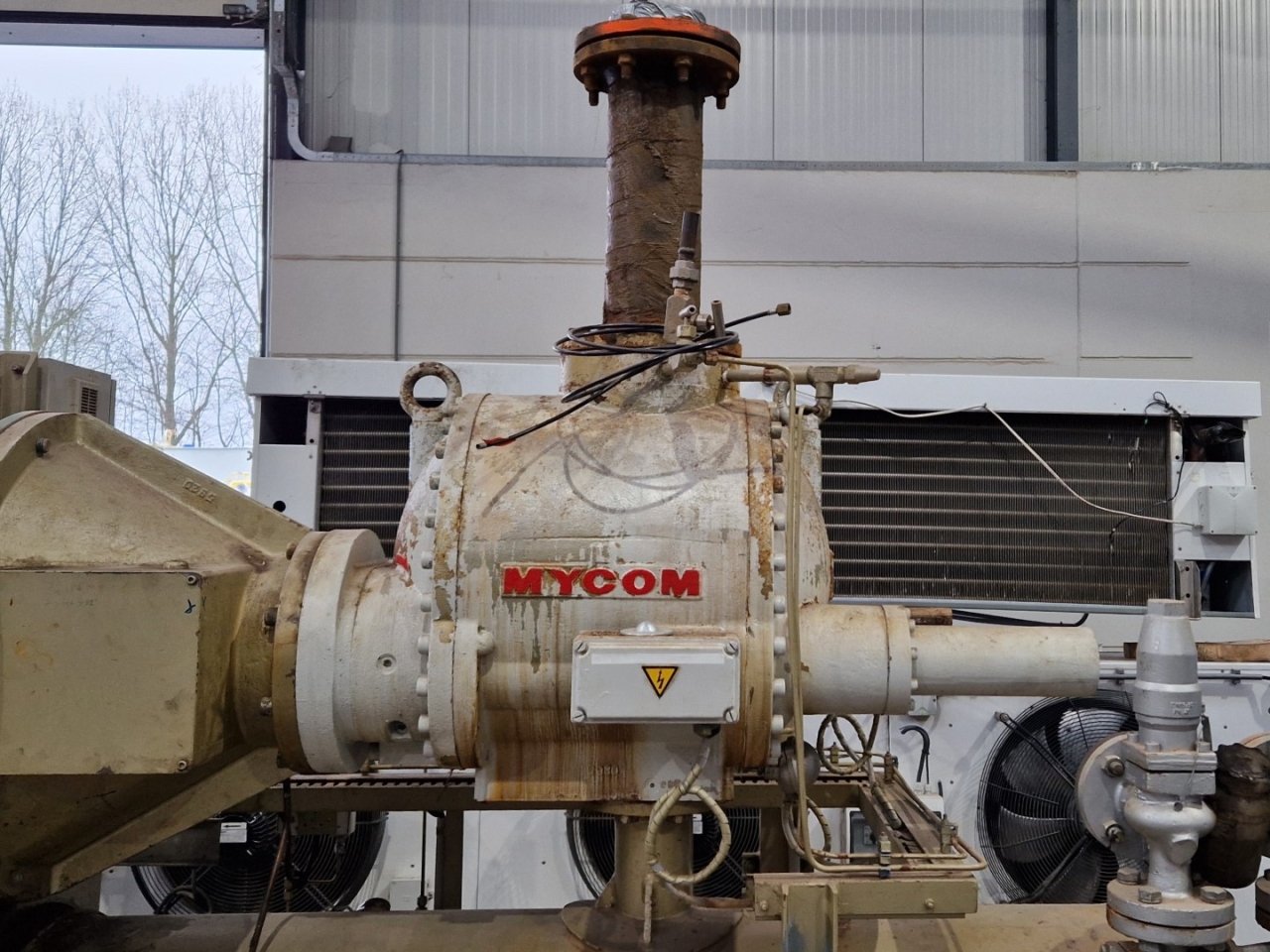

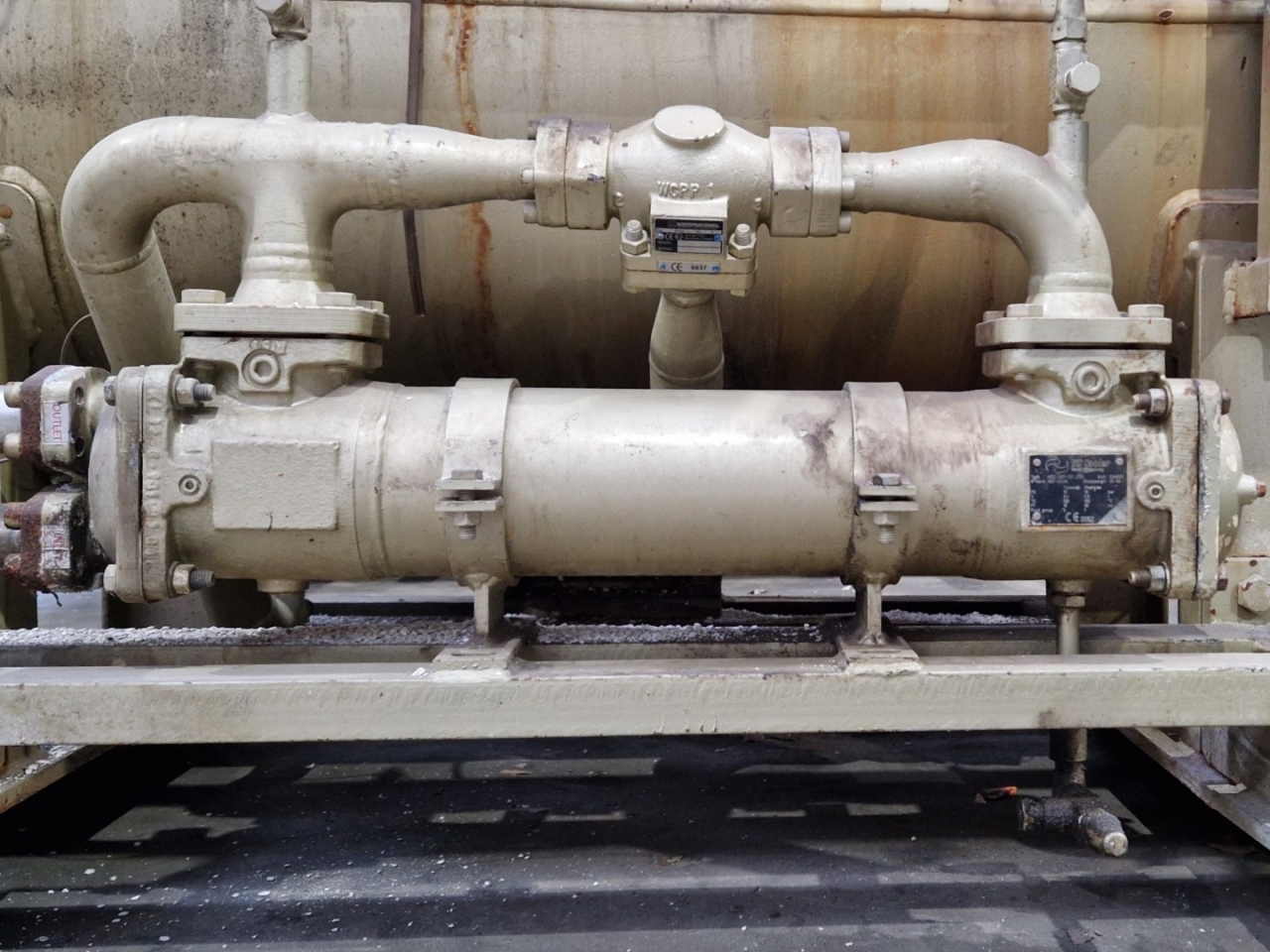

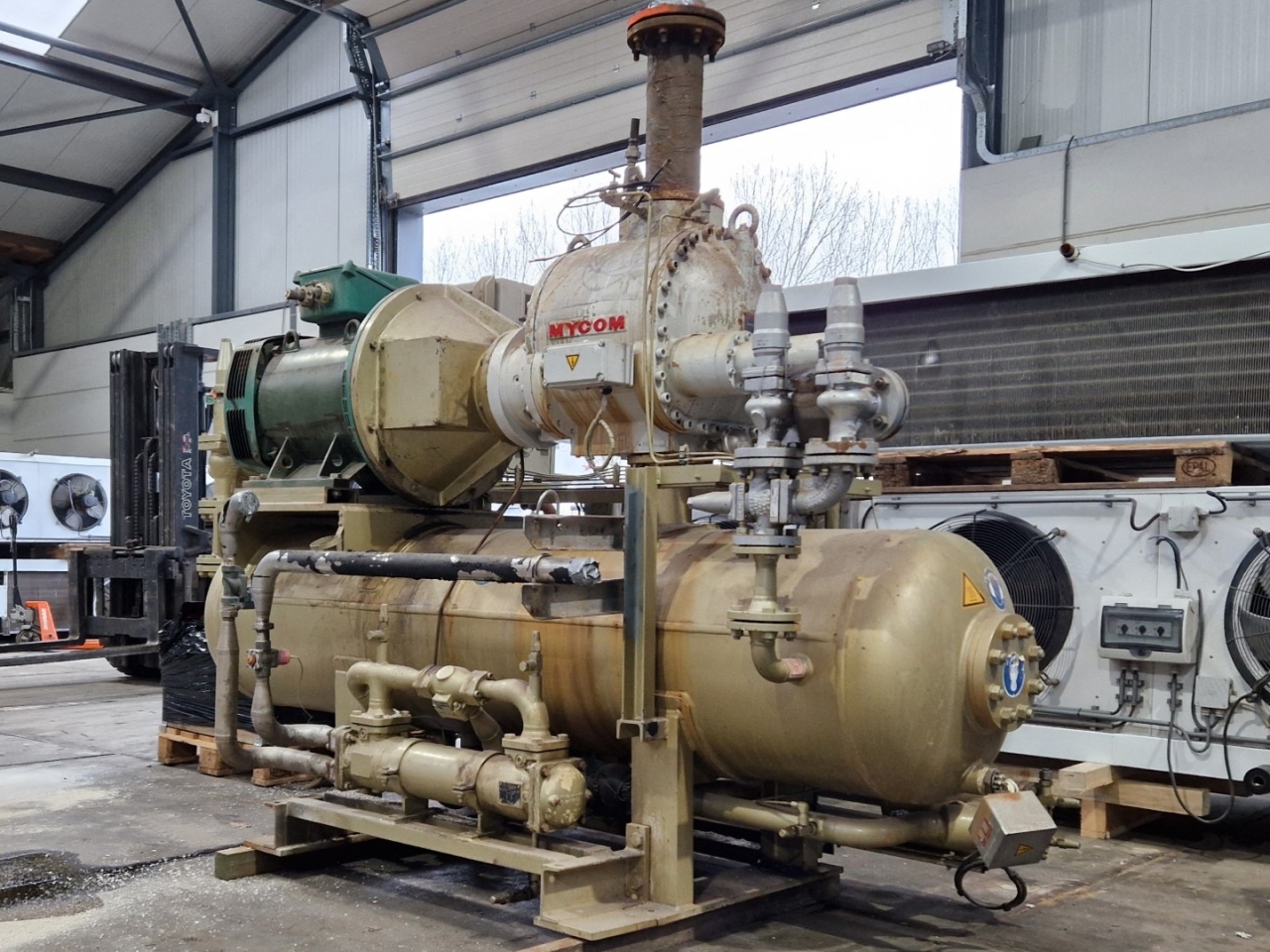

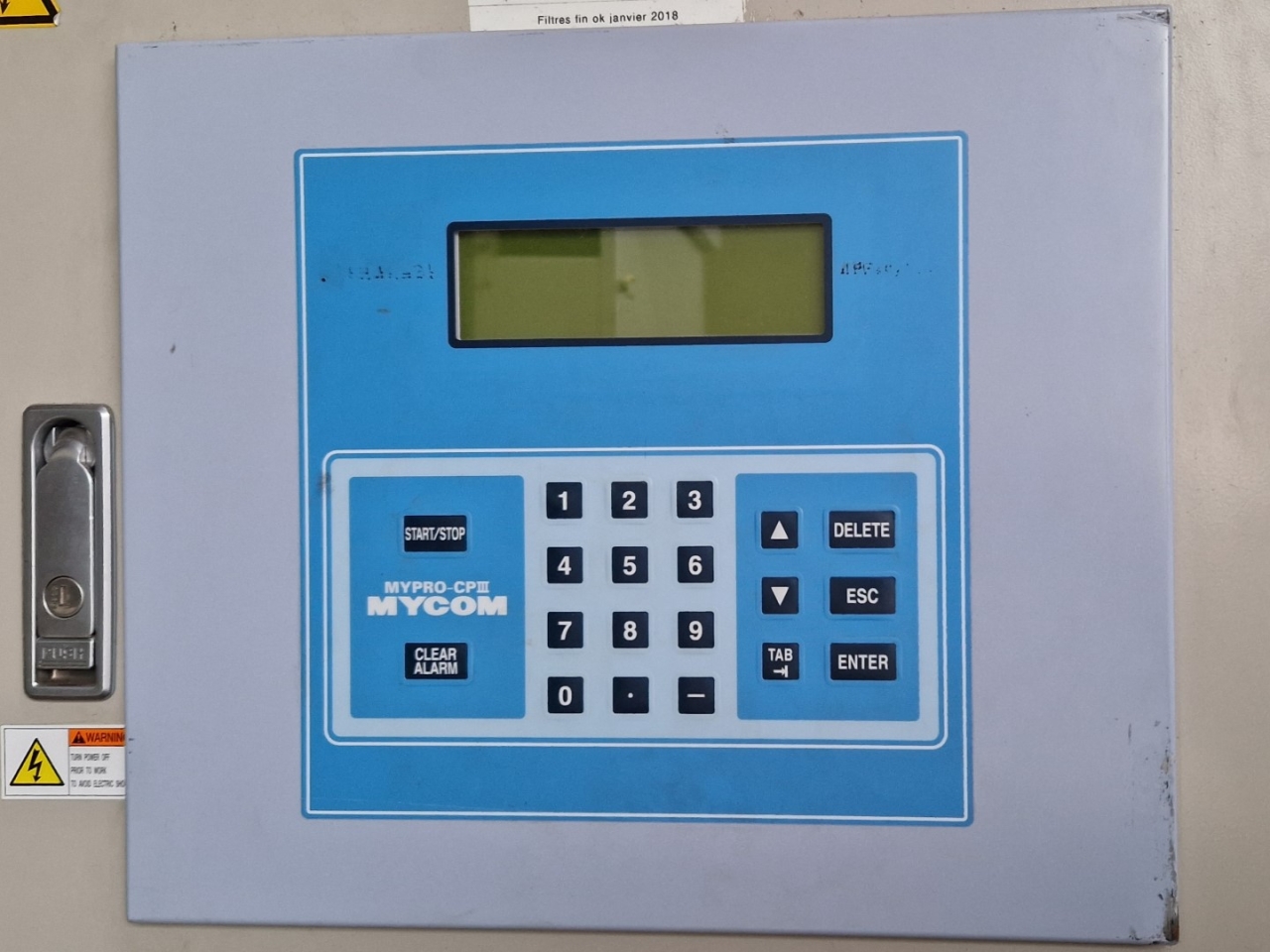

Used Mycom FM160L-L screw compressor unit on NH3 (ammonia). Complete with Leroy Somer PLS280MC-T - 50/60 Hz - 132/152 kW - 2945/3548 RPM, Mycom HS6023-18/36-CE oil separator with a volume of 700 liters, KS12-AEP-123 L700 oil cooler, Mycom OFC50-18/36 oil filter, pressure gauges, Mycom F50P oil pump with electro motor - 50/60 Hz - 4,0/4,8 kW - 1415/1725 RPM and a control cabinet with a Mycom MYPRO-CP3 display. The compressor has a displacement of 949 m³/h.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
