Bitzer W6FAL (x3)
Bitzer W6FAL (x3)
| 17735 | |
| Бренд | Bitzer |
| Тип | W6FAL (x3) |
| Хладагент | NH 3 (ammonia) |
| кВт at +10ºC/+40ºC | 587,7 |
| kW at 0ºC/+40ºC | 382,5 |
| kW at -5ºC/+40ºC | 297,9 |
| кВт at -10ºC/+40ºC | 223,2 |
| Электродвигатель Specs |
2x 50 Hz - 30 kW - 1480 RPM 1x 50 Hz - 45 kW - 1485 RPM |
| Управление производительностью |
|
| На стальной раме |
|

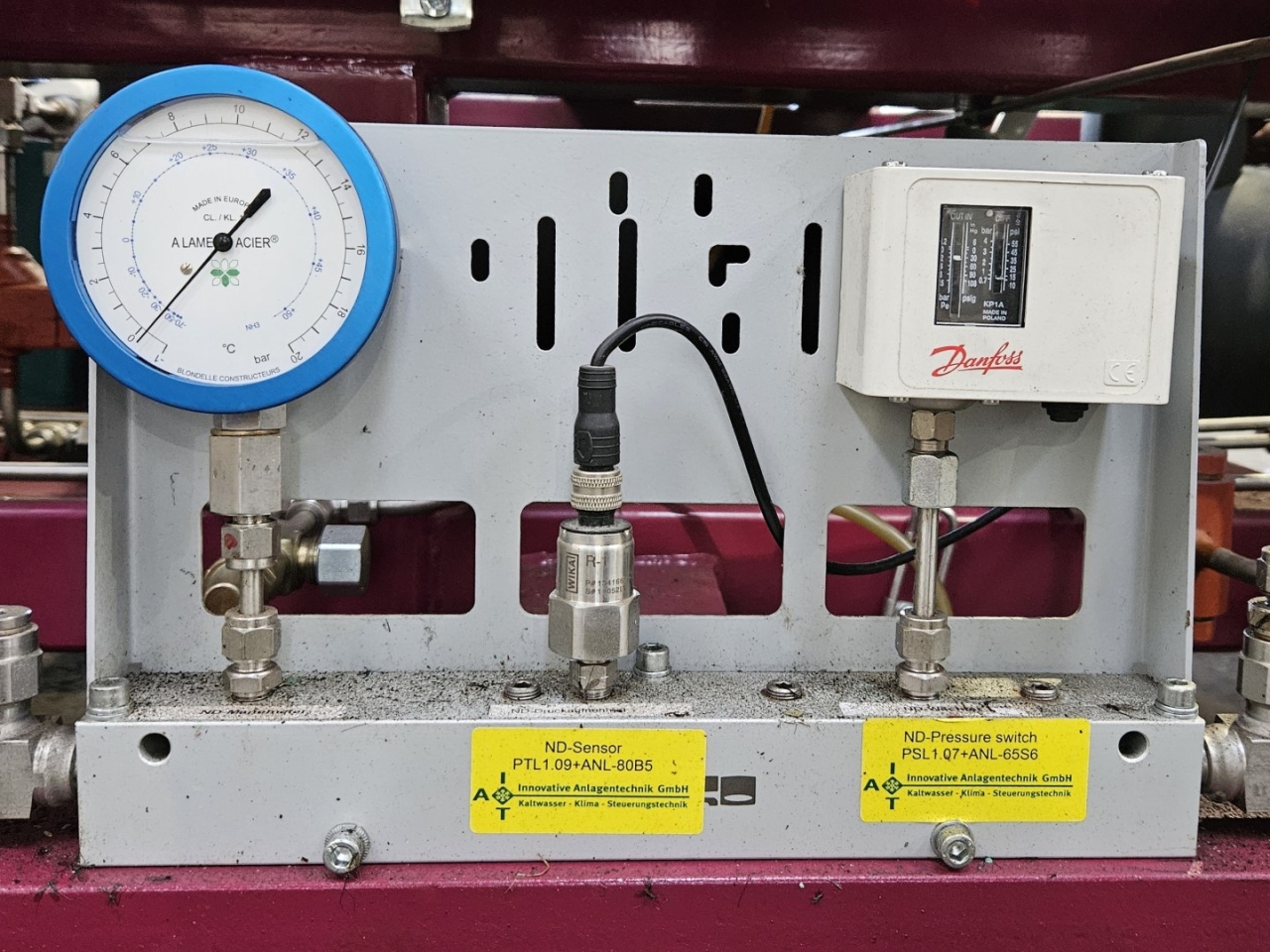

| Прессостаты |
|
| Манометры |
|
| Прессостаты конденсатора |
|
| Маслоотделитель |
|
| Система маслоуравнивания |
|
| Смотровое стекло |
|
| Соленоидный клапан |
|

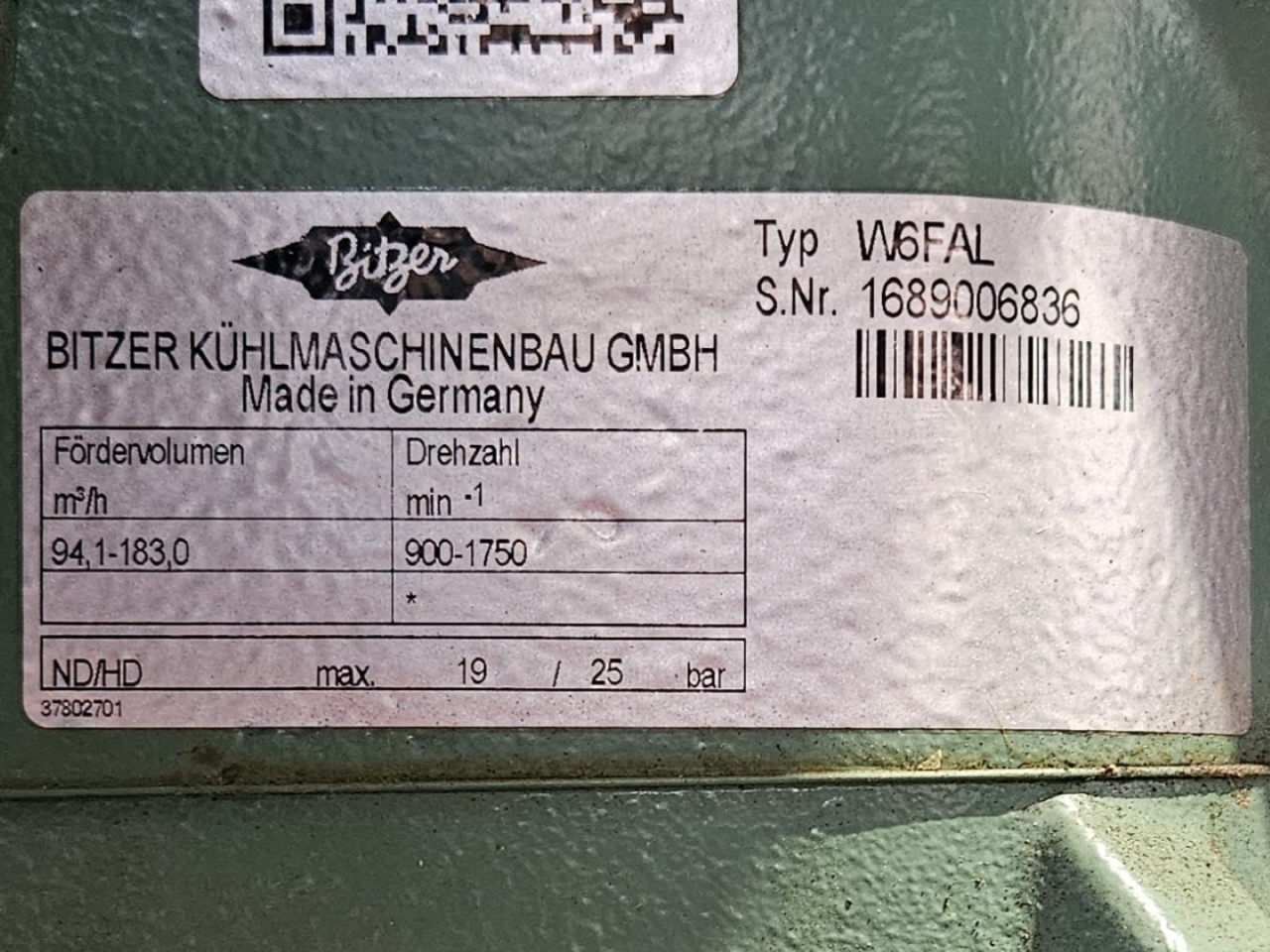

| m3 / h | 282,3 m³/h at 900 RPM & 549 m³/h at 1750 RPM |
| Примечания | | Y.o.b. 2015 |
| Package / Rack |
|
| Размеры | 4150x1750x1380 mm (LxWxH) |
| Количество на складе | 1 |
Bitzer W6FAL (x3)

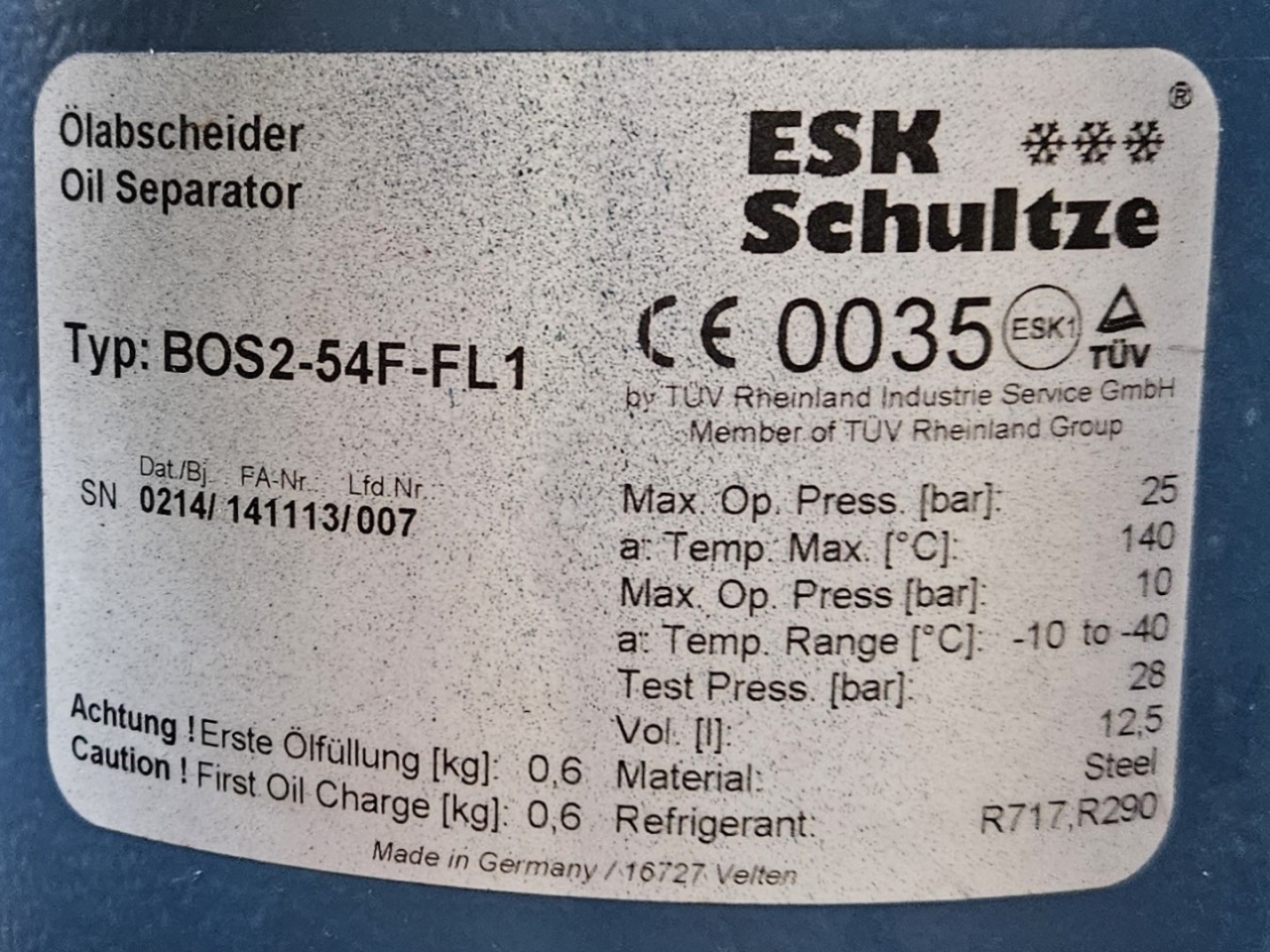

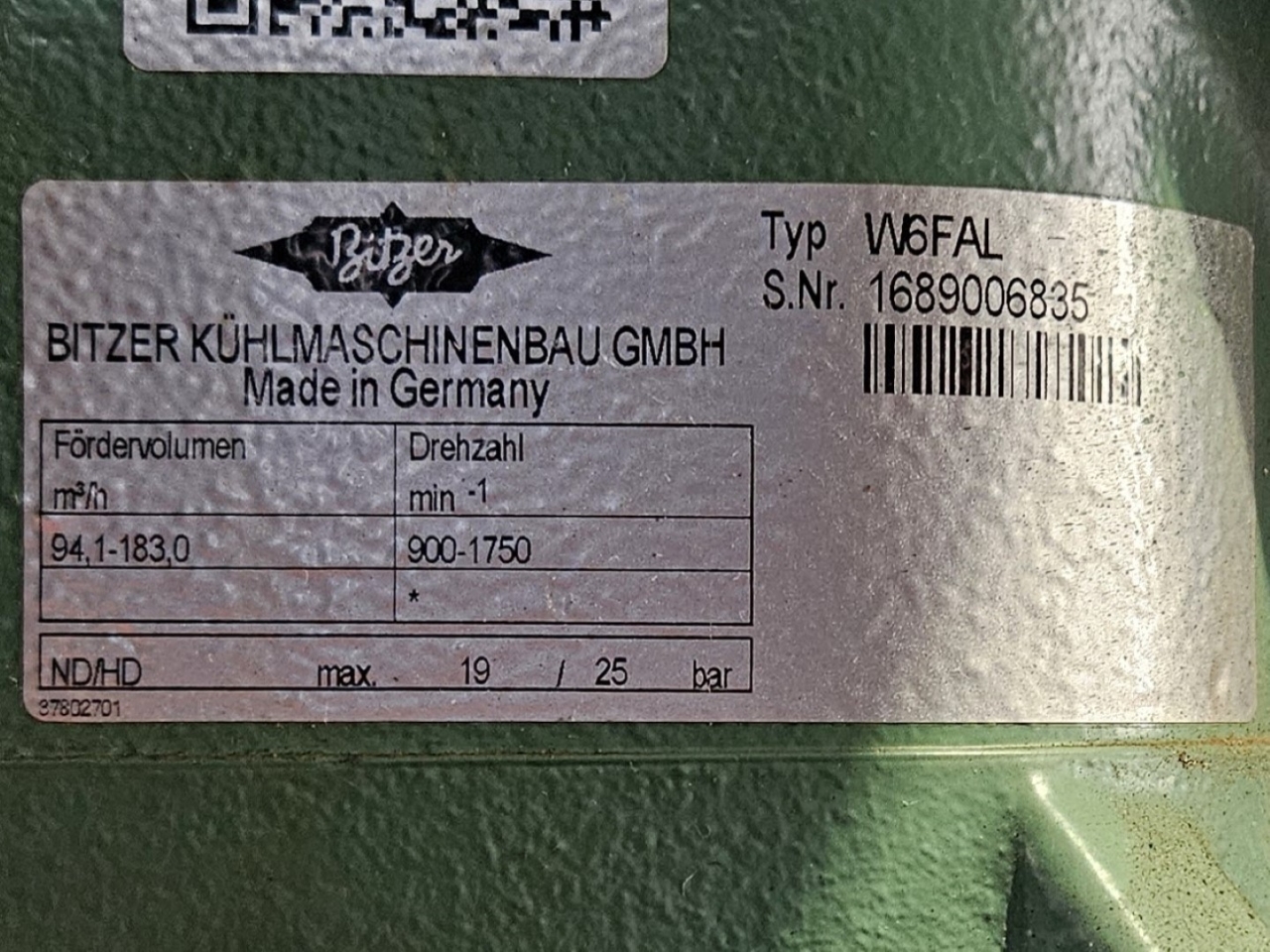

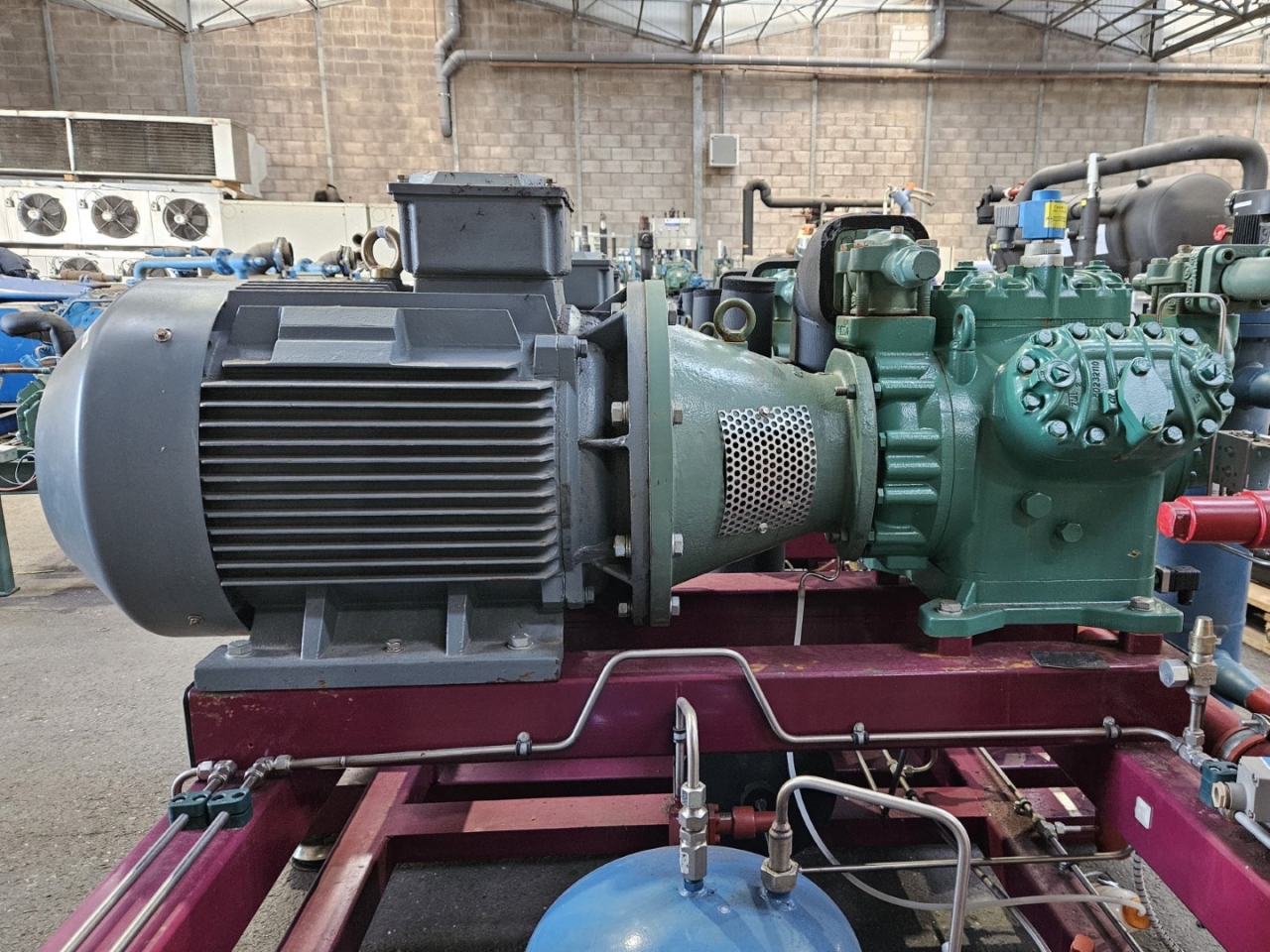

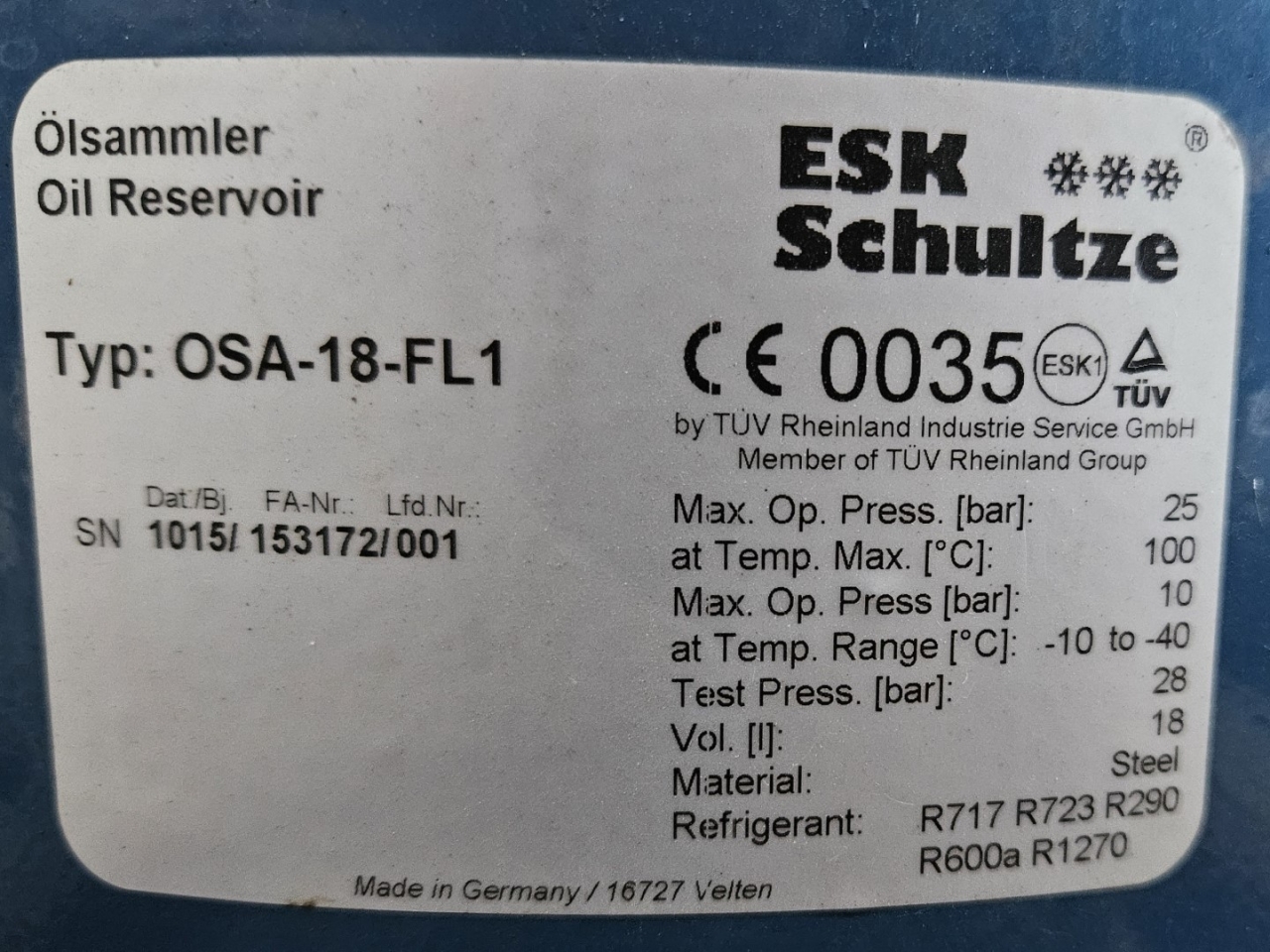

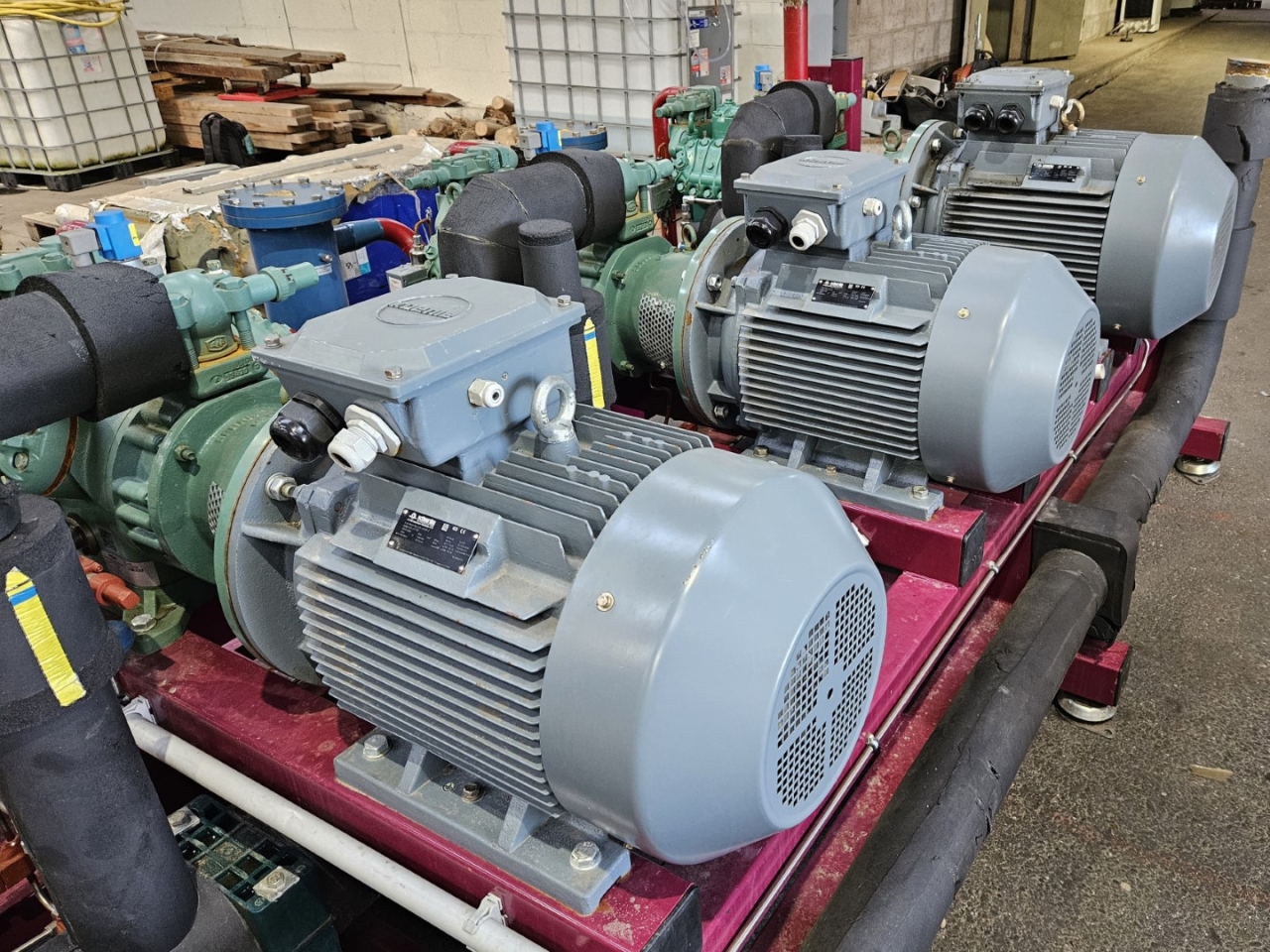

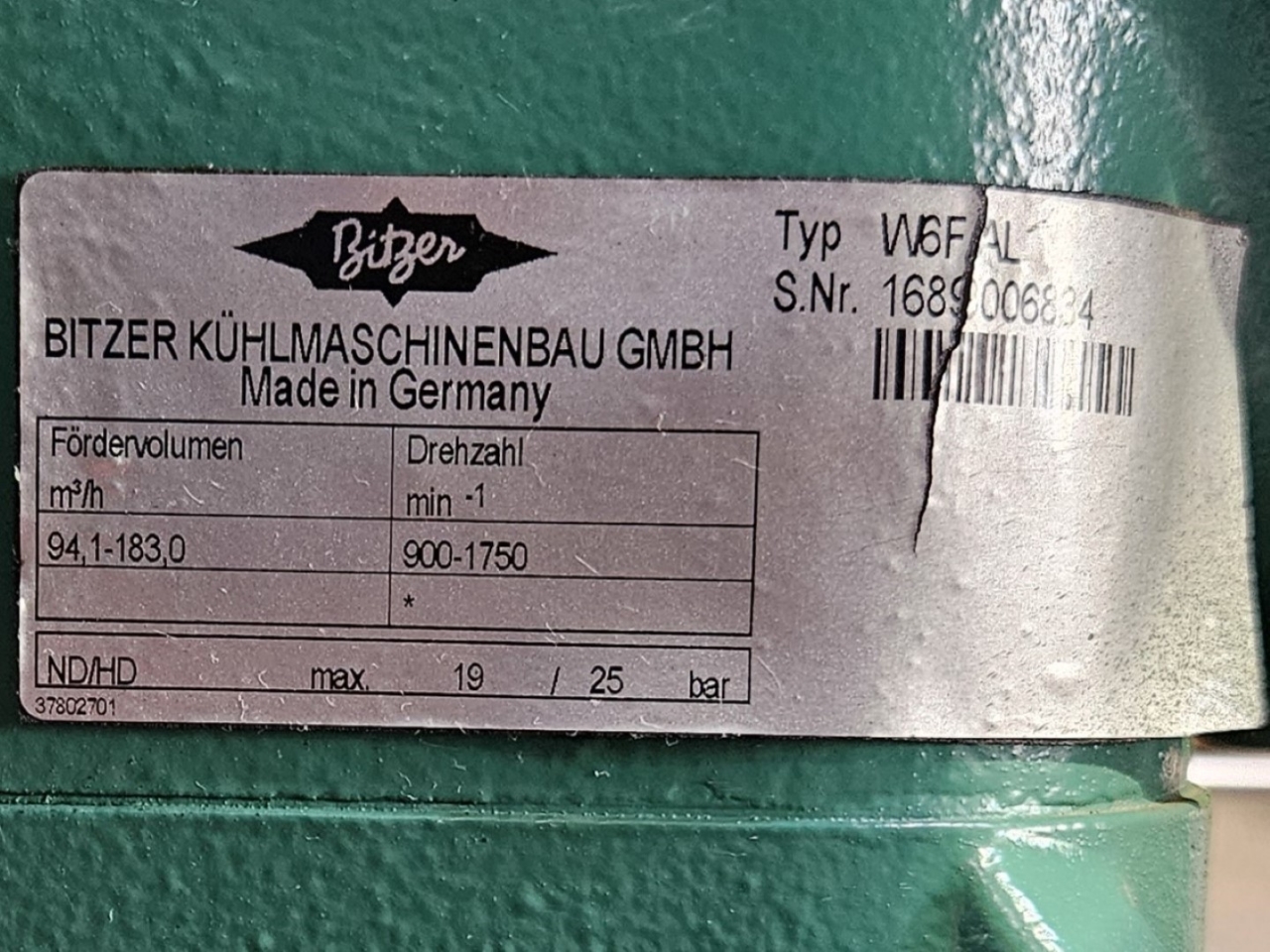

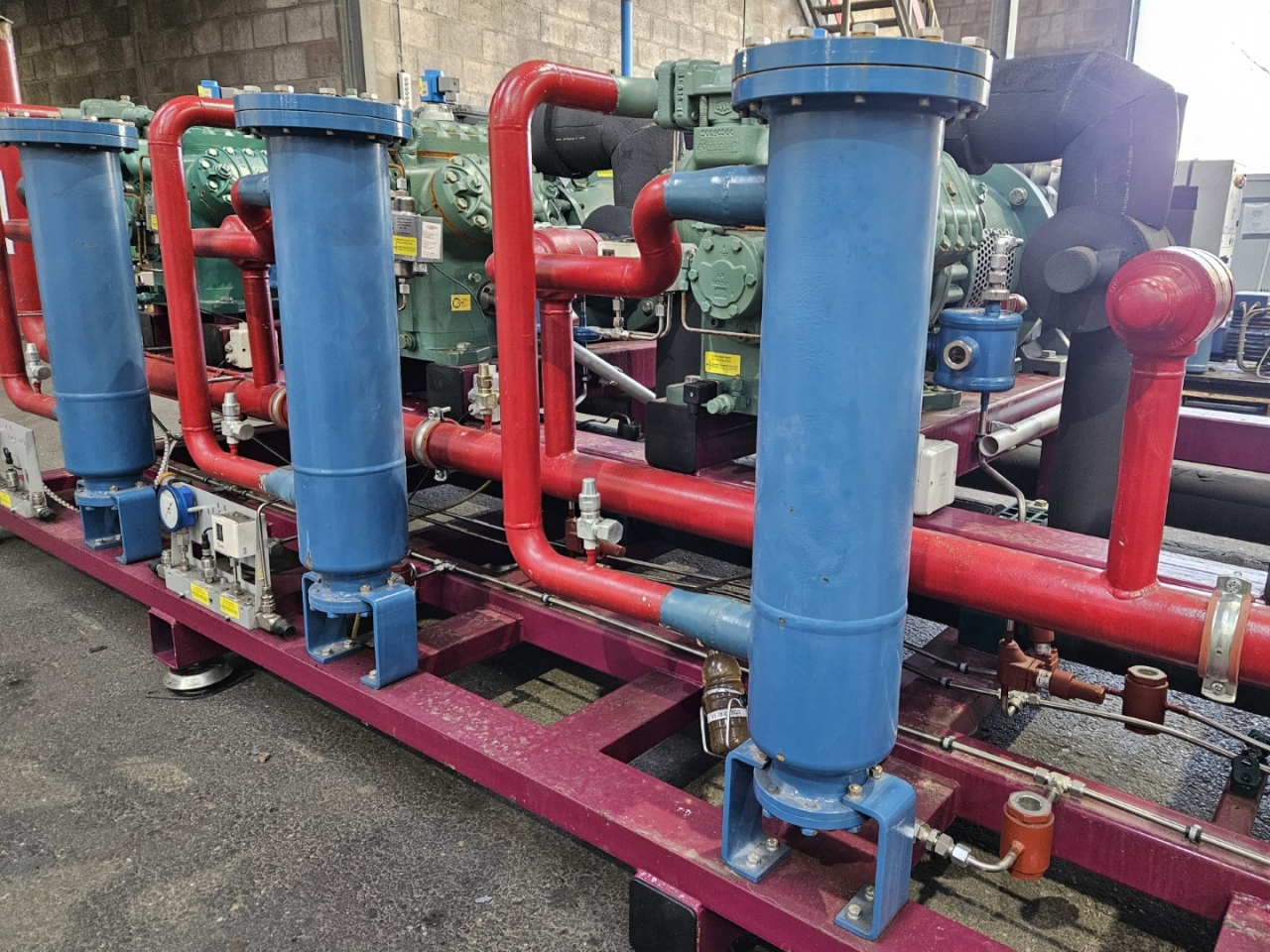

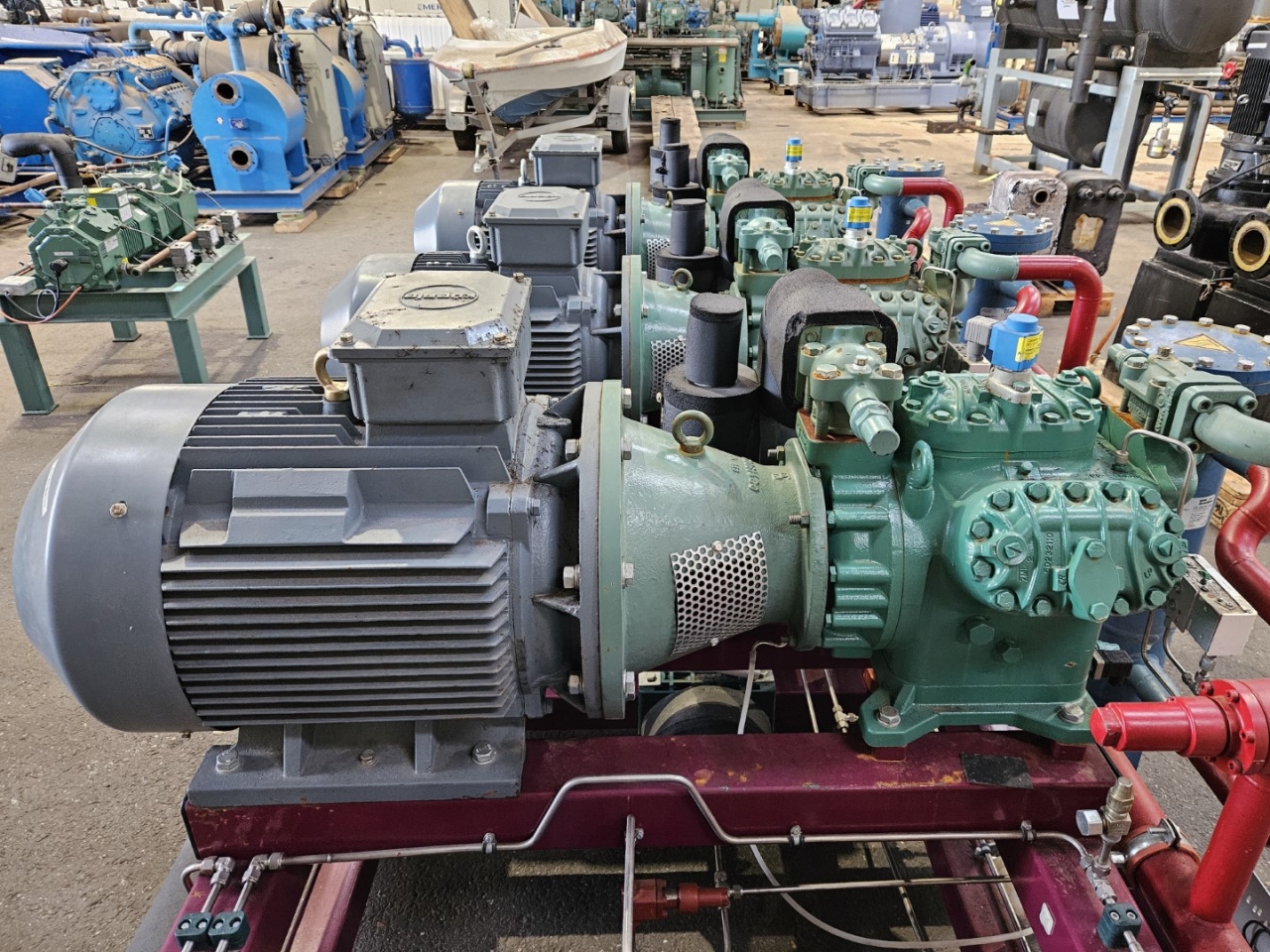

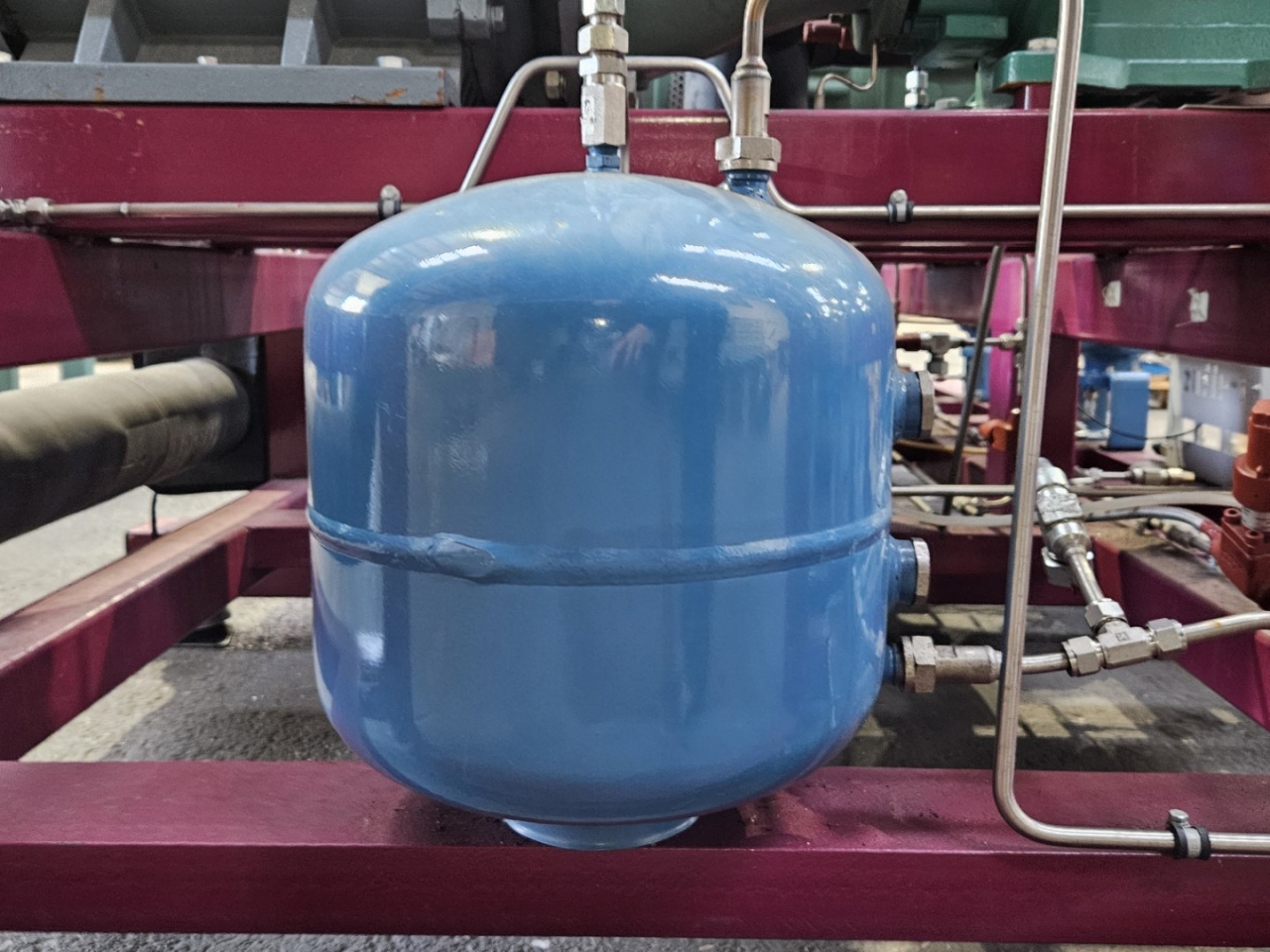

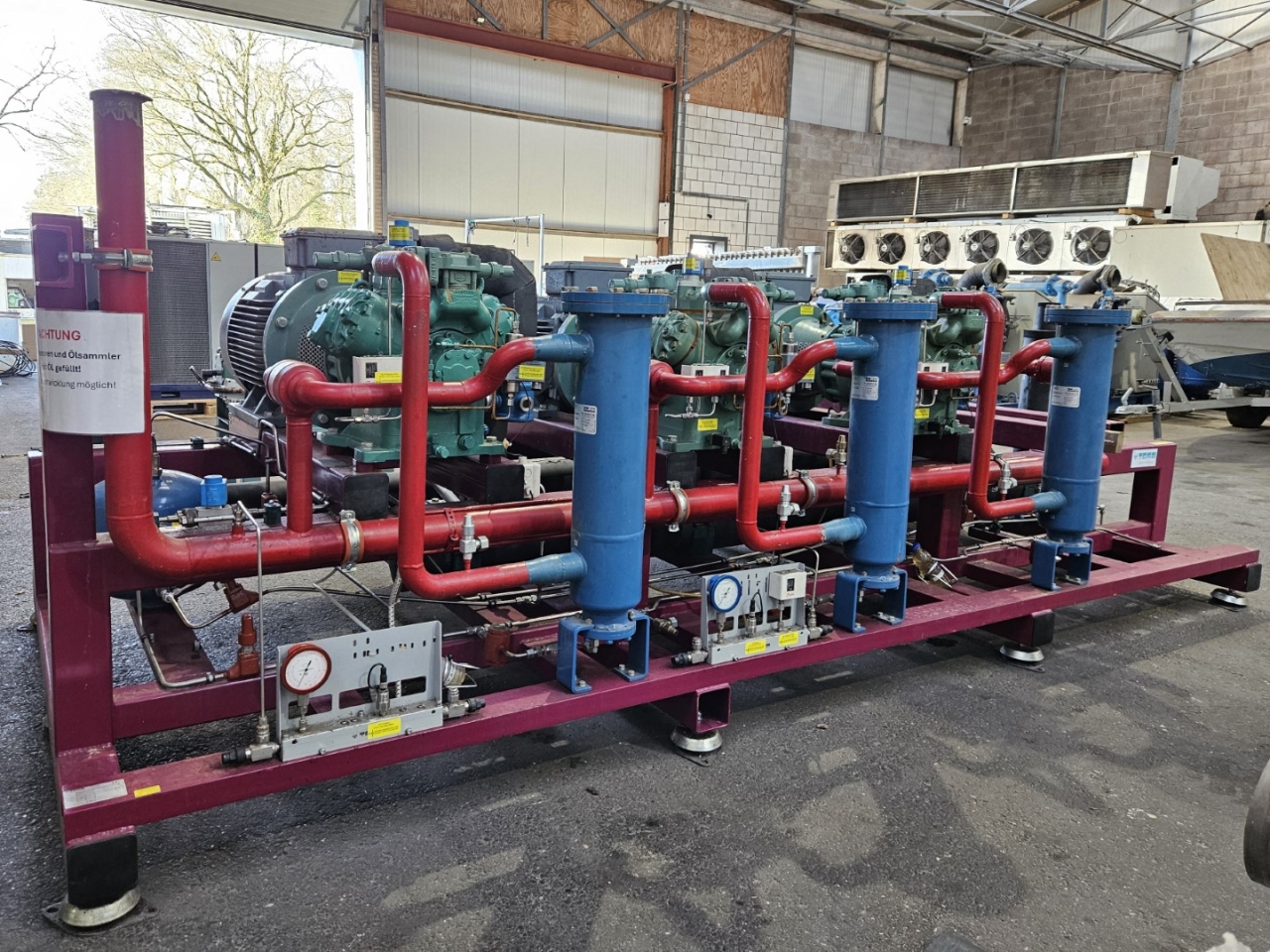

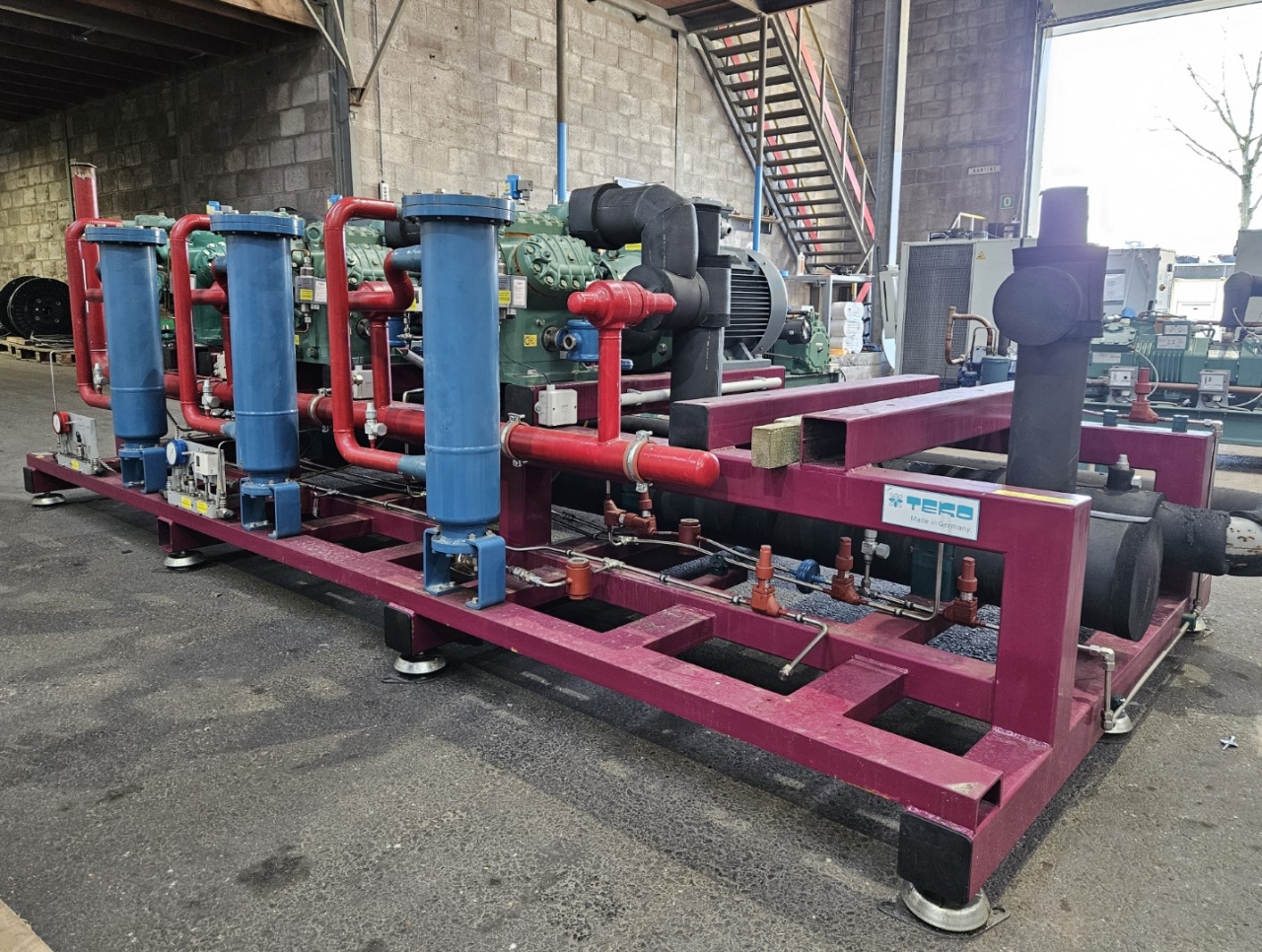

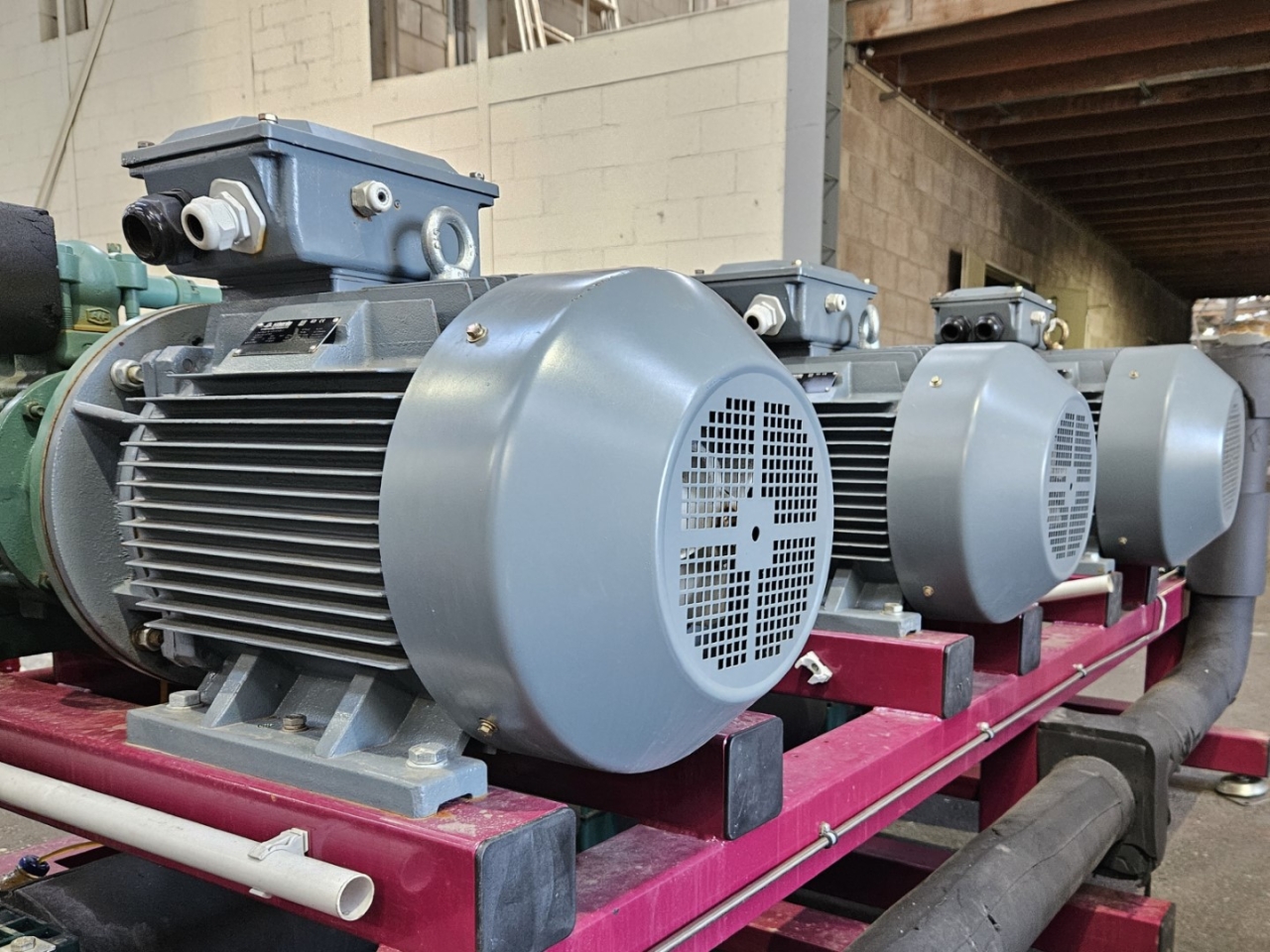

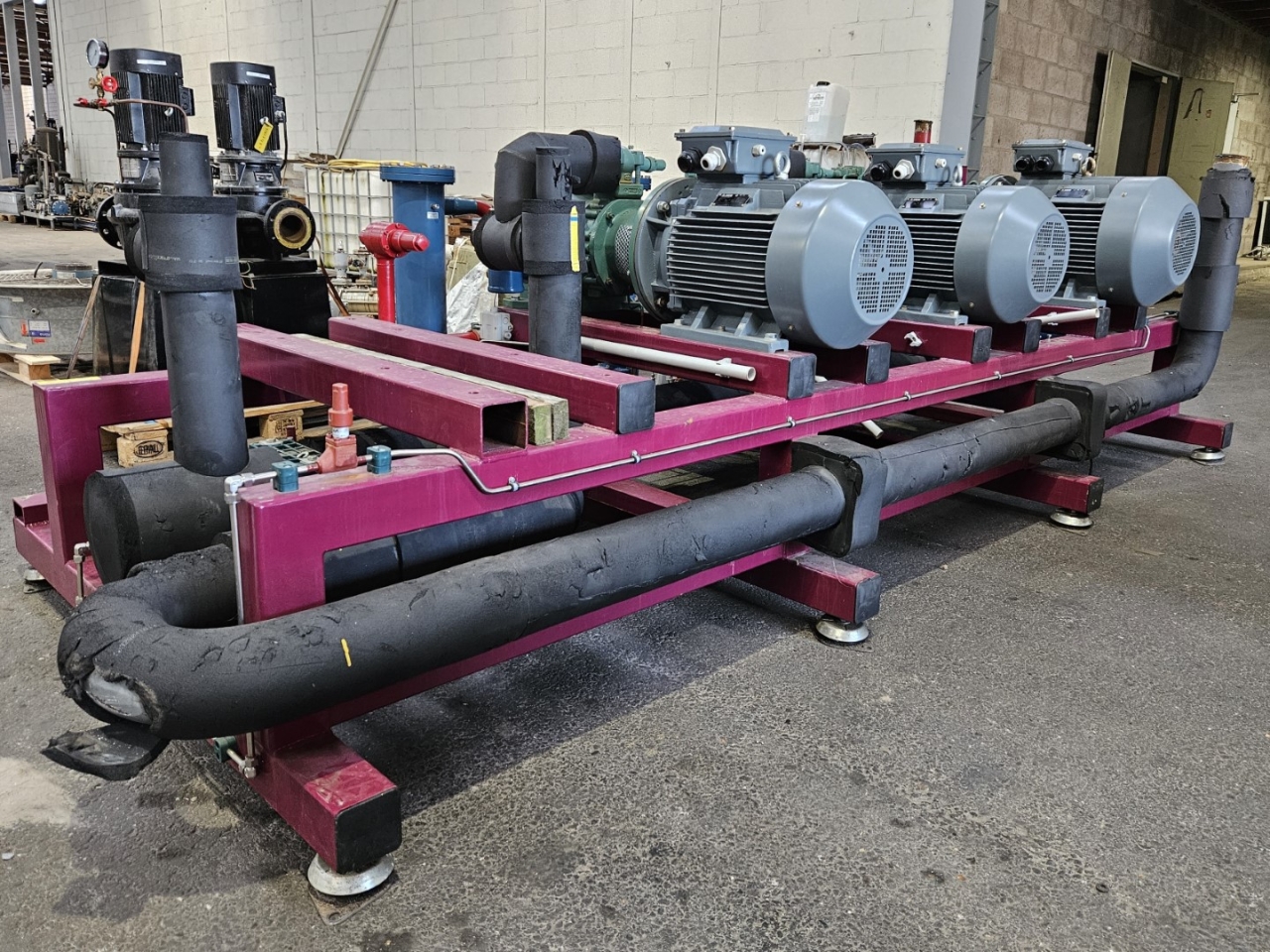

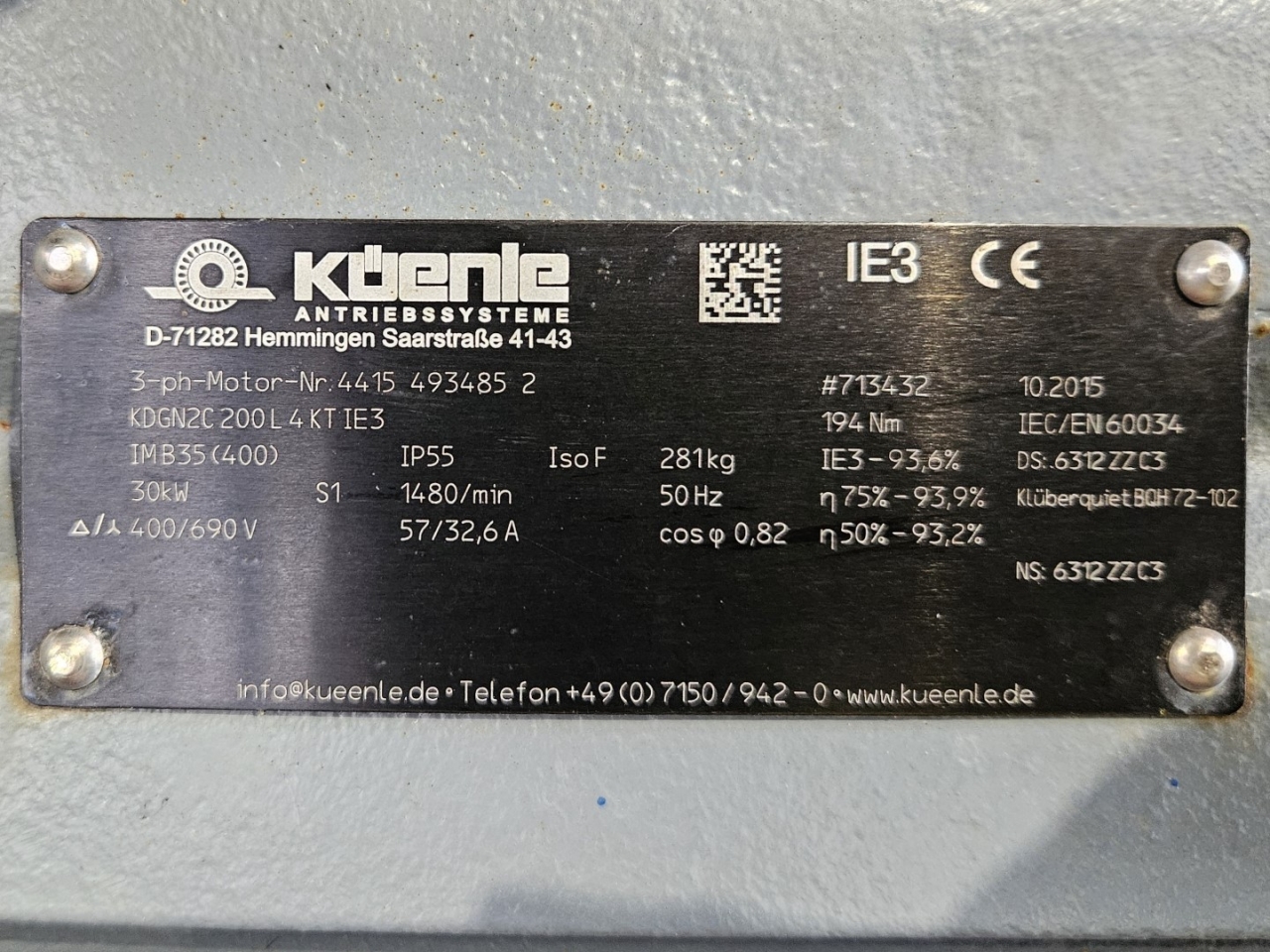

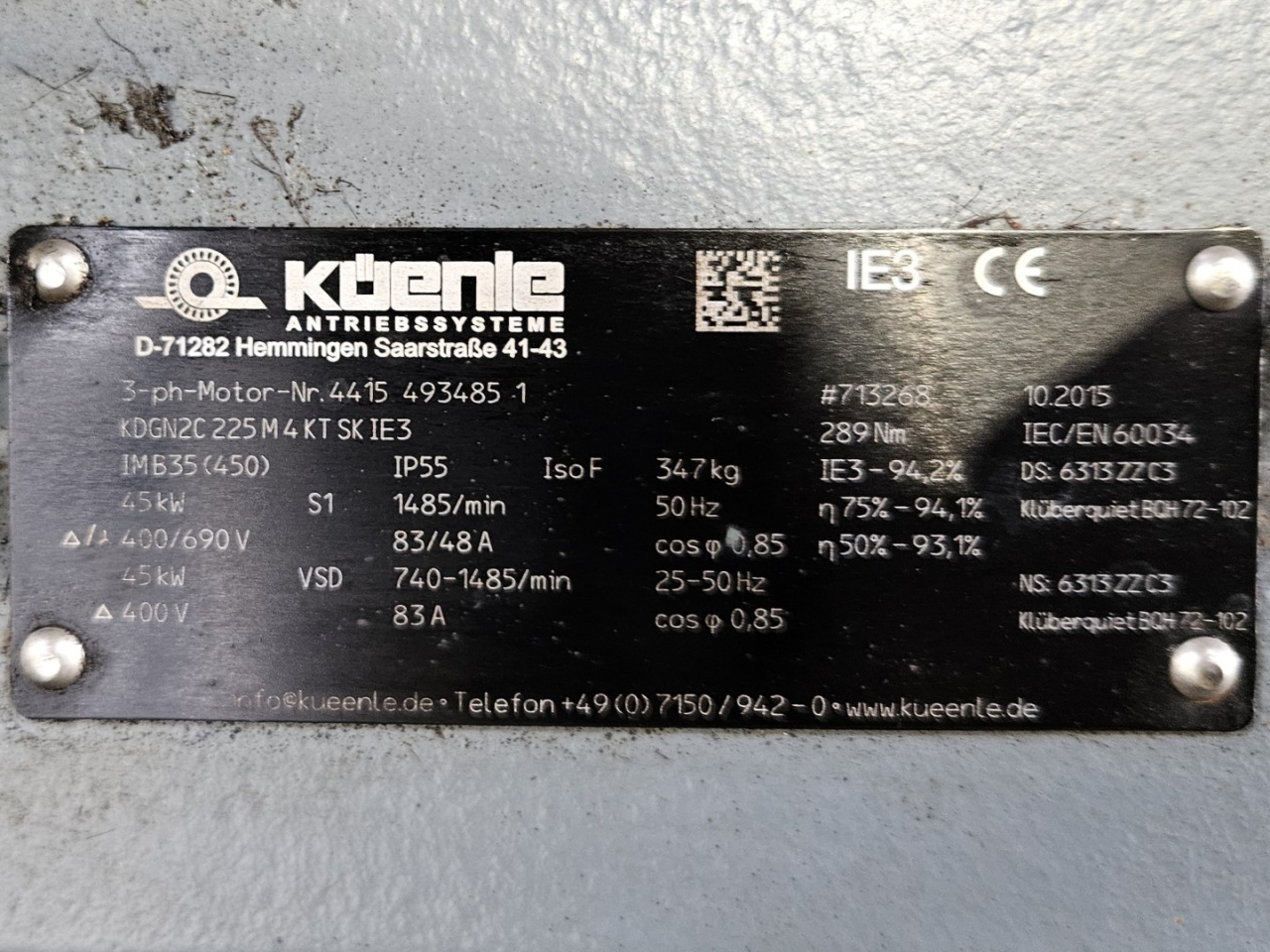

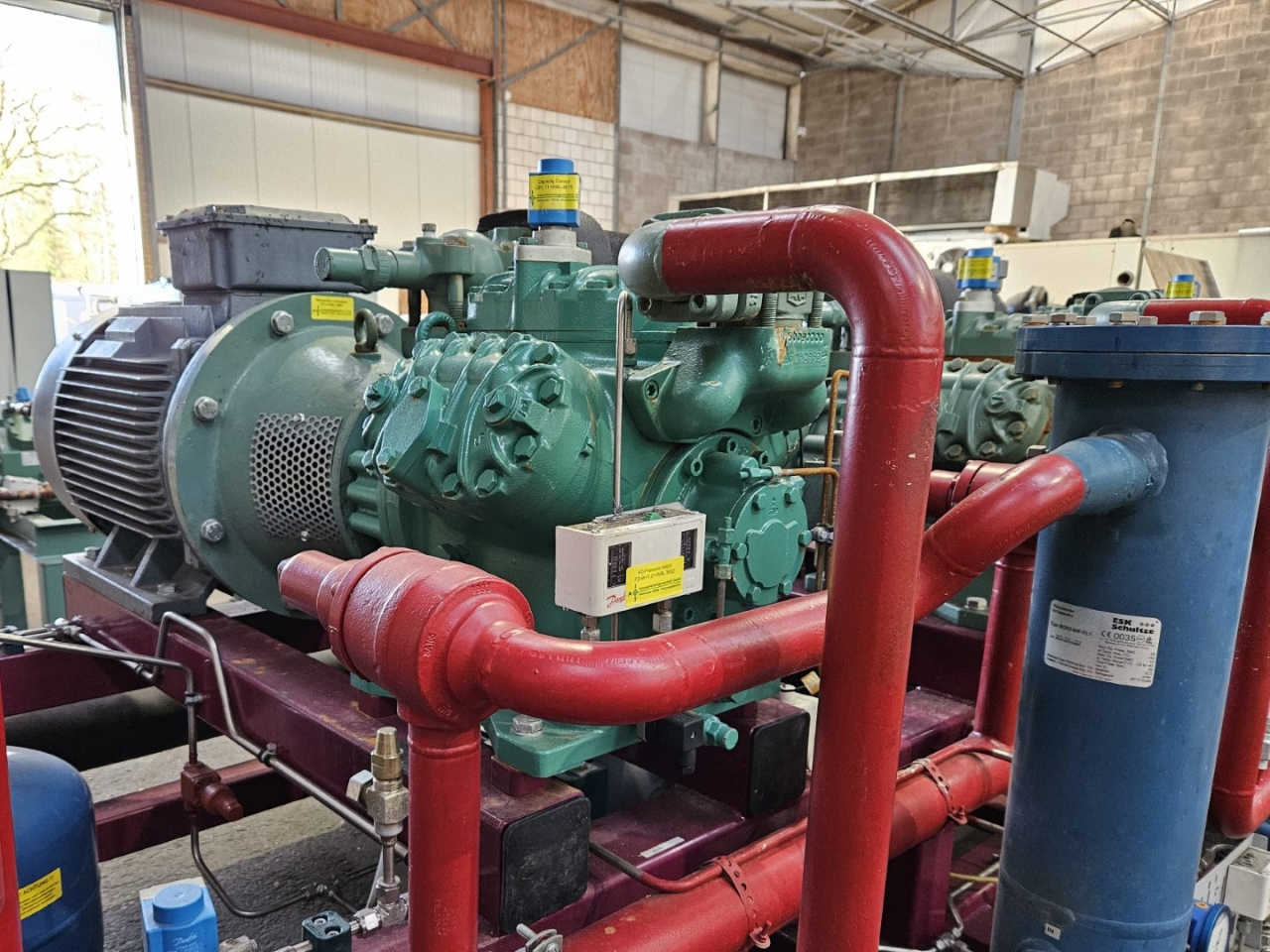

Used Bitzer W6FAL (x3) open-type reciprocating compressor rack on NH3 (Ammonia). The rack comes with 2 Küenle KDGN2C200L4KTIE3 electric motors - 50 Hz - 30 kW - 1480 RPM, 1 Küenle KDGN2C225M4KTSKIE3 electric motor - 50 Hz - 45 kW - 1485 RPM, 3 ESK Schultze BOS2-54F-FL1 oil separators, ESK Schultze OSA-18-FL1 oil reservoir and pressure & safety switches/gauges. The compressors have a total displacement of 282,3 m³/h at 900 RPM & 549 m³/h at 1750 RPM. Further the frame has space to install a fourth compressor.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
