Tononforty ZENIT 152-A STD
Tononforty ZENIT 152-A STD
| 17934 | |
| Производитель | Tononforty |
| Тип | ZENIT 152-A STD |
| Тип продукта | Air Cooled Chiller |
| кВт | 74,4 |
| Мощность, тонн | 21,2 |
| Хладагент | Freon |
| Тип хладагента | R410A |
| Liquid buffer tank |
|
| Pump |
|
| Sizes | 3070x1130x1930 mm (LxWxH) |

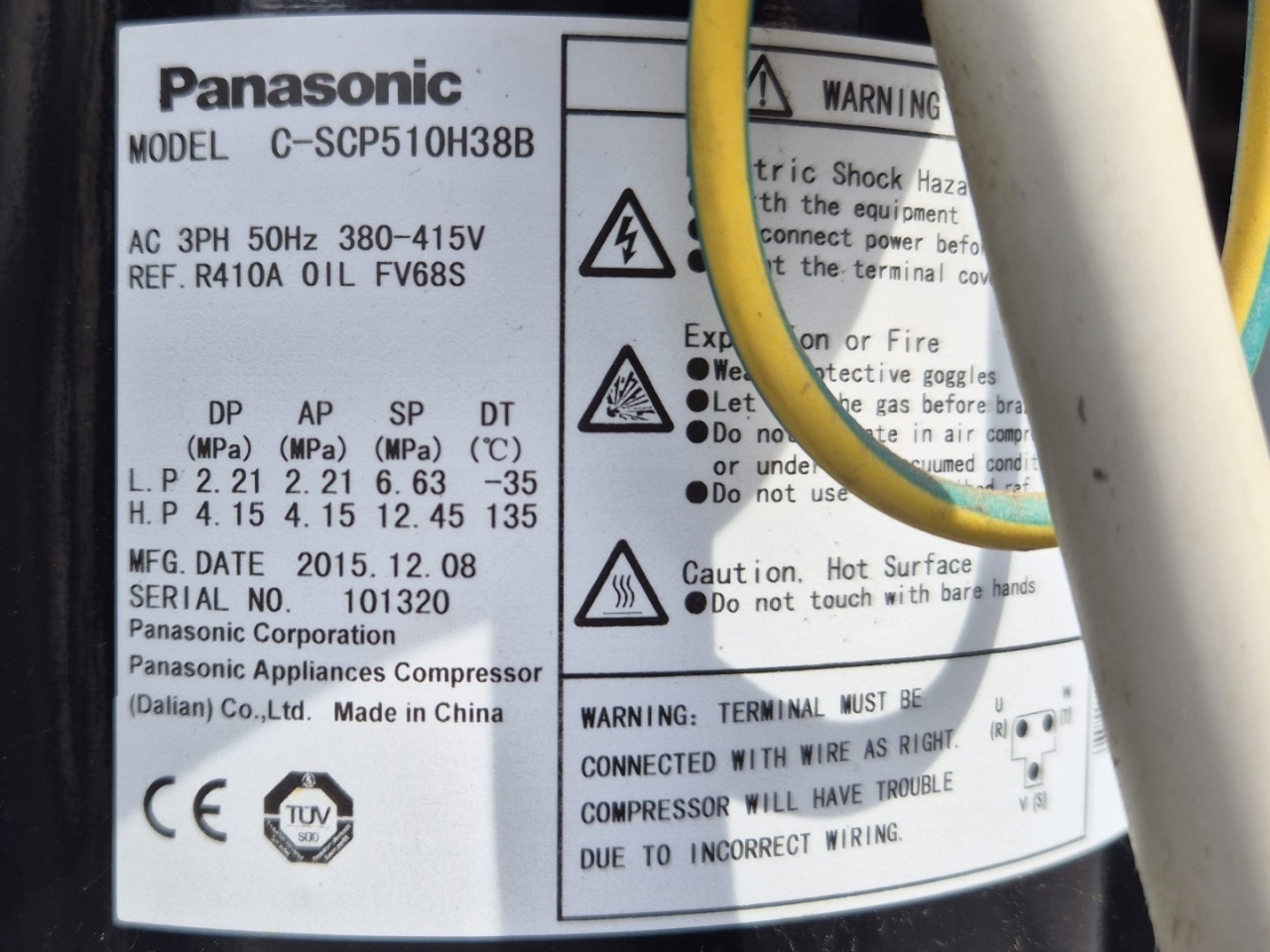

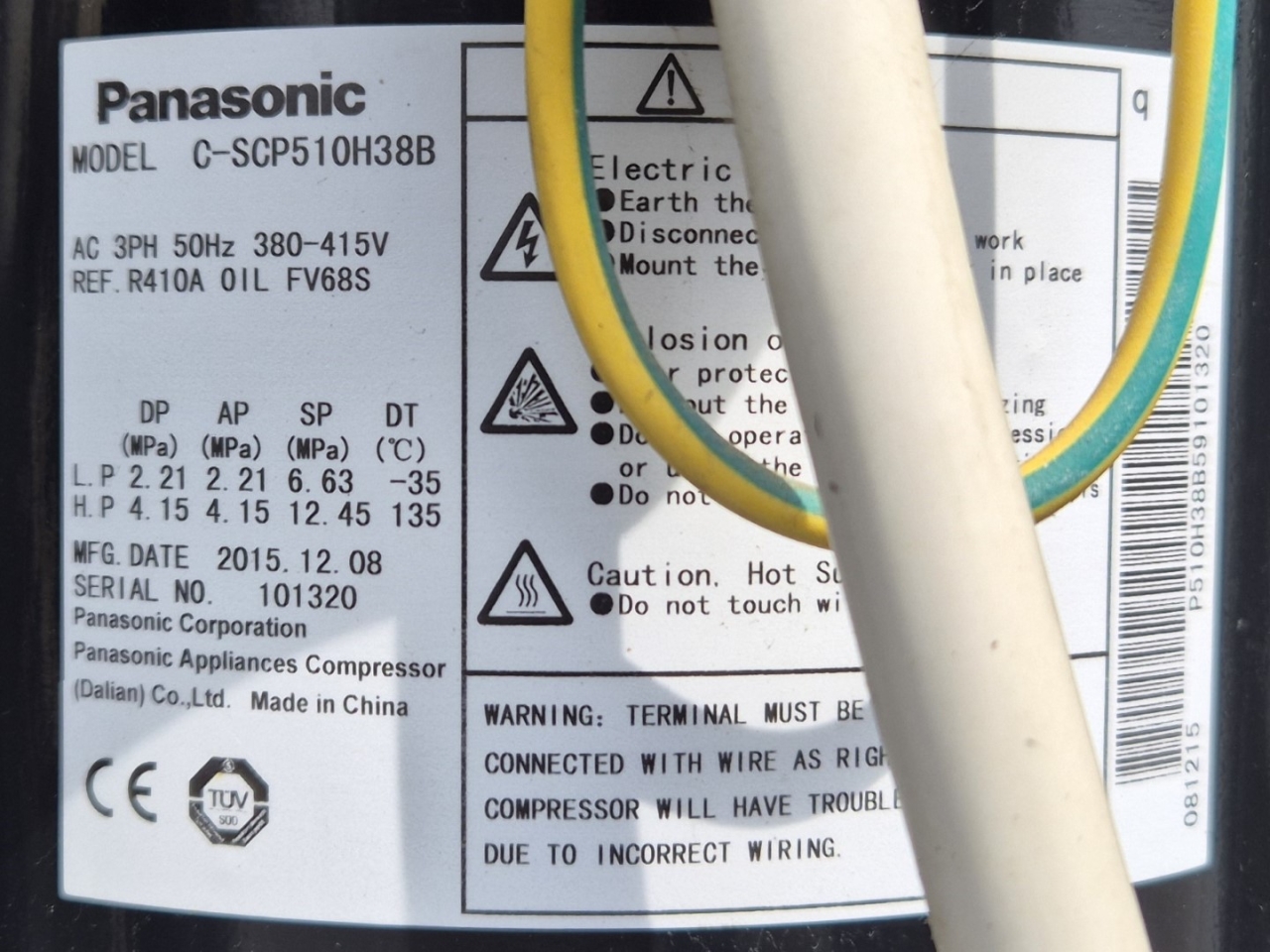

| Compressor(s) type & model | 2x Panasonic C-SCP510H38B |
| Display | Dixell controller |
| Number of fans | 2 |
| Примечания | | Y.o.b. 2016 |
| Remarks || | Heating capacity: 91,8 kW |
| Количество на складе | 1 |
Tononforty ZENIT 152-A STD

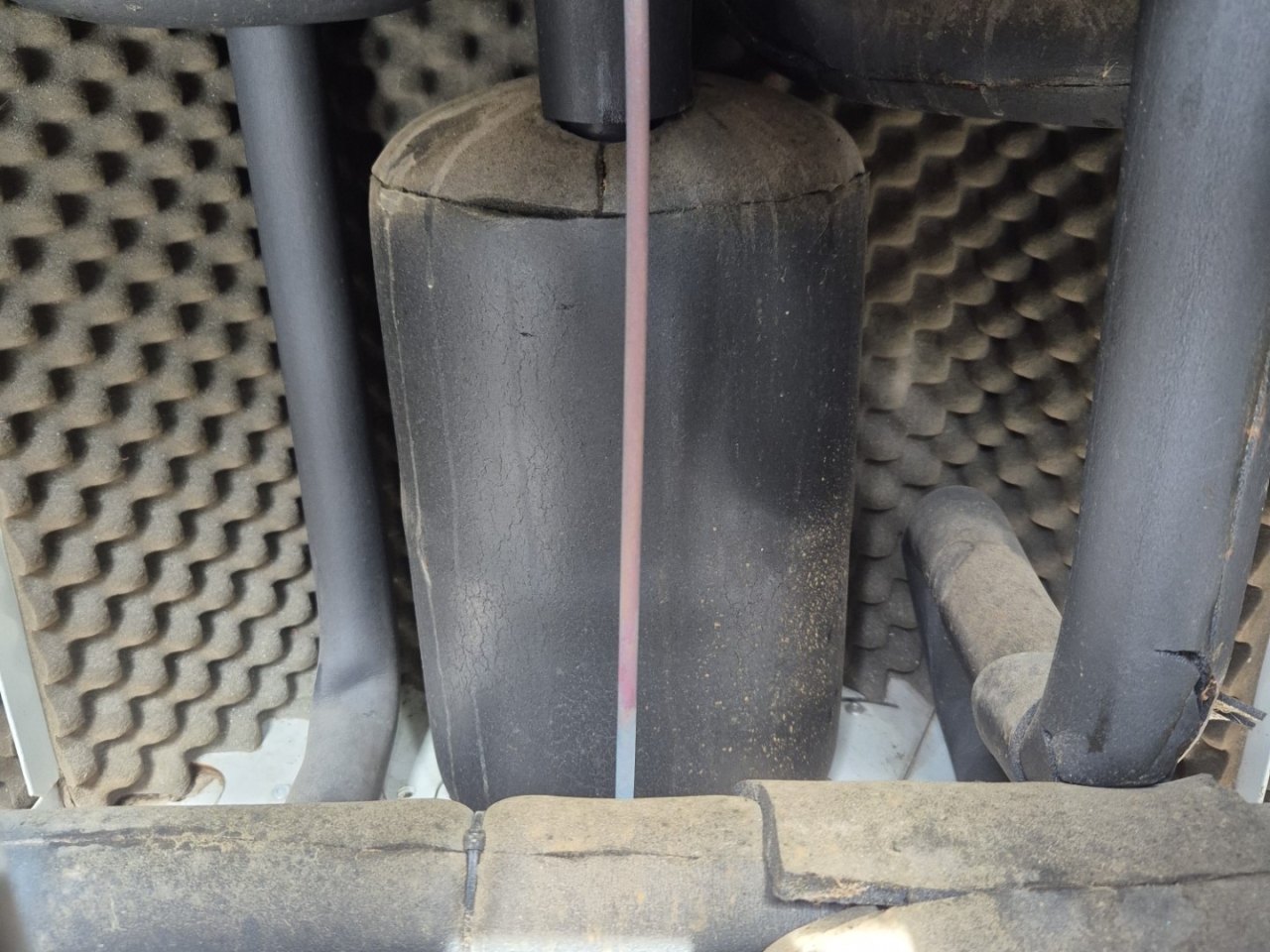

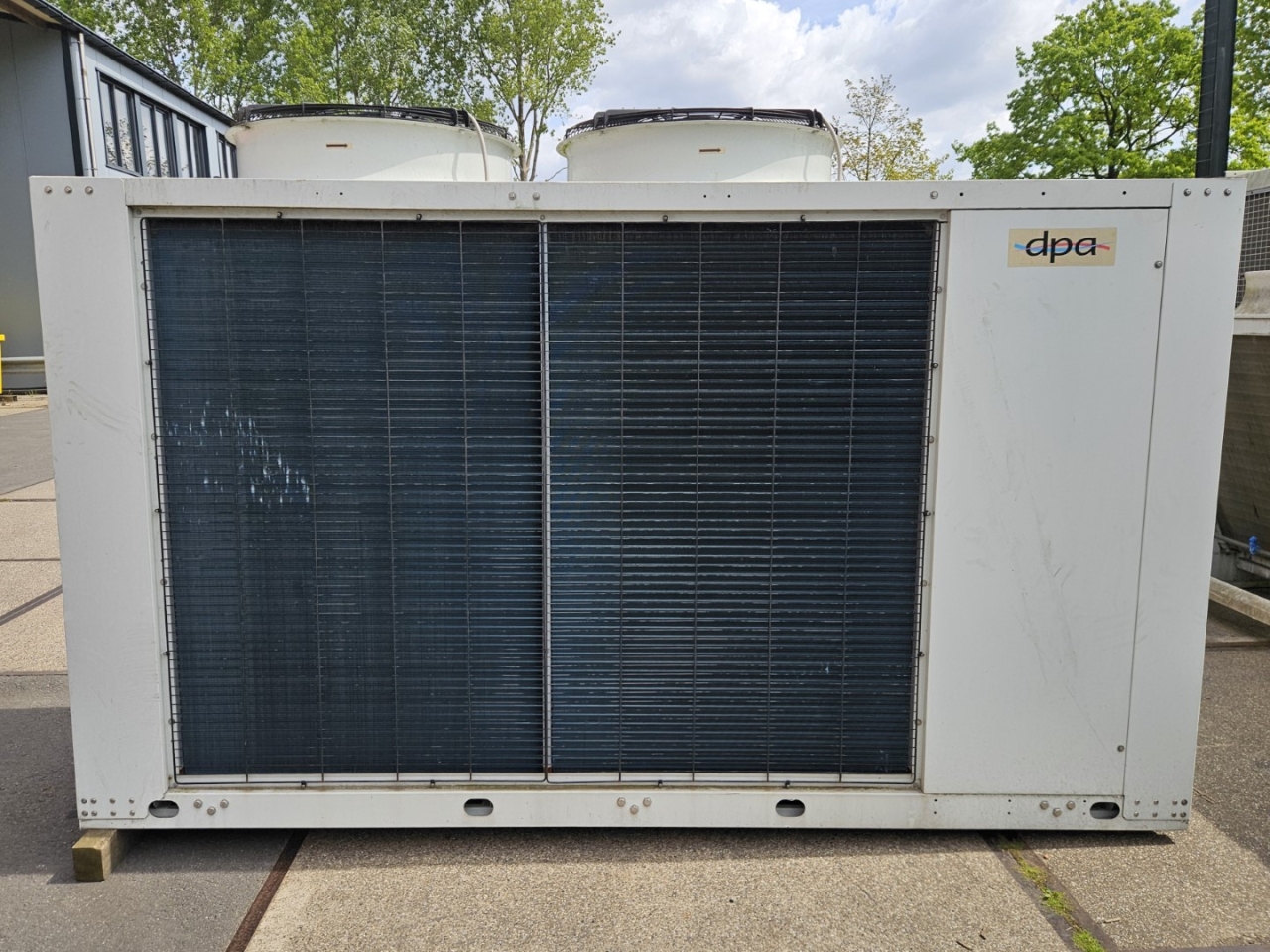

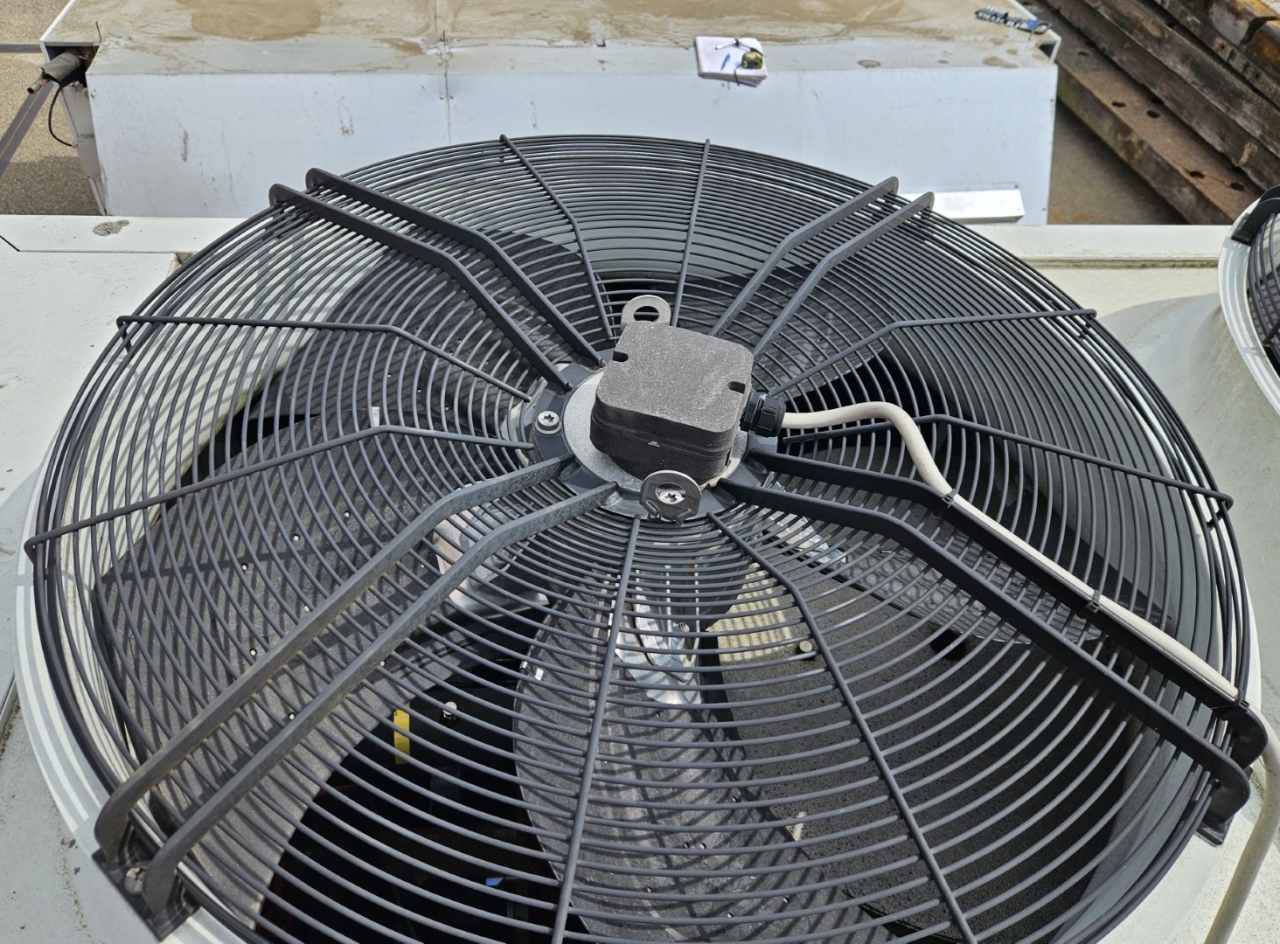

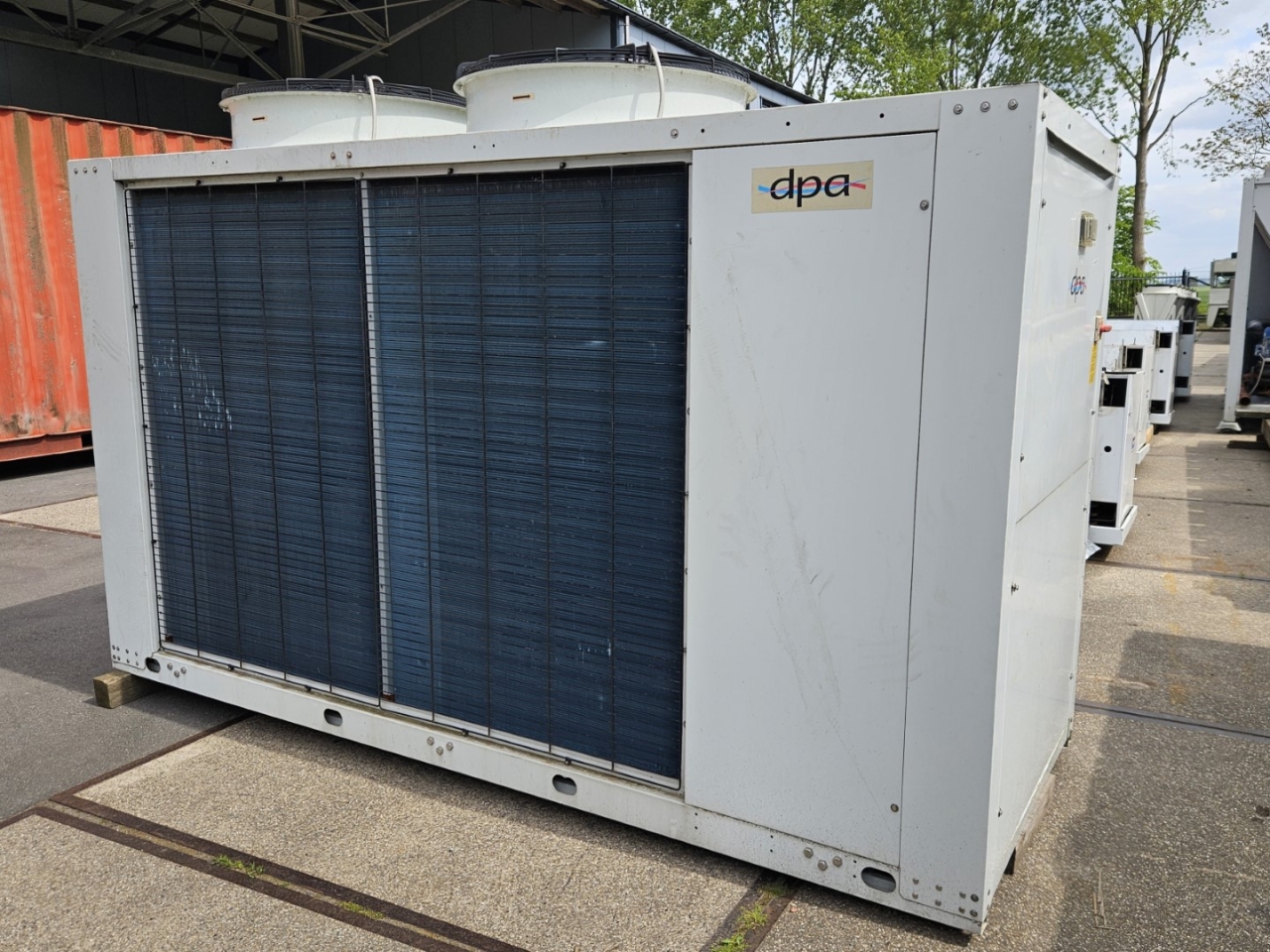

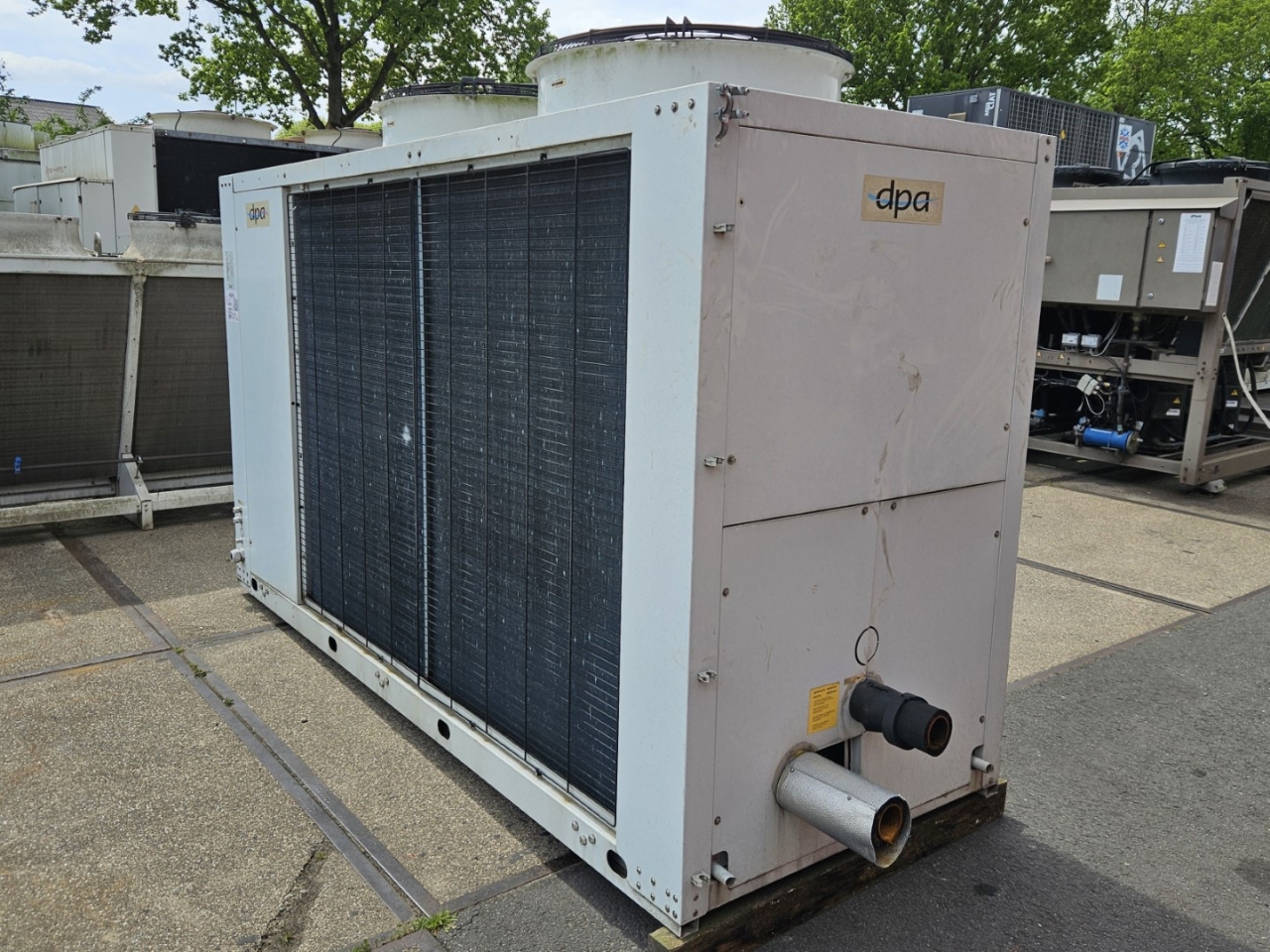

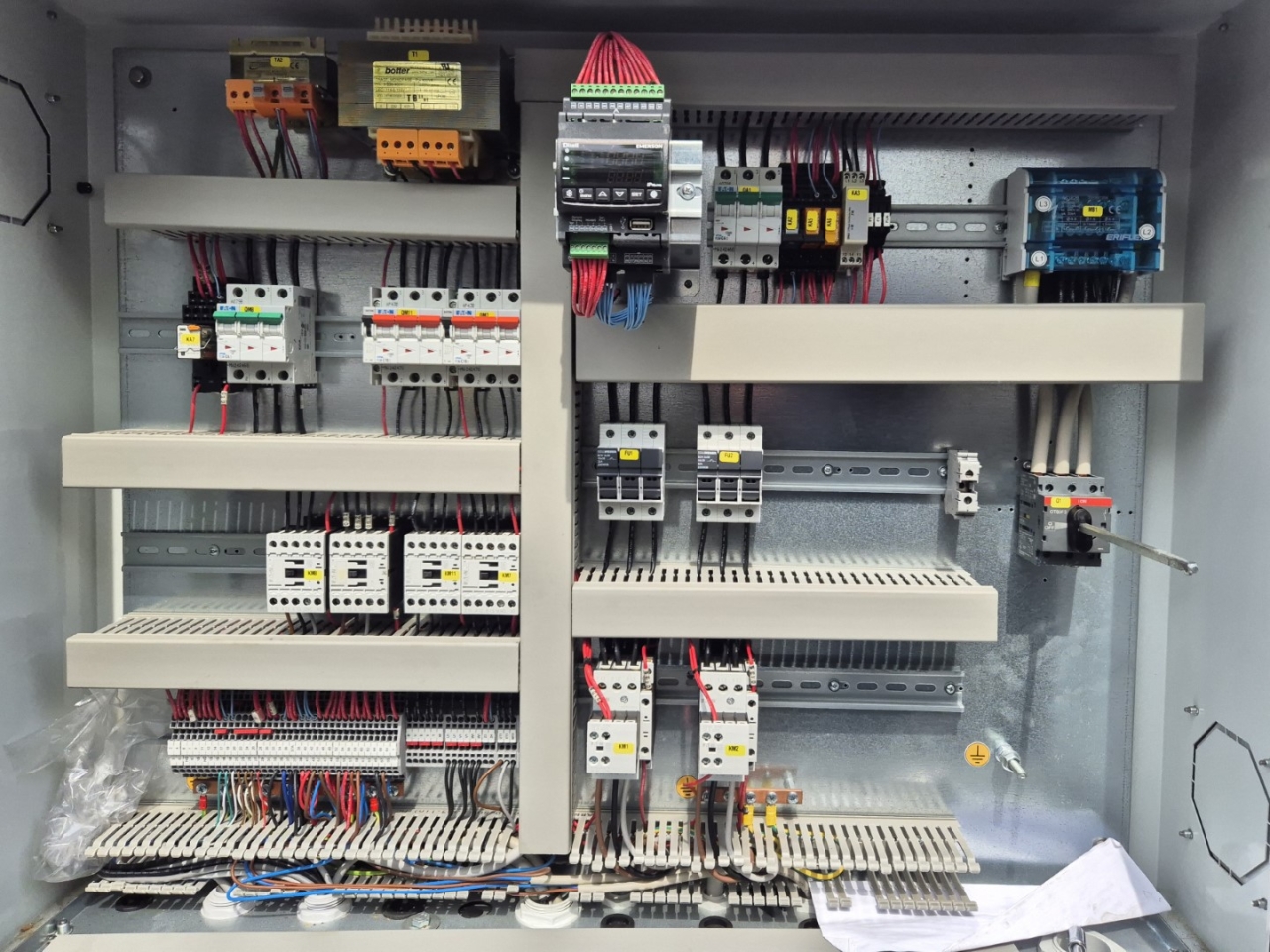

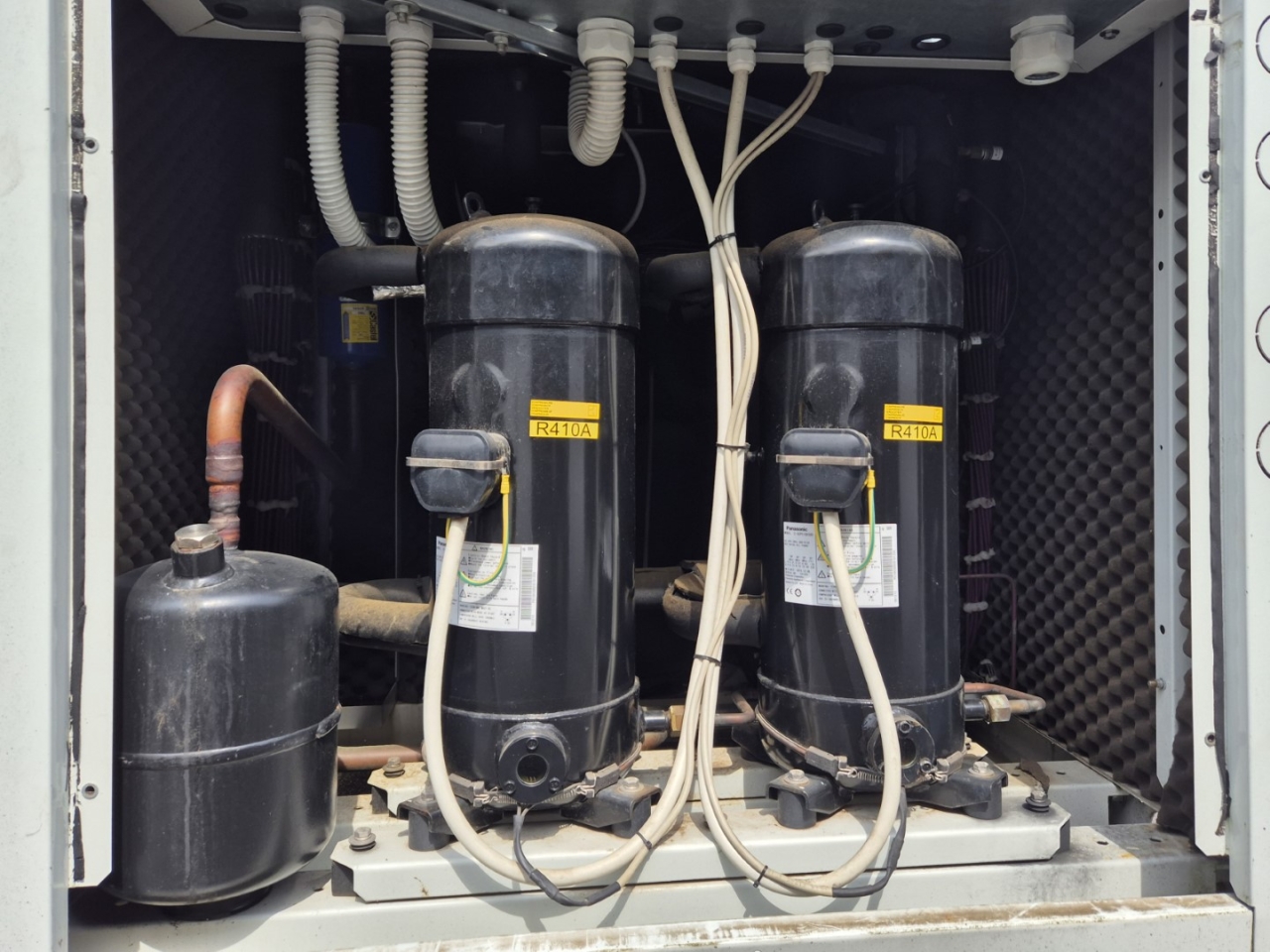

Used Tononforty ZENIT 152-A STD reversible air-cooled chiller to heat pump built in 2016. Complete with 2x Panasonic C-SCP510H38B scroll compressors, condenser with 2 EBM-Papst fans that produce an airflow of 12,1 m³/s, brazed heat exchanger as evaporator, buffer tank, water pump, expansion vessel and a control cabinet with a Dixell controller.
Cooling capacity: 74,4 kW
Heating capacity: 91,8 kW
*All components of this used chiller will be tested on adequate performance, leak free condition (condensing blocks, compressors, fans, control panel and so forth). Choosing HOSBV means buying with warranty. We perform an industrial cleaning. *If requested we are happy to arrange your shipment.
