Güntner S-GVH 080.1A/2x3-M(D)
|
18304 |
| Производитель |
Güntner
|
| Тип |
S-GVH 080.1A/2x3-M(D)
|
| Тип продукта |
Air Cooled Condenser
|
| кВт |
416,9
|
| К-во вентиляторов |
6
|
| Скорость вращения вентиляторов |
800/530
|
| Хладагент |
Freon
|
| Поток воздуха м³/час |
106.500
|
| диаметр вентиляторов Ø |
800 mm
|
| поверхность (m2) |
1413,4 m²
|
| Размеры |
6110x2650x1500 mm (LxWxH)
|
| вес |
1154 kg
|
| Примечания | |
Y.o.b. 2005
|
| Количество на складе |
1 |
Güntner S-GVH 080.1A/2x3-M(D)

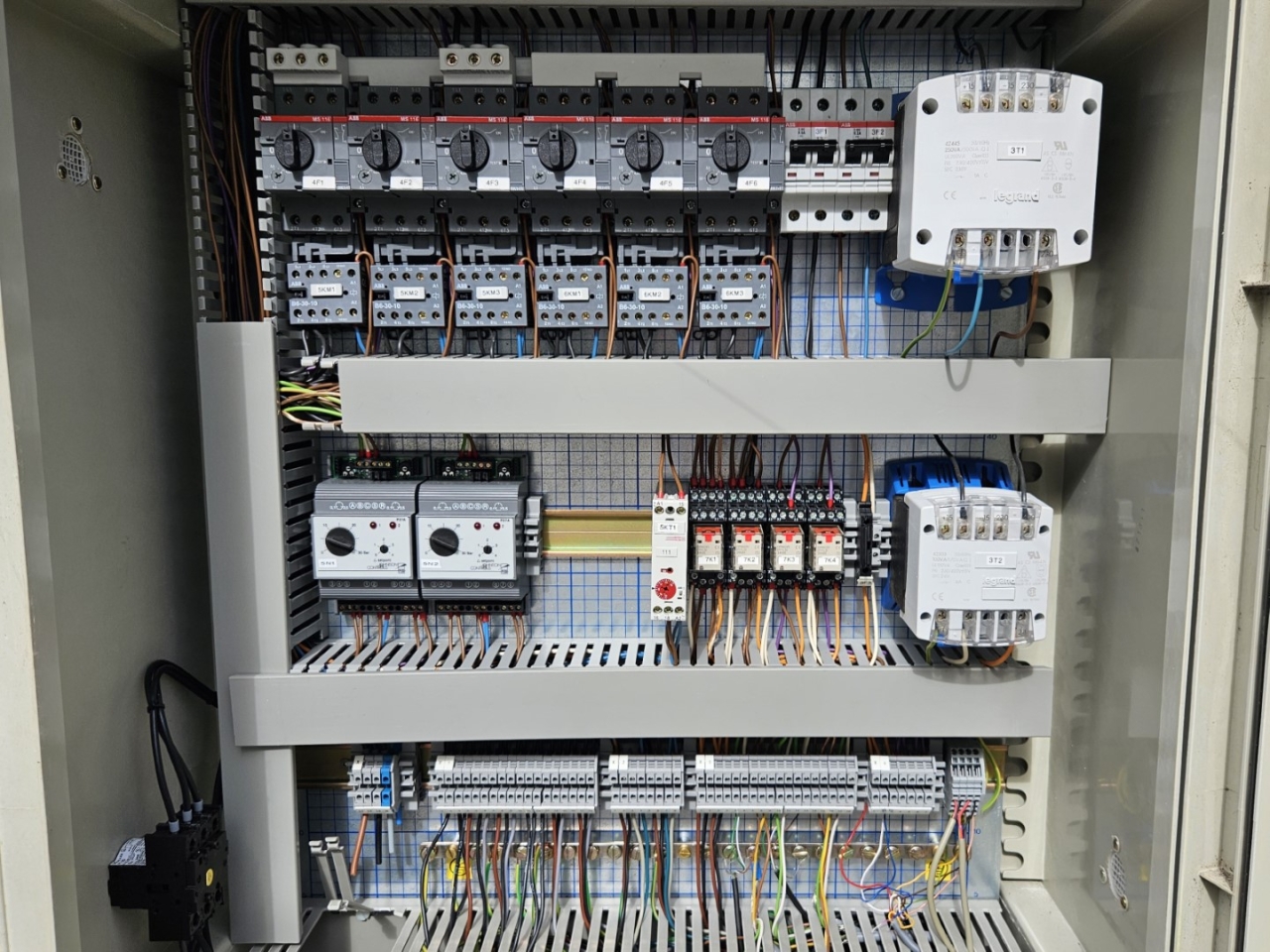

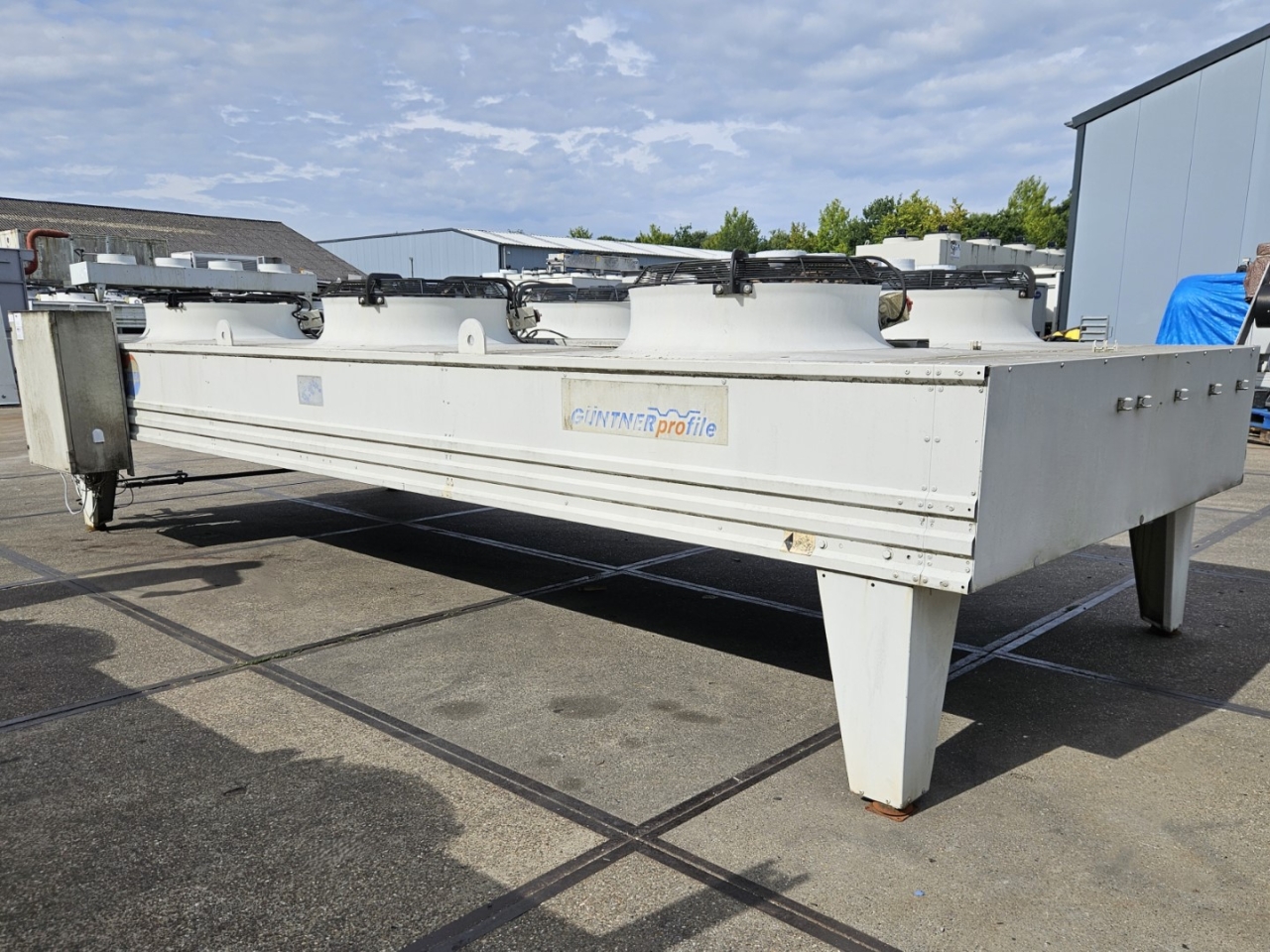

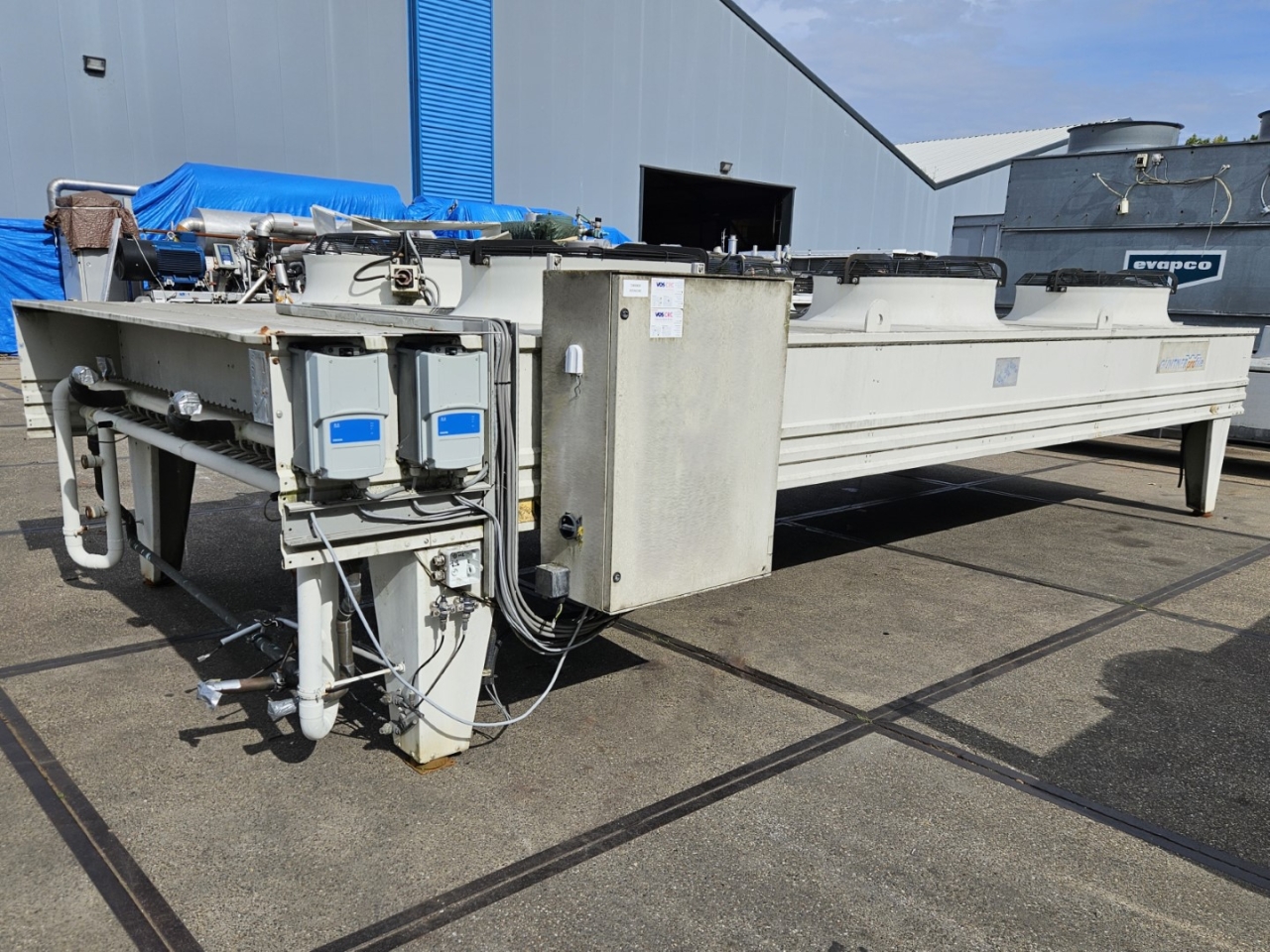

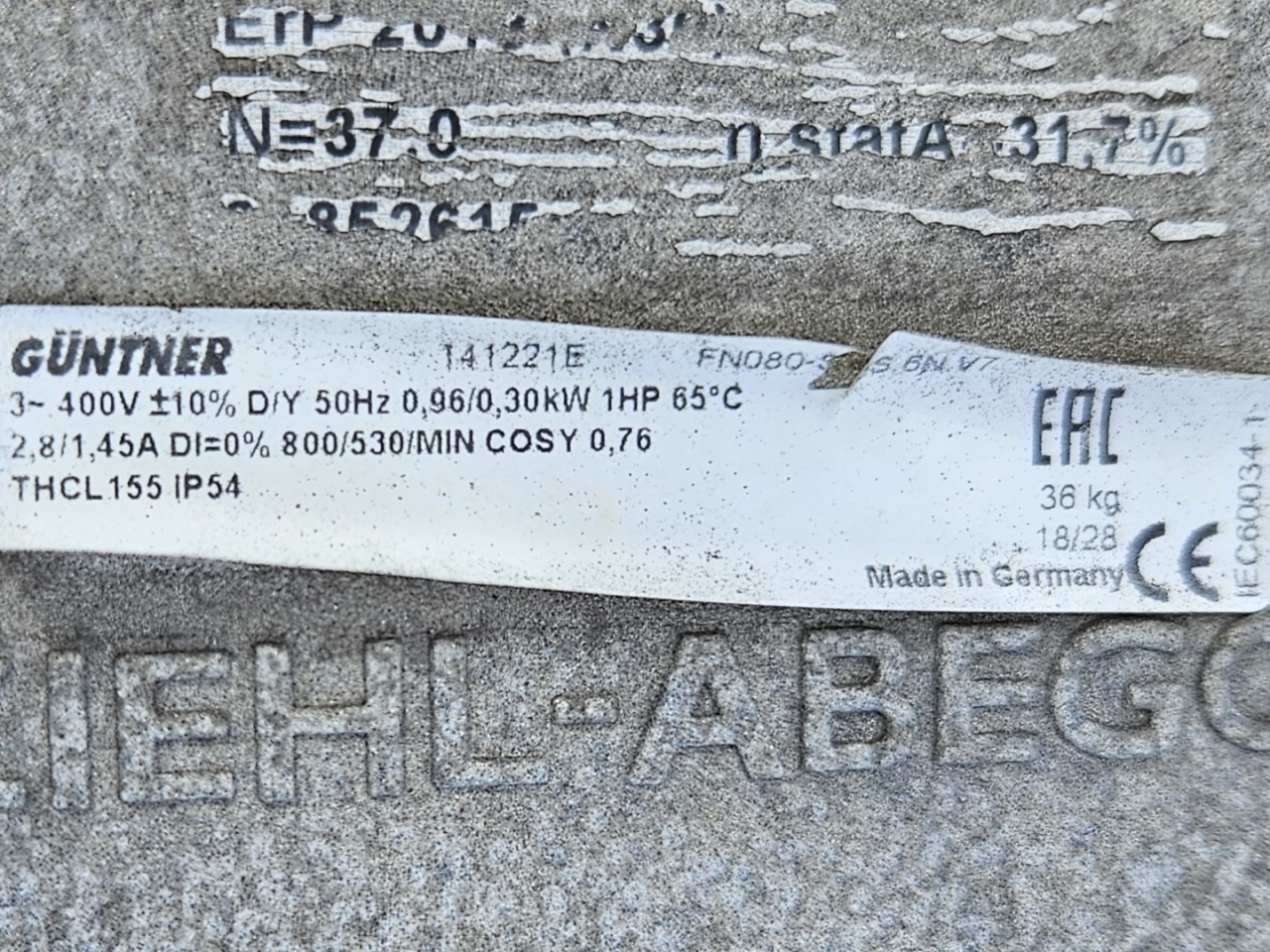

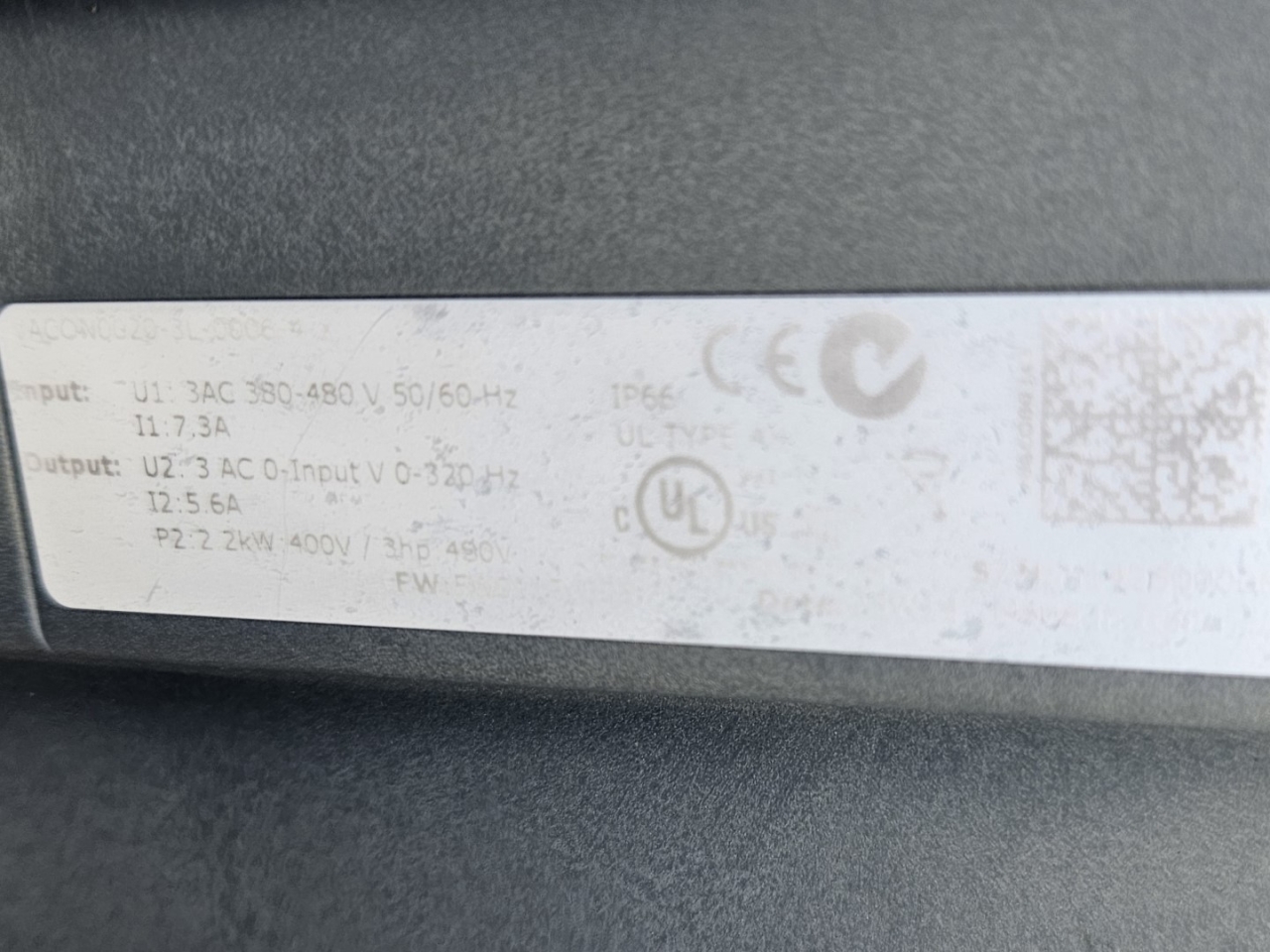

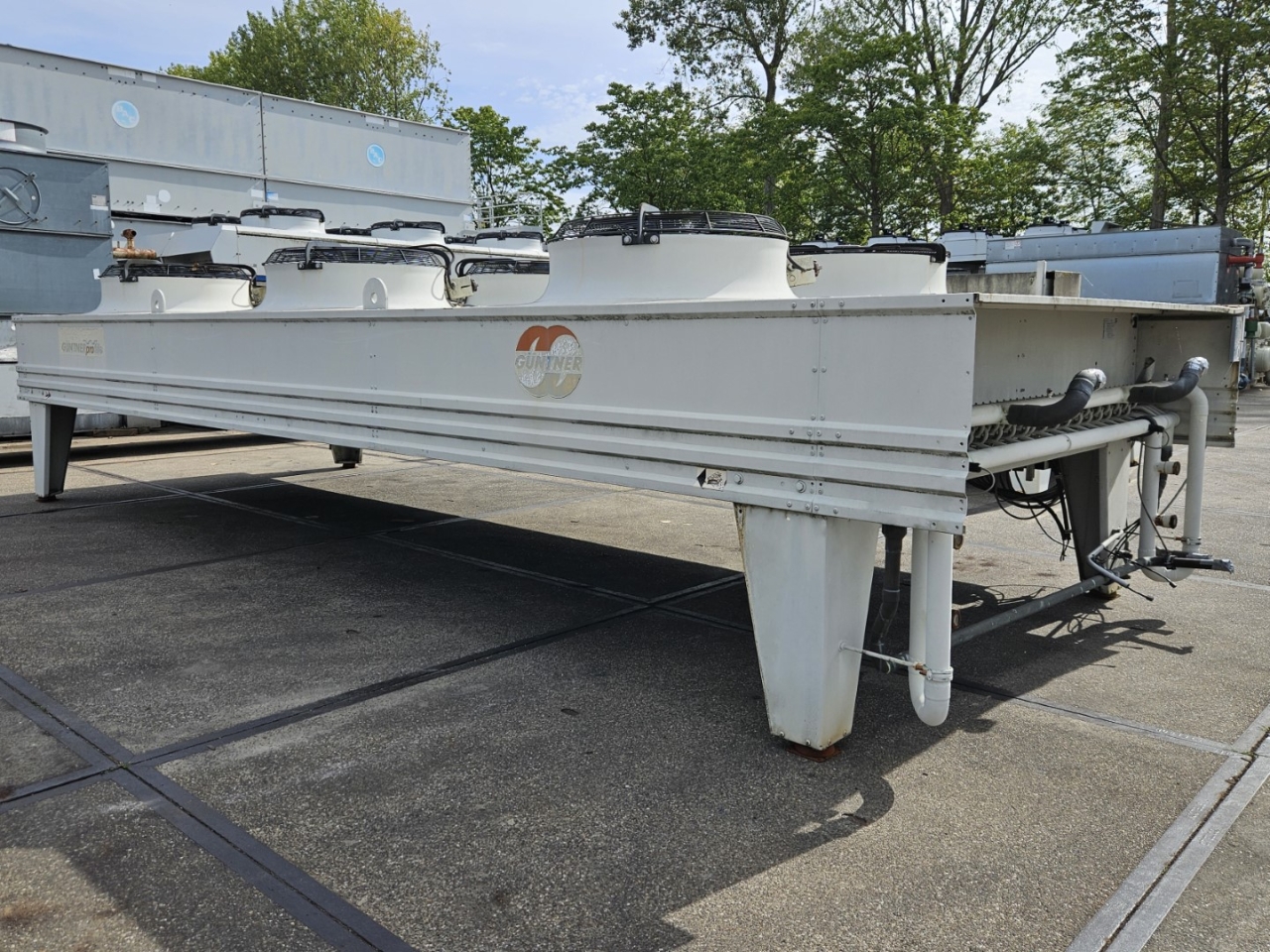

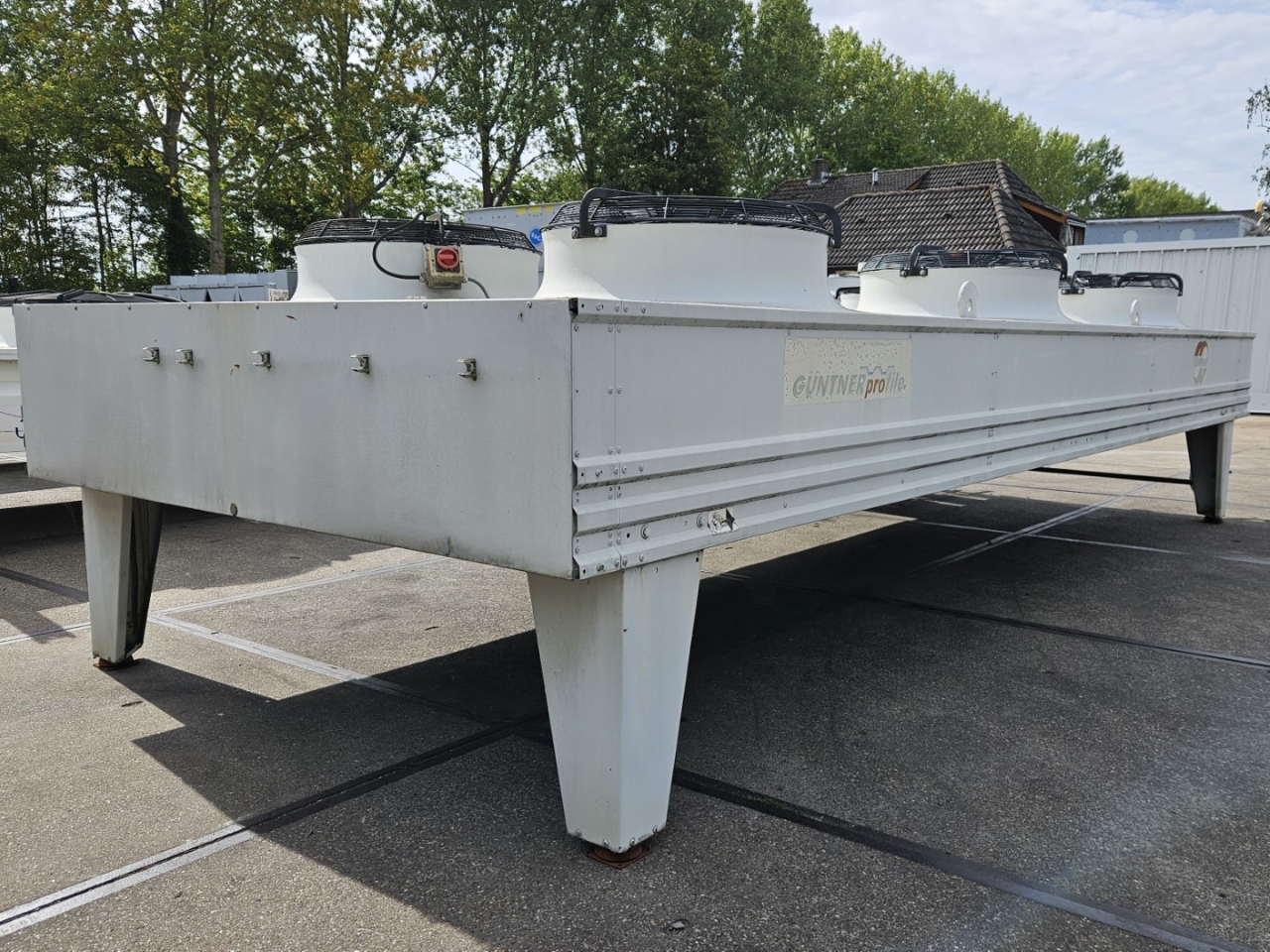

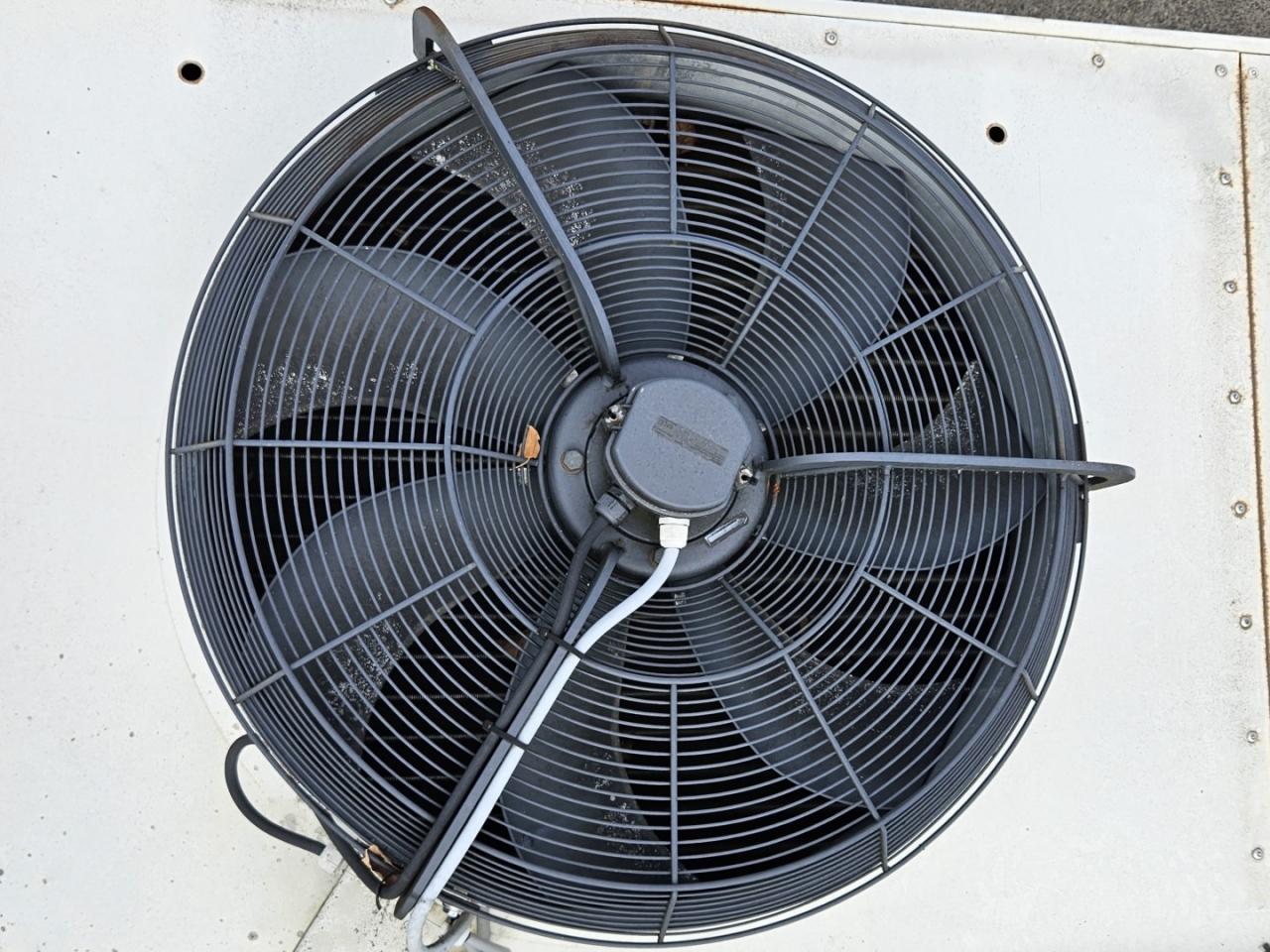

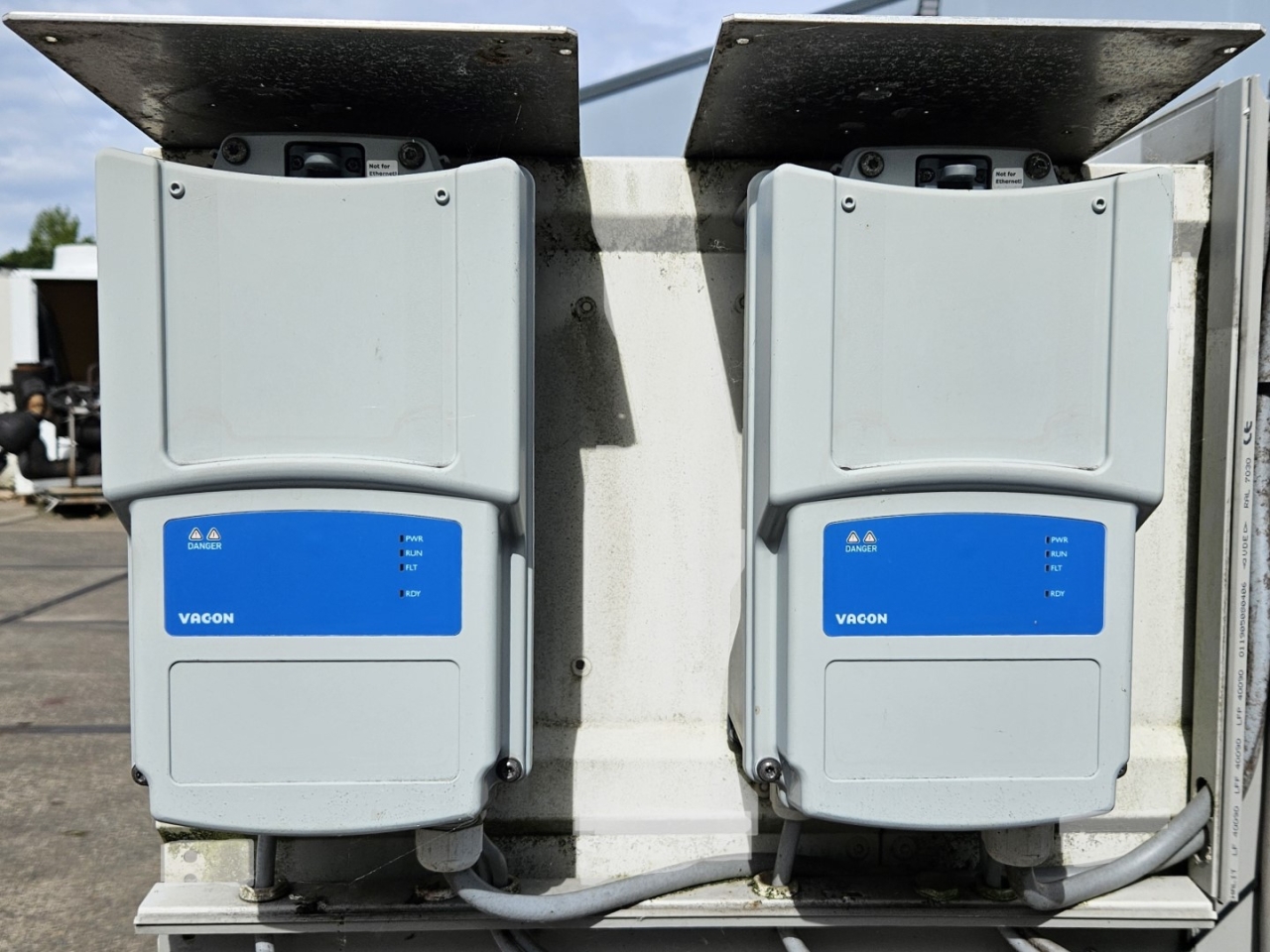

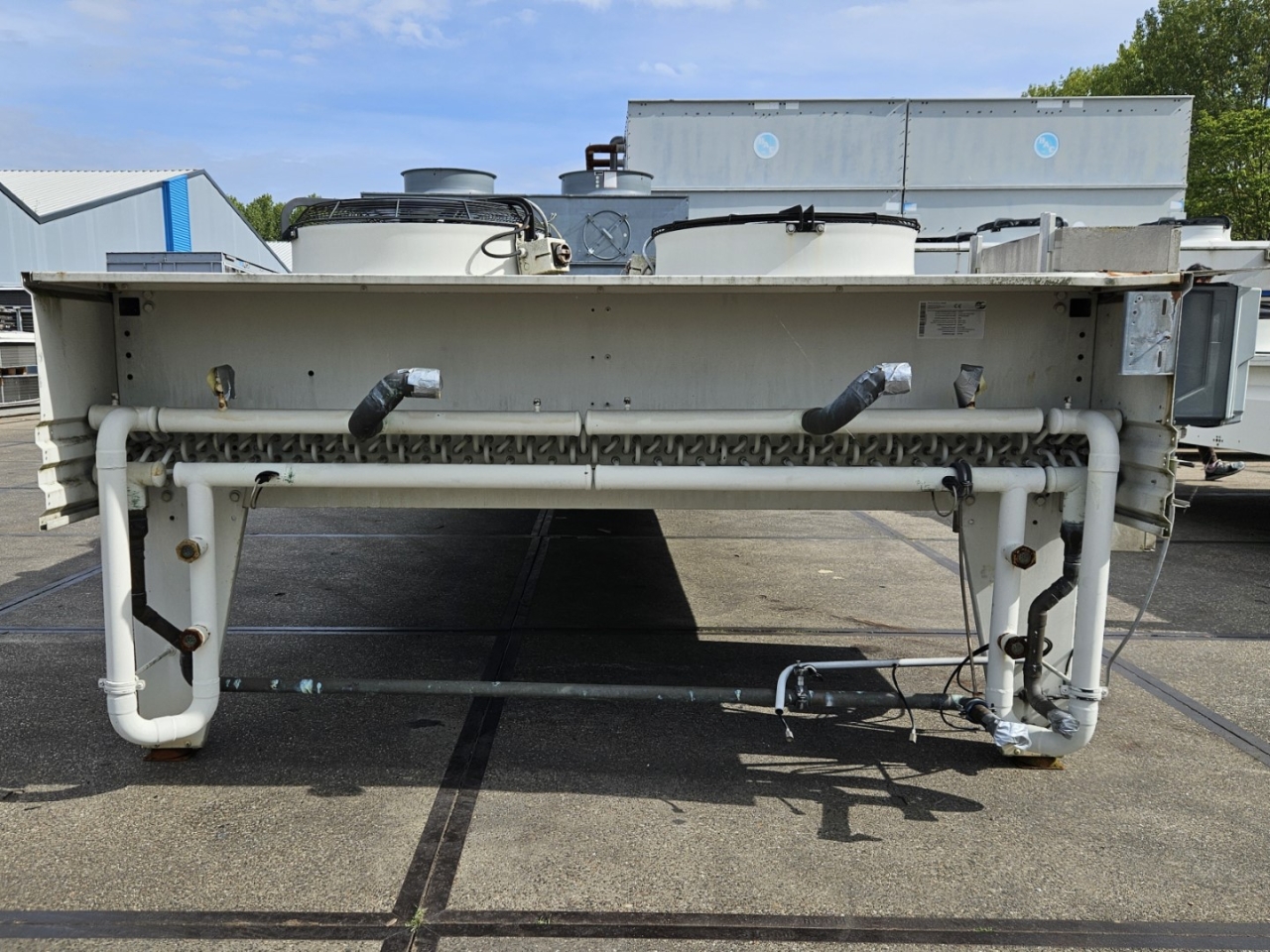

Used Güntner S-GVH 080.1A/2x3-M(D) air-cooled condenser on Freon. Complete with 1 Ziehl-Abegg FN080-SDS.6N.V7 fan - 50 Hz - 0,96/0,30 kW - 800/530 RPM - diameter 800 mm and 5 Ziehl-Abegg FE080-SDS.6N.6 fans - 50 Hz - 760/480 RPM - diameter 800 mm with a total airflow of 106.500 m³/h. Further the condenser comes with 2 Vacon ACON0020-3L-0006 frequency controllers and a control cabinet.
*All components of this used condensor will be tested on good working, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform a industrial cleaning. Also, we can arrange your shipment.
