Bitzer CSHP7563-80P-40P (x1) & CSHP6563-60P-40P (x1)
Bitzer CSHP7563-80P-40P (x1) & CSHP6563-60P-40P (x1)
| 18074 | |
| Производитель | Bitzer |
| Тип | CSHP7563-80P-40P (x1) & CSHP6563-60P-40P (x1) |
| Тип продукта | Air Cooled Chiller |
| кВт | 278,3 |
| Мощность, тонн | 79,1 |
| Хладагент | Other |
| Тип хладагента | R290 / Propane |
| Pump |
|
| Sizes | 10050x2250x2200 mm (LxWxH) |
| Compressor(s) type & model | 1x Bitzer CSHP7563-80P-40P & Bitzer CSHP6563-60P-40P (x1) |
| Number of fans | 8 |
| Fan specifications | 50/60 Hz - 0,9 kW - 770 RPM - diameter 800 mm |
| Примечания | | Y.o.b. 2019 |
| Remarks || | *Capacity with economizer |
| Количество на складе | 1 |
Bitzer CSHP7563-80P-40P (x1) & CSHP6563-60P-40P (x1)

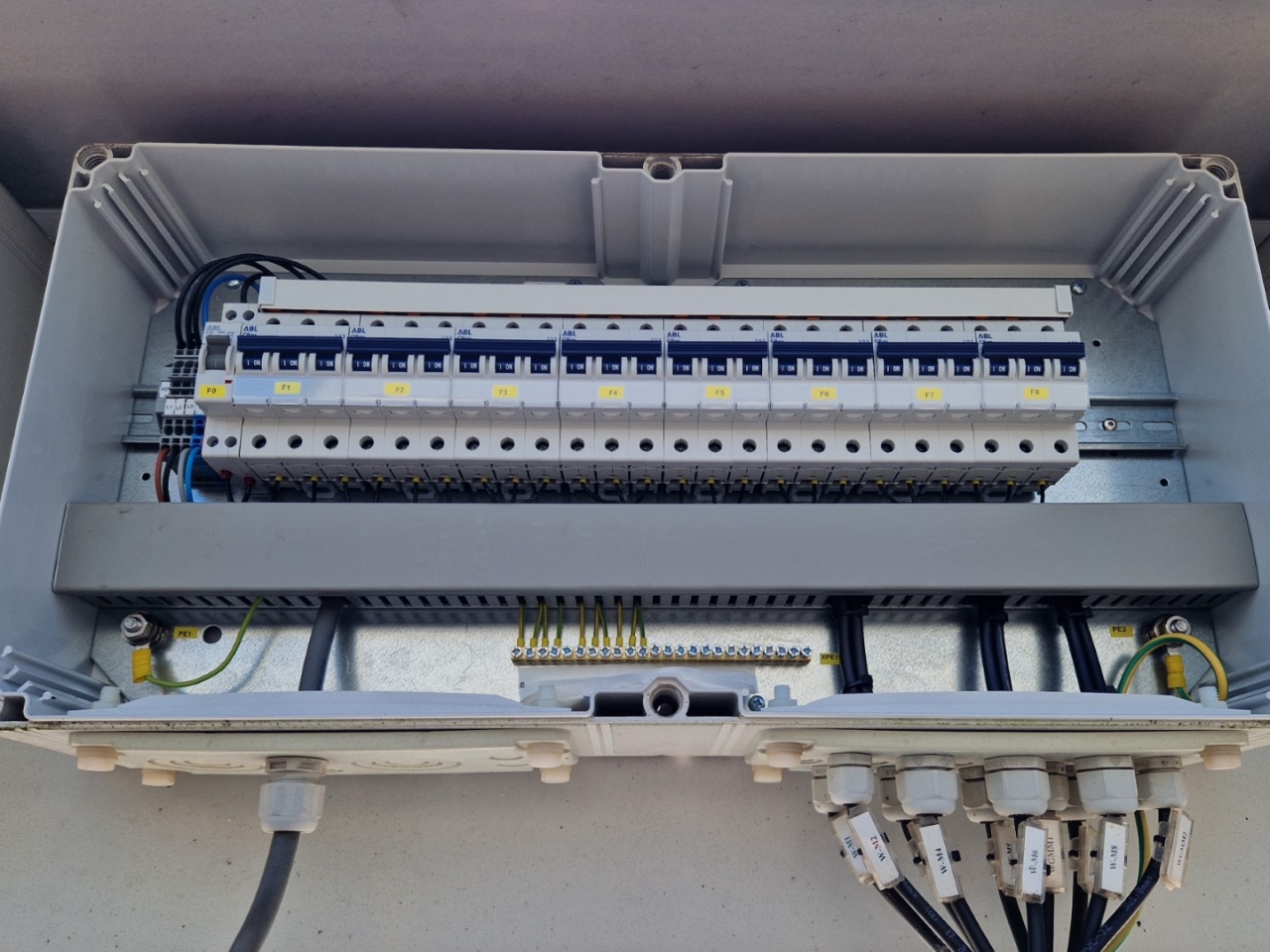

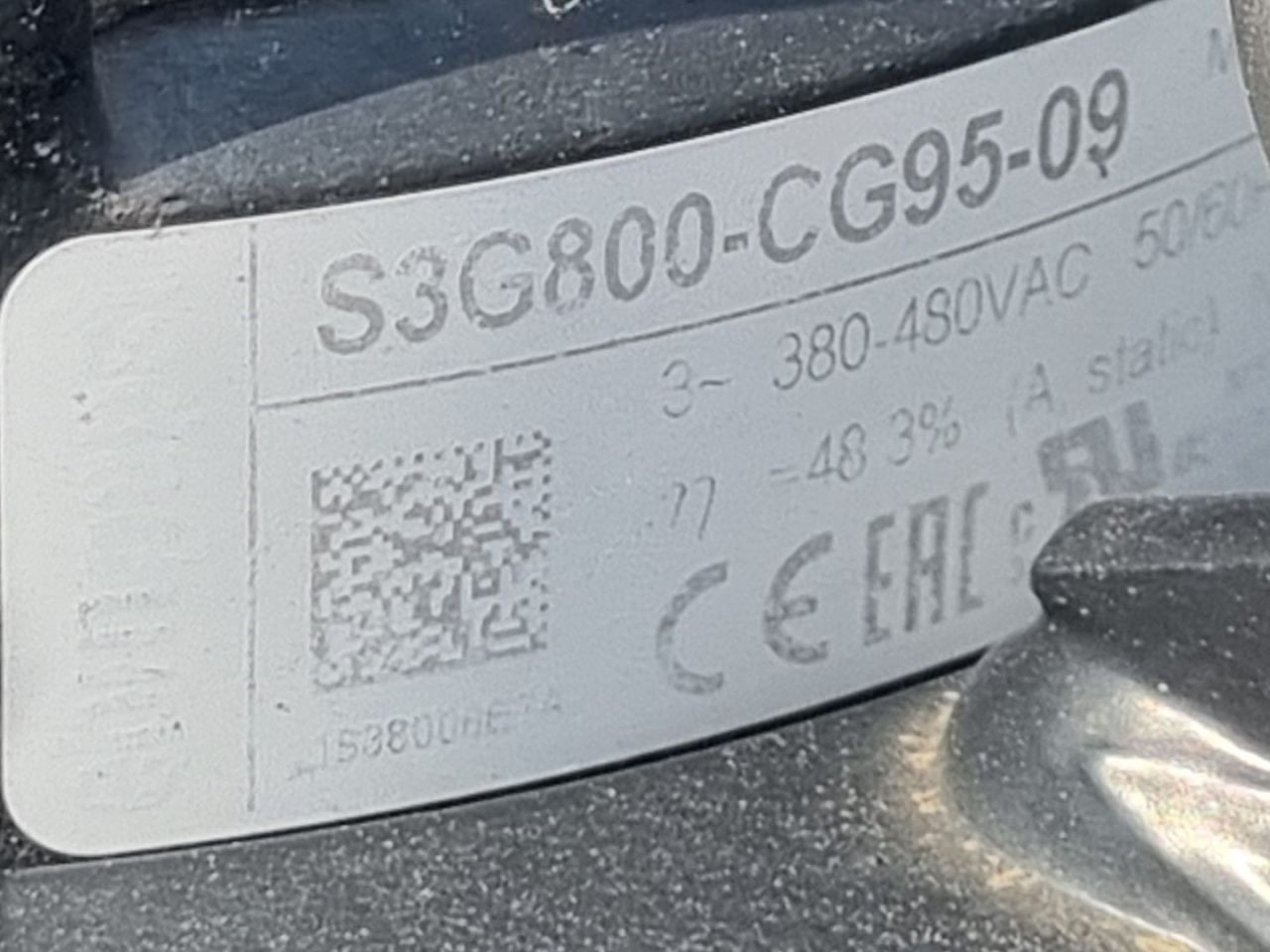

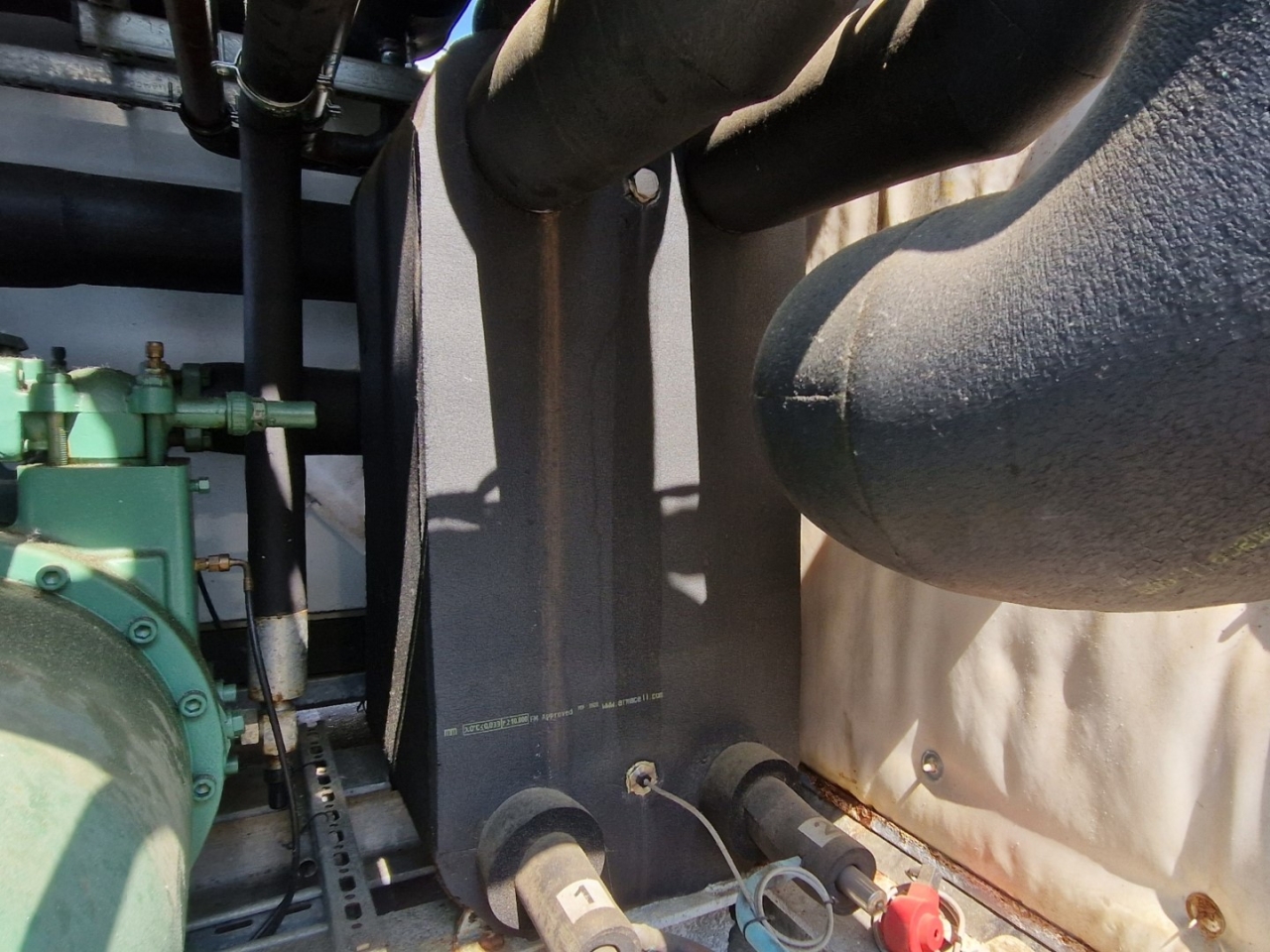

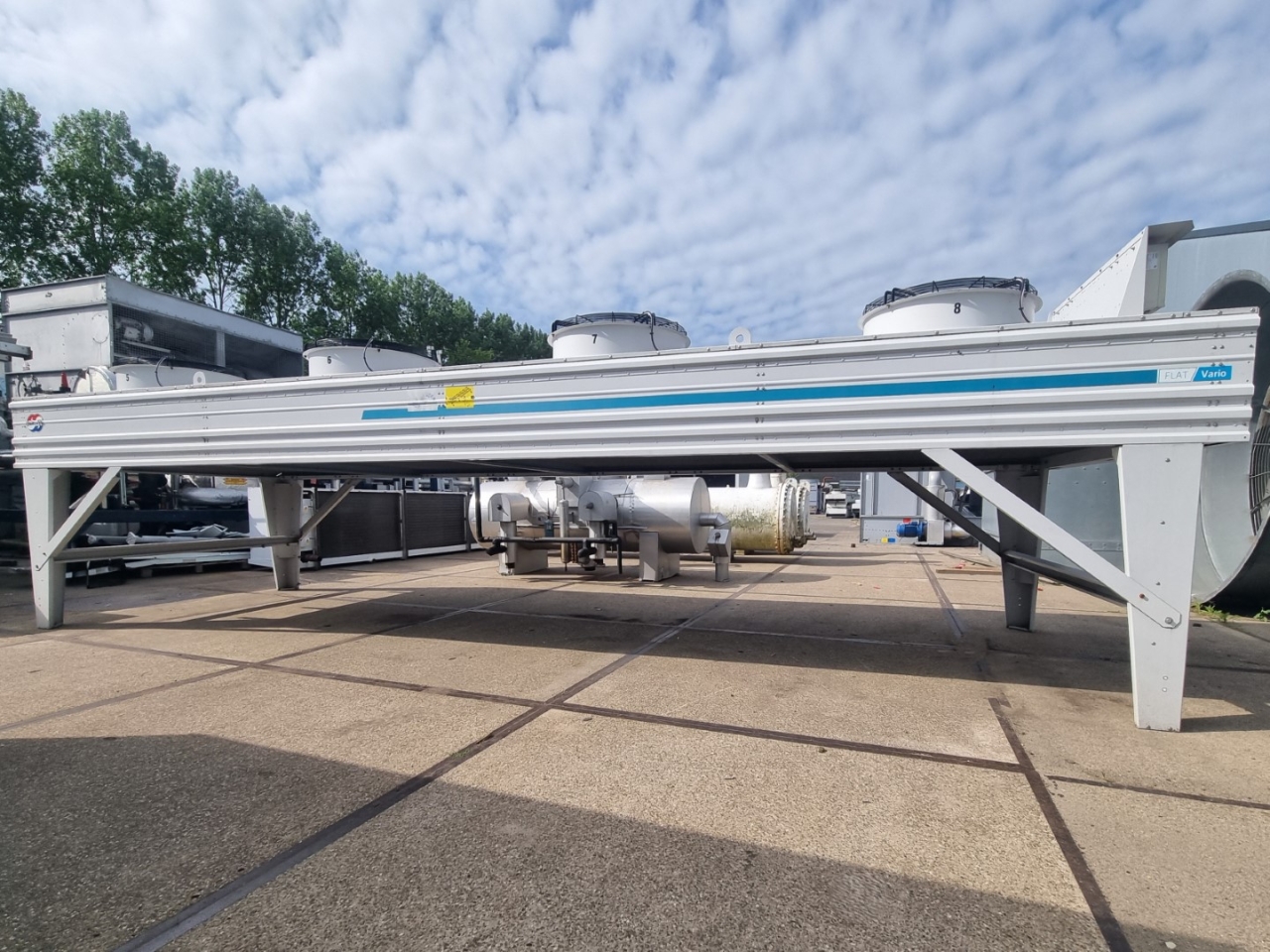

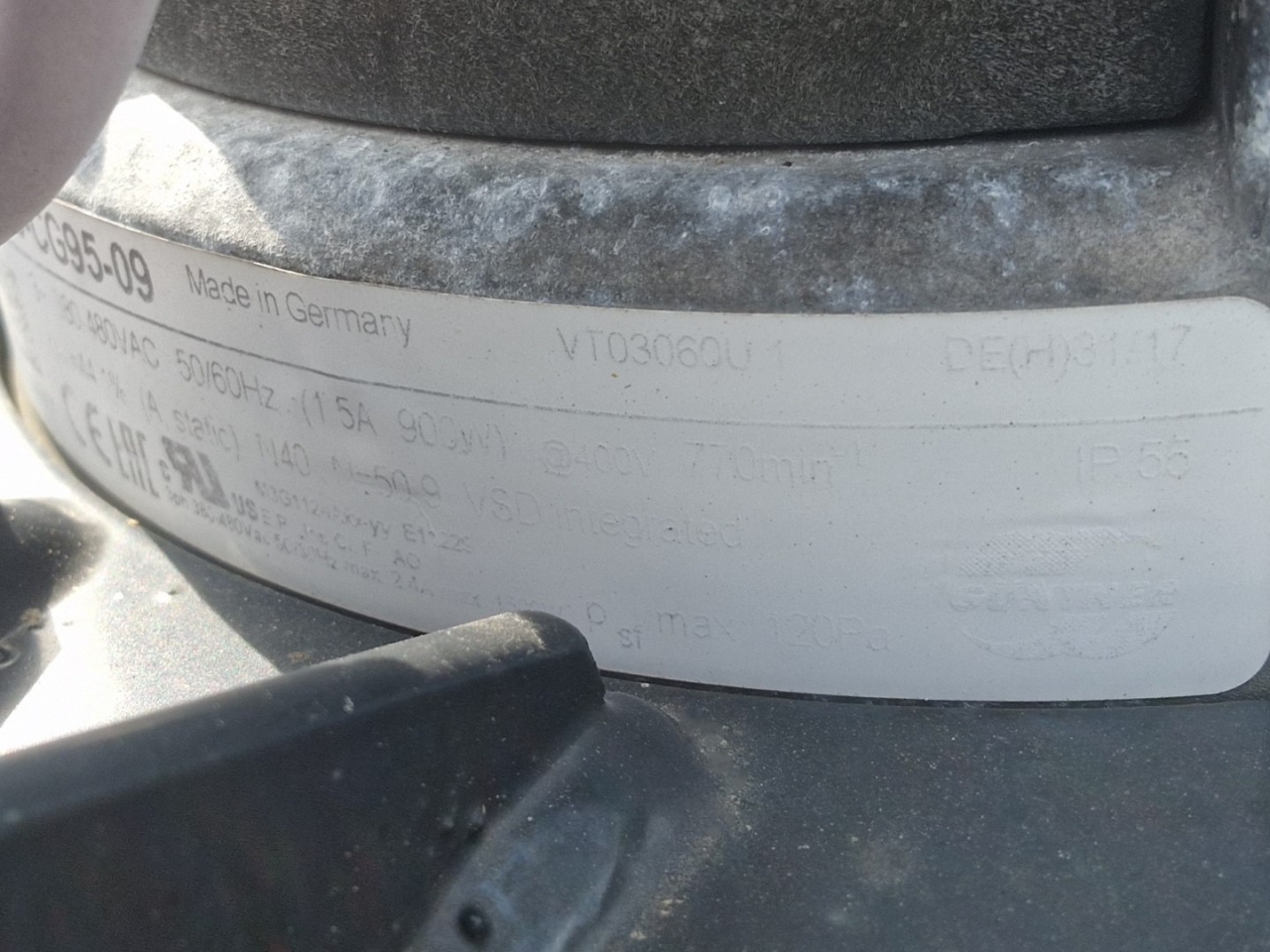

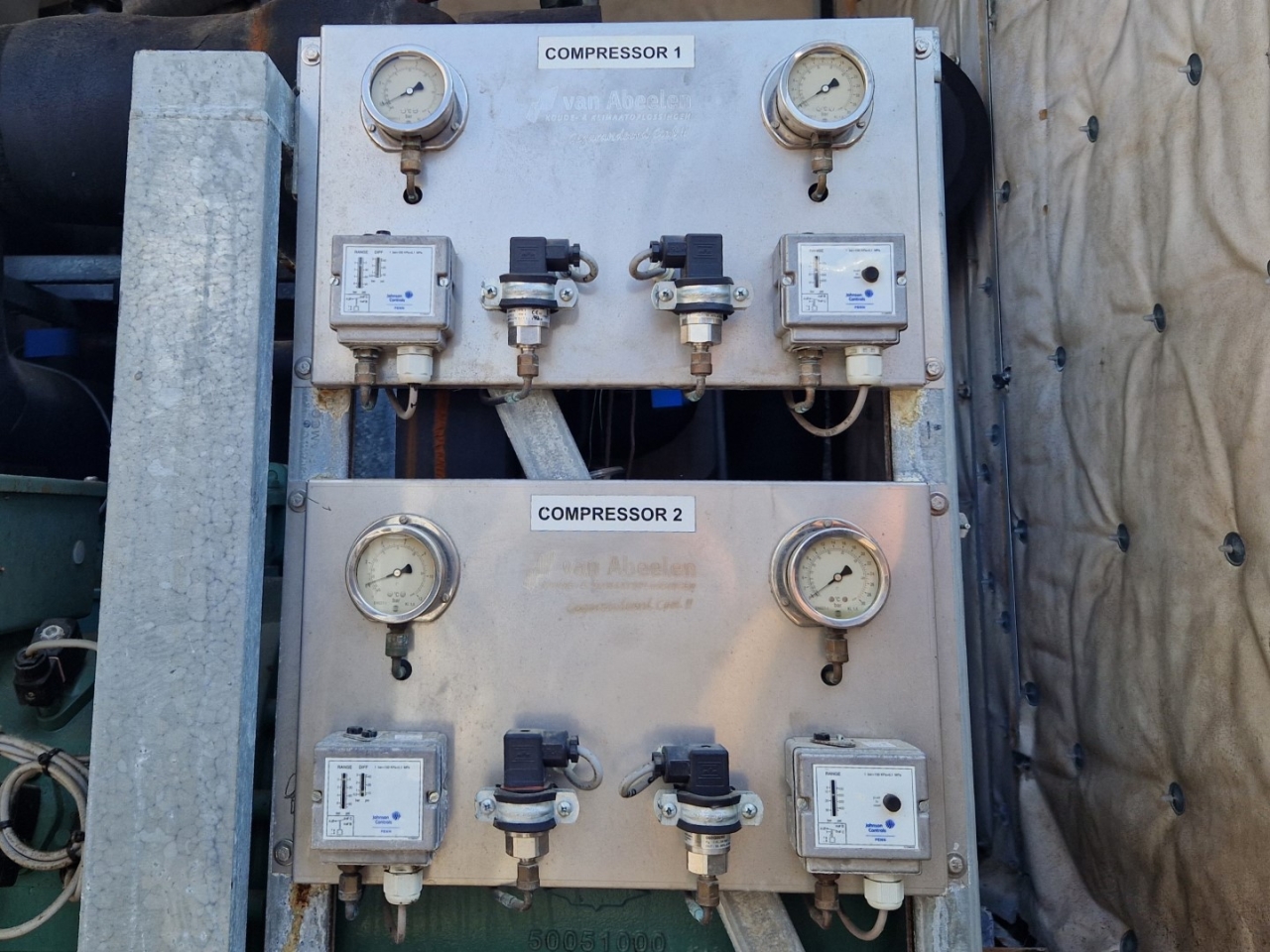

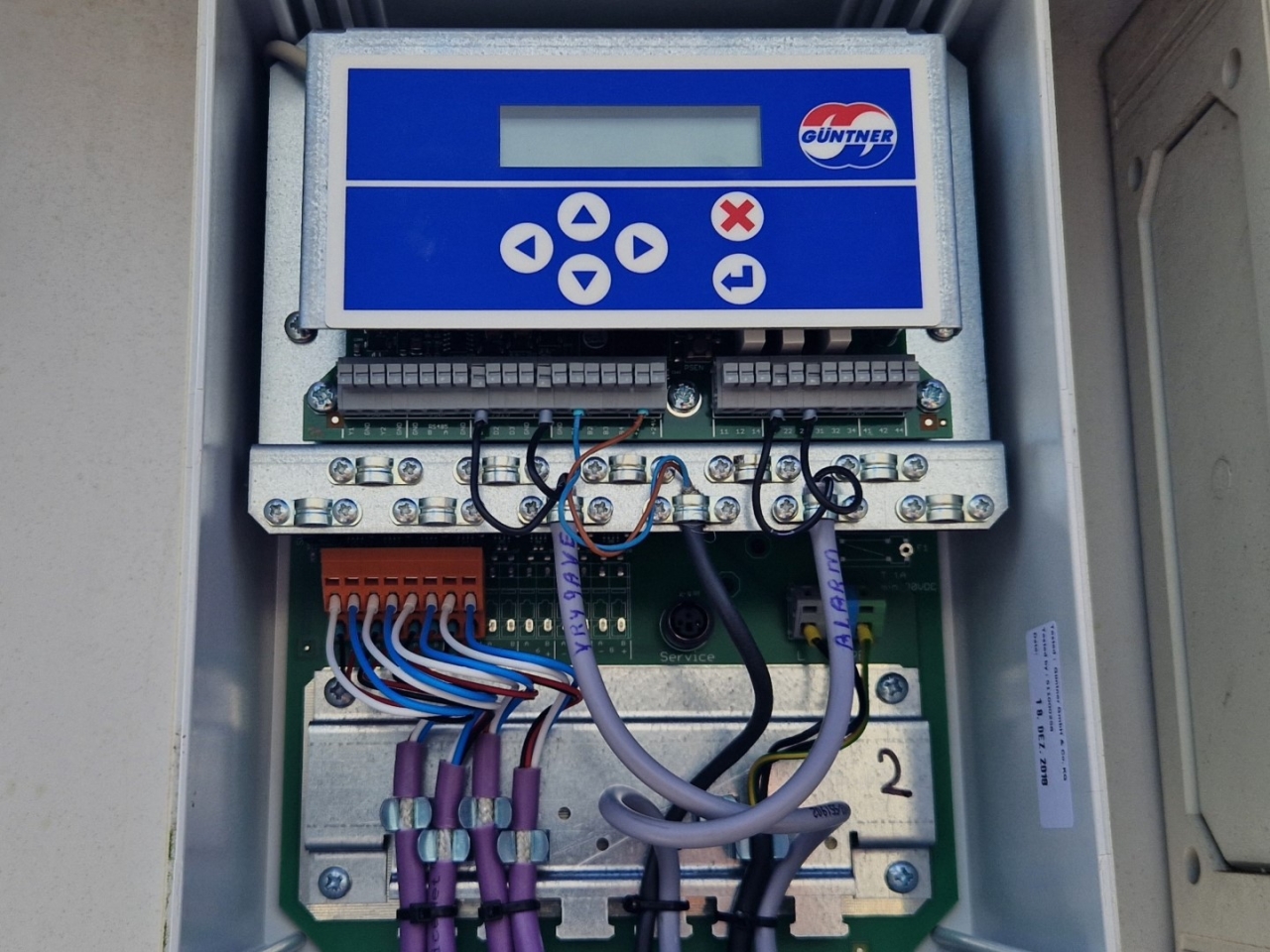

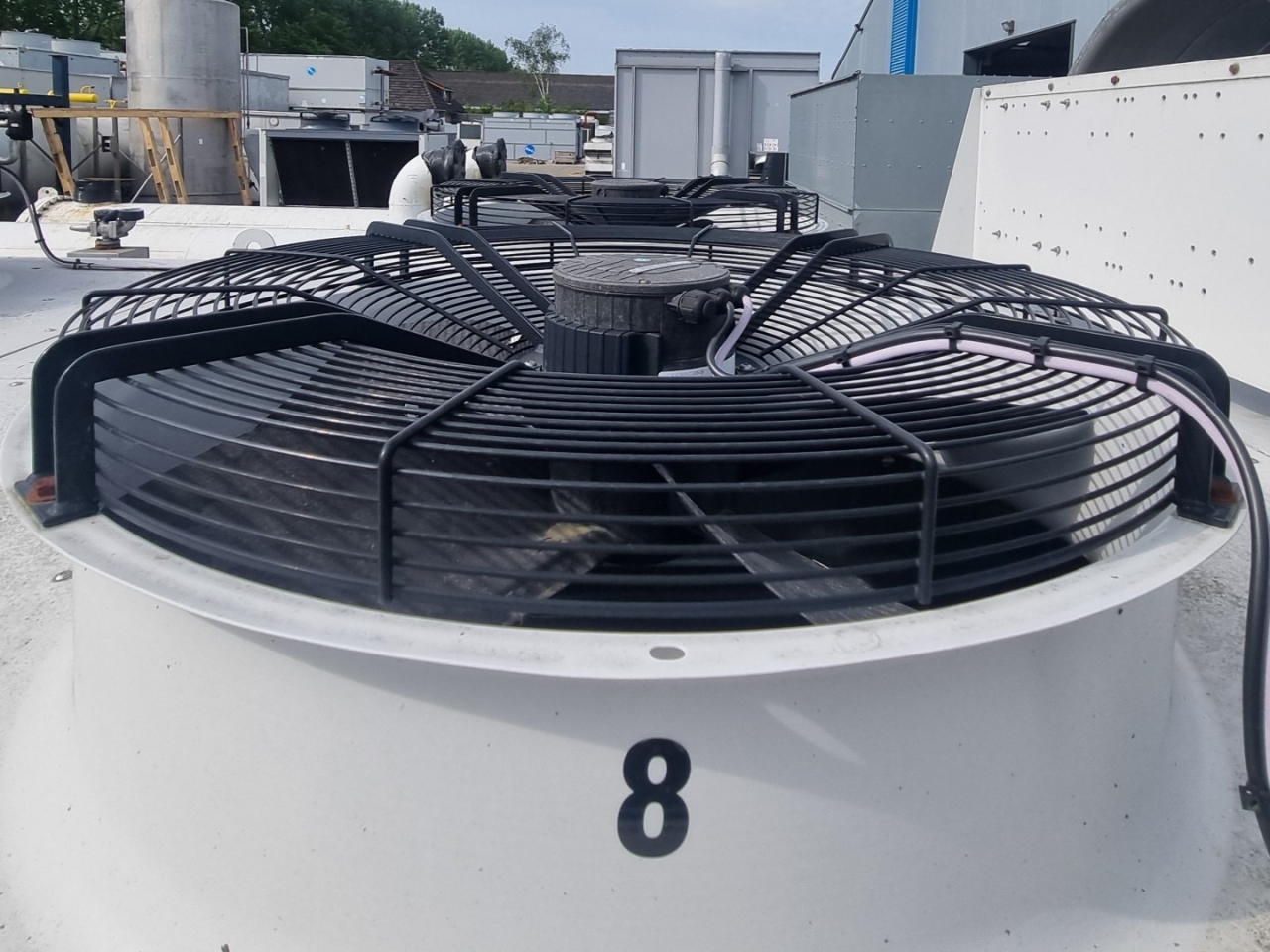

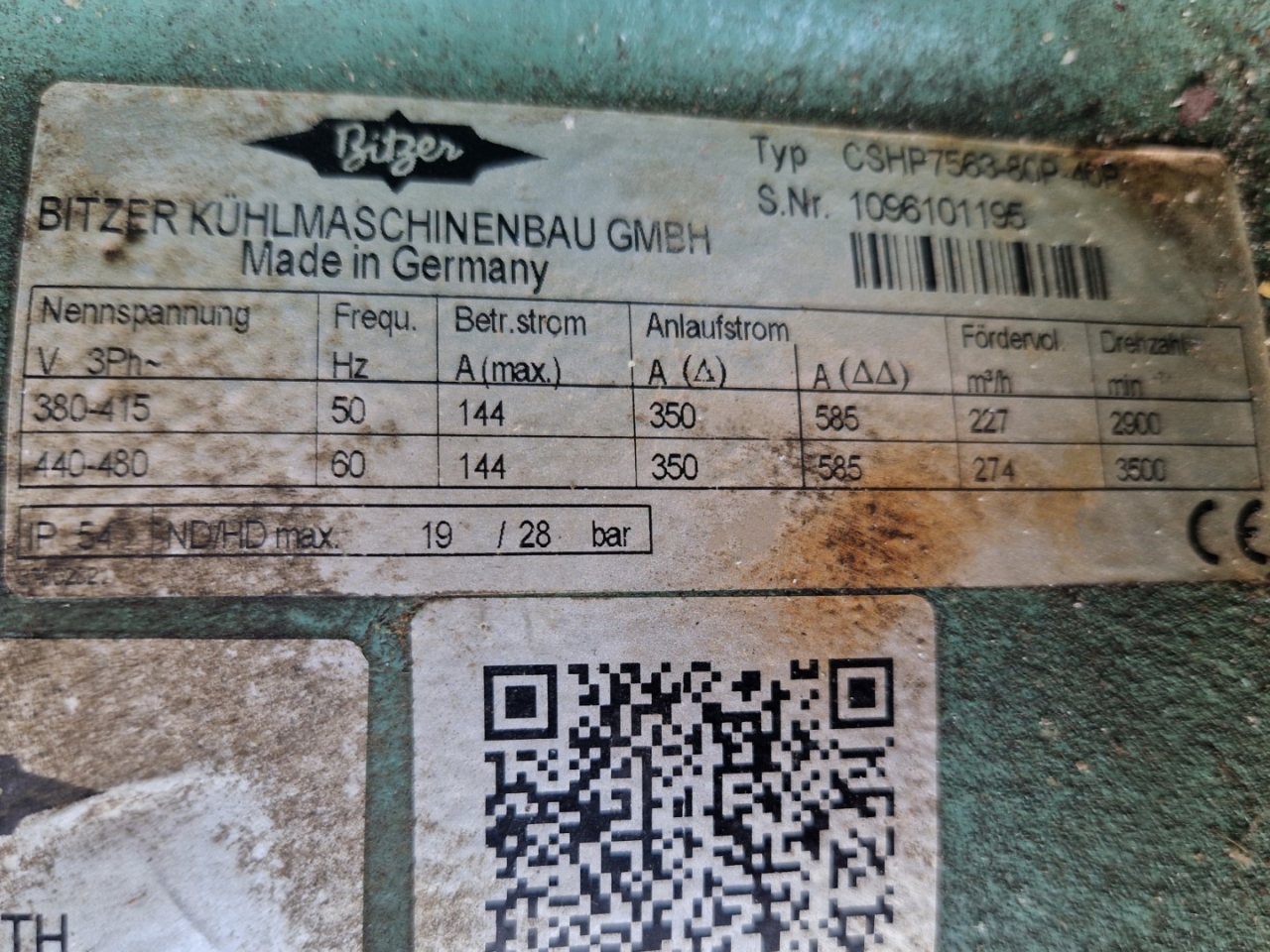

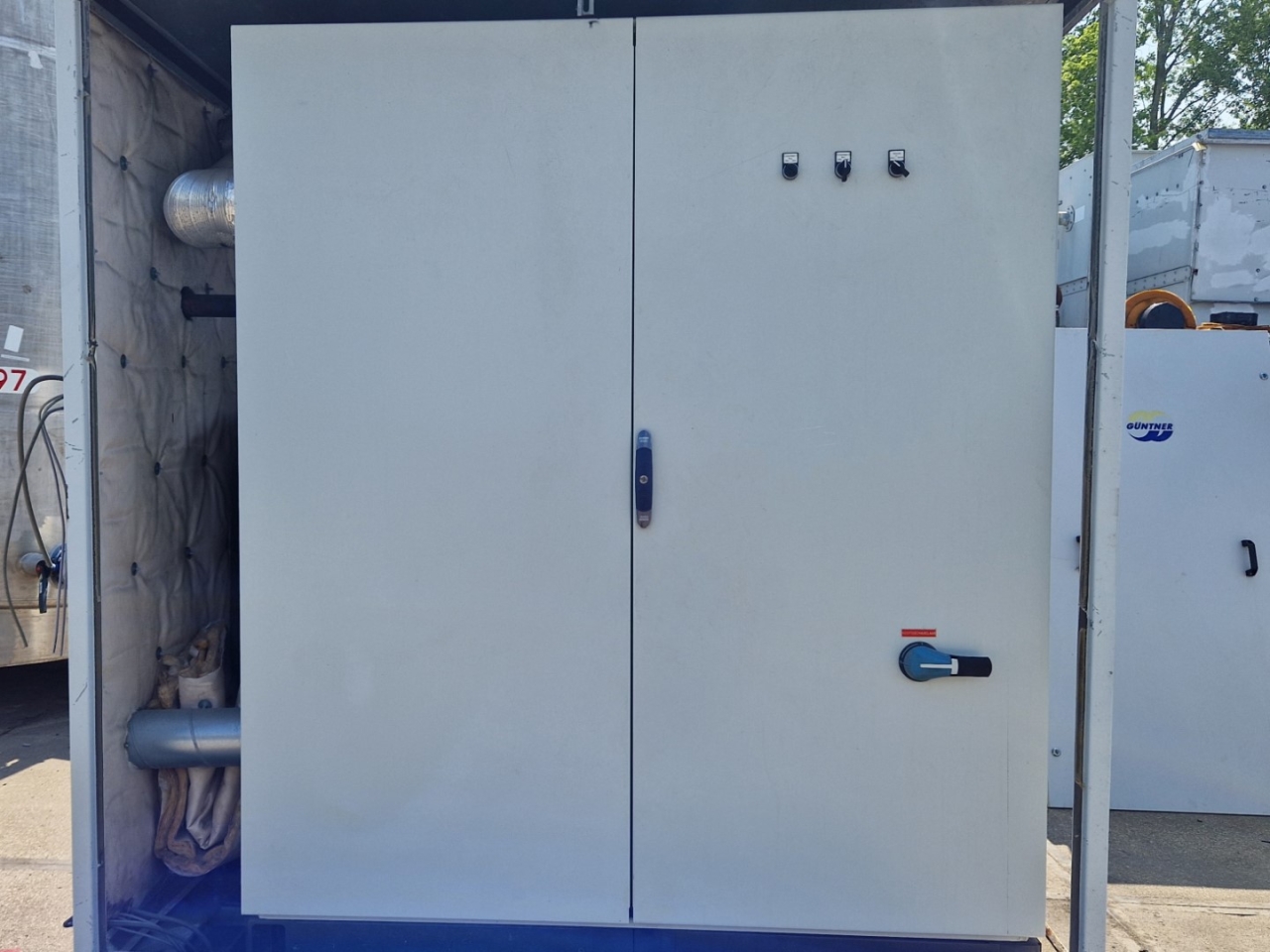

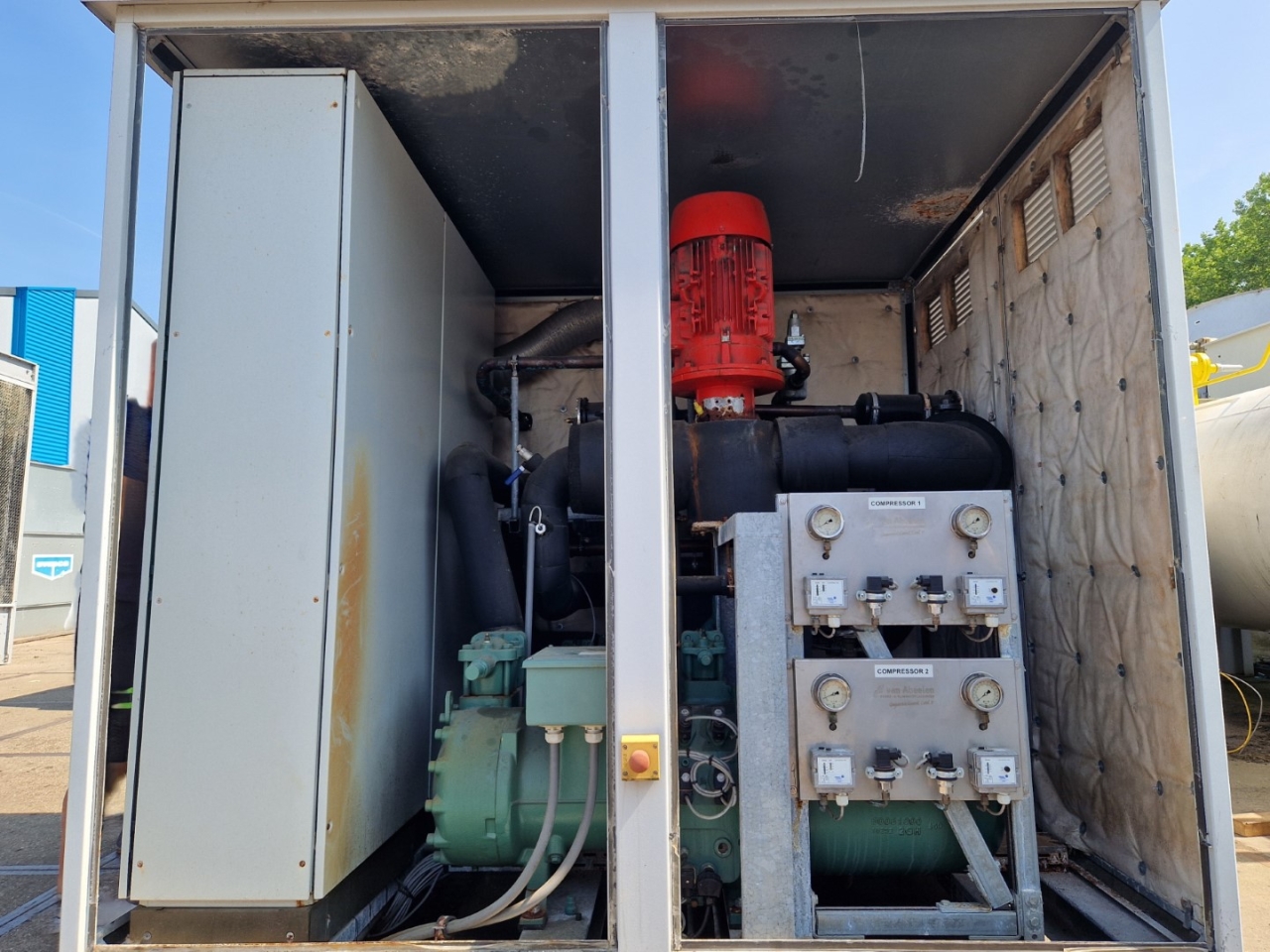

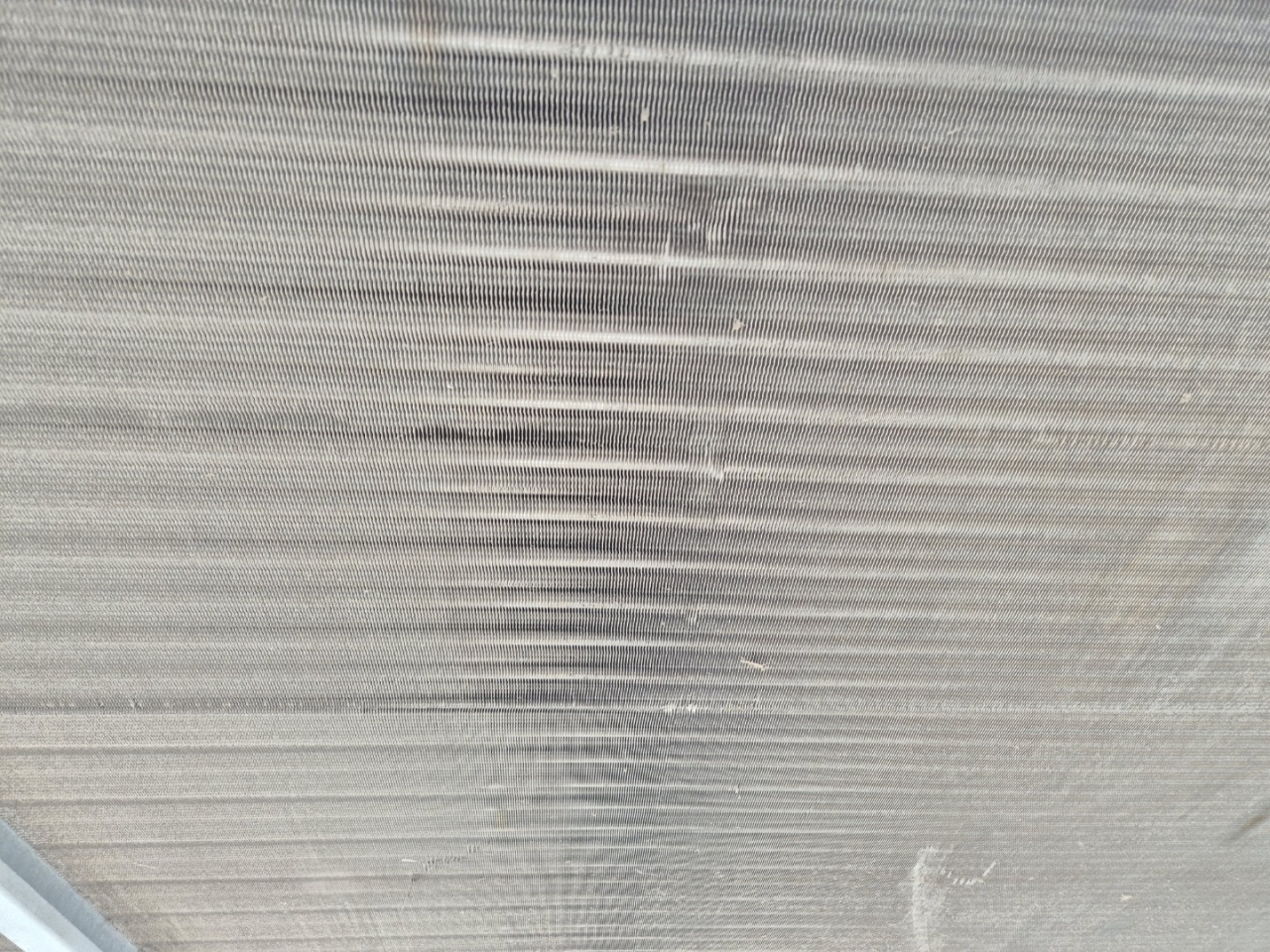

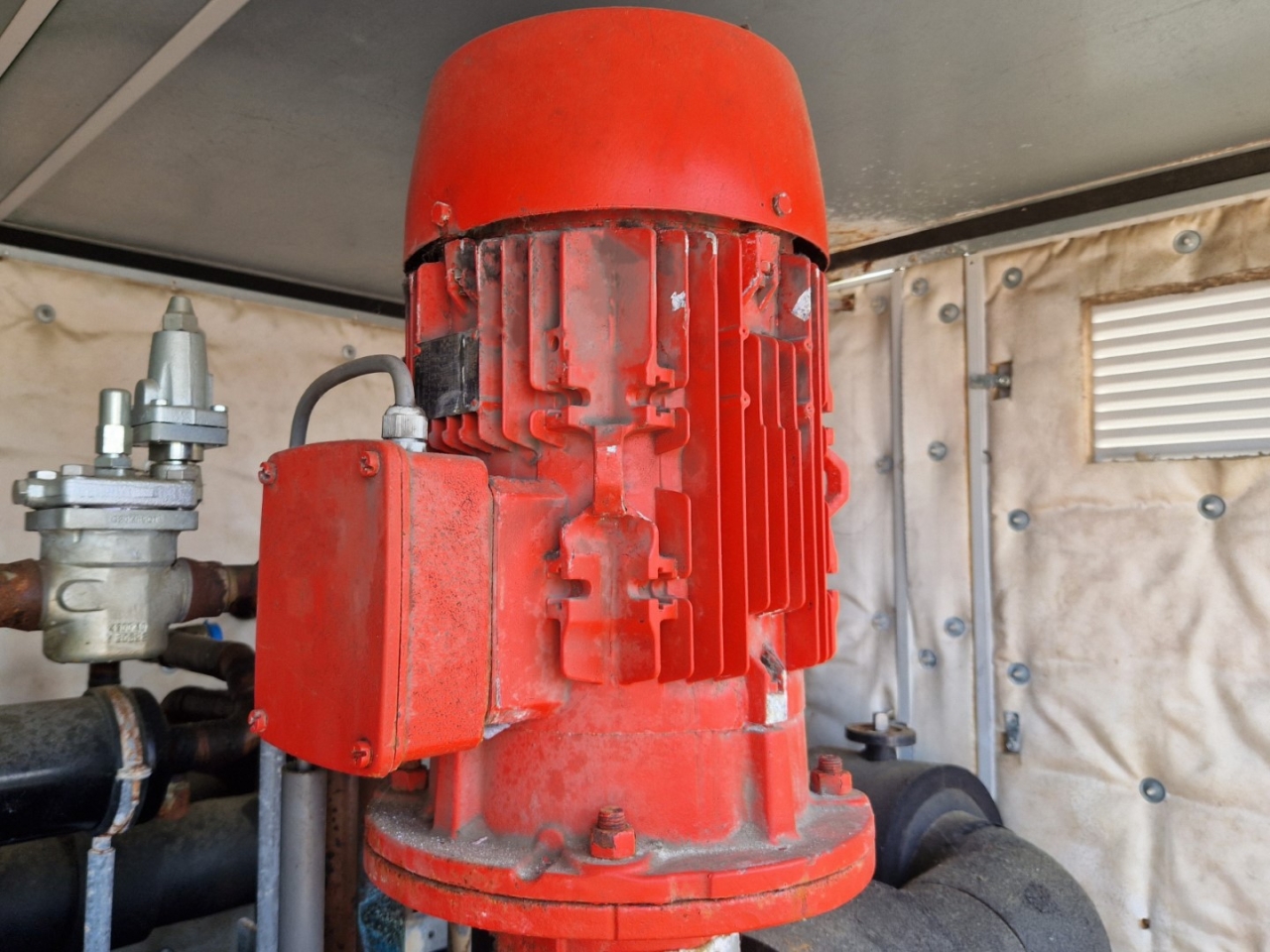

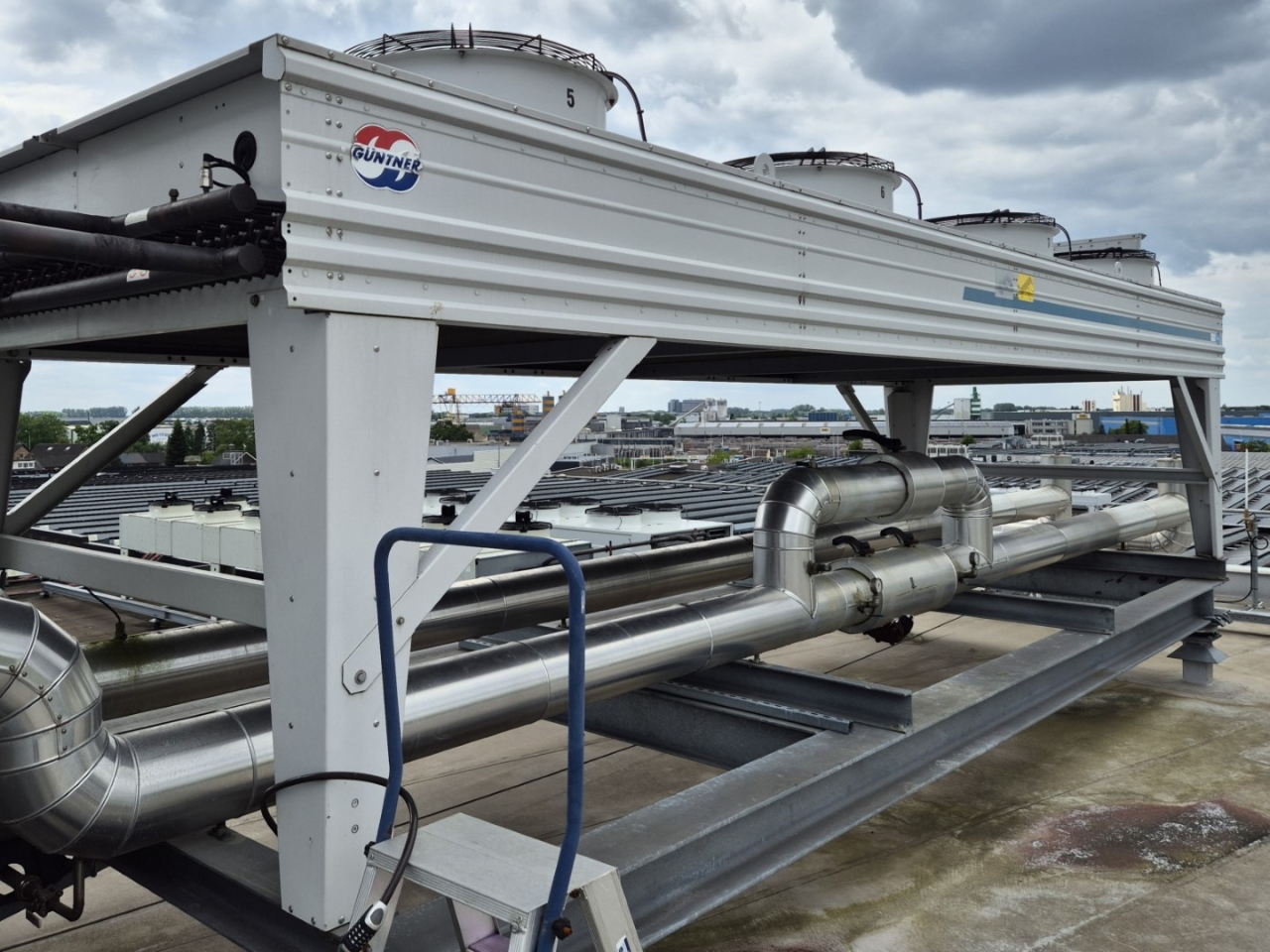

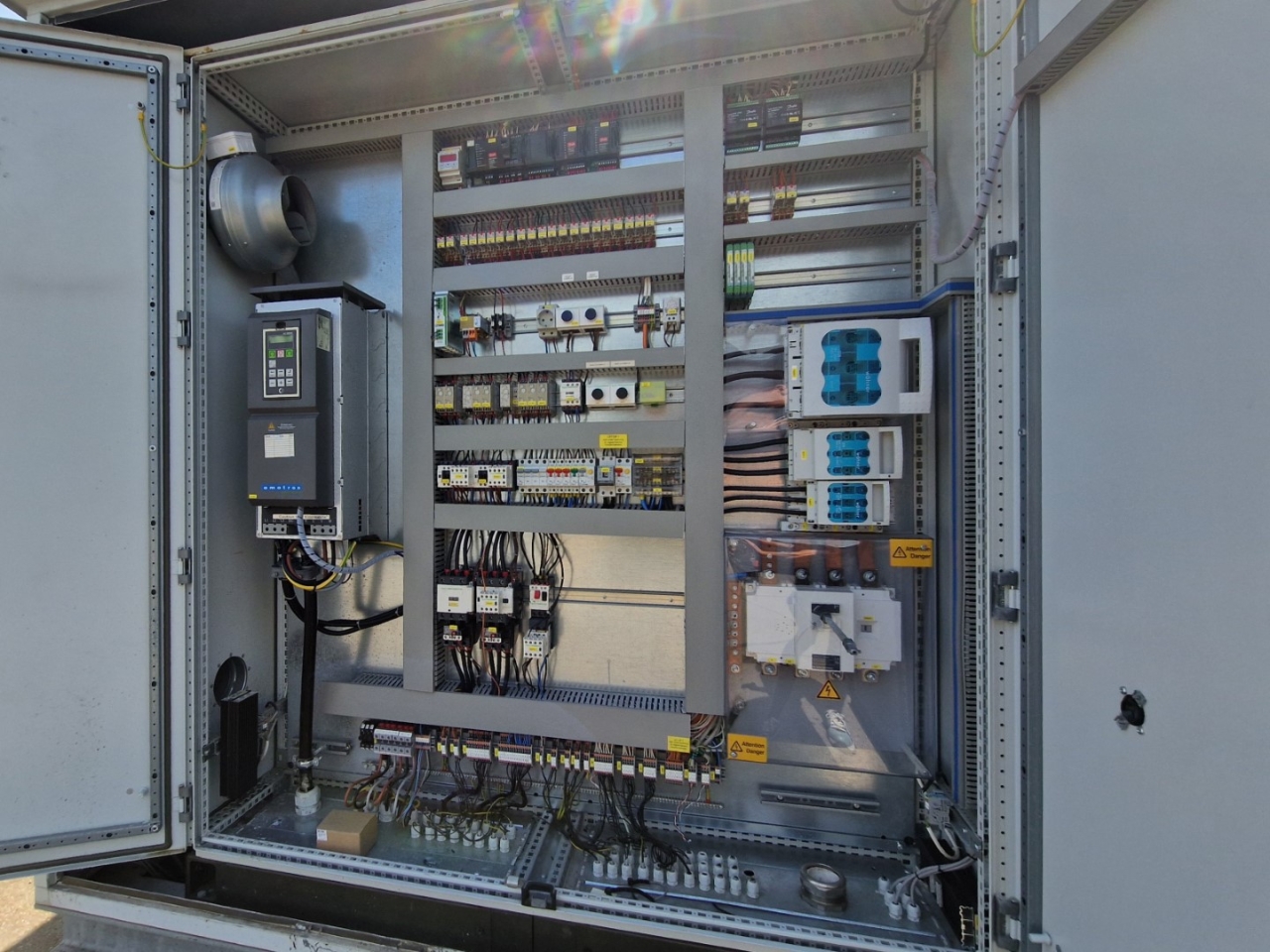

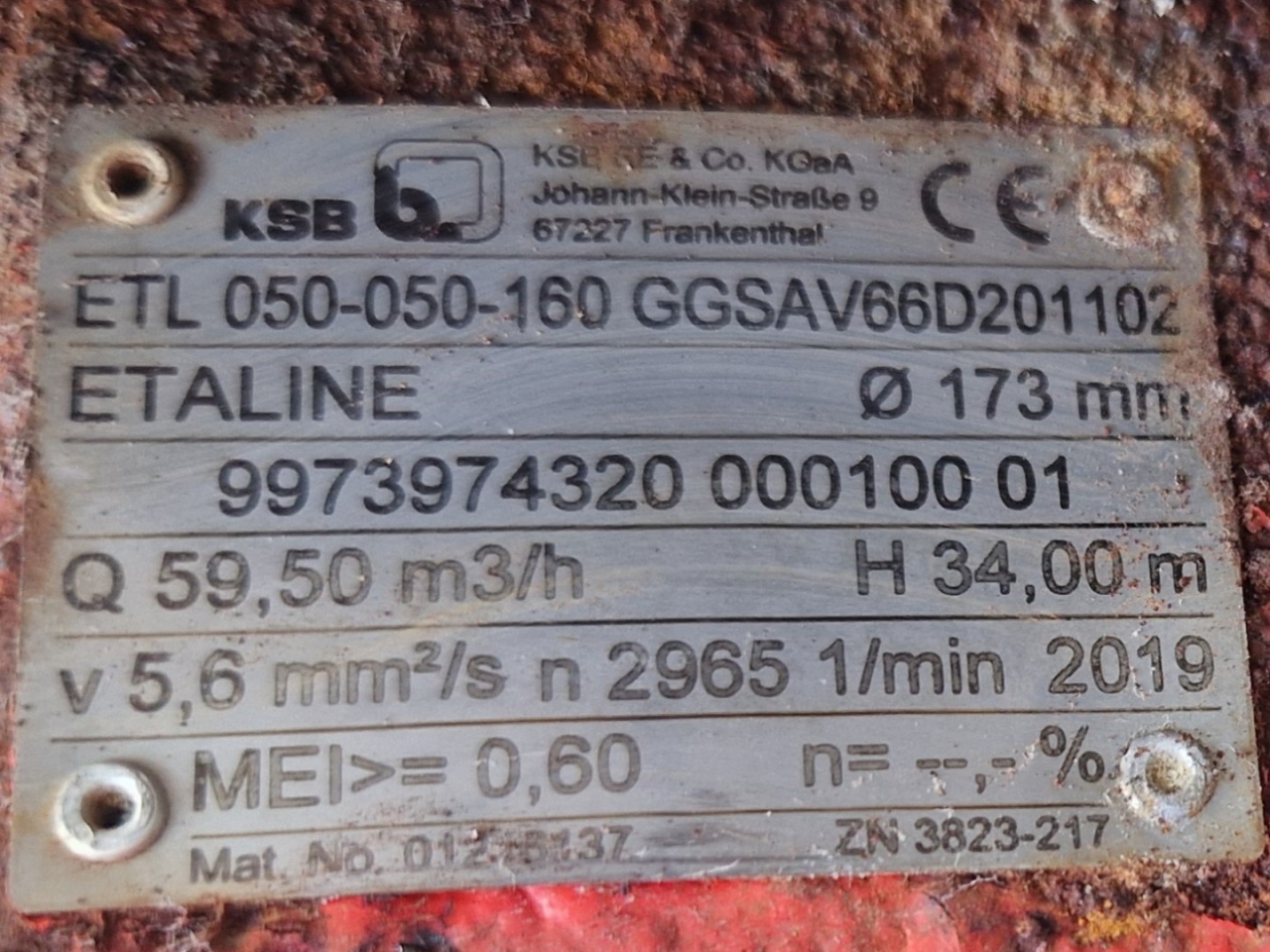

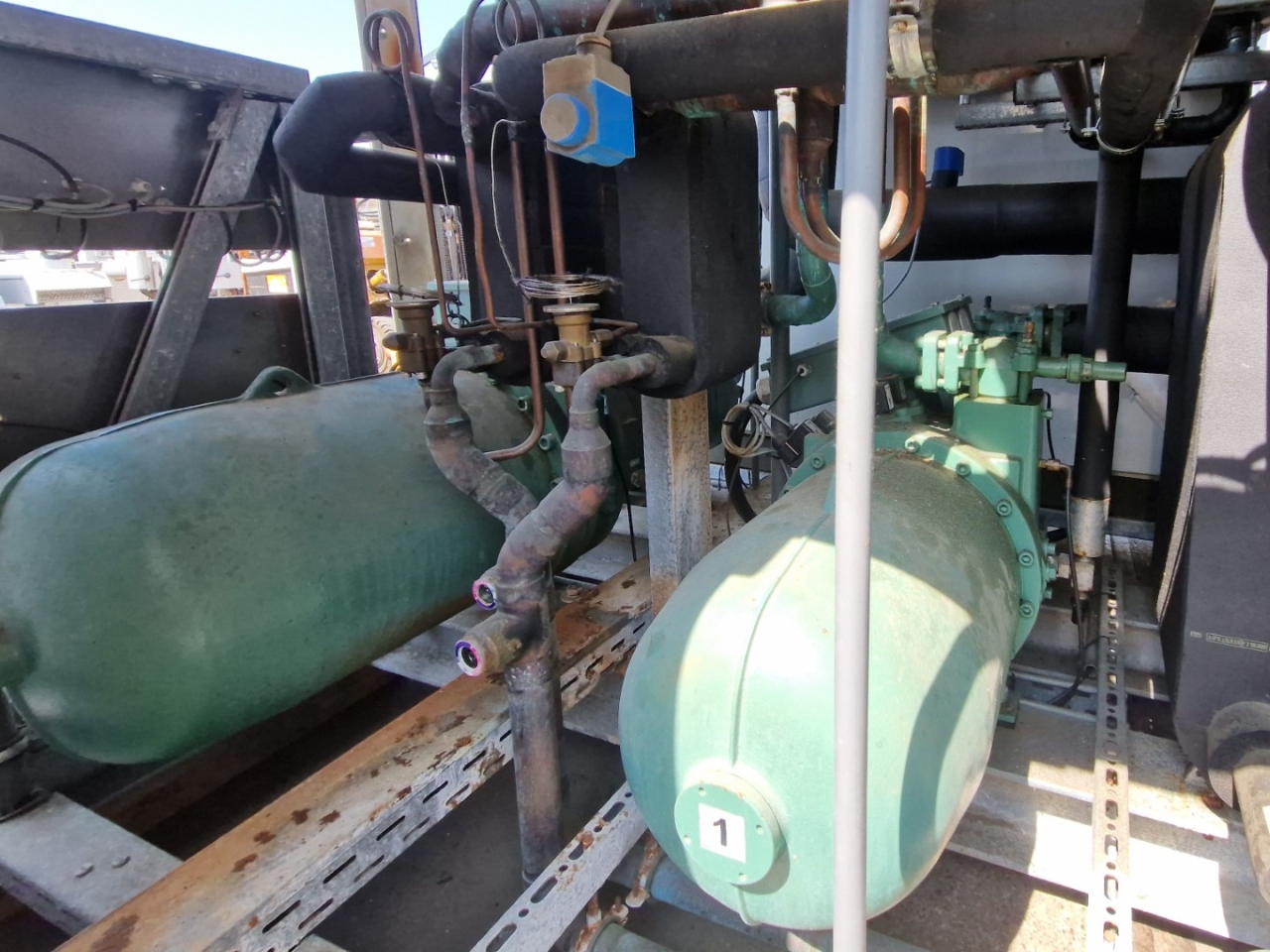

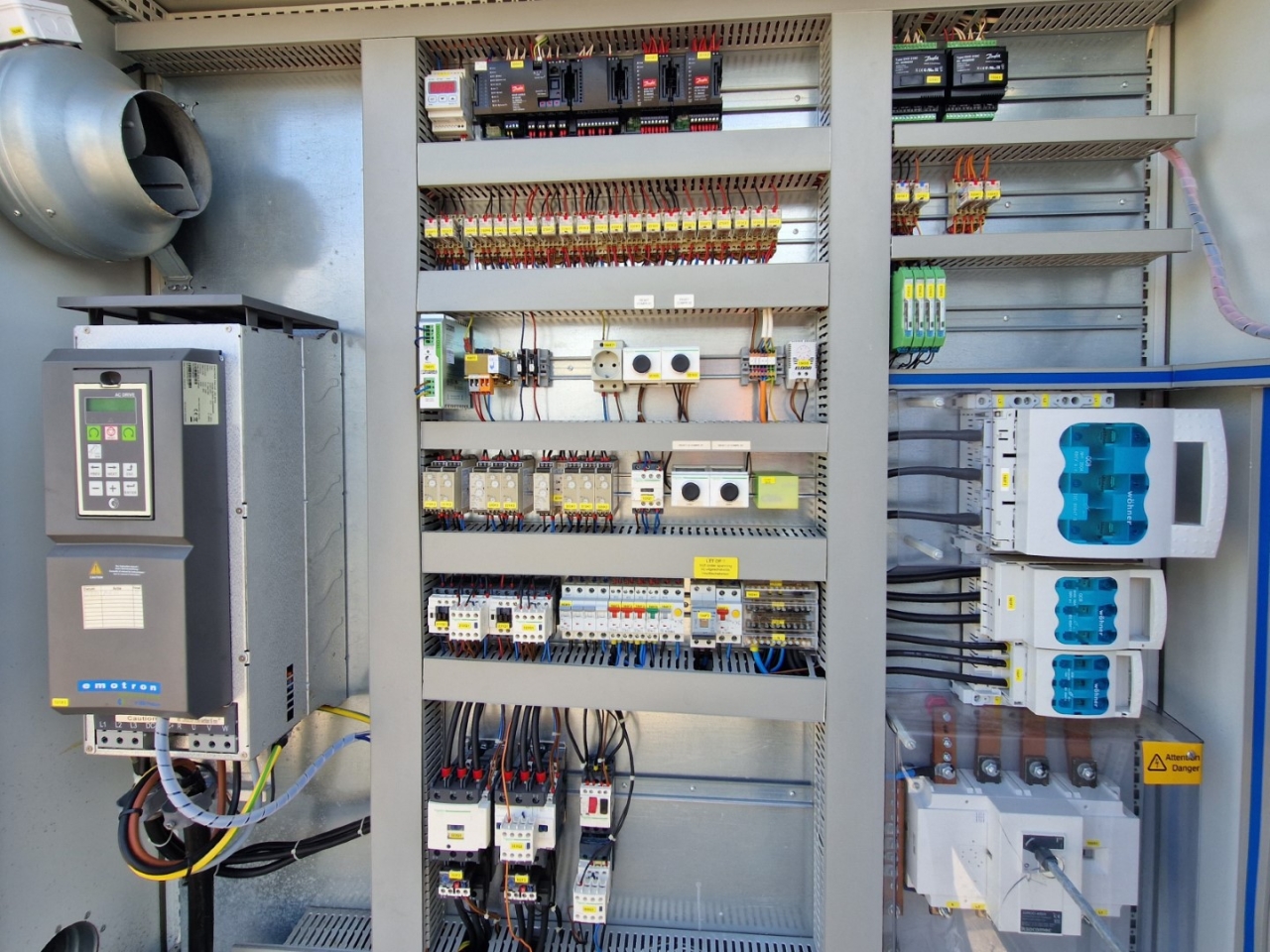

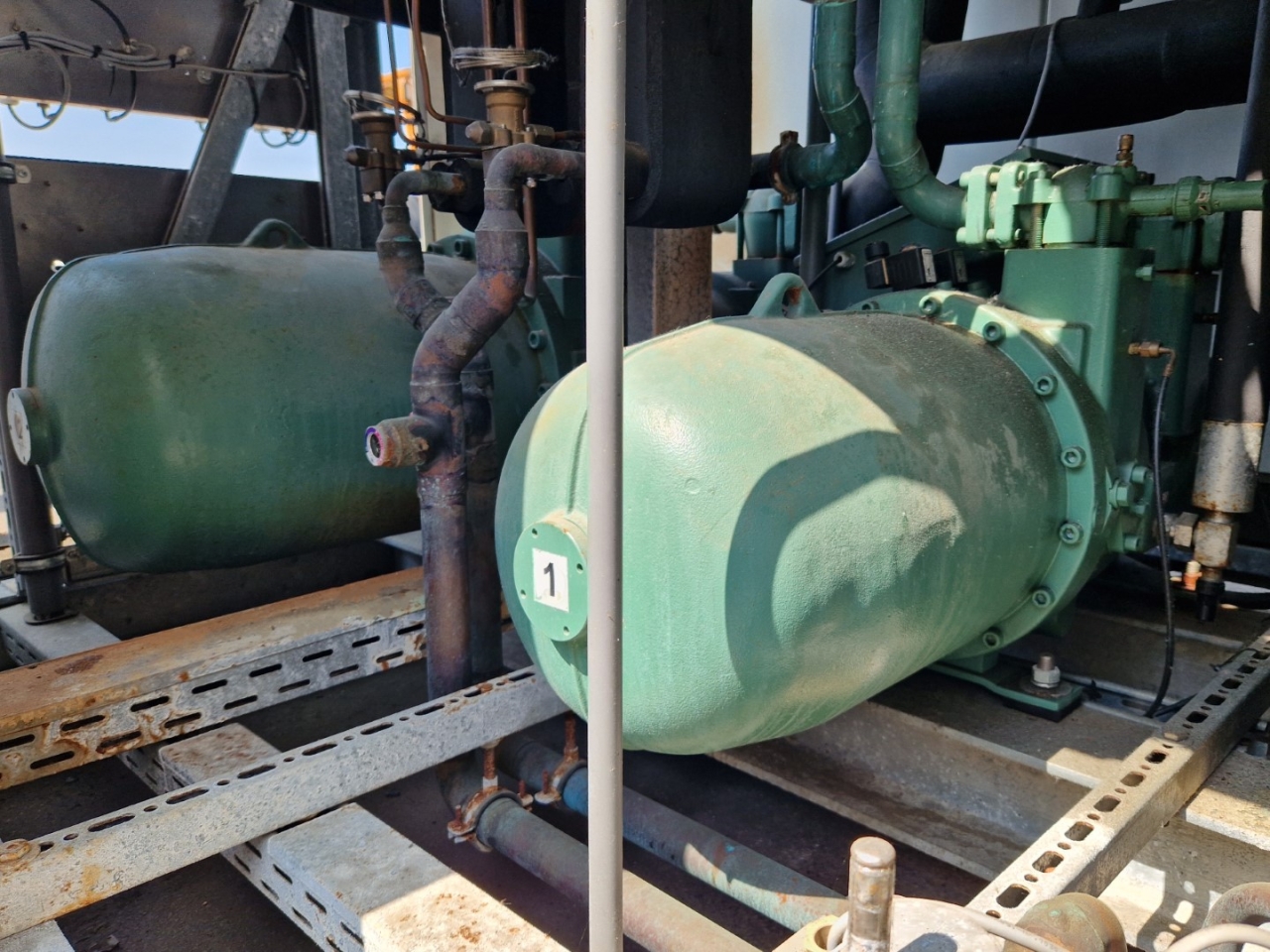

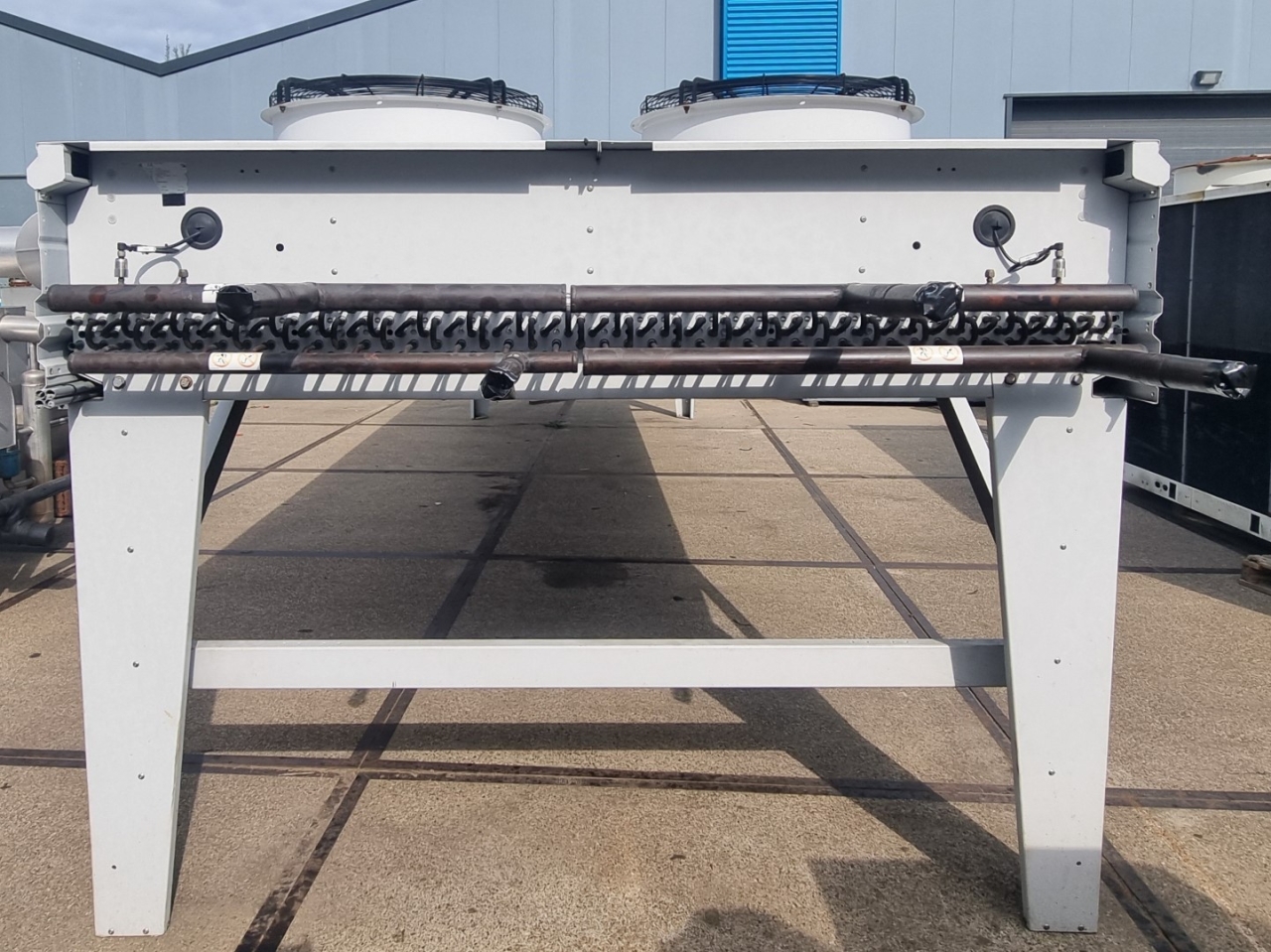

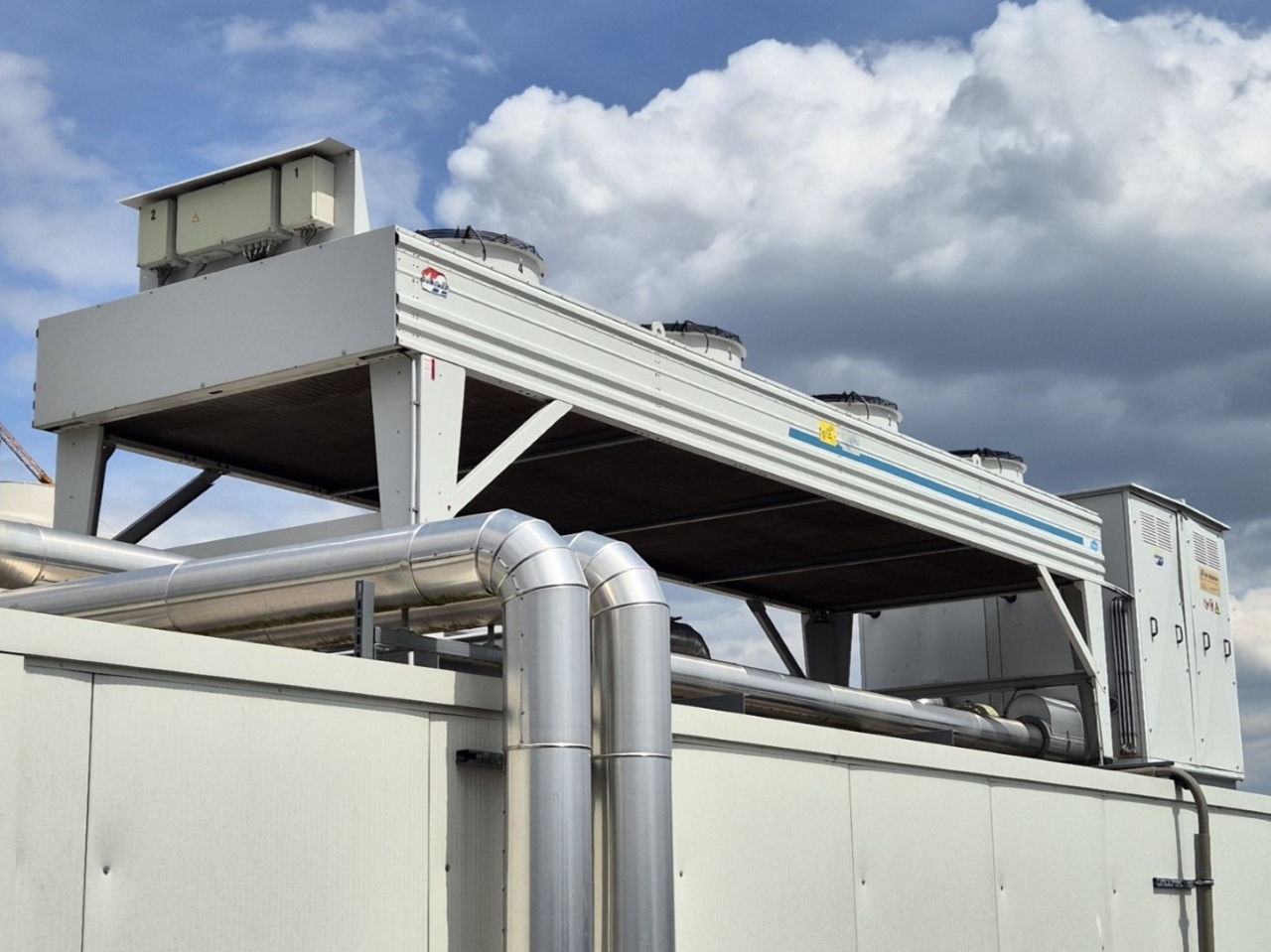

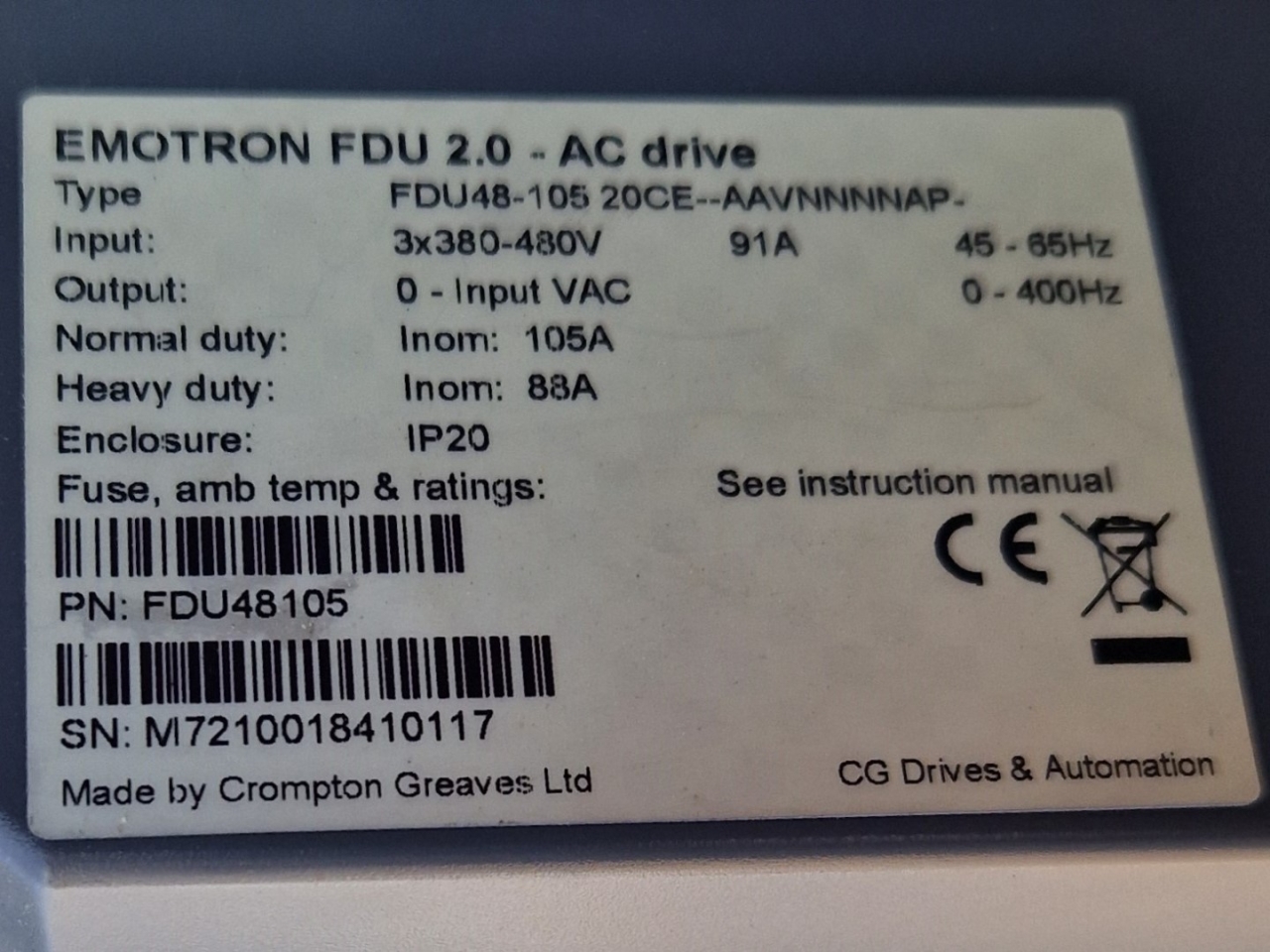

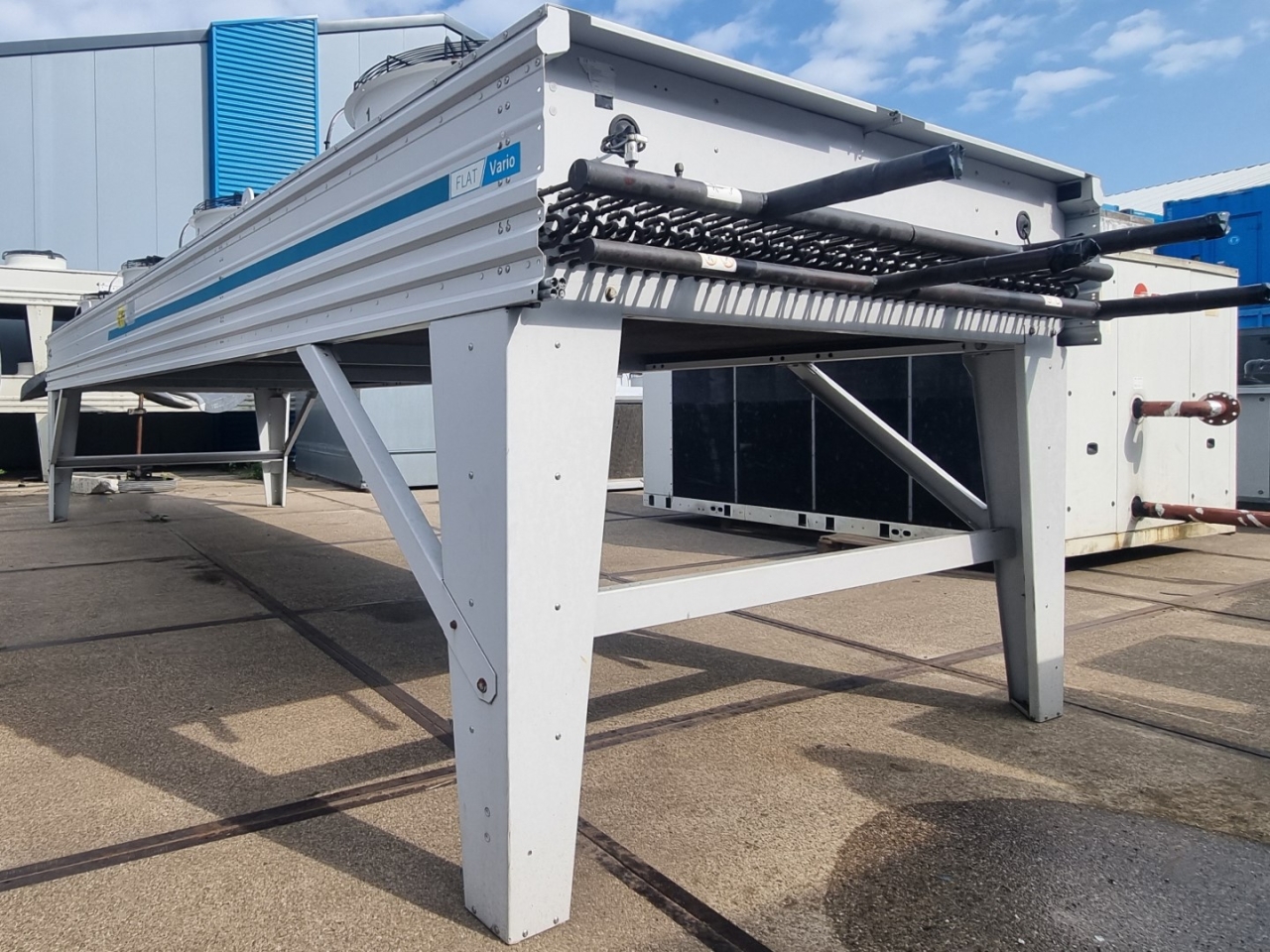

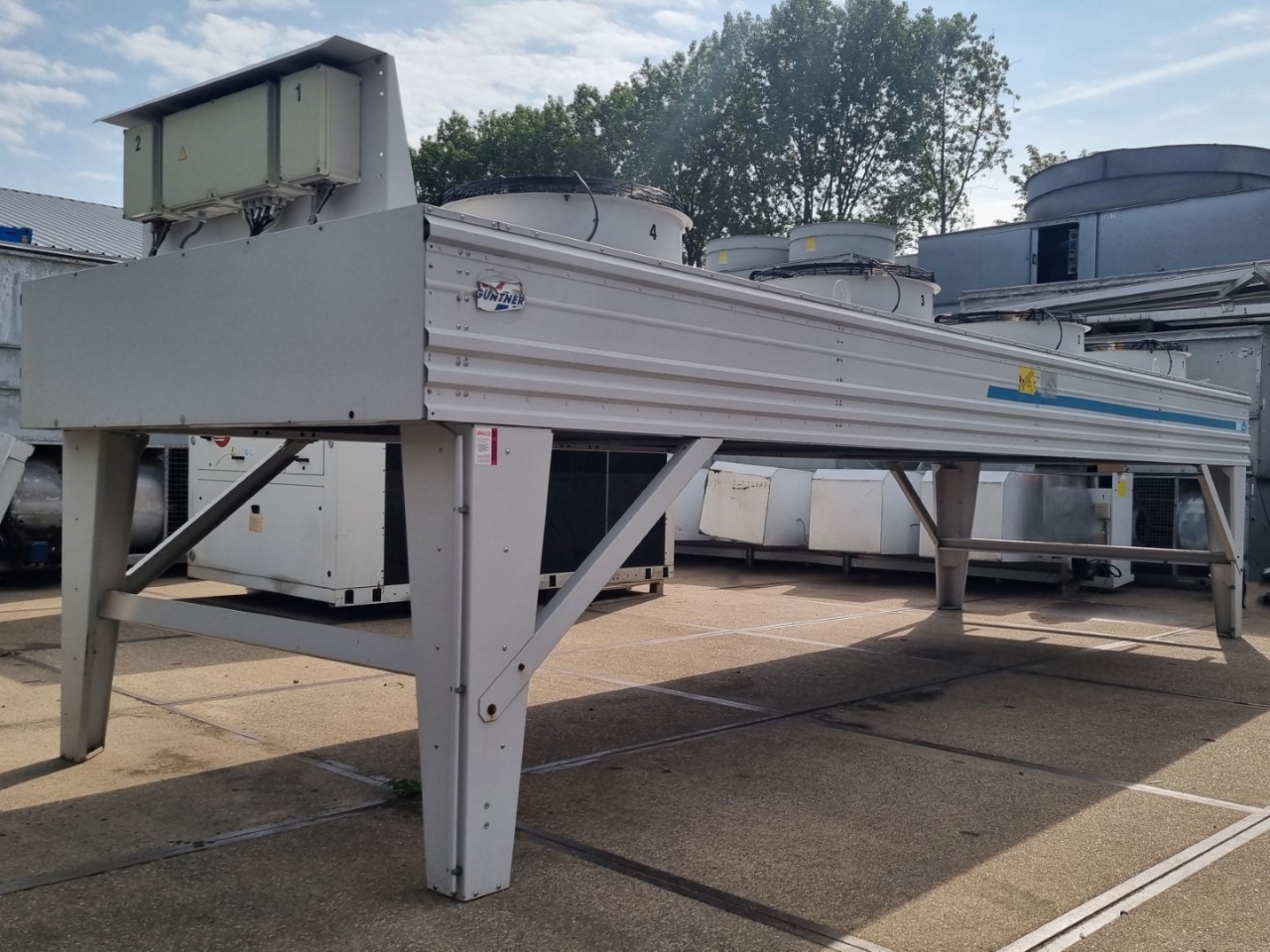

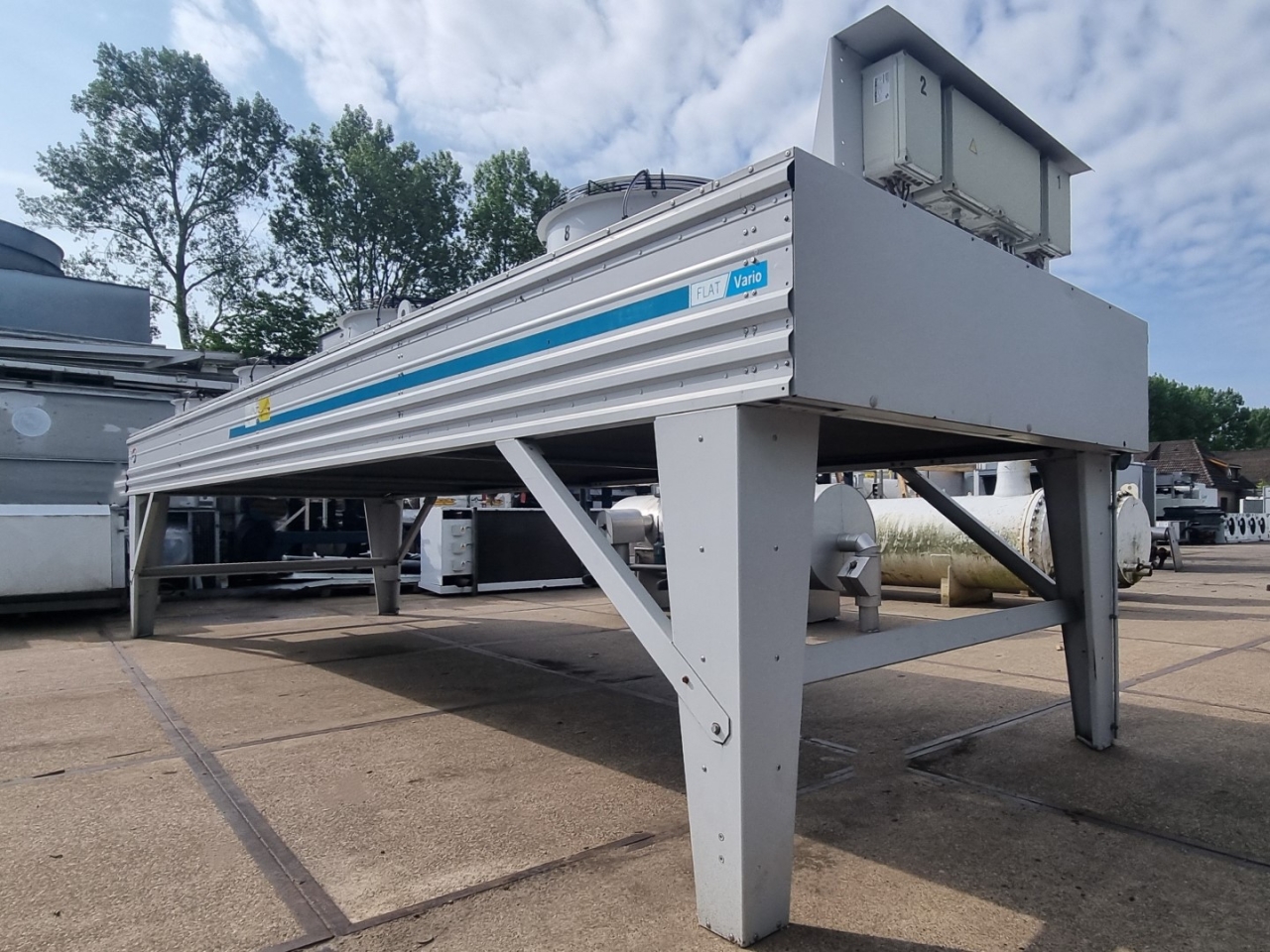

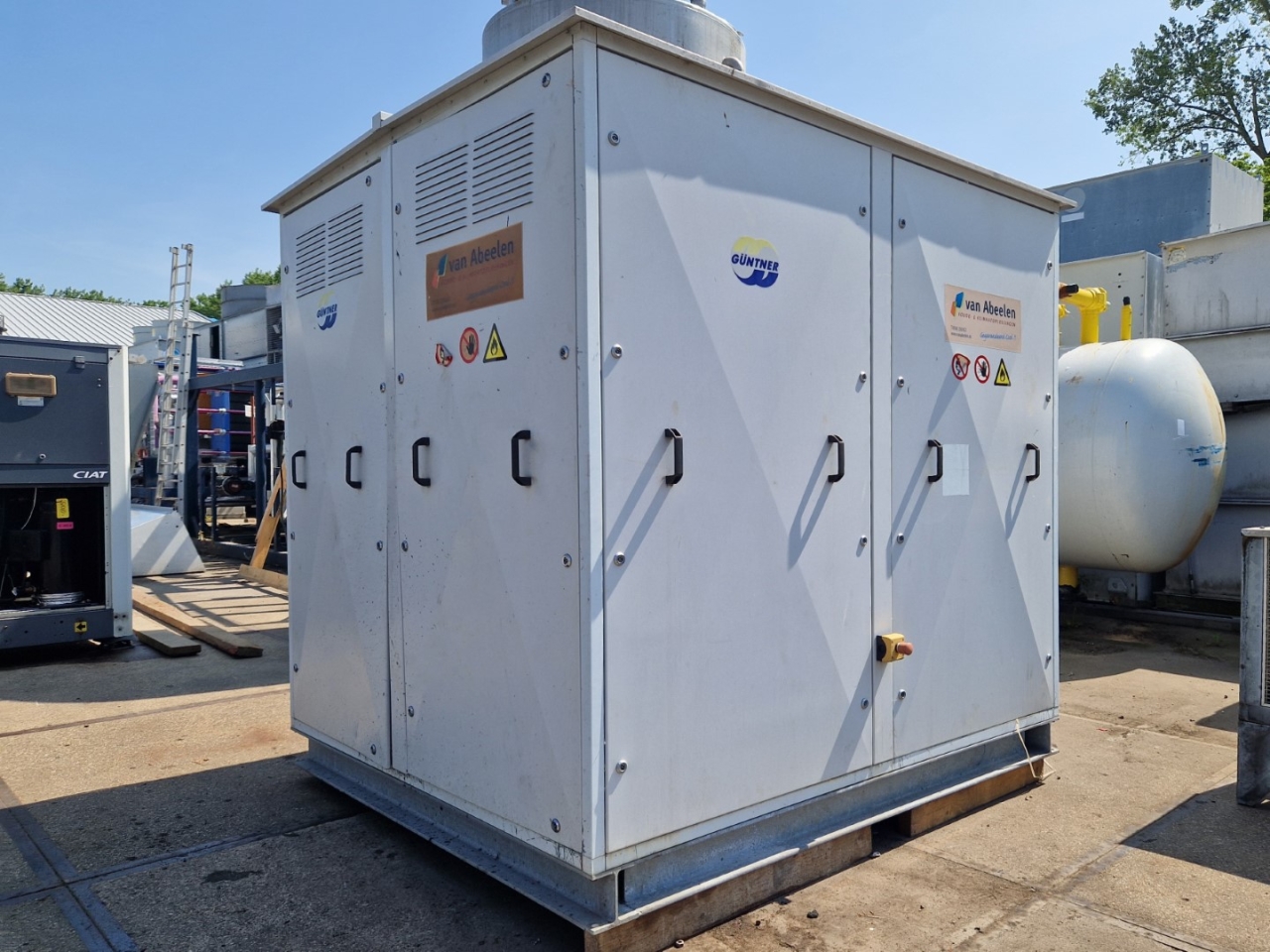

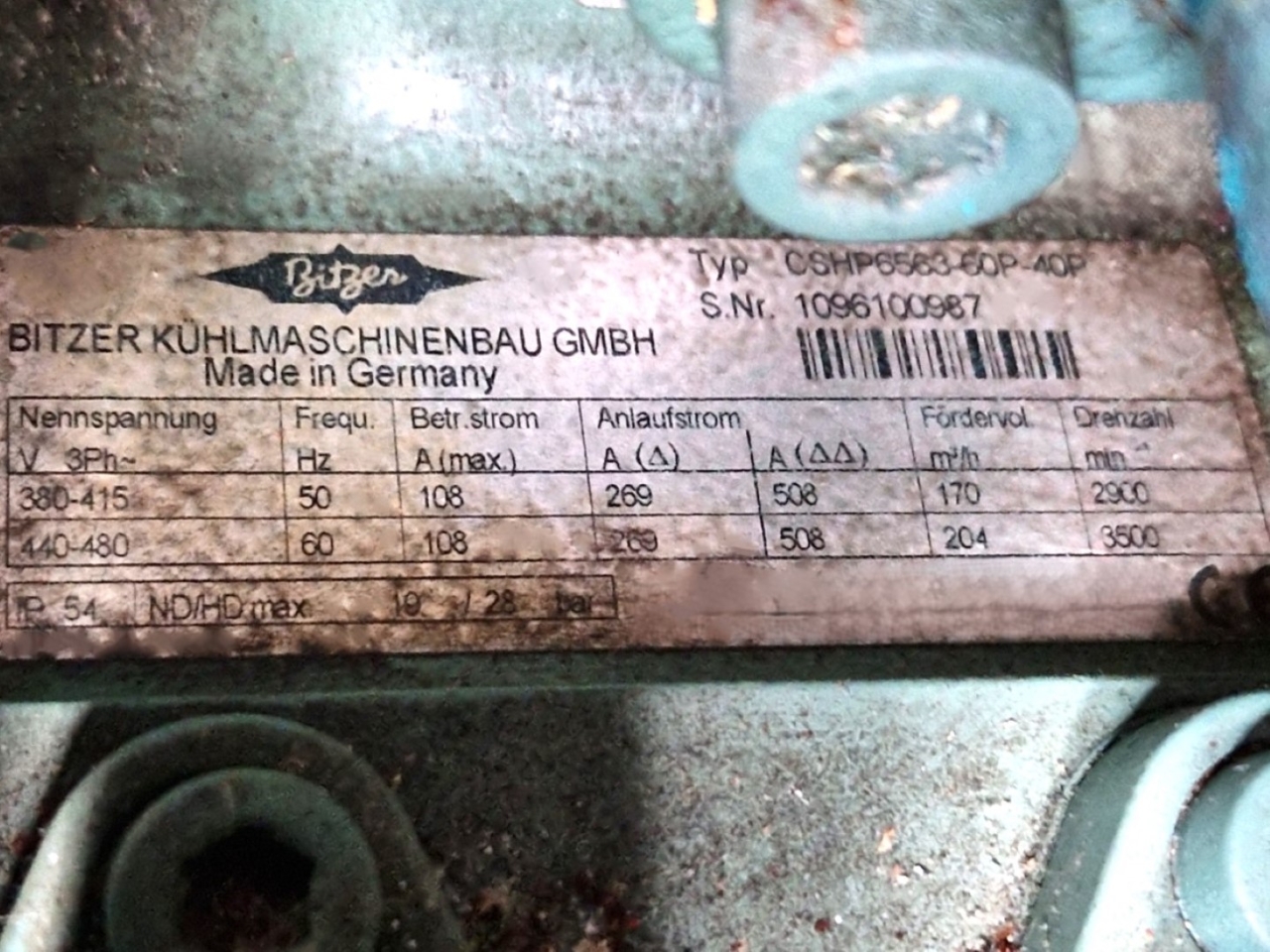

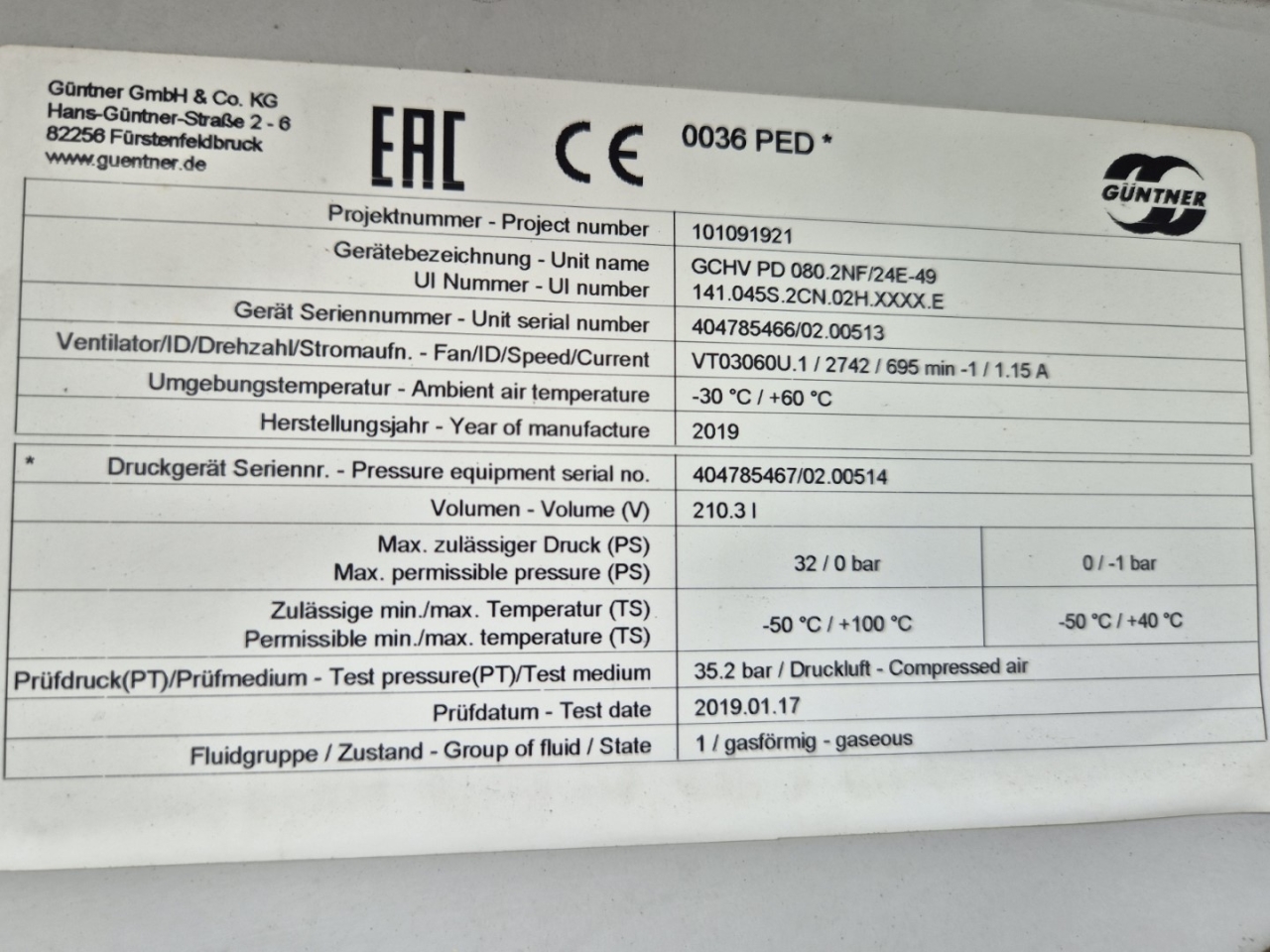

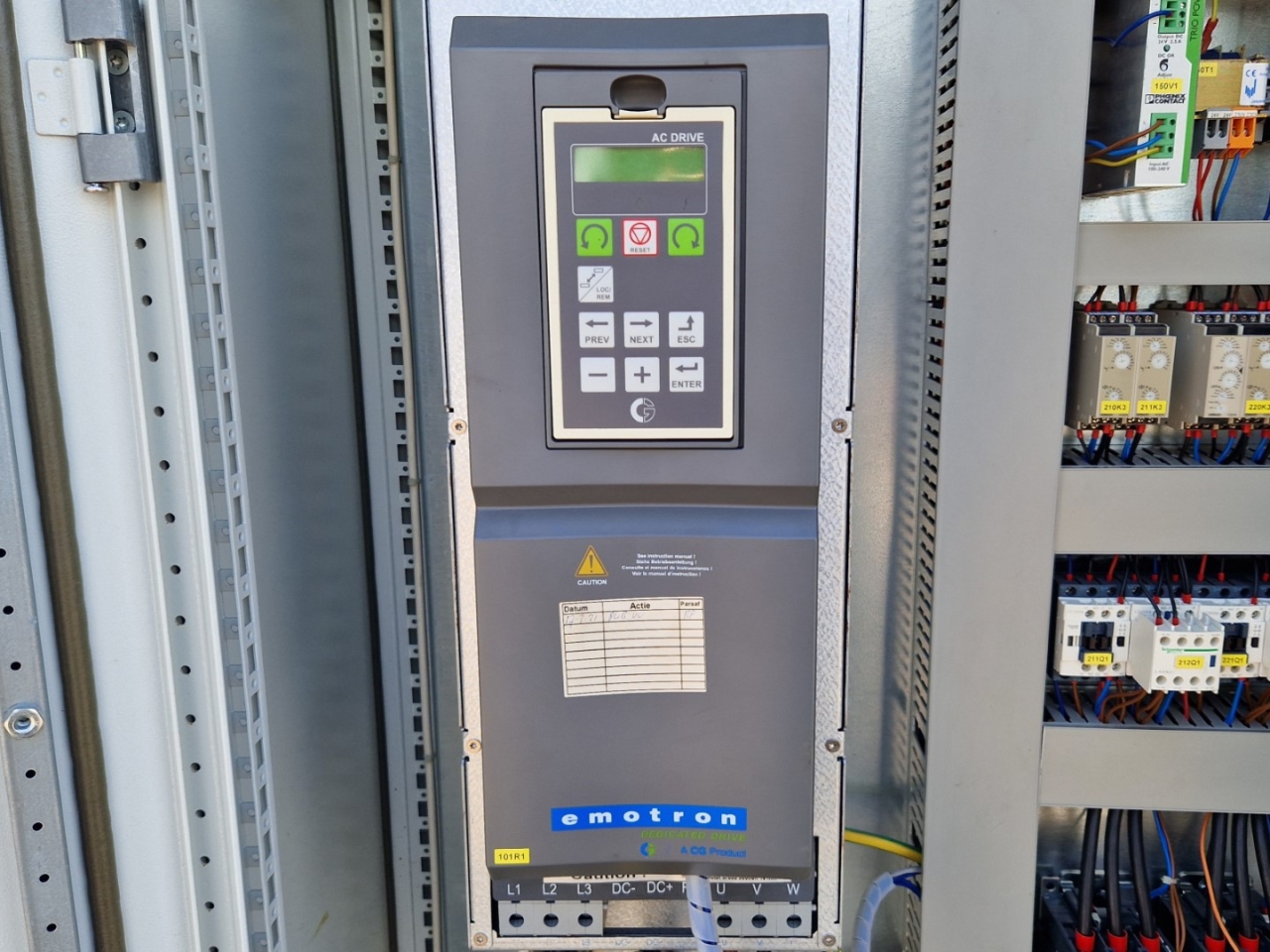

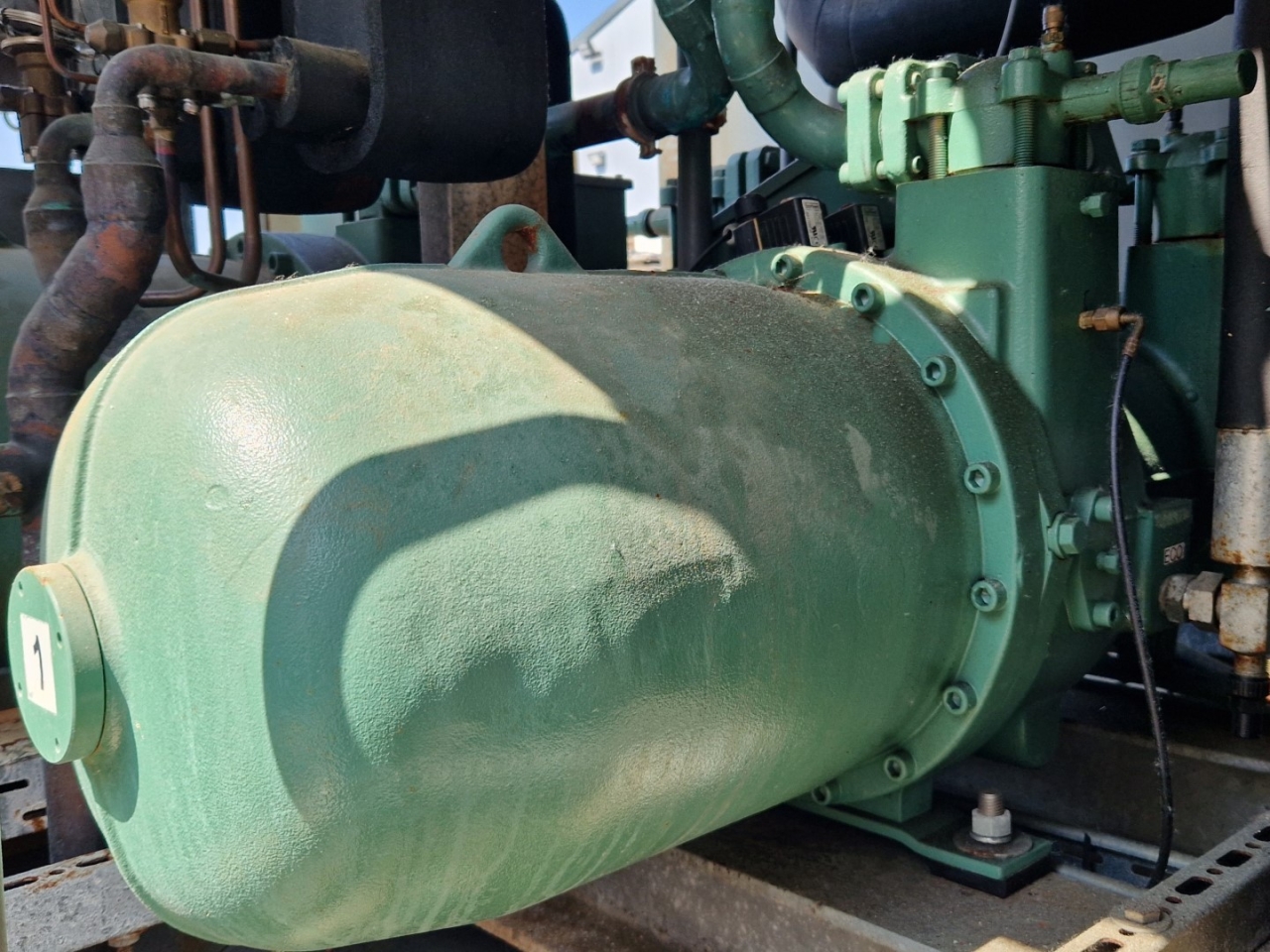

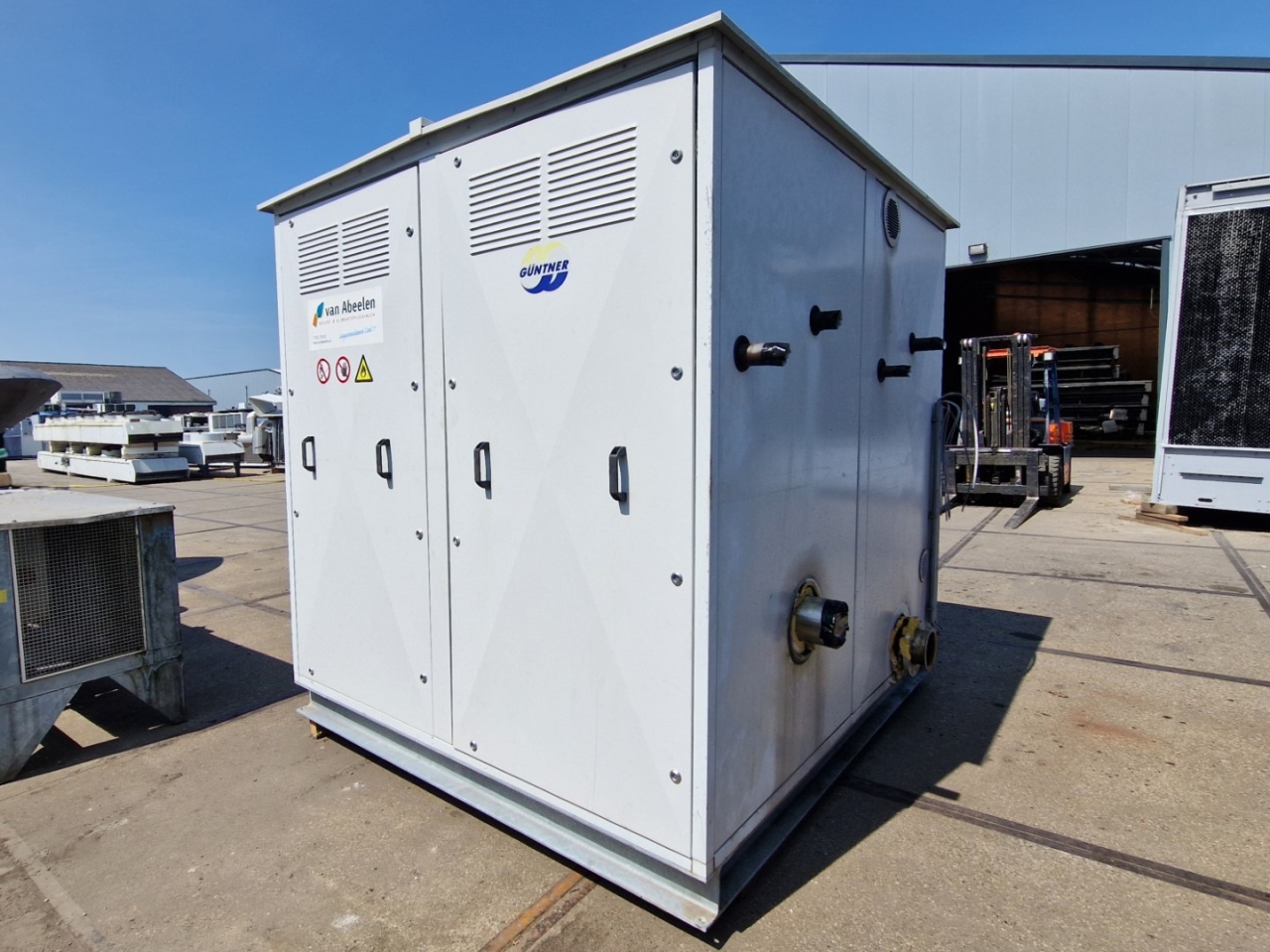

Used Bitzer CSHP7563-80P-40P (x1) & CSHP6563-60P-40P (x1) air cooled chiller on Propane (R290). Complete with a Güntner GCHV PD 080.2NF/24E-49 condenser with 8 EBM-Papst S3G800-CG95-09 fans - 50/60 Hz - 0,9 kW - 770 RPM - diameter 800 mm, brazed heat exchanger as evaporator, 2 small heat exchangers as economizers, KSB ETL 050-050-160 water pump, pressur and safety switches/gauges and a control cabinet with an Emotron FDU48-105 frequency drive. The compressor has a displacement of 397 m³/h at 50 Hz & 479 m³/h at 60 Hz.
*All components of this used chiller will be tested on adequate performance, leak free condition (condensing blocks, compressors, fans, control panel and so forth). Choosing HOSBV means buying with warranty. We perform a industrial cleaning if requested we can arrange your shipment.
