Alfa Laval M10-BWFDR
|
300621 |
| Mapka |
Alfa Laval
|
| тип |
M10-BWFDR
|
| Product type |
PHE
|
| Refrigerant / Medium |
NH3 / Water
|
| кВт |
350,0
|
| поверхность (m2) |
24,2 m²
|
| Size |
1300x470x940 mm (LxWxH)
|
| Layers / Cassettes |
124
|
| Volume |
77,5 dm³
|
| Количество на складе |
1 |
Alfa Laval M10-BWFDR

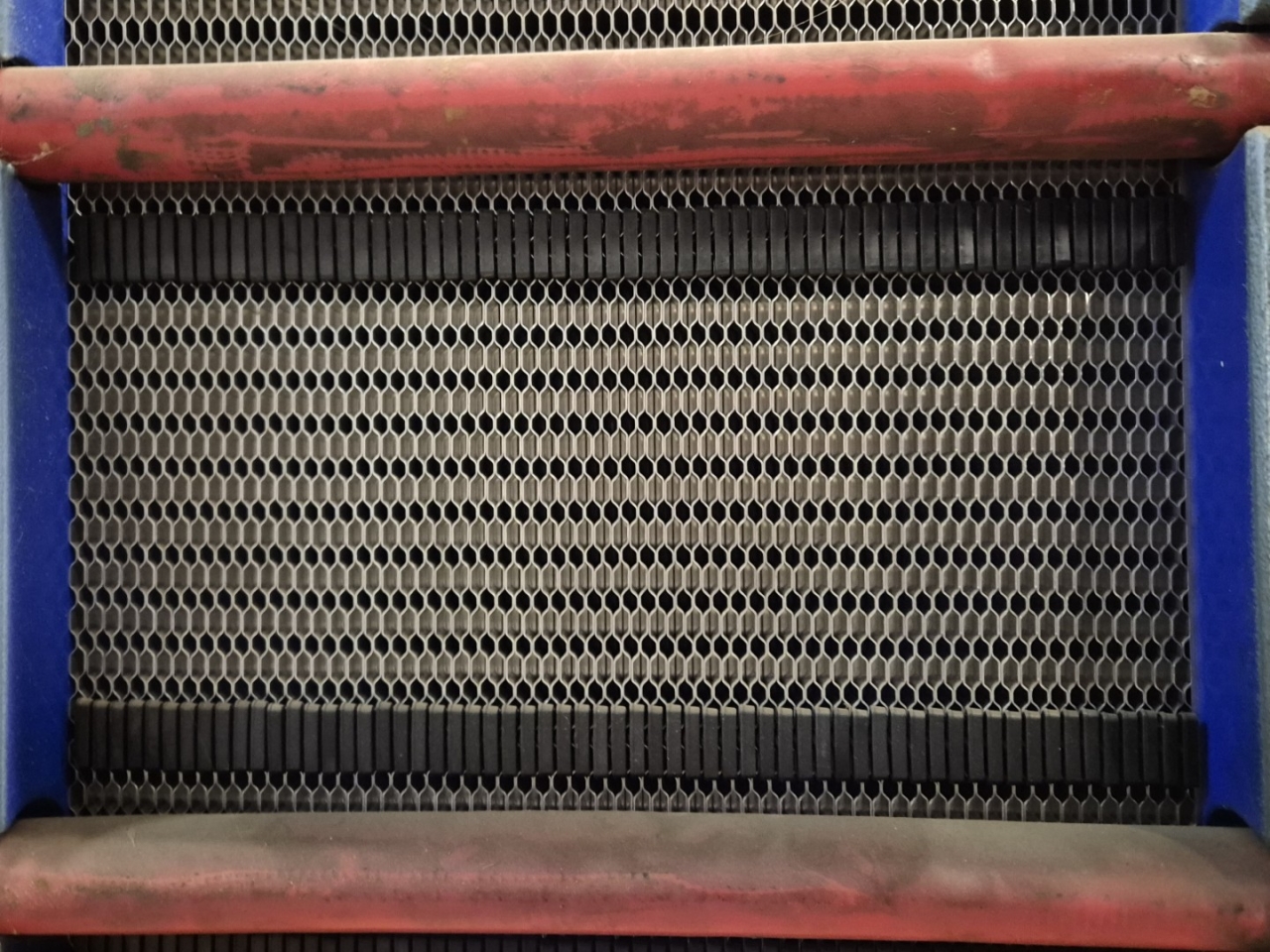

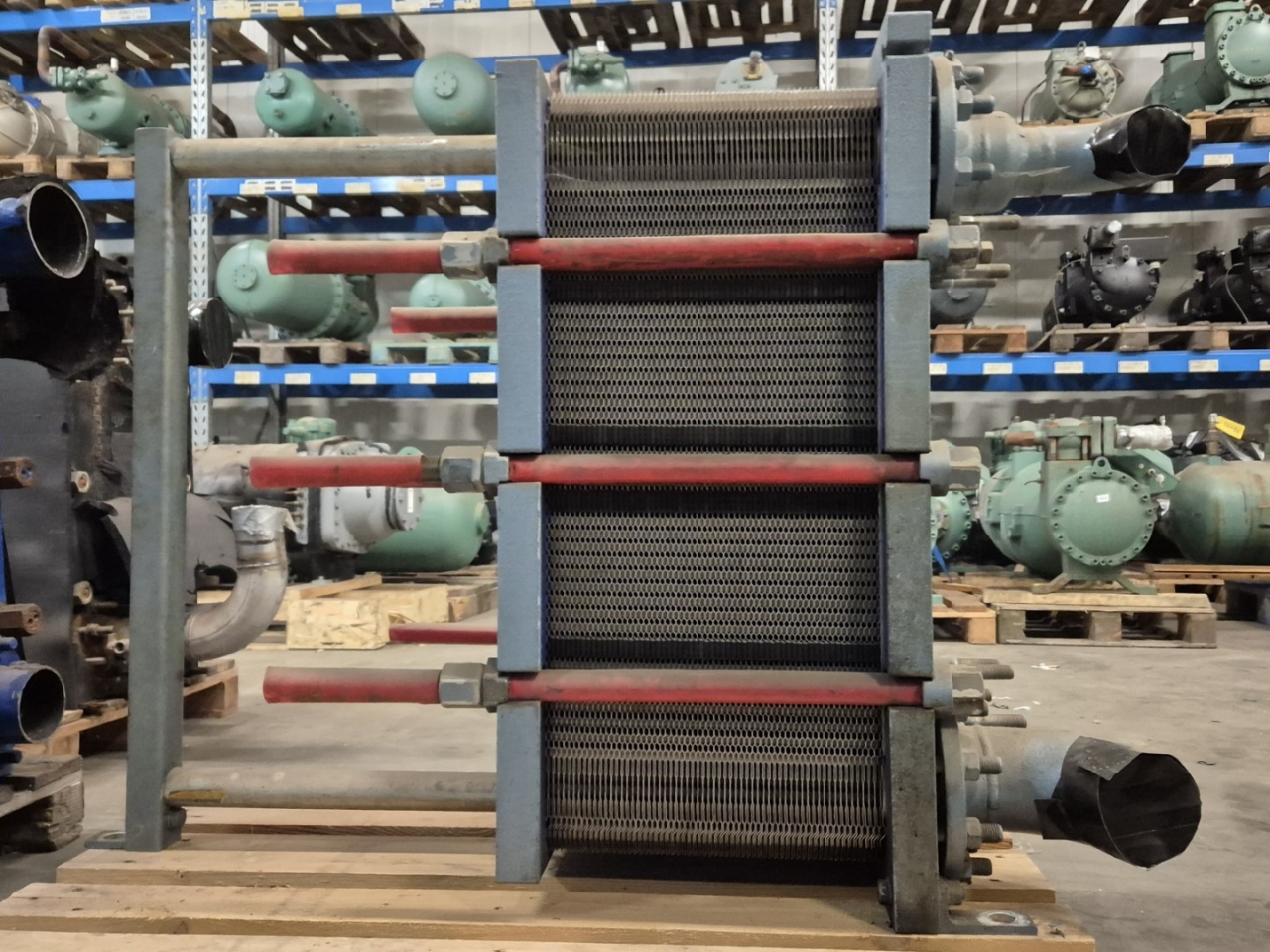

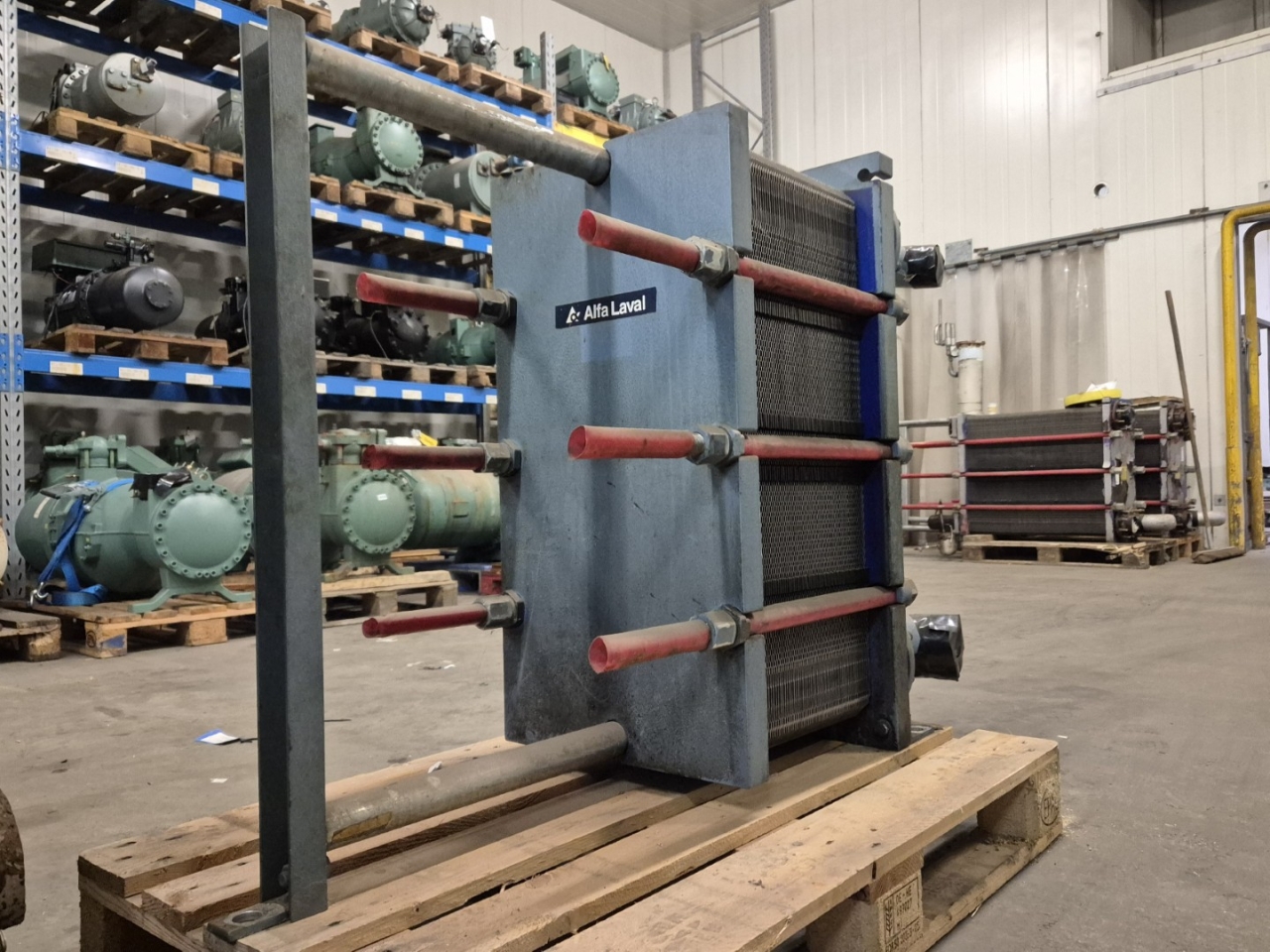

Used Alfa Laval M10-BWFDR plate heat exchanger with 124 plates for R717 (Ammonia) / Water. The heat exchanger has a capacity of 350 kW at the following values:
Medium hot side: R717
Medium cold side: Water
Hot side condensationtemperature: 40°C
Cold side in: 30°C
Cold side out: 35°C
Heat exchanger area: 24,2 m²
Water flow: 60,6 m³/h
Alfa Laval M10-BWFDR
