KTK TWA 462 VV/Y/A CC/SL/FE/IM/CP/IS/NS
KTK TWA 462 VV/Y/A CC/SL/FE/IM/CP/IS/NS
| 18956 | |
| Производитель | KTK |
| Тип | TWA 462 VV/Y/A CC/SL/FE/IM/CP/IS/NS |
| Тип продукта | Air Cooled Chiller |
| кВт | 413,0 |
| Мощность, тонн | 117,4 |
| Хладагент | Freon |
| Тип хладагента | R134a |
| Масса |
Transport weight: 3807 kg Operating weight: 3990 kg |
| Sizes | 6000x2200x2200 mm (LxWxH) |

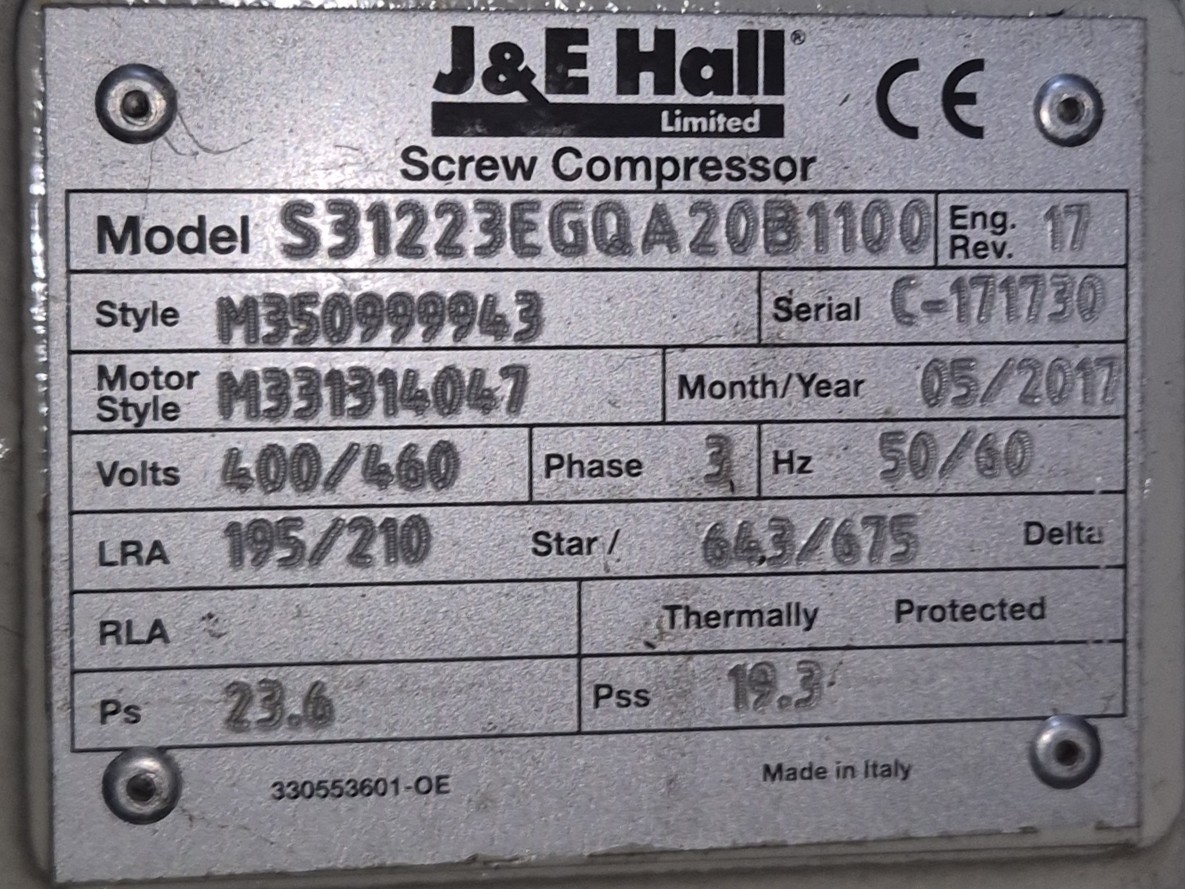

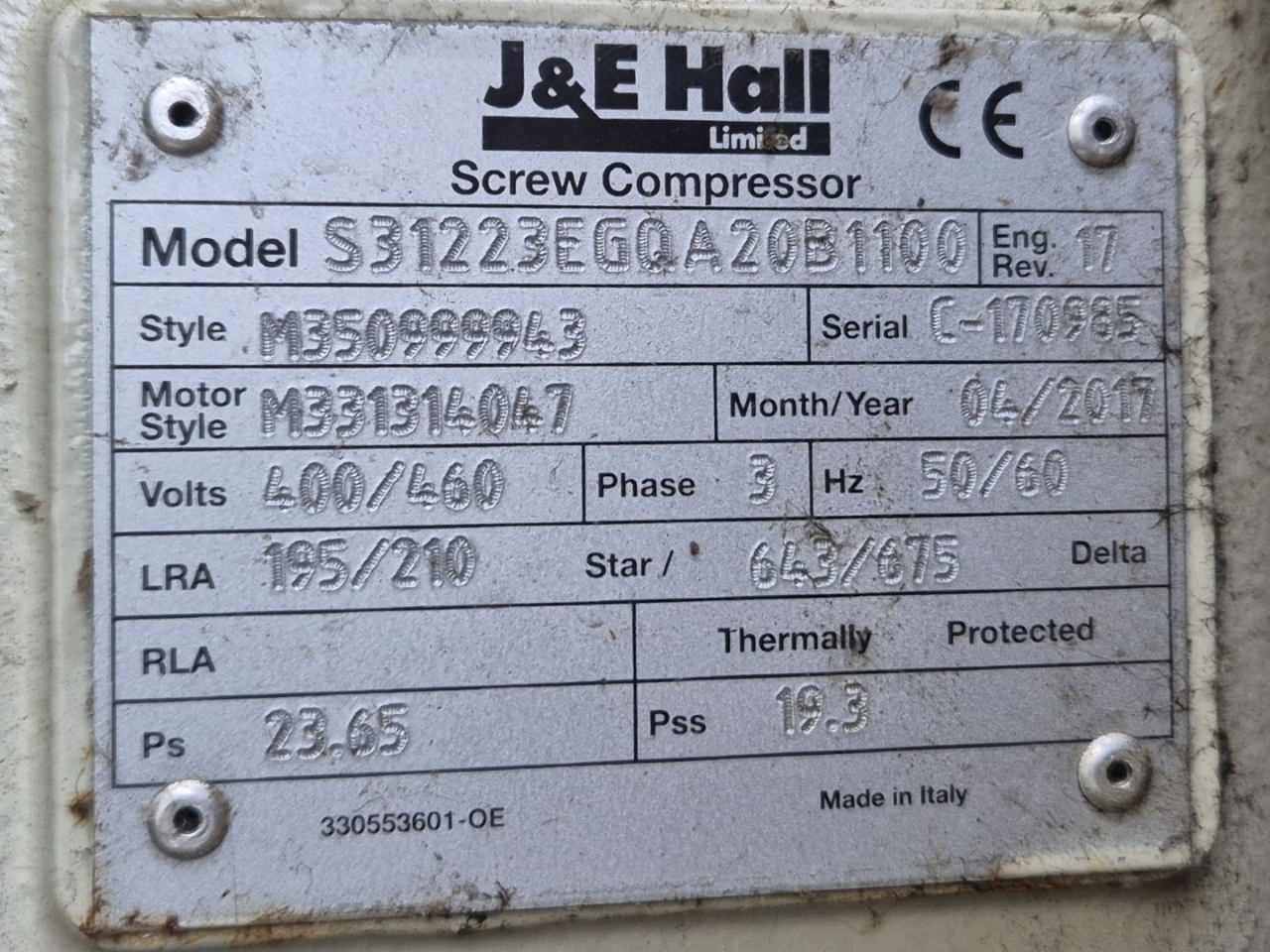

| Compressor(s) type & model | 2x J&E Hall S31223EGQA20B1100 |

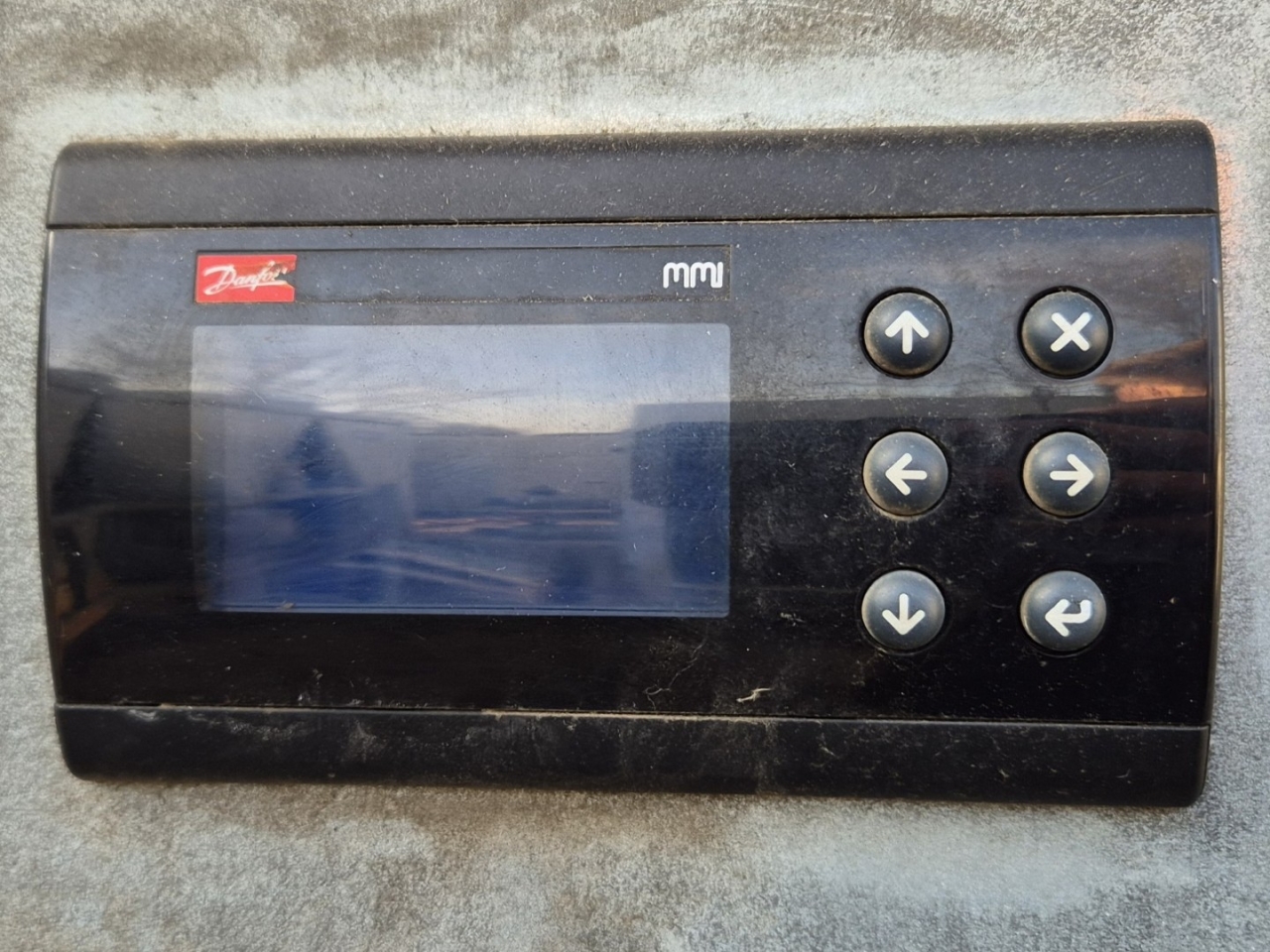

| Display | Danfoss MMI |
| Number of fans | 8 |

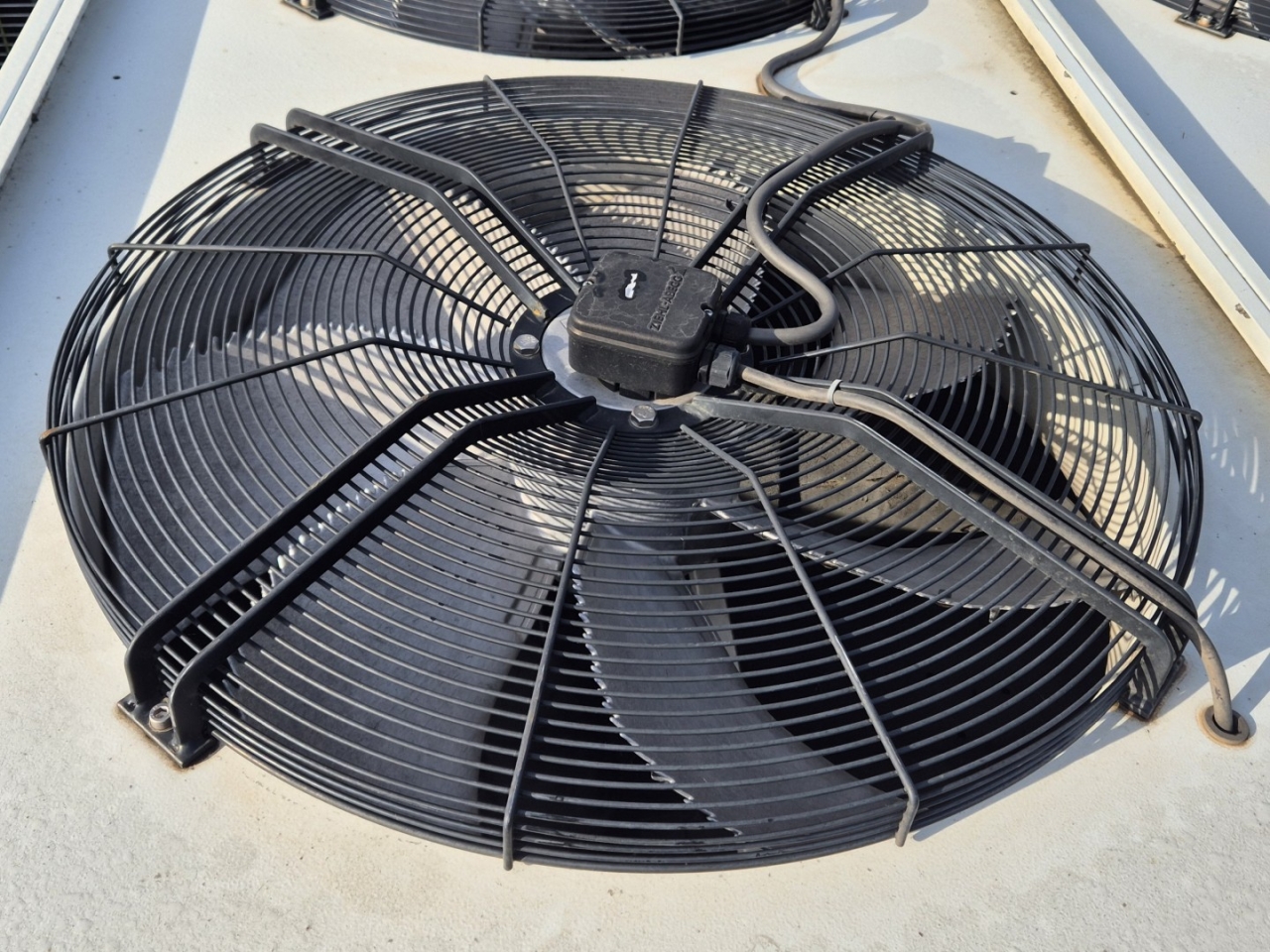

| Fan specifications | 50 Hz - 1,9/1,1 kW - 870/630 RPM - diameter 800 mm |
| Примечания | | Y.o.b. 2017 |
| Количество на складе | 1 |
KTK TWA 462 VV/Y/A CC/SL/FE/IM/CP/IS/NS

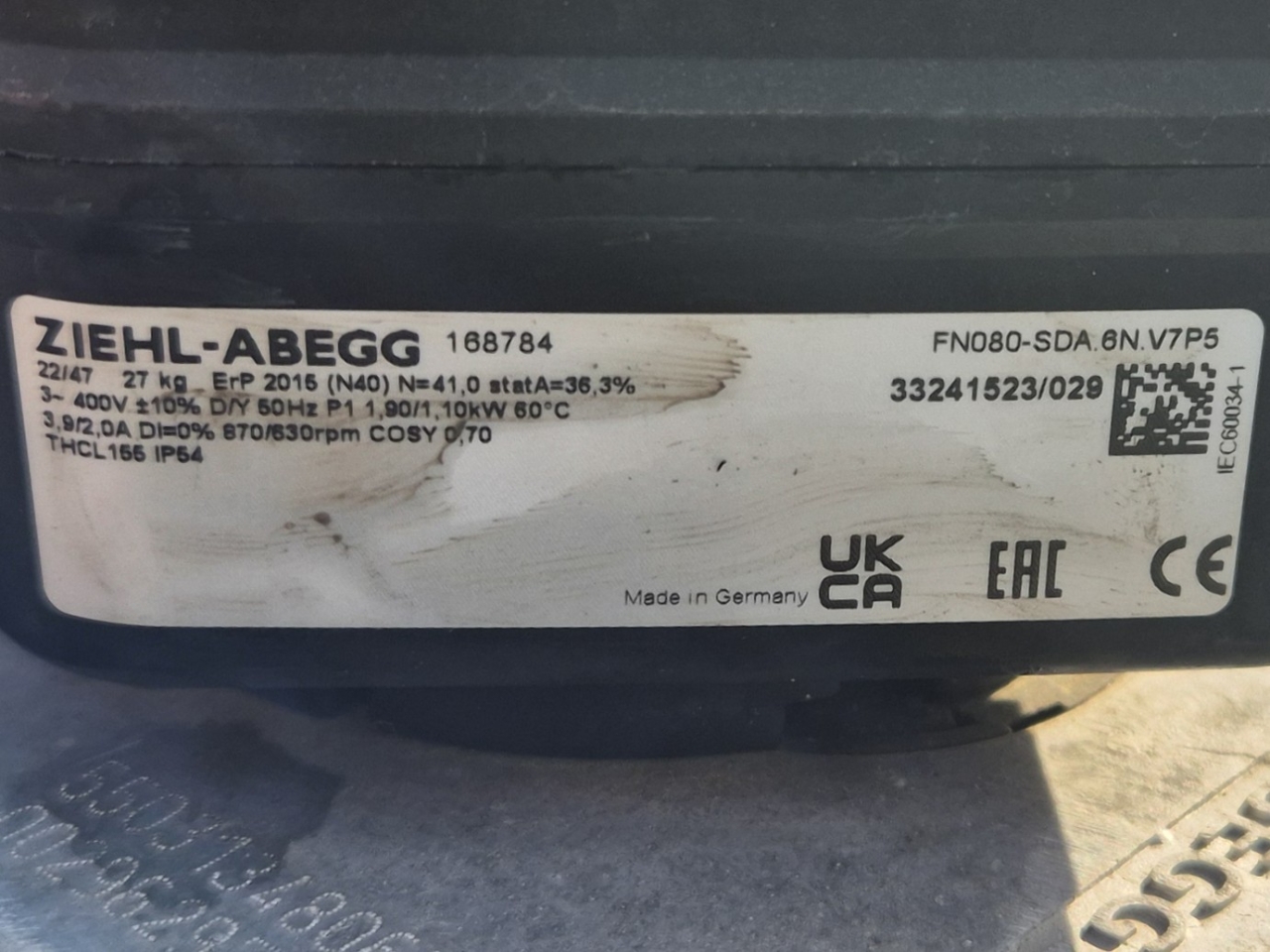

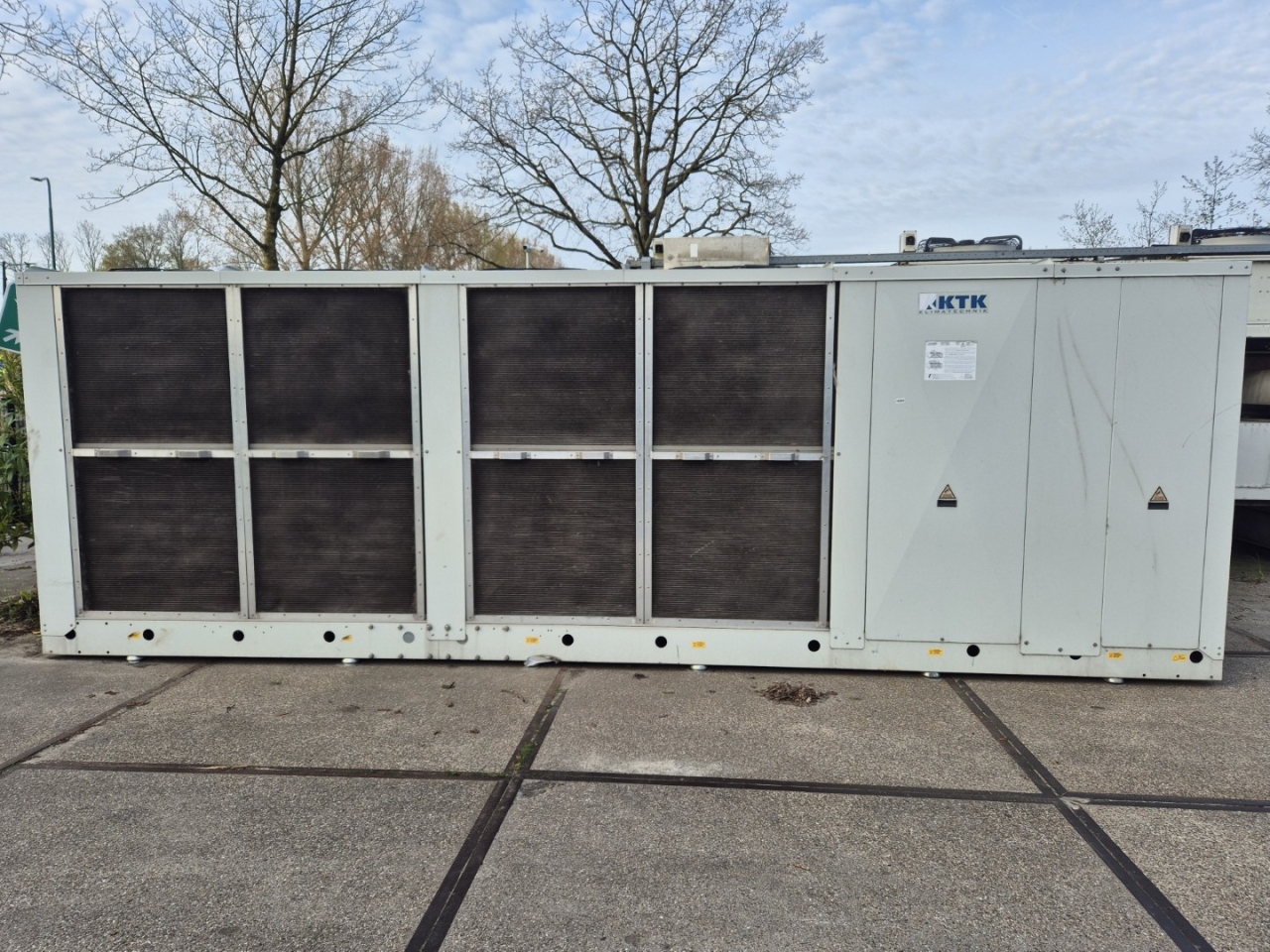

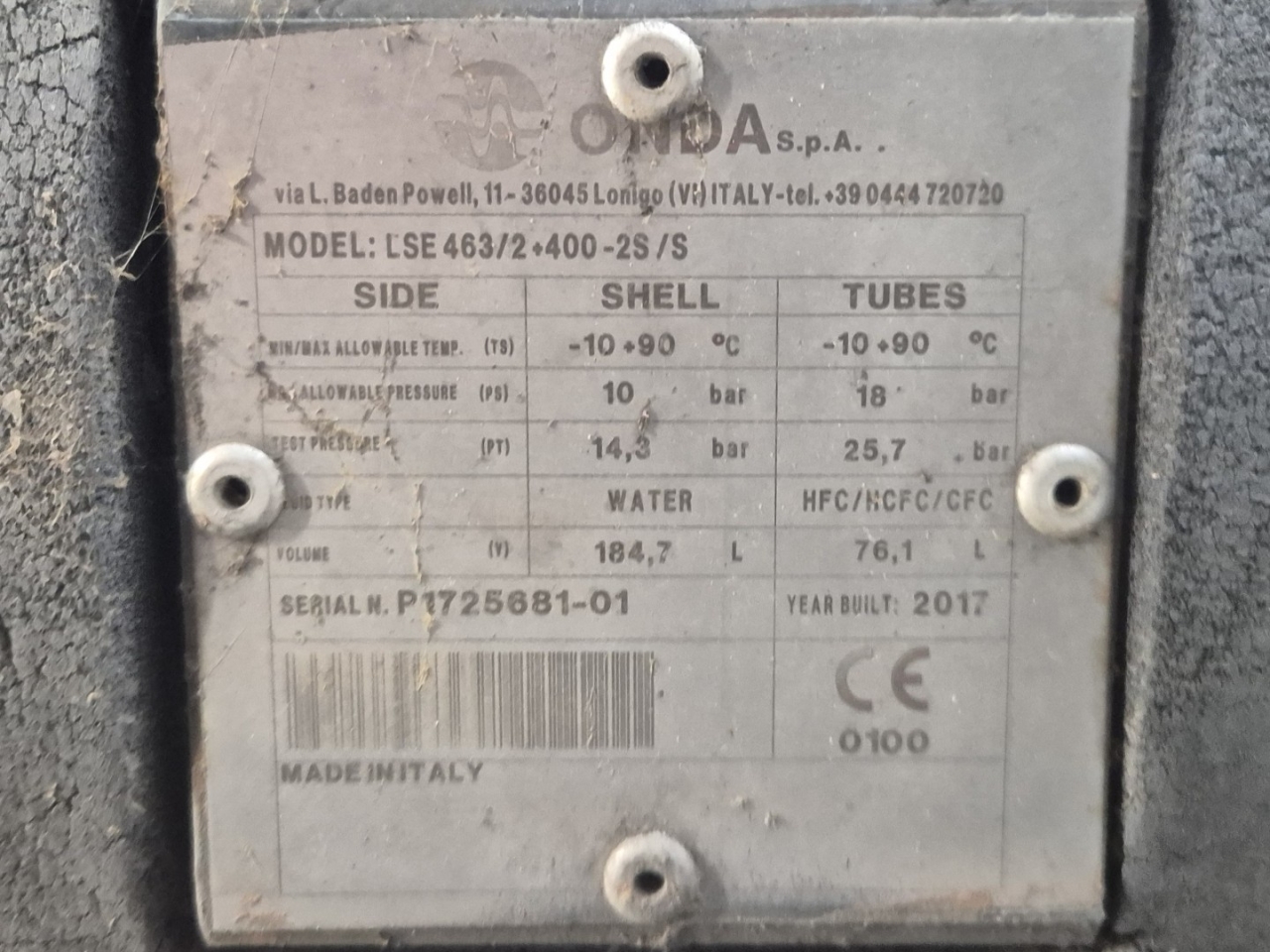

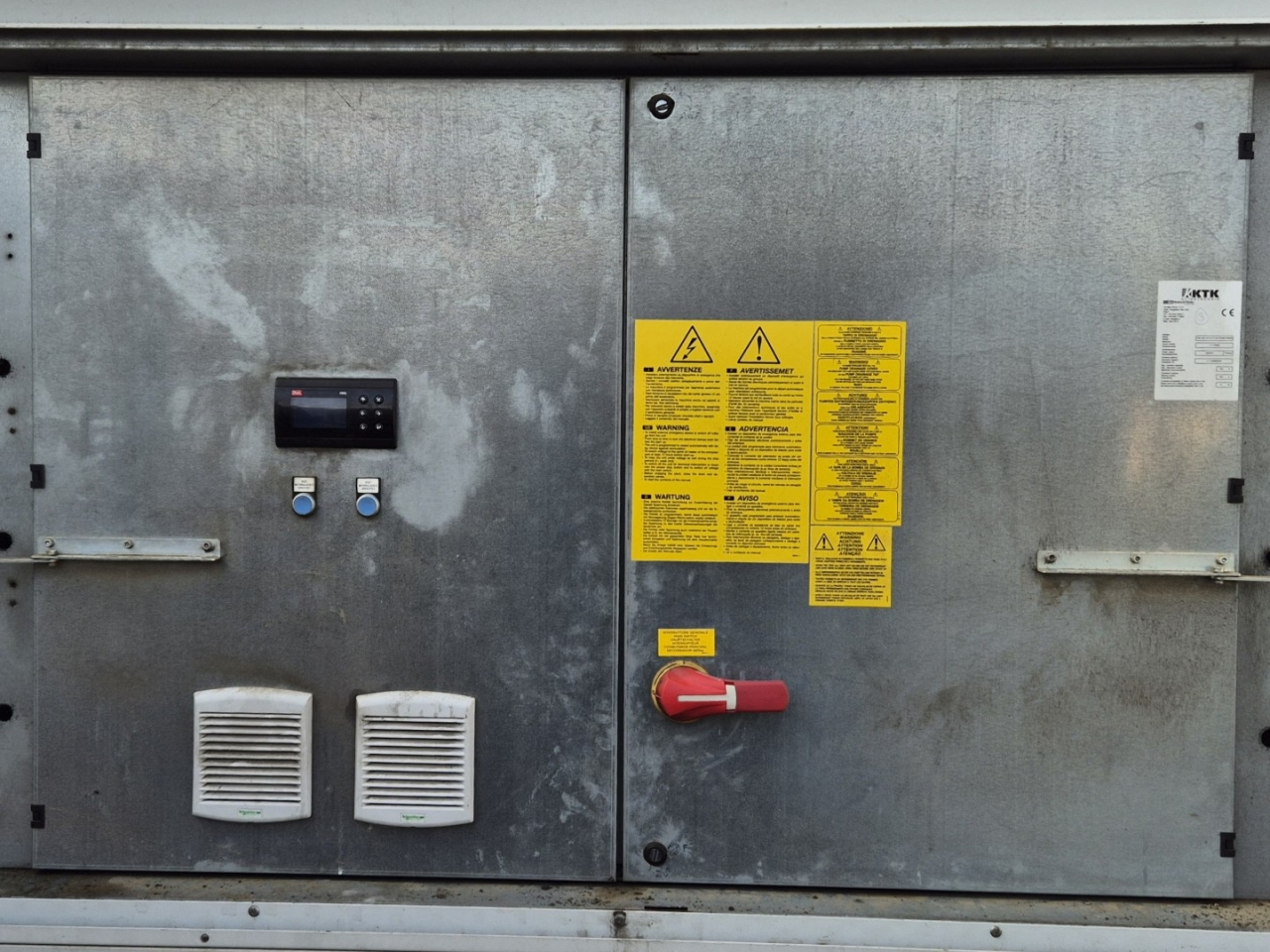

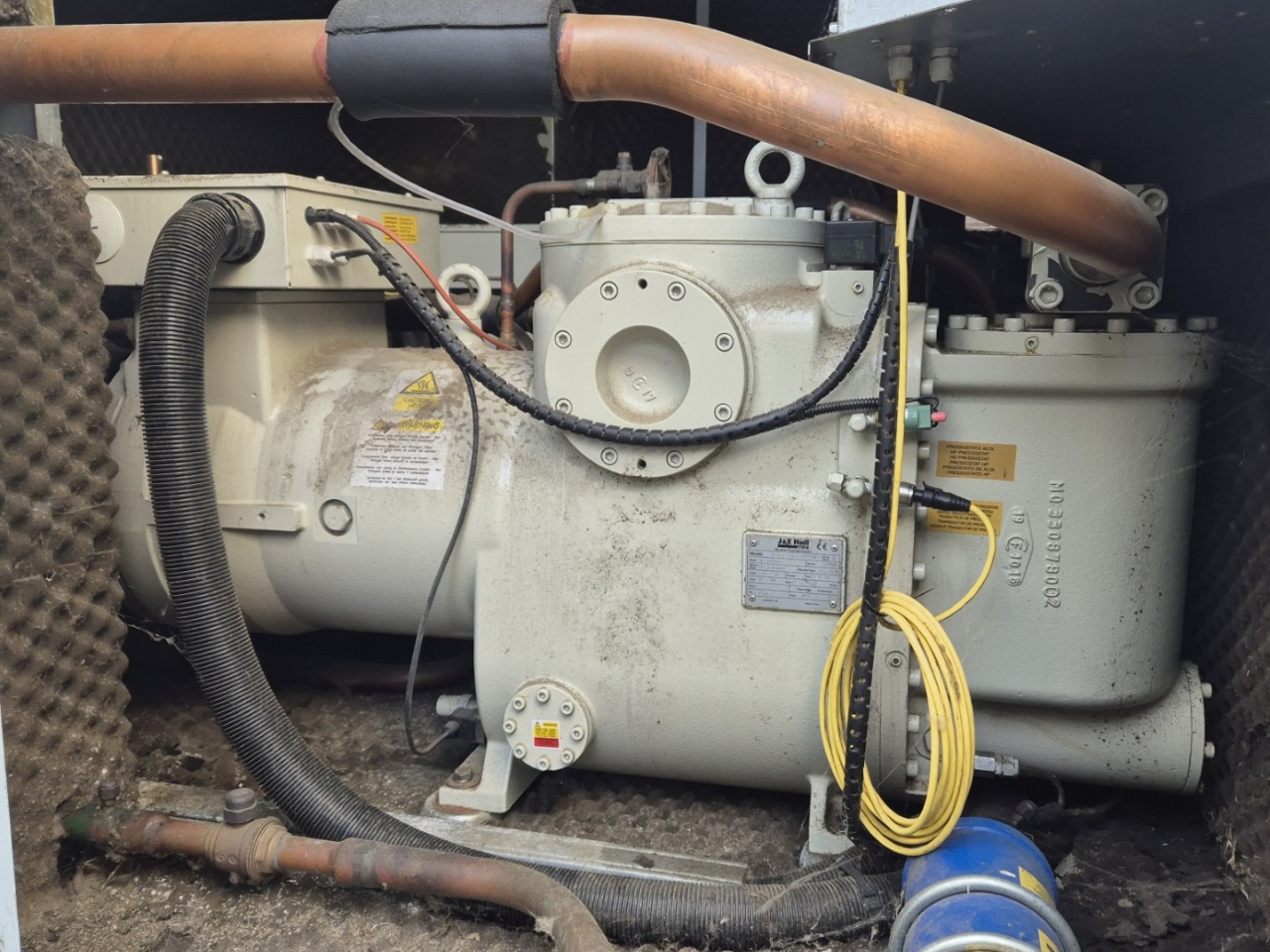

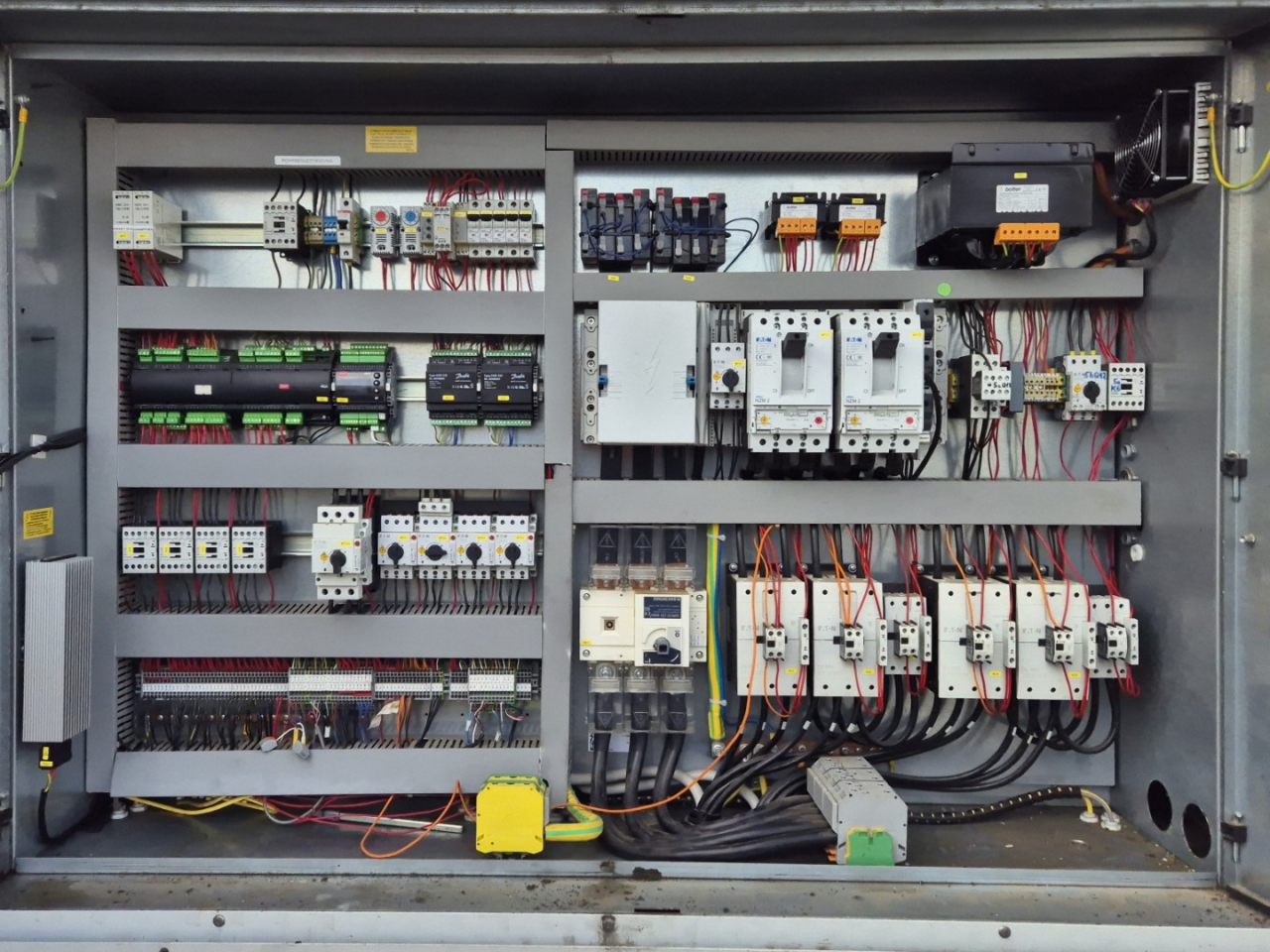

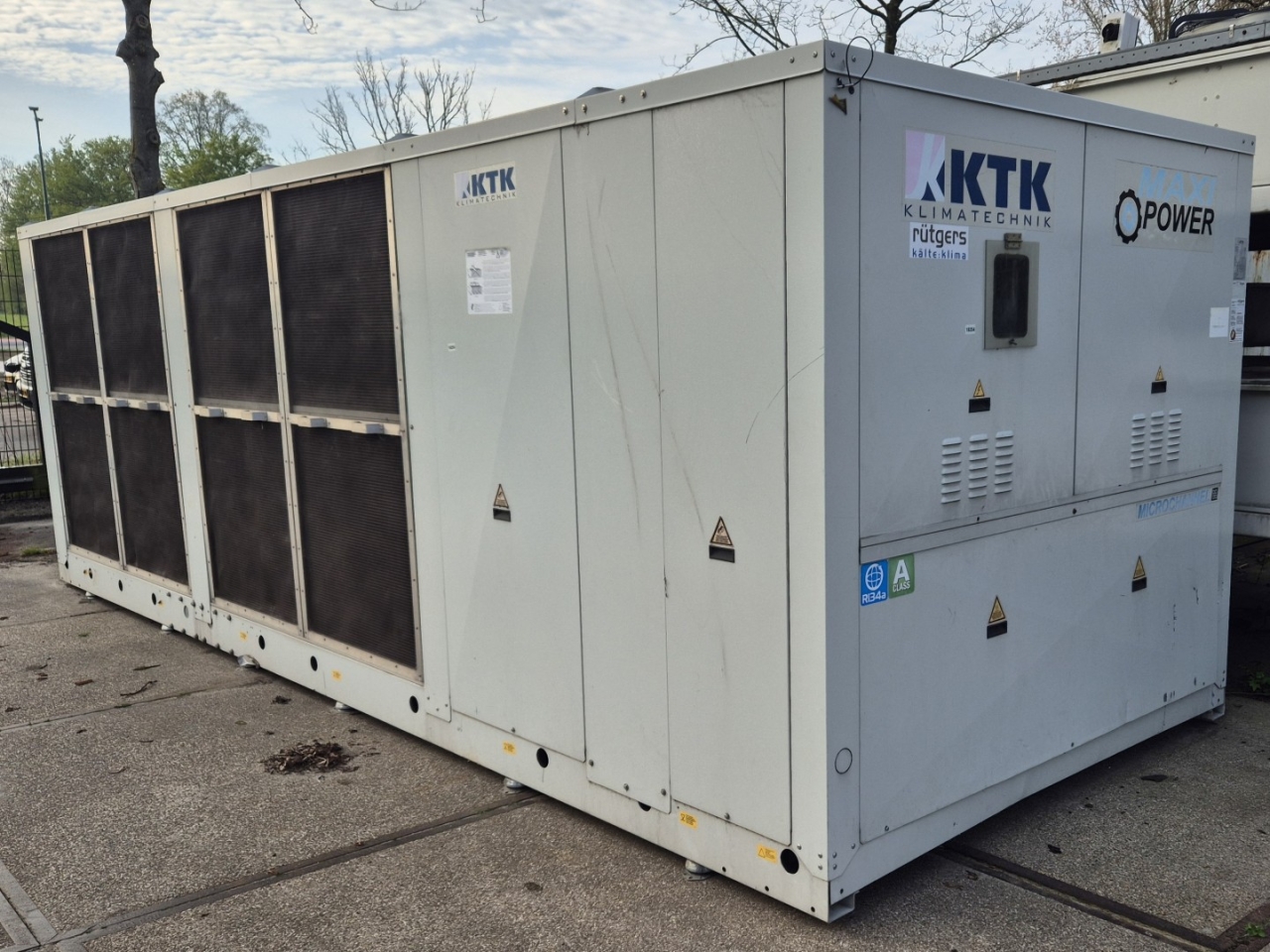

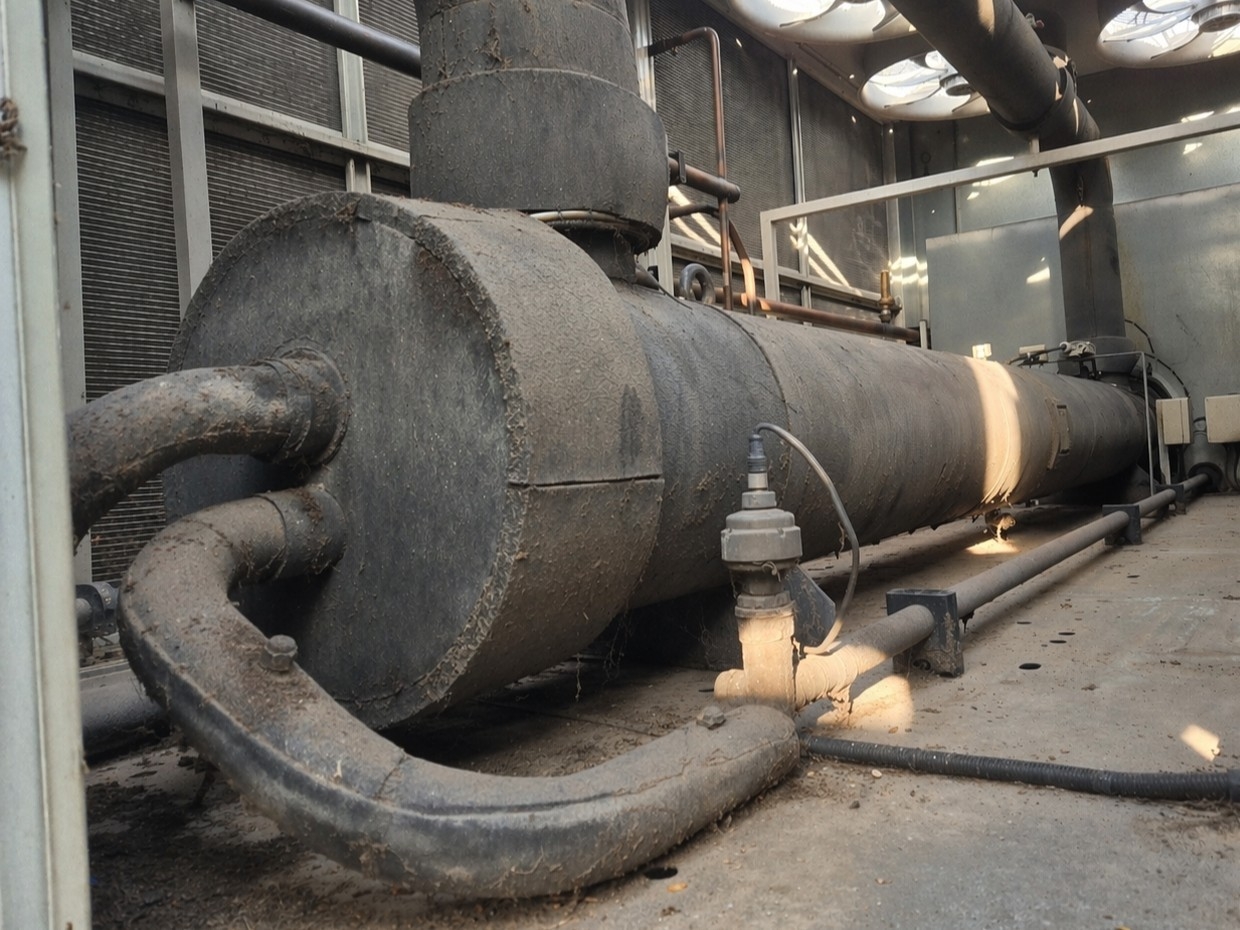

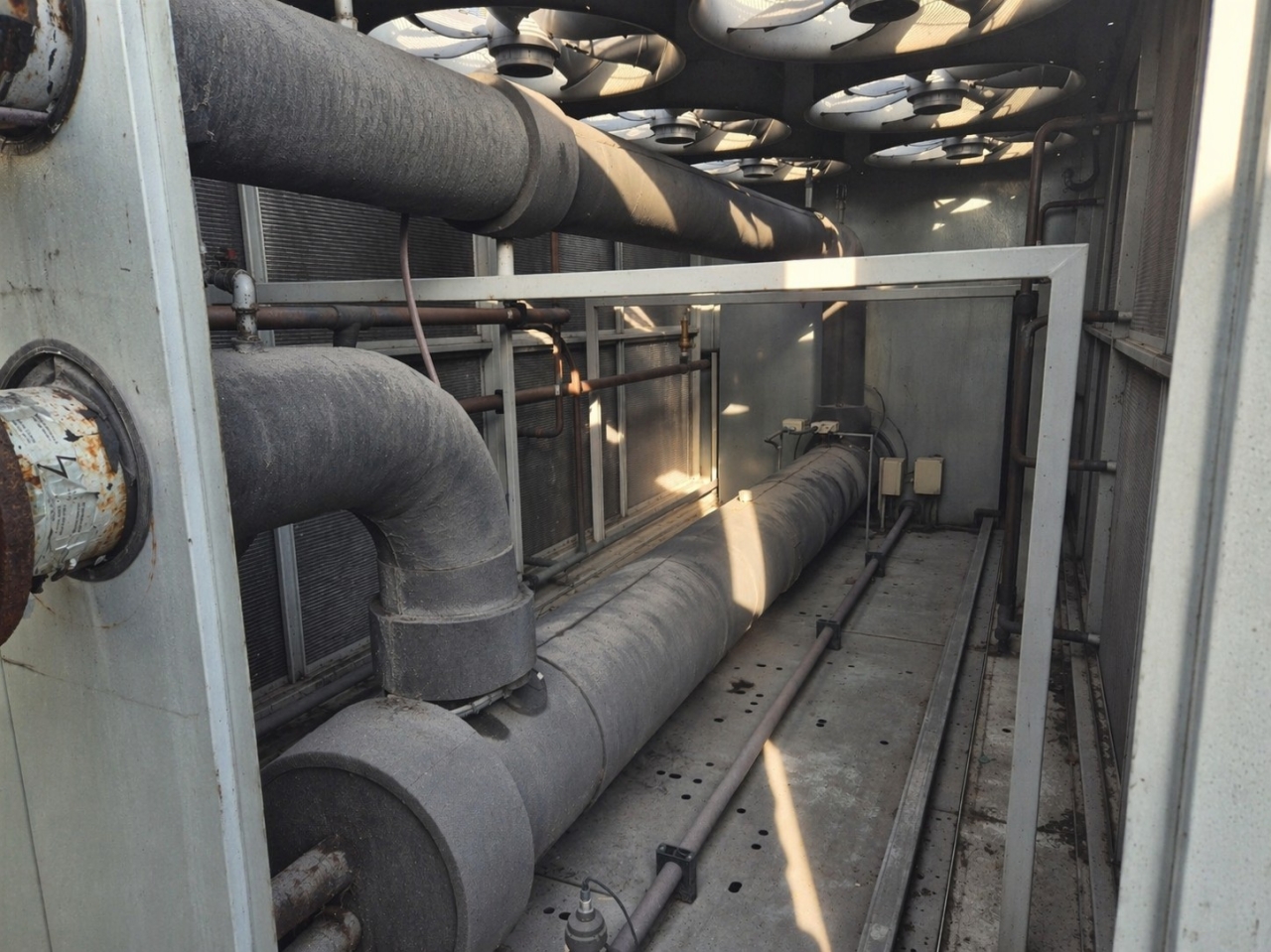

Used KTK TWA 462 CC/SL/FE/IM/CP/IS/NS air-cooled chiller on R134A built in 2017. Complete with 2 J&E Hall S31223EGQA20B1100 screw compressors, condensor with 8 Ziehl-Abegg FN080-SDA.6N.V7P5 fans - 50 Hz - 1,9/1,1 kW - 870/630 RPM - diameter 800 mm, Onda LSE 463/2+400-2S/S shell and tube evaporator with a water flow of 19,7 l/s and a control cabinet with a Danfoss MMI controller. Capacity of 413 kW at a water temperature of 12°C in and 7°C out with an ambient temperature of 35°C.
*All components of this used chiller will be tested on adequate performance, leak free condition (condensing blocks, compressors, fans, control panel, and so forth). Choosing HOSBV means buying with warranty. We perform a industrial cleaning. if requested we can arrange your shipment.
