Yazaki CH -K40
Yazaki CH -K40
| 18965 | |
| Производитель | Yazaki |
| Тип | CH -K40 |
| Тип продукта | Absorption Chiller |
| кВт | 141,0 |
| Мощность, тонн | 40,1 |
| Хладагент | Other |

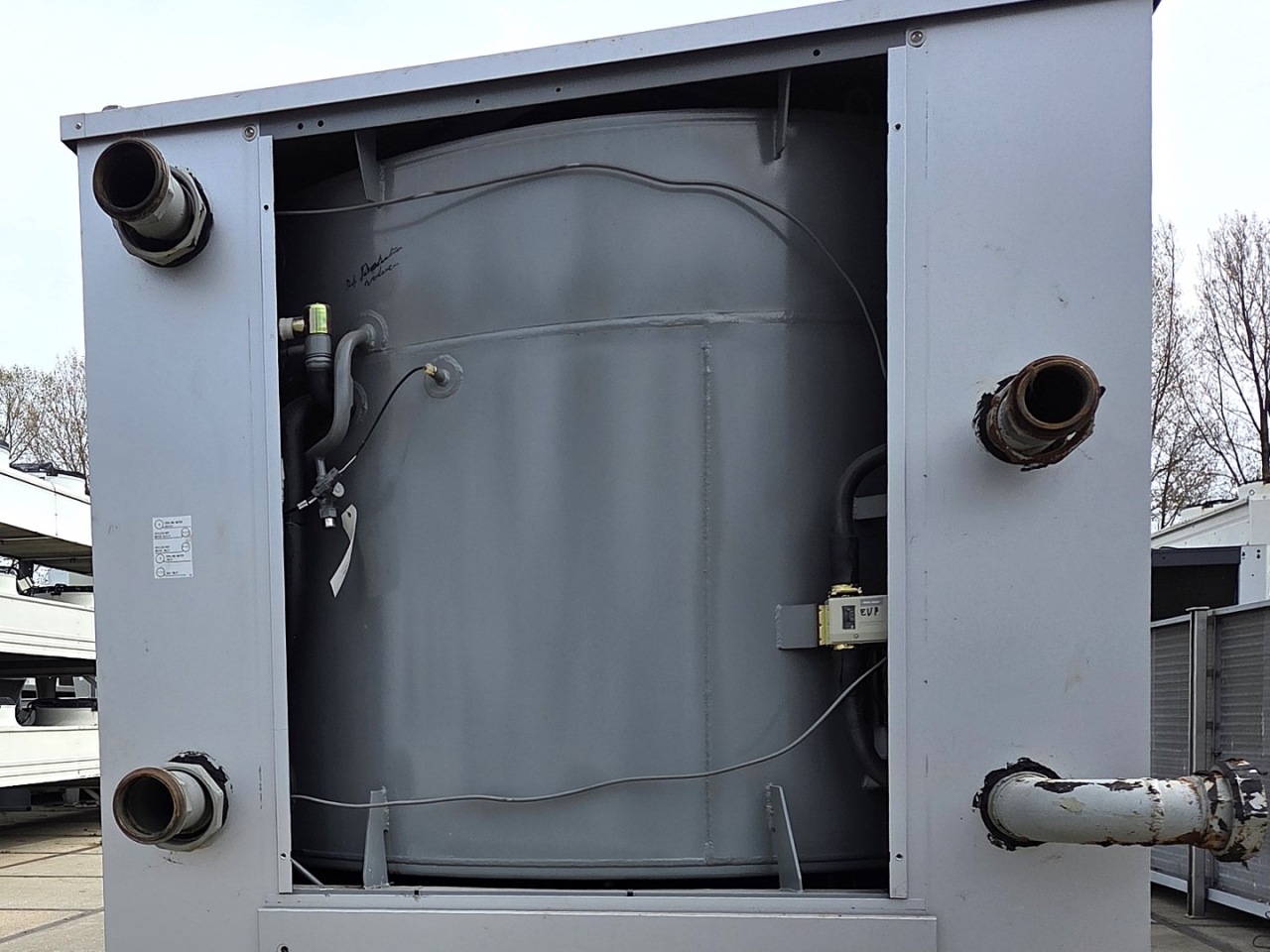

| Liquid buffer tank |
|
| Масса |
Dry weight: 1918 kg Operating weight: 2204 kg |

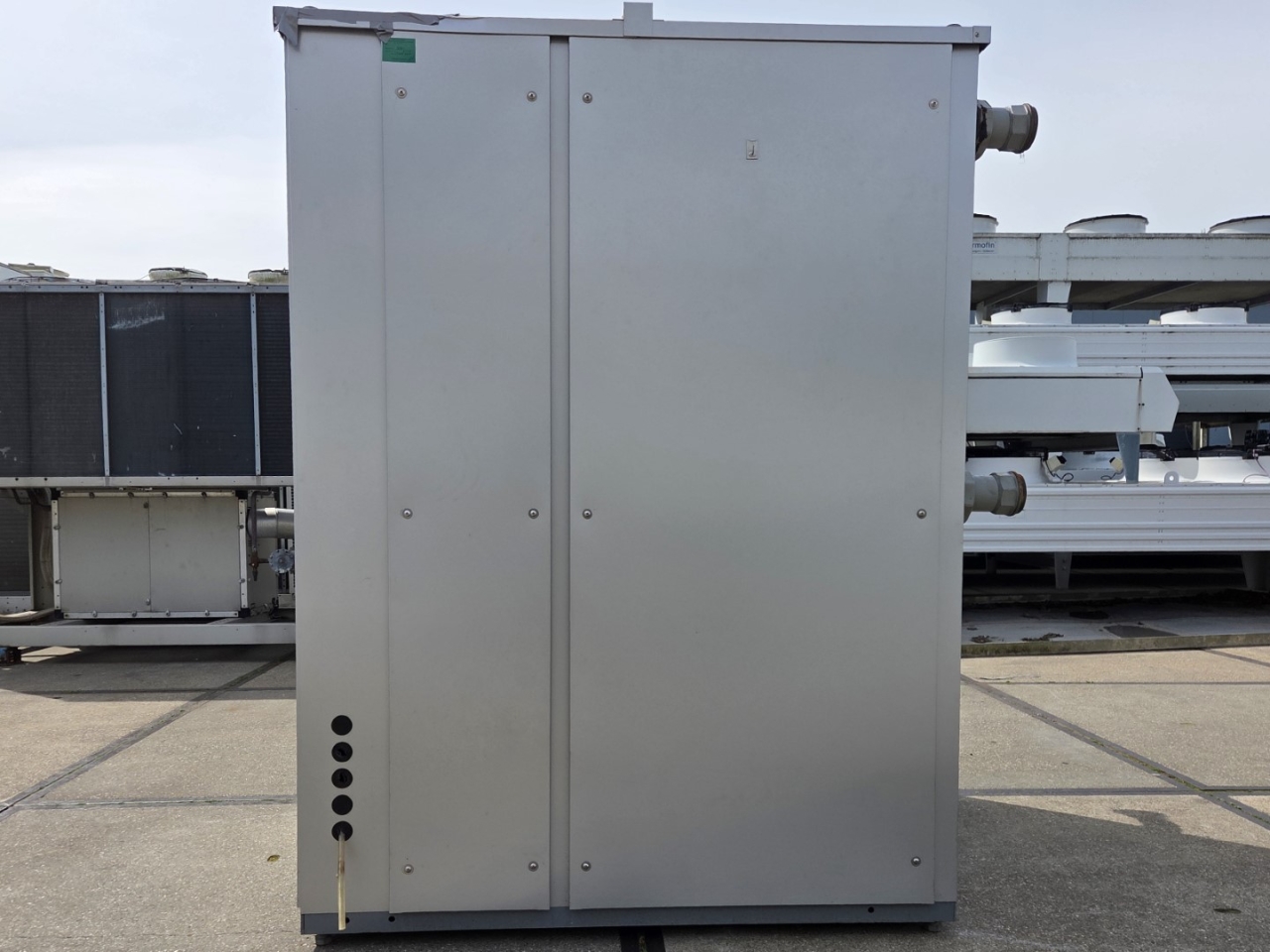

| Sizes | 1430x1700x2100 mm (LxWxH) |
| Примечания | | Y.o.b. 2007 |
| Количество на складе | 1 |

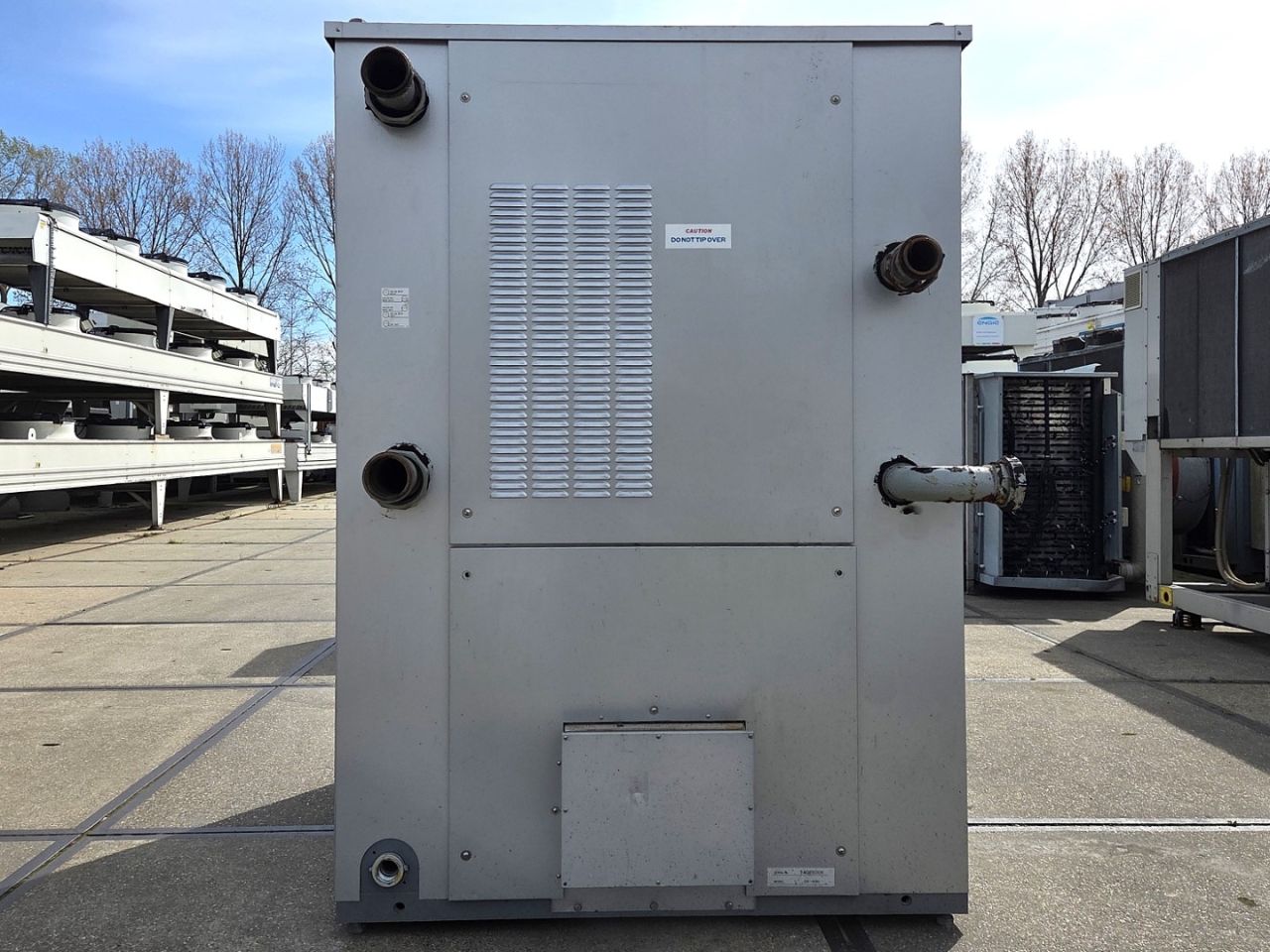

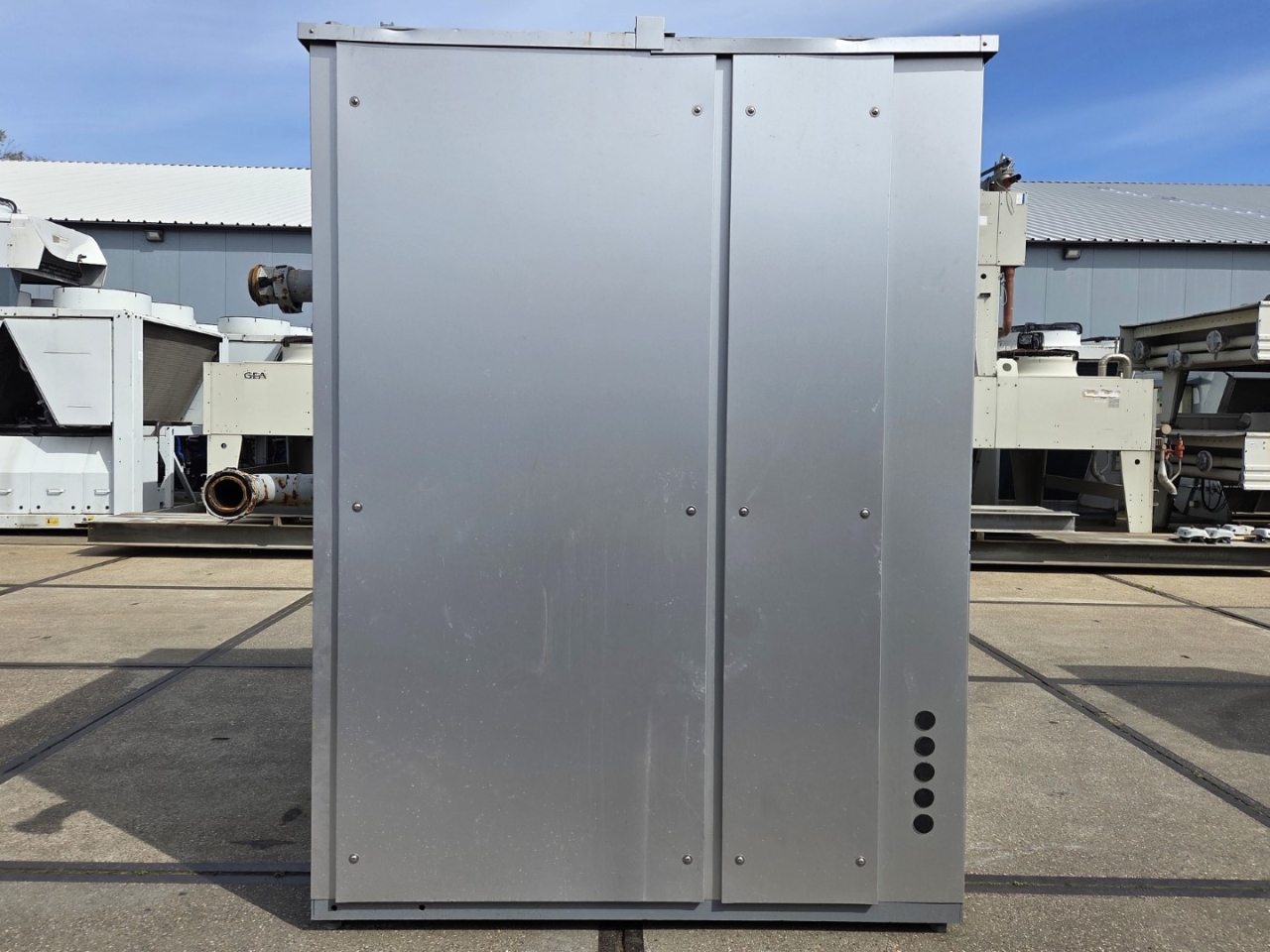

Yazaki CH -K40

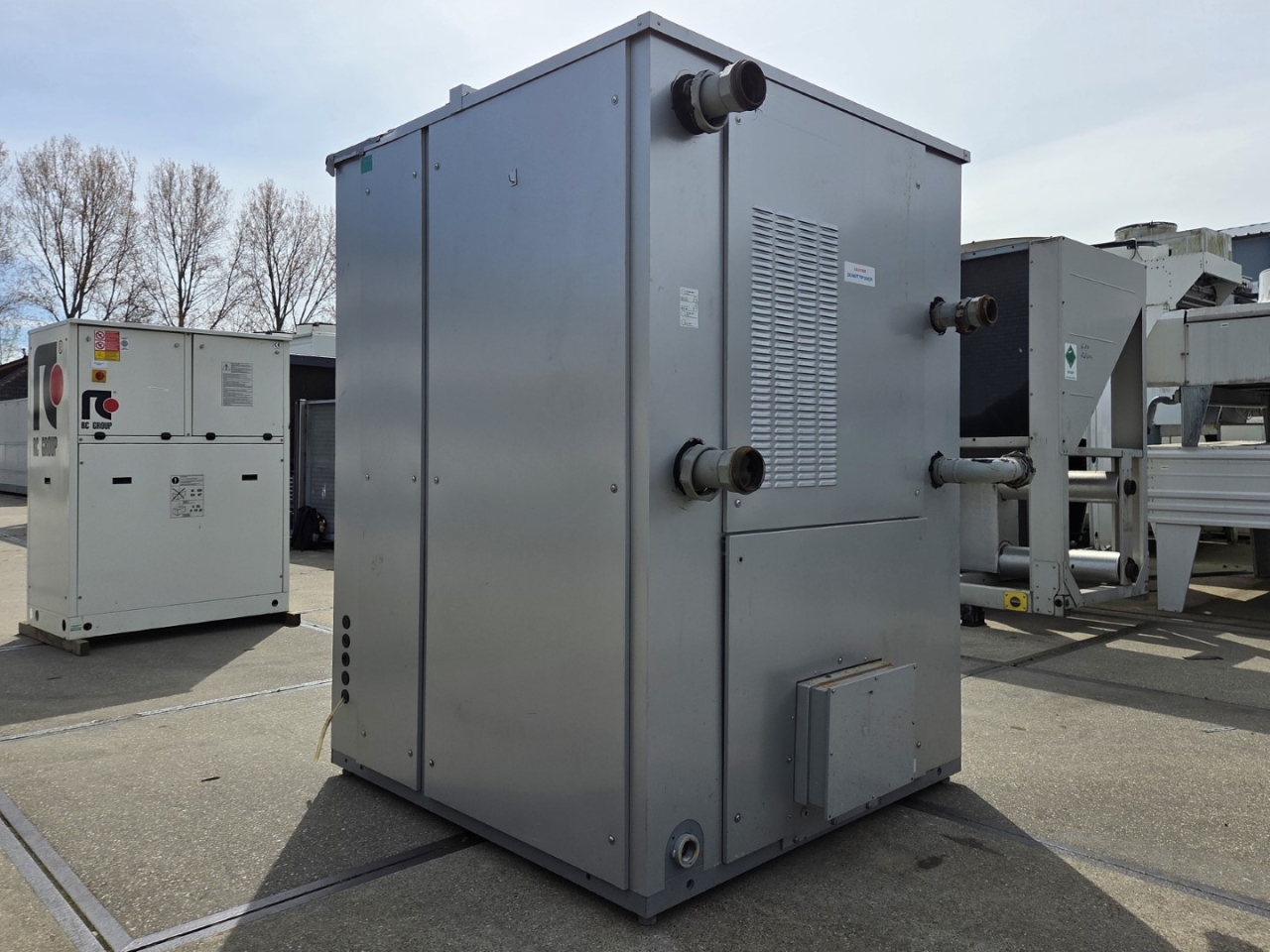

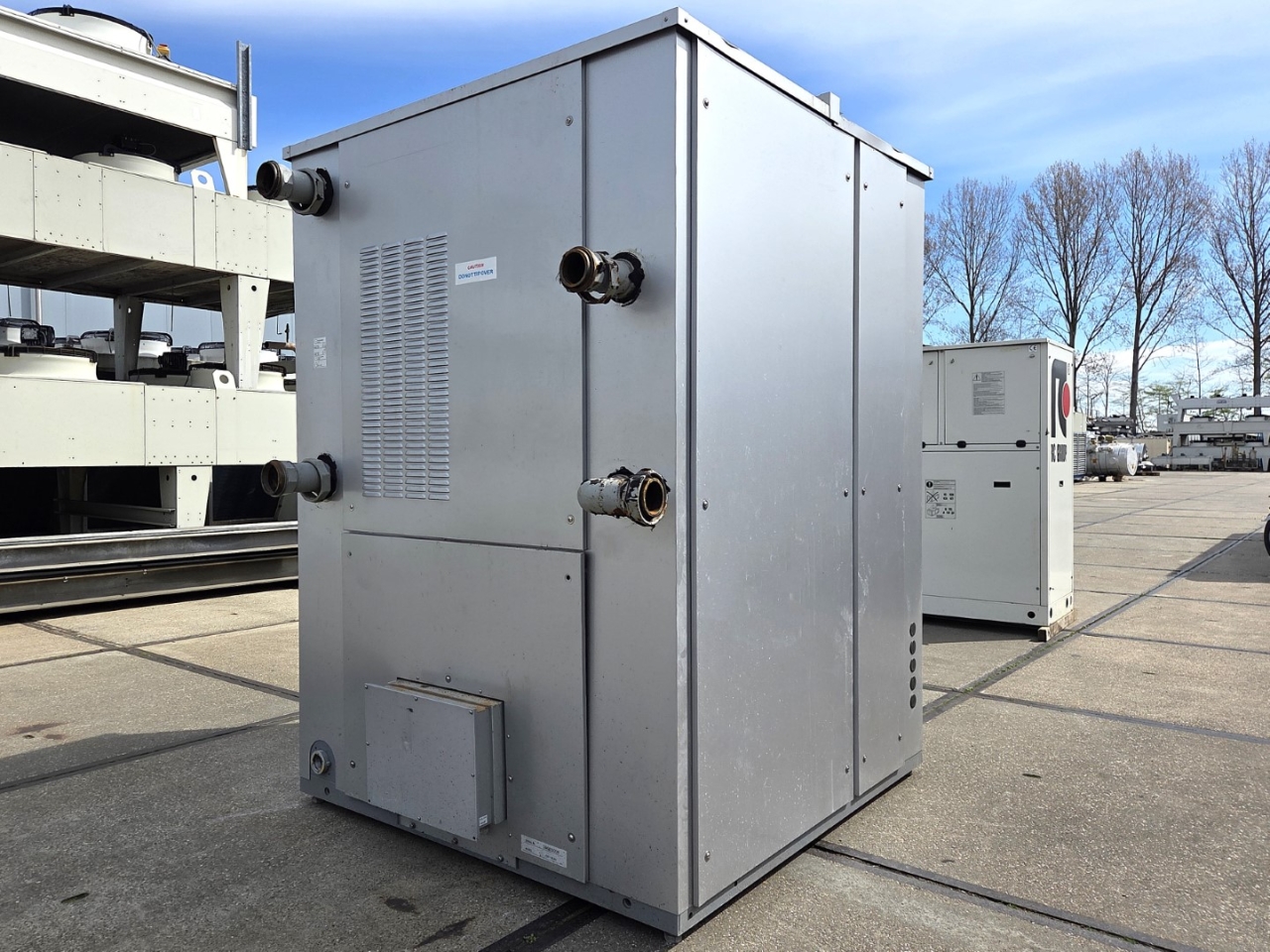

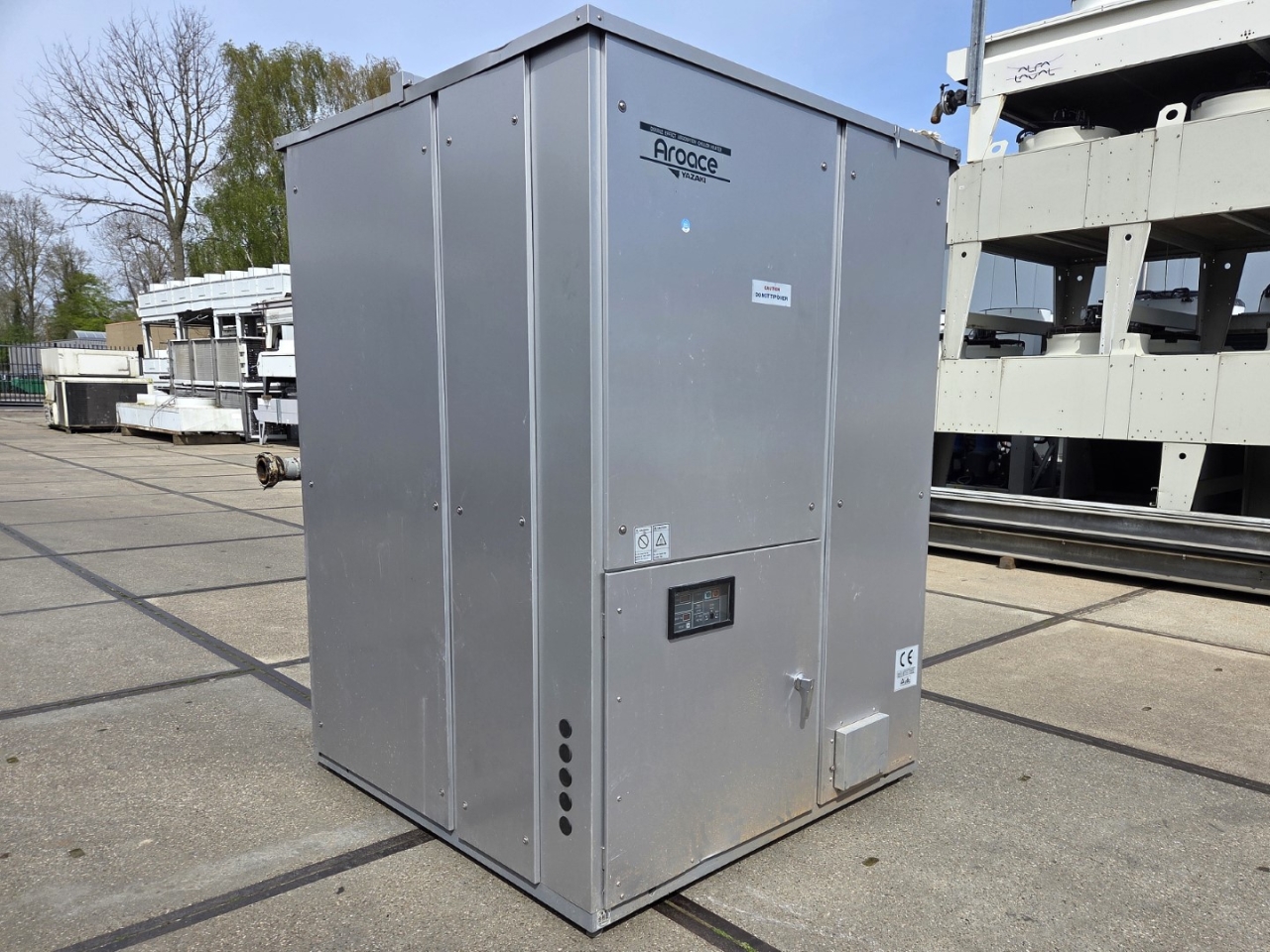

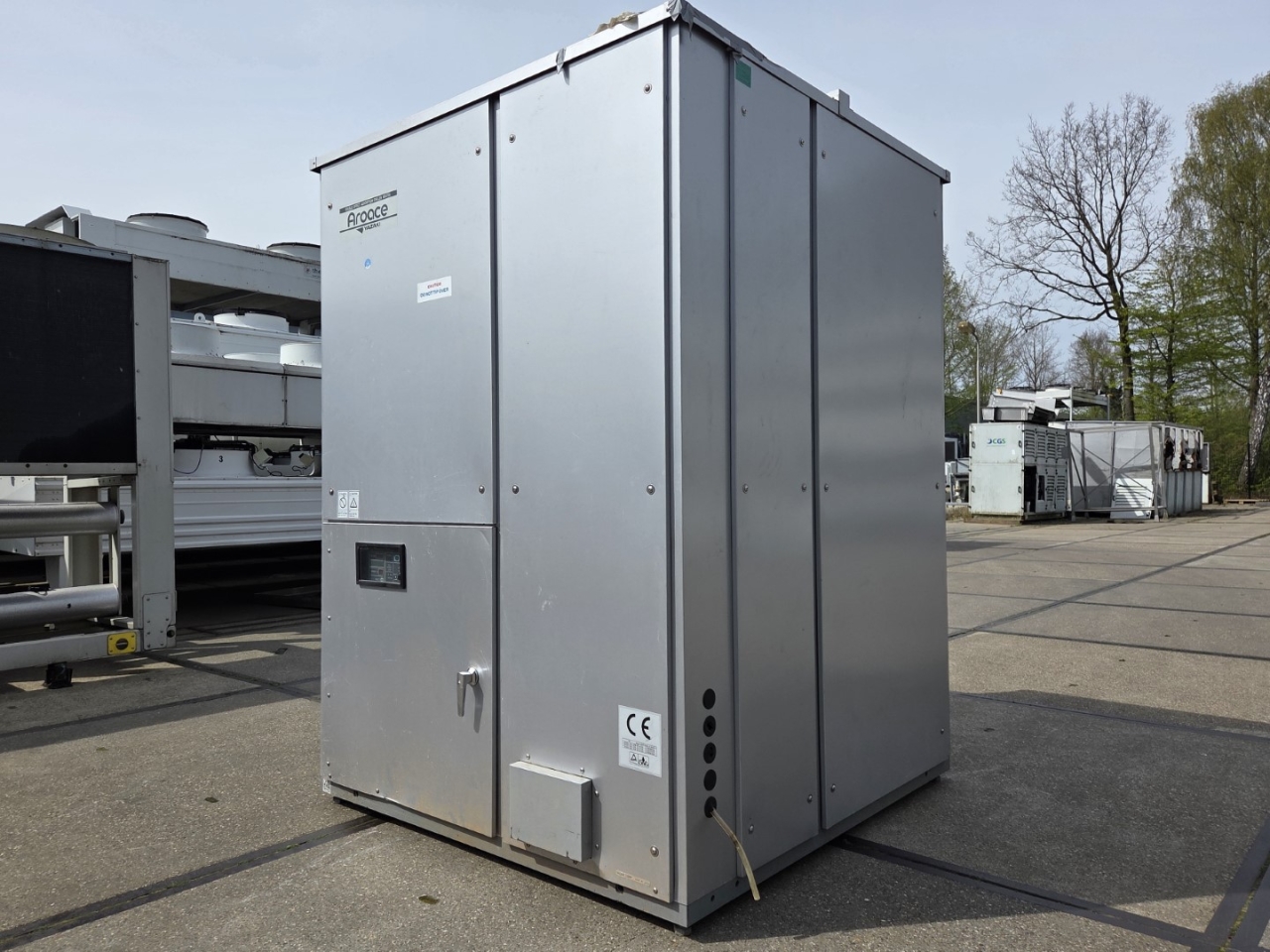

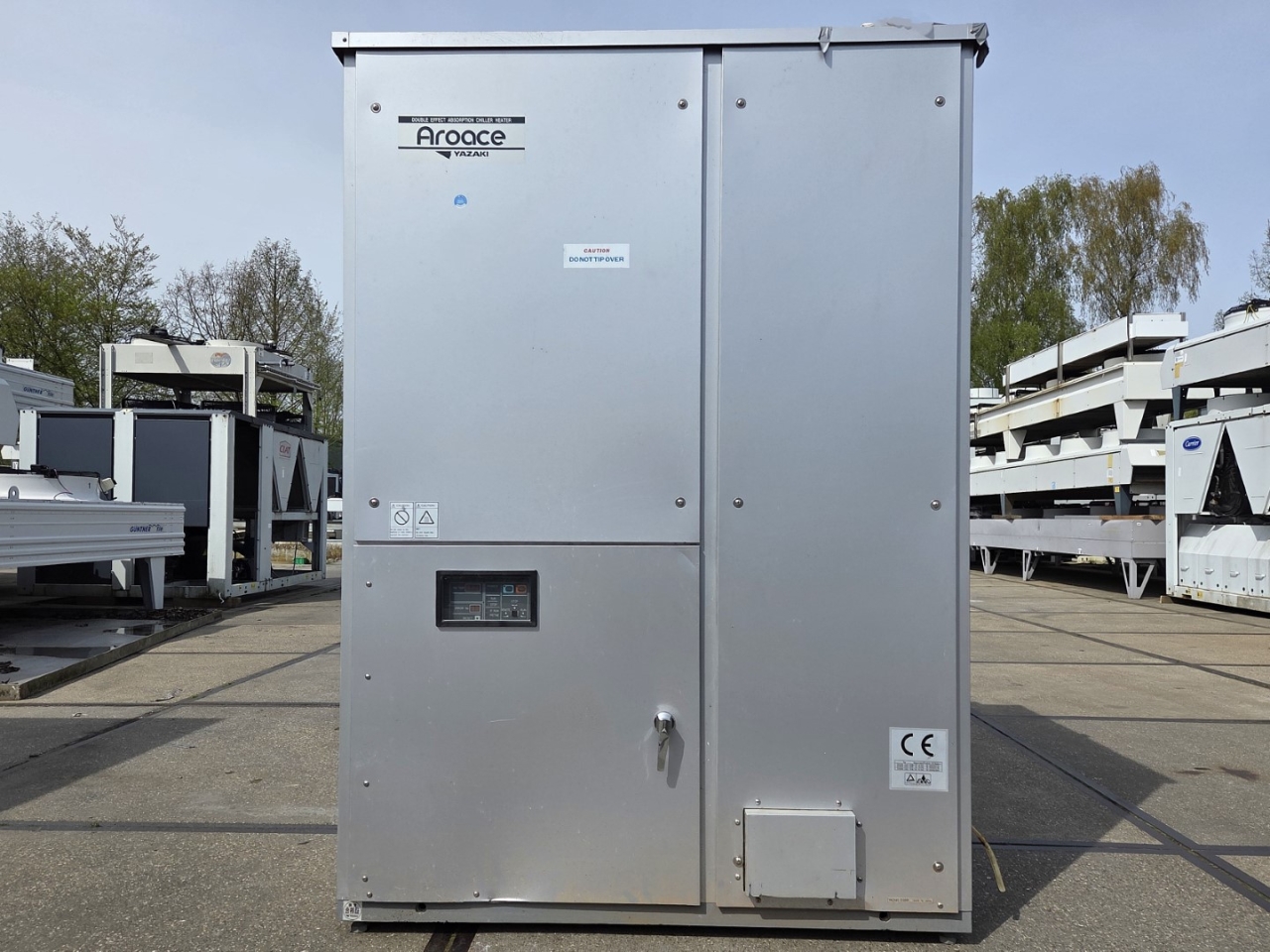

This used Yazaki CH-K40 absorption chiller is designed for commercial HVAC applications where both chilled and hot water are required for air conditioning systems. It provides a reliable solution for buildings that need efficient year-round climate control using a thermally driven process rather than conventional mechanical compression.
The system operates with lithium bromide as the absorbent and water as the refrigerant under low-pressure conditions. This absorption technology allows the unit to produce cooling or heating depending on demand, and thanks to an integrated changeover valve, it can switch between these modes within the same system. This makes it a flexible and practical choice for HVAC installations that require both functions from a single machine.

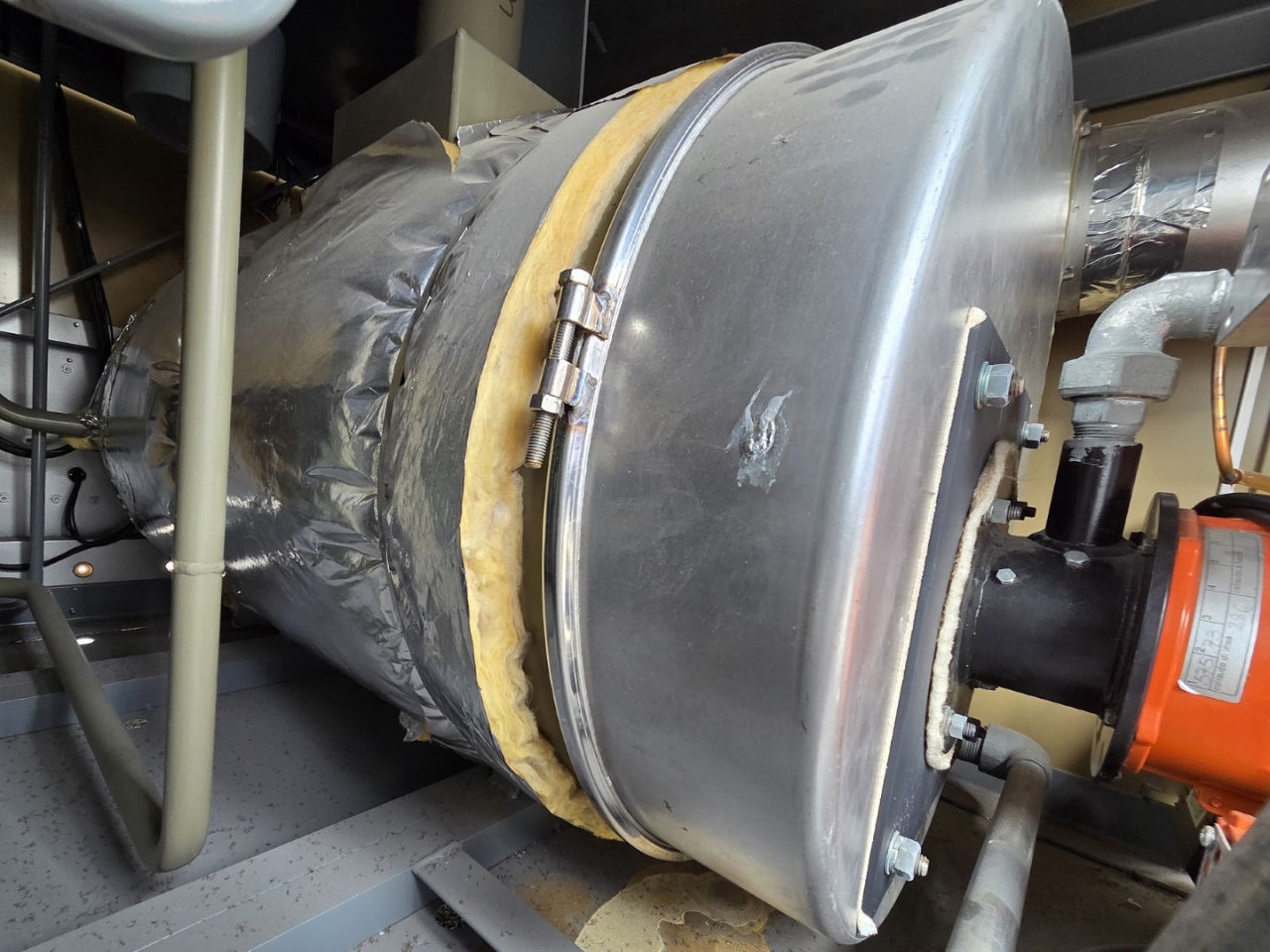

The CH-K40 is built around a robust set of core components, including a high-temperature generator, a low-temperature generator, a water-cooled condenser, an evaporator, and an absorber. Together, these elements form a closed absorption cycle that ensures stable and efficient operation in commercial environments where reliability and continuous performance are essential.

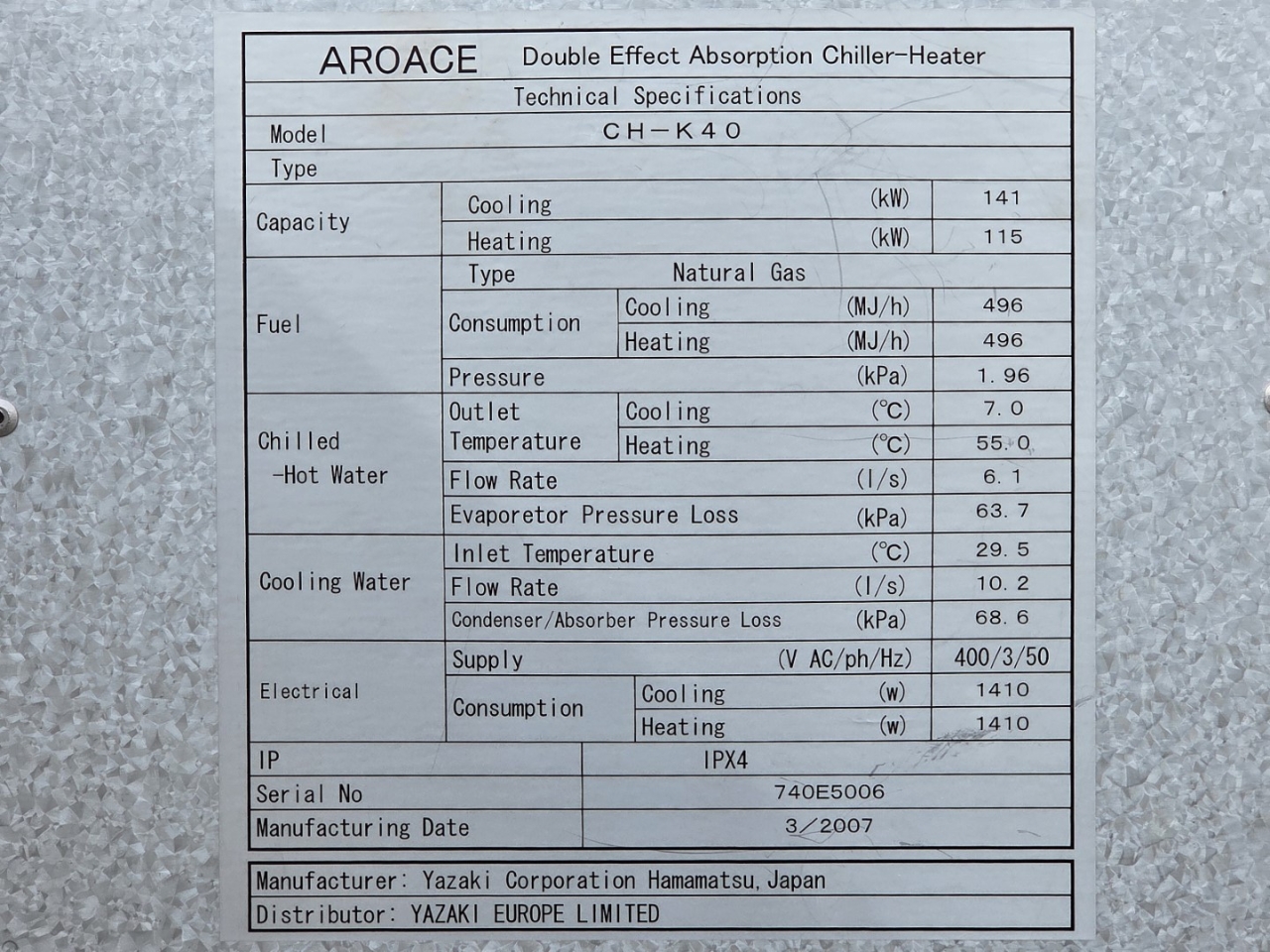

Cooling capacity: 141 kW (Outlet temperature: 7°C)
Heating capacity: 115 kW (Outlet temperature: 55°C)
*All components of this used chiller will be tested on adequate performance, leak free condition (condensing blocks), compressors, fans, control panel, and so forth). Choosing HOSBV means buying with warranty. We perform a industrial cleaning. if requested we can arrange your shipment.
