Mycom FM 160S-ME
Mycom FM 160S-ME
| 1810 | |
| Бренд | Mycom |
| Тип | FM 160S-ME |
| Хладагент | Freon |
| Refrigerant type | R507A or other types |
| кВт at -10ºC/+40ºC | 246 |
| кВт at -20ºC/+40ºC | 163,9 |
| кВт at -30ºC/+40ºC | 103,8 |
| кВт at -40ºC/+40ºC | 61 |
| Электродвигатель Specs | 110 kW at 2960 RPM by Leroy Somer |
| Разгруженный старт |
|
| Управление производительностью |
|
| На стальной раме |
|
| Манометры |
|
| Жидкостный ресивер |
|
| Жидкостный ресивер л. | 465 |
| Отделитель жидкости |
|
| Маслоотделитель |
|
| Система маслоуравнивания |
|
| Фильтр-осушитель |
|
| Соленоидный клапан |
|

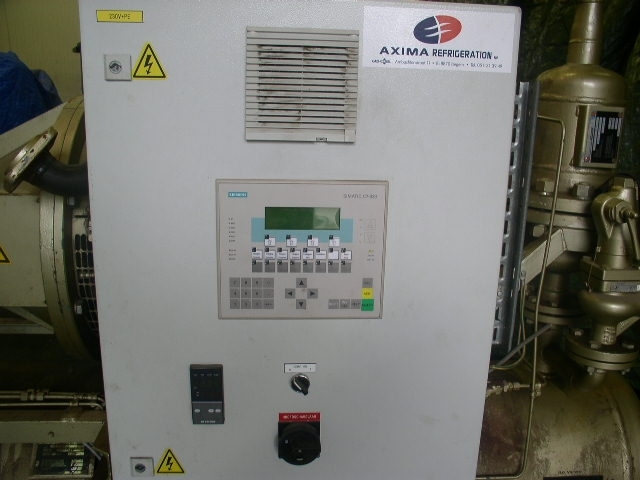

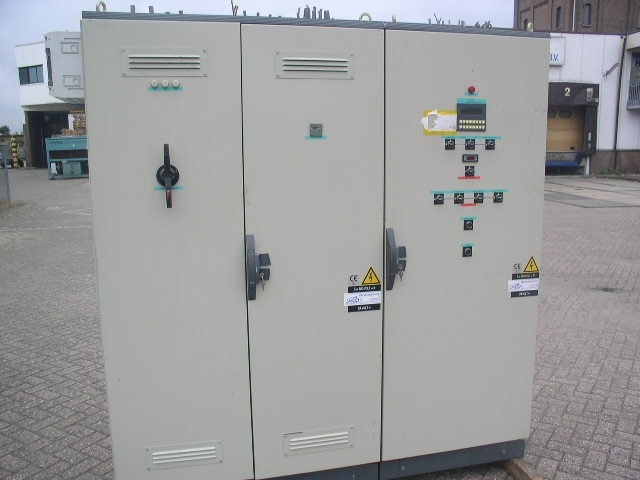

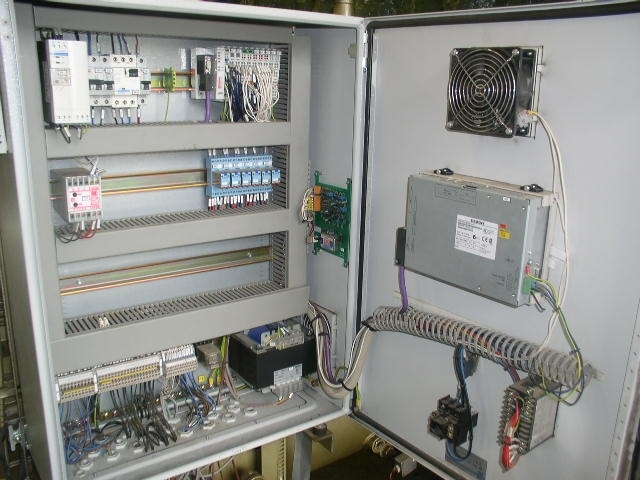

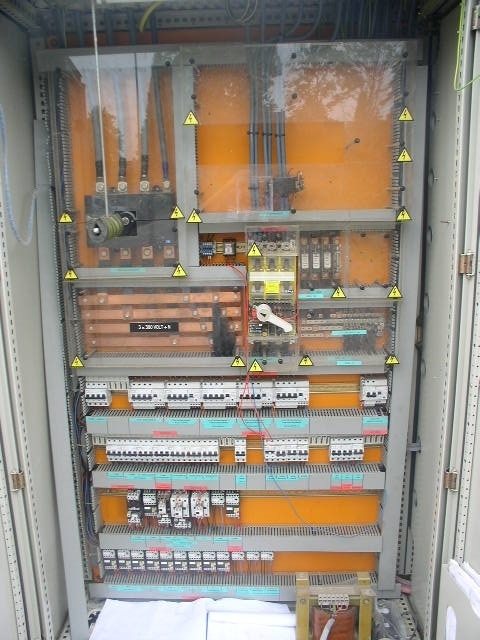

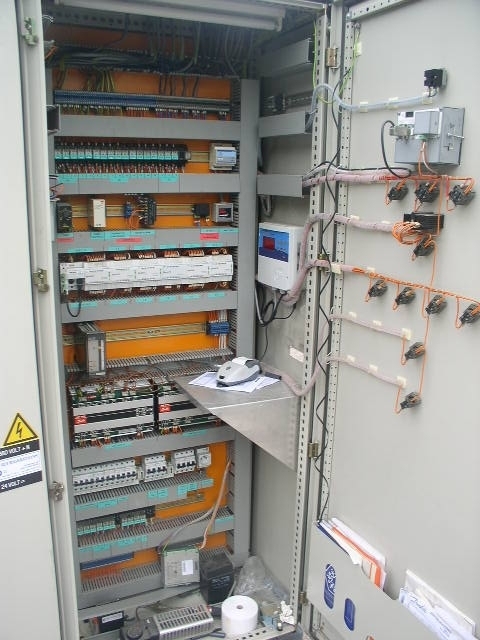

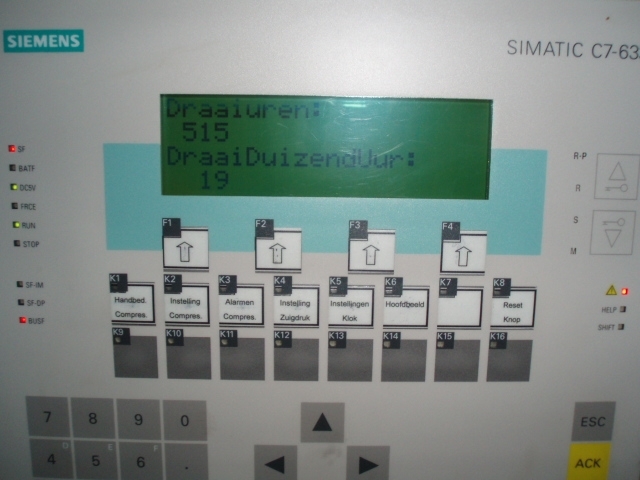

| Панель управления |
|
| Примечания | | Incl. SCOPA Economizer!! / 2x heat exchanger / Oil separator: +/- 1100x600 mm (LxØ) / Control panel: compressor regulation, relais, head switch etc. |
| Размеры | 2900x1250x1950 mm (LxWxH) |
| Количество на складе | 1 |
Mycom FM 160S-ME

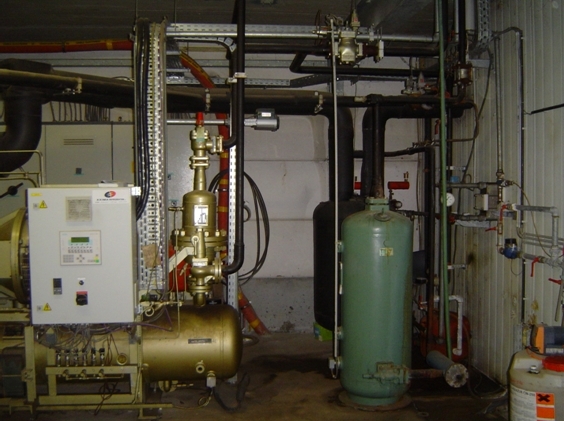

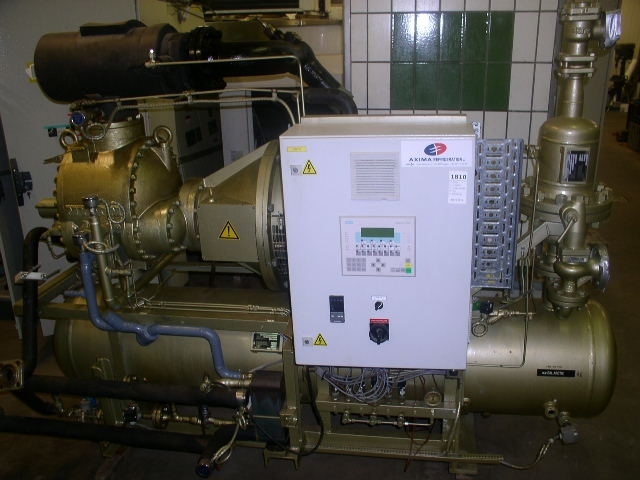

Used Mycom FM 160S-ME freon compressor, complete with unloaded start, capacity control, pressure gauges, suction accumulator, oil separator, oil level system, liquid line filter drier, solenoid valve, control panel and liquid receiver with a volume of 465 liters. This unit has a cooling capacity of 246 kW at -10ºC/+40ºC.
Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
