Koma Multi-deck KMD-4-240-1500 tunnel freezer
Koma Multi-deck KMD-4-240-1500 tunnel freezer
| 13232 | |
| Brand | Koma |
| Type | Multi-deck KMD-4-240-1500 tunnel freezer |
| Capacity | 1.760 kg/h |
| Refrigerant | Freon |
| Sizes | 19.000 x 4.500 x 3.500 mm (LxWxH) |
| Capacity per hour examples: |
Apple pie (2,2 kg) - 800 pcs/h Apple fritters (100 g) - 4500 pcs/h Coconut macaroon (100 g) - 6000 pcs/h |
| Maximum product height | 130 mm |
| Belt specs | Intralox Series 400 Flush grid |
| Evaporator specifications | Goedhart LLK.P 187 M2 |
| Tiers | 4 |
| height infeed / outfeed |
Infeed: 2425 mm Outfeed: 1000 mm |
| Condition | Good |
| Total effective belt length | 60.000 mm |
| Effective belt width | 2.380 mm |
| Amount in stock | 1 |
Koma Multi-deck KMD-4-240-1500 tunnel freezer
In good condition KOMA Multi-Deck KMD-4-240-1500 freezer with 4 levels. This unit is a high-performance solution for continuous product freezing, offering both reliability and efficiency.
This tunnel freezer is currently fully assembled in our warehouse and is ready for inspection, as shown in the last photo. To arrange a viewing or if you have any questions about the unit, please feel free to reach out to our team! We’re happy to provide assistance and further details.

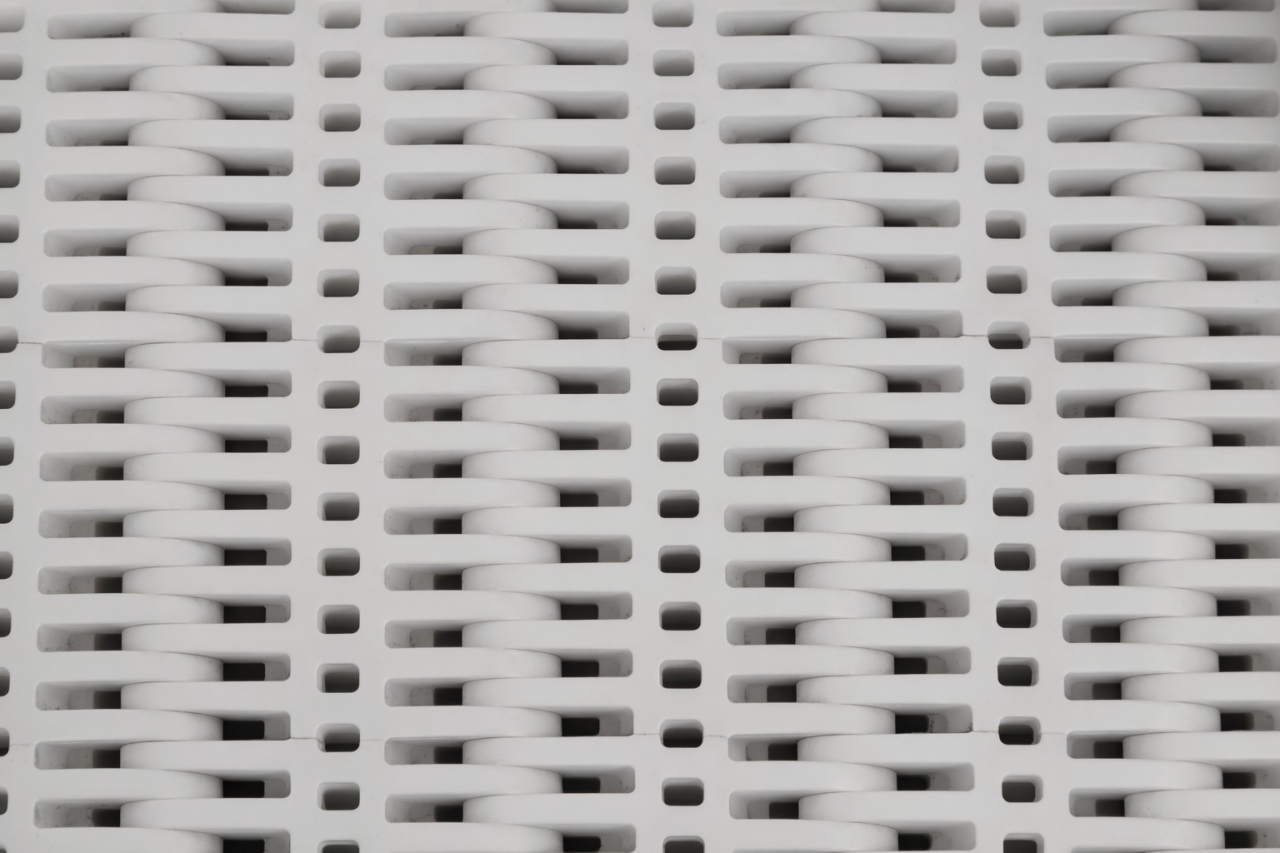

Products are placed onto the Intralox Series 400 Flush grid conveyor (level 1) at an infeed height of approximately 2425 mm, entering a four-level freezing system where they pass through a total of 60 meters of conveyor. These four levels makes it possible too freeze heavier products. Each level features a 15-meter belt, and an automatic leveling system ensures smooth transfer between levels, resulting in consistent and uniform core temperatures. The belt, with an effective width of 2380 mm, can be precisely adjusted from 0.07 m/min to 2.30 m/min to accommodate different products or production requirements. For smaller products with shorter freezing times, it is possible to use level 3 as the infeed and bypass levels 1 and 2.
At the heart of the system are six KOMA T-98-2*S6F-30.2Y compressor racks, equipped with two Bitzer S6F-30.2Y semi-hermetic two-stage compressors, providing the needed cooling capacity. Each rack includes a liquid receiver, oil management system, filter drier, and a compact control cabinet for seamless operation. Cooling is delivered through Goedhart LLK.p 187 m² evaporators, offering 27 kW capacity with a 25,000 m³/h airflow and a 45° downblow for optimal air distribution. The evaporators are equipped with electric coil defrost, ensuring reliable and uninterrupted operation. This feature allows the system to maintain optimal freezing performance at all times, preventing ice buildup and guaranteeing consistent airflow and uniform product temperatures. Further it includes a KOMA CAV L09 air-cooled condenser, paired with high-efficiency Süd-Electric fans, ensures reliable performance even under demanding conditions.
The freezer is equipped with a sophisticated control cabinet featuring Somron Sysdrive inverters, allowing full control over belt speed and enabling precise adjustment to meet the specific needs of any product. Designed for high efficiency, durability, and consistent freezing results, this KOMA freezer is an ideal solution for any continuous freezing operation.
The multi-deck freezer has the following capacities:
Product: Apple pie
Capacity: 800 pcs/h (2.2 kg each)
Infeed temperature: +40°C
Infeed level: 1
Outfeed temperature: -18°C
Evap. Temperature: -42°C
Product: Apple fritters
Capacity: 4500 pcs/h (100 g each)
Infeed temperature: +80°C
Infeed level: 3
Outfeed temperature: -15°C
Evap. Temperature: -42°C
Product: Coconut macaroon
Capacity: 6000 pcs/h (100 g each)
Infeed temperature: +25°C
Infeed level: 3
Outfeed temperature: -15°C
Evap. Temperature: -42°C
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
