Bitzer 4FC-5.2Y-40S Condensing unit
Bitzer 4FC-5.2Y-40S Condensing unit
| 16194 | |
| Brand | Bitzer |
| Type | 4FC-5.2Y-40S Condensing unit |
| Refrigerant | Freon |
| kW at 0ºC/+40ºC | 14,0 |
| kW at -5ºC/+40ºC | 11,6 |
| kW at -10ºC/+40ºC | 9,6 |
| kW at -20ºC/+40ºC | 6,2 |
| kW at -30ºC/+40ºC | 3,8 |
| kW at -40ºC/+40ºC | 2,0 |
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Liquid receiver |
|
| Liquid receiver ltr. | 14 l |
| Liquid line filter drier |
|
| Sight Glass |
|
| m3 / h | 50 Hz - 18,05 m³/h, 60 Hz - 21,78 m³/h |
| Remarks | | Y.o.b. 2004 |
| Condensing Unit |
|
| Sizes | 1550x720x990 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer 4FC-5.2Y-40S Condensing unit

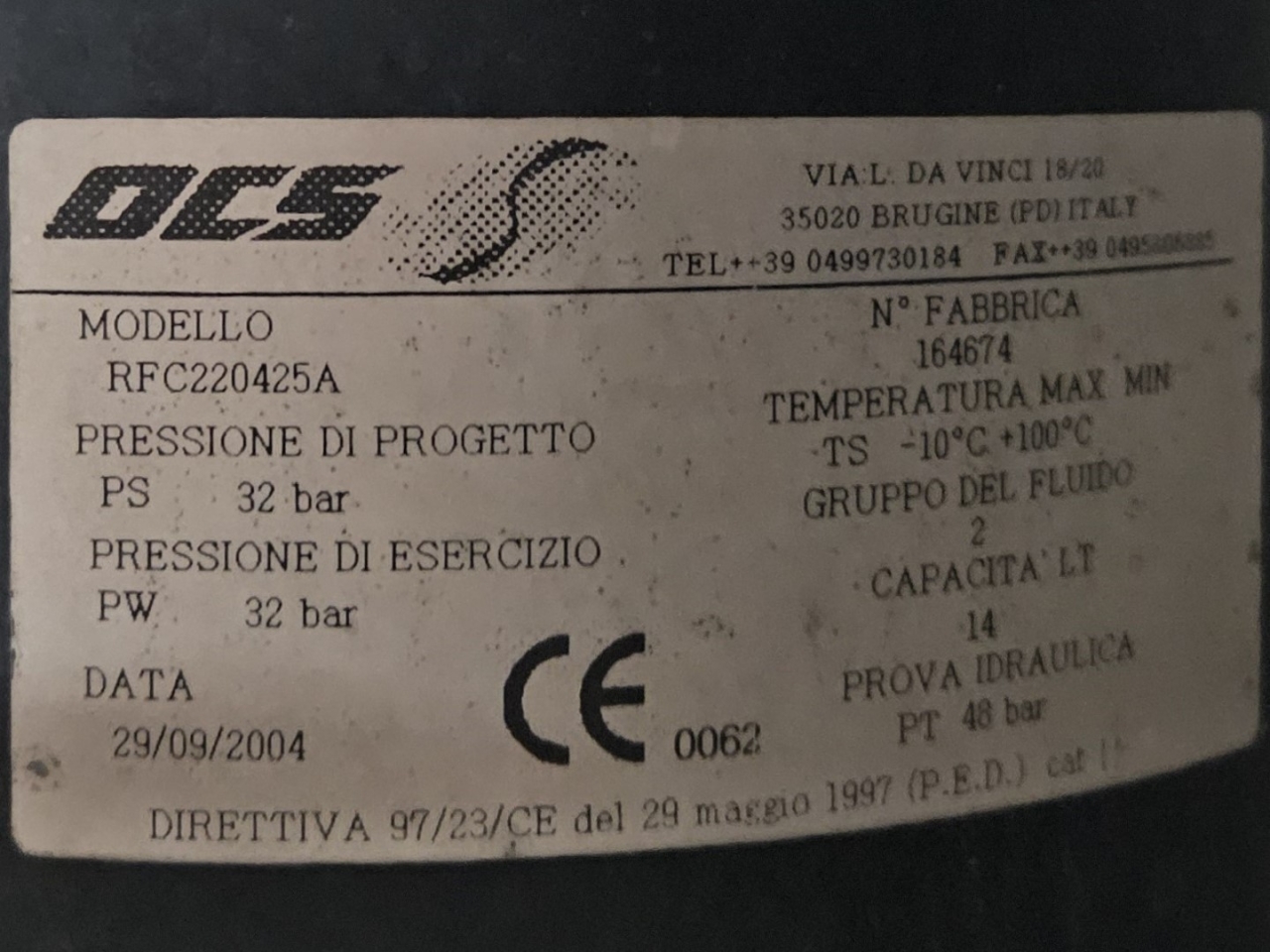

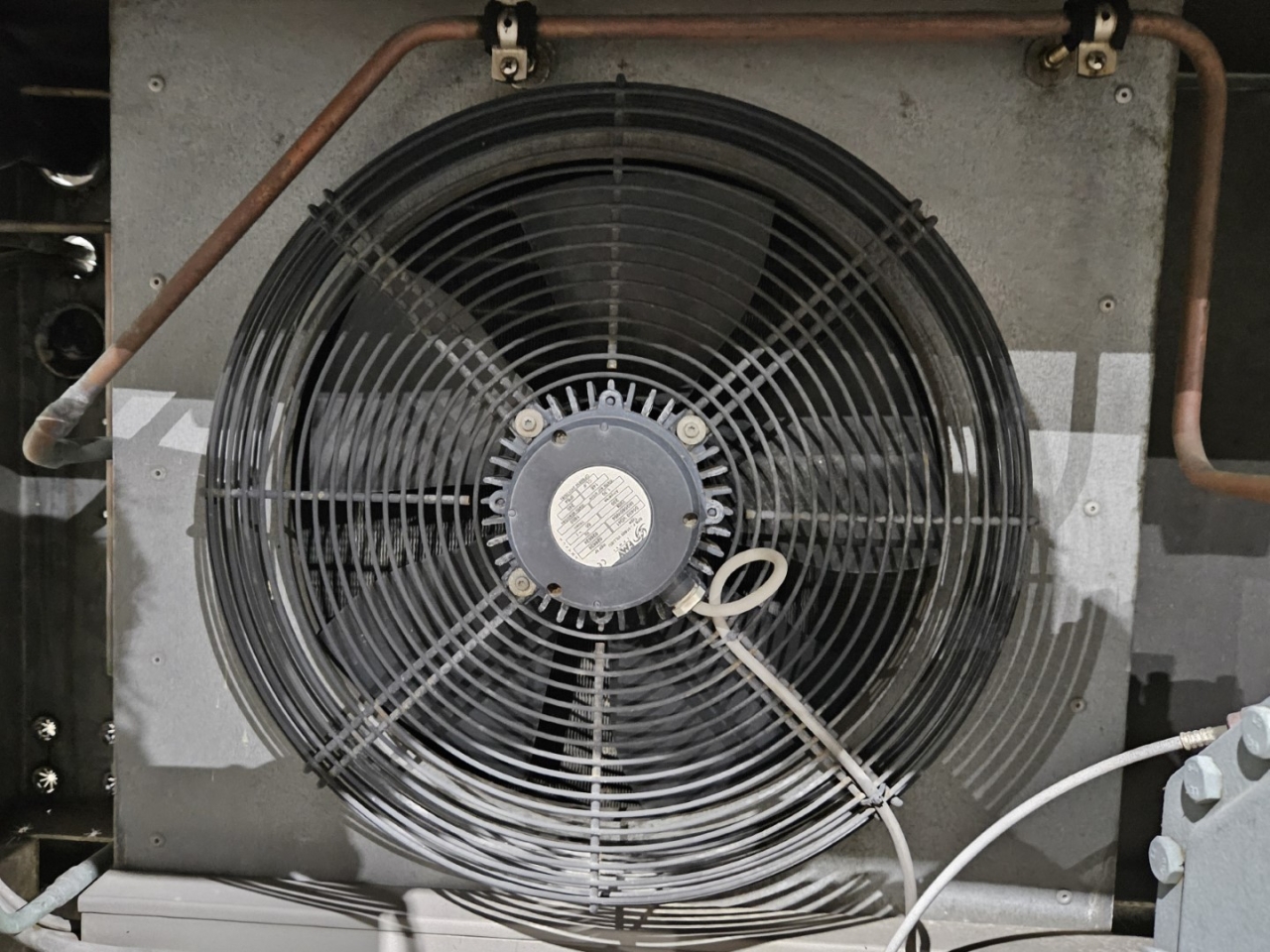

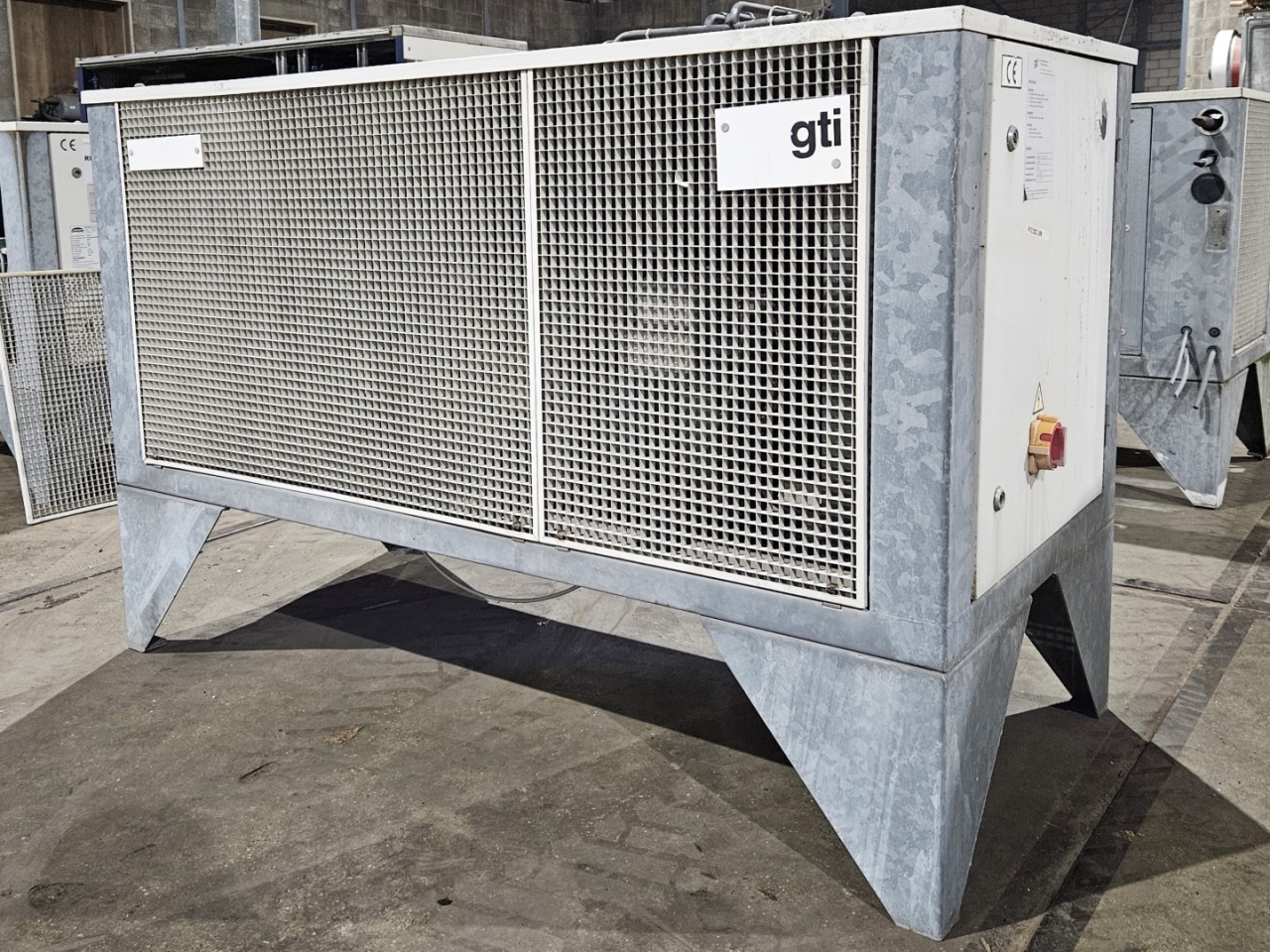

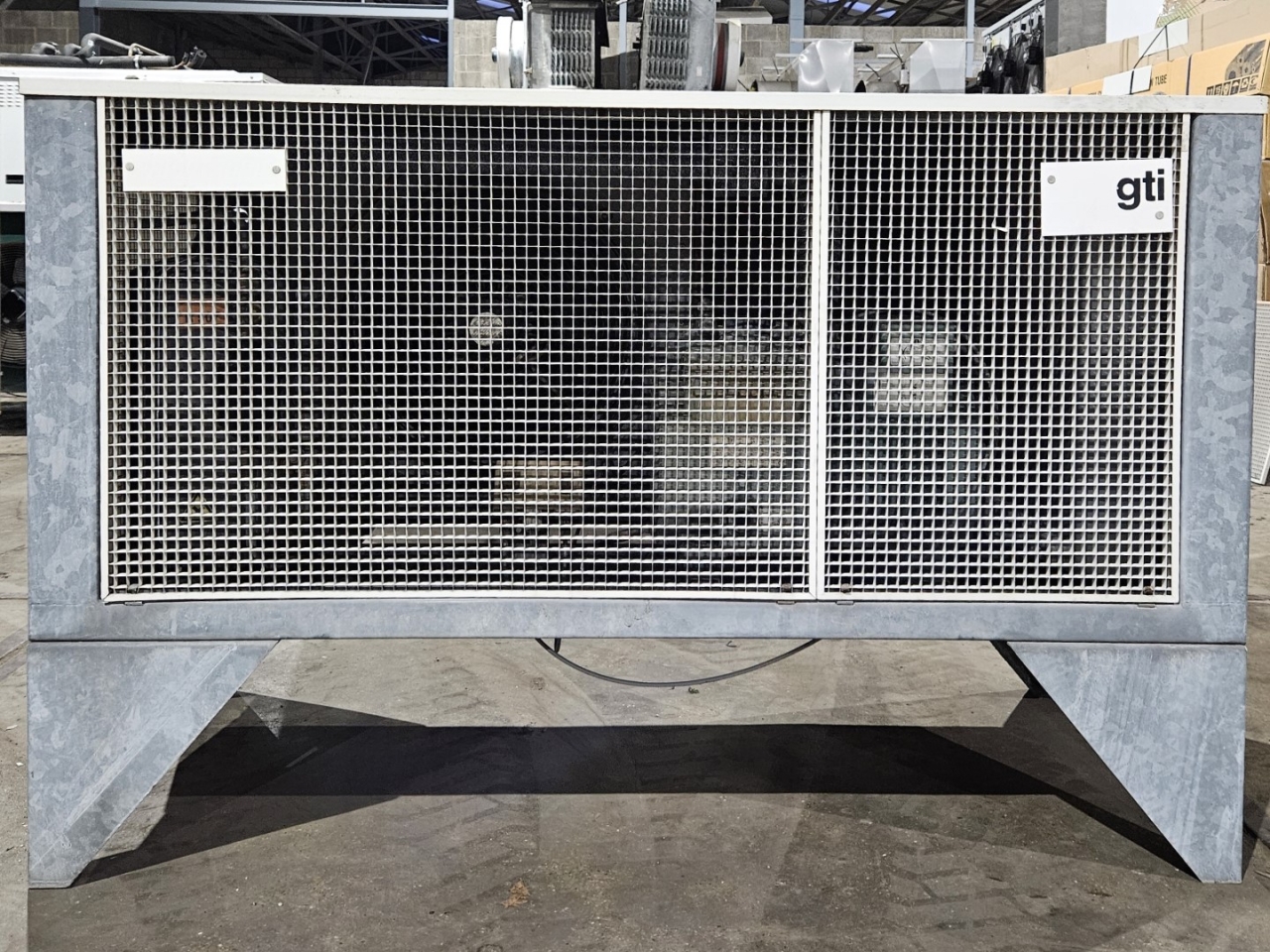

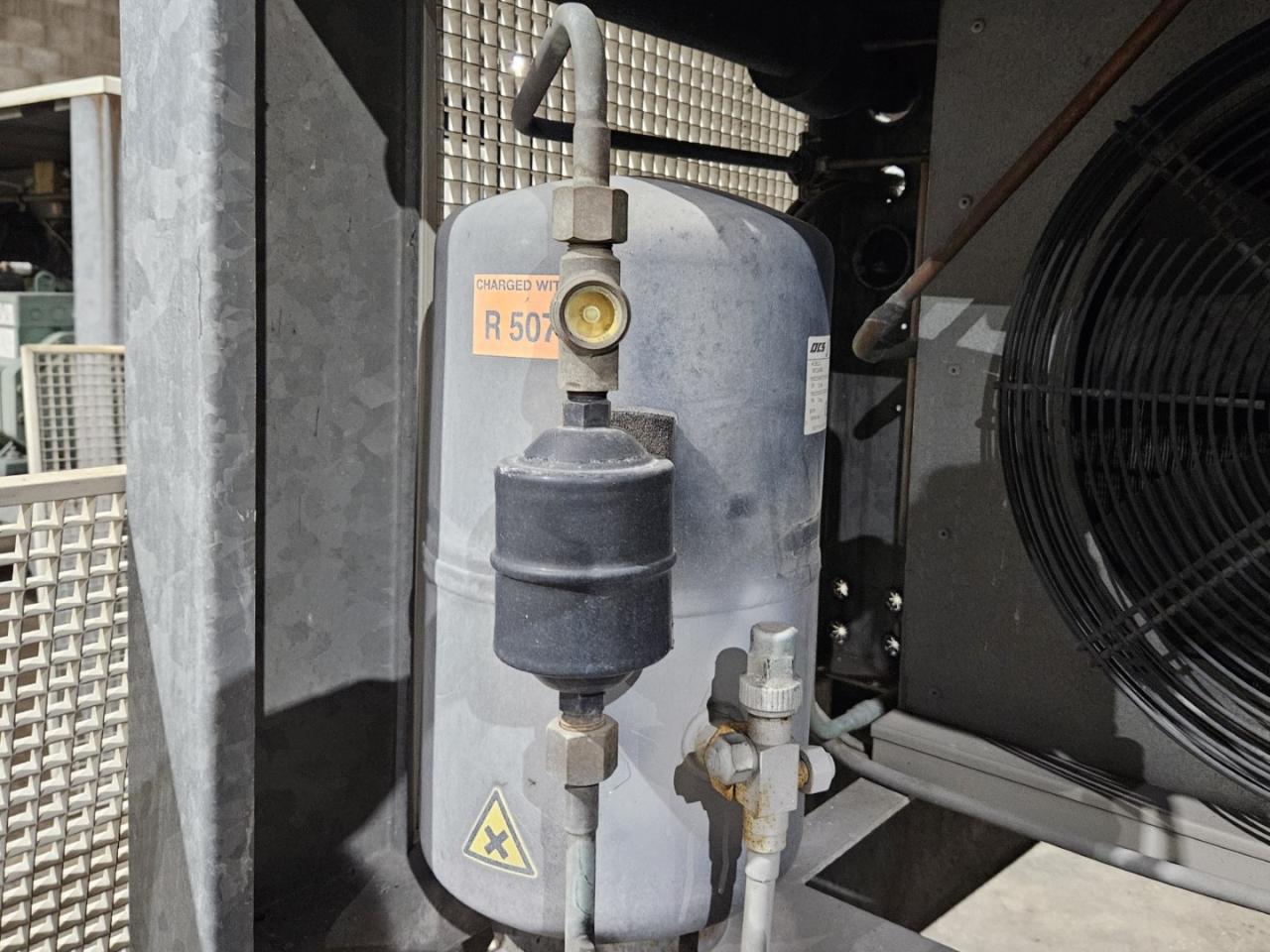

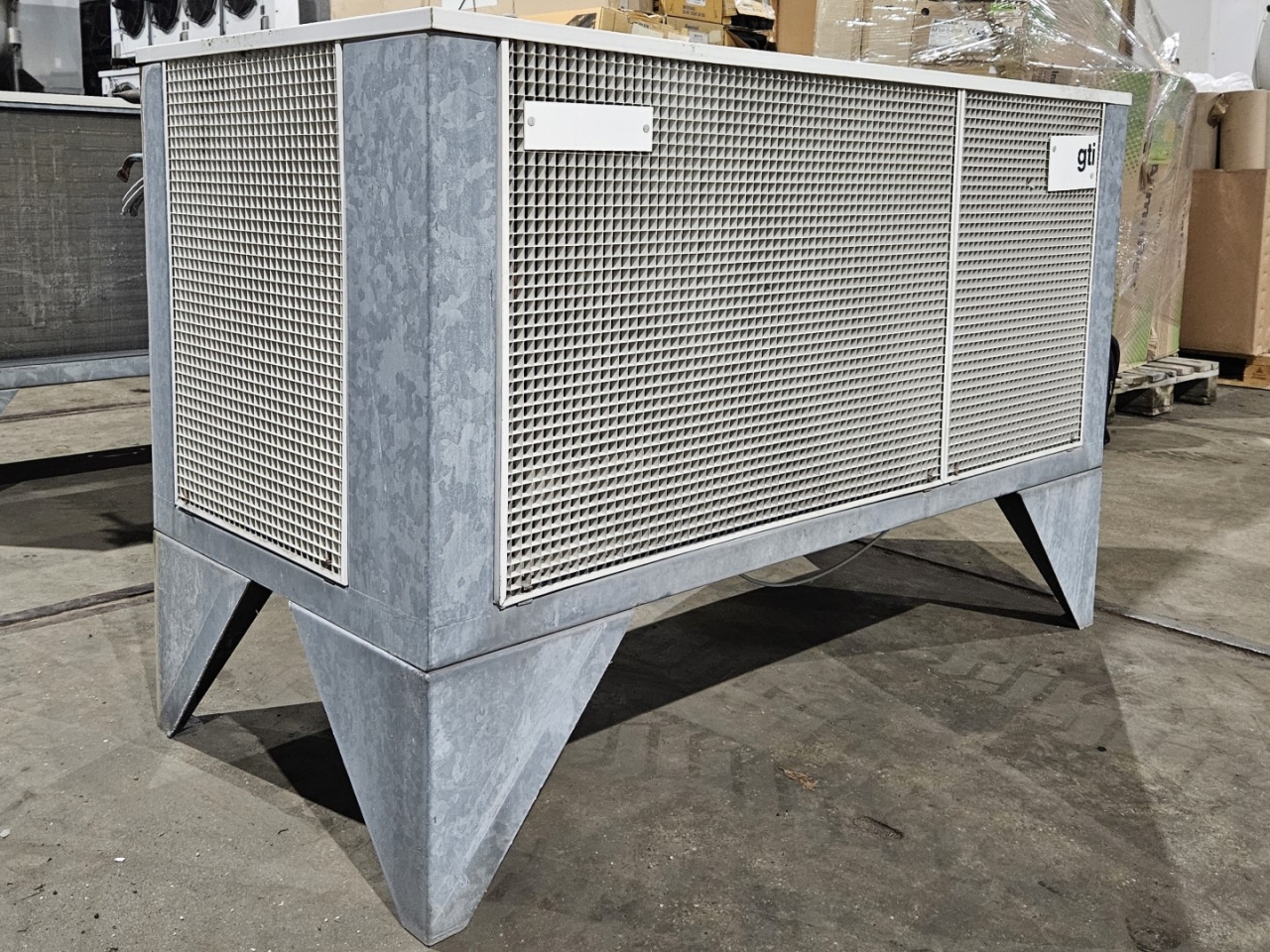

Used Bitzer condesing unit on Freon. Complete with 1 Bitzer 4FC-5.2Y-40S semi-hermetic reciprocating compressor, condenser with 1 FMV S0400 VD41 fan - 50 Hz - 0,15/0,24 kW - 1500 RPM and a DCS RFC220425A liquid receiver with a volume of 14 liters, liquid line filter drier and pressure safety switches. The compressor has a displacement of 18,05 m³/h at 50 Hz and 21,78 m³/h at 60 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty, and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
