Bitzer OSNA8591-K (x4) NH3 installation
Bitzer OSNA8591-K (x4) NH3 installation
| 17964 | |
| Brand | Bitzer |

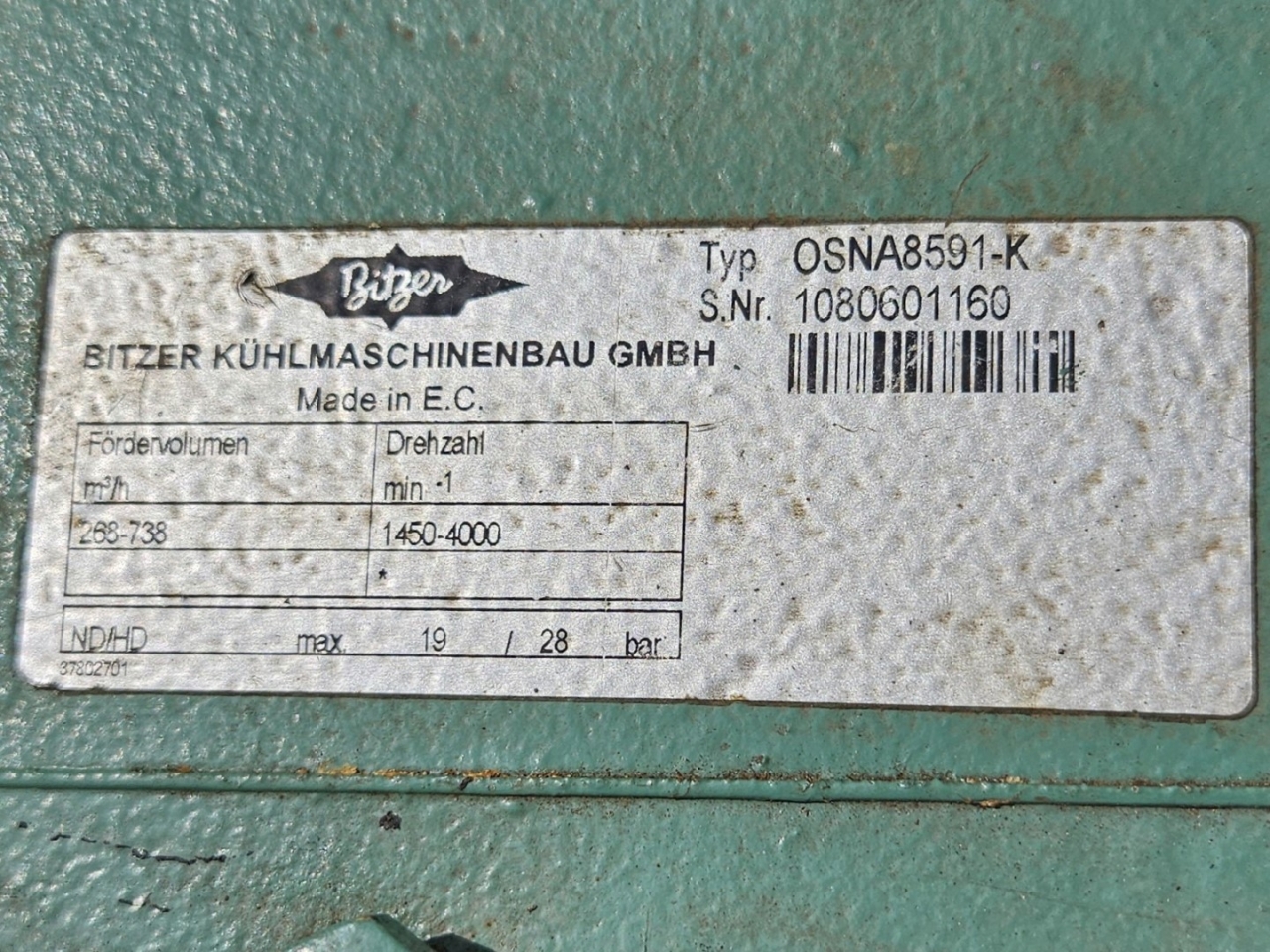

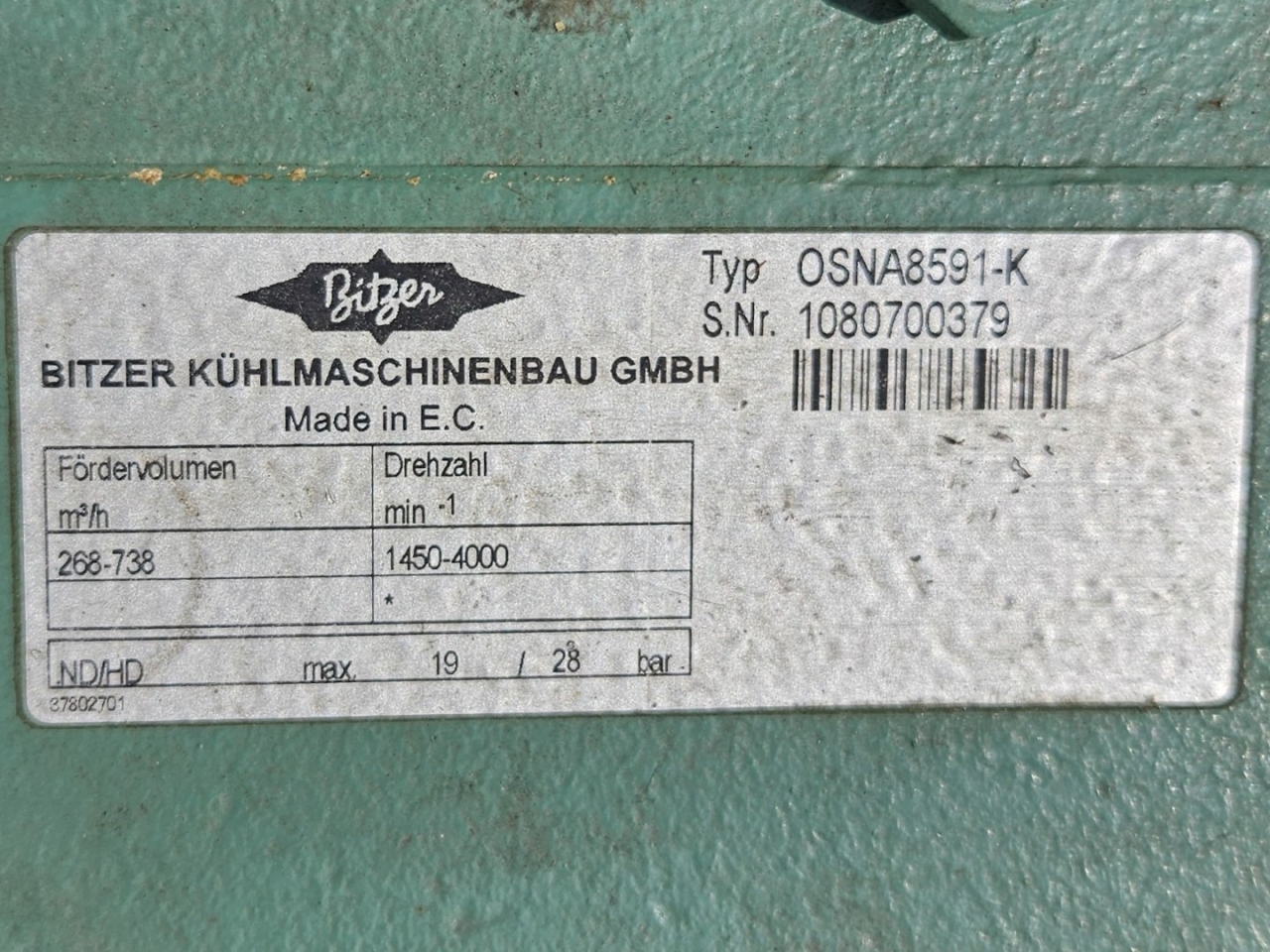

| Type | OSNA8591-K (x4) NH3 installation |
| Refrigerant | NH 3 (ammonia) |
| kW at -10ºC/+40ºC | 1364,0 |
| kW at -20ºC/+40ºC | 1024,0 |
| kW at -30ºC/+40ºC | 641,2 |
| Electromotor Specs | 50 Hz - 110 kW - 2960 RPM |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Sight Glass |
|
| Solenoid Valve |
|
| m3 / h | 2188 m³/h at 2960 RPM |
| Remarks | | Y.o.b. 2011 |
| Package / Rack |
|
| Sizes | 5220x1830x2780 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer OSNA8591-K (x4) NH3 installation

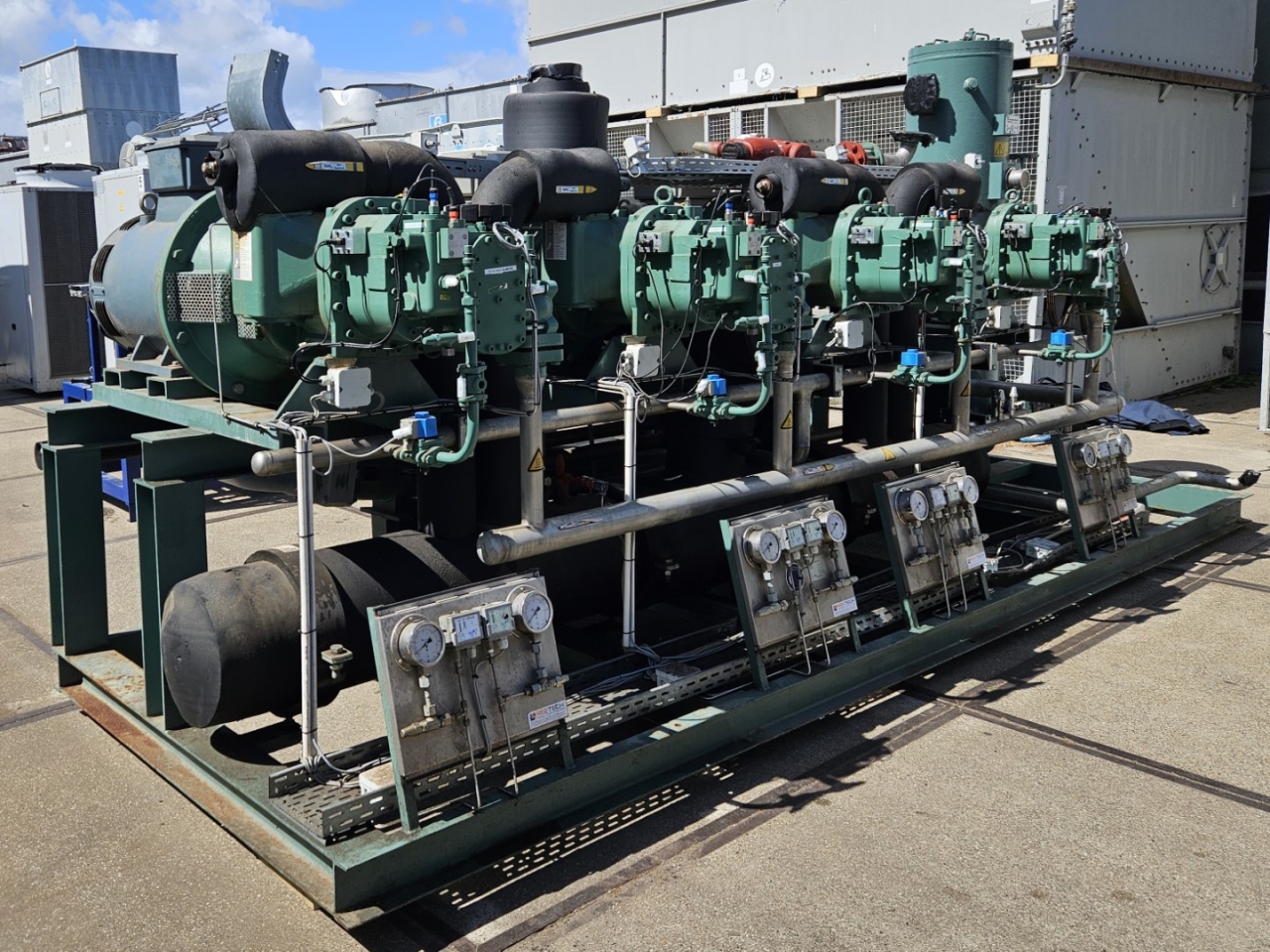

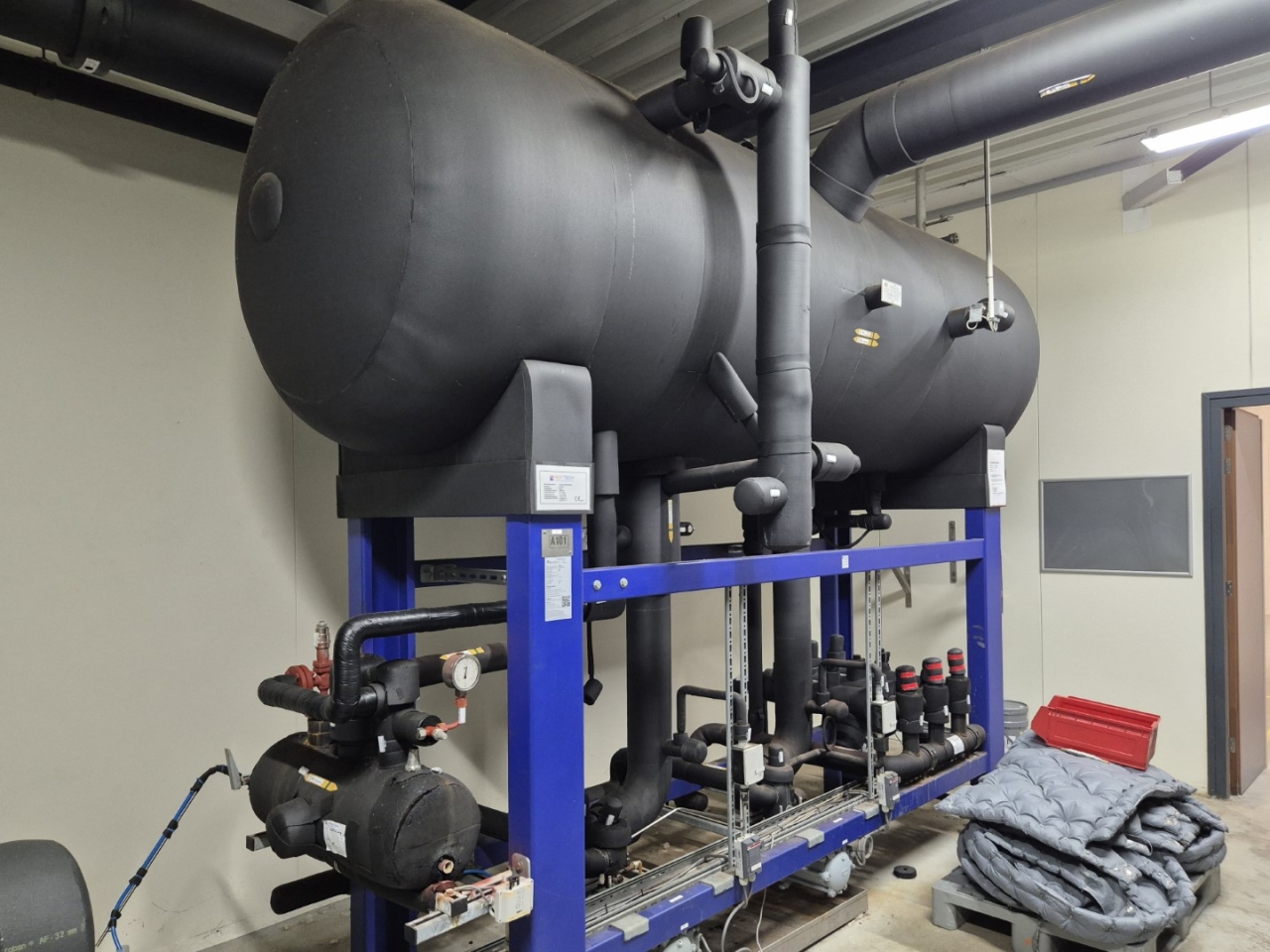

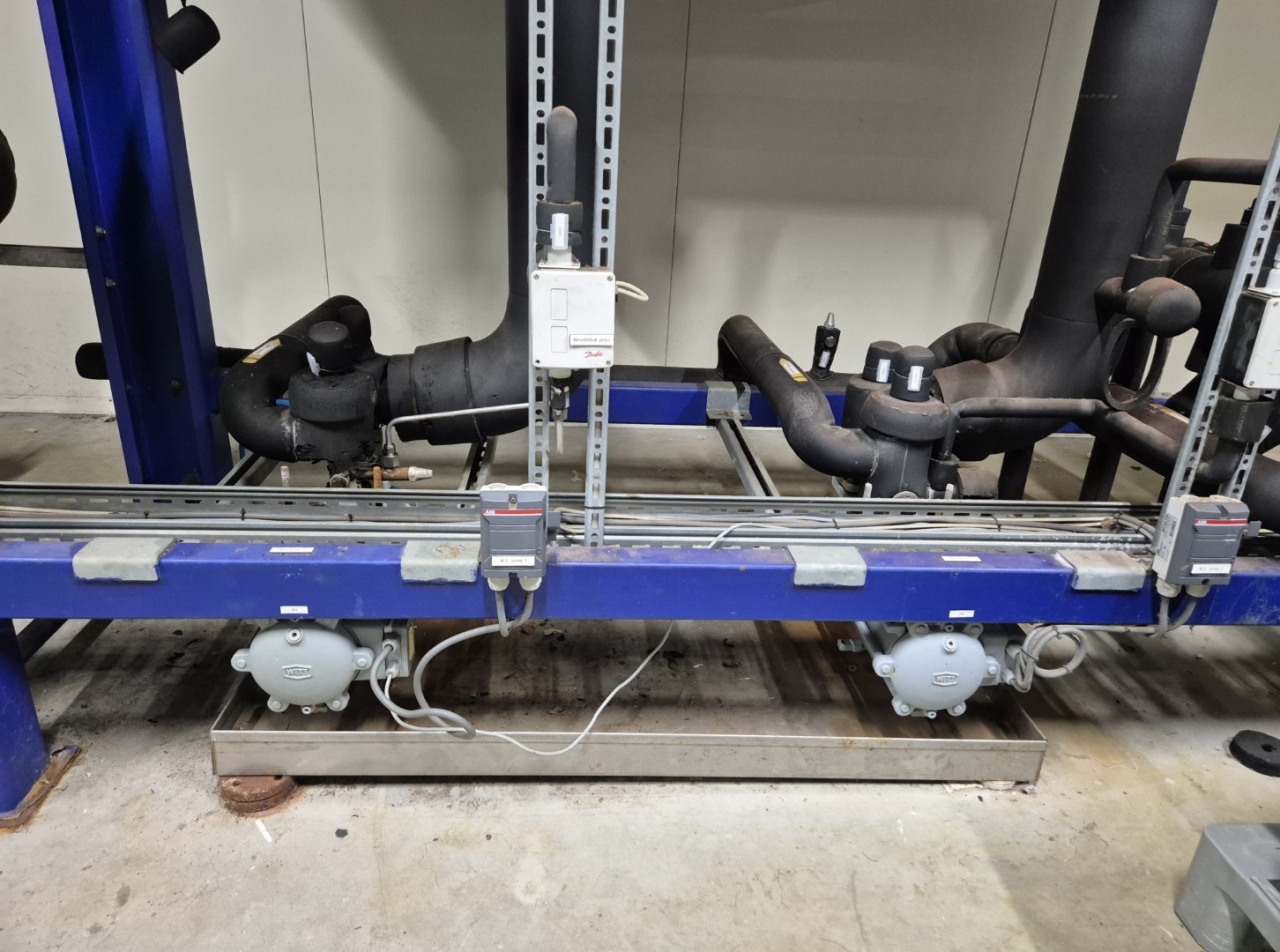

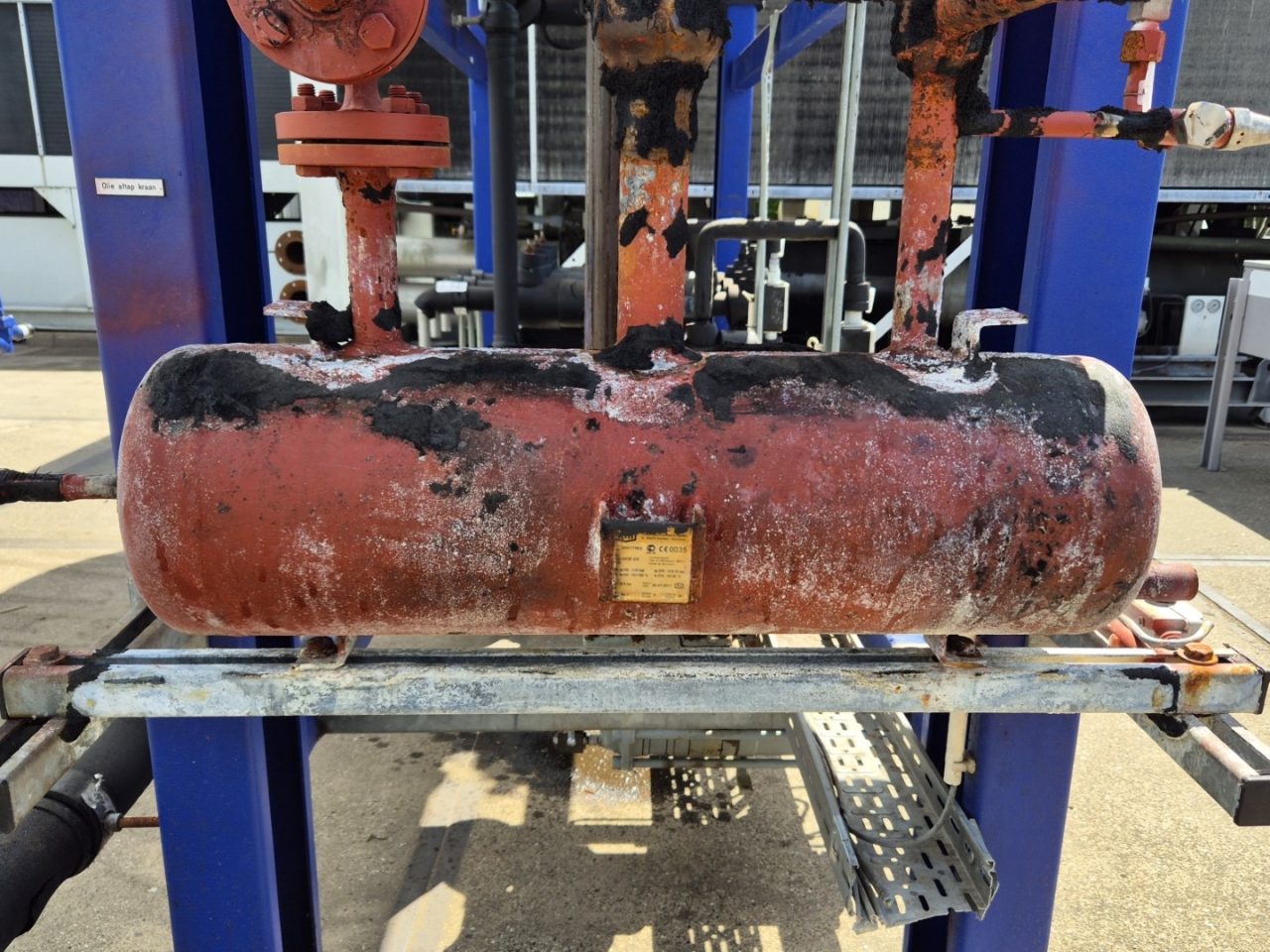

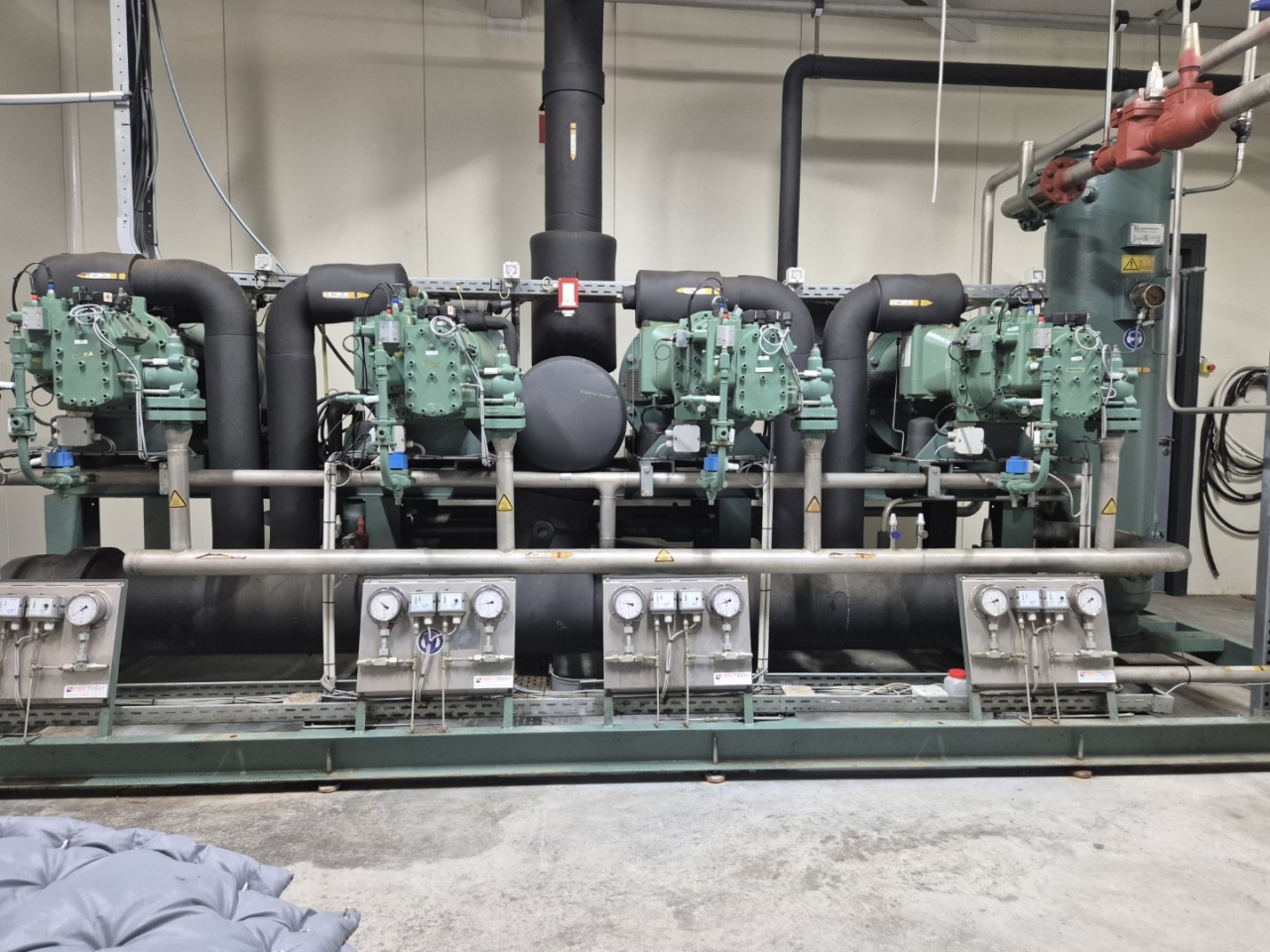

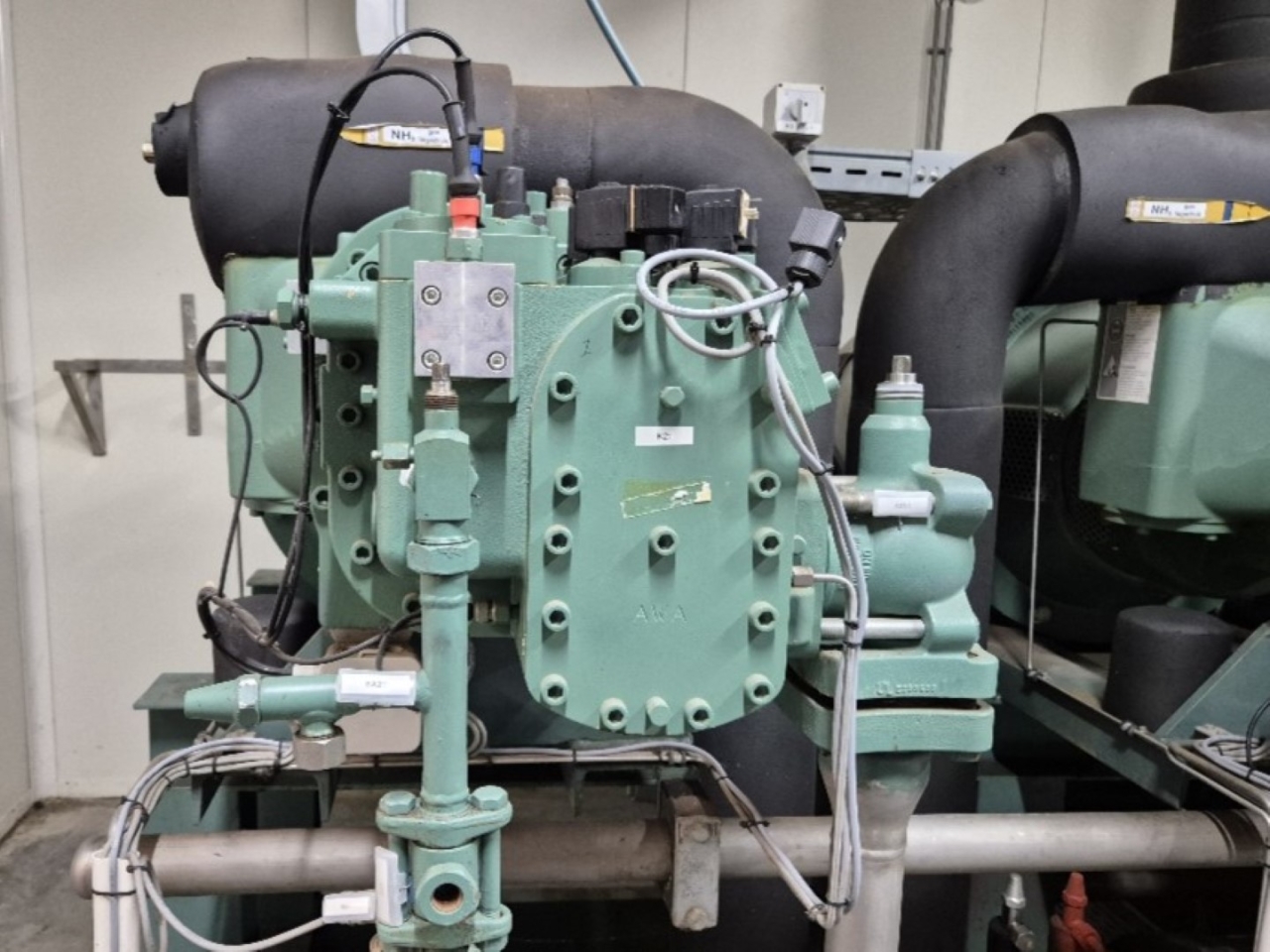

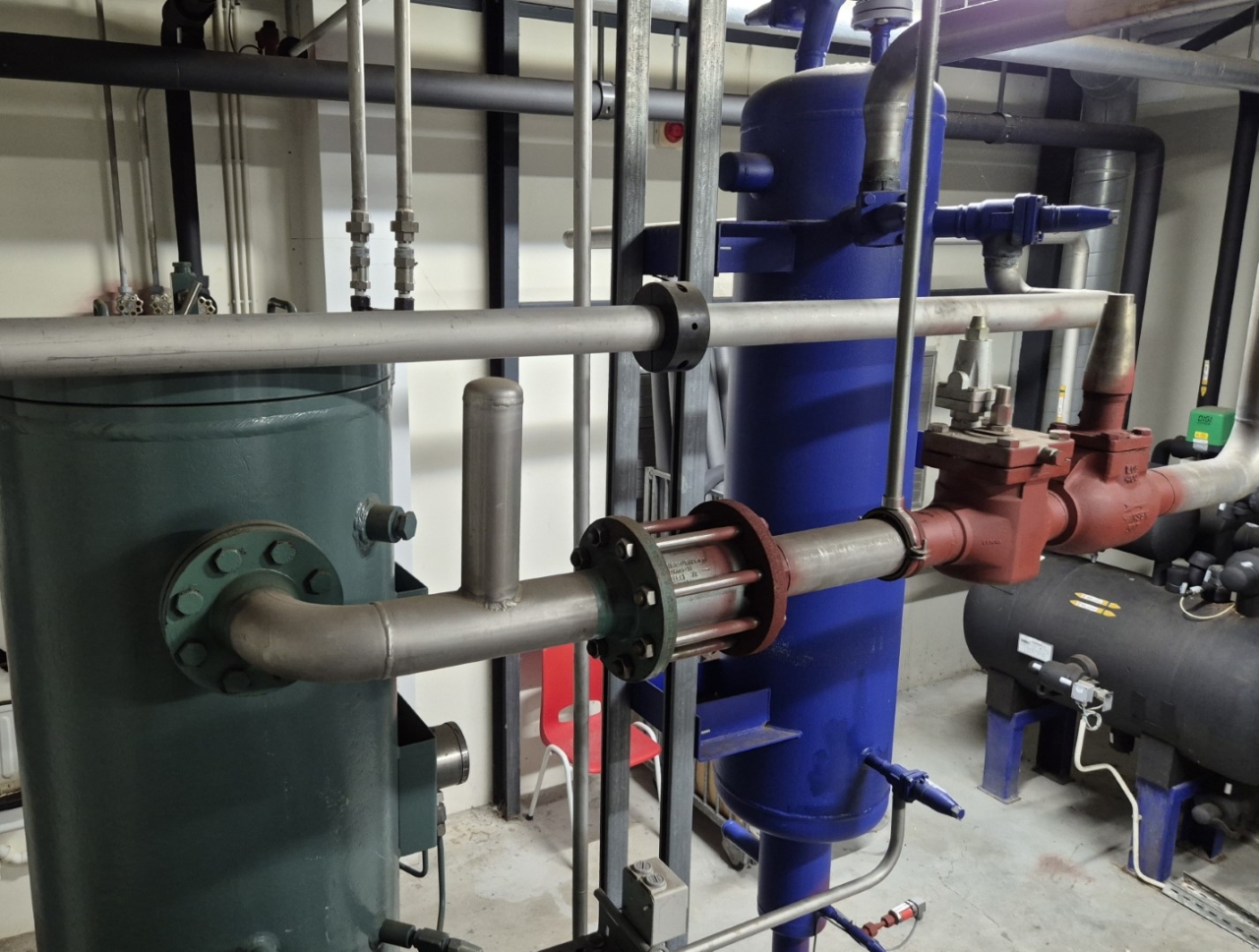

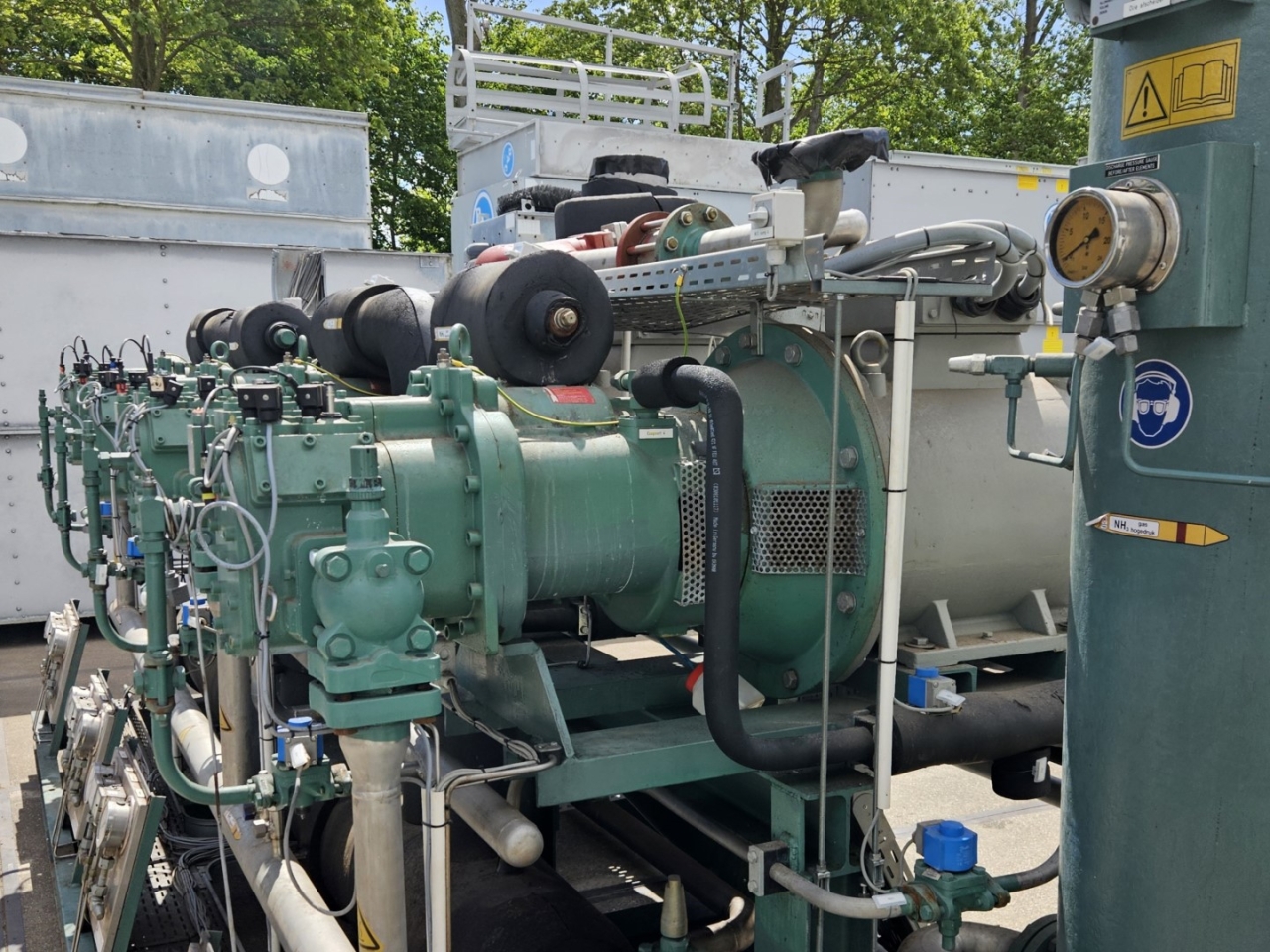

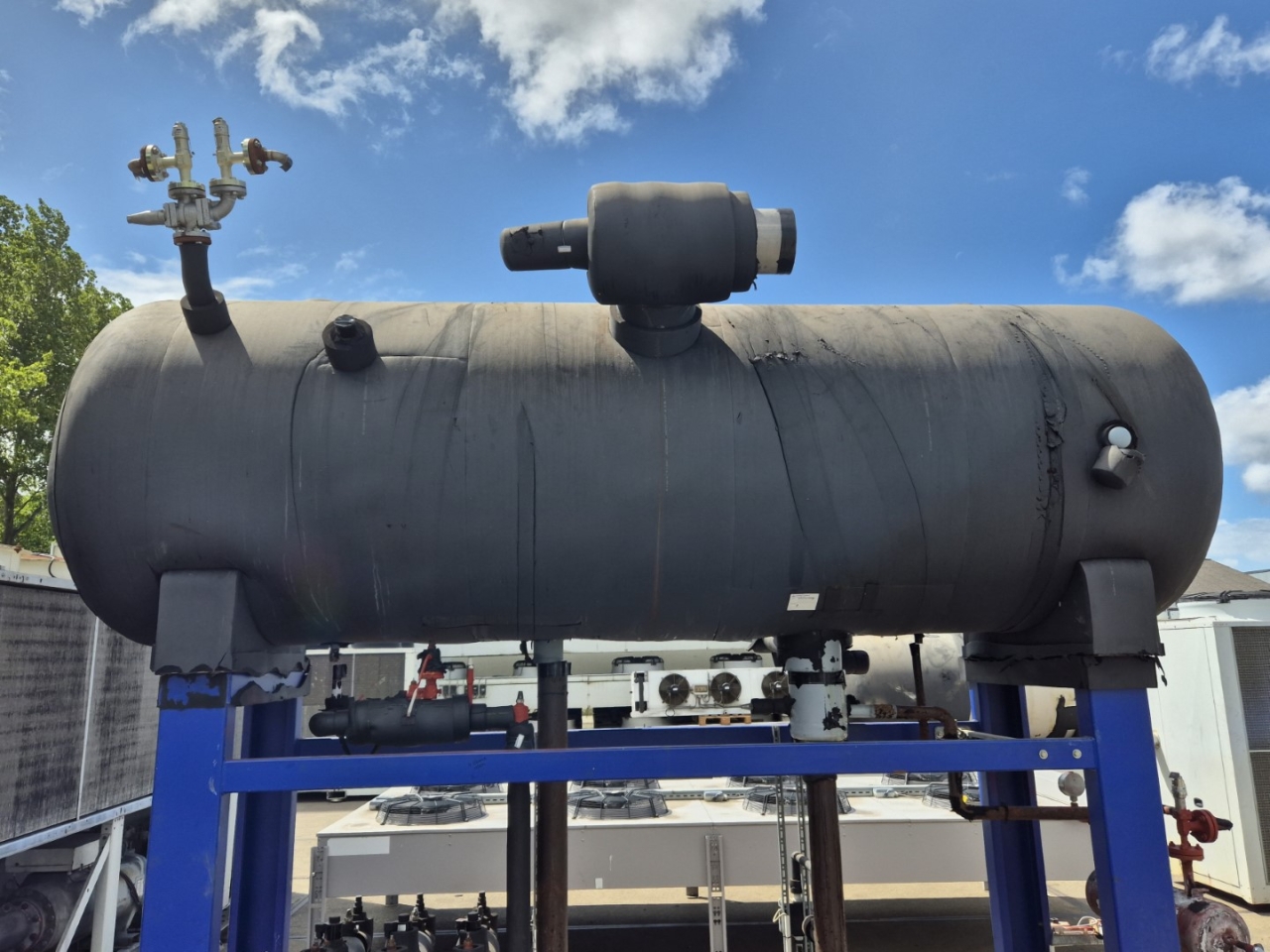

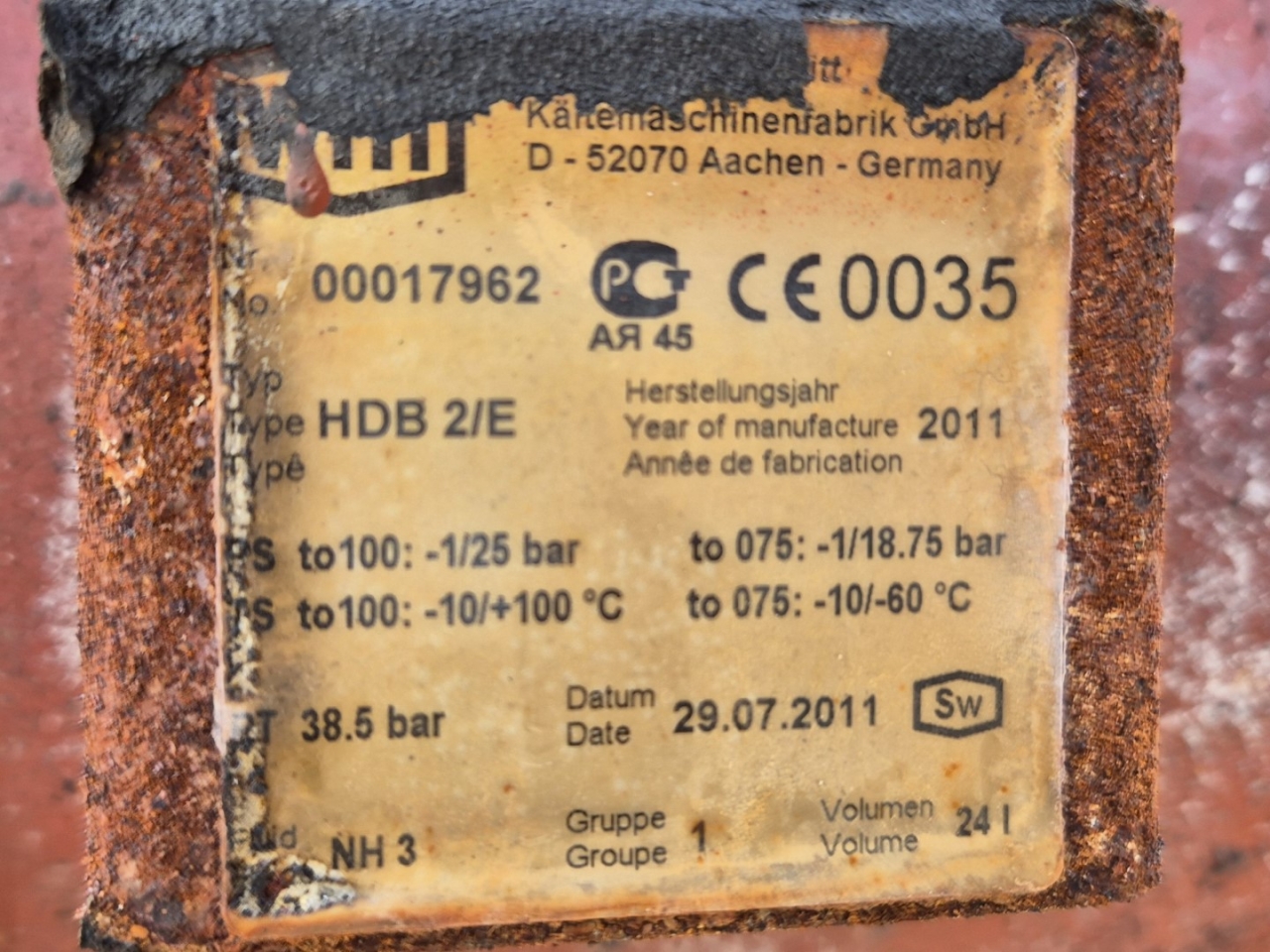

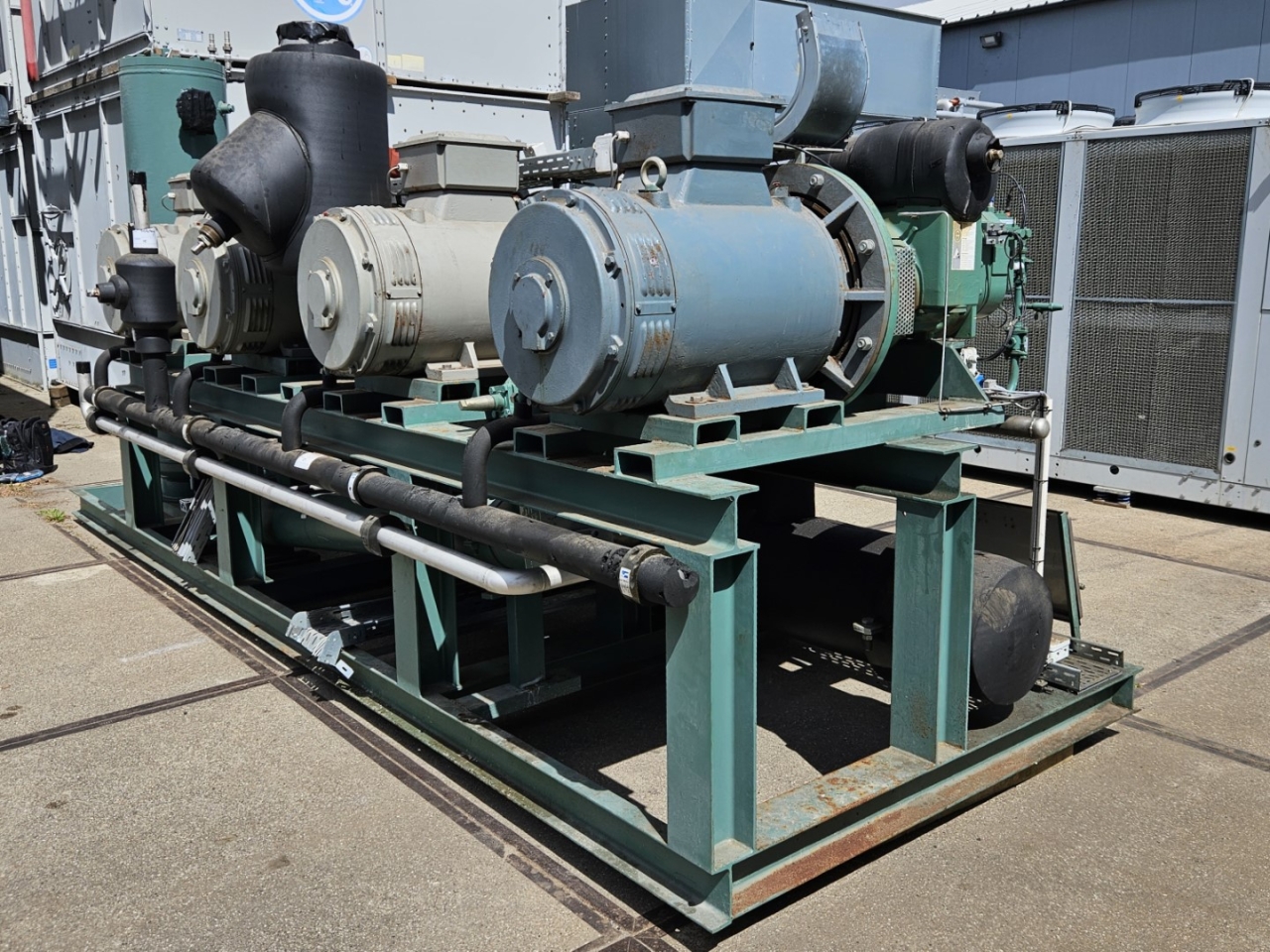

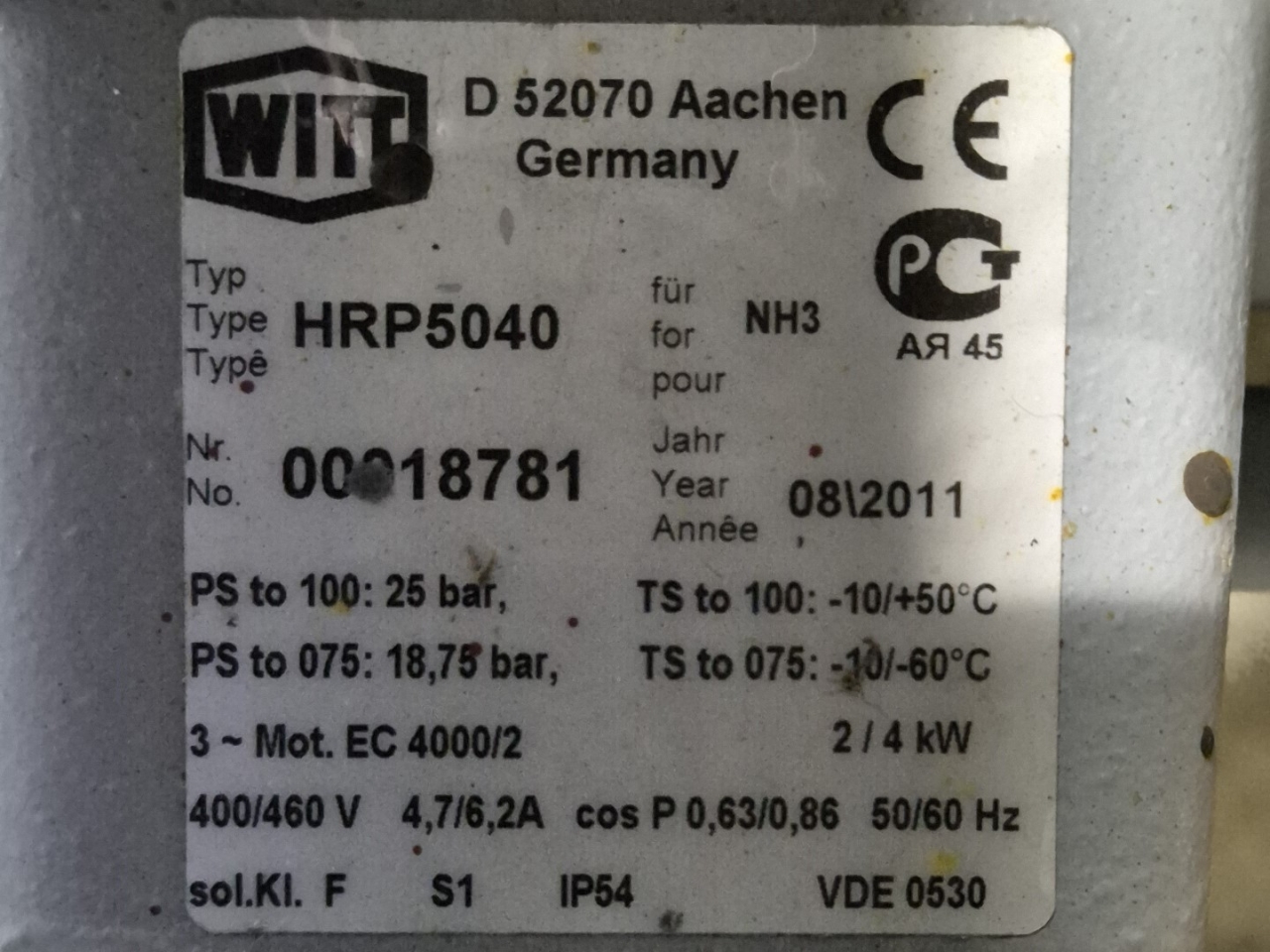

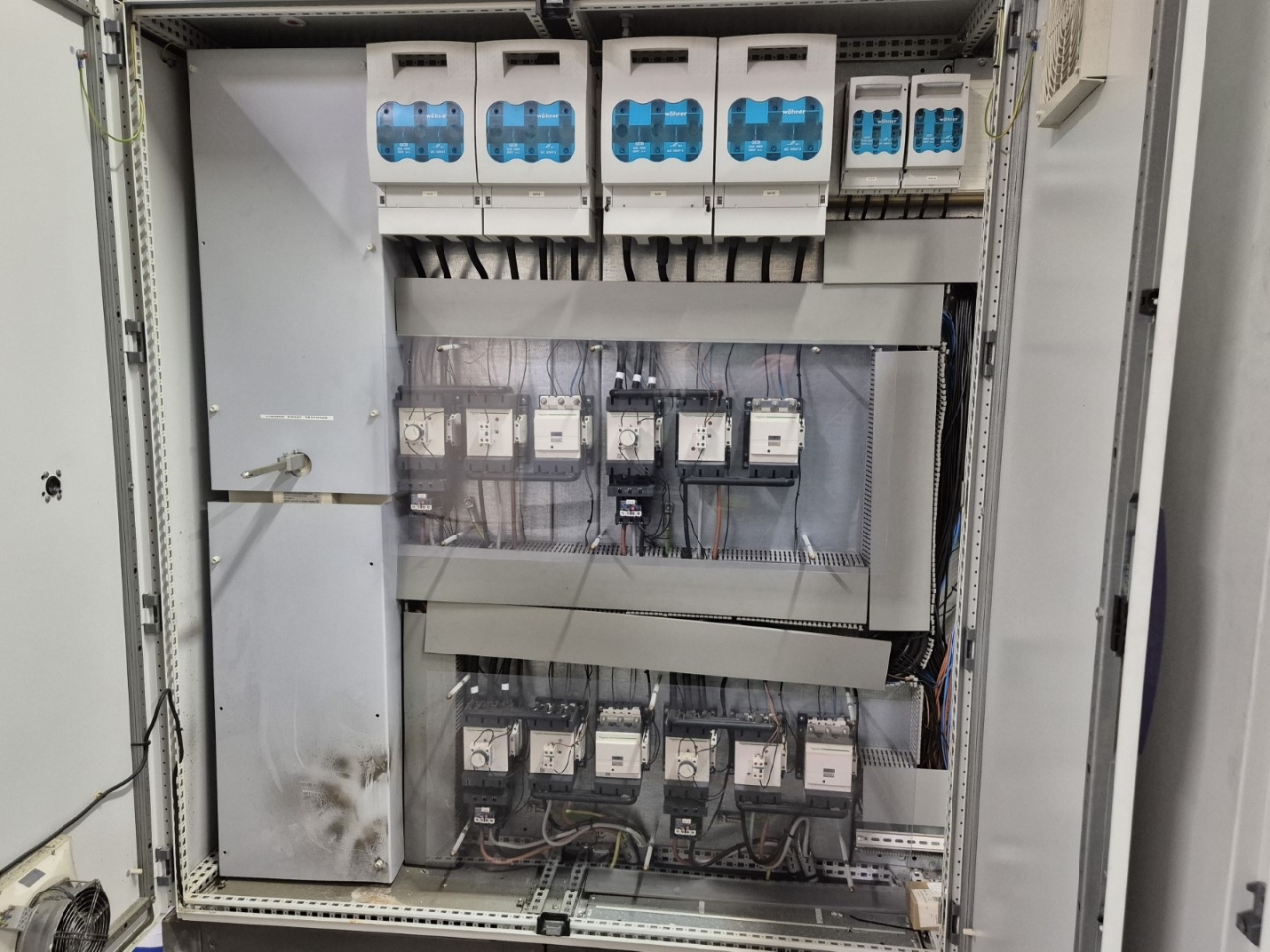

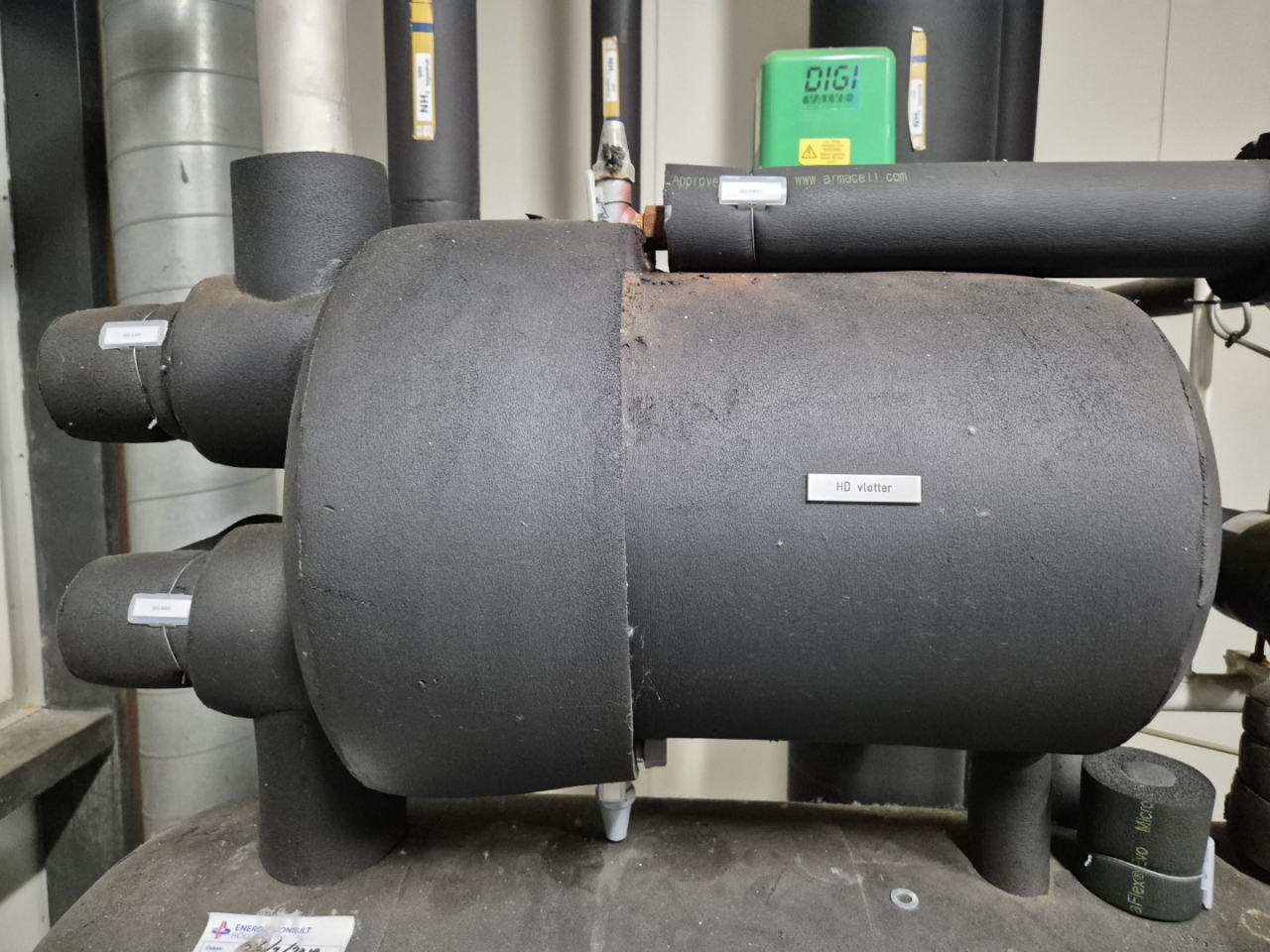

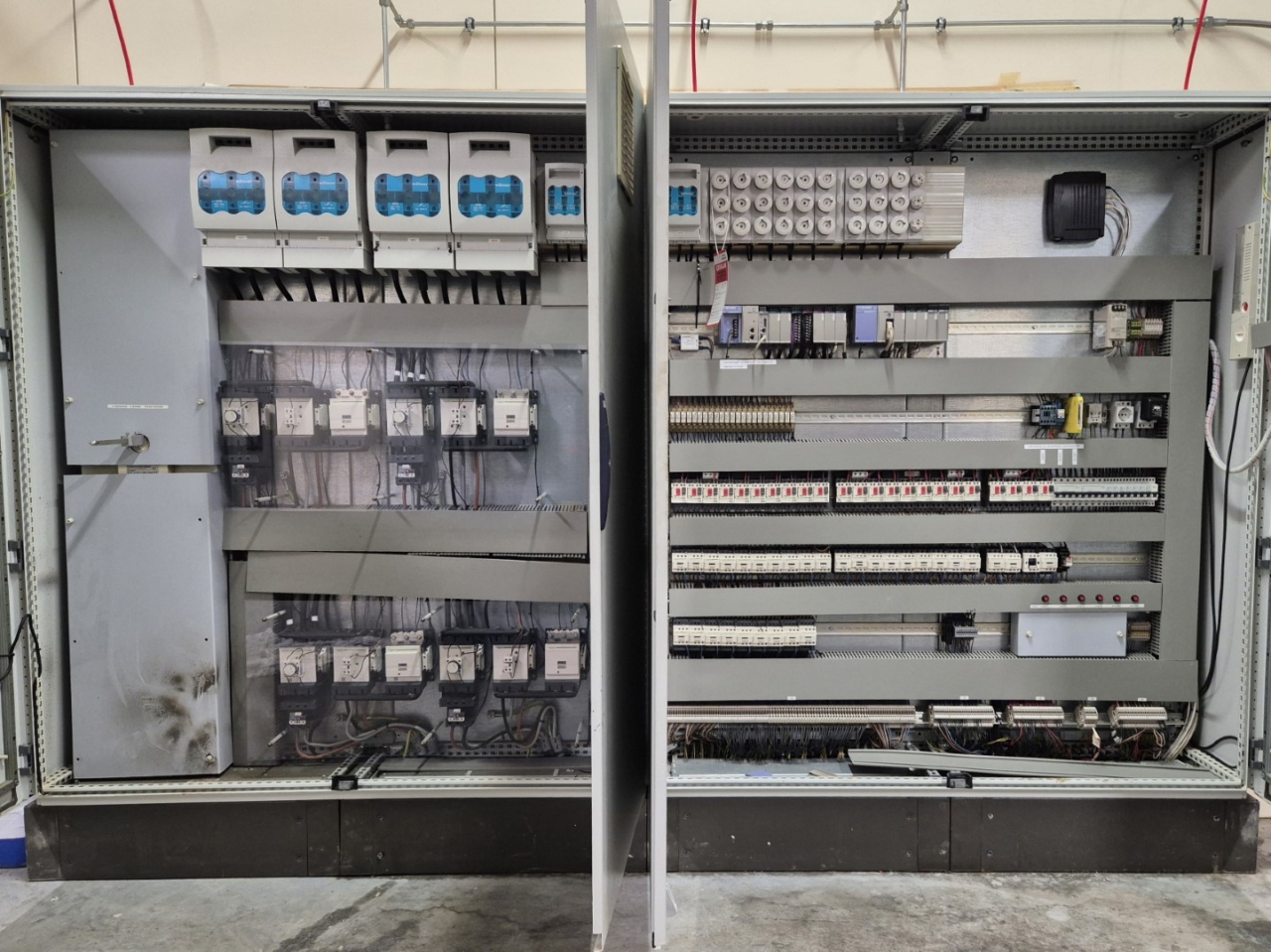

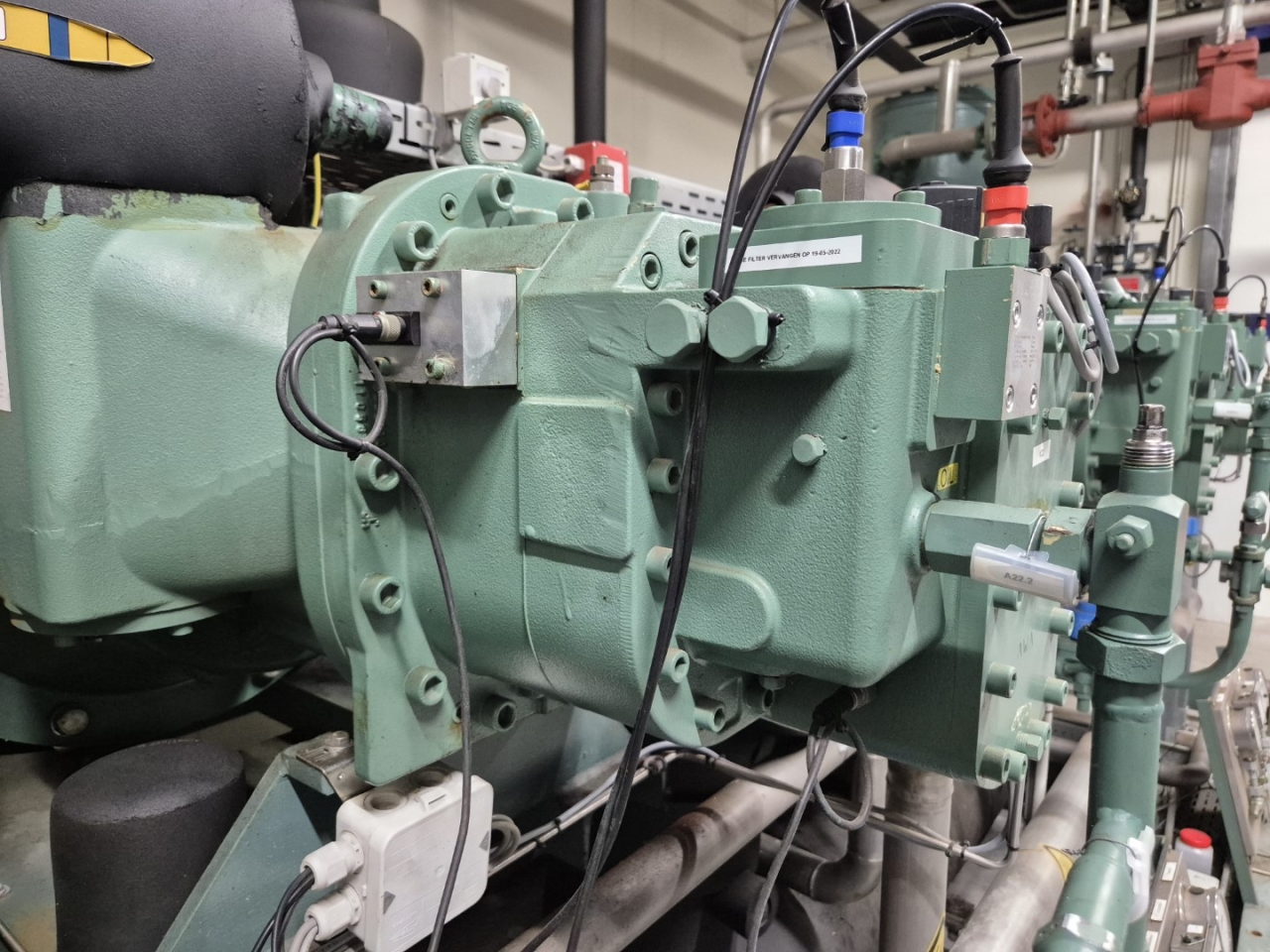

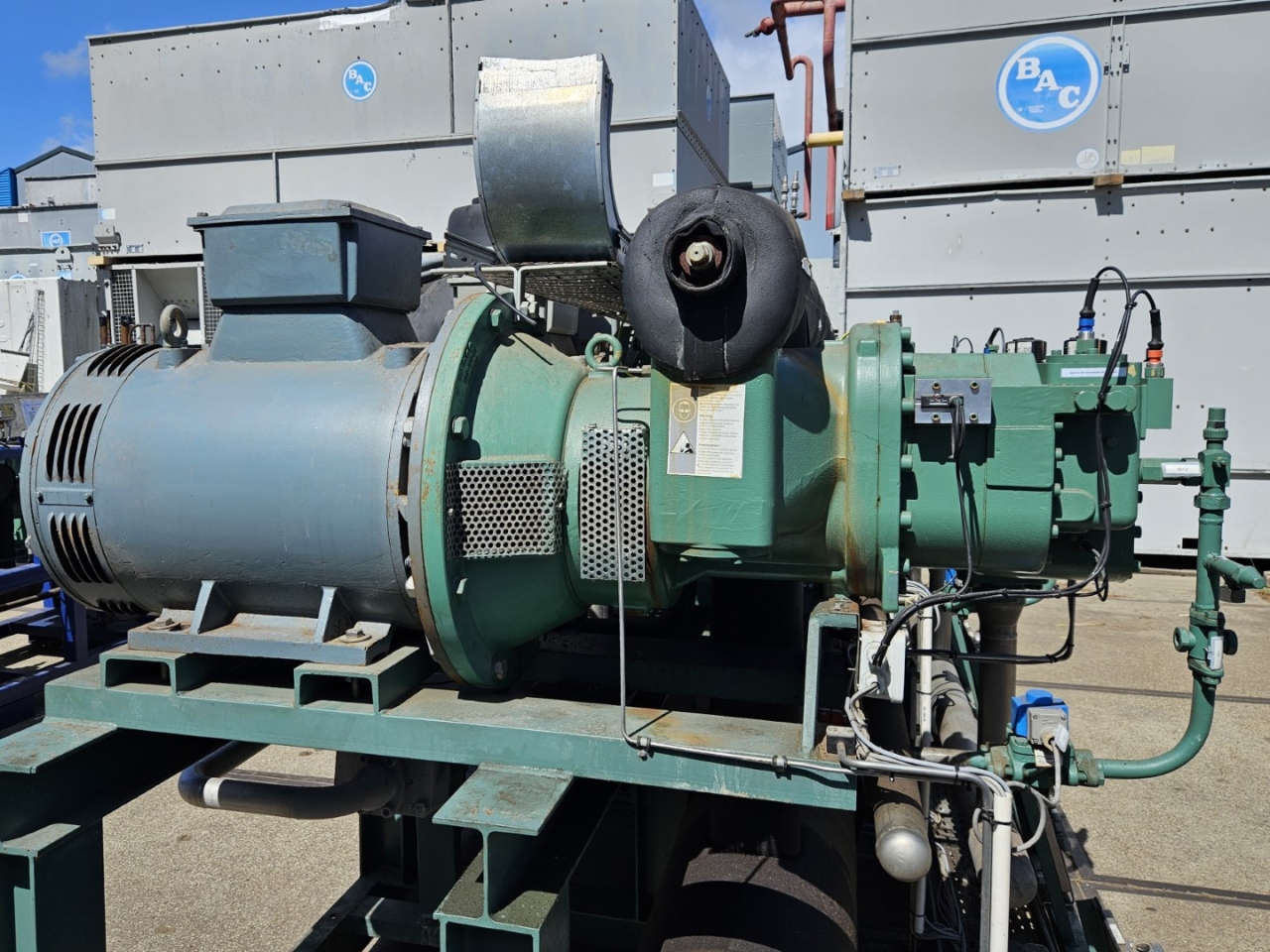

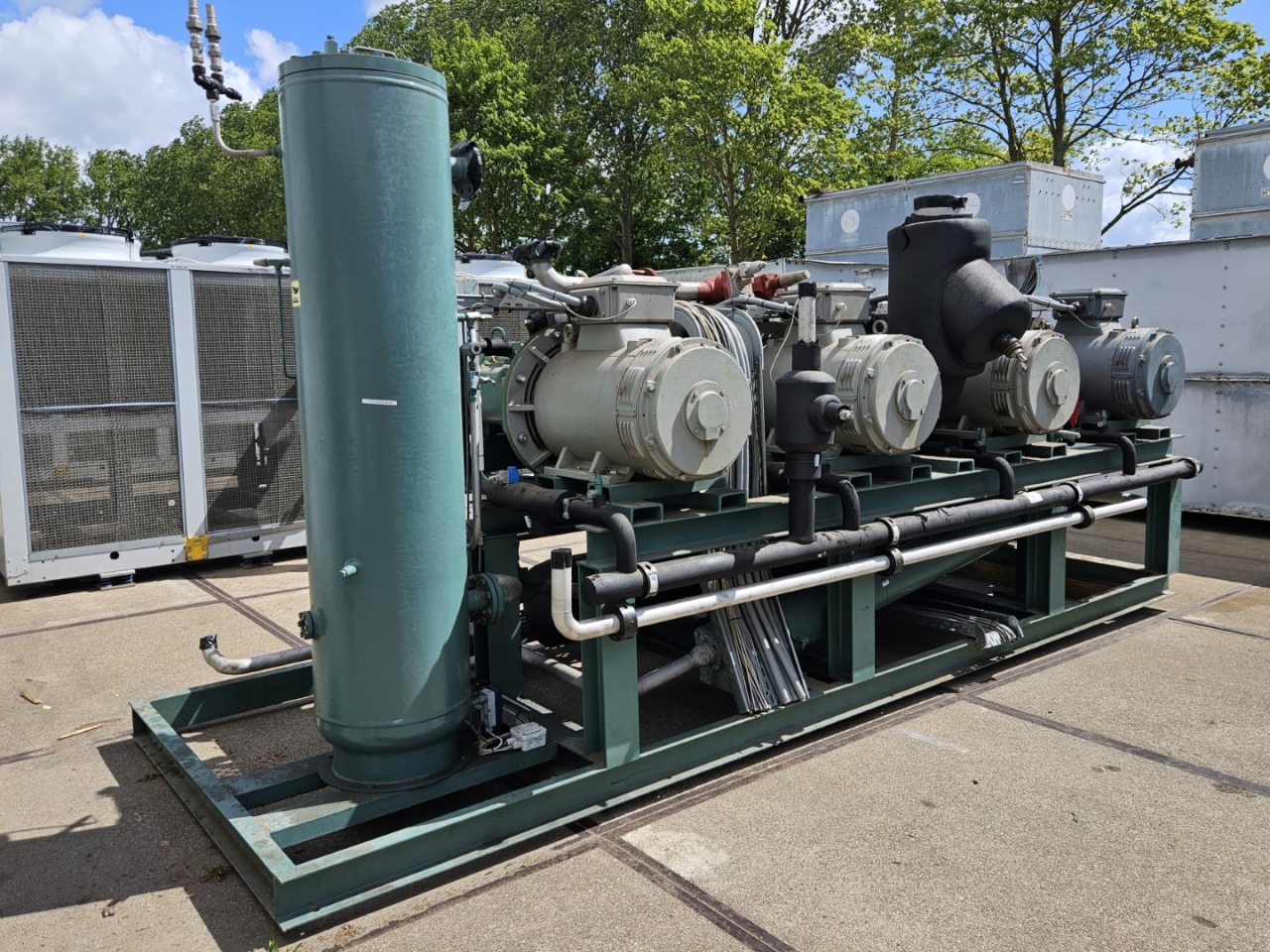

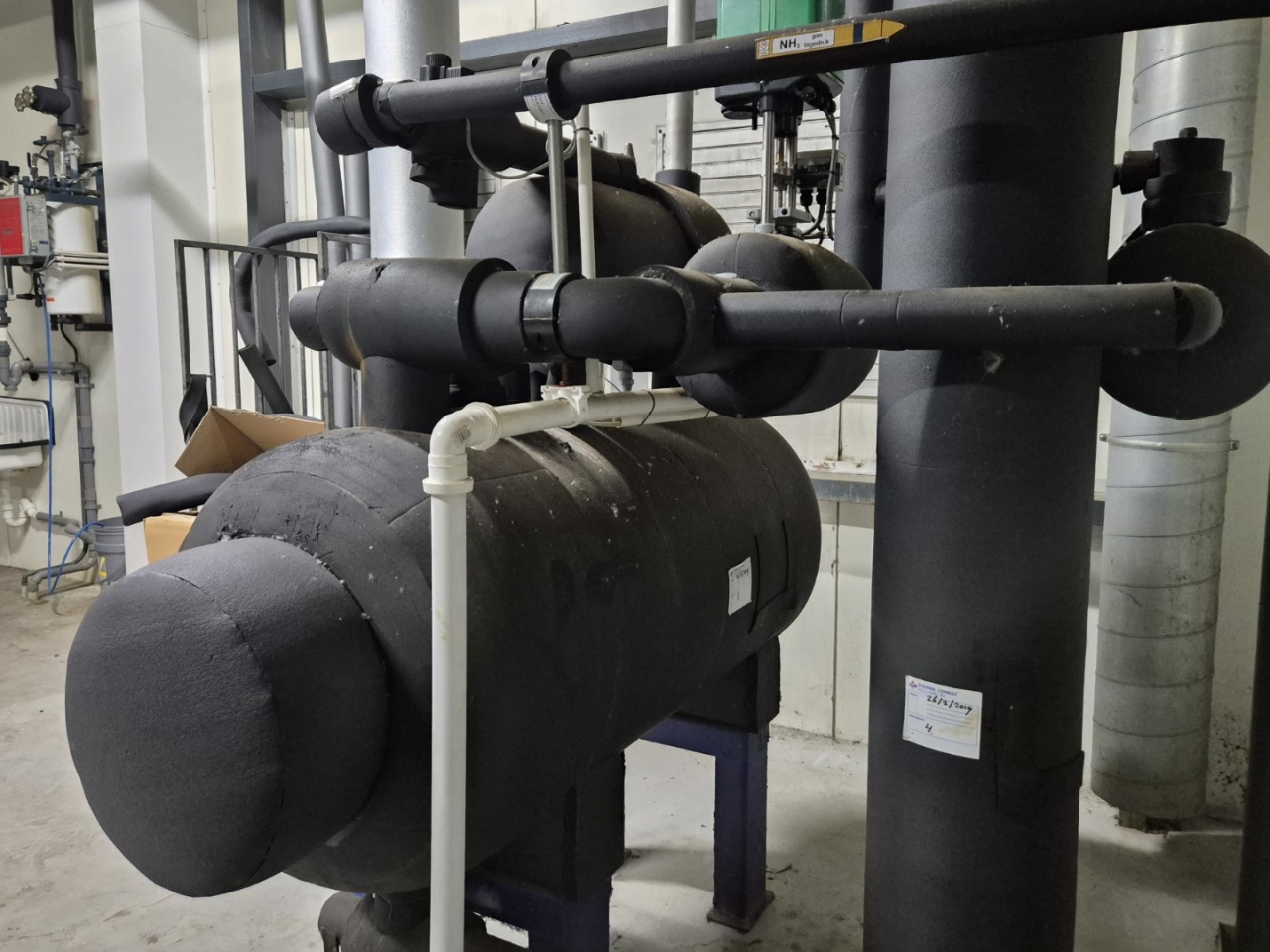

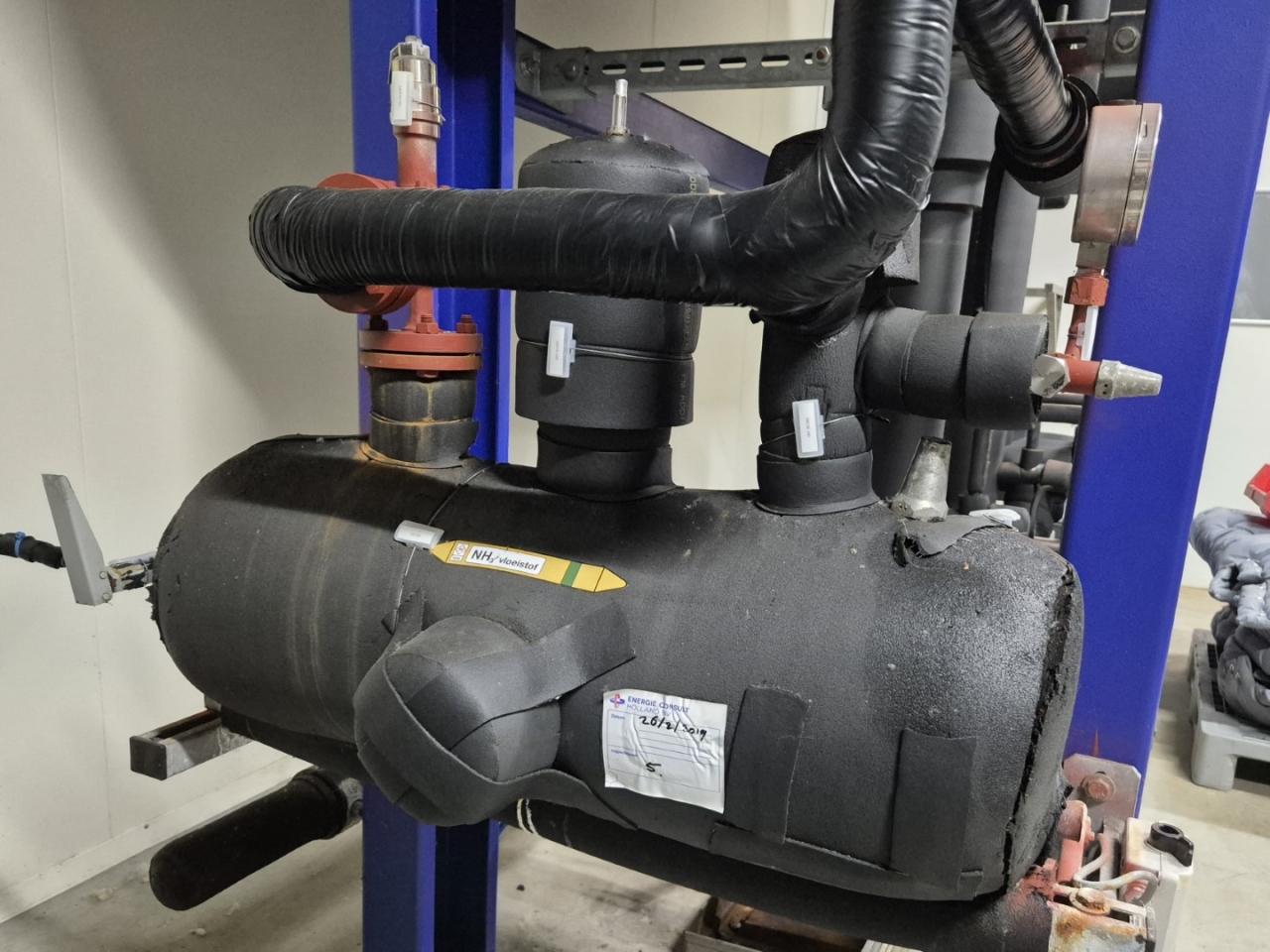

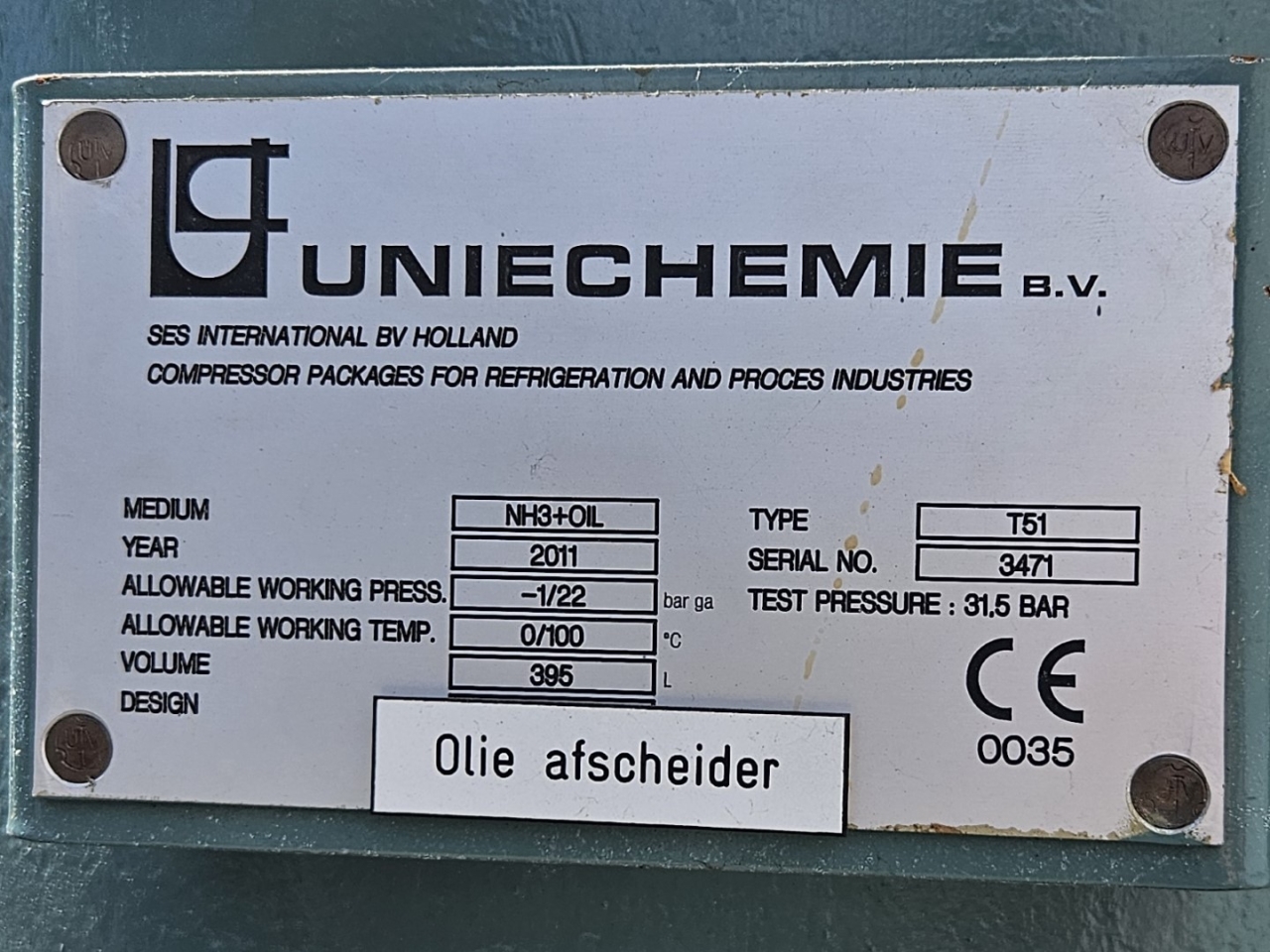

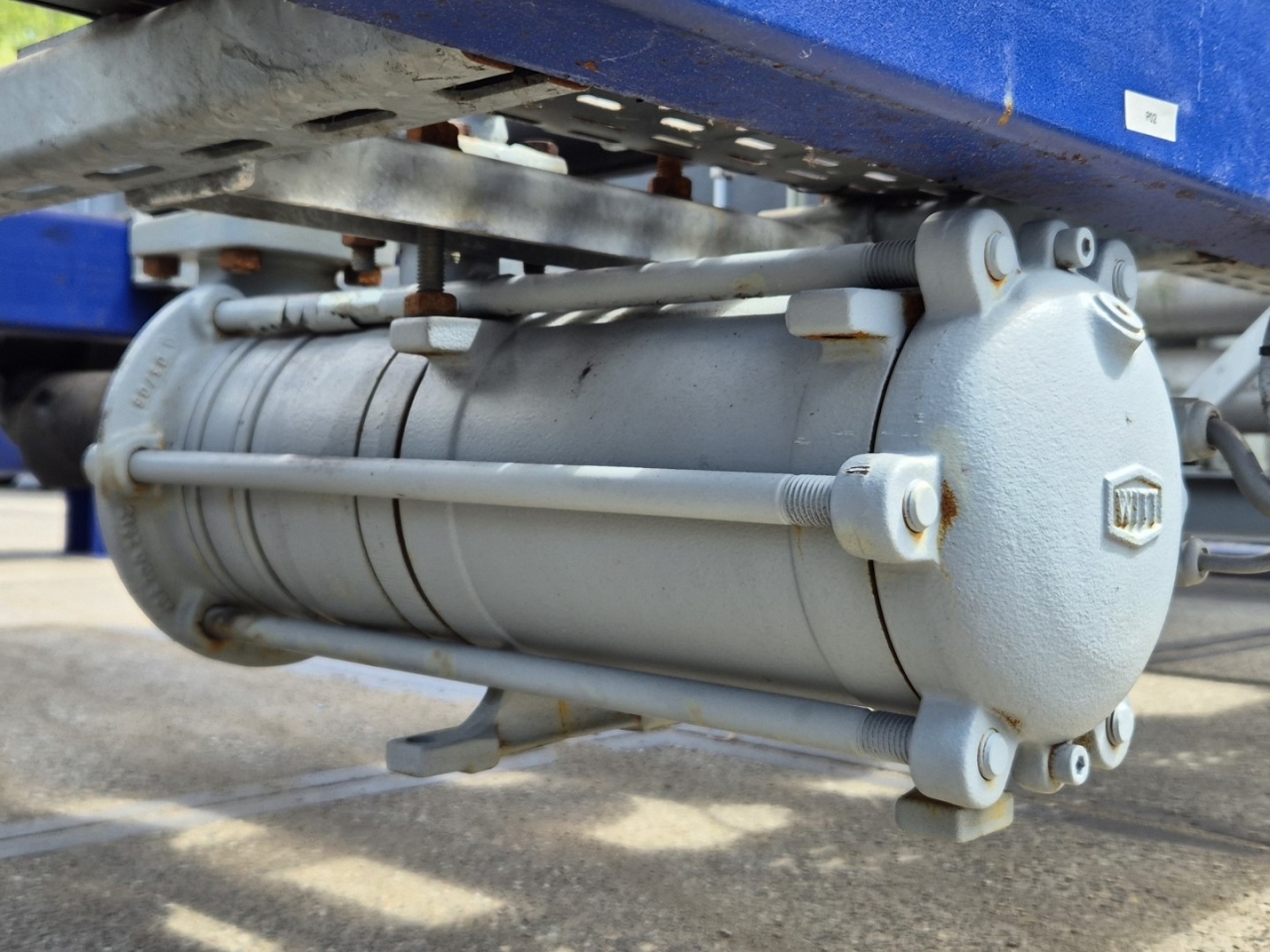

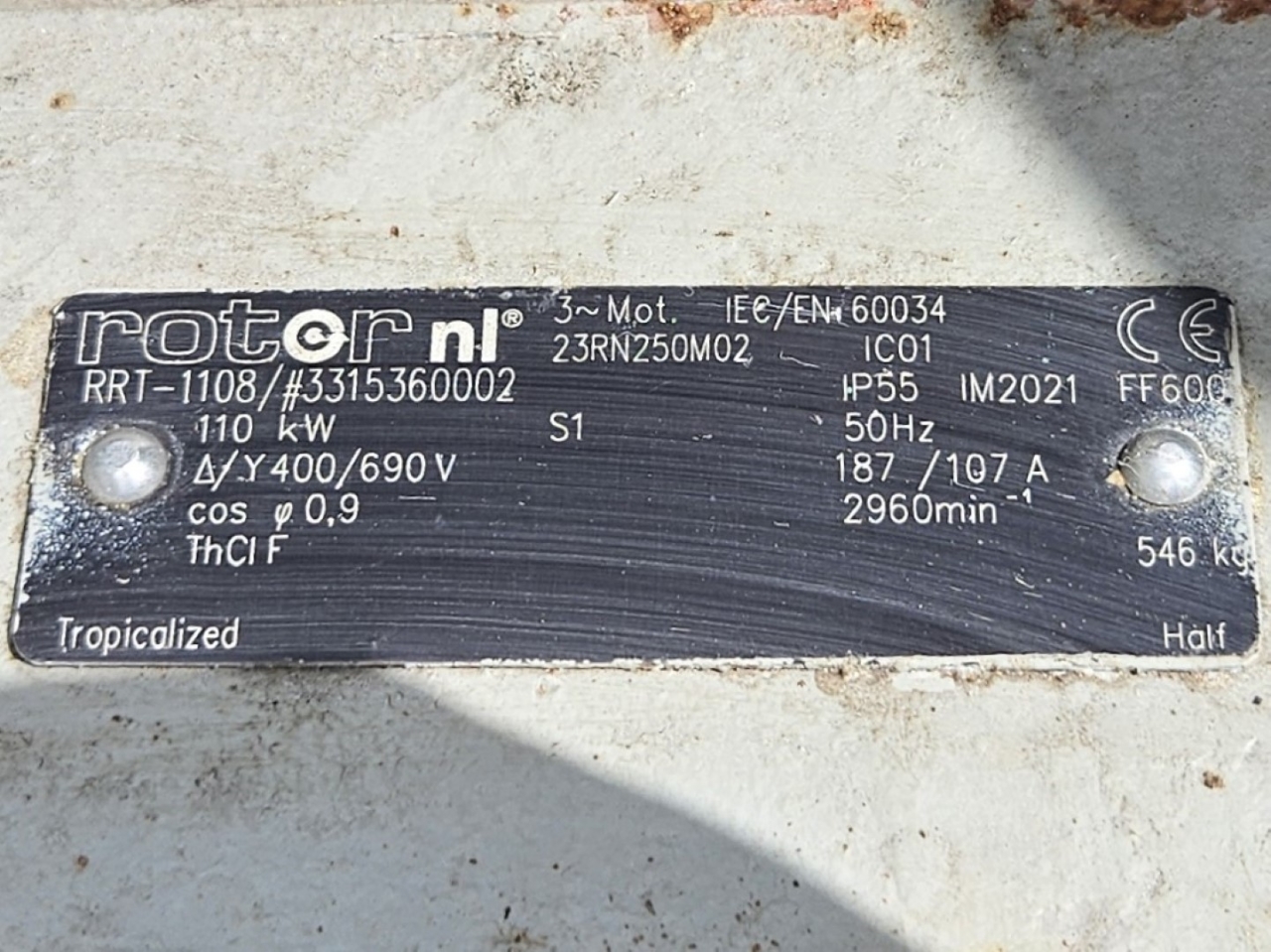

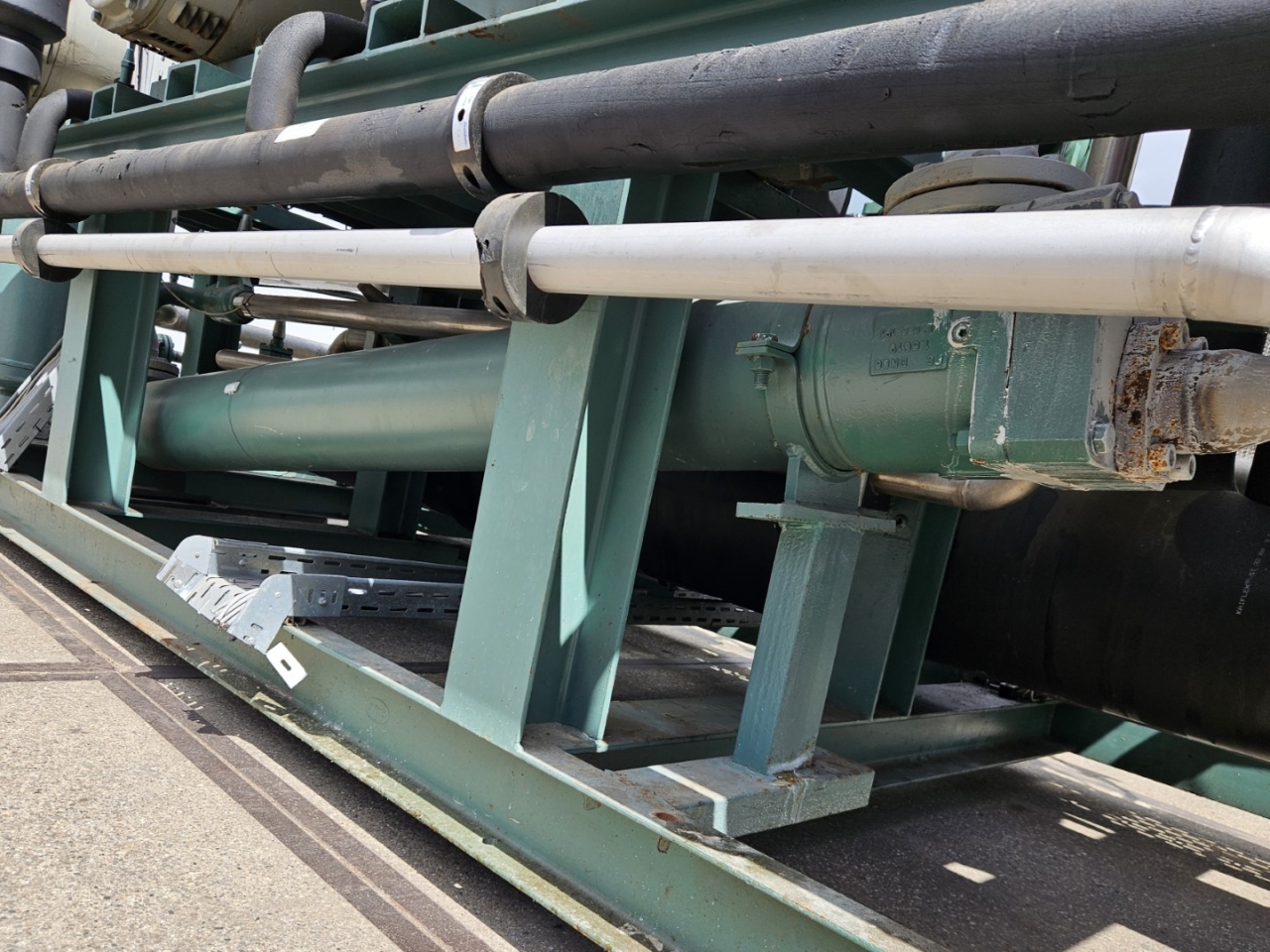

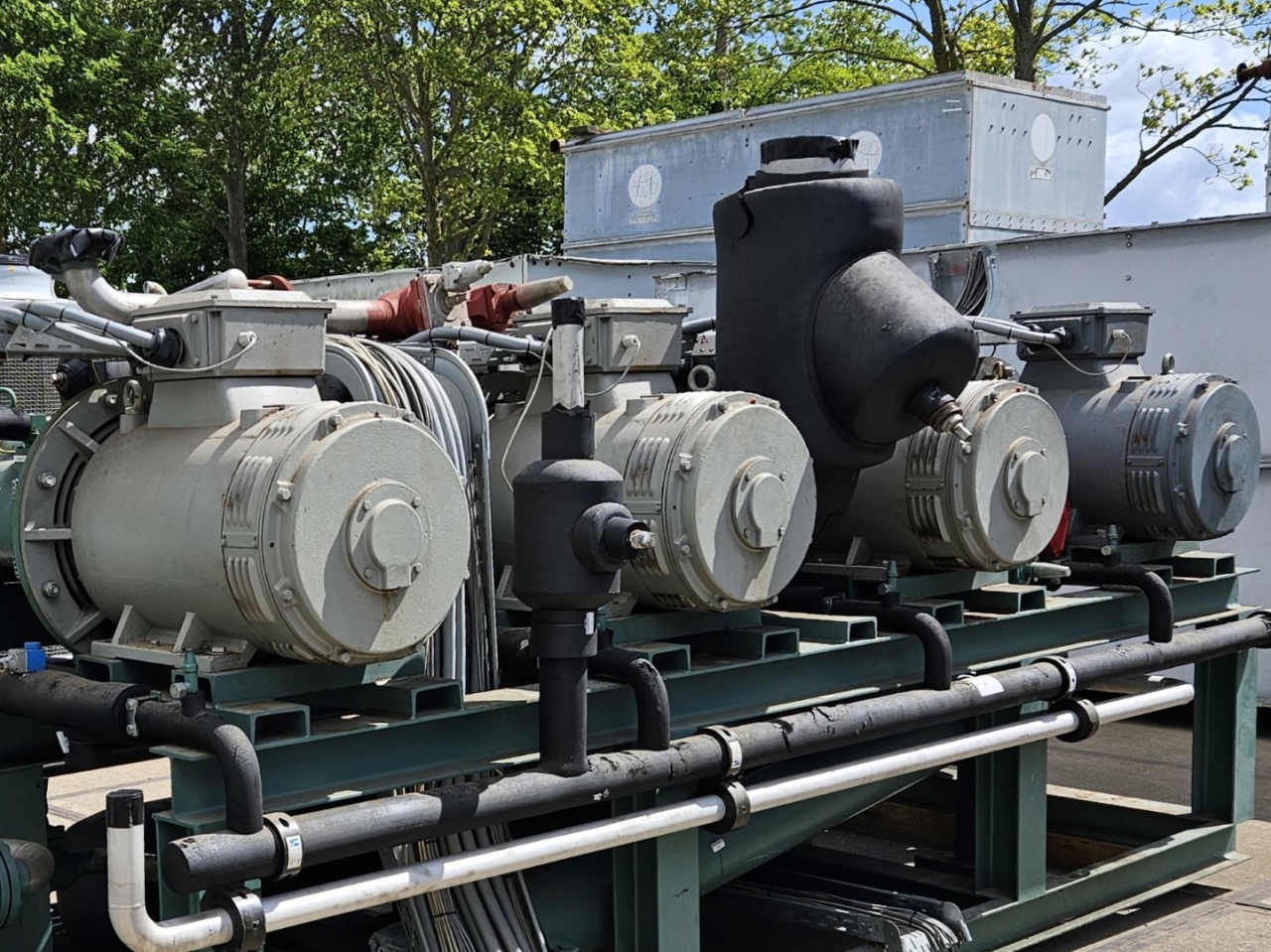

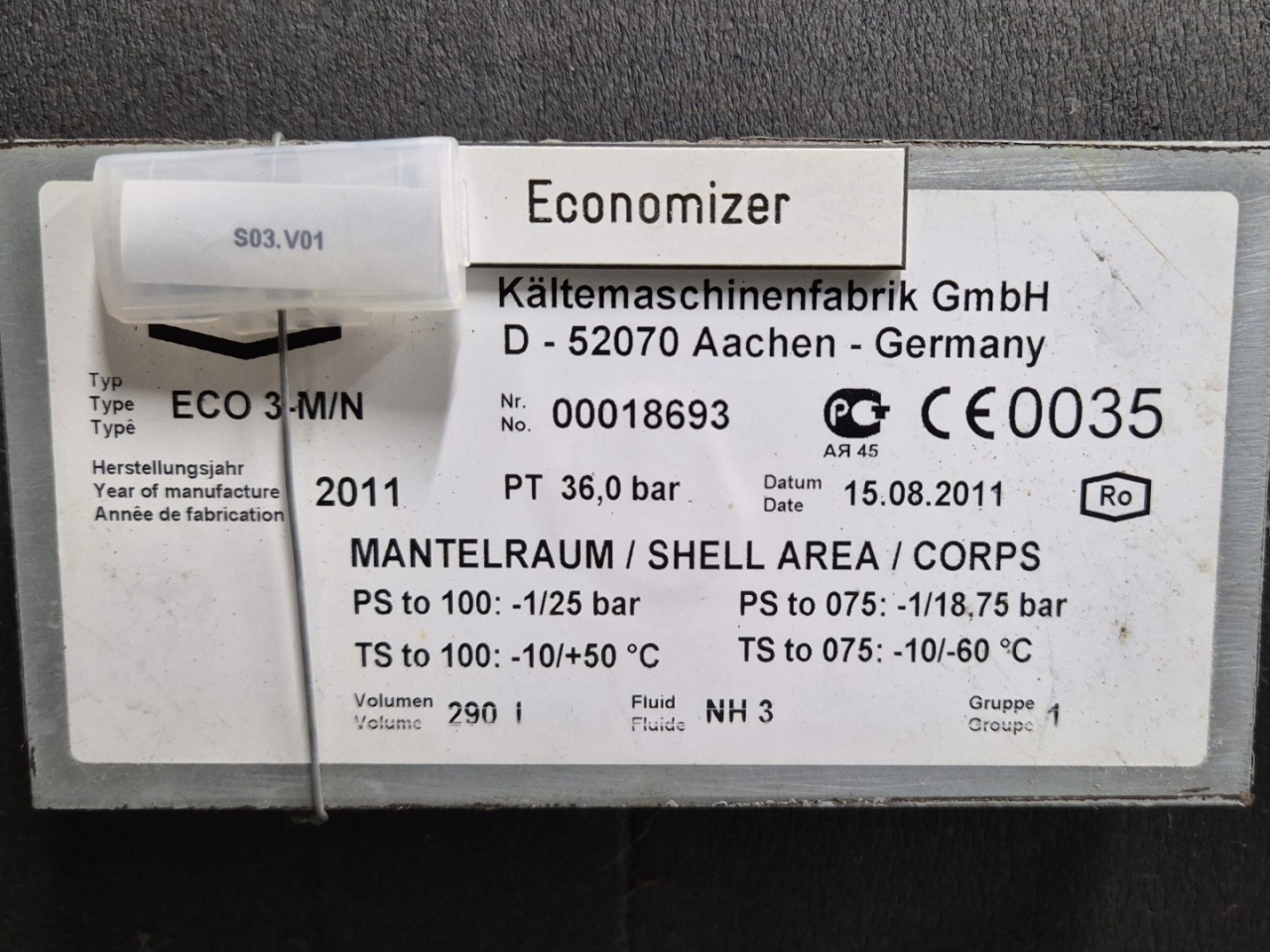

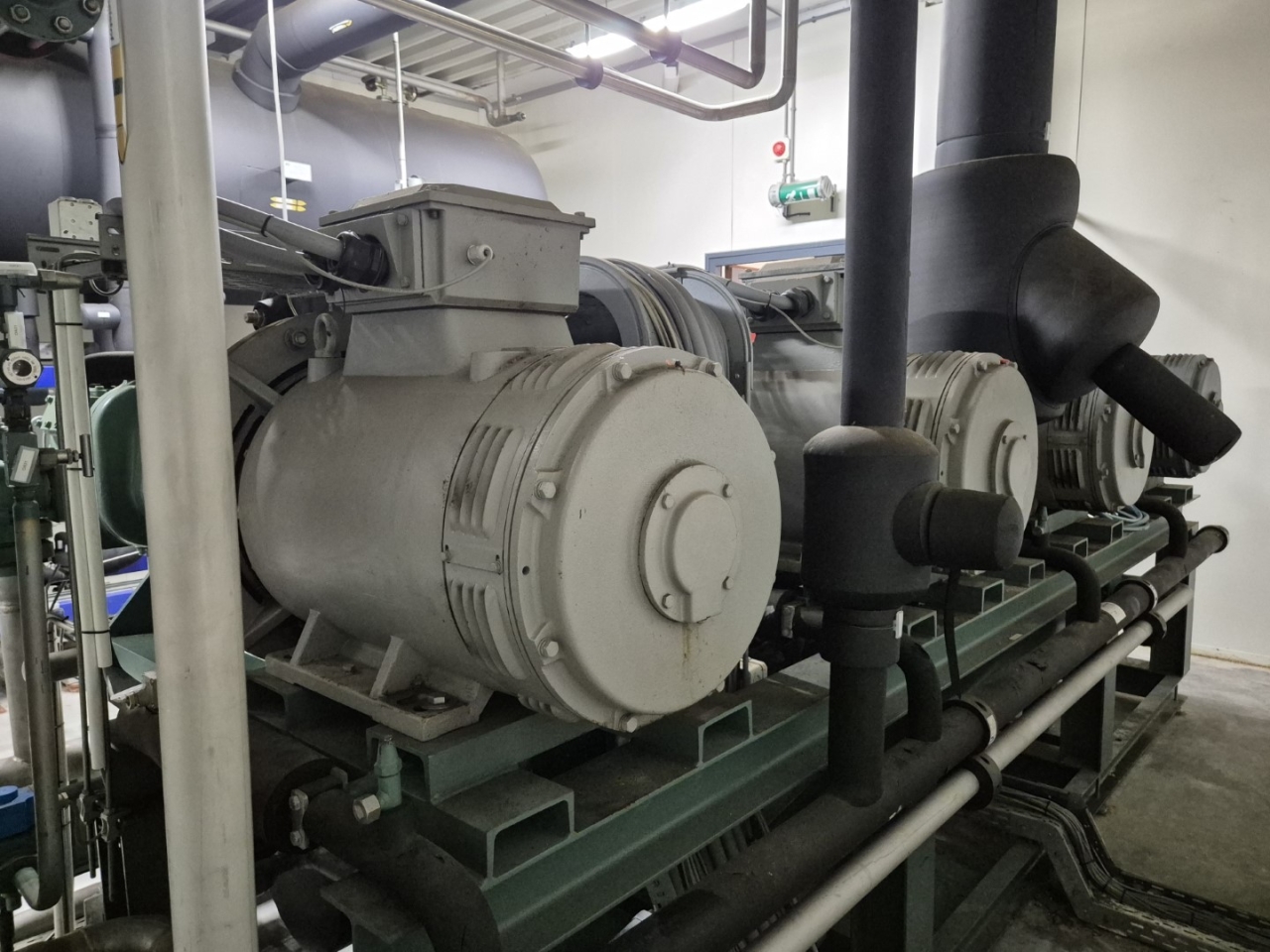

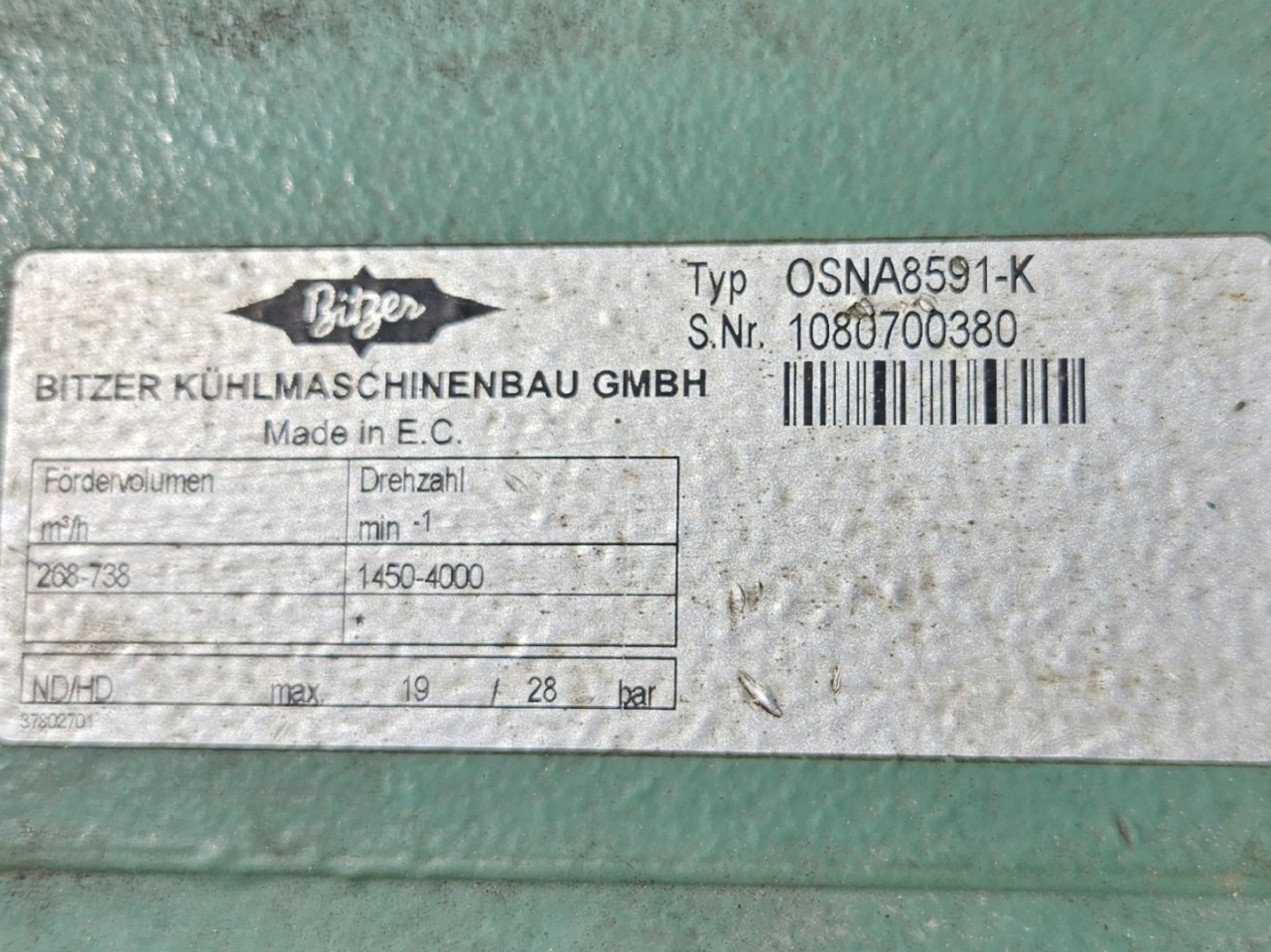

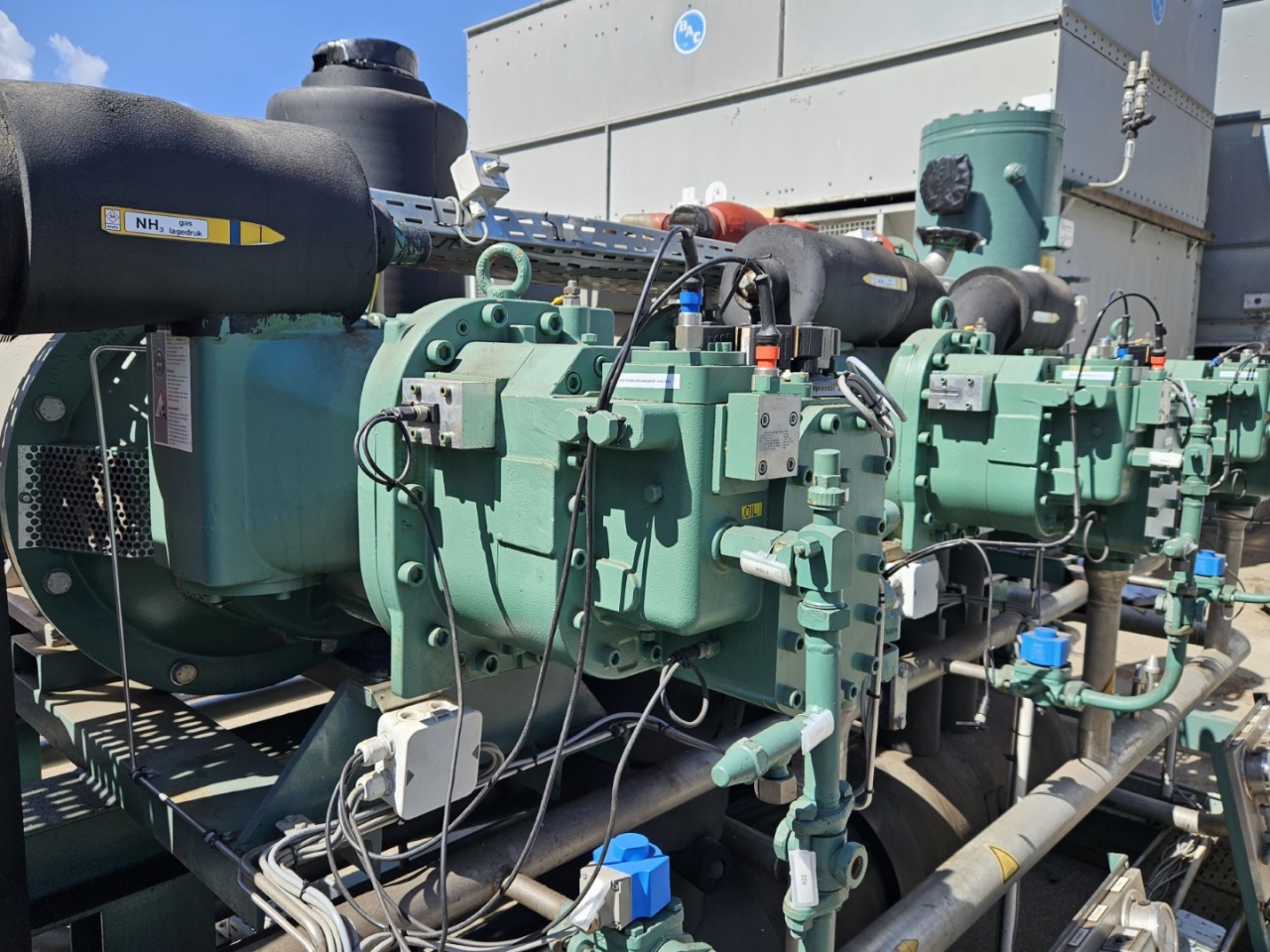

Used Bitzer OSNA 8591-K (x4) open screw compressor rack on R717 (Ammonia). Each compressor complete with a Rotor 23RN250M02 electric motor - 50 Hz - 110 kW - 2960 RPM and pressure and safety switches/gauges. Further the set comes with an oil separator, HS-Cooler KS20-FEP-113 oil cooler, Witt HDB 406 x 1720 receiver with a volume of 210 liter, Witt NDB 1200x4169 separator that has a volume of 4310 liter and 2 Witt HRP 5040 liquid pumps, Witt ECO 3-M/N economizer, NH3 floater and a control cabinet.

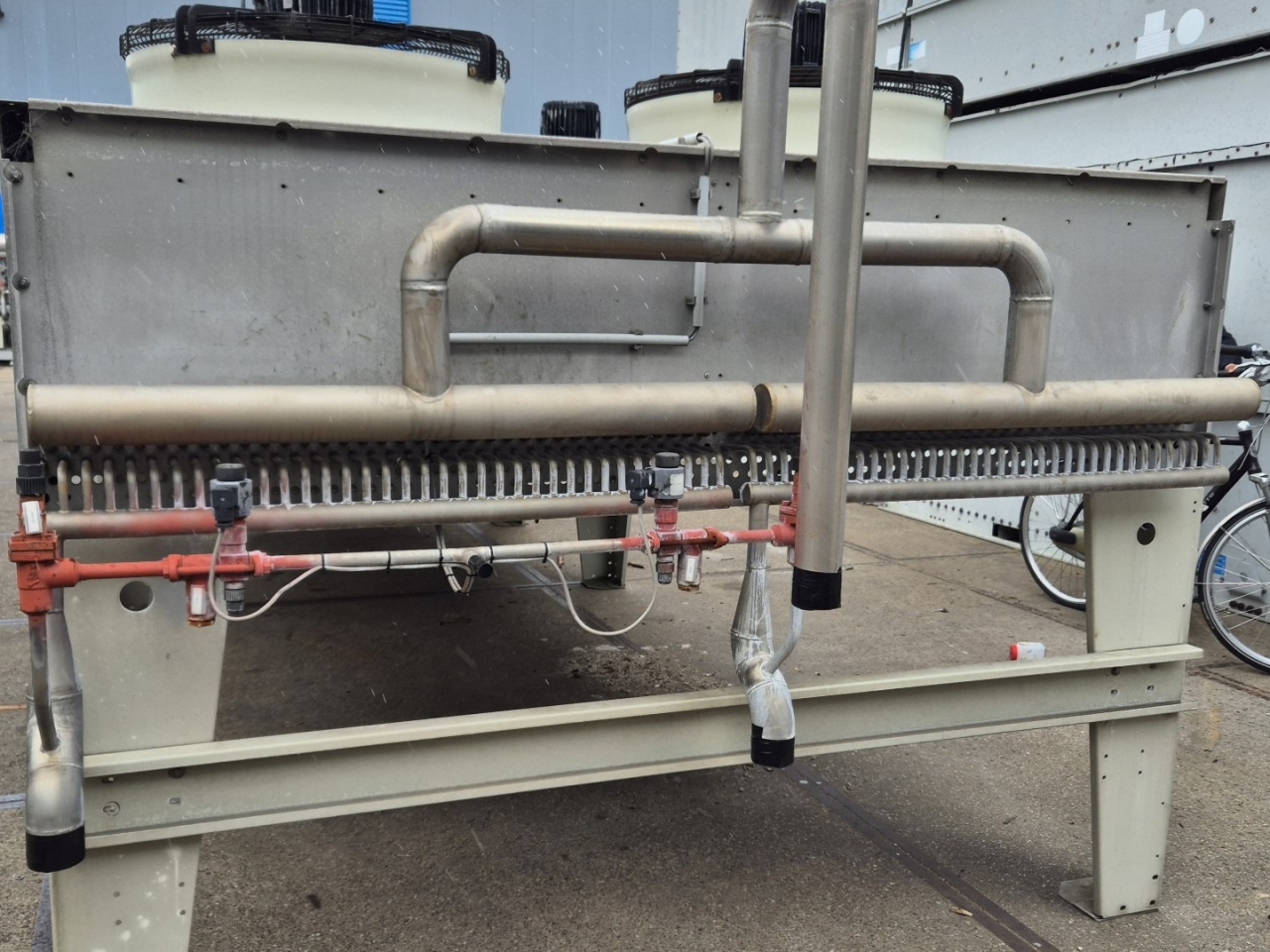

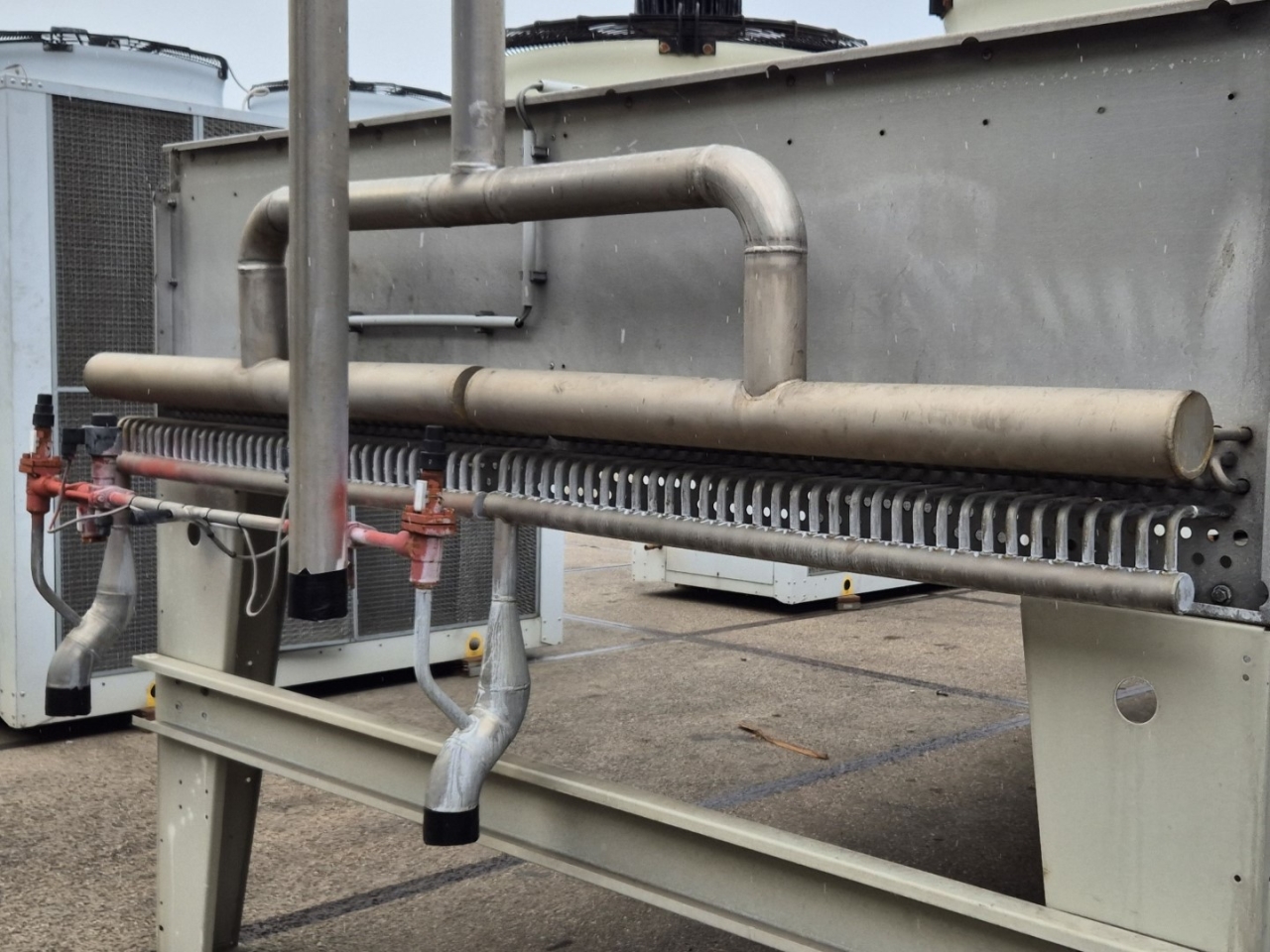

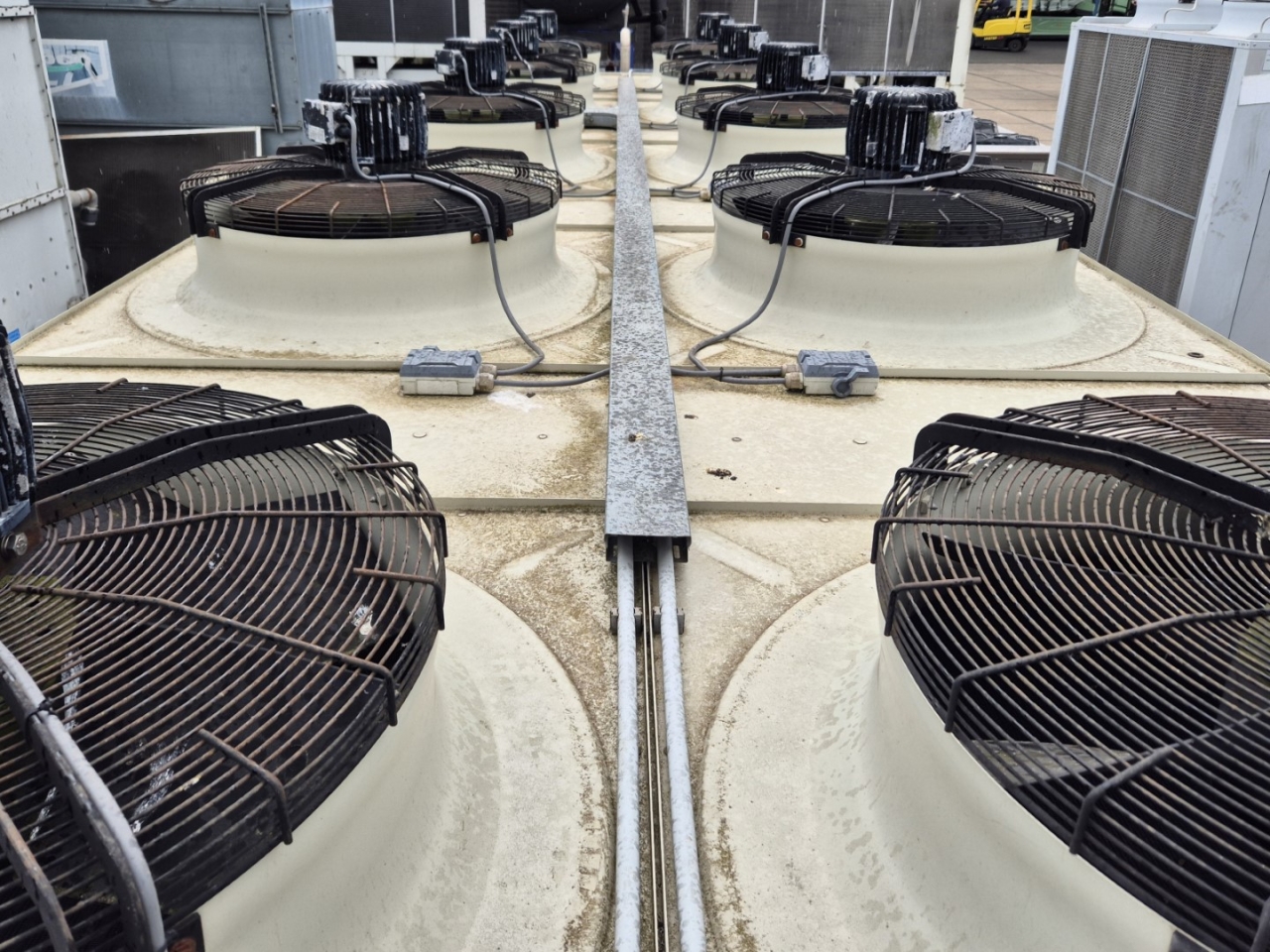

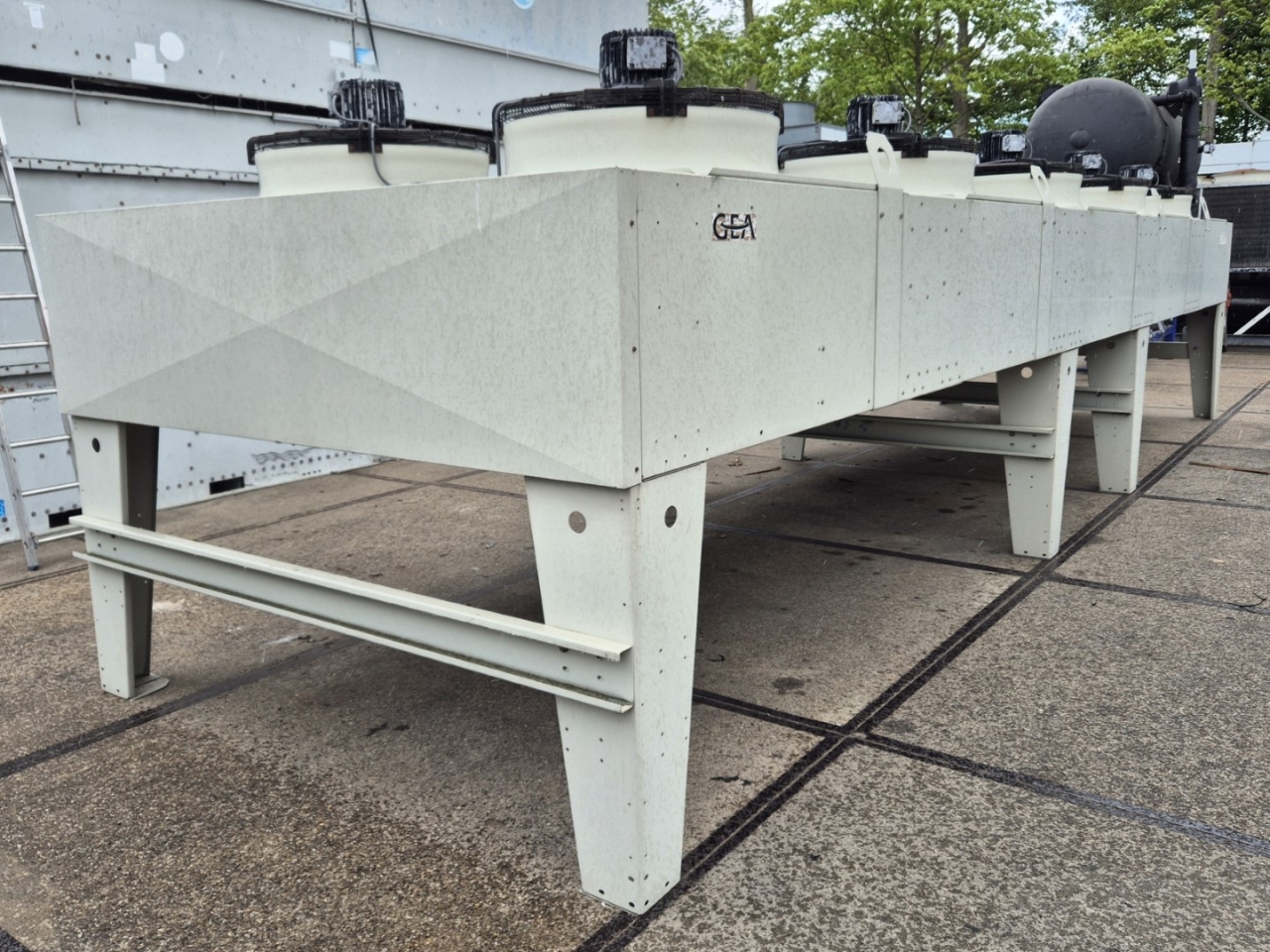

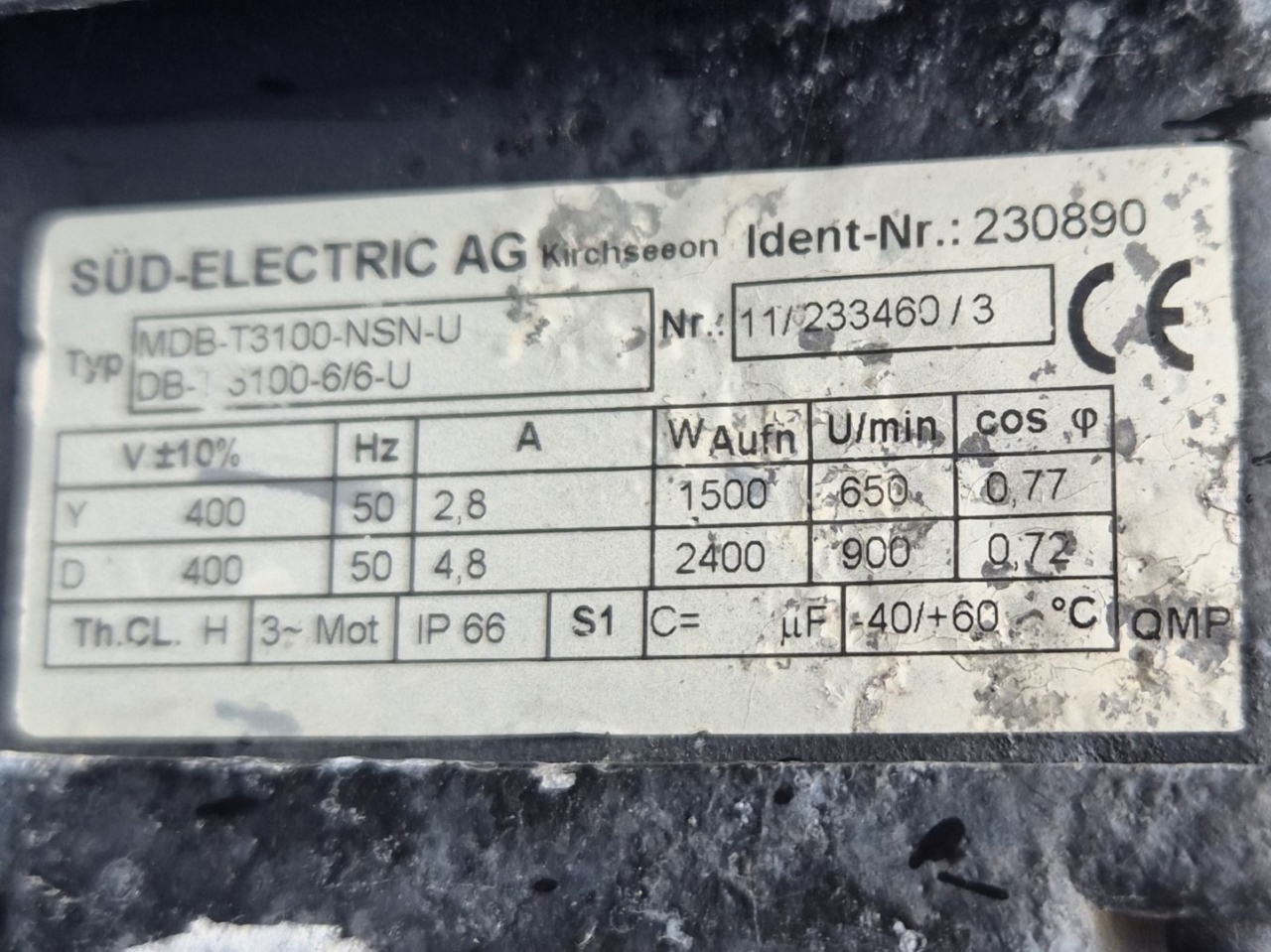

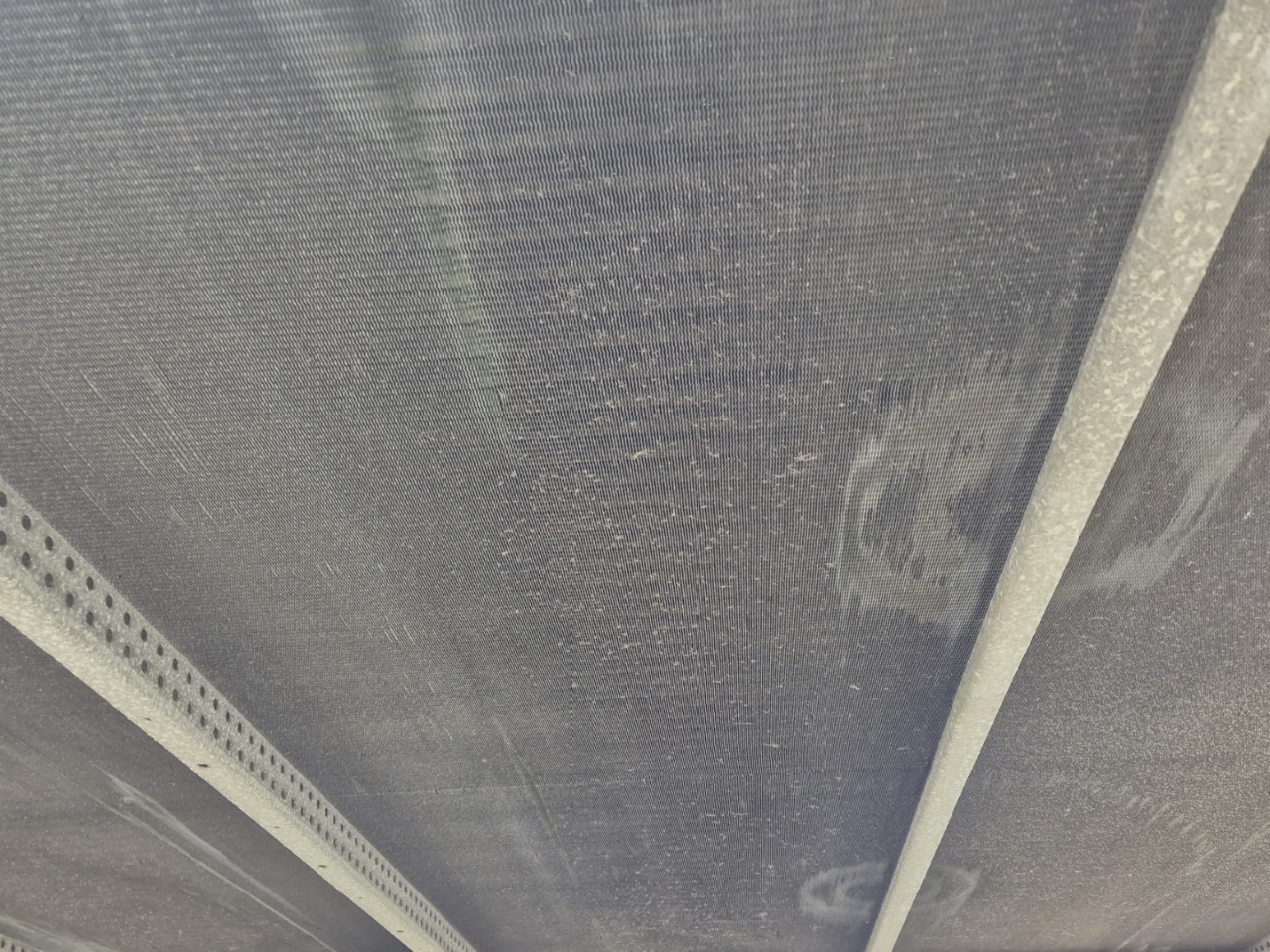

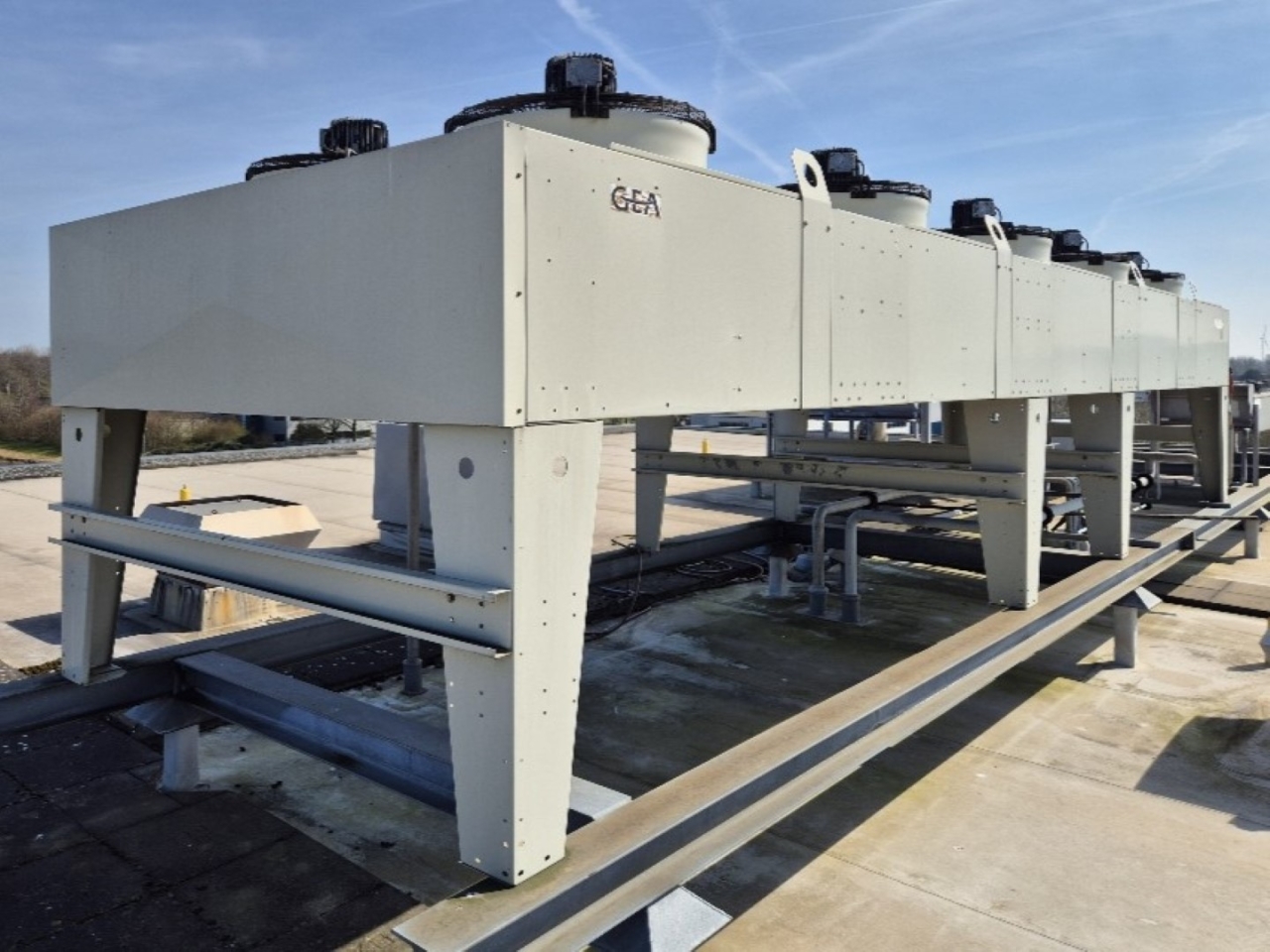

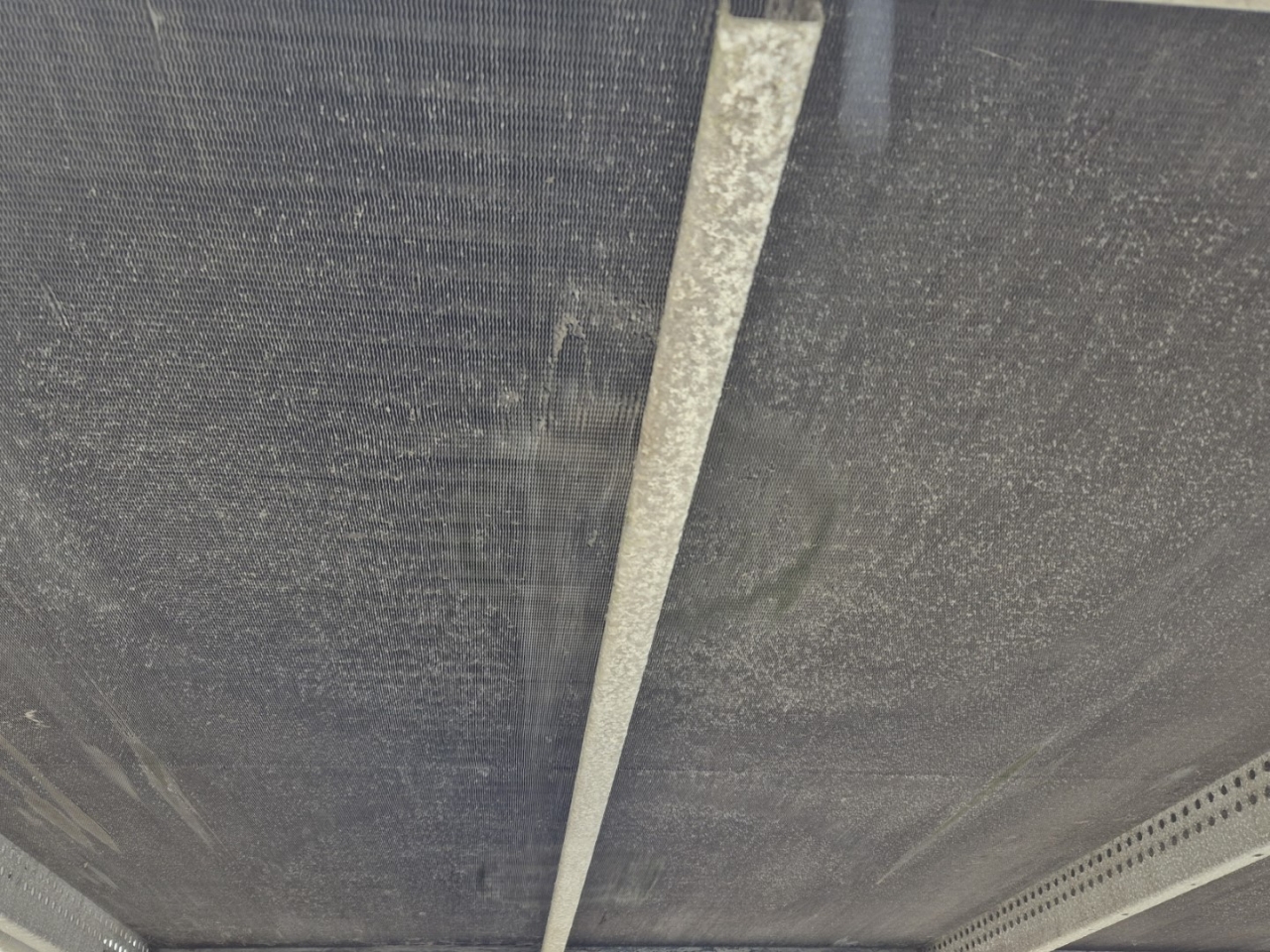

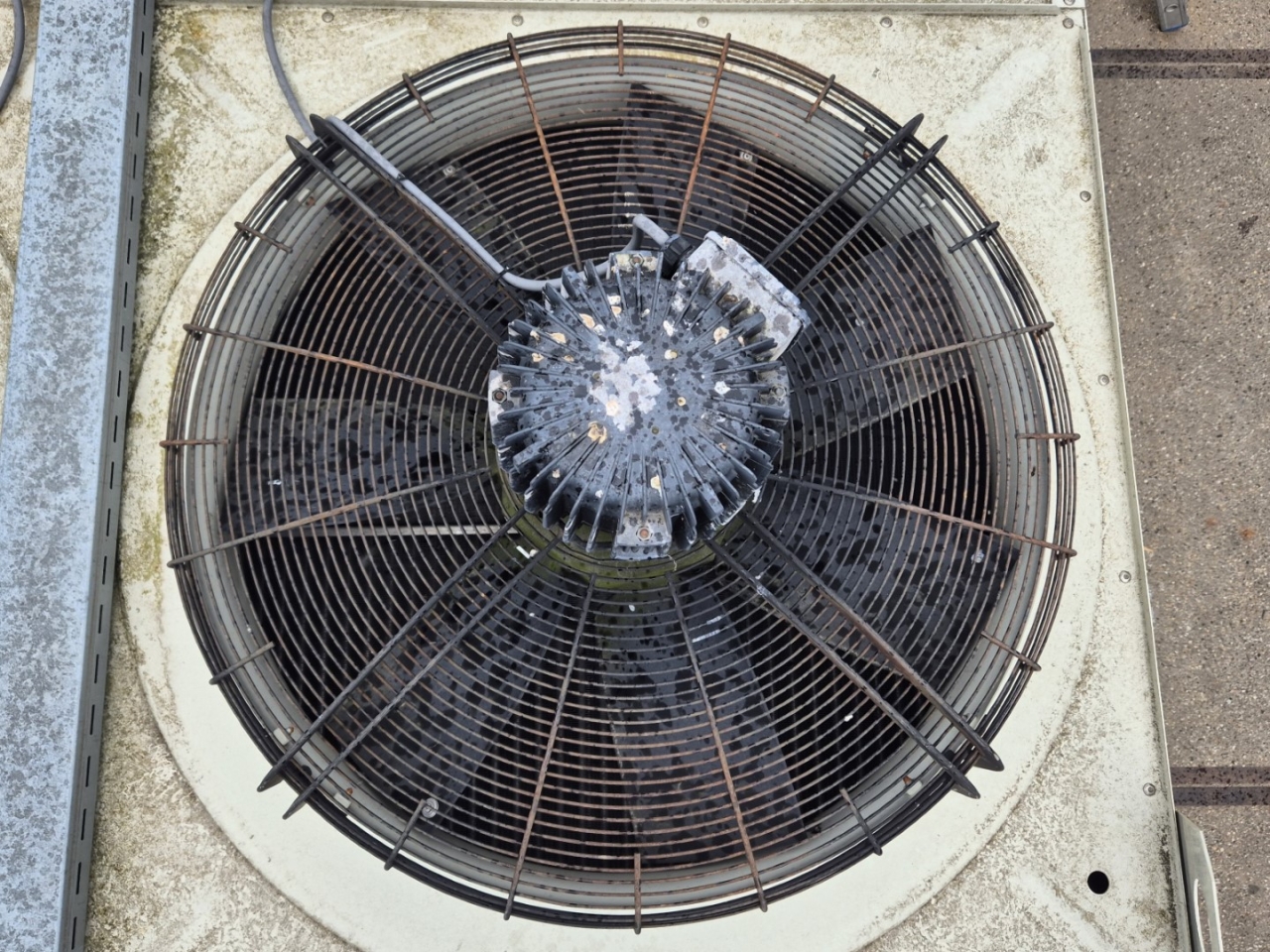

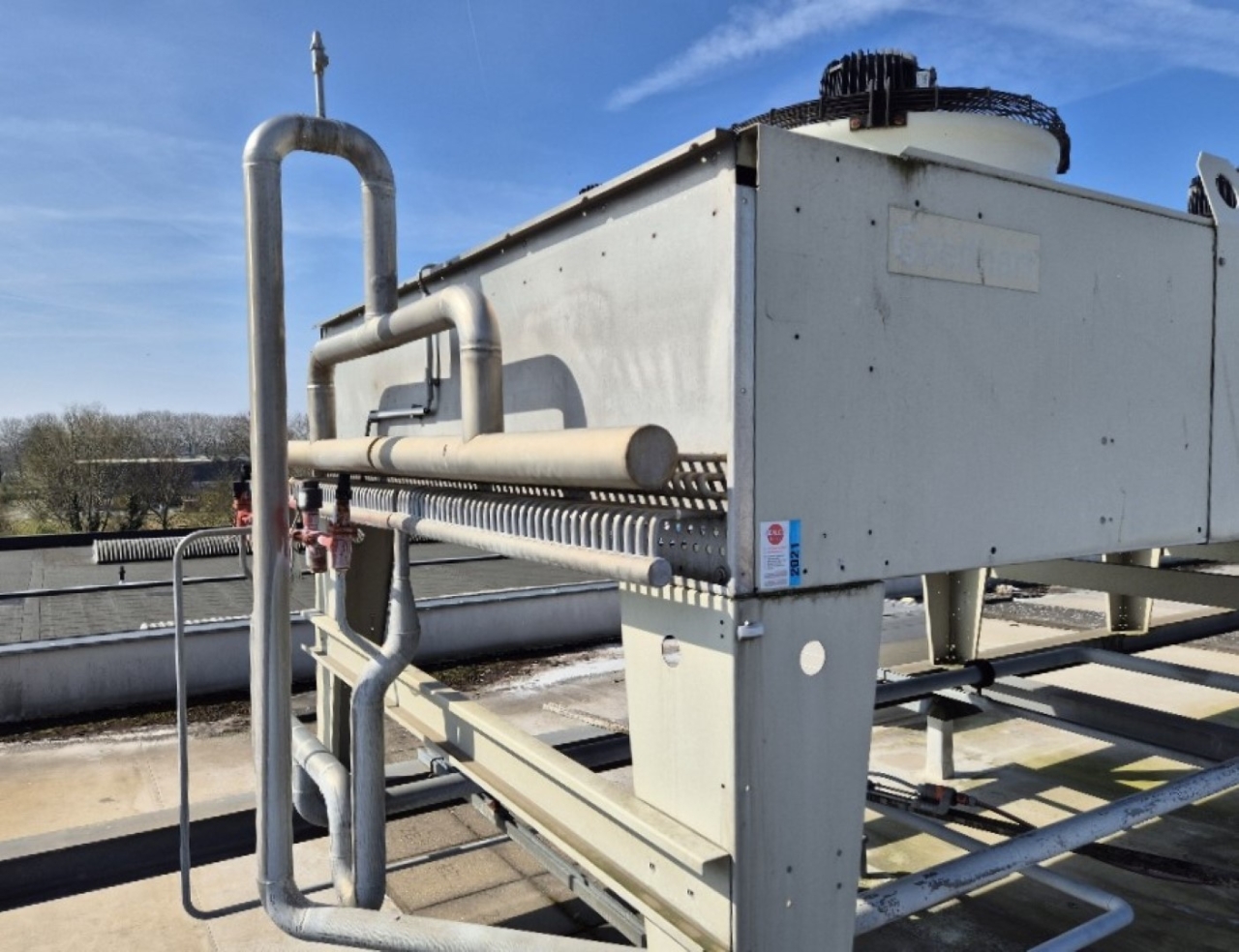

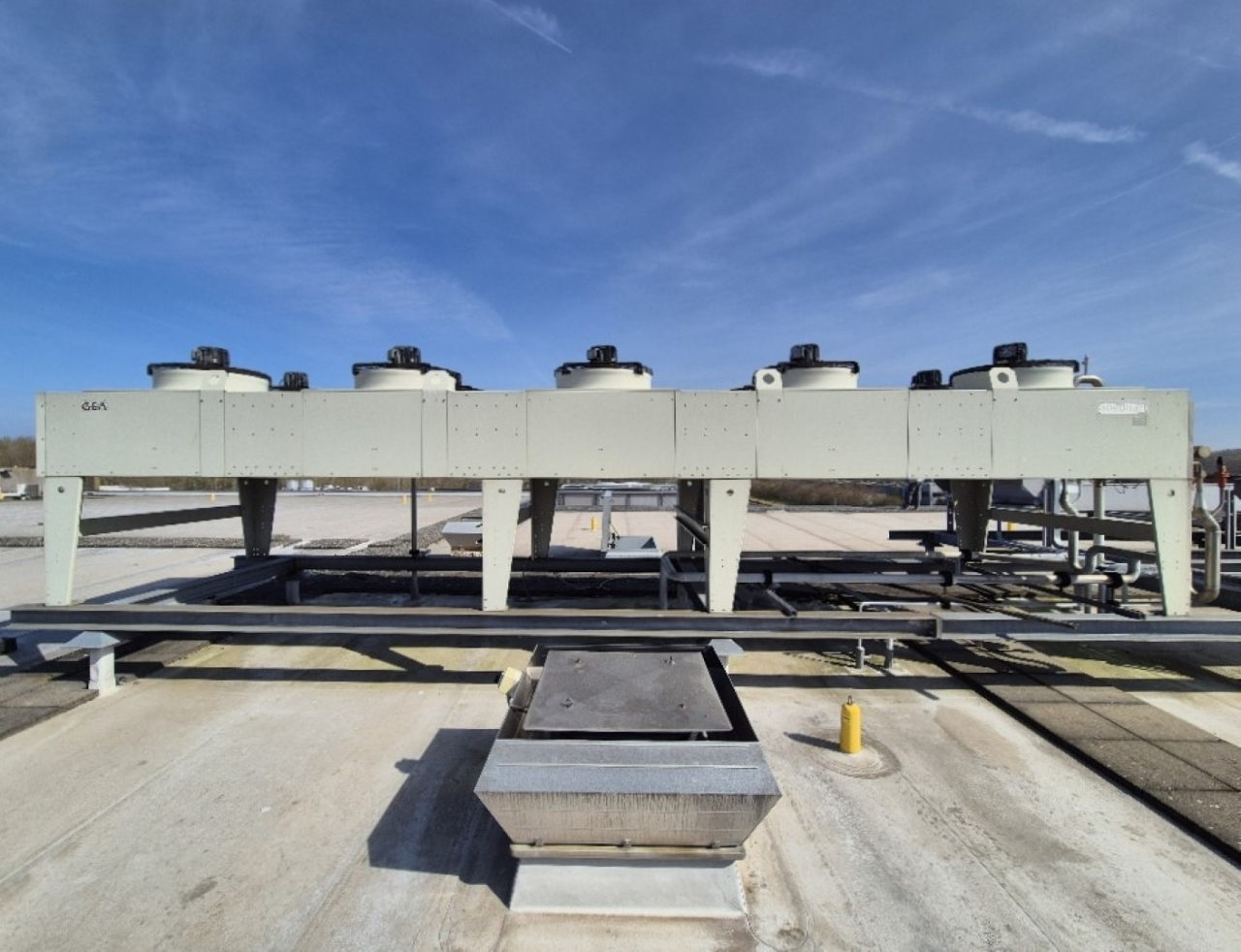

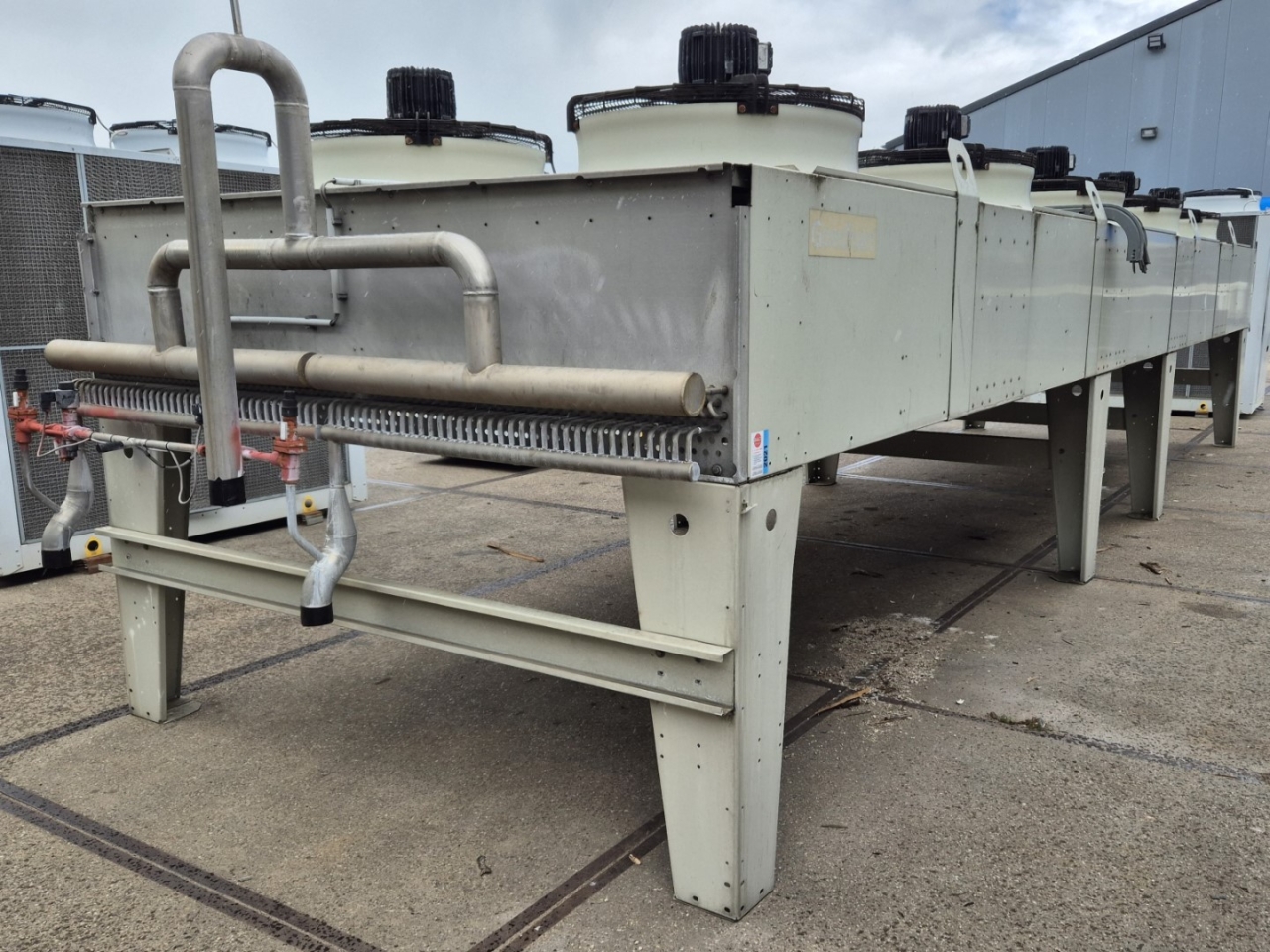

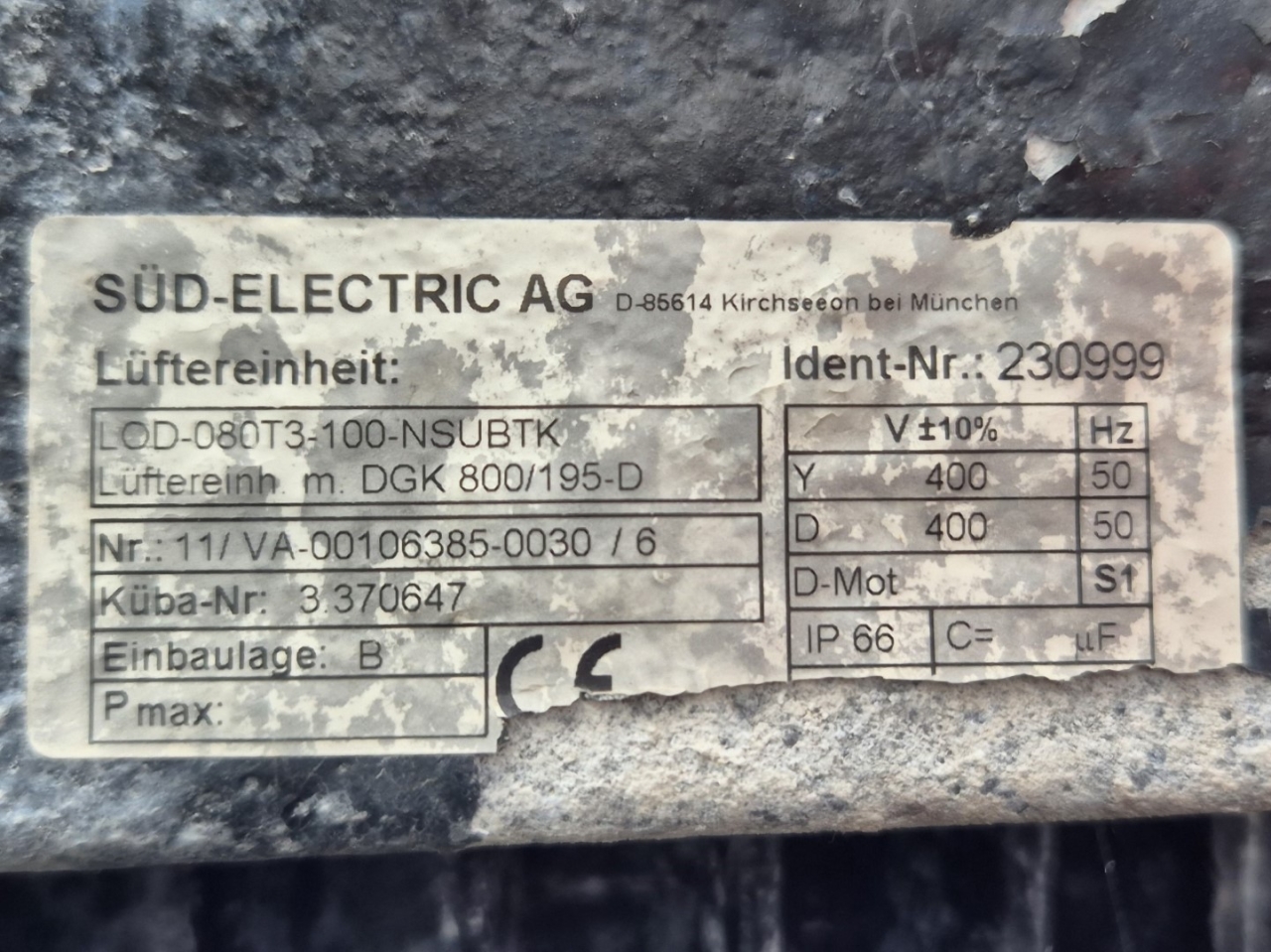

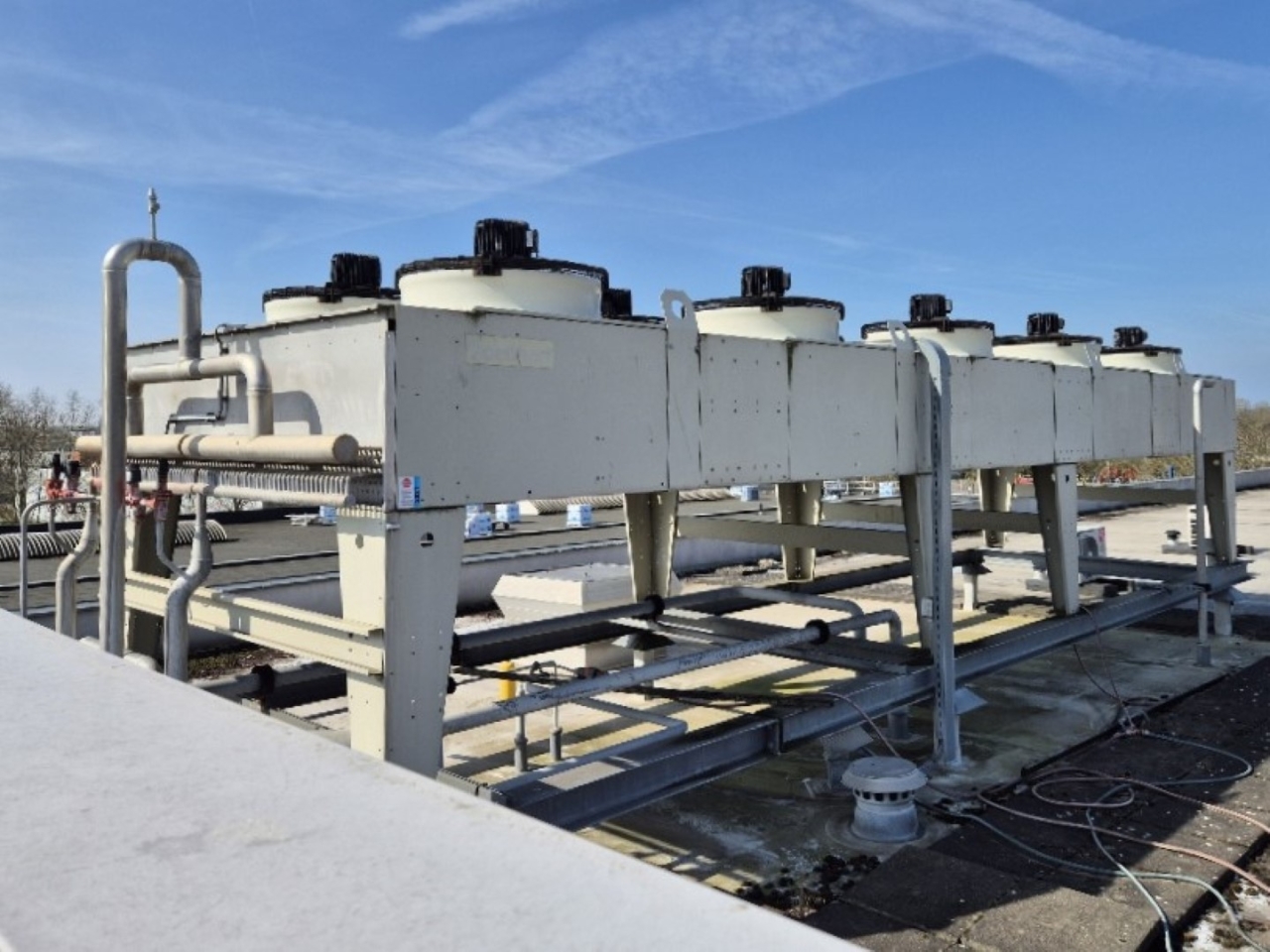

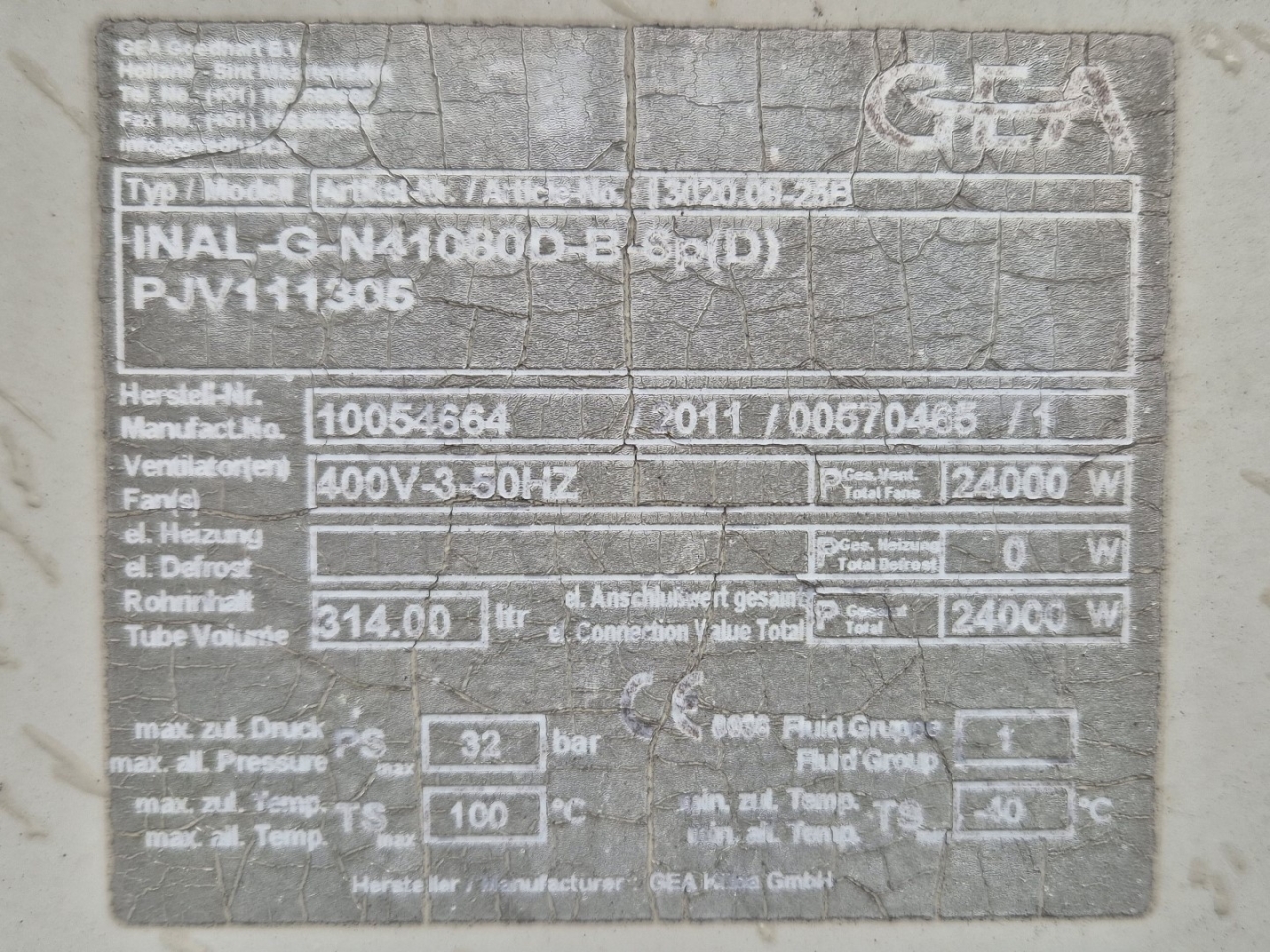

The condenser this set worked with is also available. It is a Goedhart INAL-G-N41080D-B-6p (D) NH3 air-cooled condenser. Complete with 10 Süd-Electric MDB-T3100-NSN-U fans - 50 Hz - 1,5/2,4 kW - 650/900 RPM - diameter 800 mm and a total airflow of 210.120 m³/h. Capacity of 774,2 kW at an air inlet temperature of 25°C and a condensing temperature of 40°C. Condenser can be found through the following link: 17981
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also arrange the logistics.
