Bitzer 4N-20.2Y-40P (x1) & 4N-20.2 Y (x1)
Bitzer 4N-20.2Y-40P (x1) & 4N-20.2 Y (x1)
| 18017 | |
| Brand | Bitzer |
| Type | 4N-20.2Y-40P (x1) & 4N-20.2 Y (x1) |
| Refrigerant | Freon |
| kW at 0ºC/+40ºC | 91,6 |
| kW at -5ºC/+40ºC | 76,2 |
| kW at -10ºC/+40ºC | 62,6 |
| kW at -20ºC/+40ºC | 40,8 |
| kW at -30ºC/+40ºC | 24,8 |
| kW at -40ºC/+40ºC | 12,8 |
| Capacity Control |
|
| On steel base frame |
|

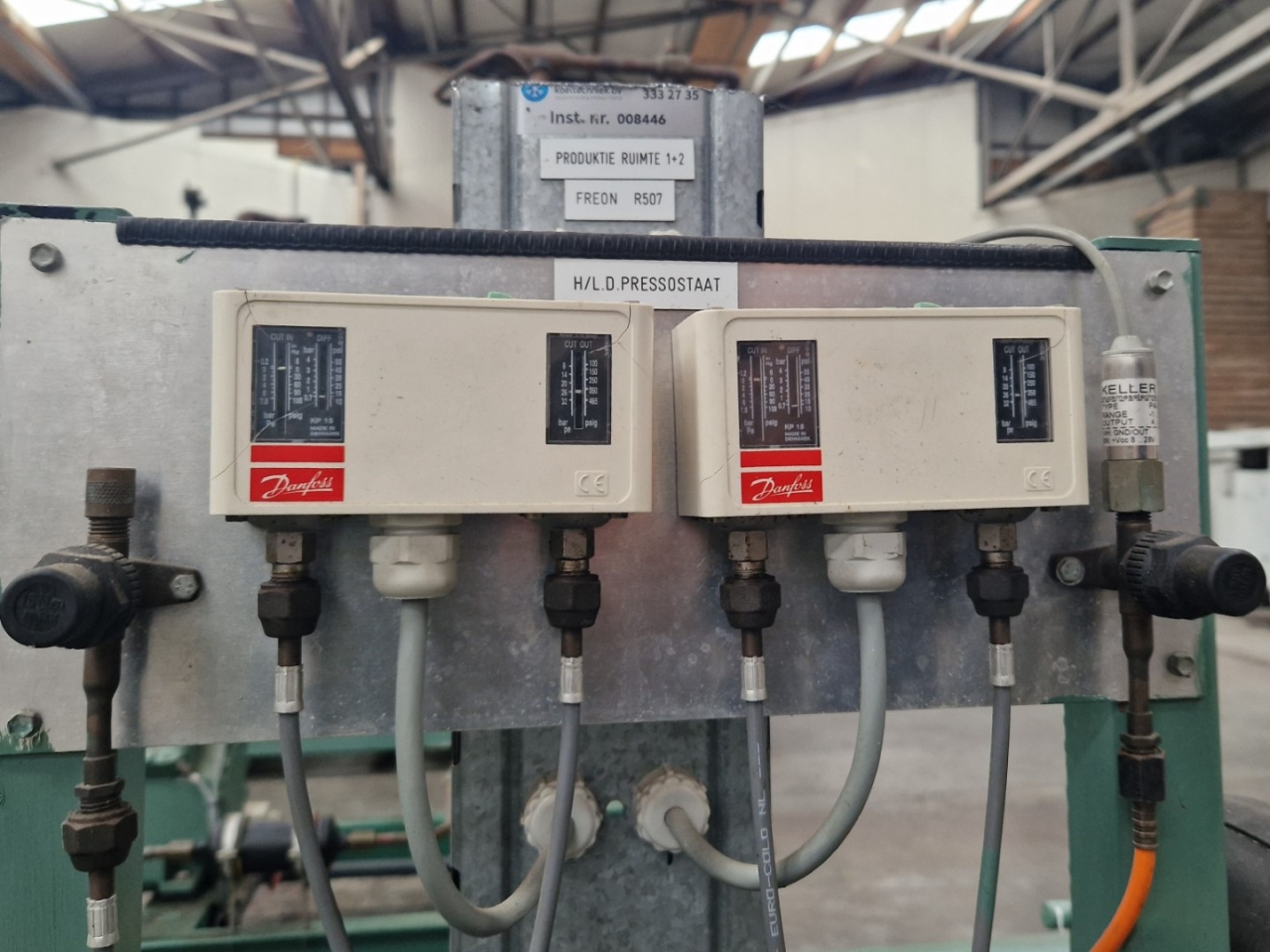

| Pressure safety switches Hp/Lp/Op |
|

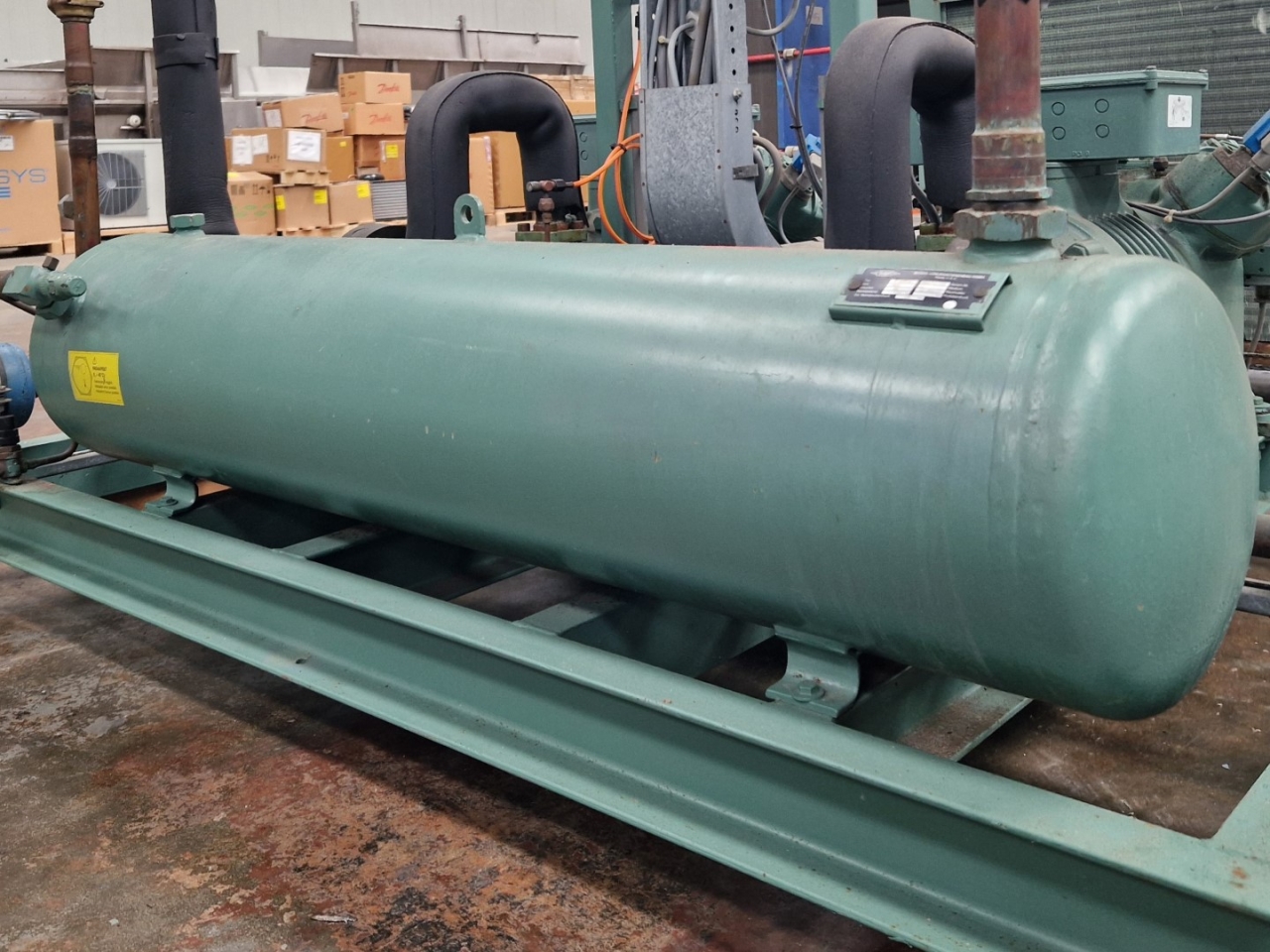

| Liquid receiver |
|
| Liquid receiver ltr. | 89 l |
| Liquid line filter drier |
|
| Sight Glass |
|
| m3 / h | 50 Hz - 112,2 m³/h |

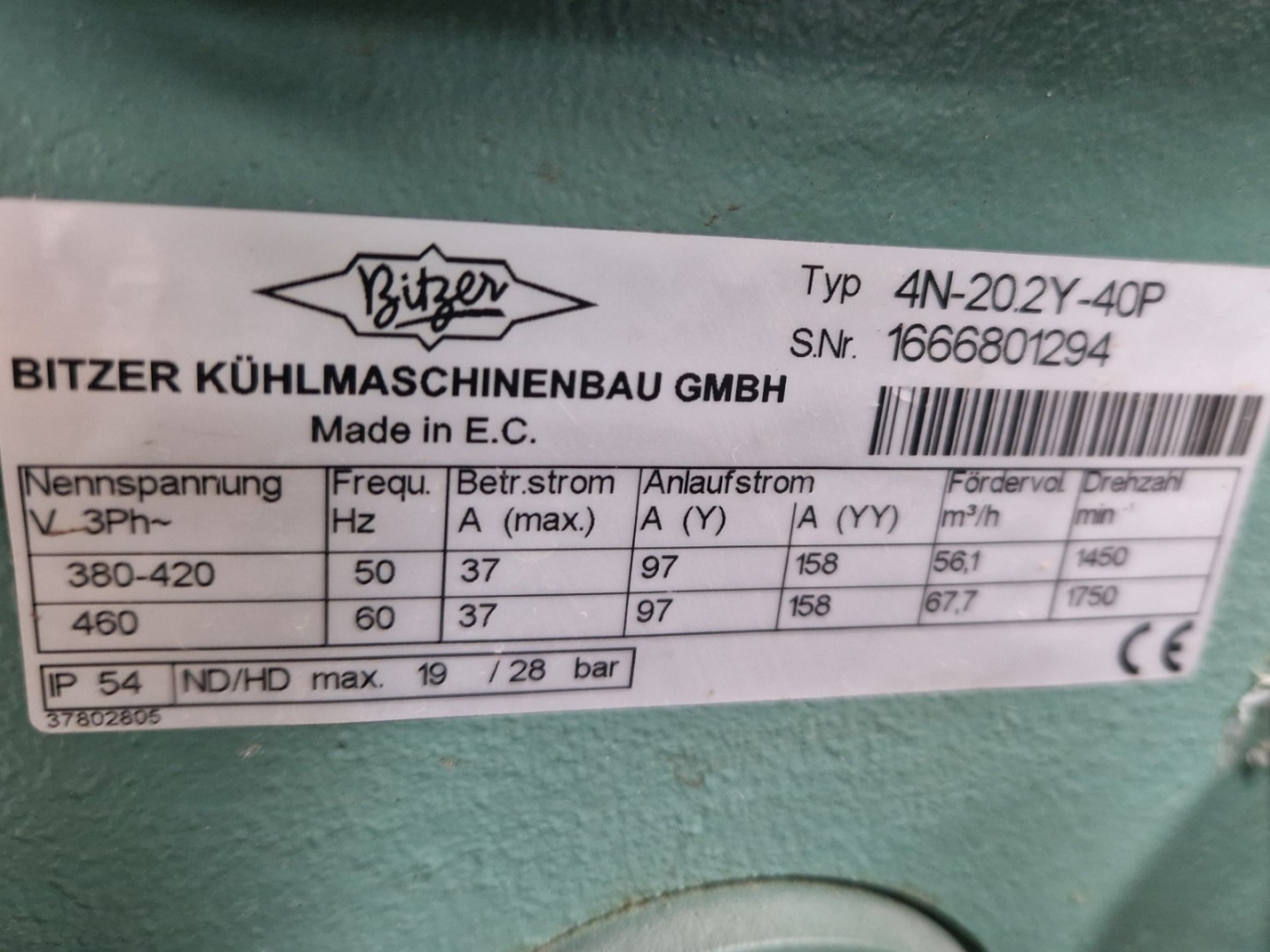

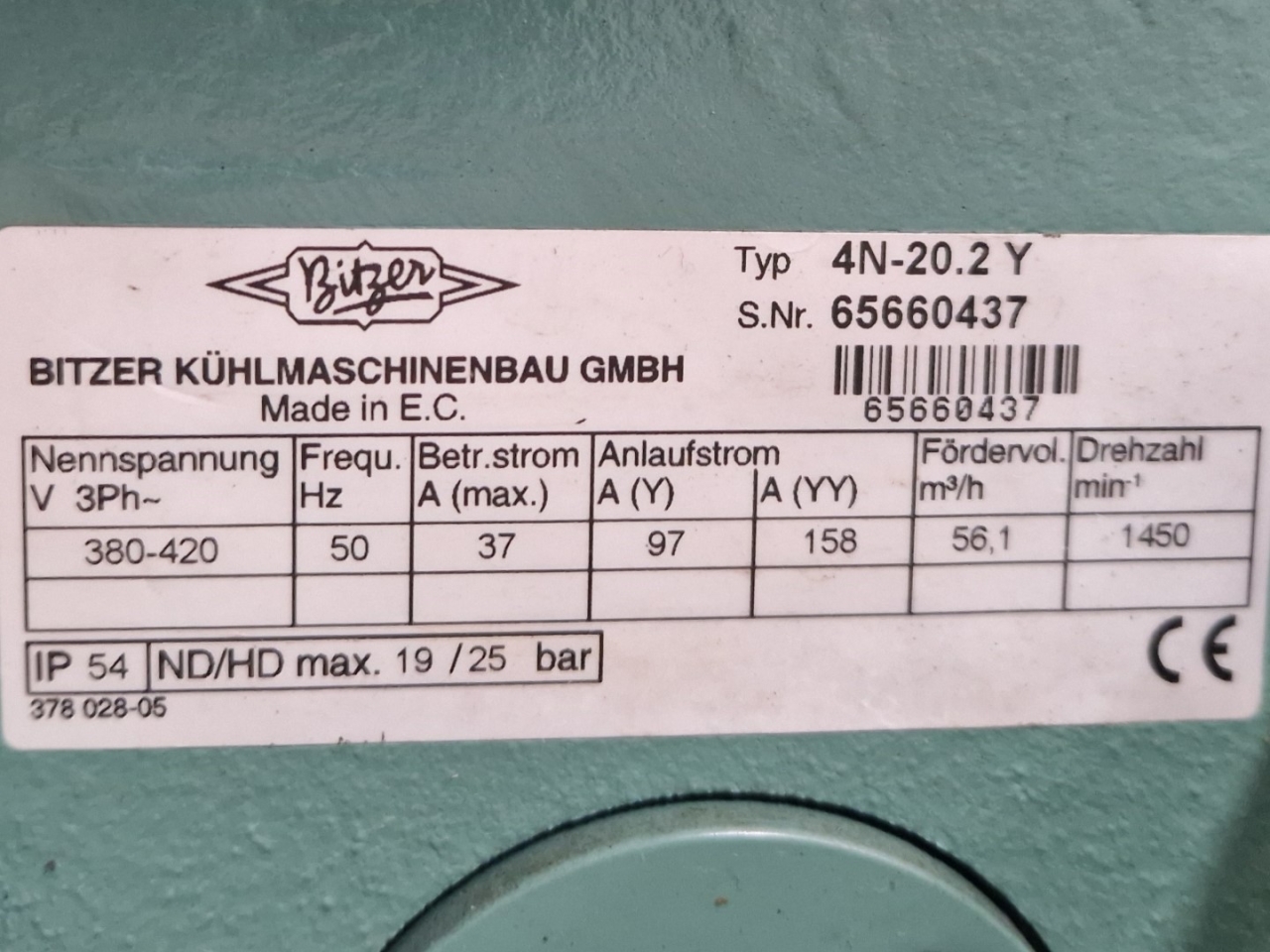

| Remarks | | Y.o.b. 2004 (s.nr: 1666801294) & y.o.b. 1999 (s.nr: 65660437) |
| Sizes | 1820x1300x1030 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer 4N-20.2Y-40P (x1) & 4N-20.2 Y (x1)

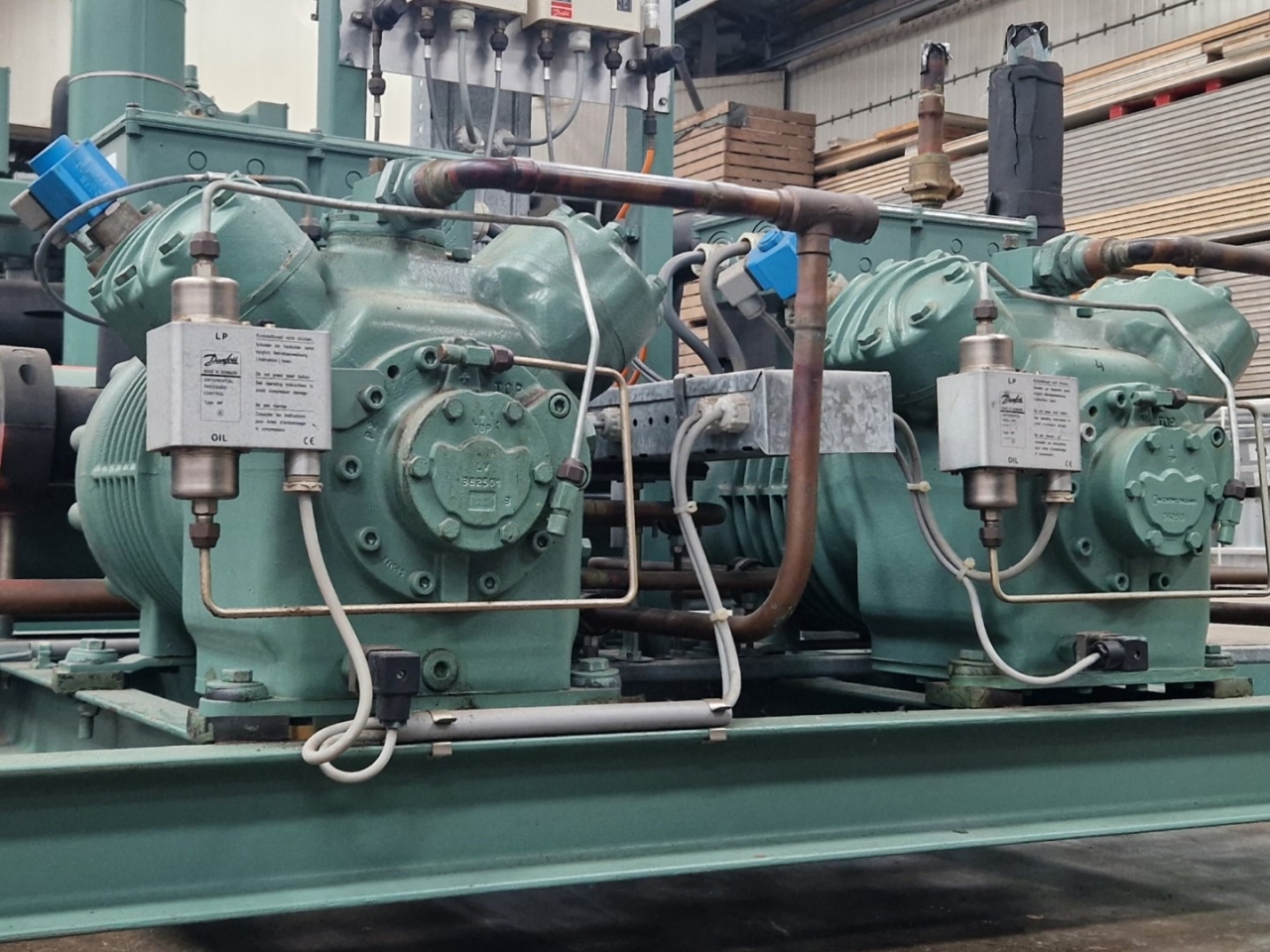

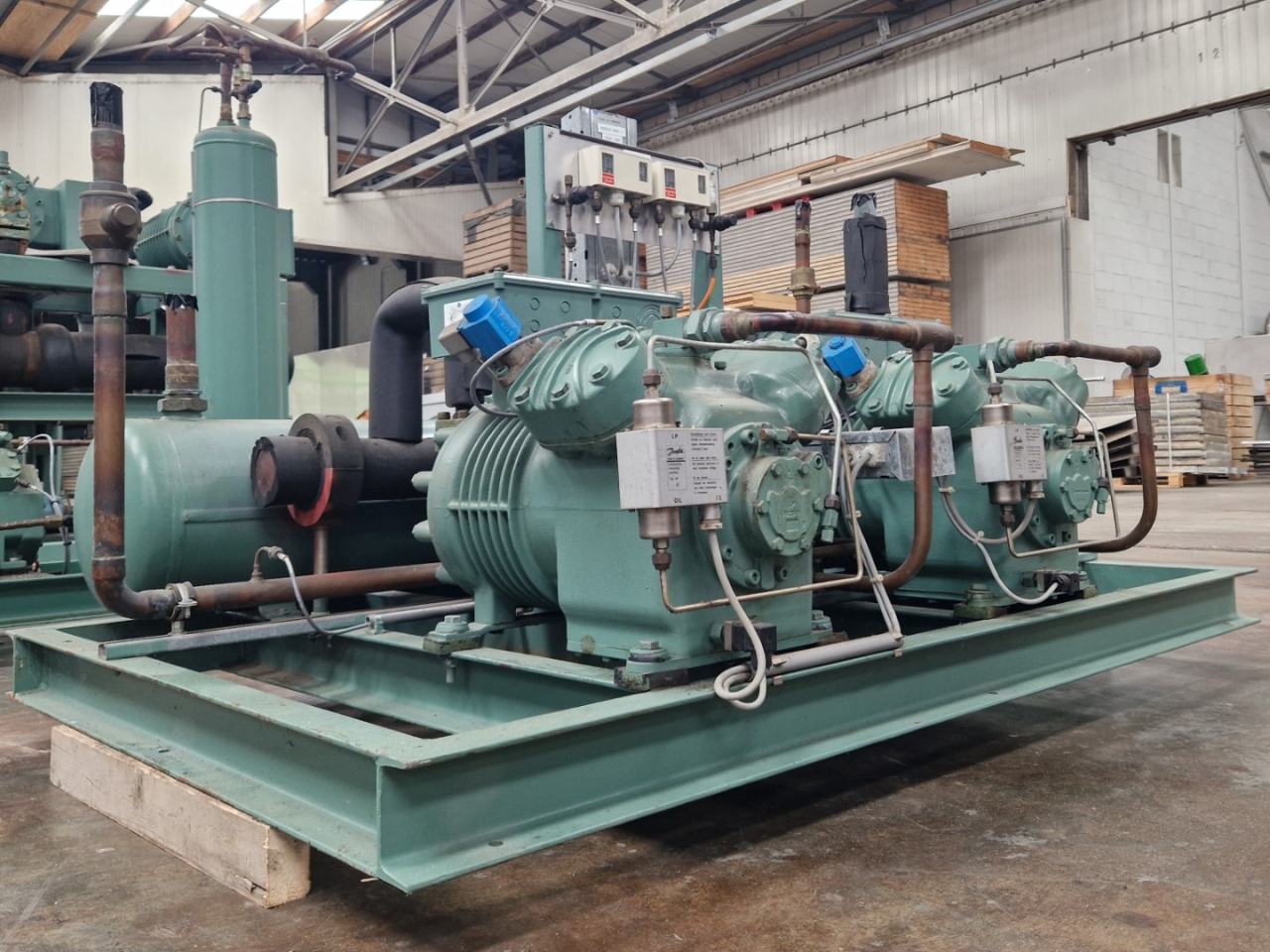

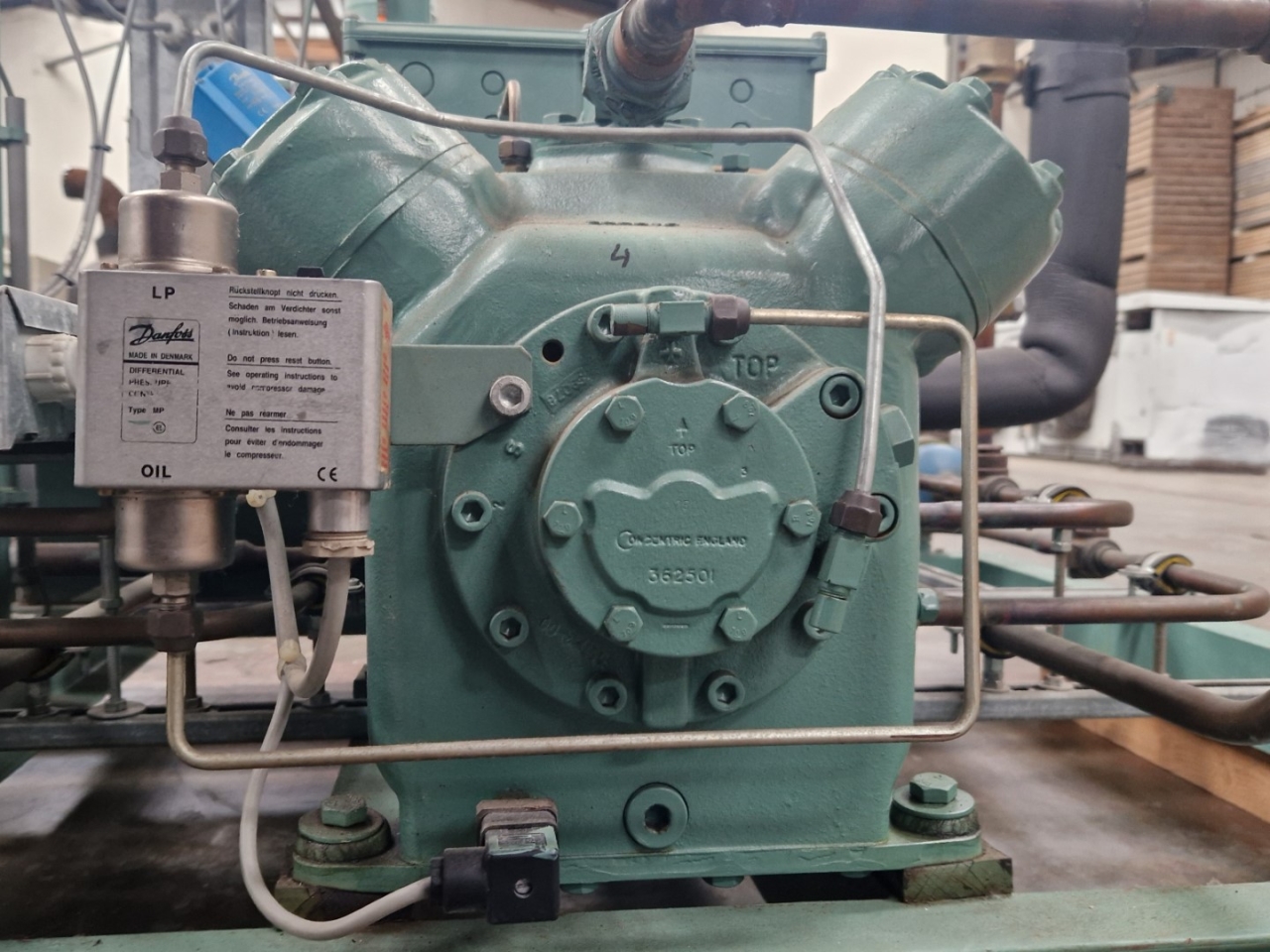

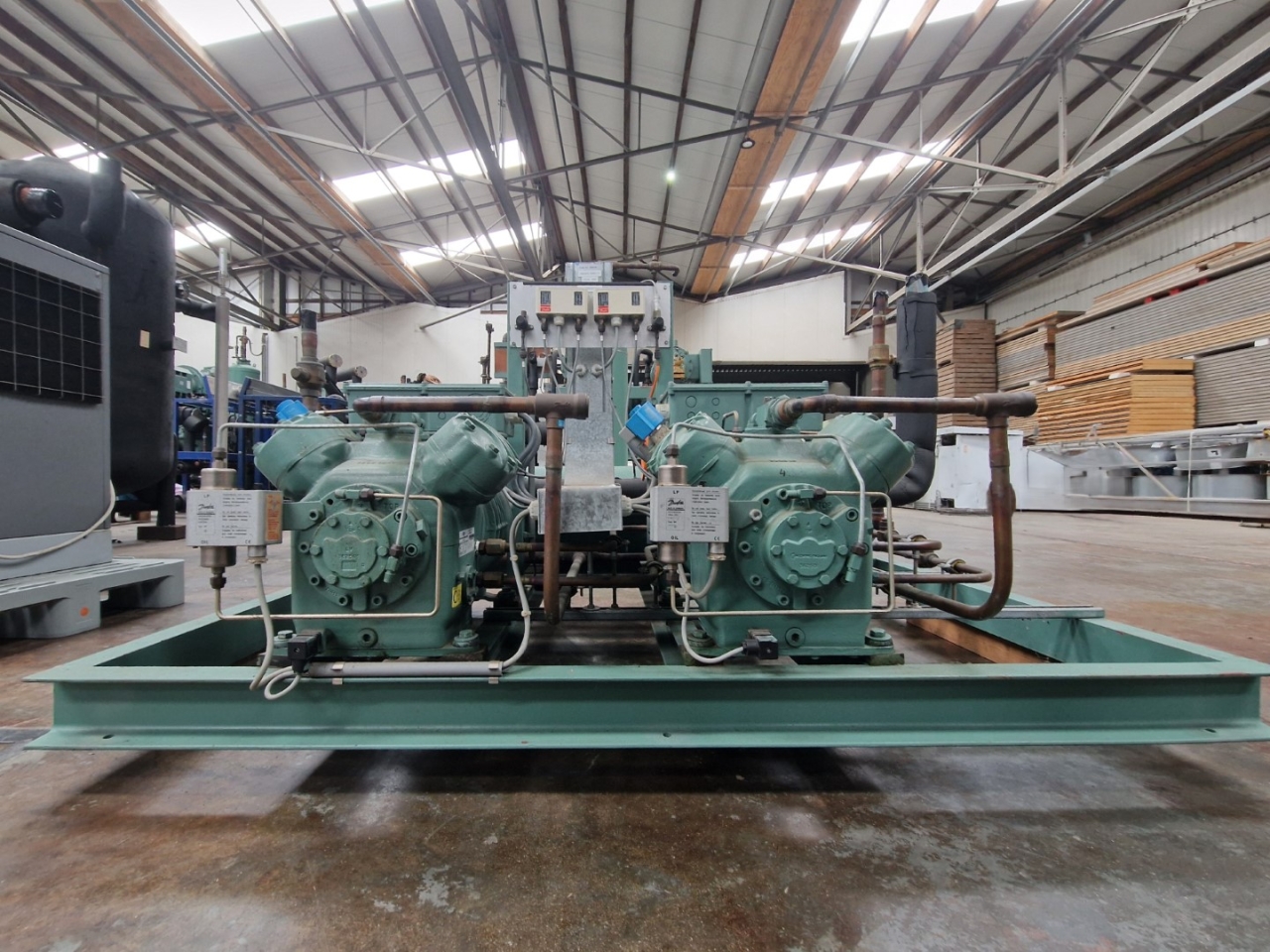

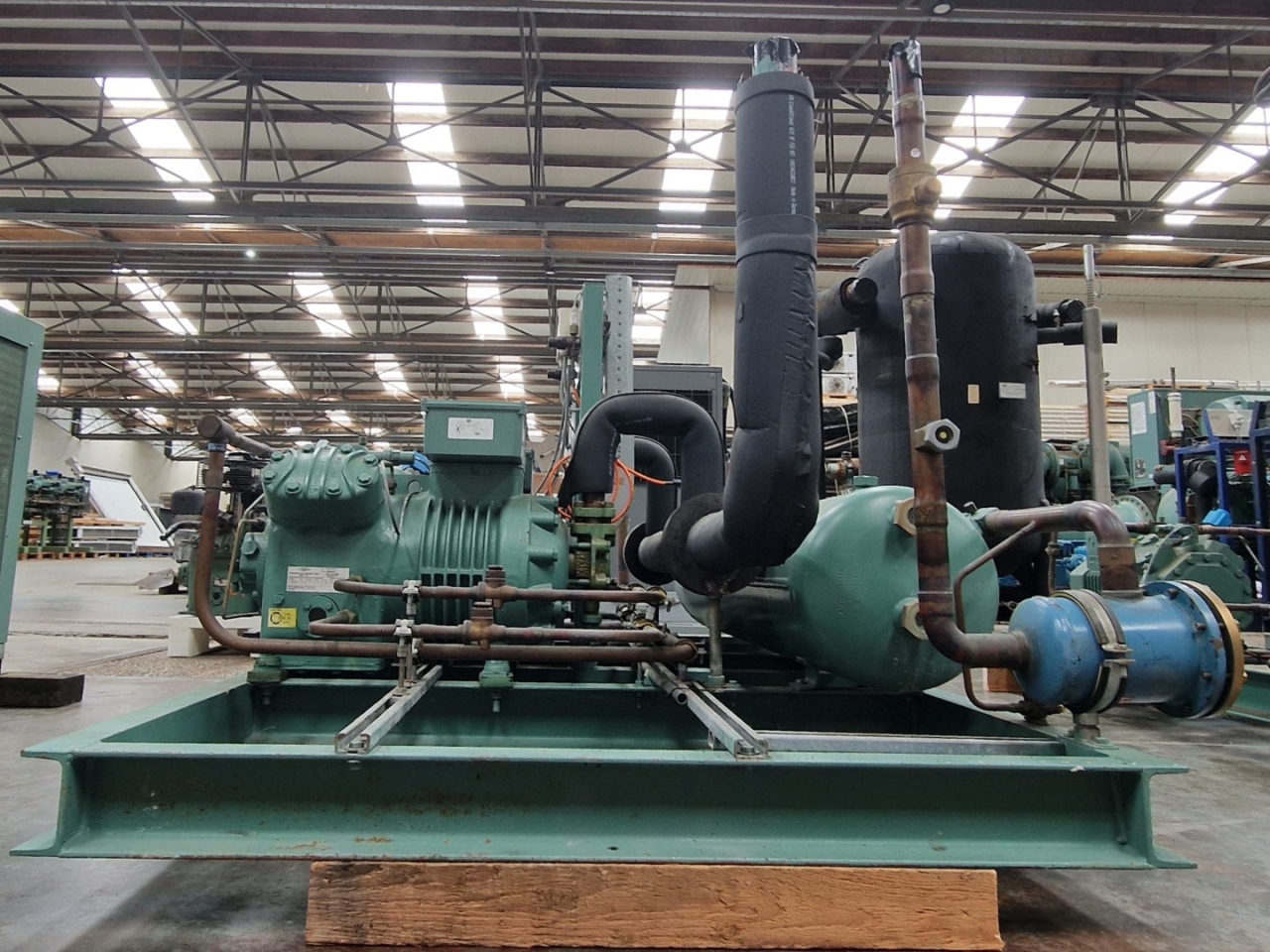

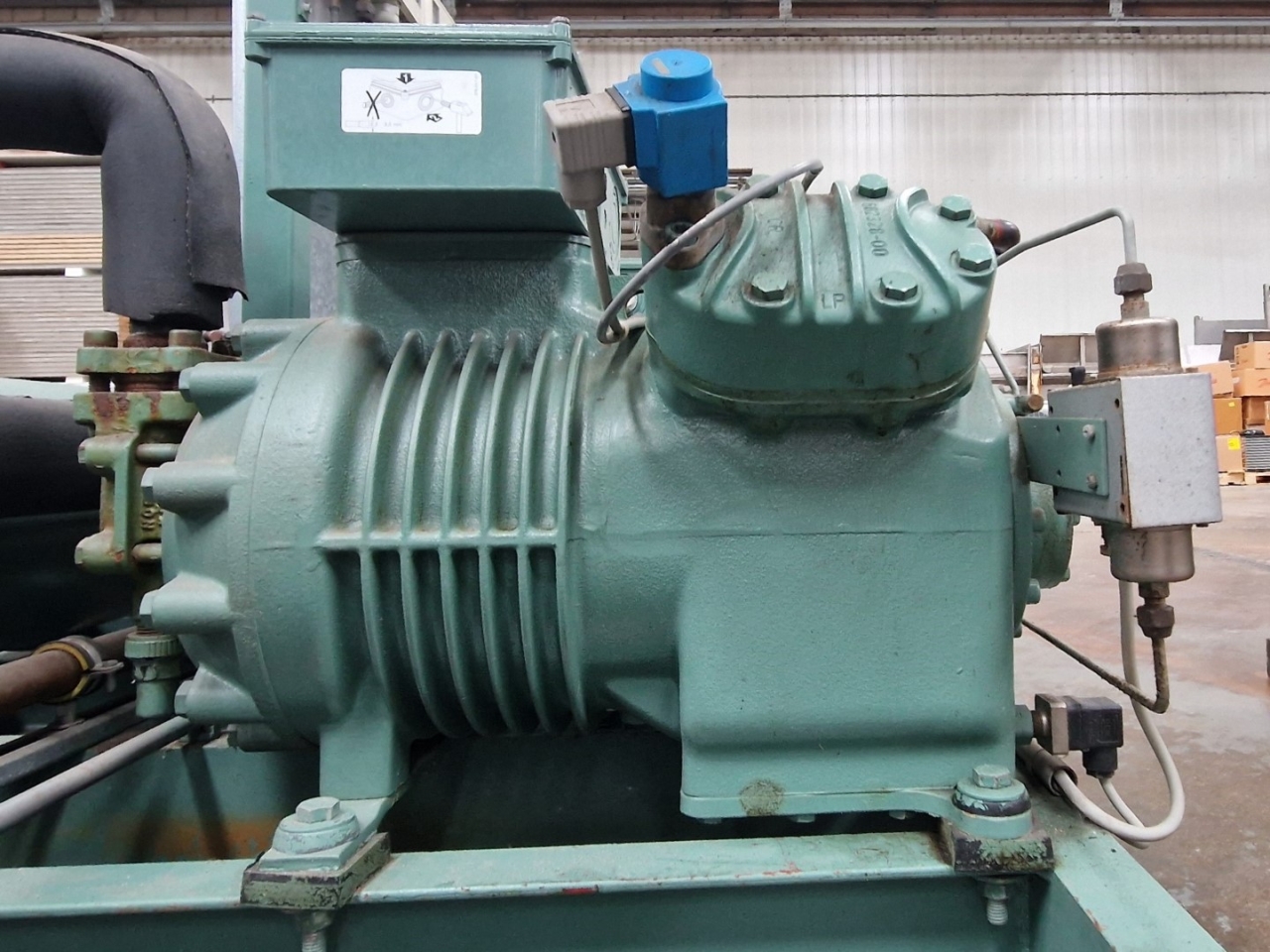

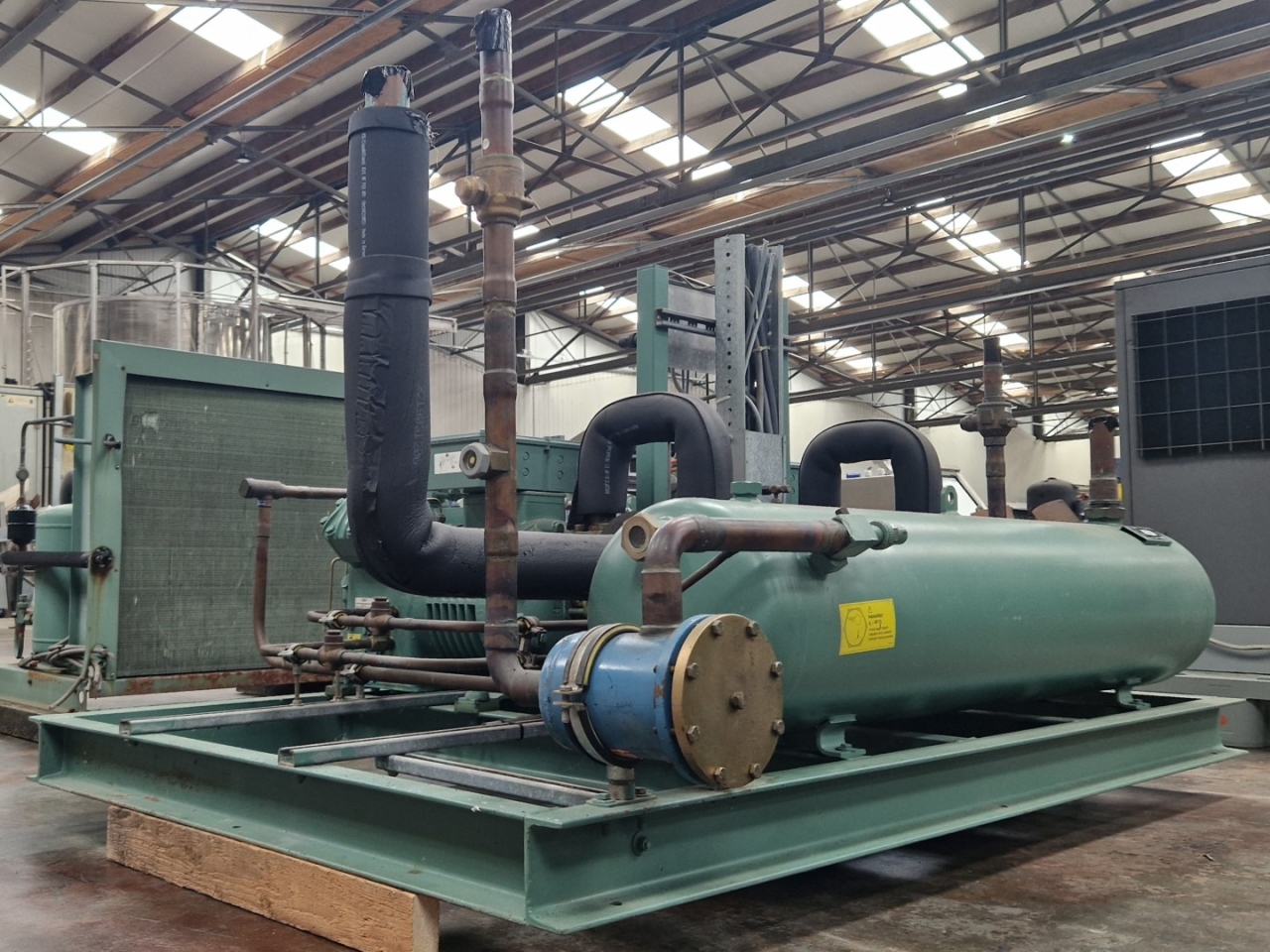

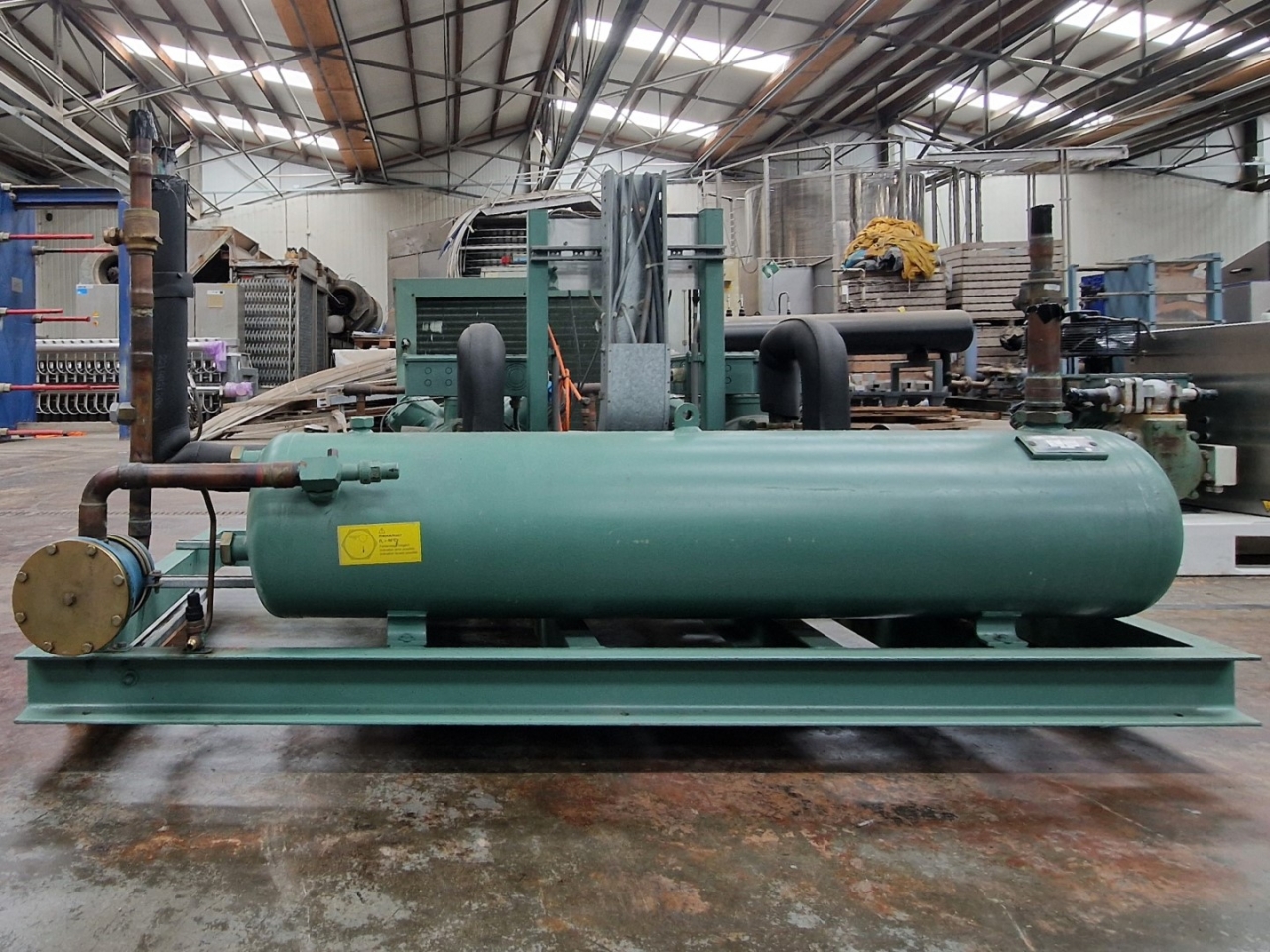

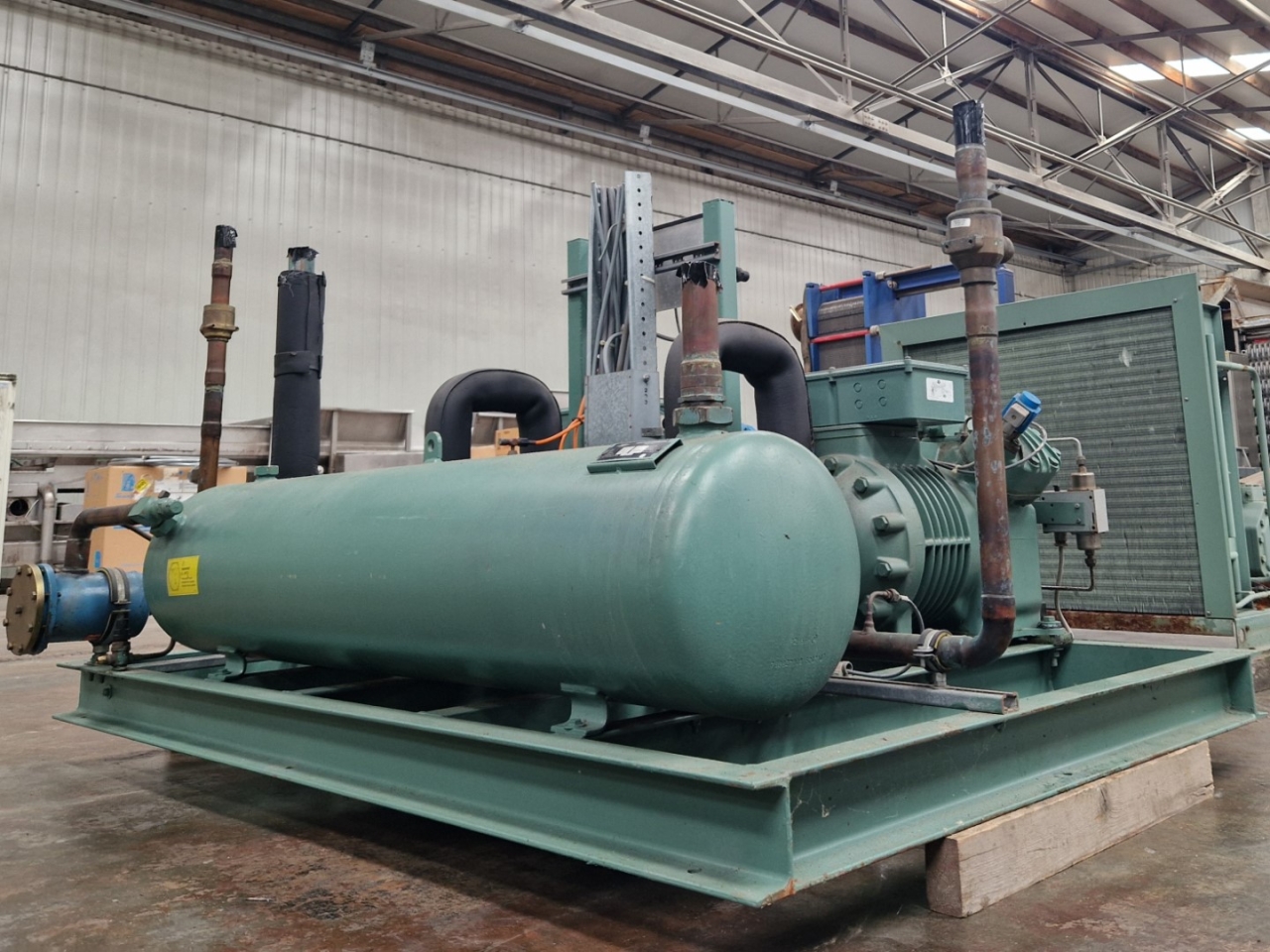

Used Bitzer 4N-20.2Y-40P (x1) & 4N-20.2 Y (x1) semi-hermetic reciprocating compressor rack on Freon. Complete with a Bitzer F 902 N liquid receiver with a volume of 89 liters, pressure safety switches and liquid line filter drier. The compressors have a total displacement of 112,2 m³/h at 50 Hz.
