Bitzer 6H-35.2Y-40P
Bitzer 6H-35.2Y-40P
| 18083 | |
| Brand | Bitzer |

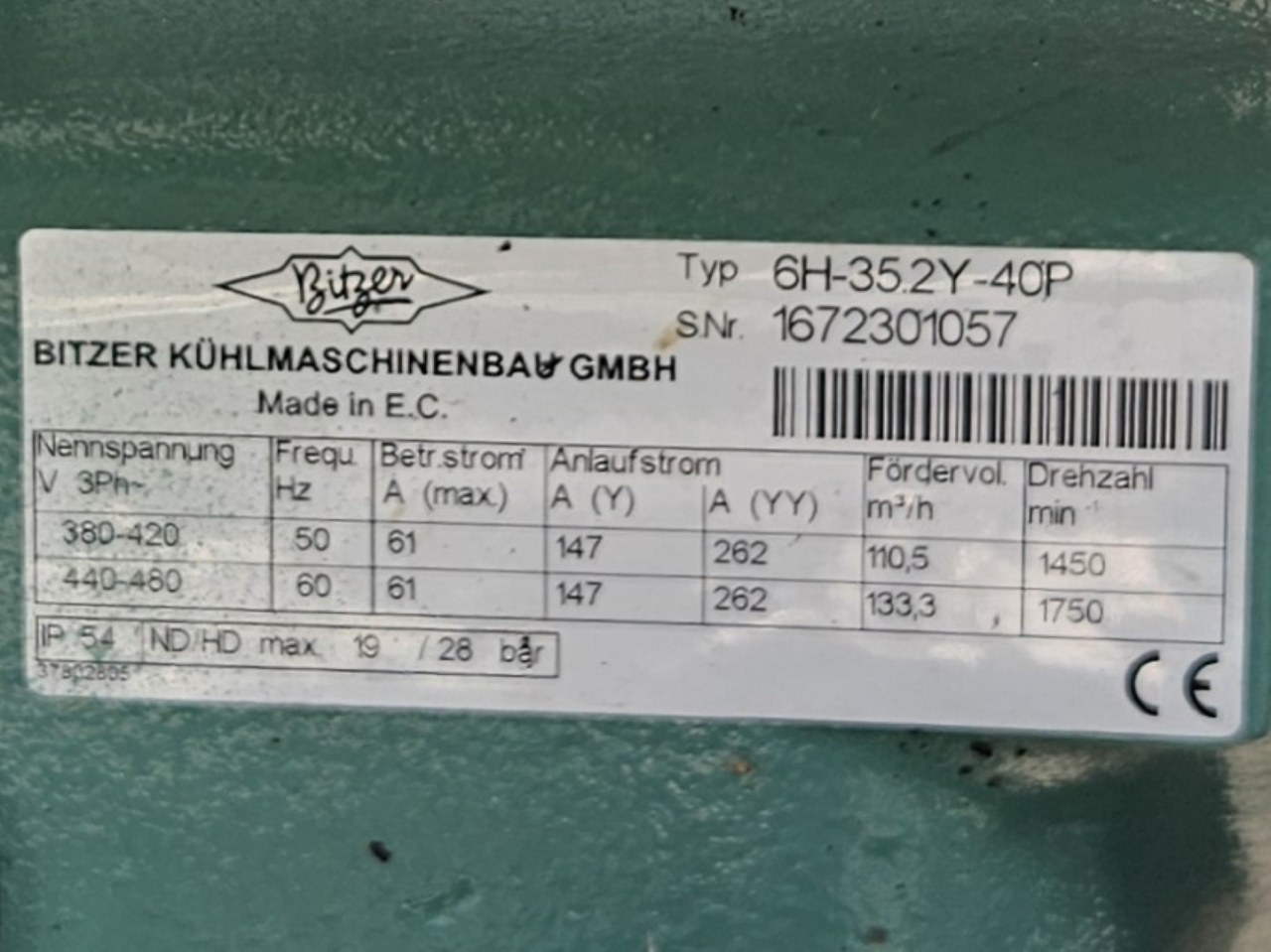

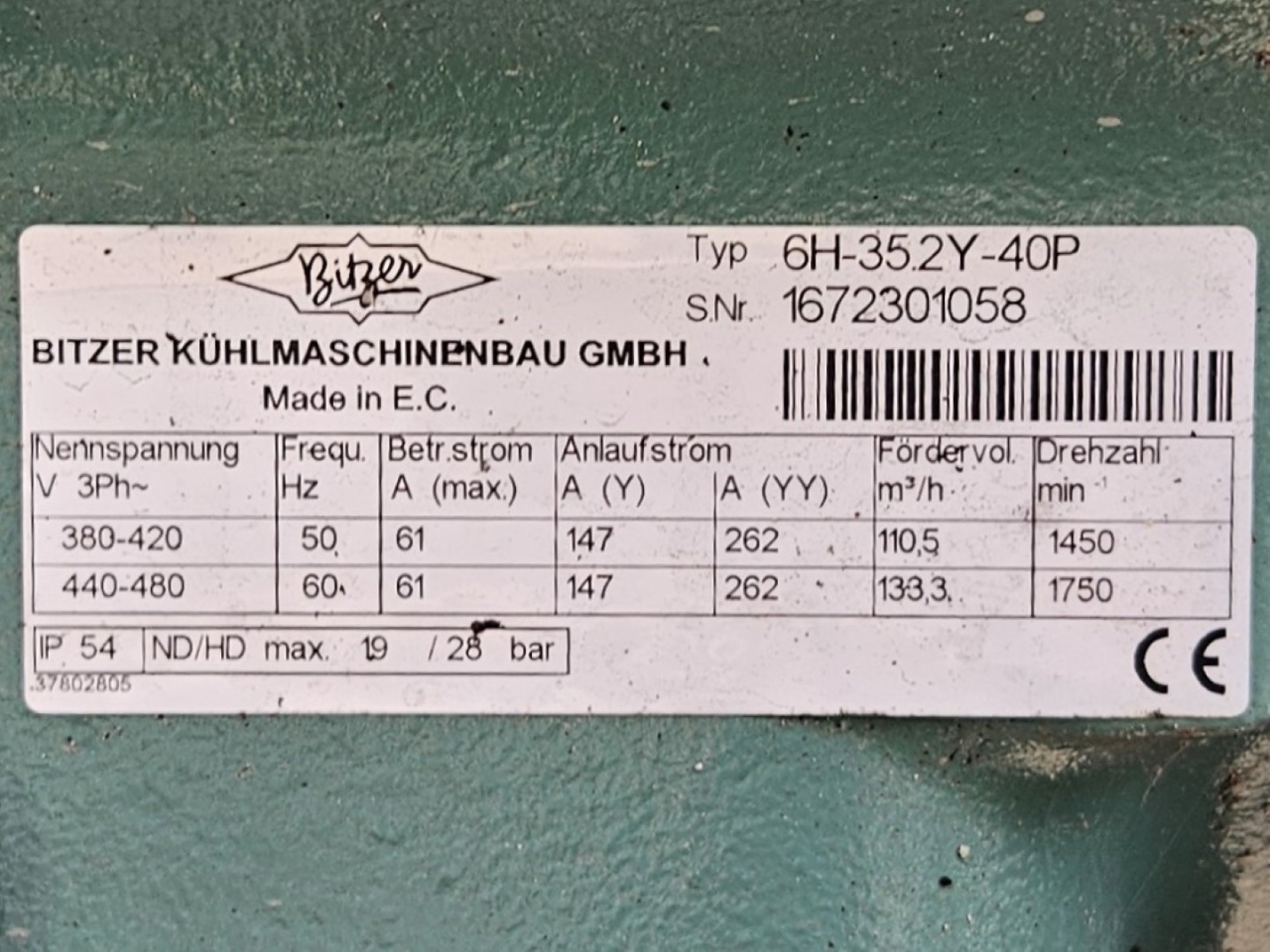

| Type | 6H-35.2Y-40P |
| Refrigerant | Freon |
| kW at 0ºC/+40ºC | 178,6 |
| kW at -5ºC/+40ºC | 148,2 |
| kW at -10ºC/+40ºC | 121,8 |
| kW at -20ºC/+40ºC | 79,2 |
| kW at -30ºC/+40ºC | 47,6 |
| kW at -40ºC/+40ºC | 25,0 |

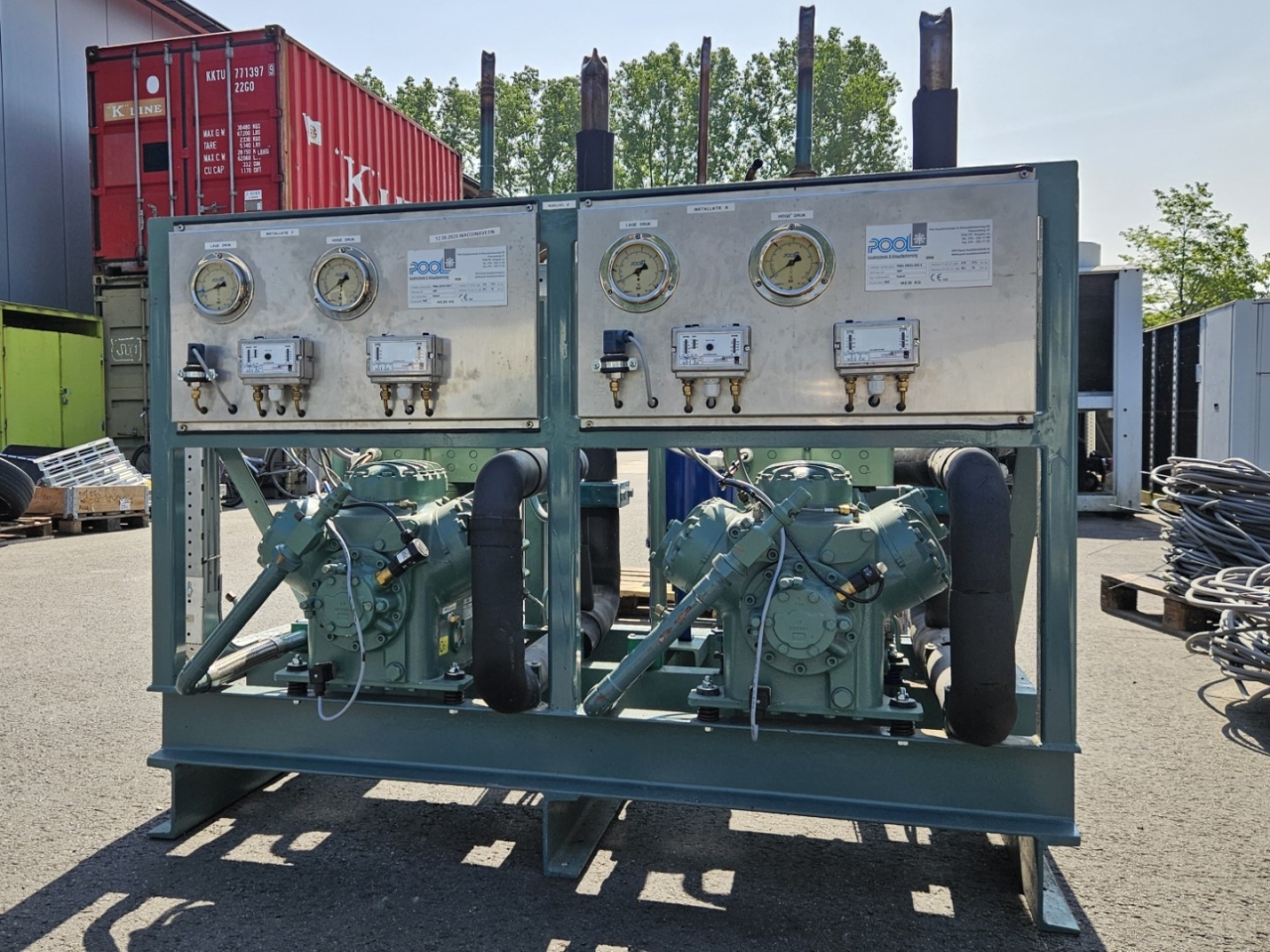

| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|

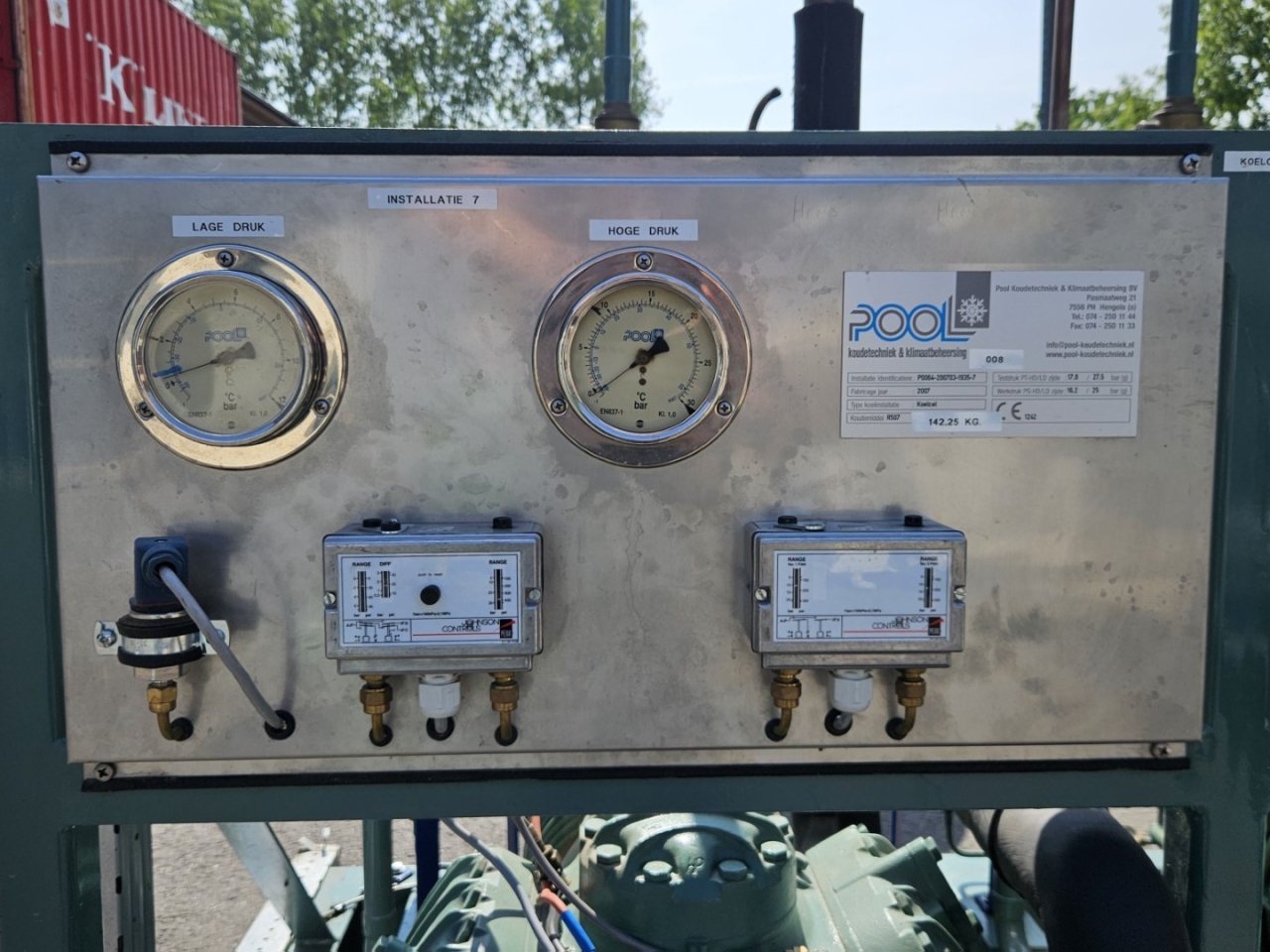

| Pressure gauges Hp/Lp/Op |
|

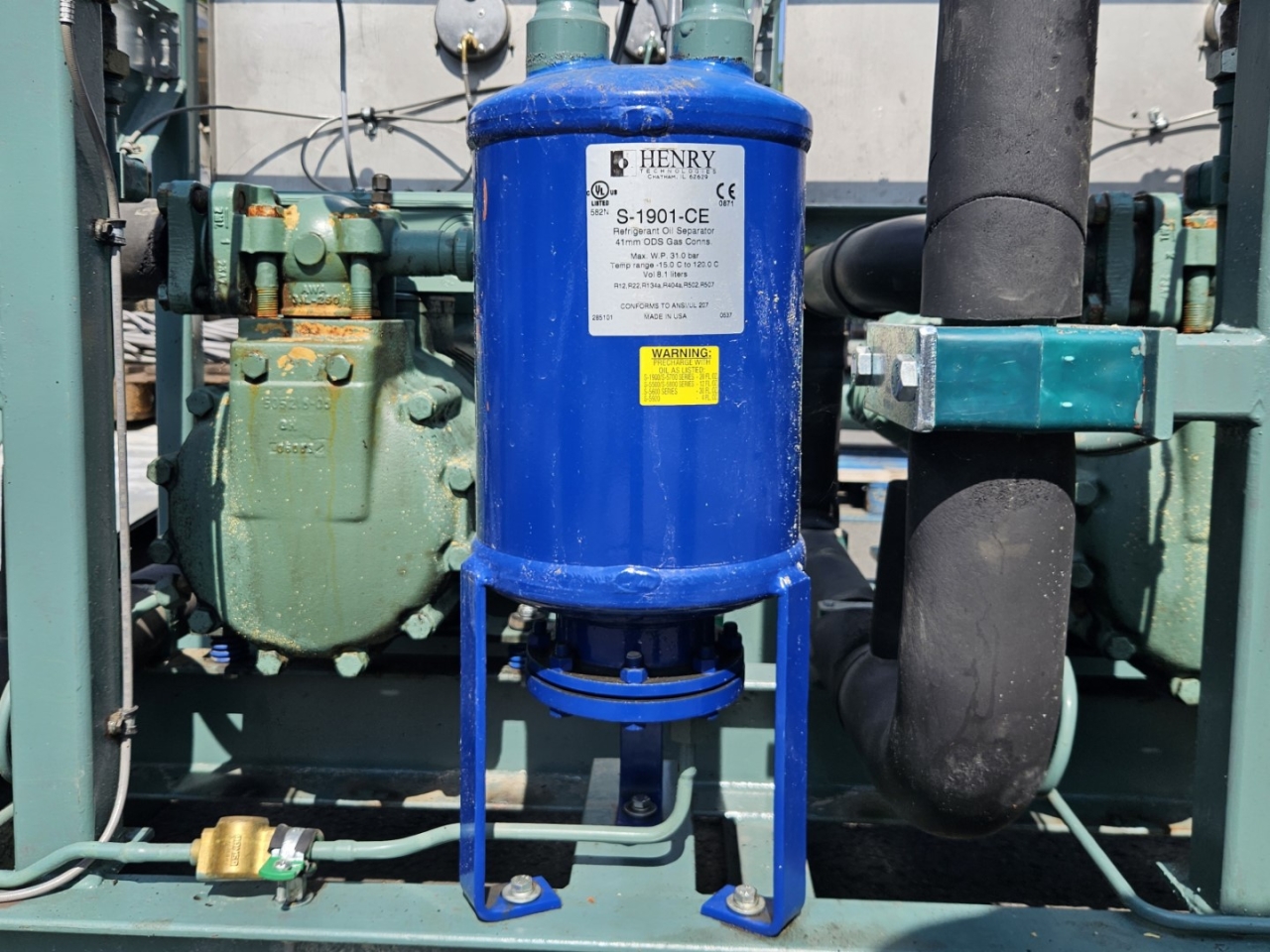

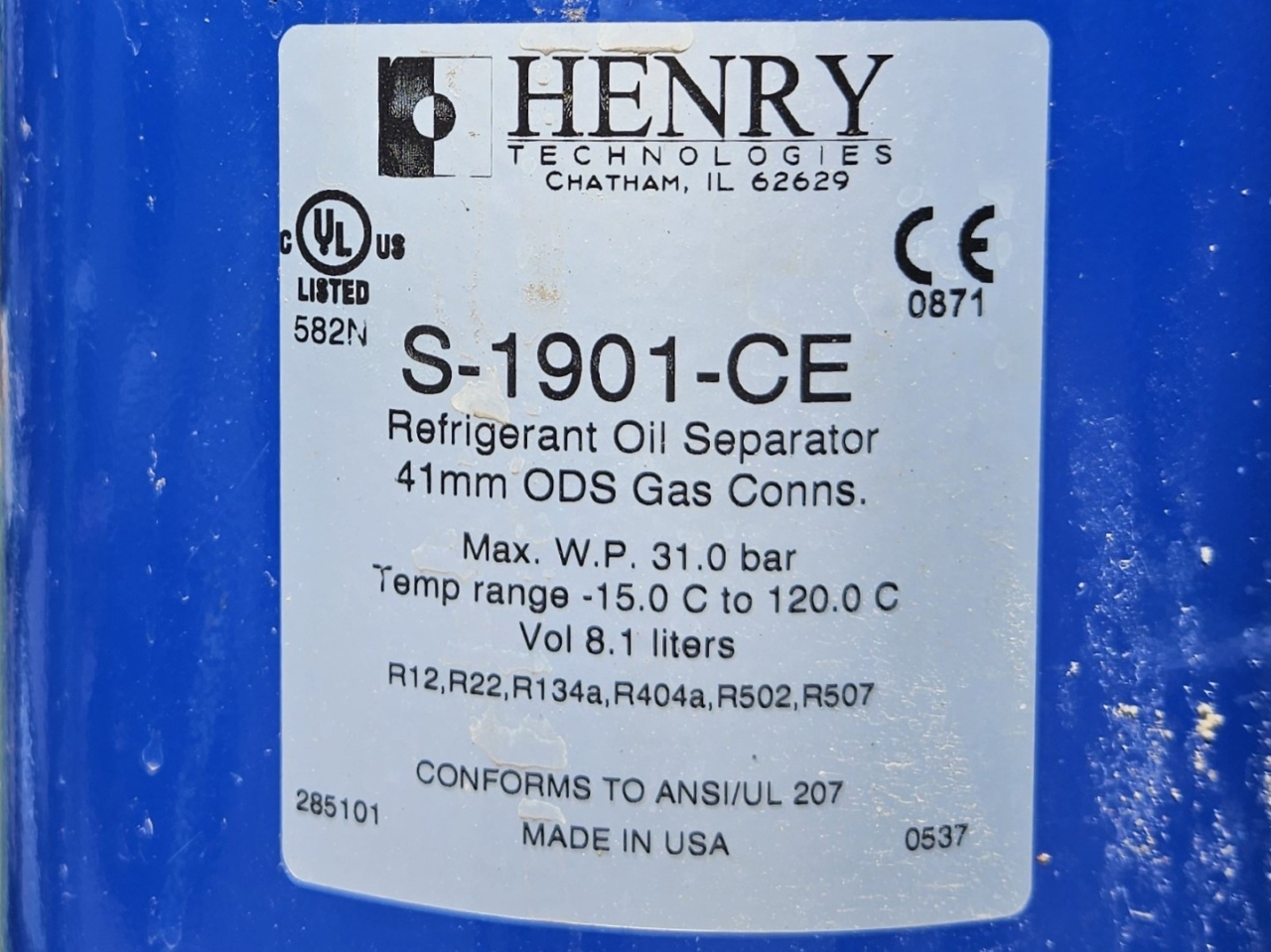

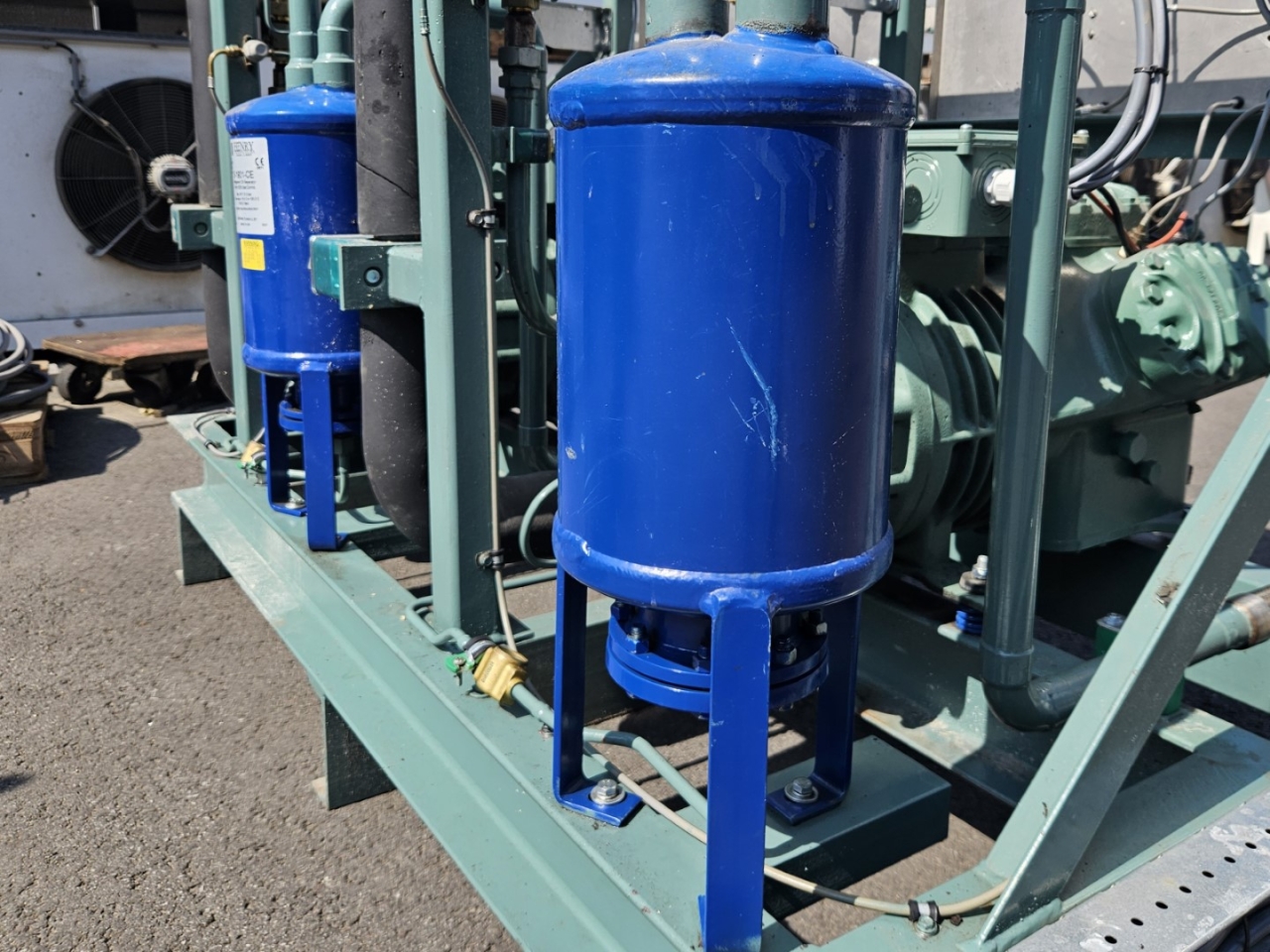

| Oil separator |
|
| Sight Glass |
|
| m3 / h | 221 m³/h at 50 Hz / 266,6 m³/h at 60 Hz |
| Remarks | | Y.o.b. 2007 |
| Package / Rack |
|
| Sizes | 1660x970x1700 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer 6H-35.2Y-40P

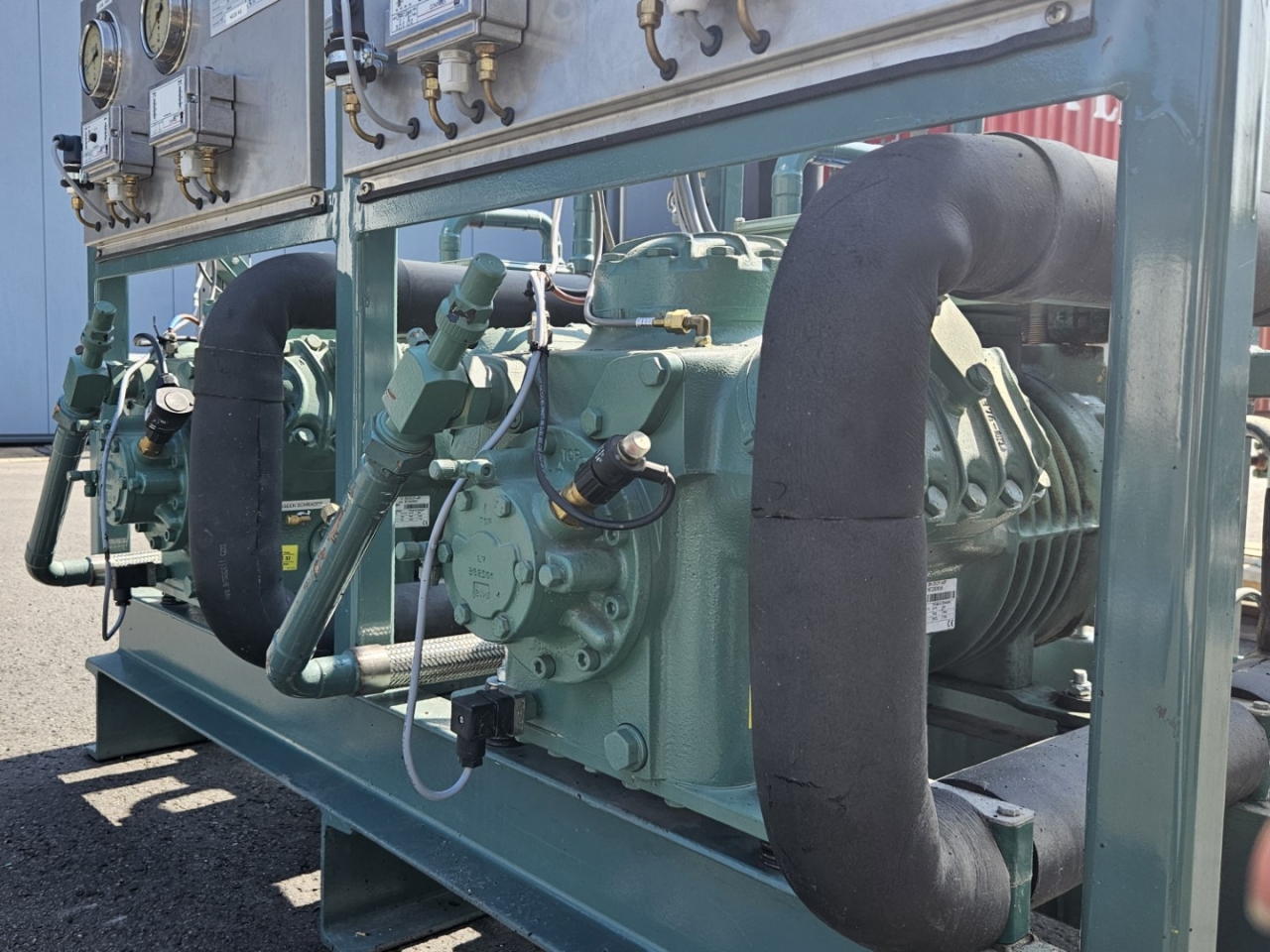

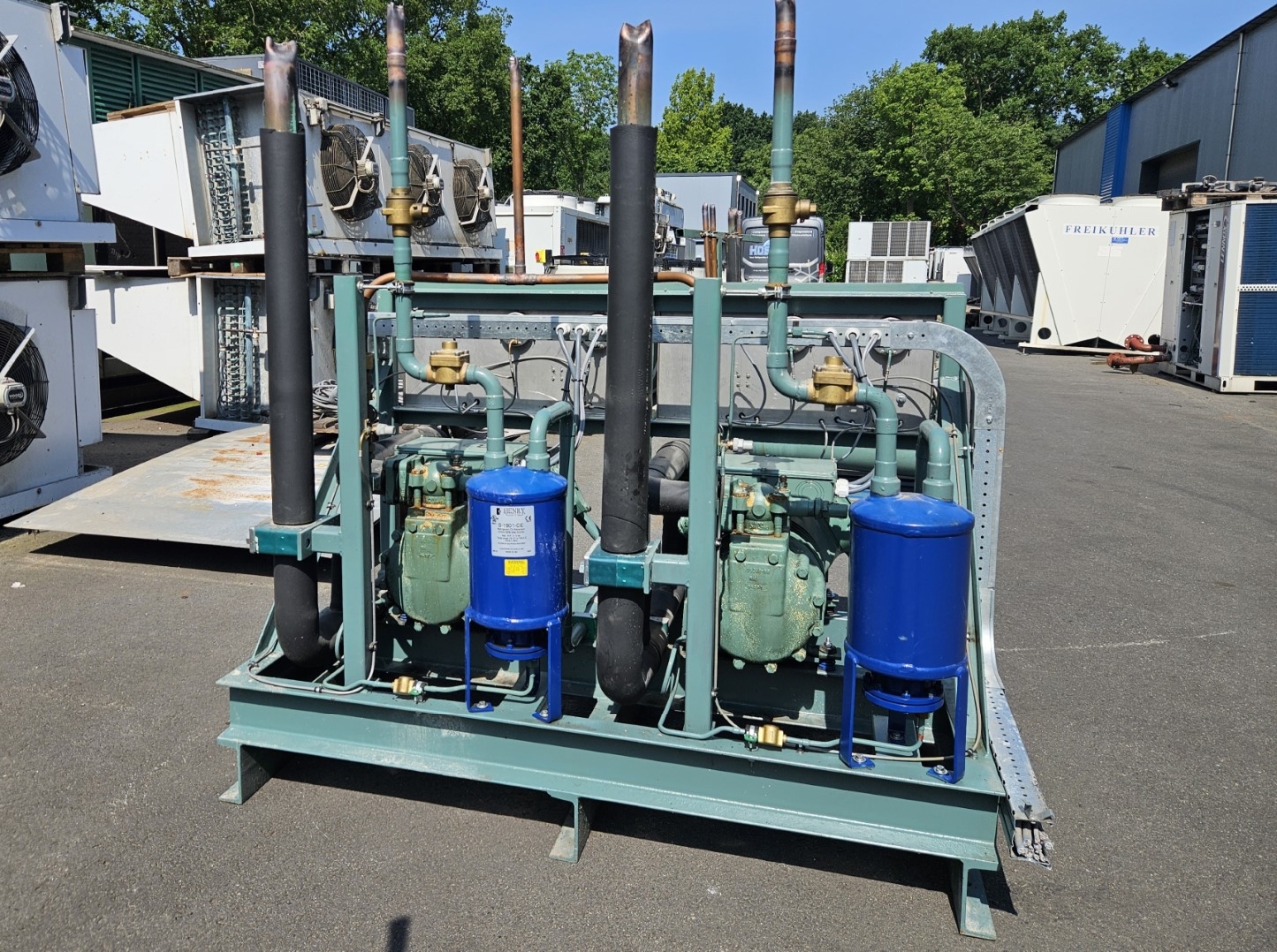

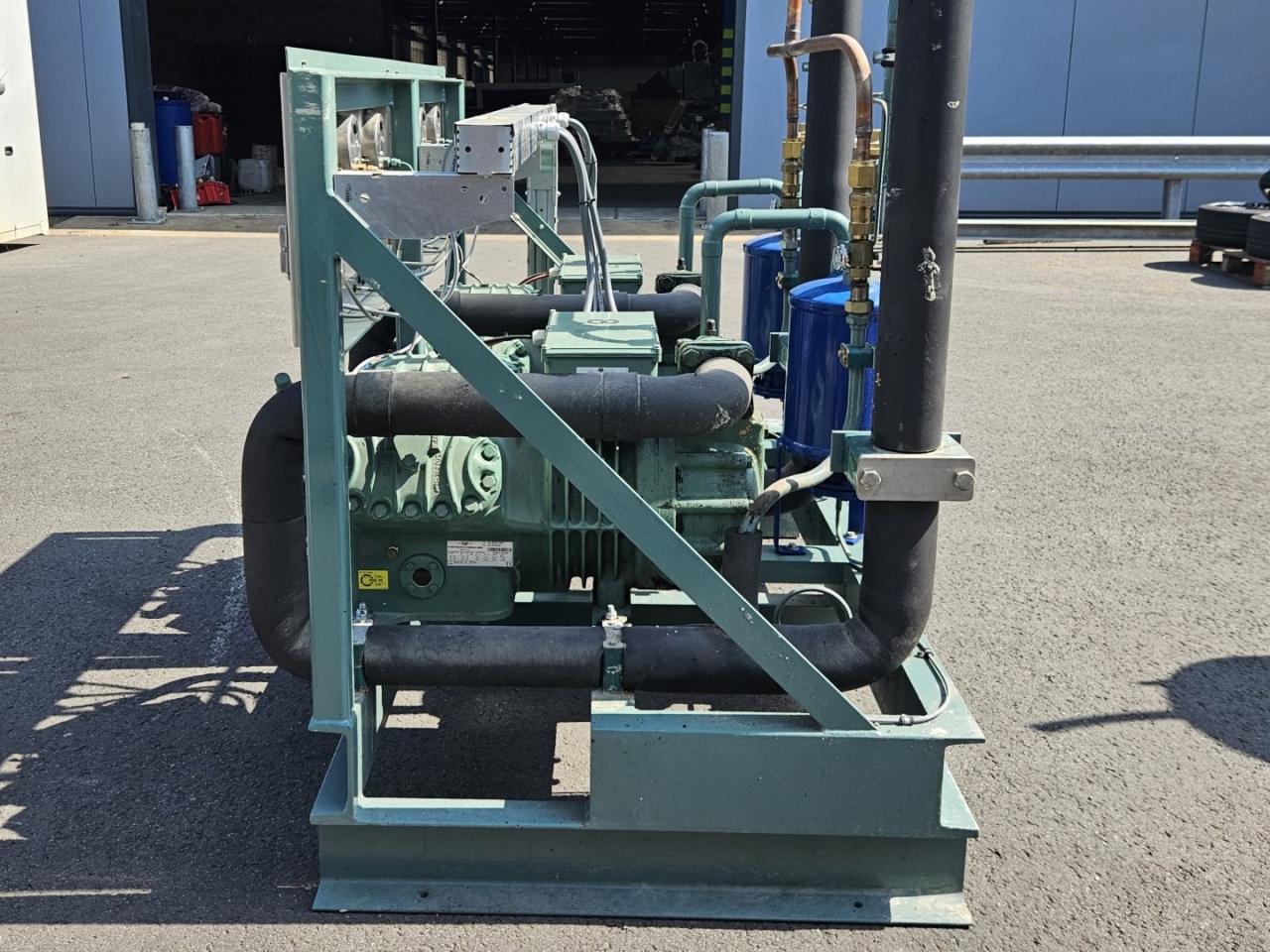

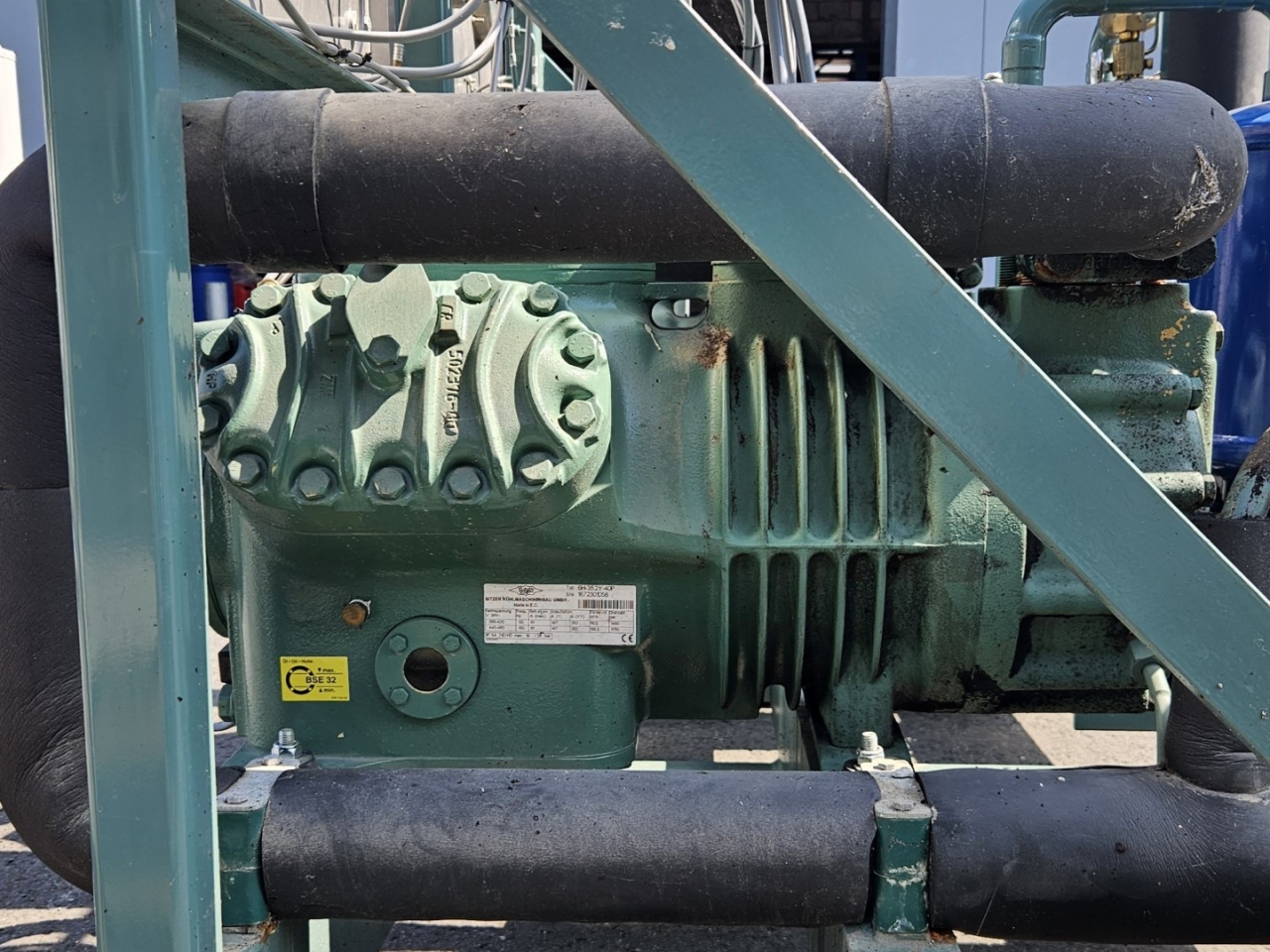

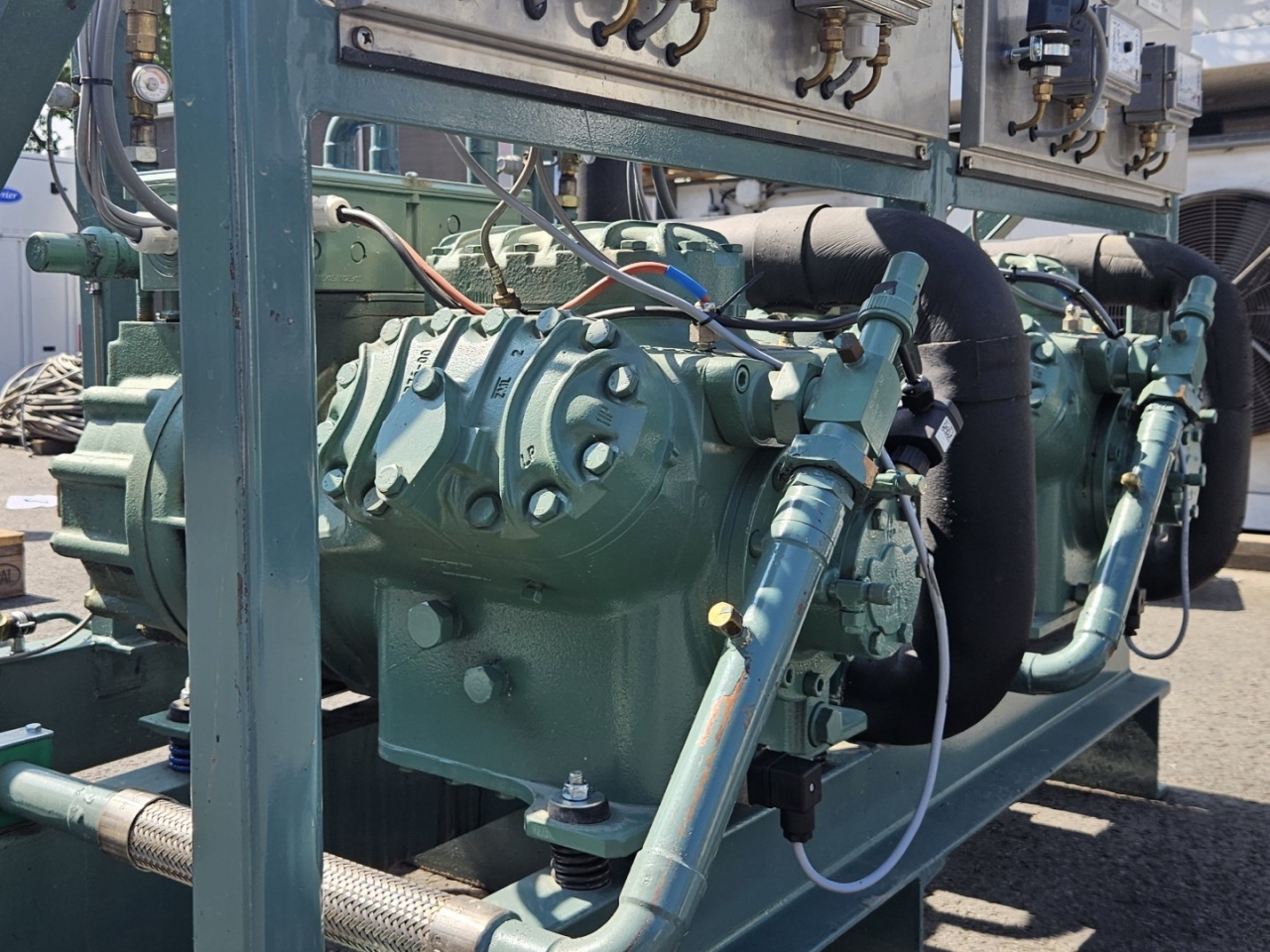

Used Bitzer 6H-35.2Y-40P (x2) semi-hermetic reciprocating compressors on Freon. Each compressor complete with an oil separator, pressure and safety switches/gauges. The compressors have a total displacement of 221 m³/h at 50 Hz & 266,6 m³/h at 60 Hz.
Please notice that this set is normally for two circuits, but it's possible to make it one circuit.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *If requested we are happy to arrange your shipment.
