Stal R5 MK2
Stal R5 MK2
| 18181 | |
| Brand | Stal |
| Type | R5 MK2 |
| Refrigerant | NH 3 (ammonia) |
| kW at -10ºC/+40ºC | 181,0 (-10°C/+35°C) |
| kW at -30ºC/+40ºC | 81,0 (-30°C/+35°C) |
| On steel base frame |
|

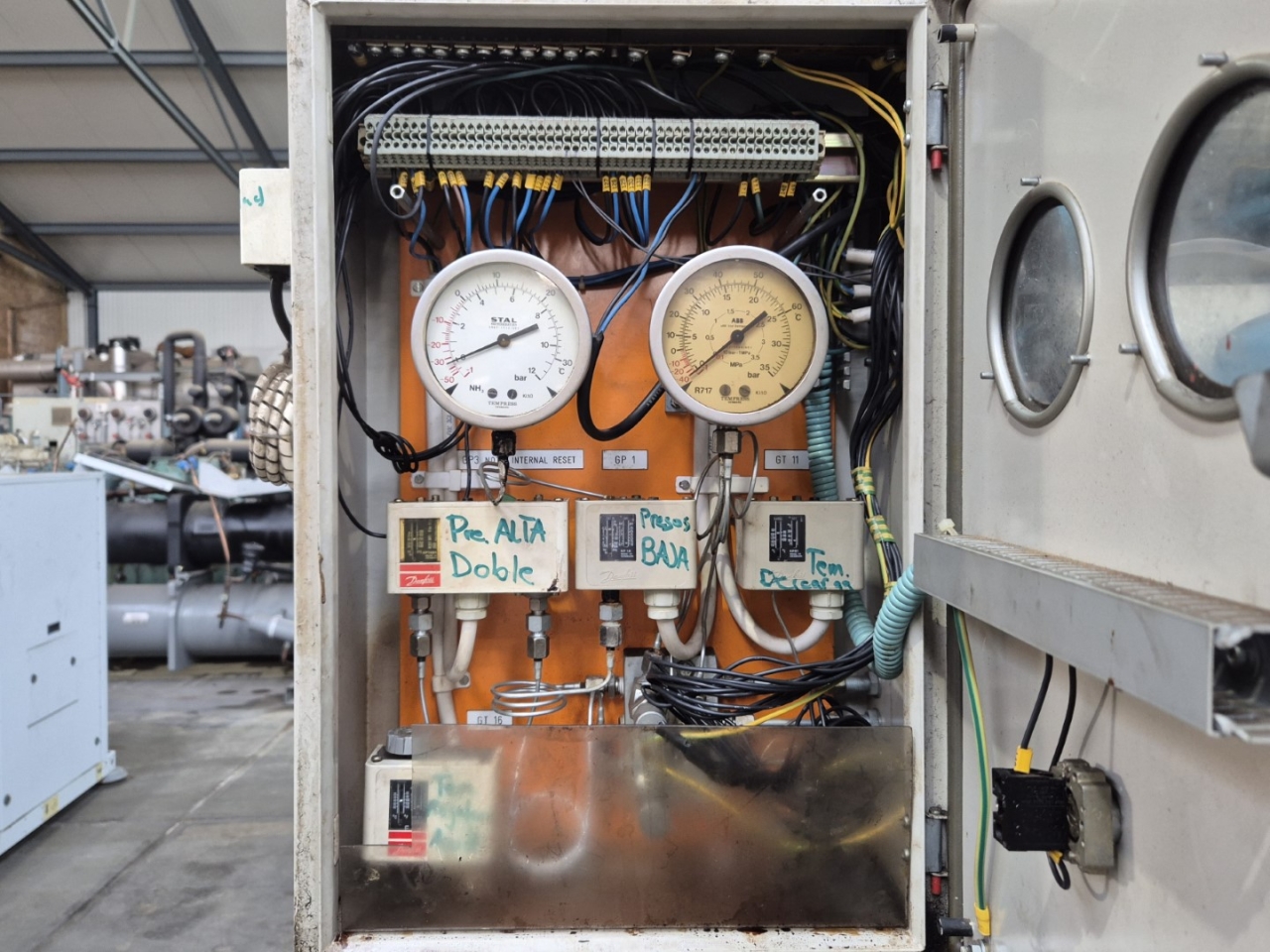

| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Control panel |
|
| m3 / h | 245 - 412 |
| Remarks | | Y.o.b. 2022 |
| Sizes | 1100x1100x2100 mm (LxWxH) |
| Amount in stock | 1 |
Stal R5 MK2

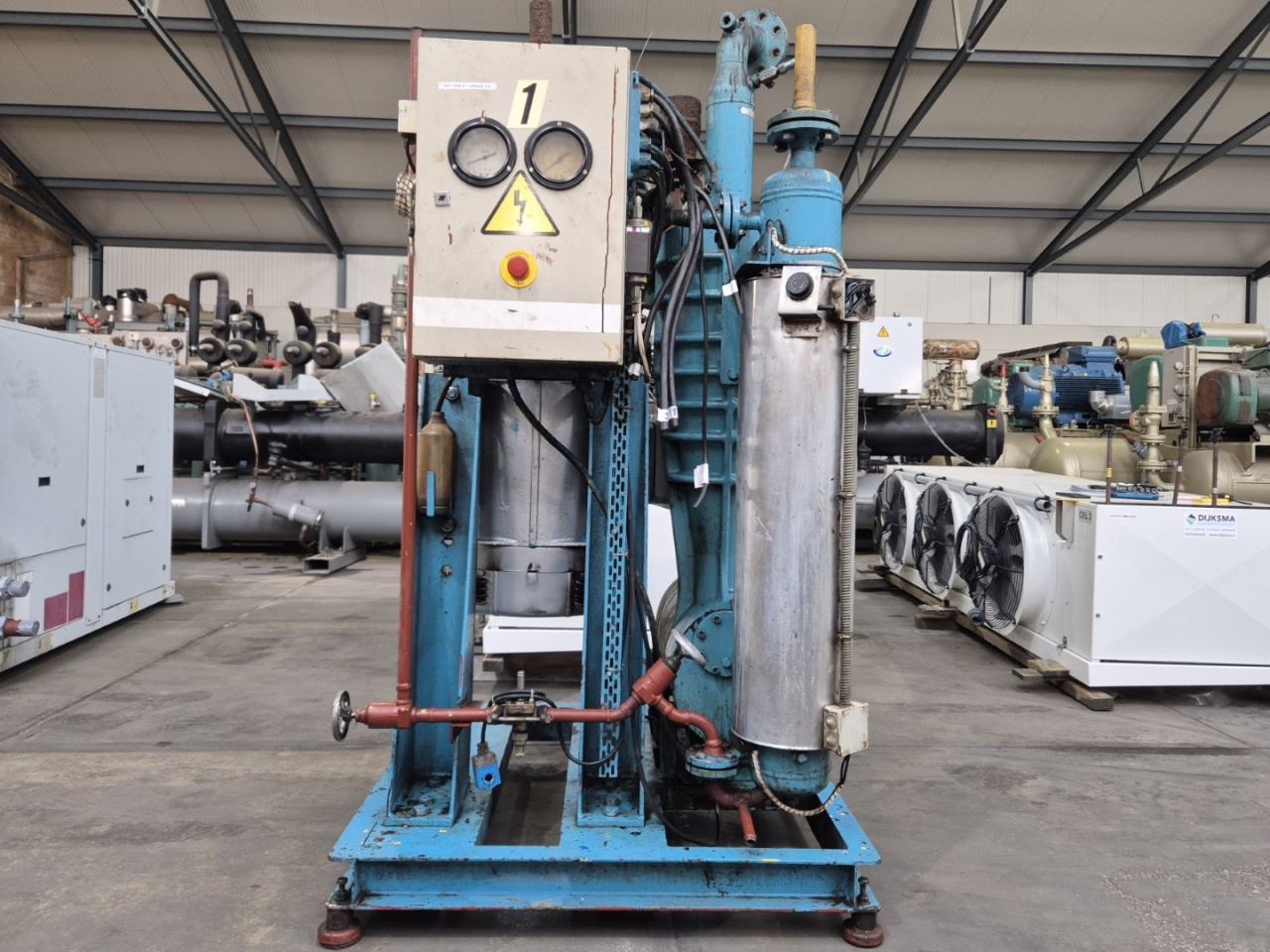

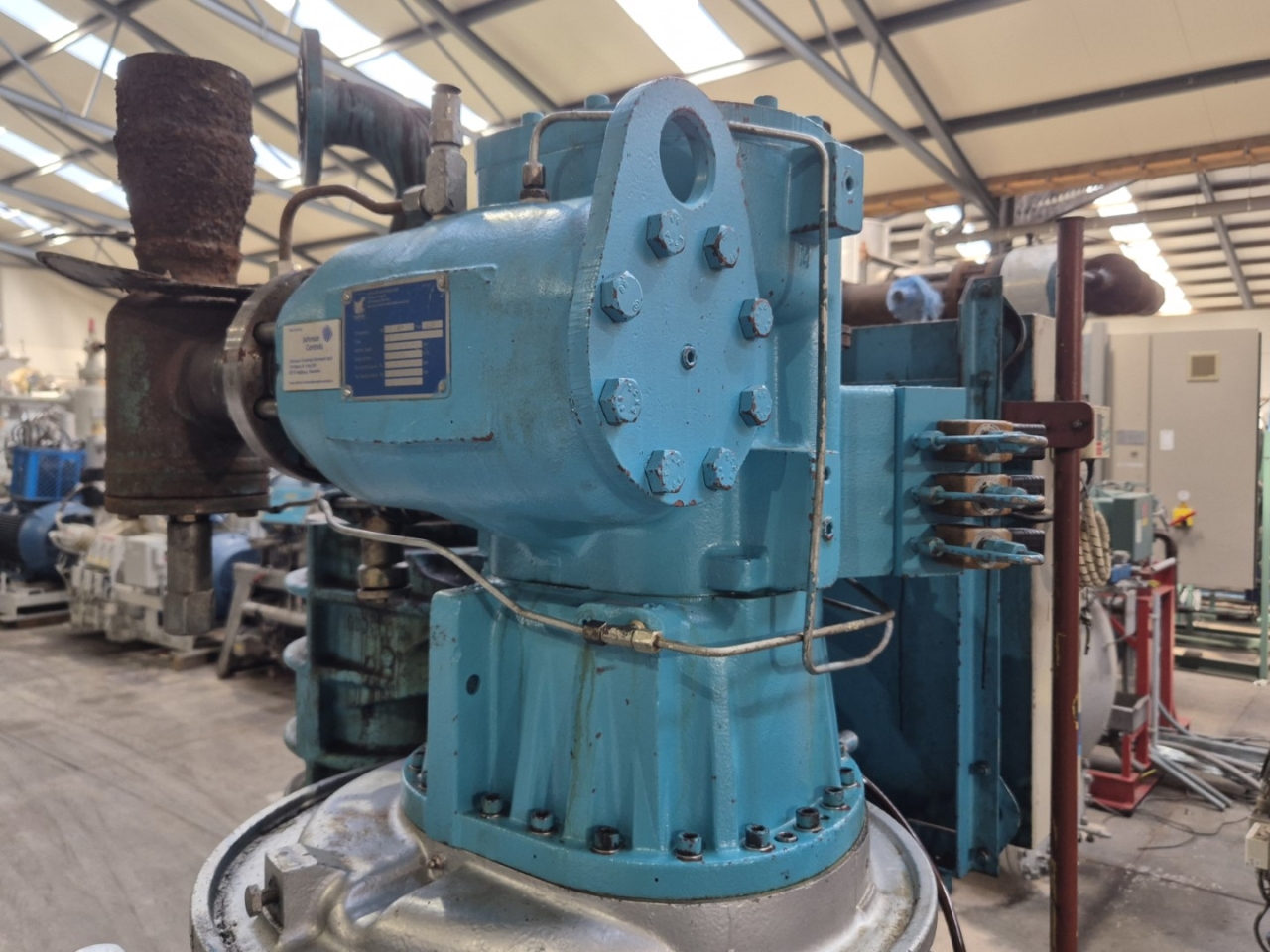

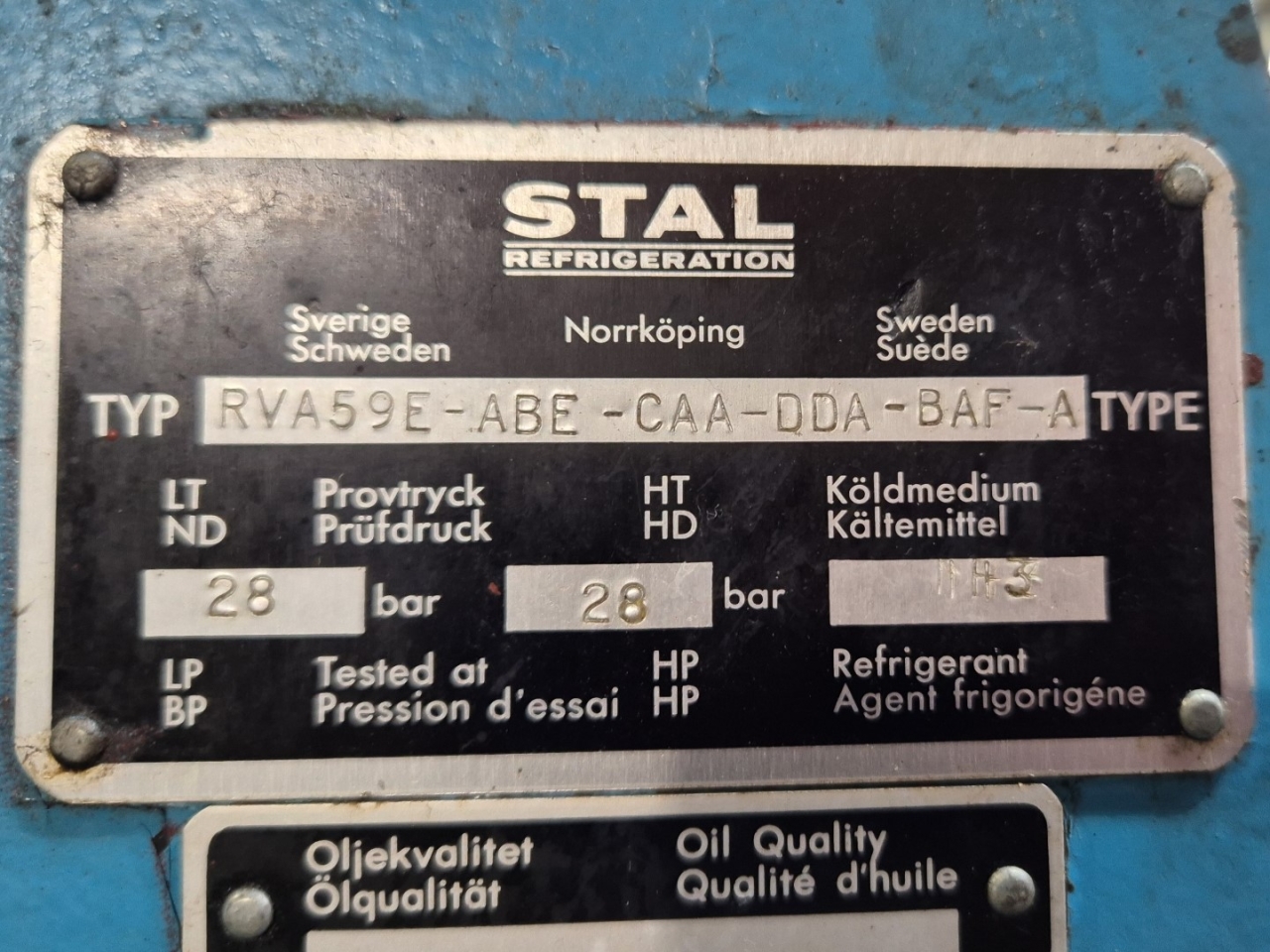

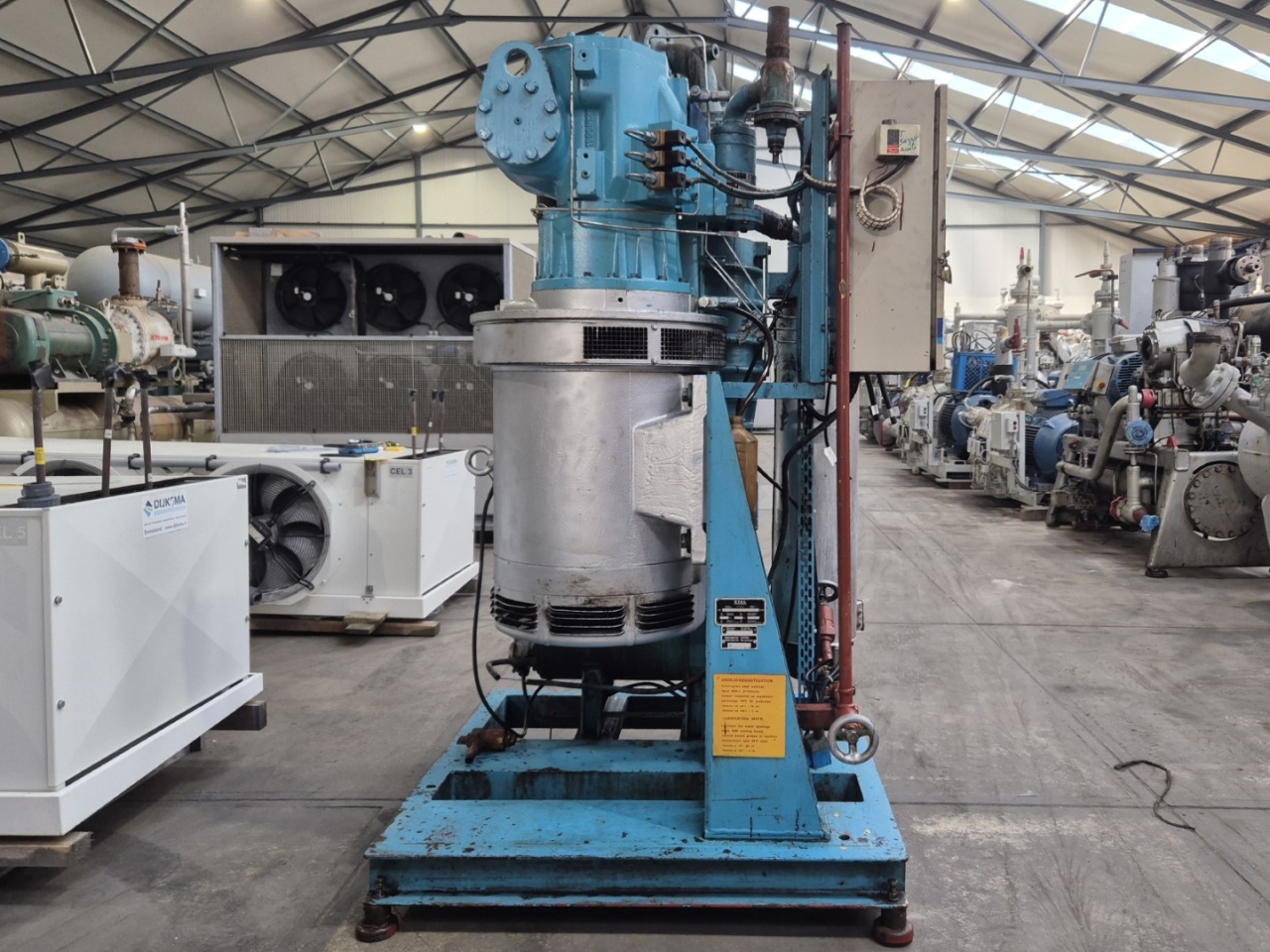

Used Stal RVA59E compressor skid on NH3 (Ammonia). Complete with a Sabroe / Stal R5 MK2 screw compressor, Schorch KN5250S-AB094-060 electric motor - 50 Hz - 90 kW - 2960 RPM, oil separator, pressure and safety switches/gauges. The compressor has a displacement between 245 and 412 m³/h.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
Stal R5 MK2
| Stal R5 MK2 - | (PDF) |
