Bitzer HSN 8571-125-40P (x6)
Bitzer HSN 8571-125-40P (x6)
| 18269 | |
| Brand | Bitzer |
| Type | HSN 8571-125-40P (x6) |
| Refrigerant | Freon |
| Refrigerant type | R449A |
| kW at -20ºC/+40ºC | 1105,2 |
| kW at -30ºC/+40ºC | 747,6 |
| kW at -40ºC/+40ºC | 484,2 |
| kW at -45ºC/+40ºC | 379,8 |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Liquid receiver |
|
| Liquid receiver ltr. | 500 |
| Suction accumulator |
|
| Oil separator |
|
| Liquid line filter drier |
|
| Solenoid Valve |
|
| Control panel |
|
| m3 / h | 2.460 m³/h at 50 Hz & 2.970 m³/h at 60 Hz |
| Remarks | | Y.o.b. 2019 |
| Remarks || | Capacity calculated with economizer |
| Package / Rack |
|
| Sizes |
1 frame: 5450x2100x2230 mm (LxWxH) Control cabinet: 2620x700x2420 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer HSN 8571-125-40P (x6)

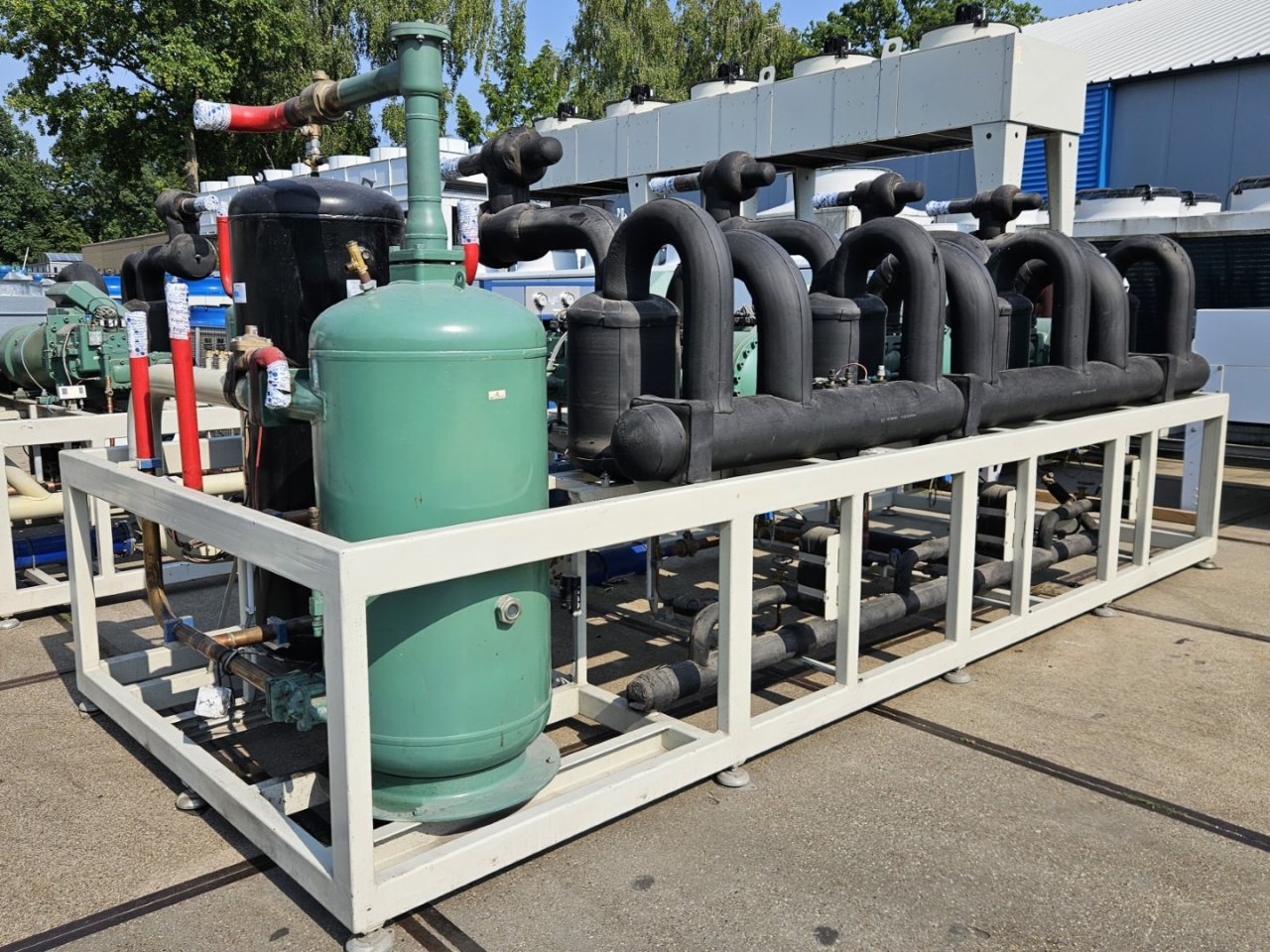

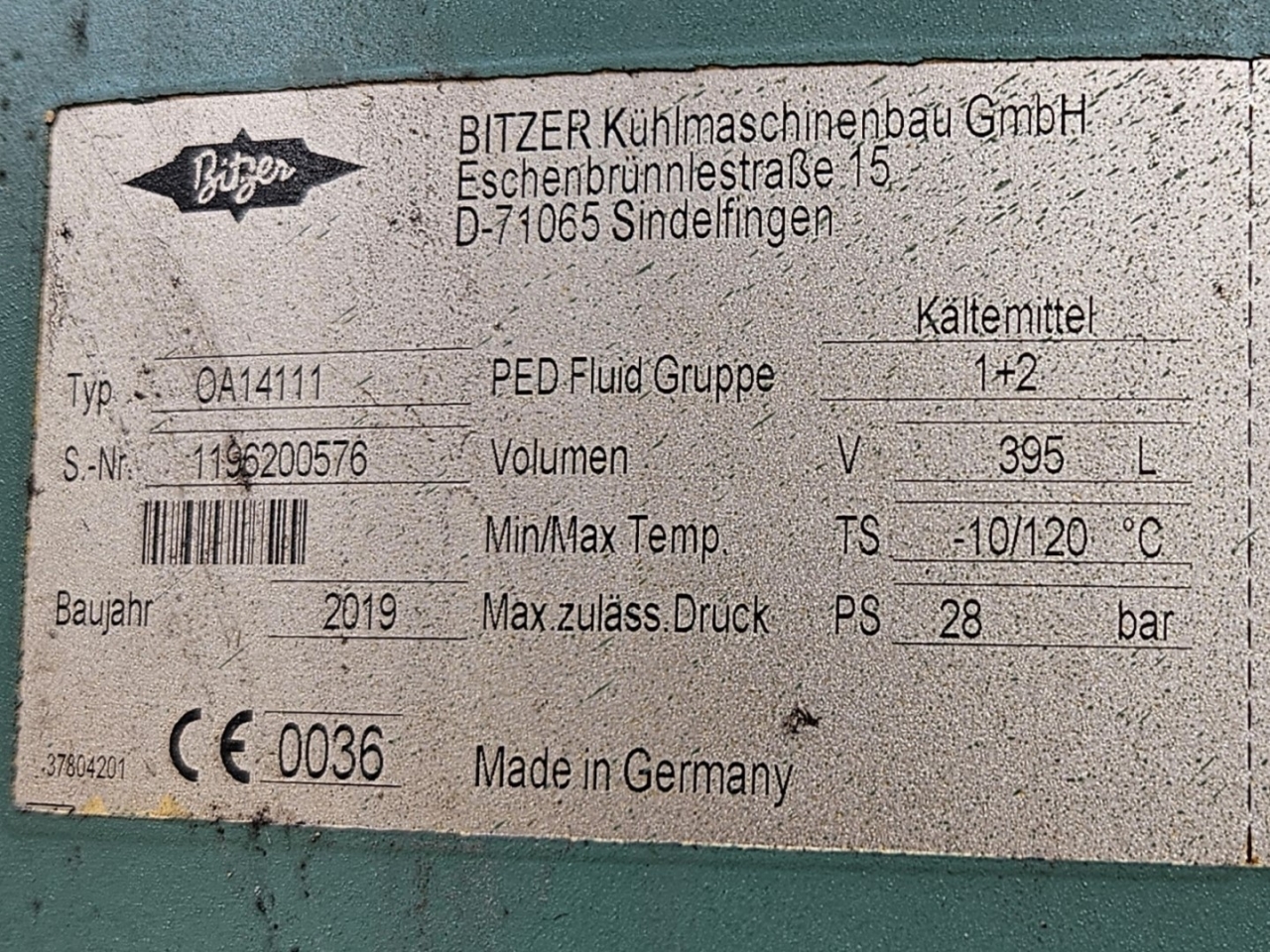

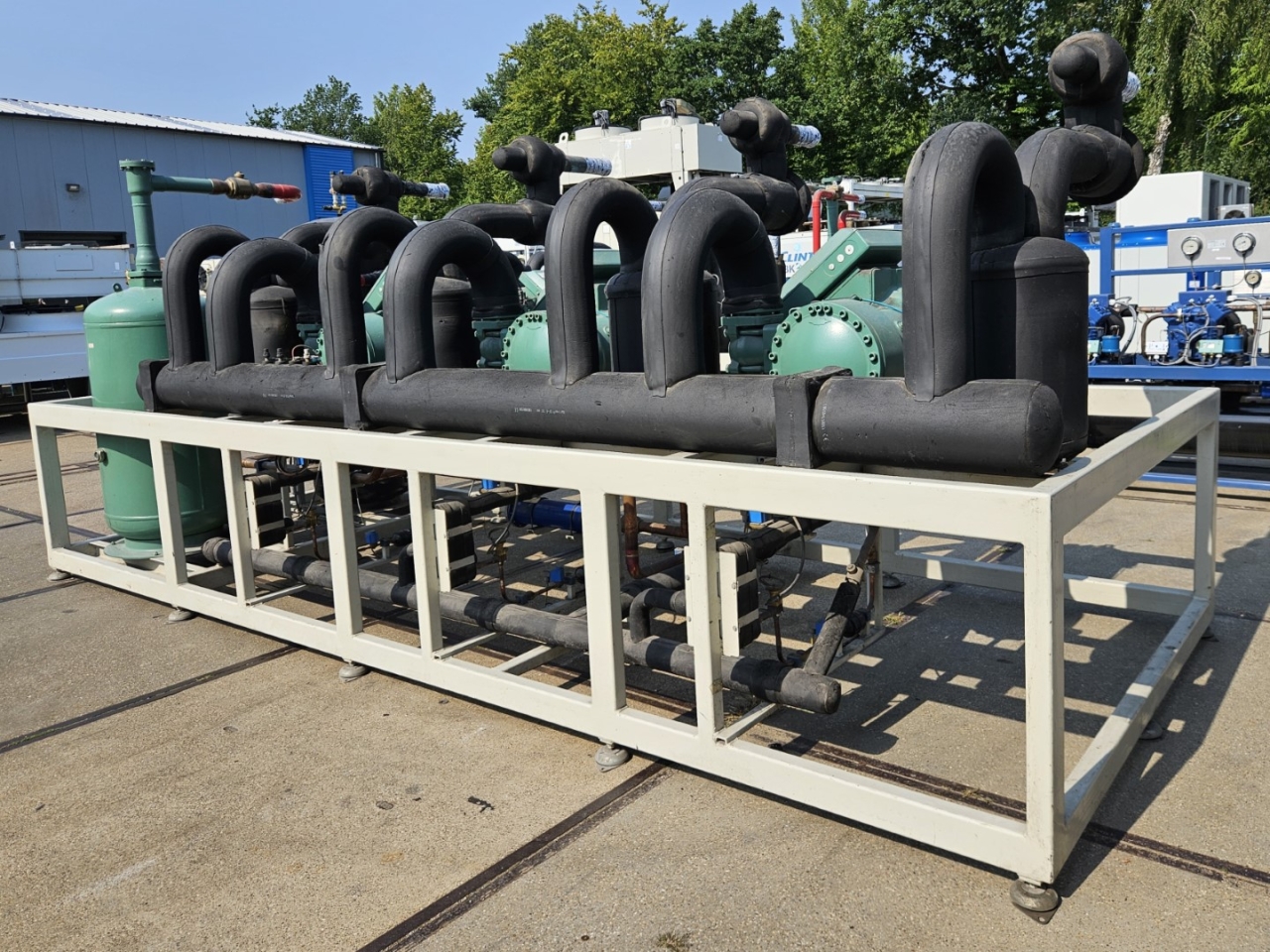

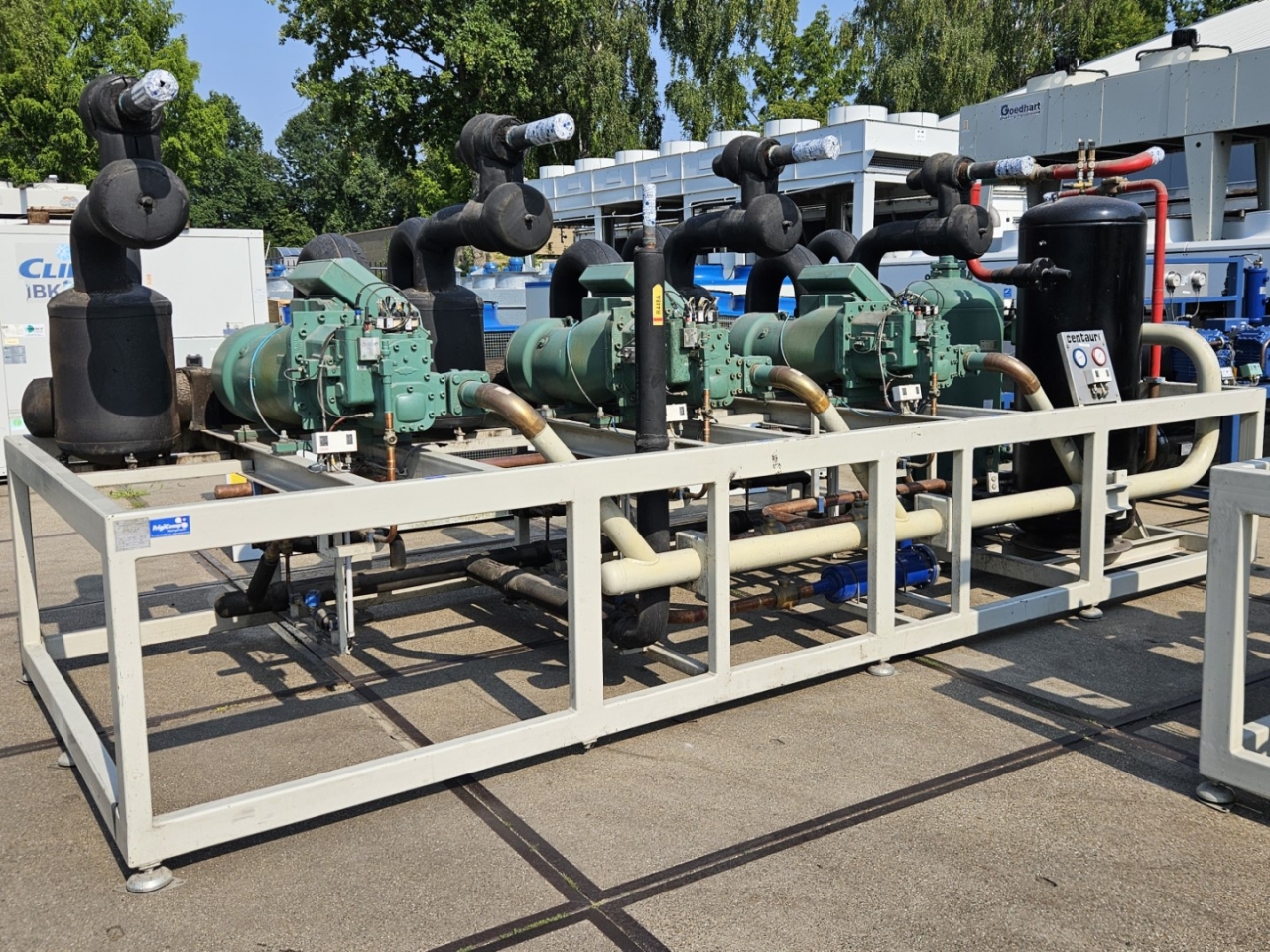

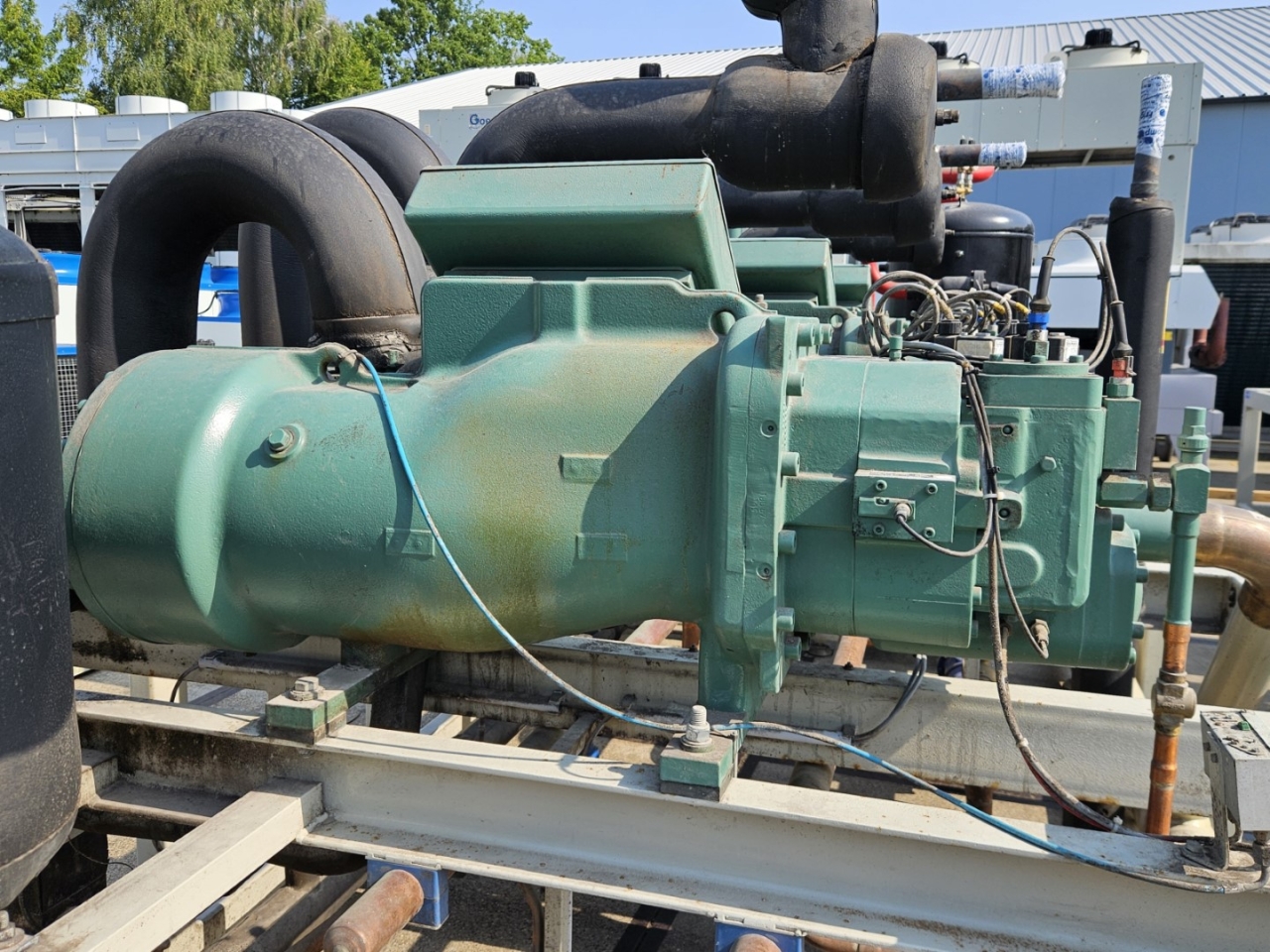

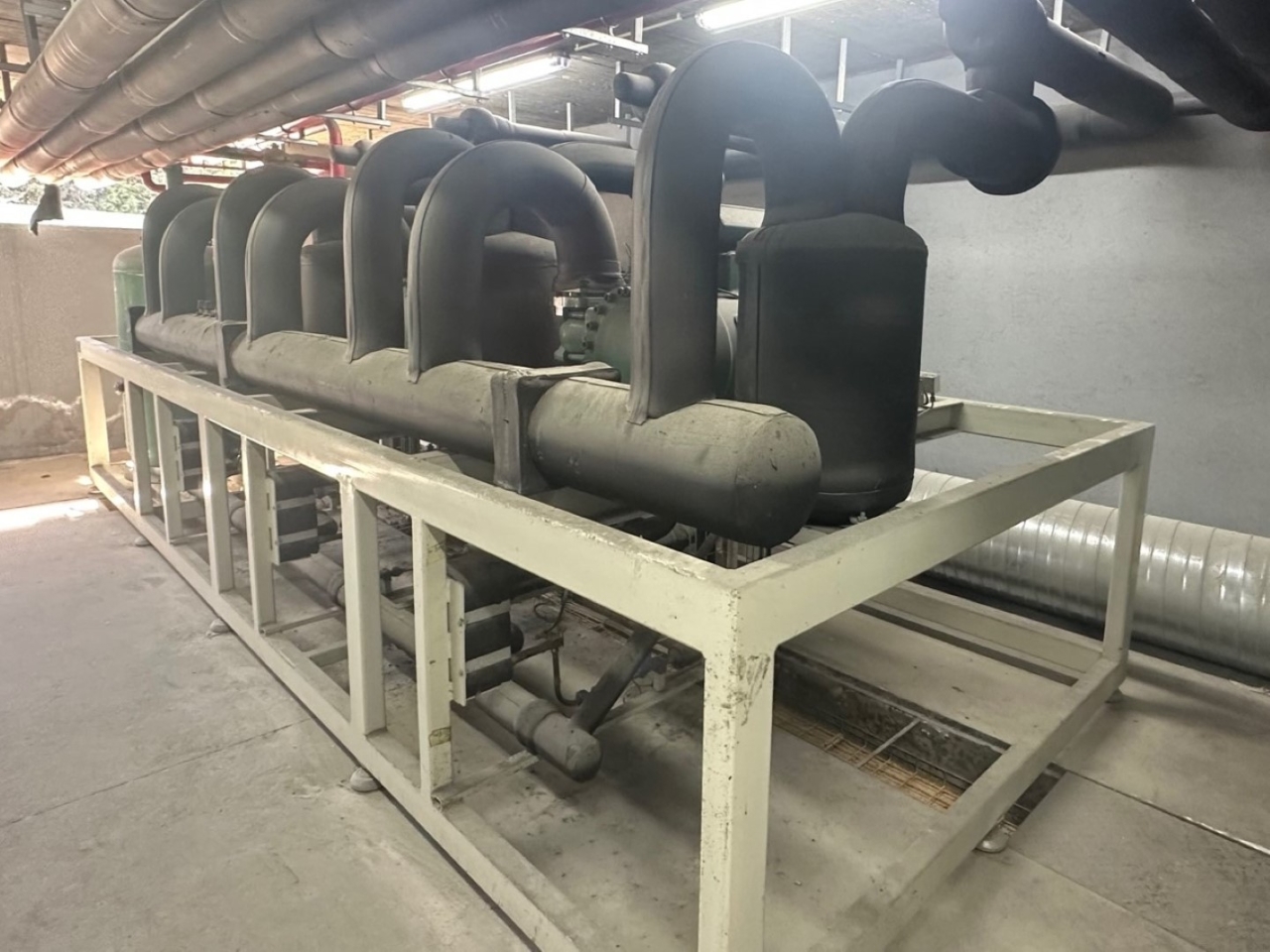

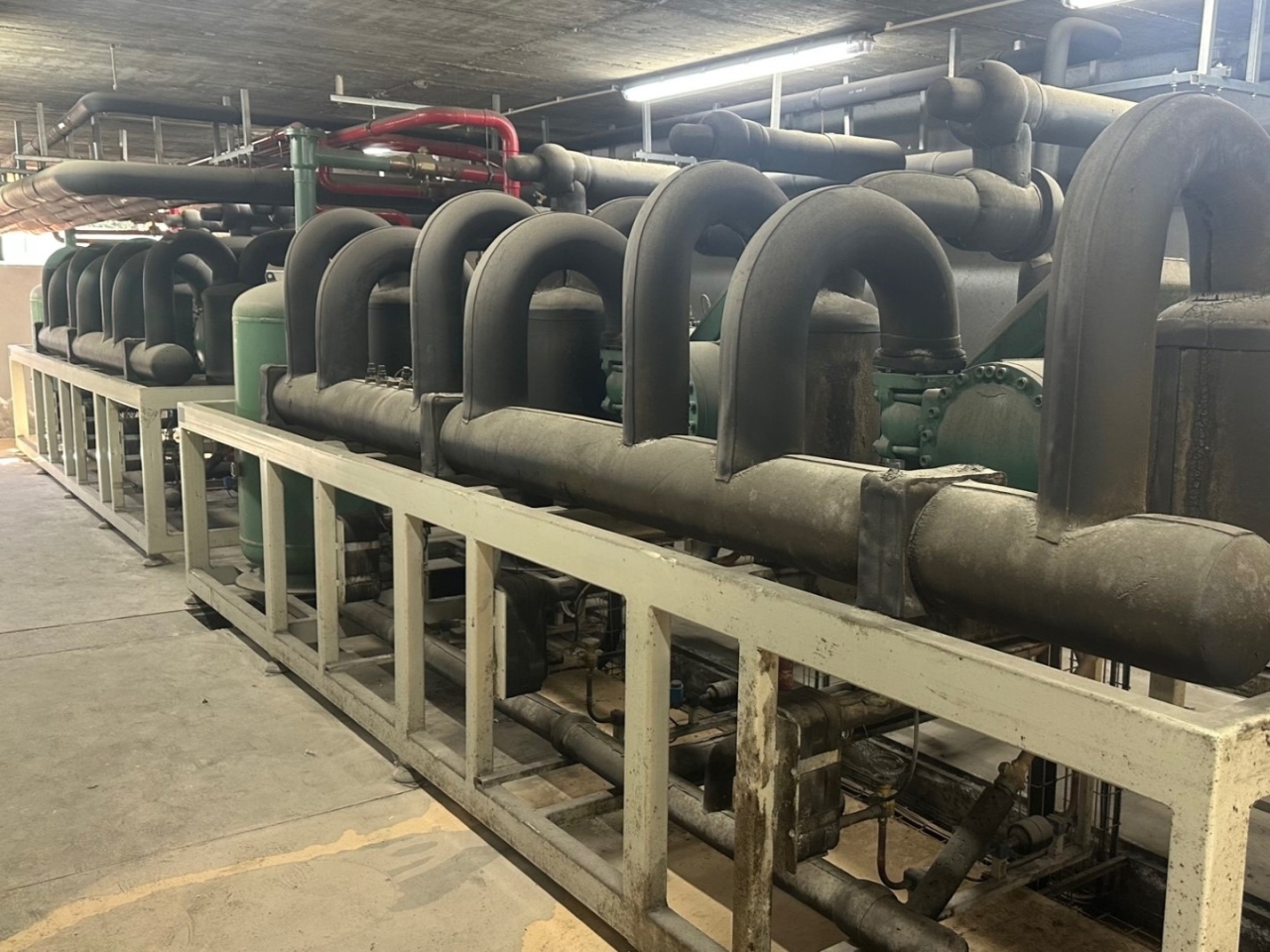

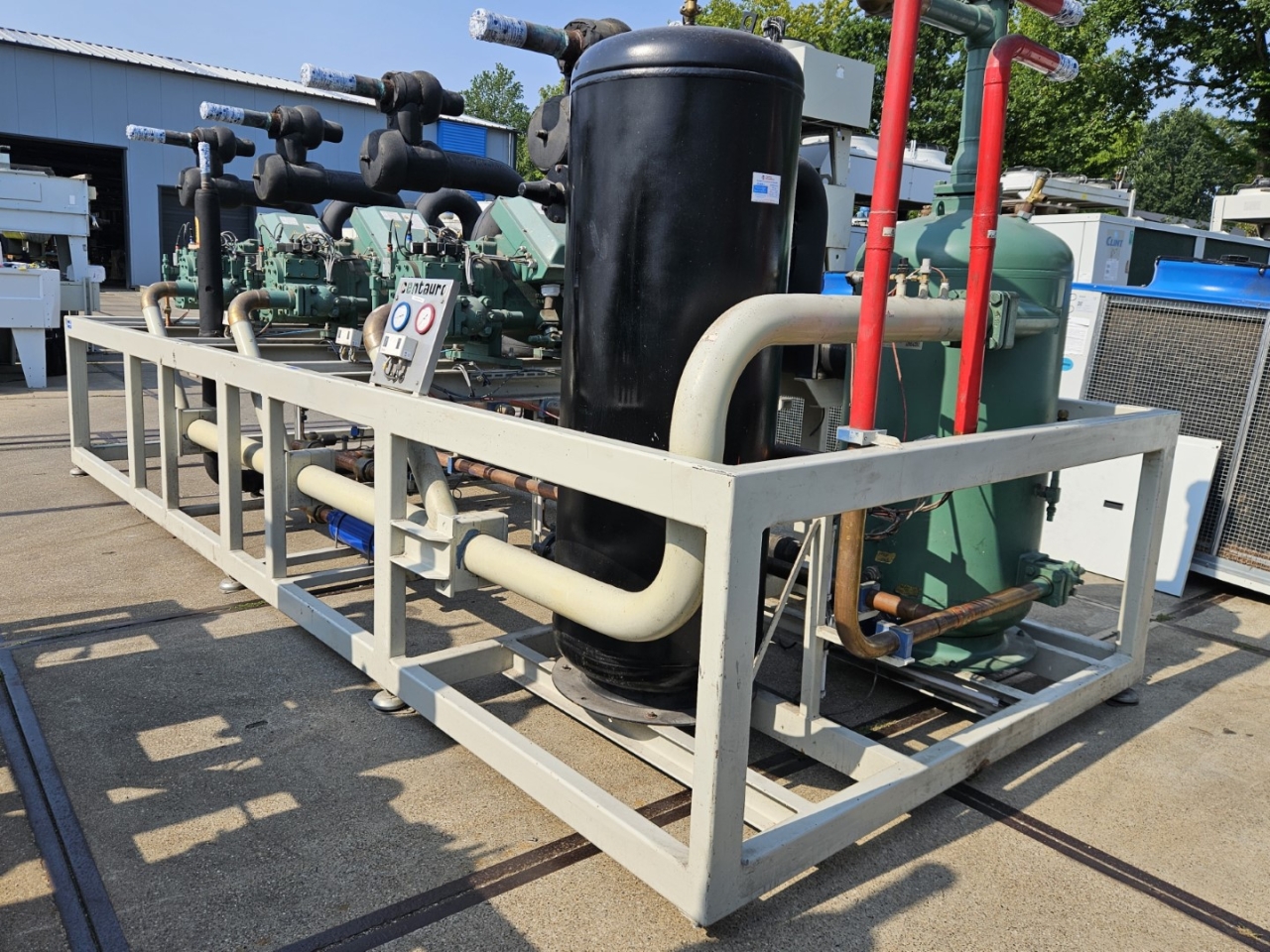

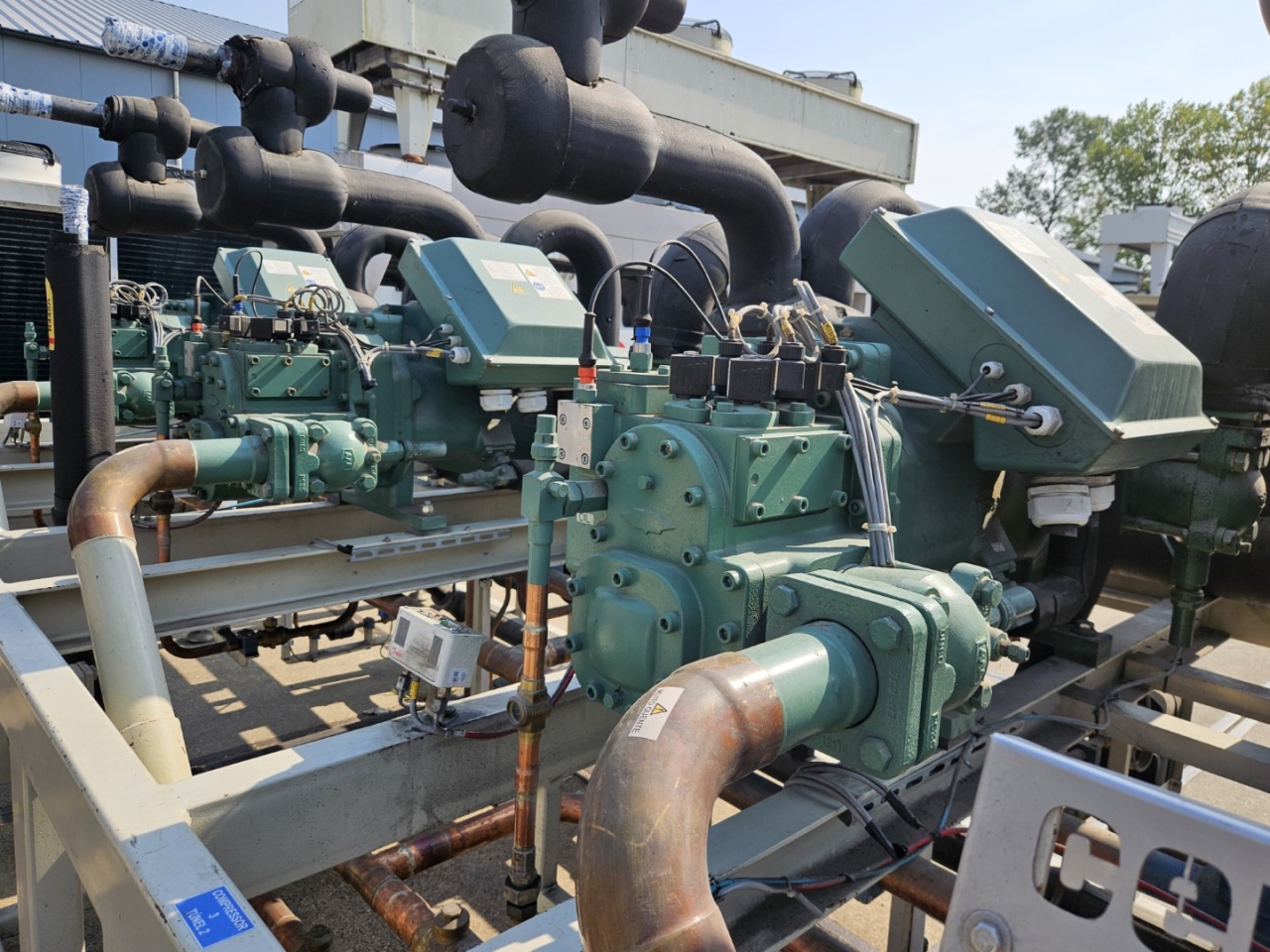

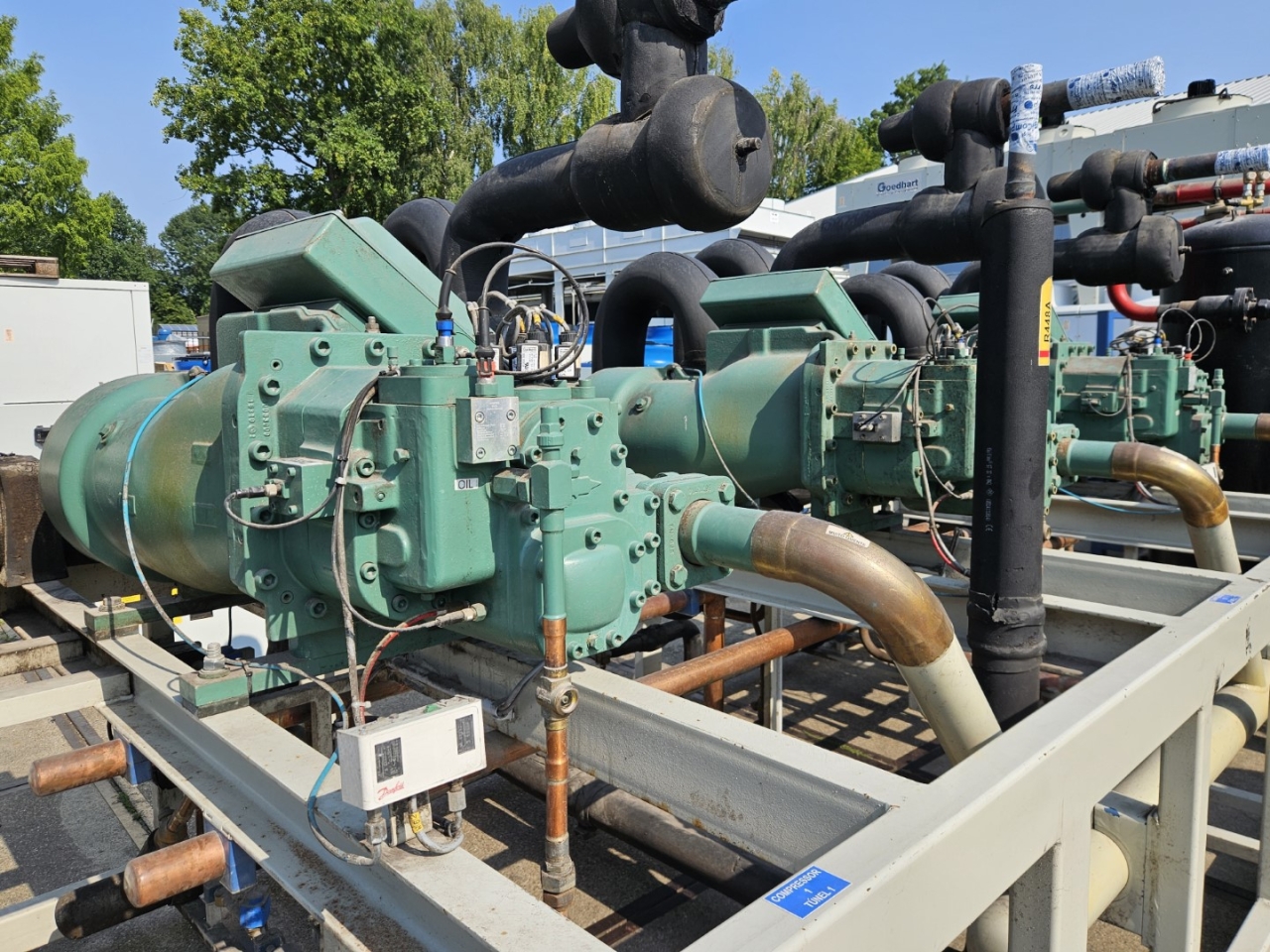

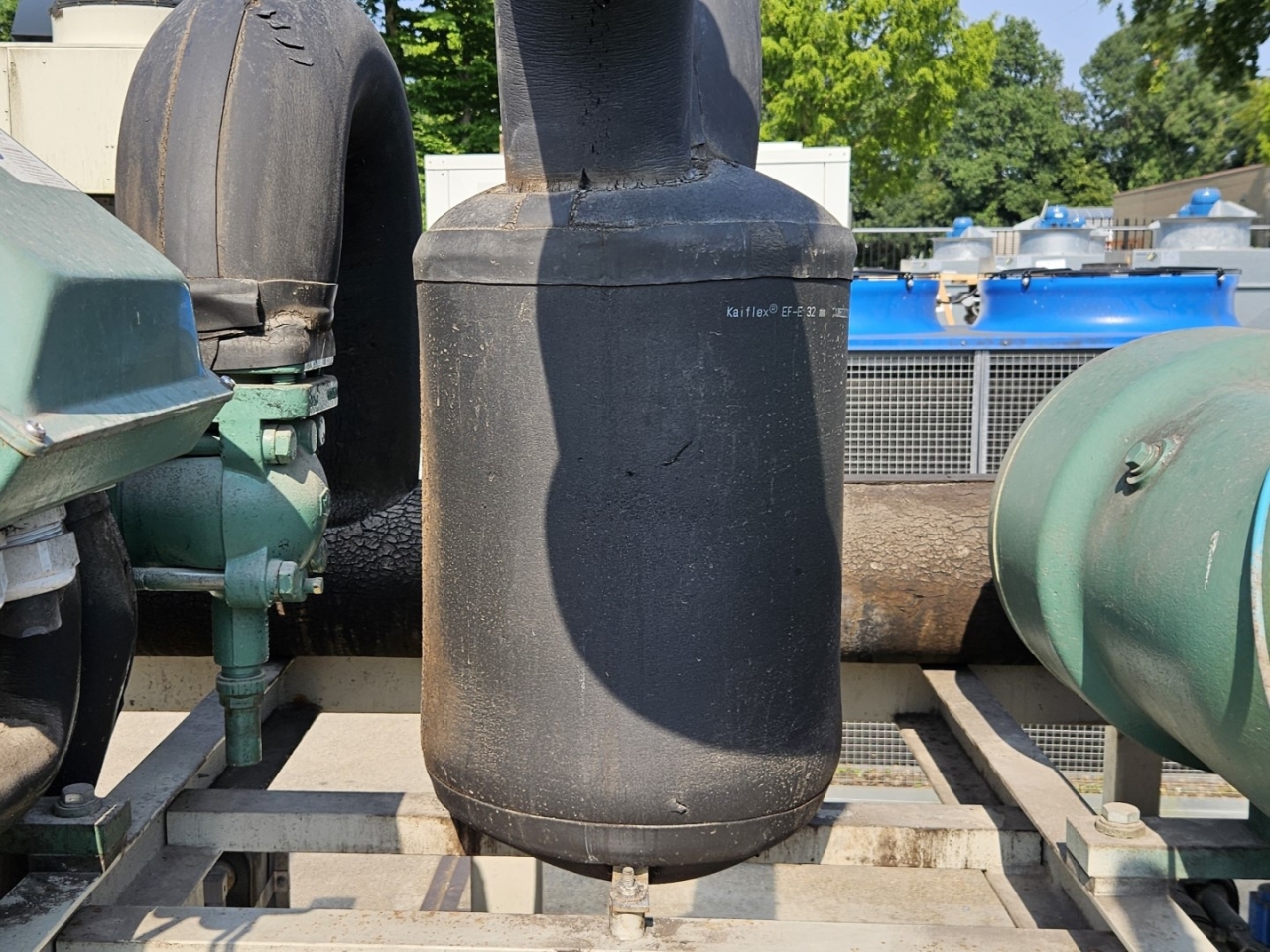

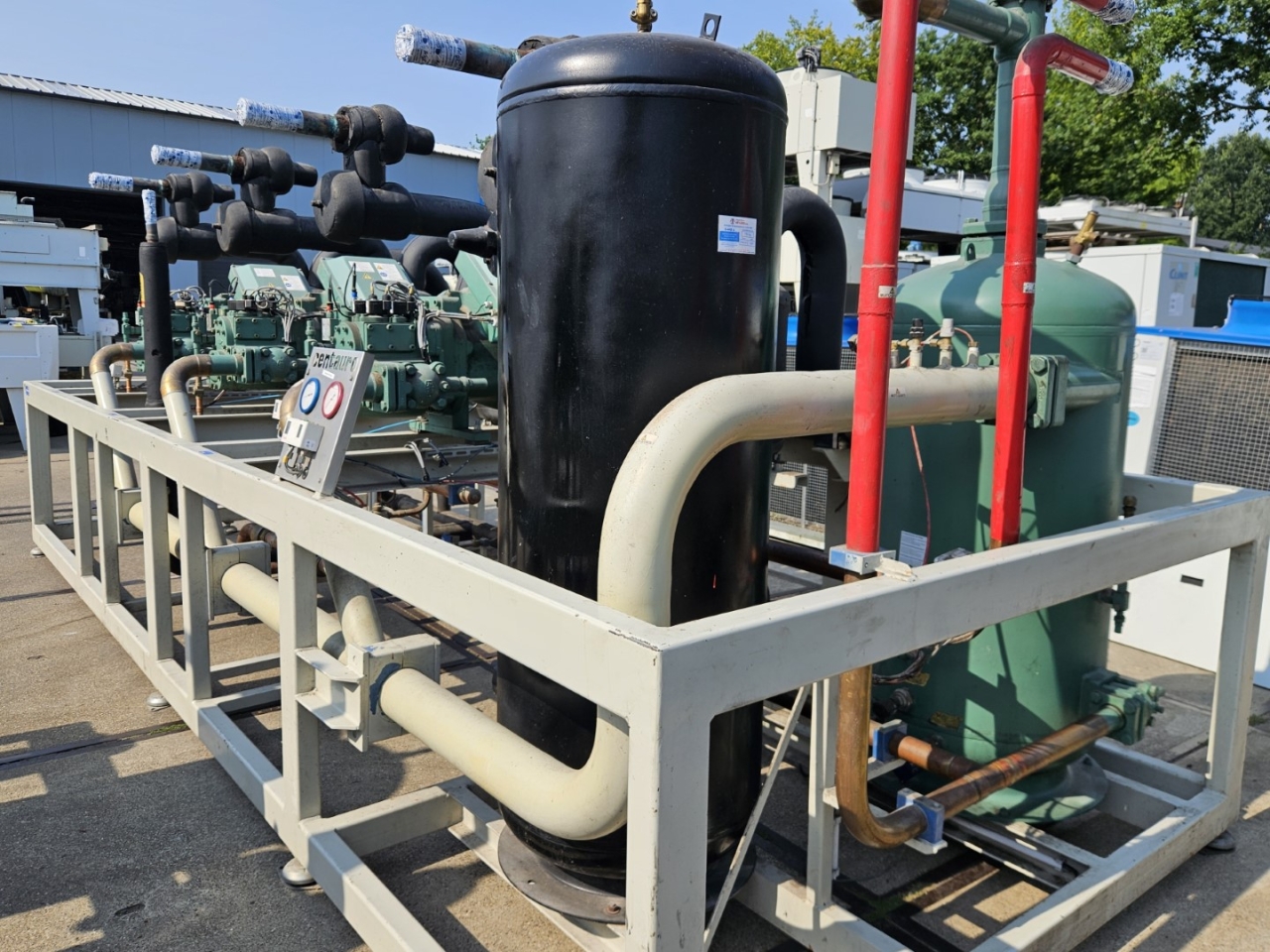

Two used Bitzer HSN 8571-125-40P Freon compressor racks on a steel base frame built in 2019 with 3 compressors each . Complete with 6 suction accumulators, 2 Bitzer OA14111 oil separator with a volume of 395 liter,

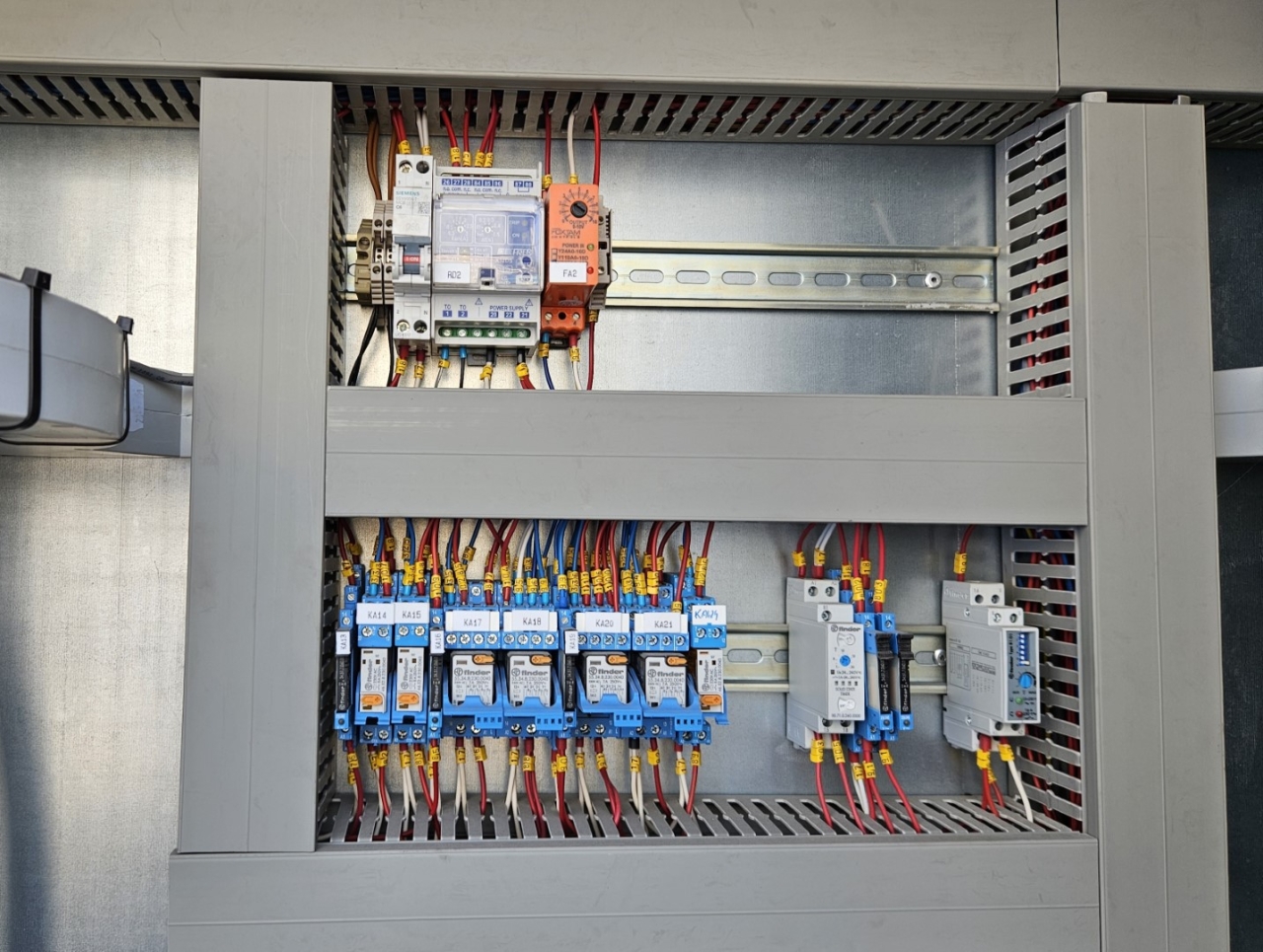

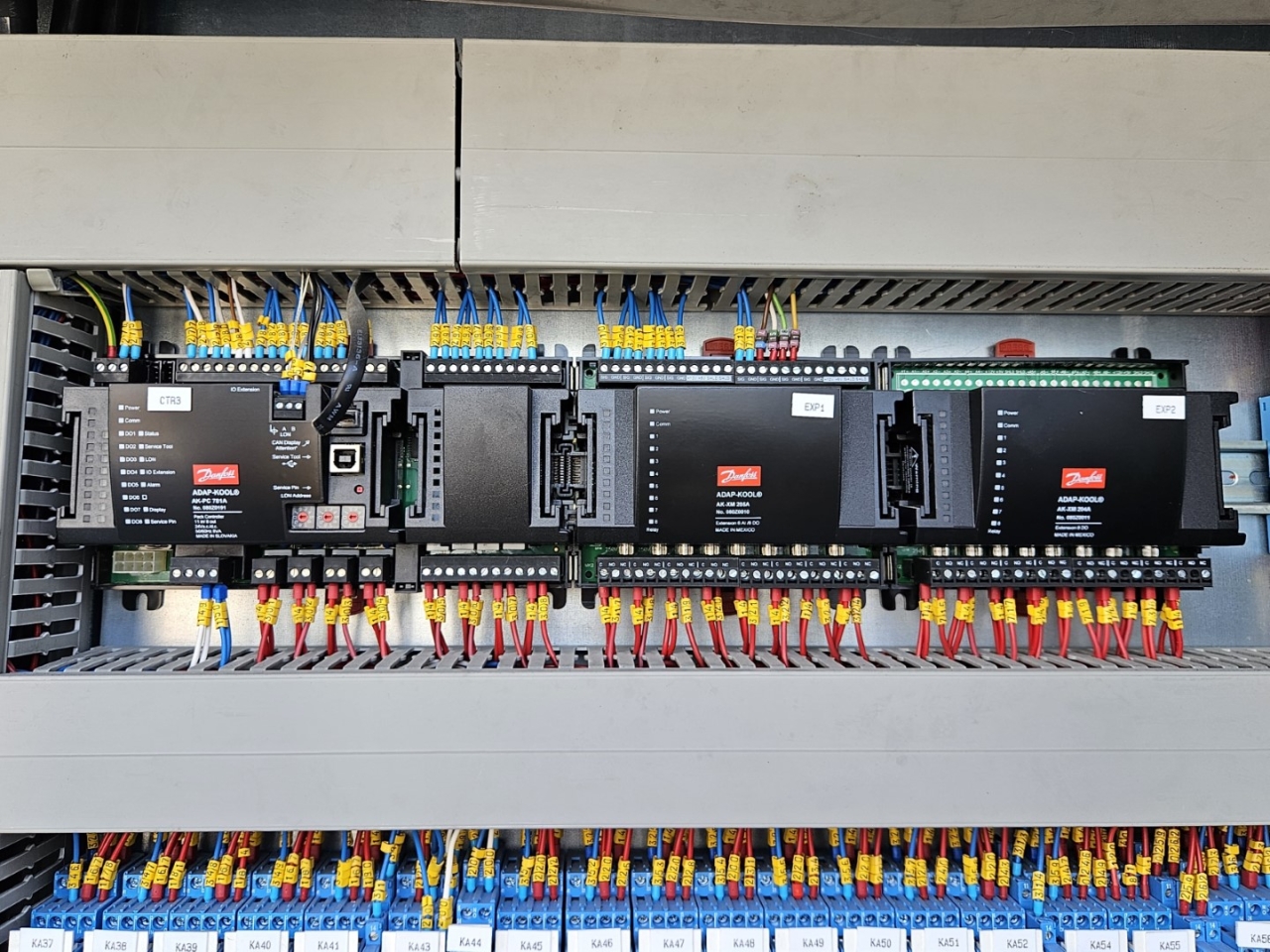

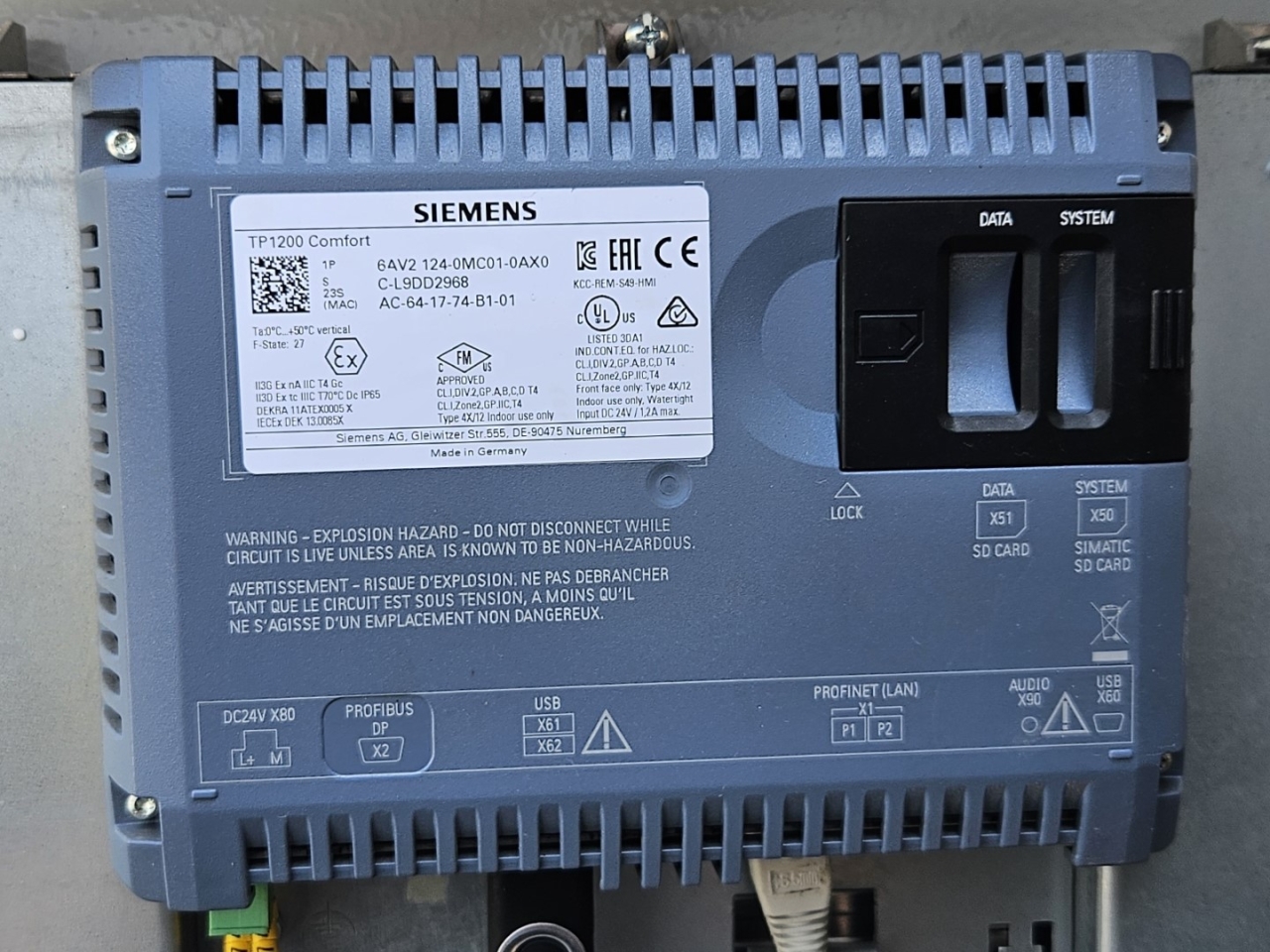

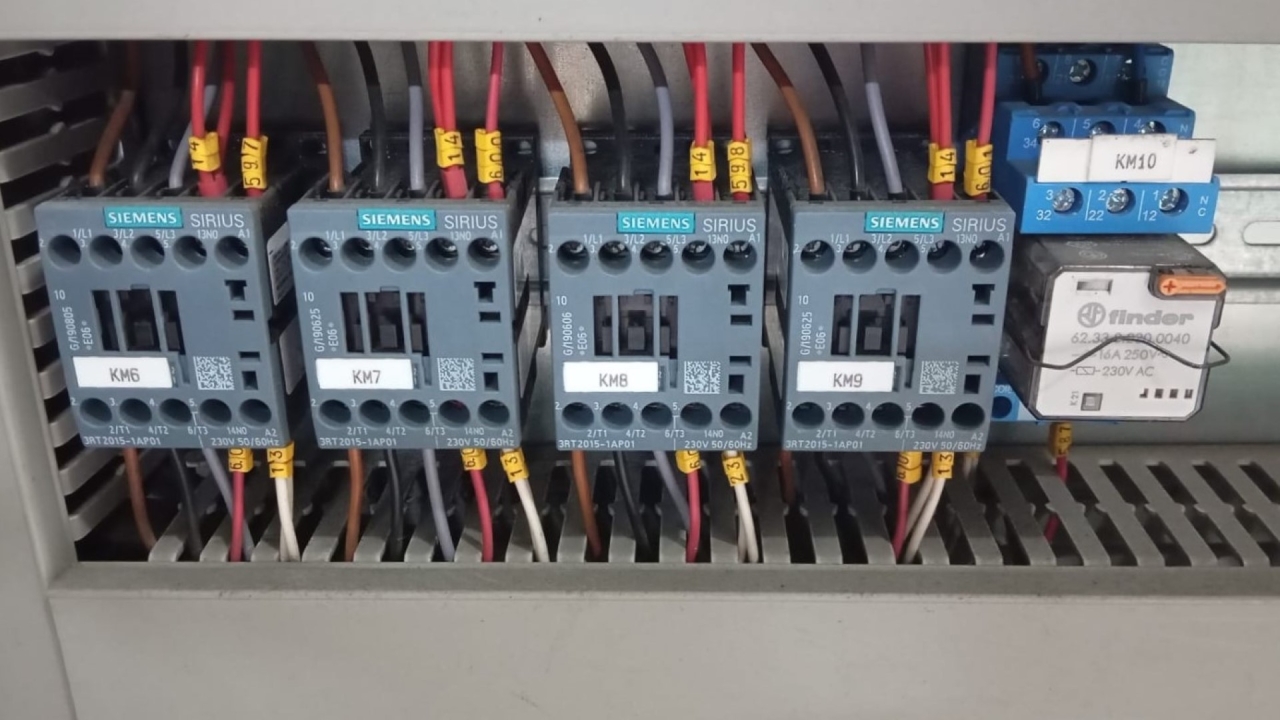

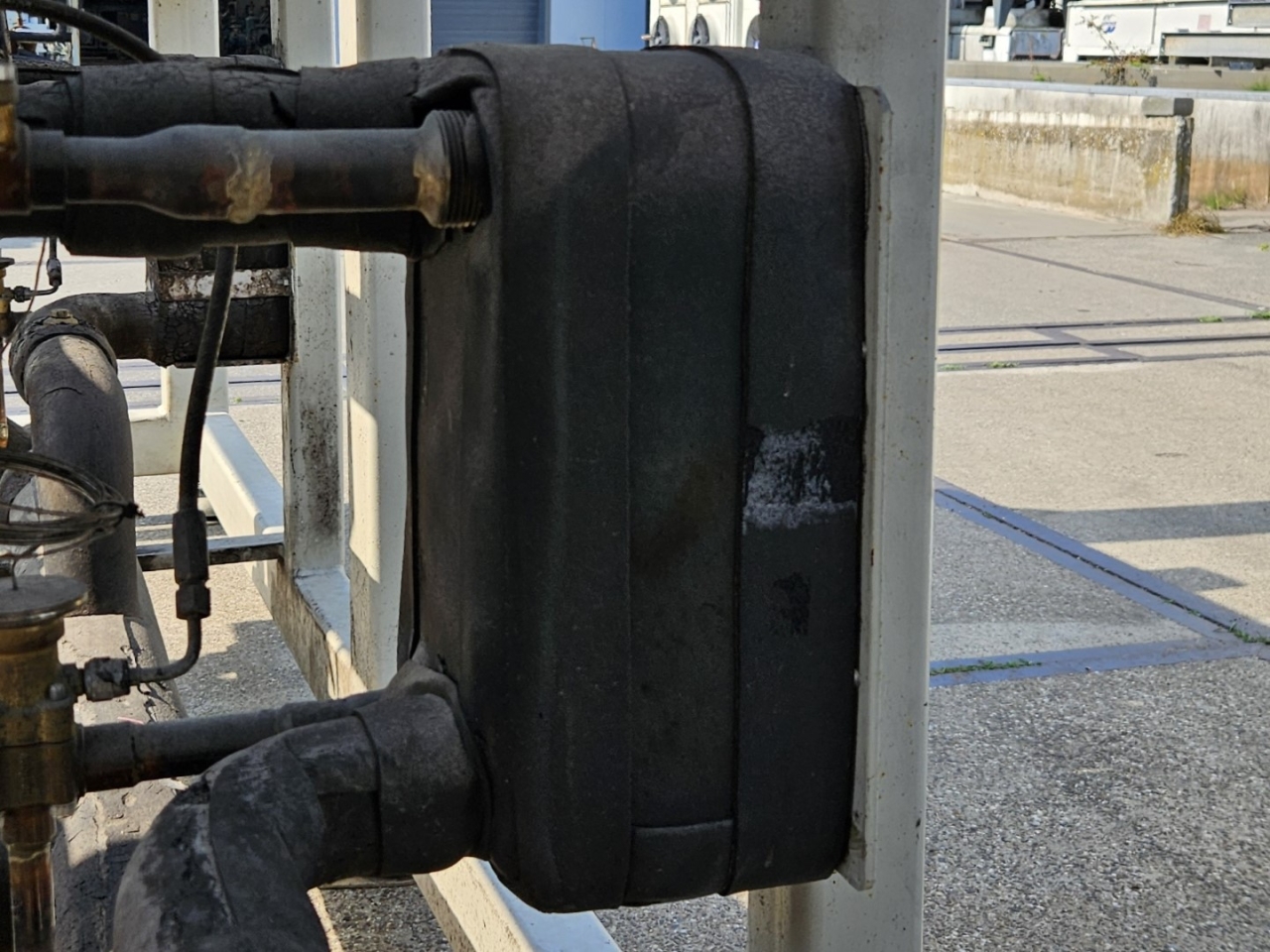

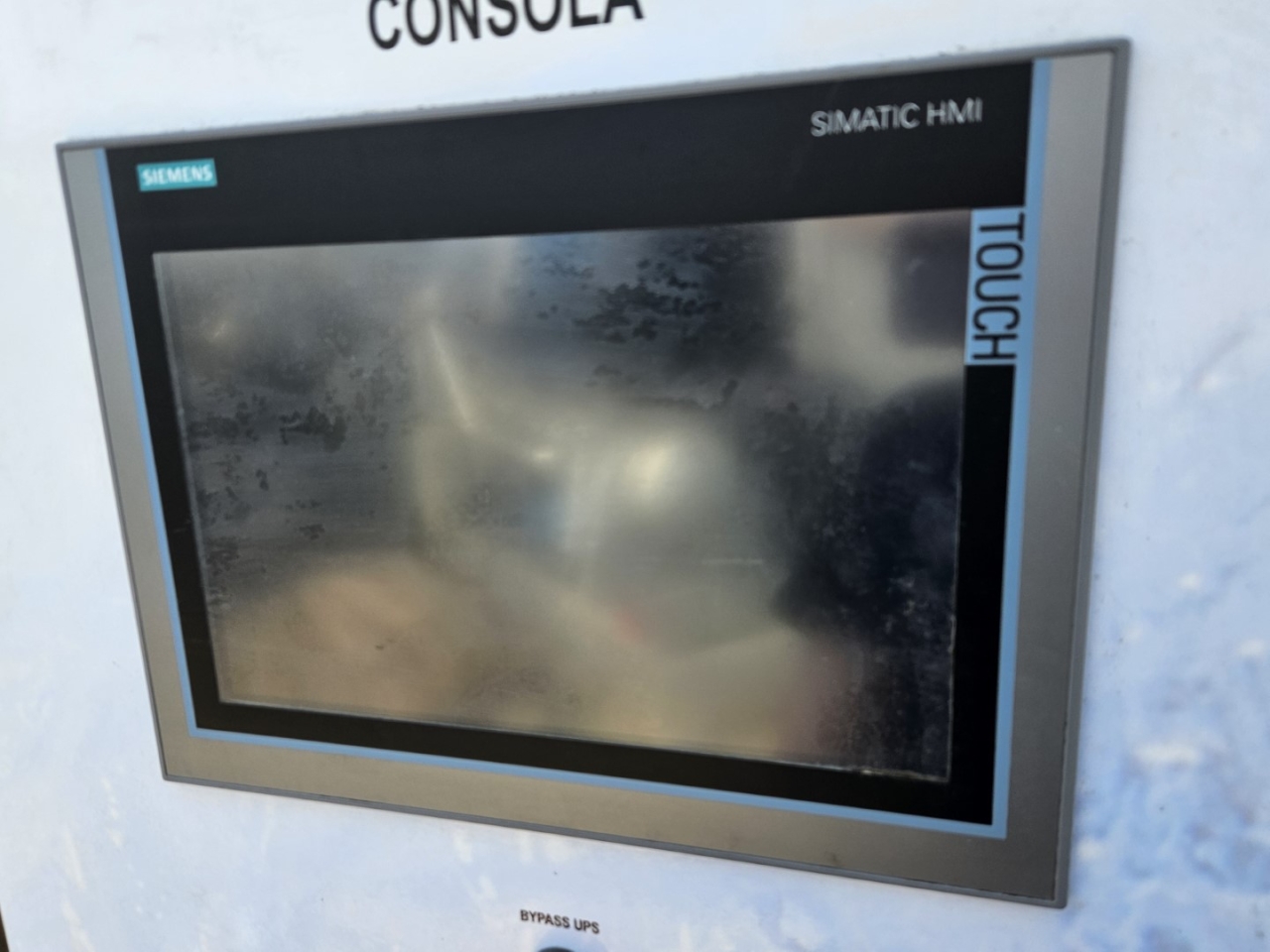

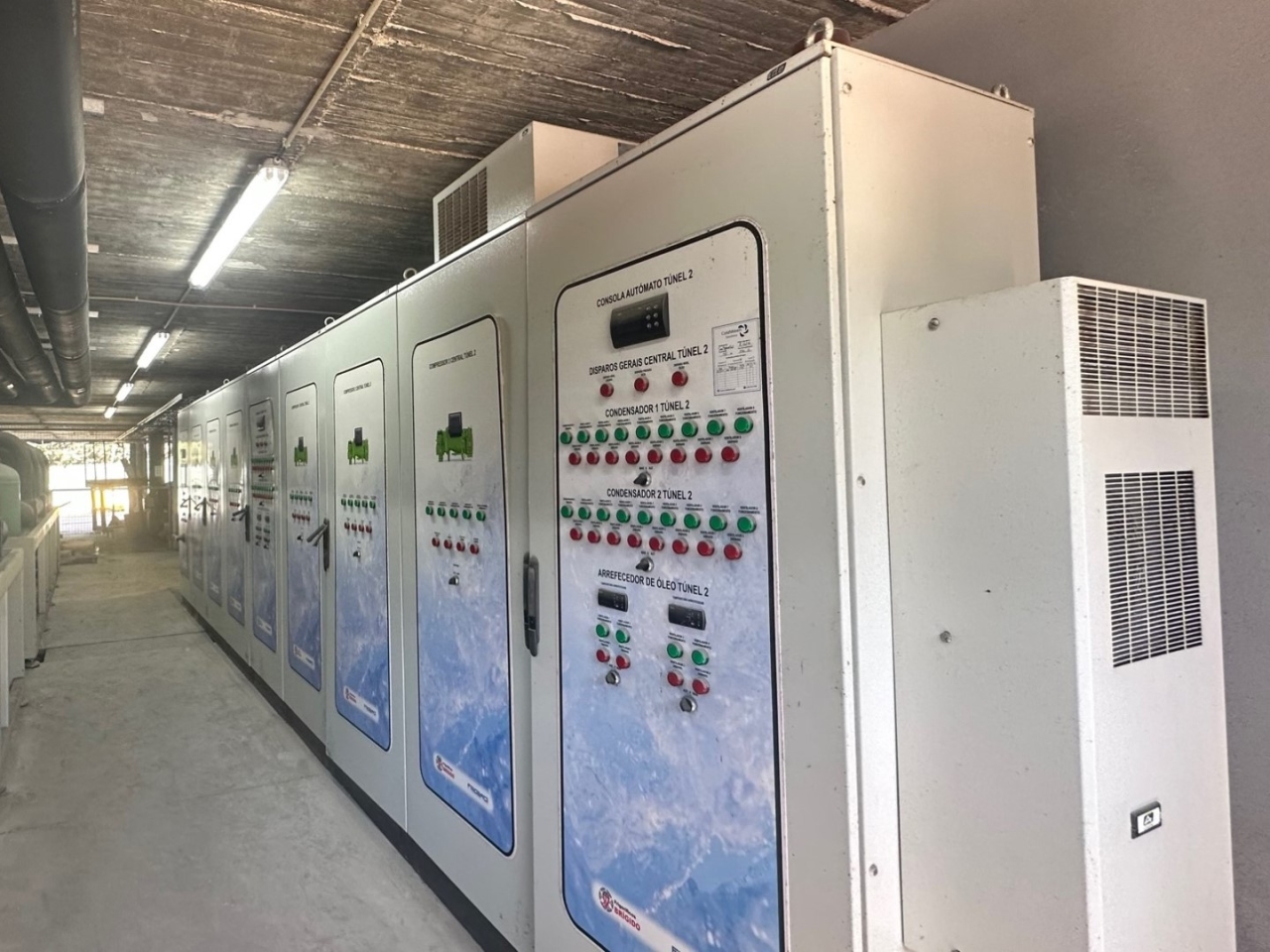

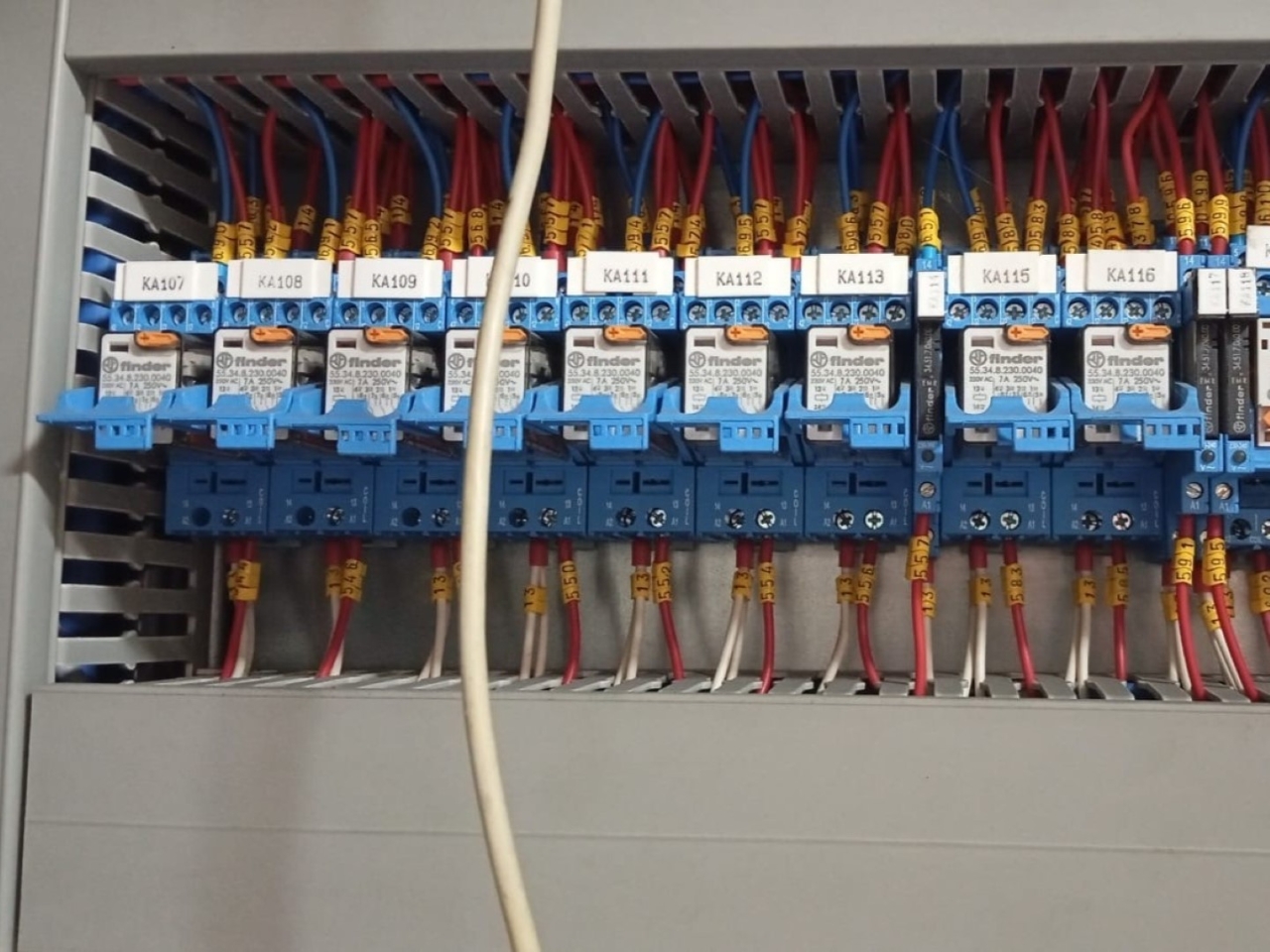

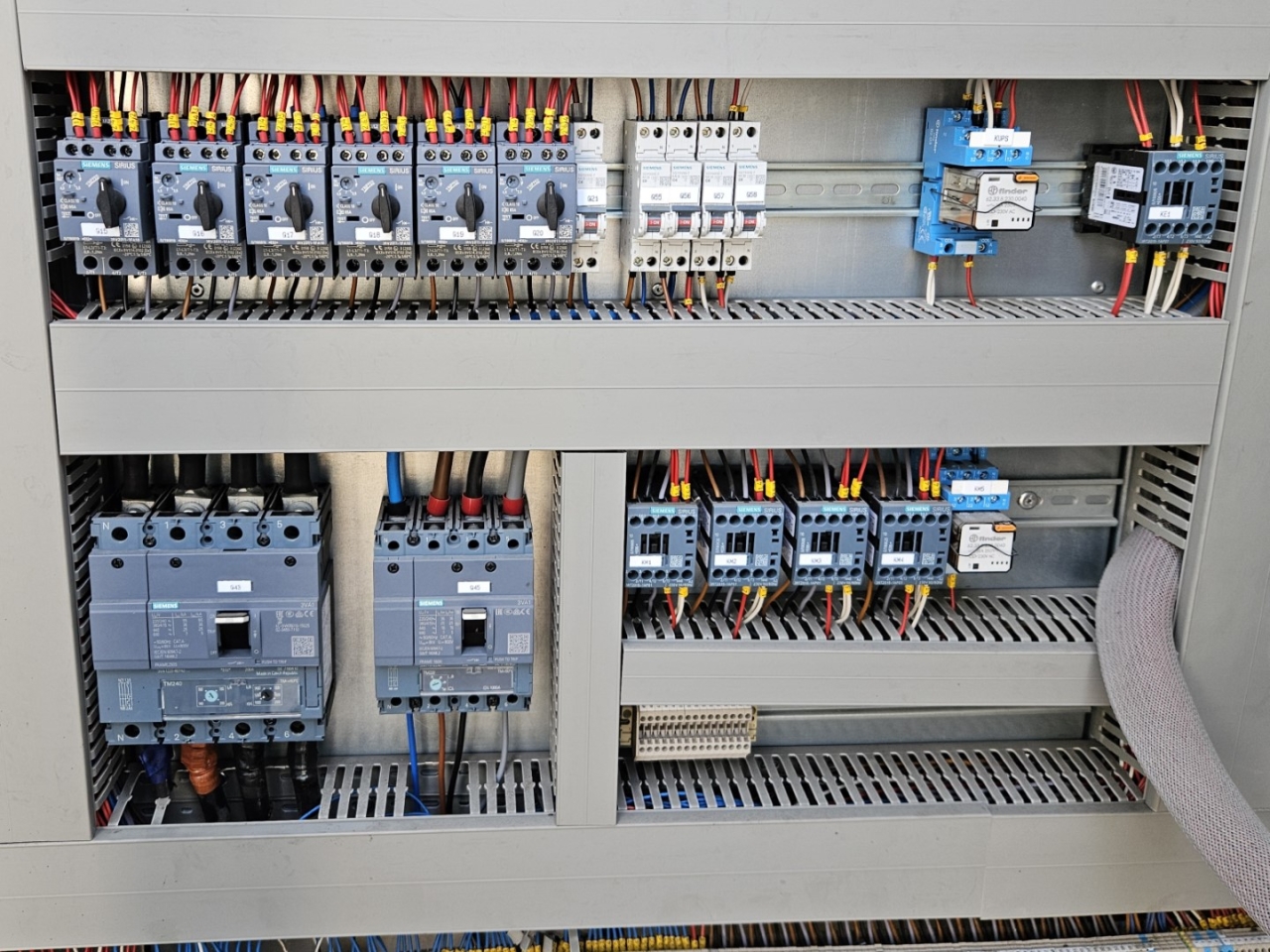

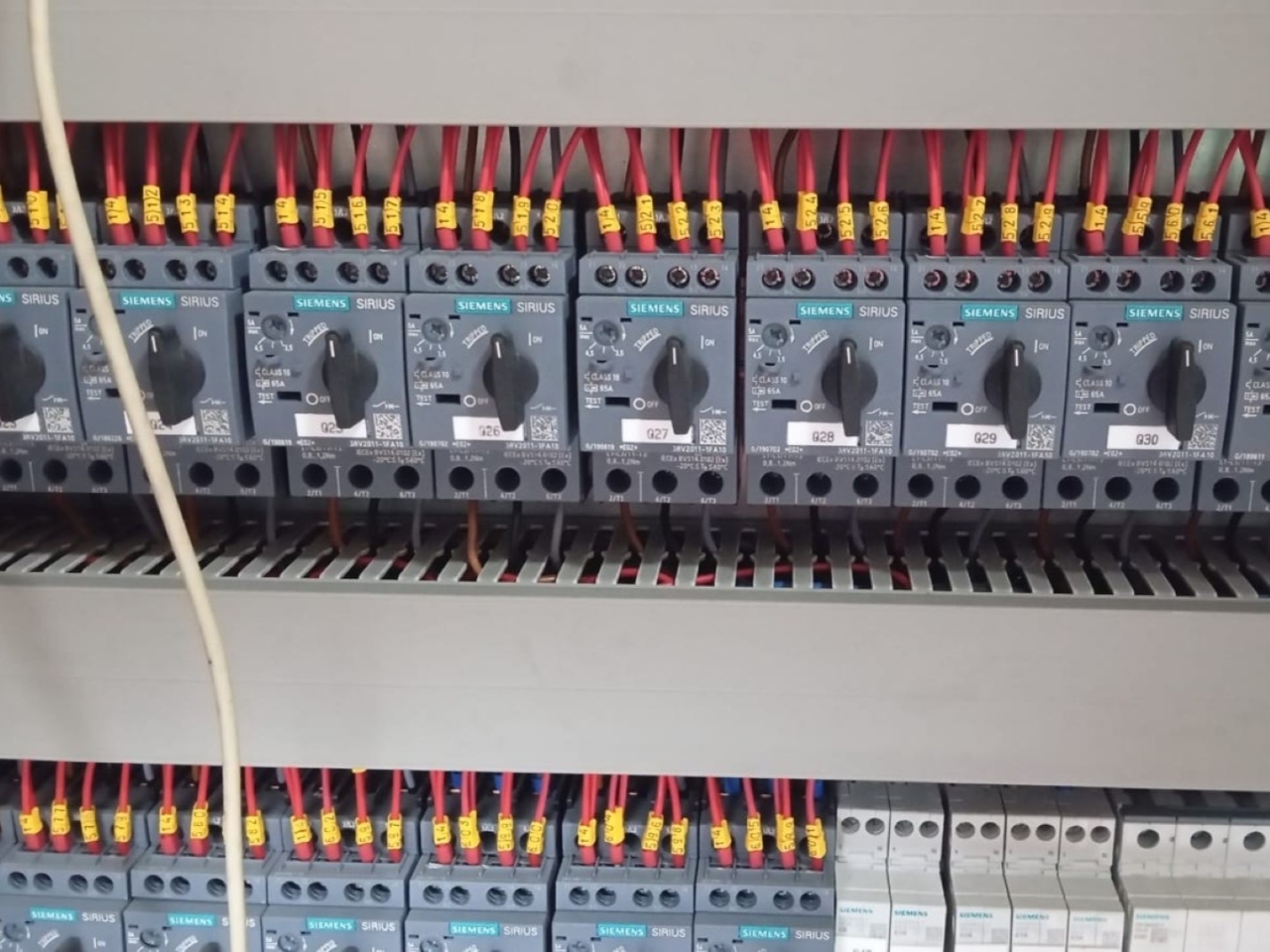

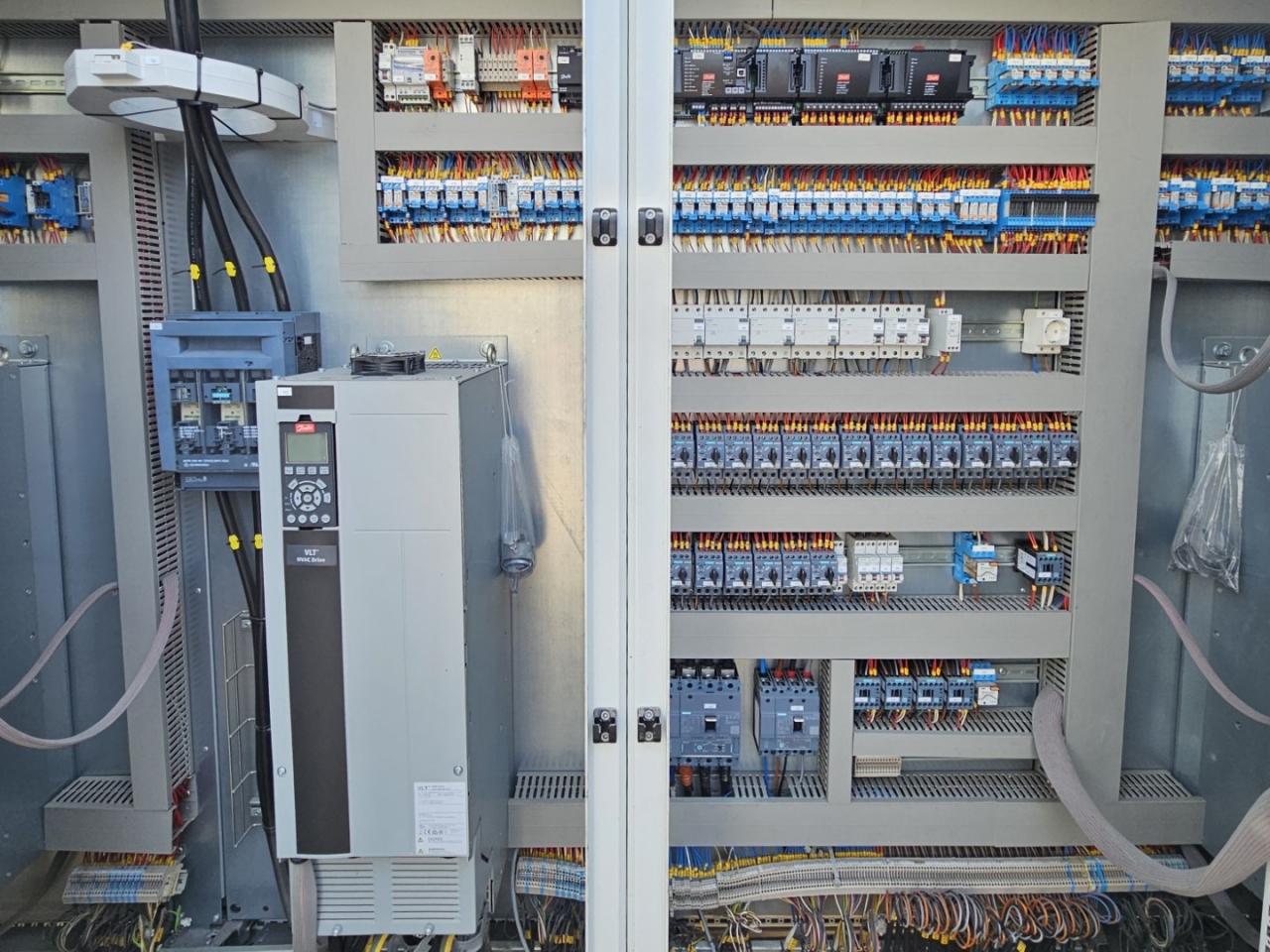

2 Tecnac RV-610-500 liquid receiver with a volume of 500 liter, 6 brazed heat exchangers as economizer, pressure and safety switches/gauges and a control cabinet with Danfoss frequency converters and a Siemens TP1200 Comfort Simatic HMI controller. The compressors have a total displacement of 2.460 m³/h at 50 Hz & 2.970 m³/h at 60 Hz.
