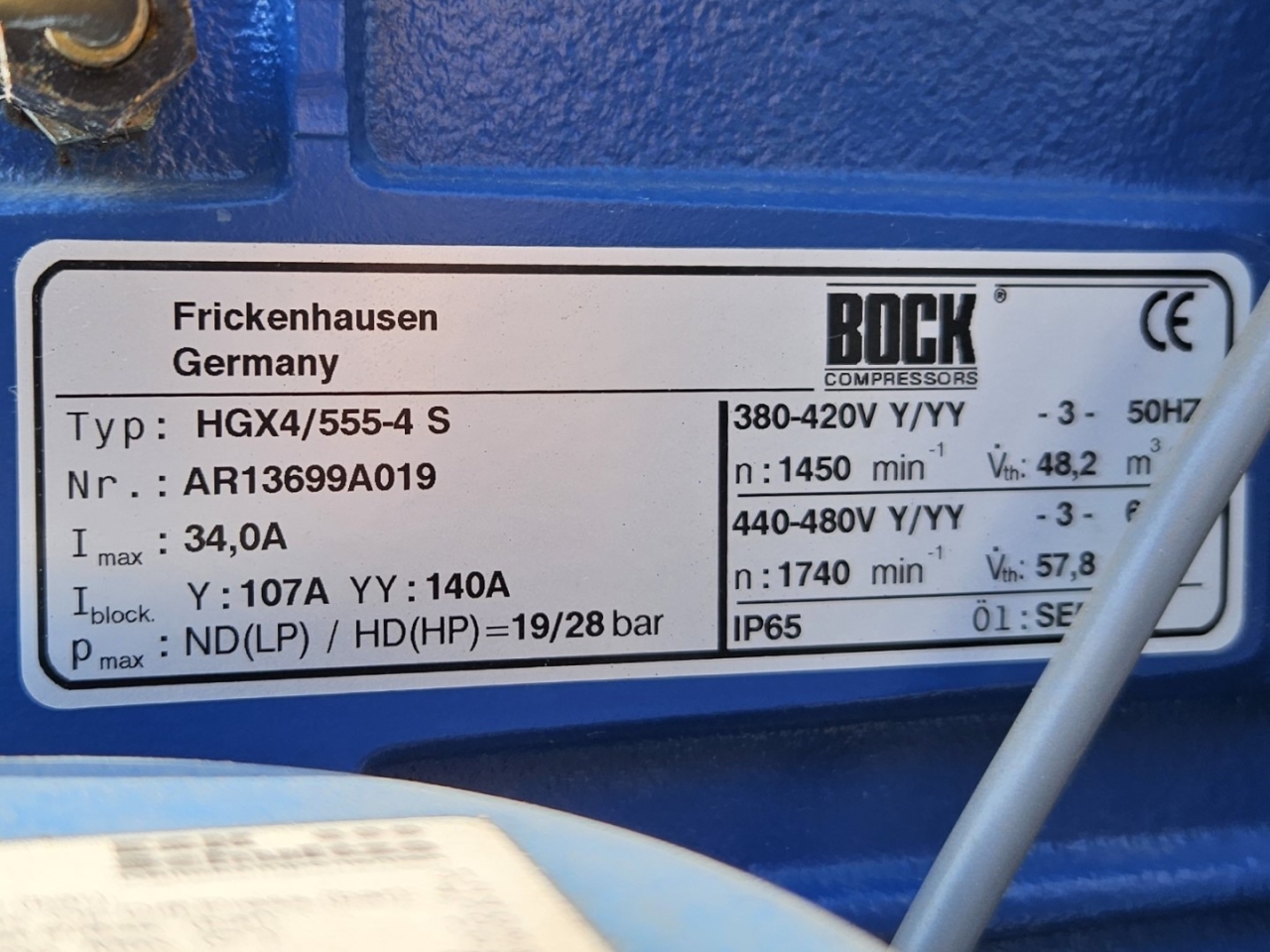

Bock HGX4/555-4 S (x3)
Bock HGX4/555-4 S (x3)
| 18270 | |
| Brand | Bock |
| Type | HGX4/555-4 S (x3) |
| Refrigerant | Freon |
| kW at 0ºC/+40ºC | 115,8 |
| kW at -5ºC/+40ºC | 96,3 |
| kW at -10ºC/+40ºC | 78,8 |
| kW at -20ºC/+40ºC | 50,6 |
| kW at -30ºC/+40ºC | 30,2 |
| kW at -40ºC/+40ºC | 16,2 |
| kW at -45ºC/+40ºC | 11,2 |
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|

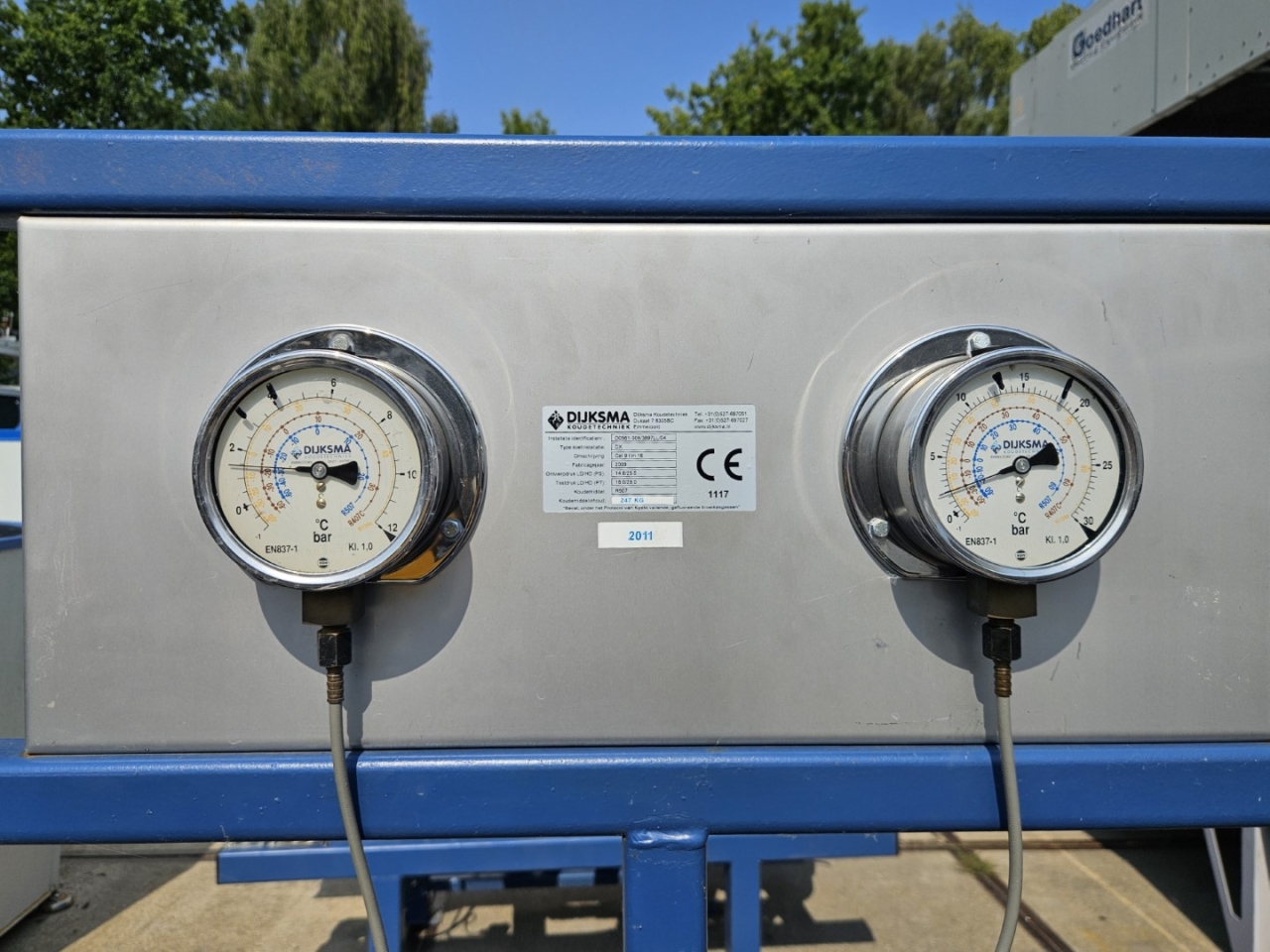

| Pressure gauges Hp/Lp/Op |
|
| Liquid receiver |
|
| Liquid receiver ltr. | 250 |
| Suction accumulator |
|
| Oil separator |
|
| Oil level system AC&R |
|
| Liquid line filter drier |
|
| m3 / h | 144,6 |
| Remarks | | Y.o.b. 2009 |
| Package / Rack |
|
| Sizes | 2700x1200x1720 mm (LxWxH) |
| Amount in stock | 1 |
Bock HGX4/555-4 S (x3)

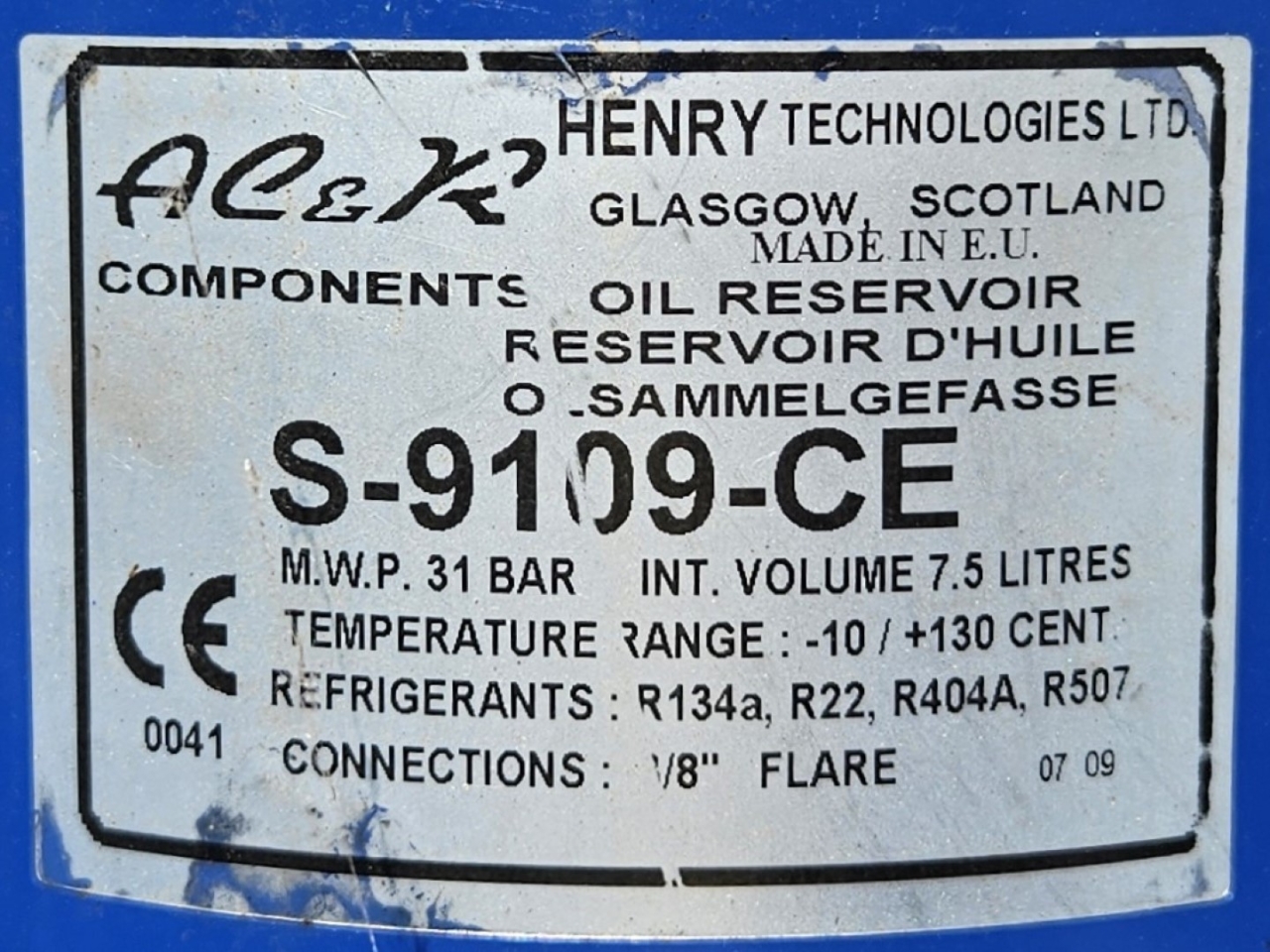

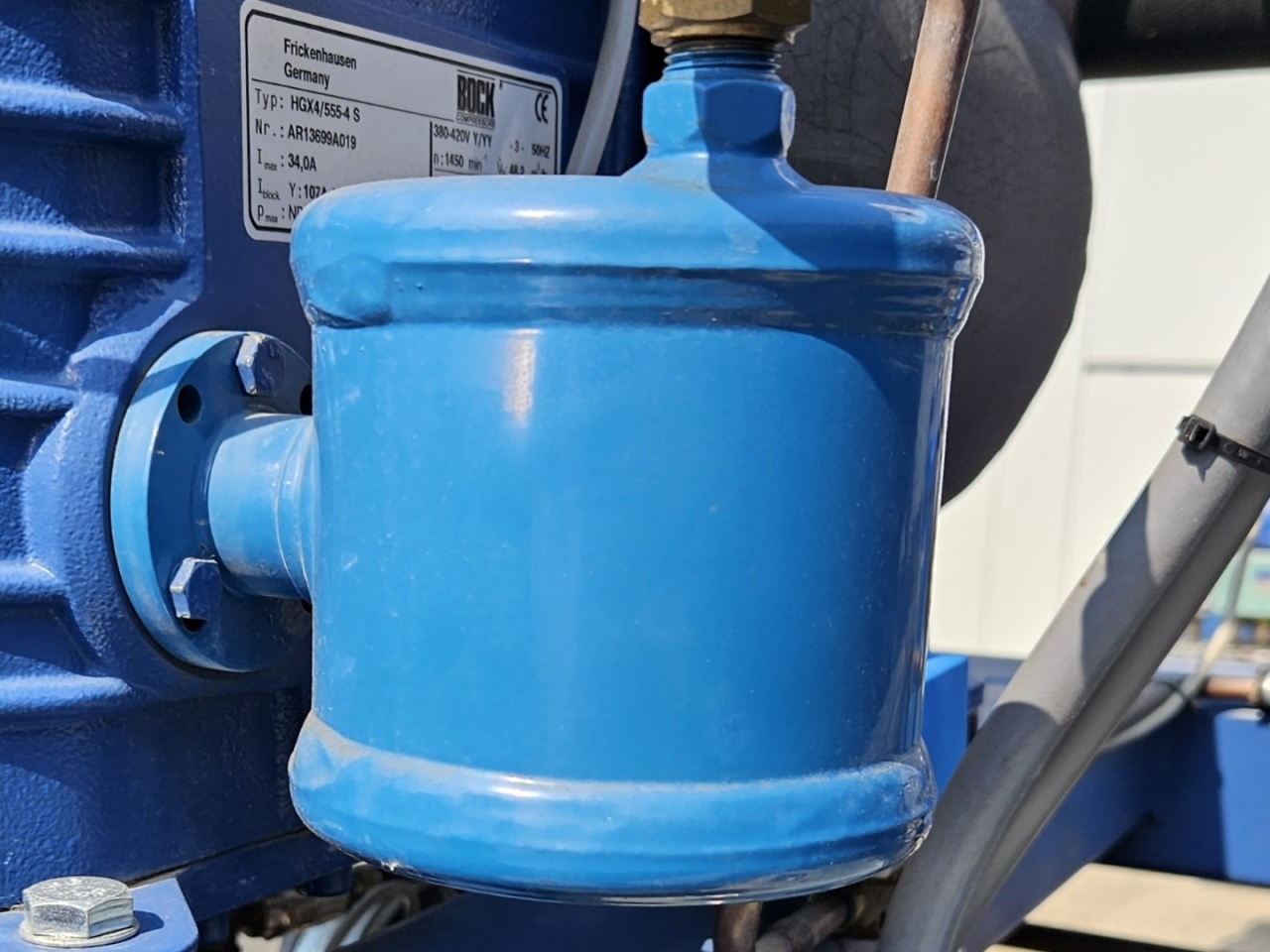

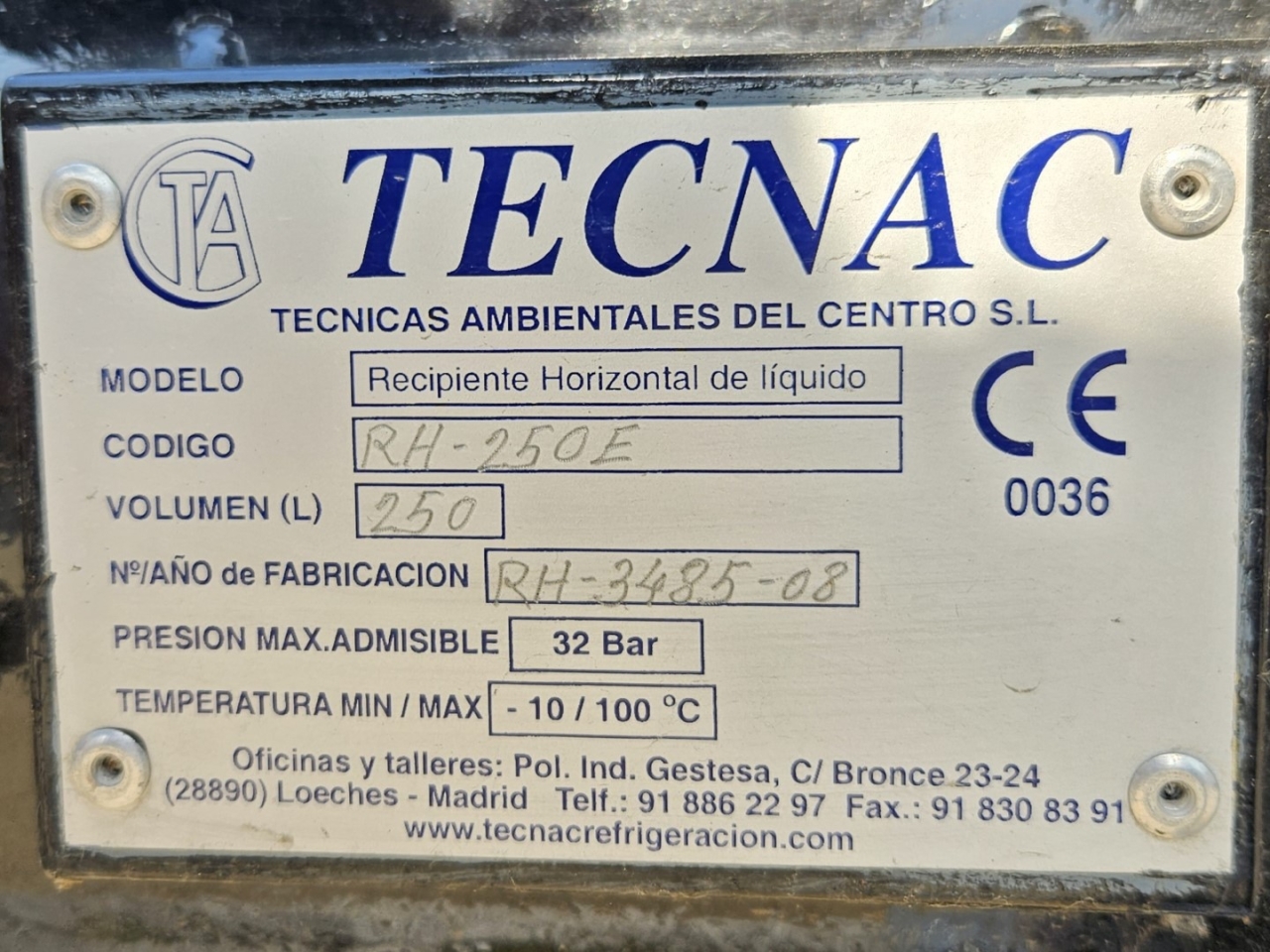

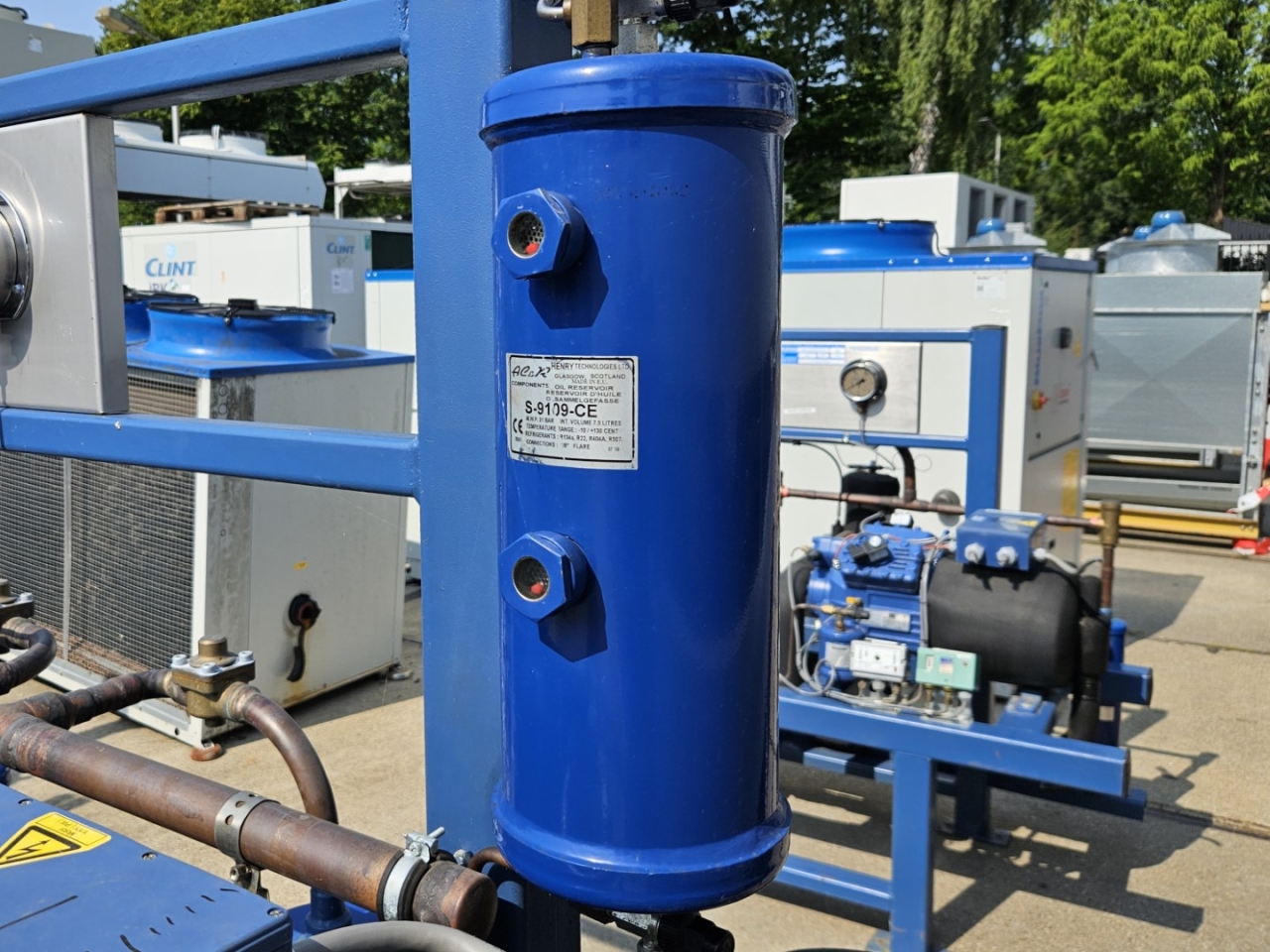

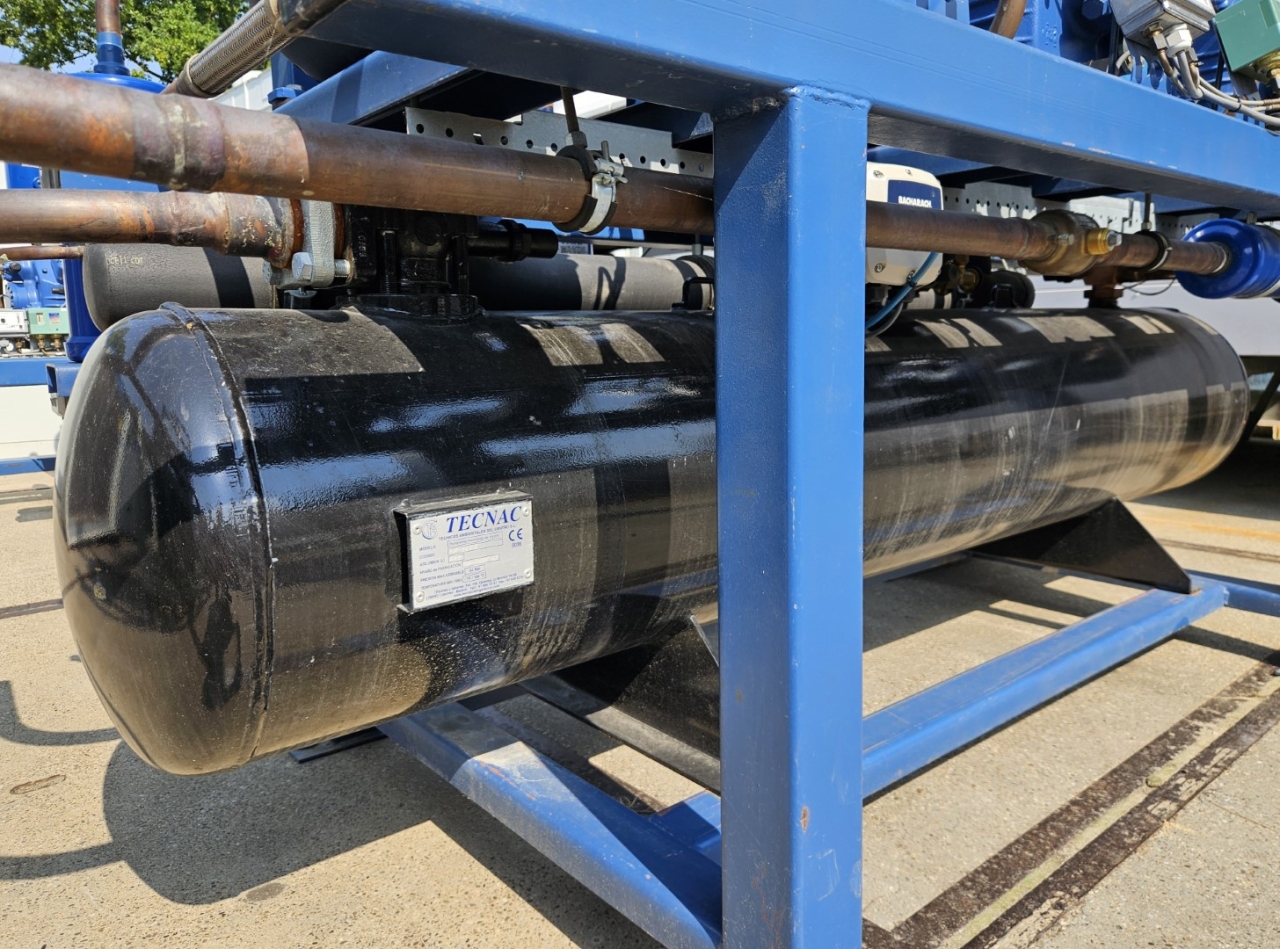

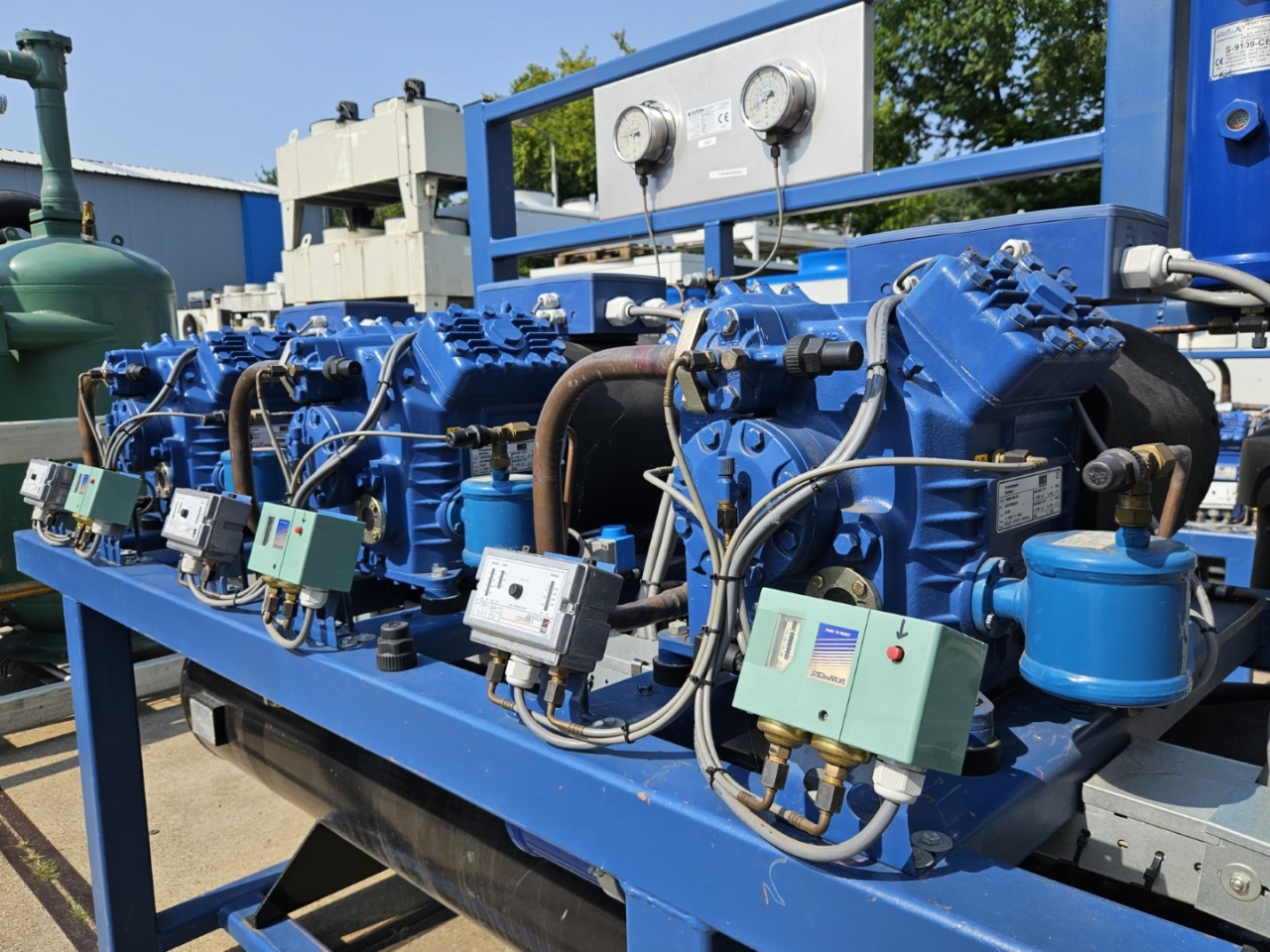

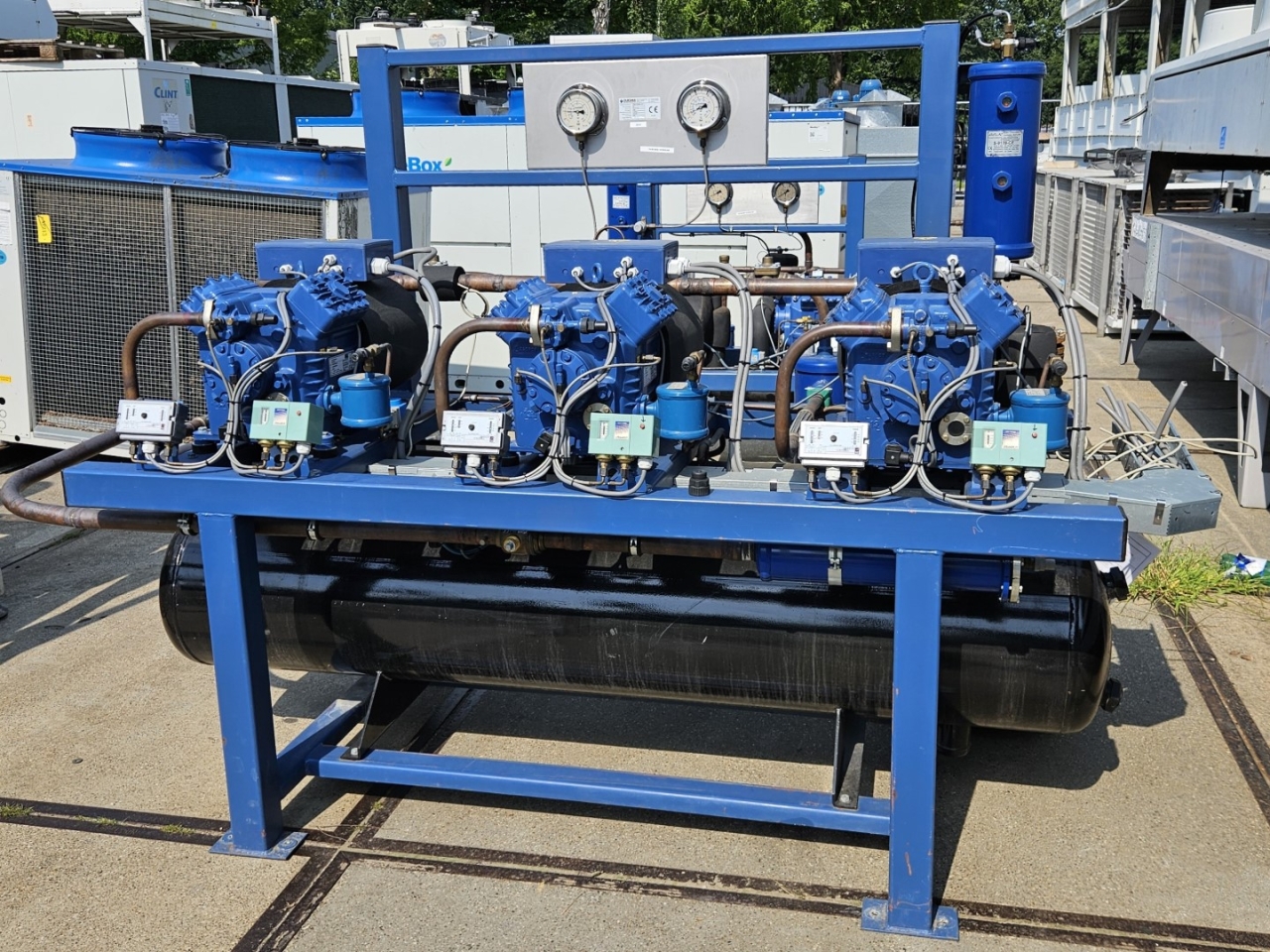

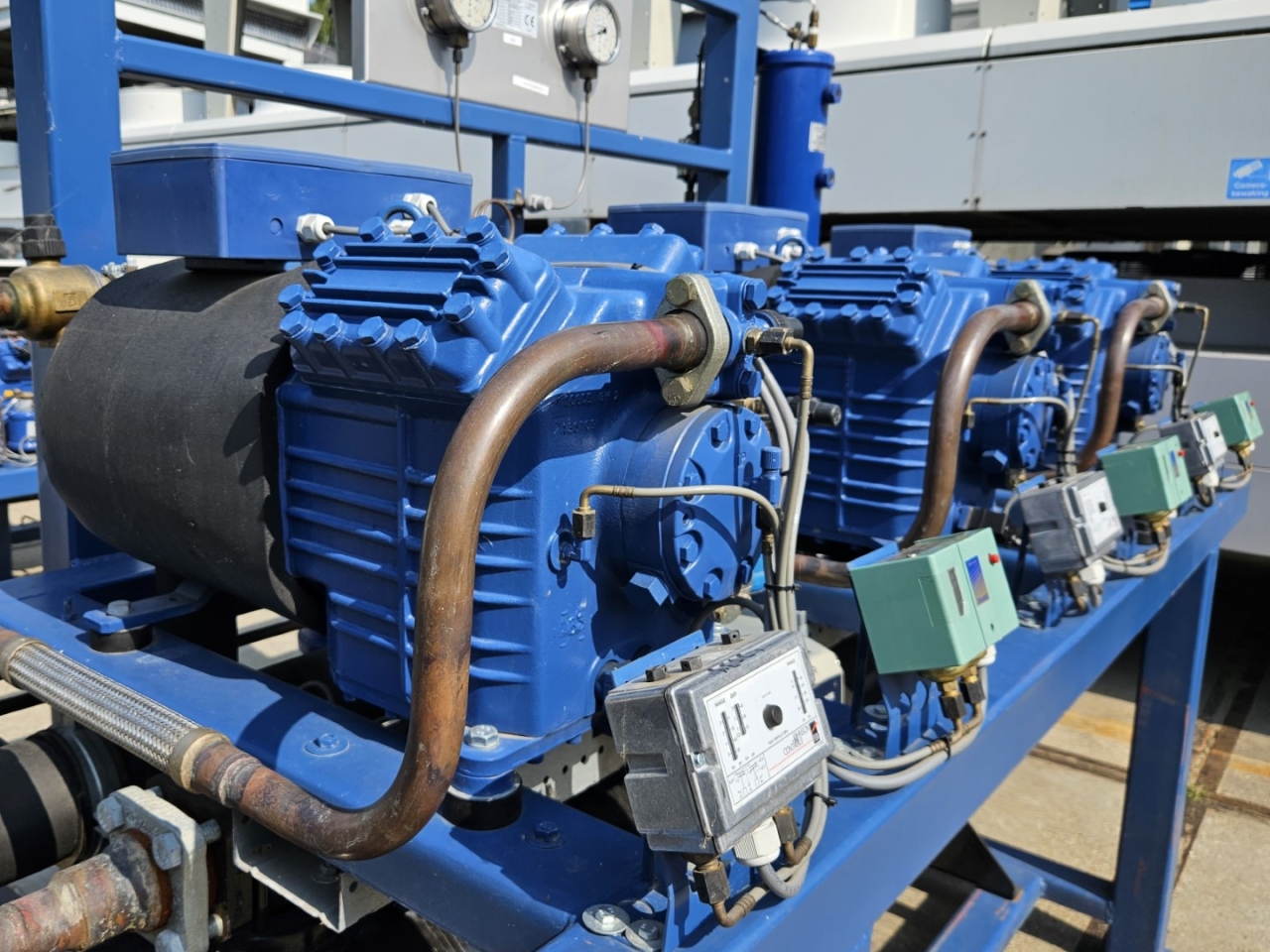

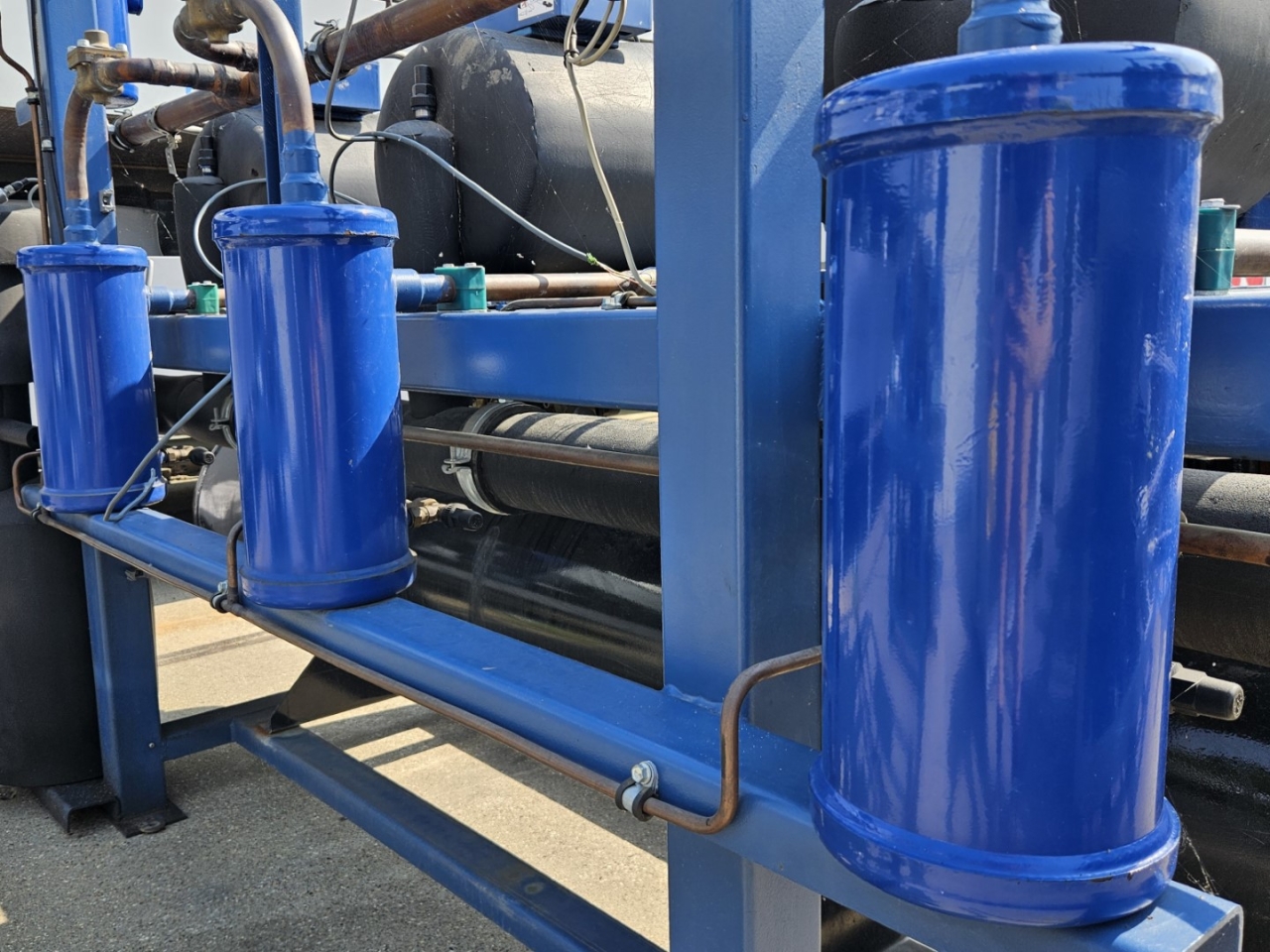

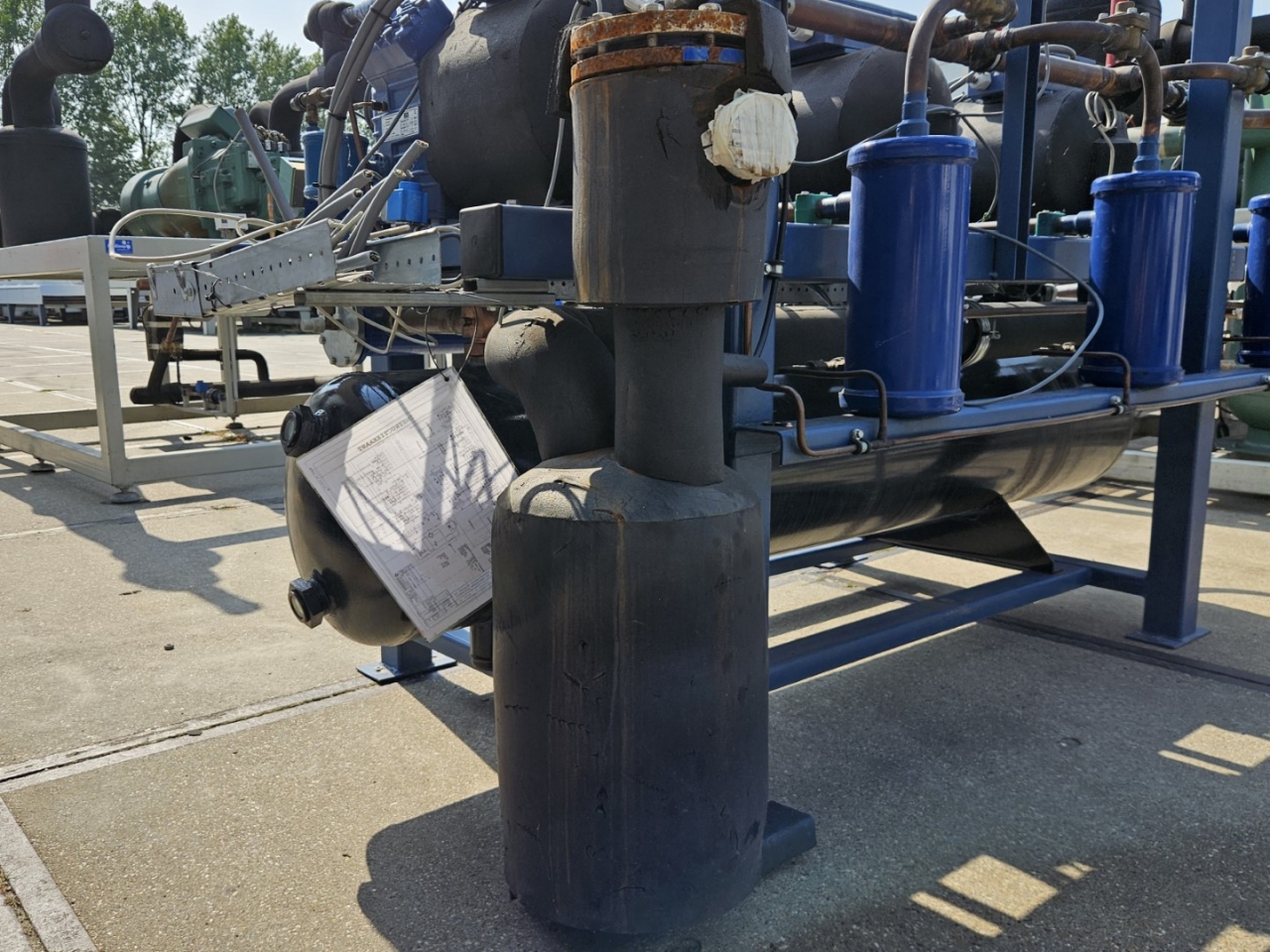

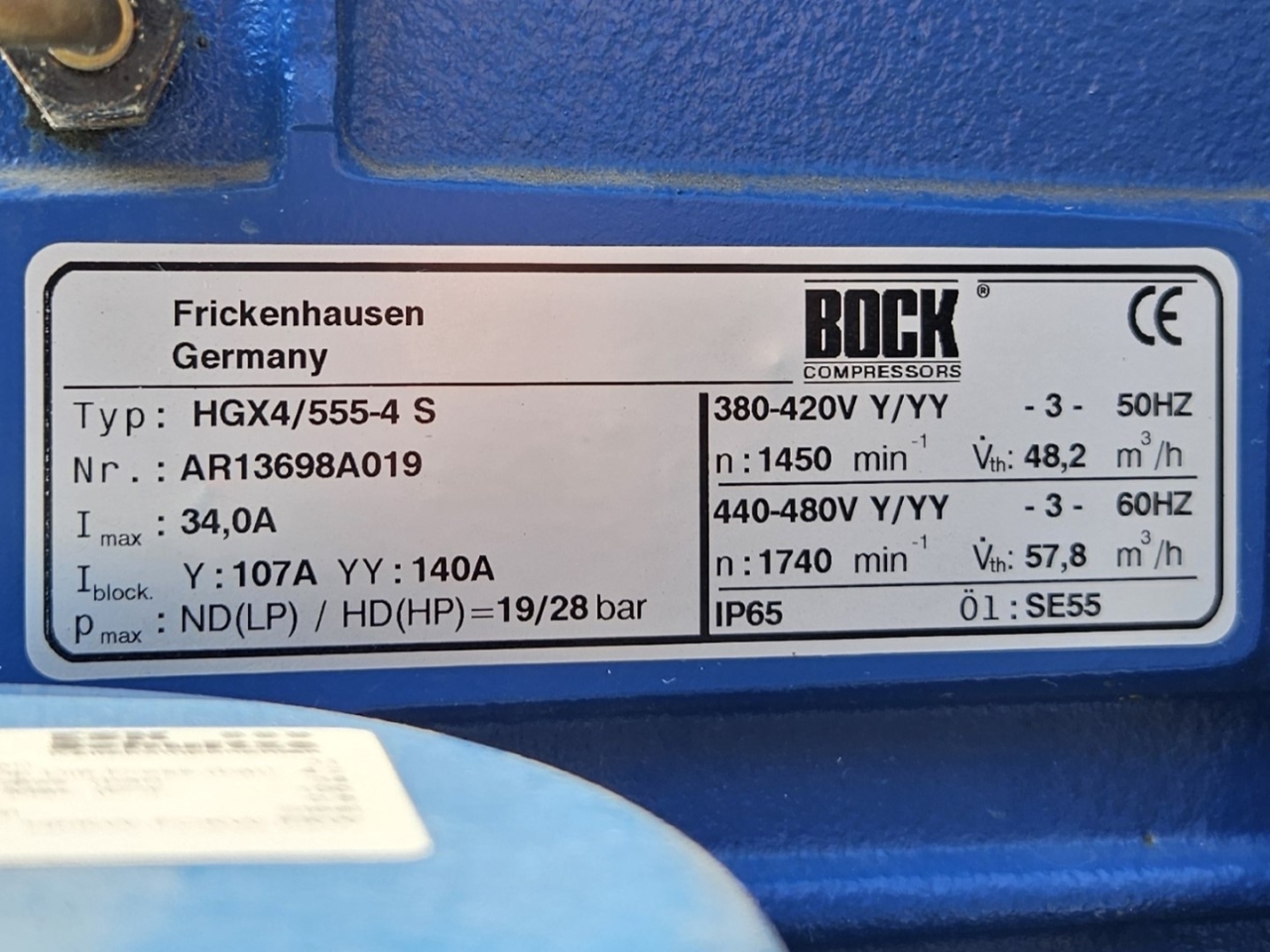

Used Bock HGX4/555-4 S (x3) semi-hermetic reciprocating compressor on Freon. Complete with a suction accumulator, Tecnac RH-250E liquid receiver with a volume of 250 liter, 3 oil separators, Henry S-9109-CE oil reservoir, oil level regulators and pressure and safety switches/gauges. The compressor has a displacement of 144,6 m³/h.
