Maneurop MT 28 JE 4 VE (x2) Condensing unit
Maneurop MT 28 JE 4 VE (x2) Condensing unit
| 18436 | |
| Brand | Maneurop |
| Type | MT 28 JE 4 VE (x2) Condensing unit |
| Refrigerant | Freon |
| kW at +10ºC/+40ºC | 19,1 |
| kW at 0ºC/+40ºC | 12,6 |
| kW at -5ºC/+40ºC | 10,0 |
| kW at -10ºC/+40ºC | 7,8 |
| kW at -20ºC/+40ºC | 4,3 |
| kW at -30ºC/+40ºC | 1,9 |
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|

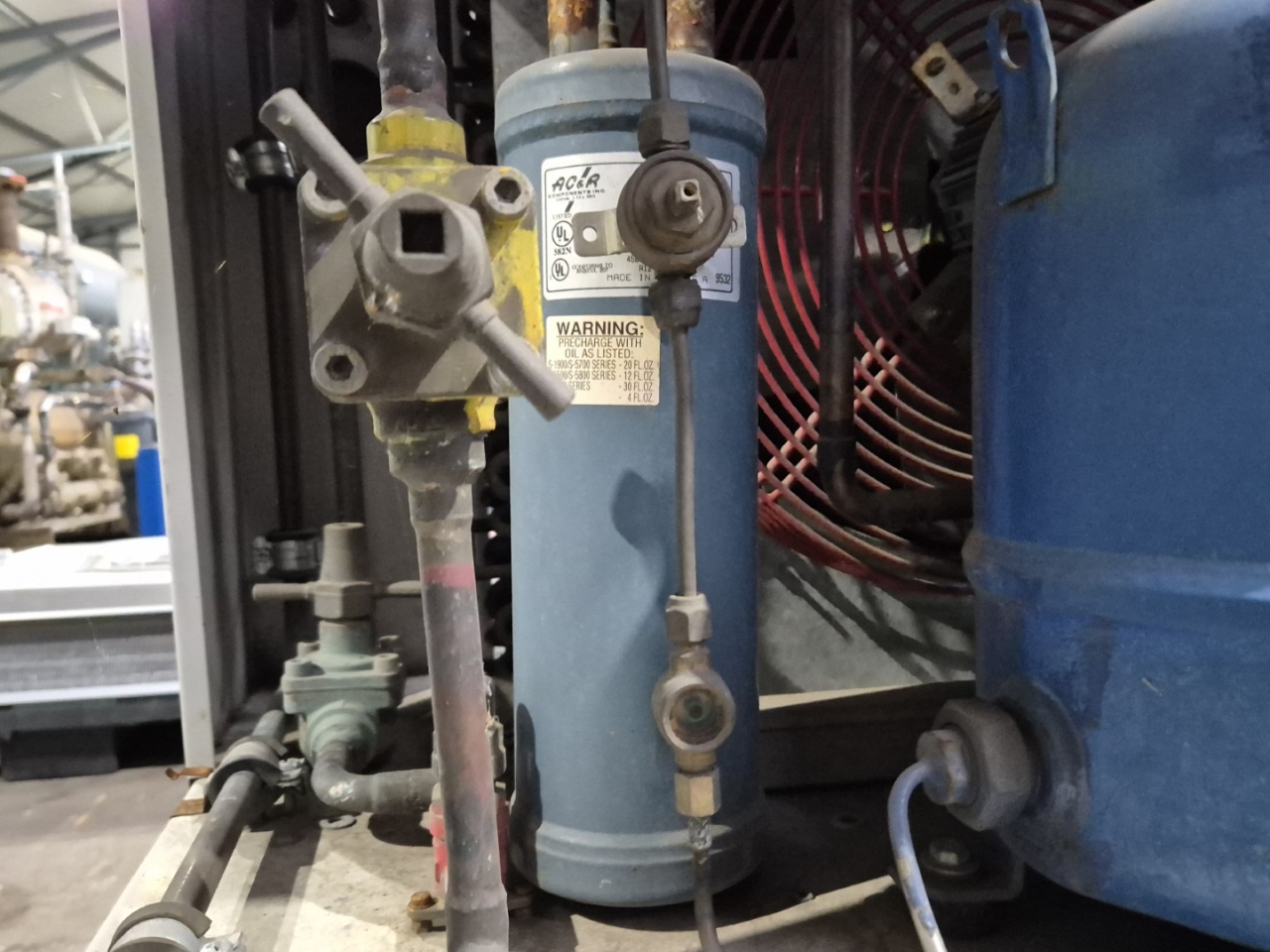

| Oil separator |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| m3 / h | 16,7 |
| Package / Rack |
|
| Condensing Unit |
|
| Sizes | 1400x900x1140 mm (LxWxH) |
| Amount in stock | 1 |
Maneurop MT 28 JE 4 VE (x2) Condensing unit

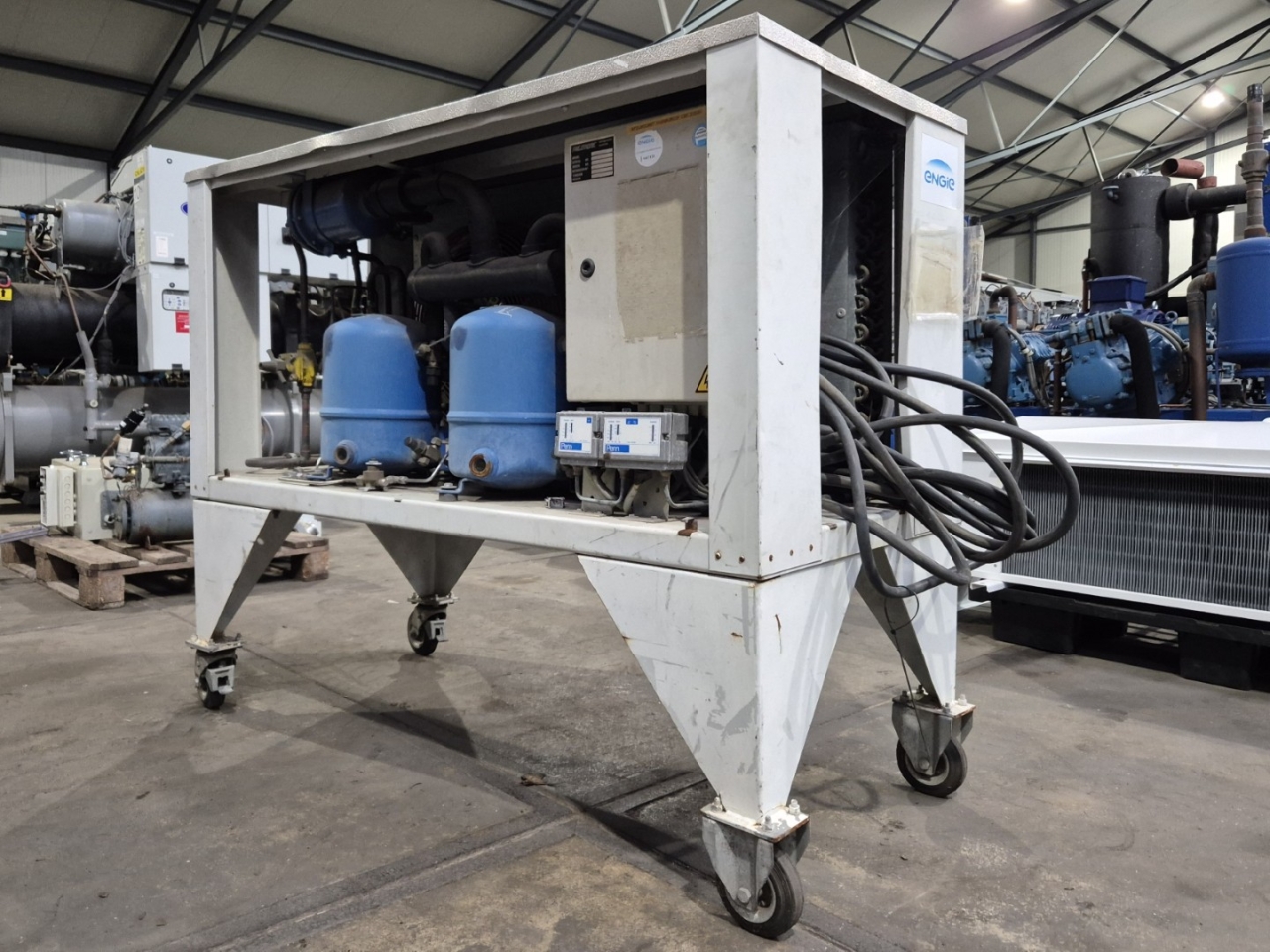

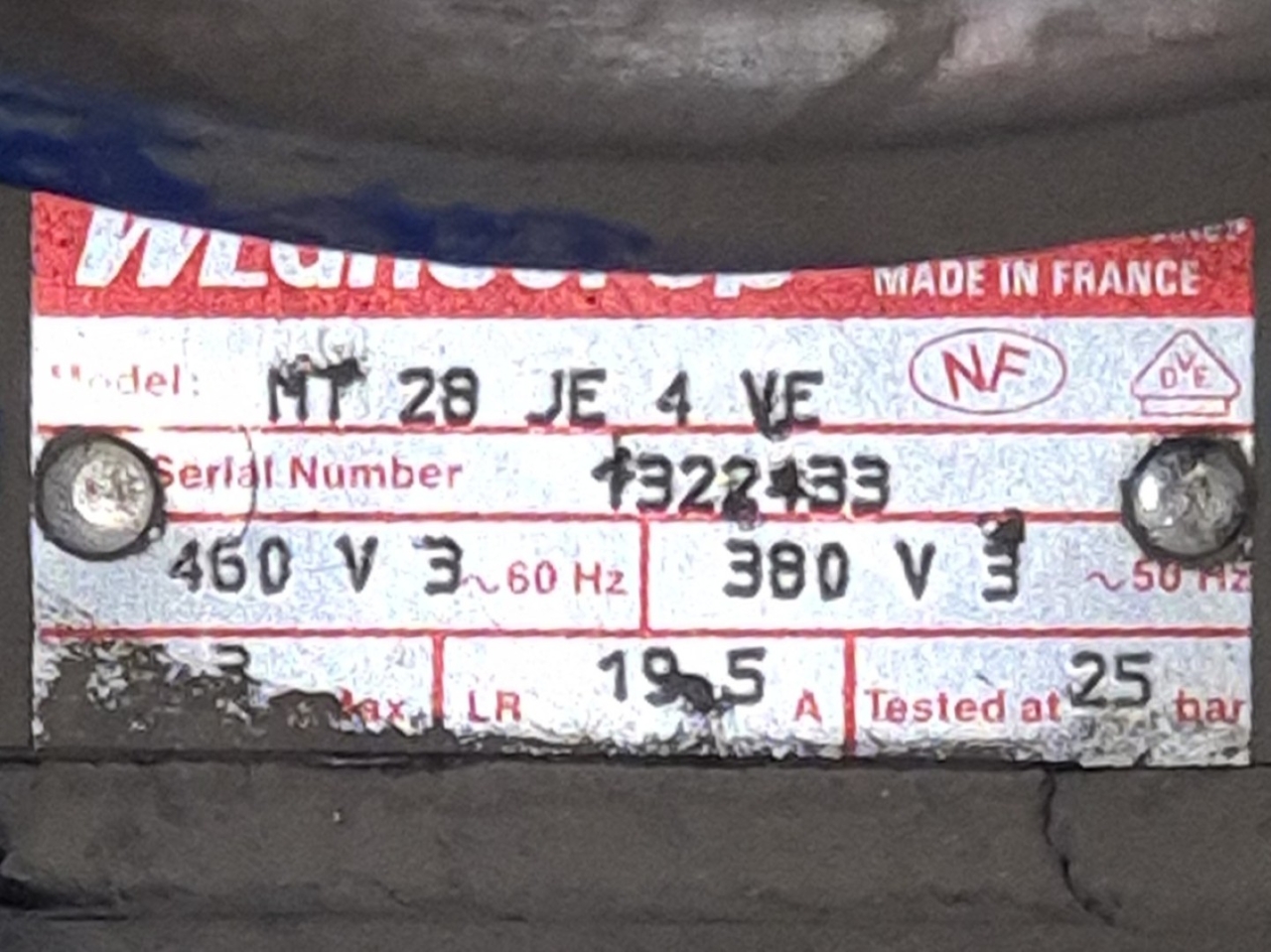

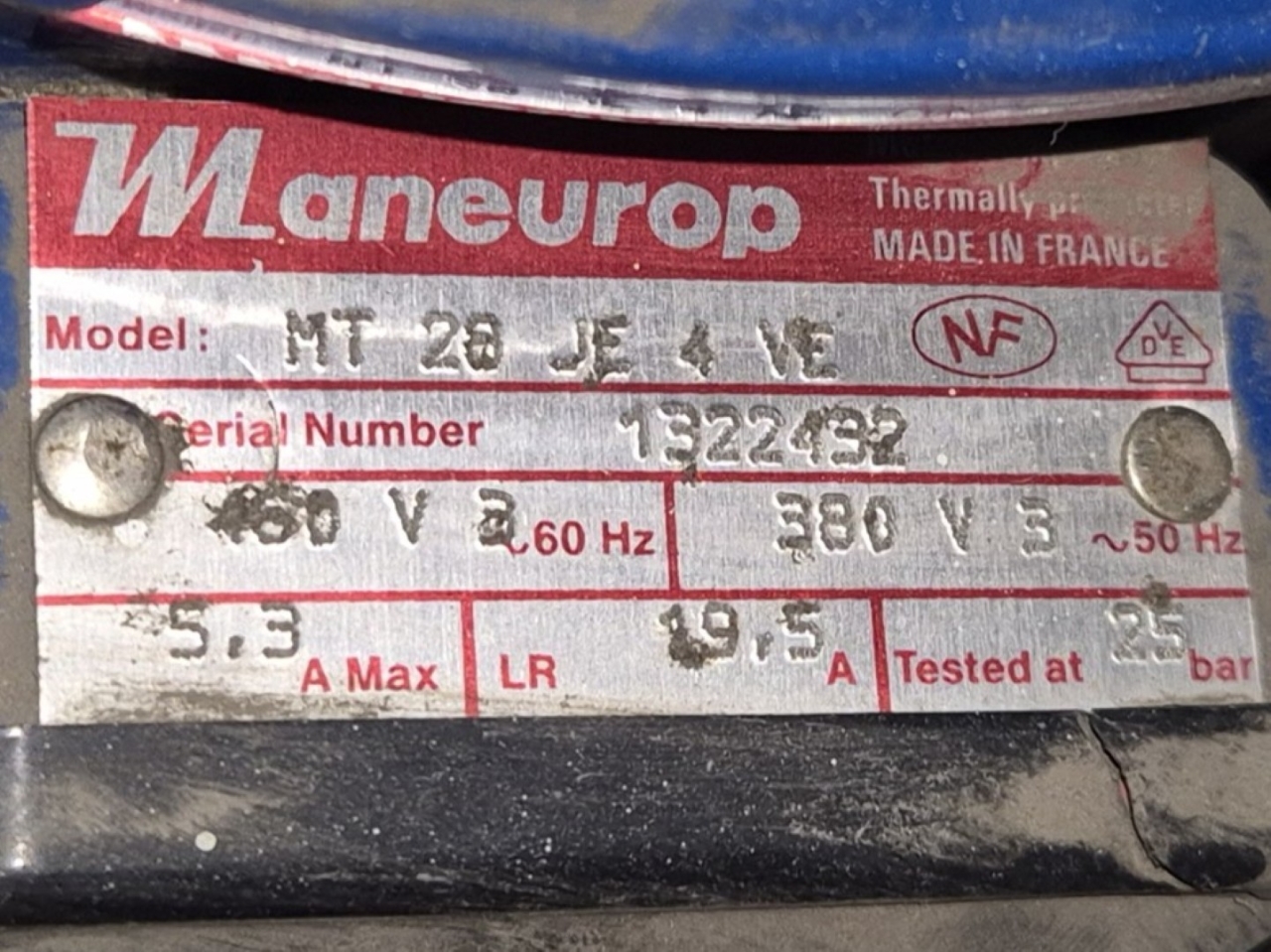

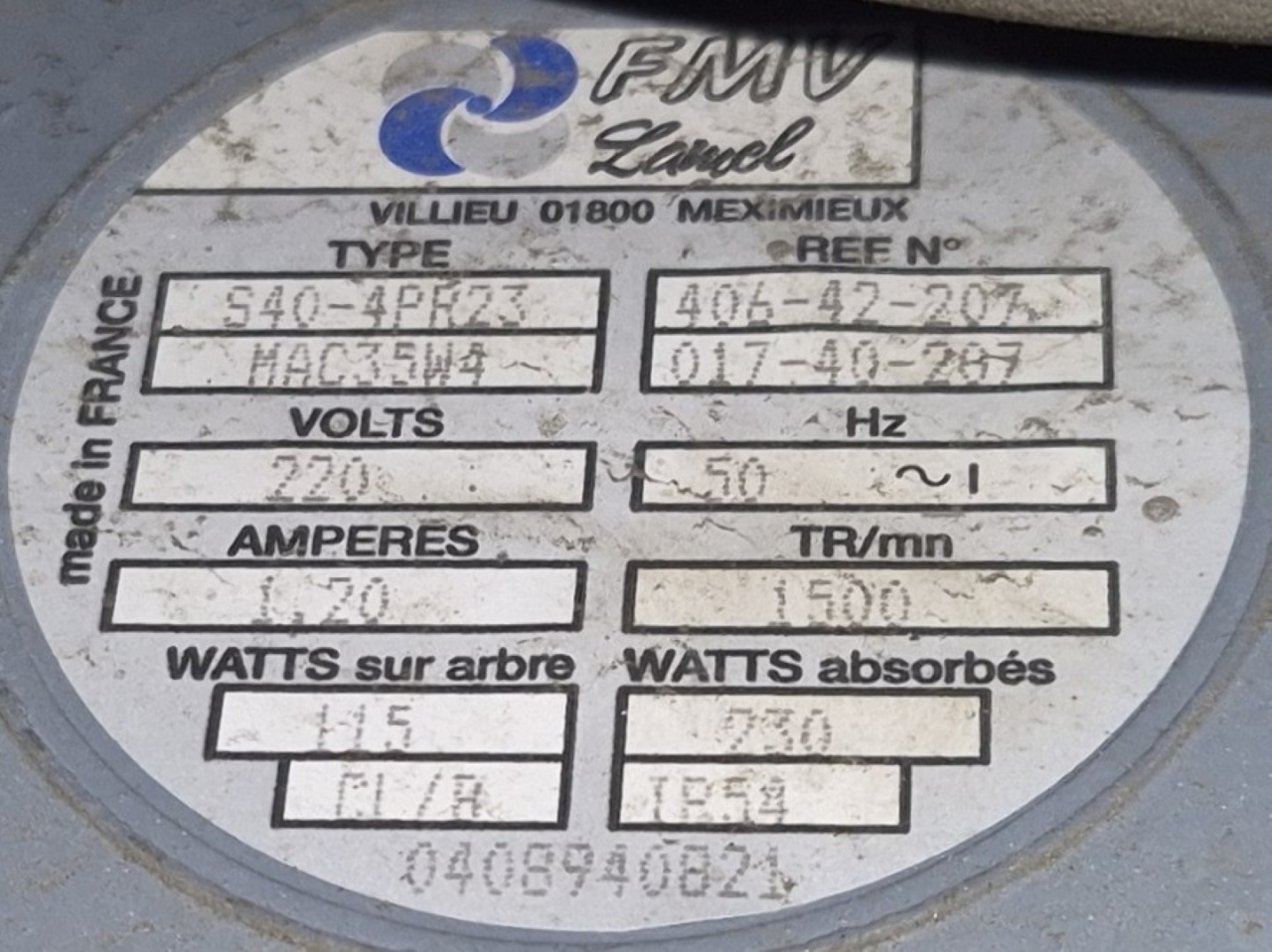

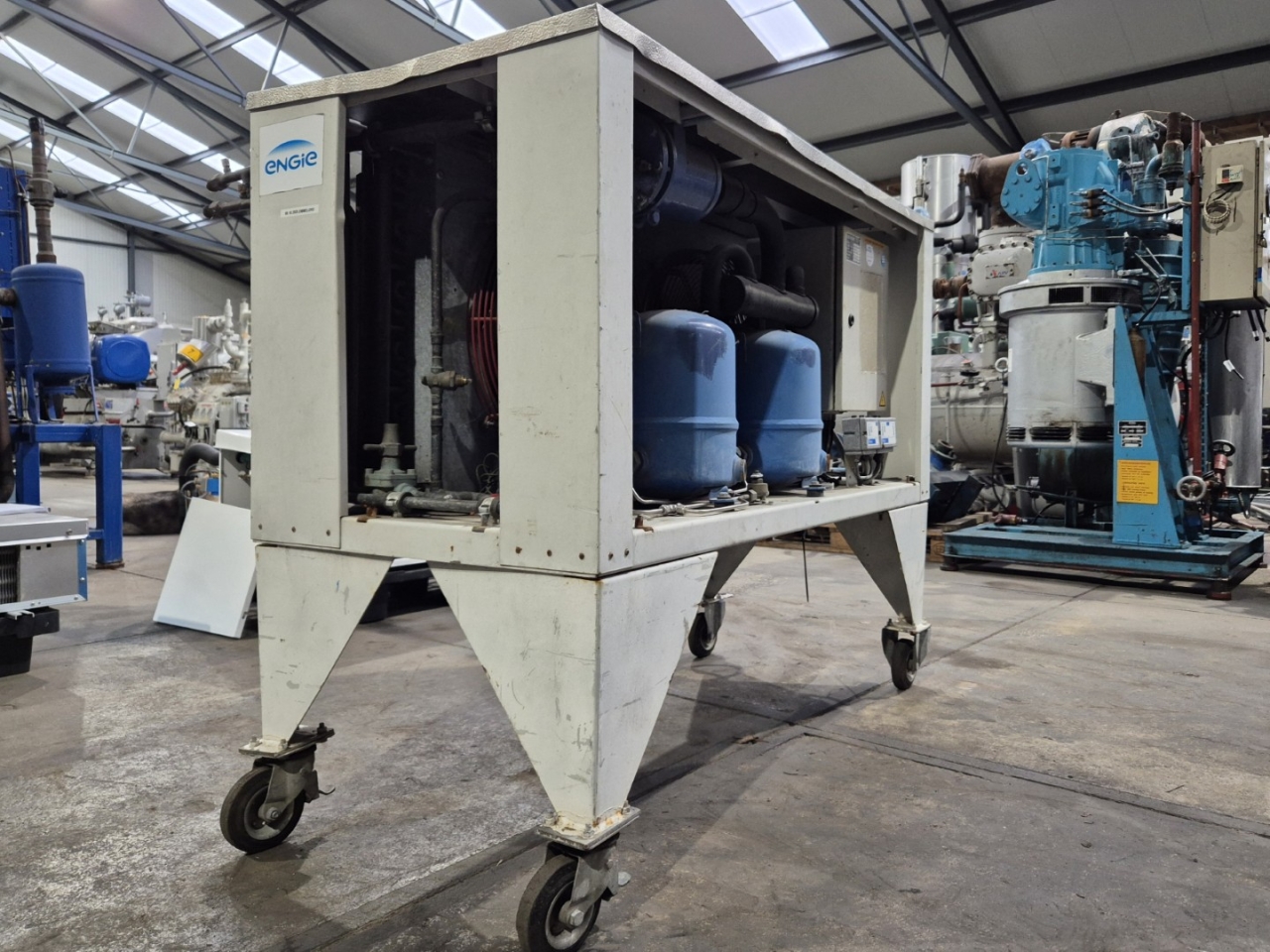

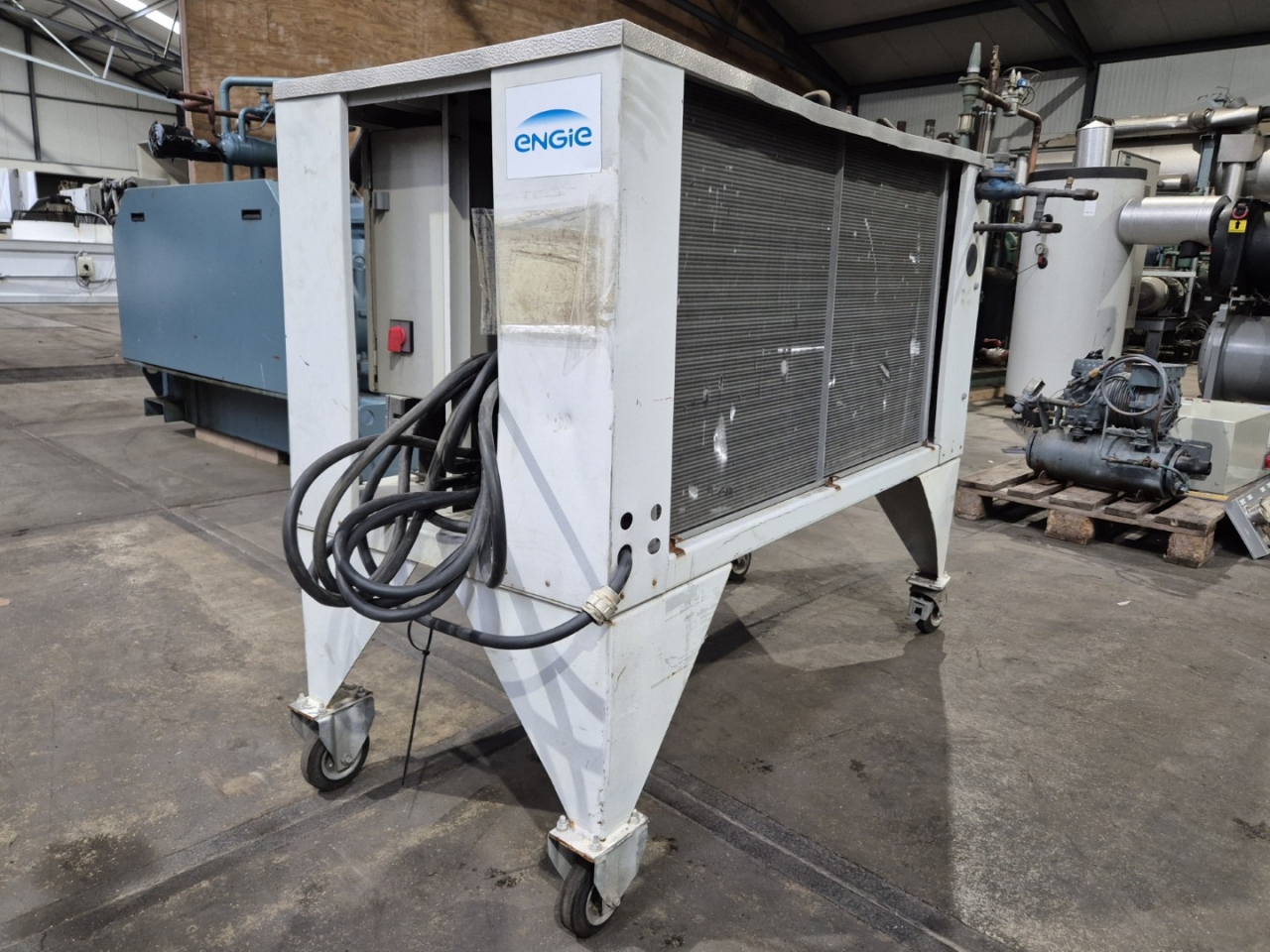

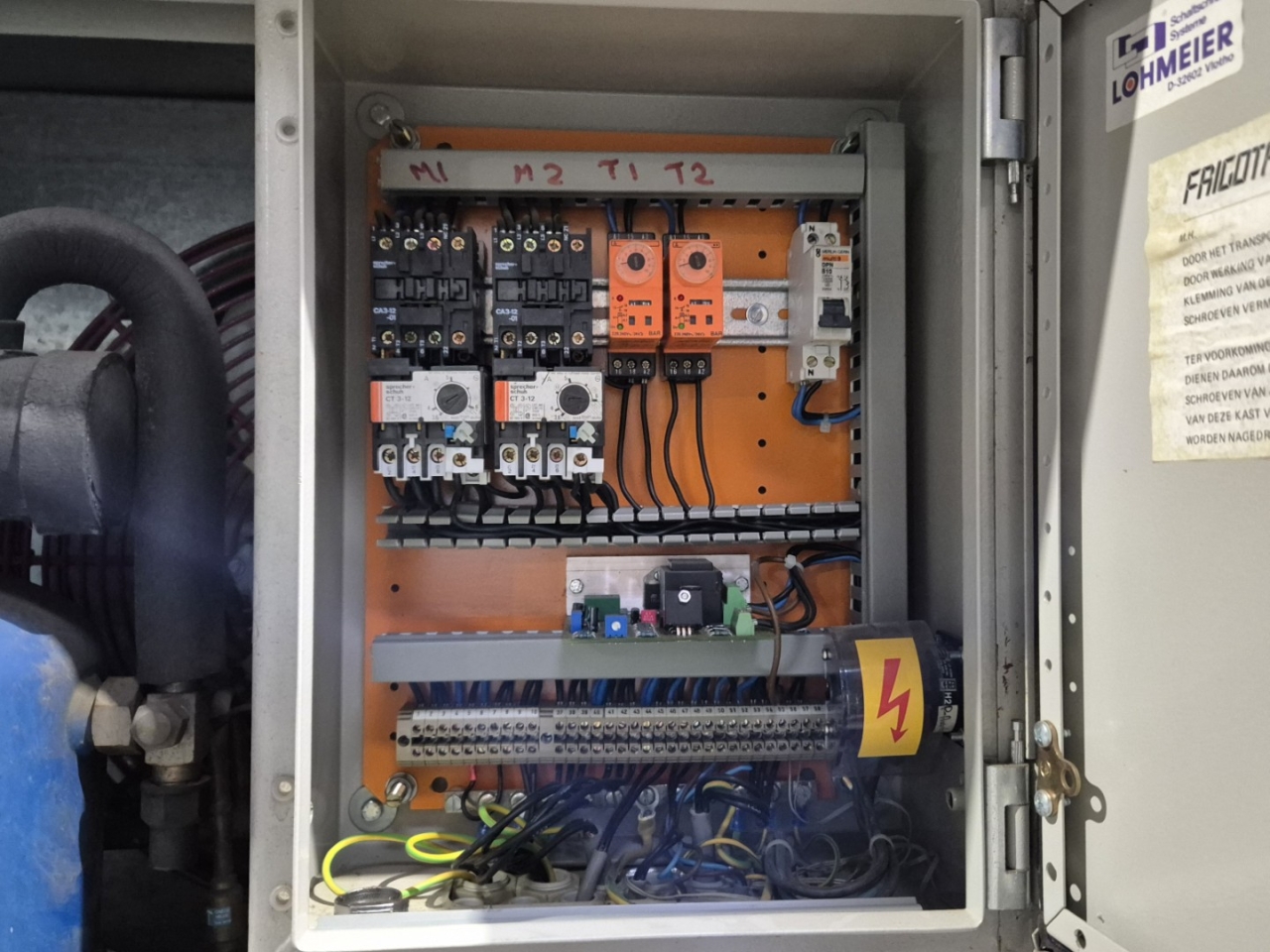

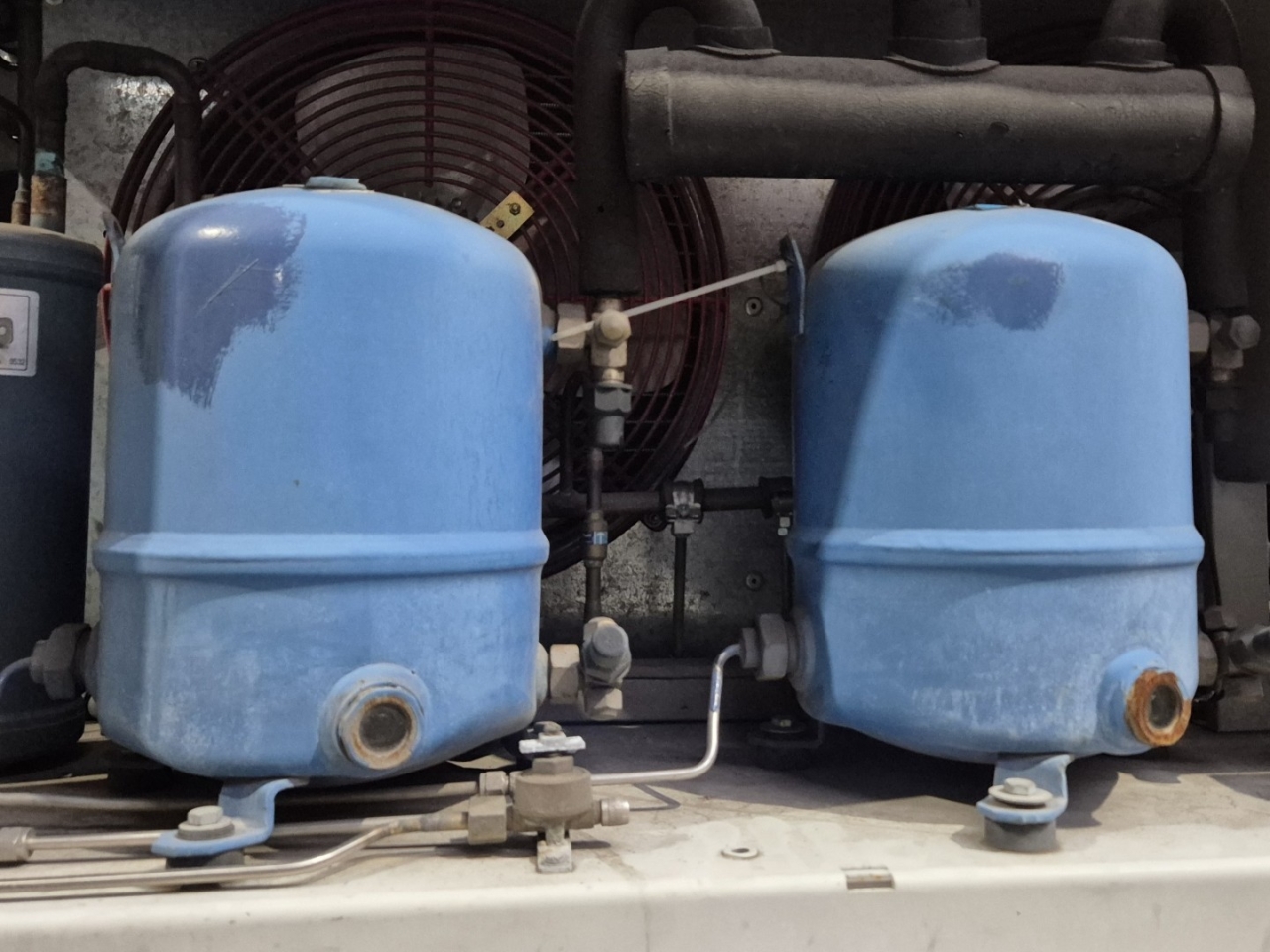

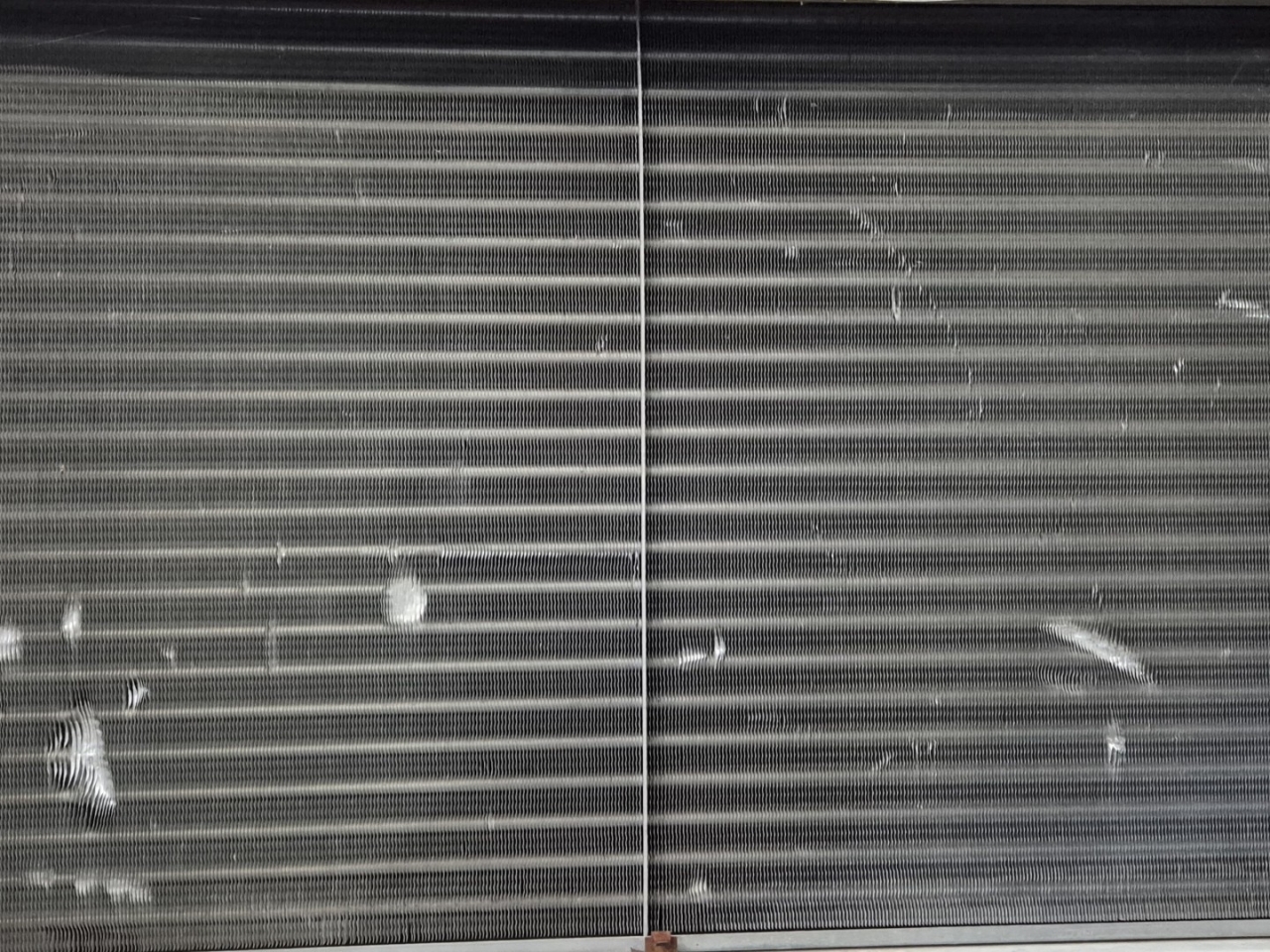

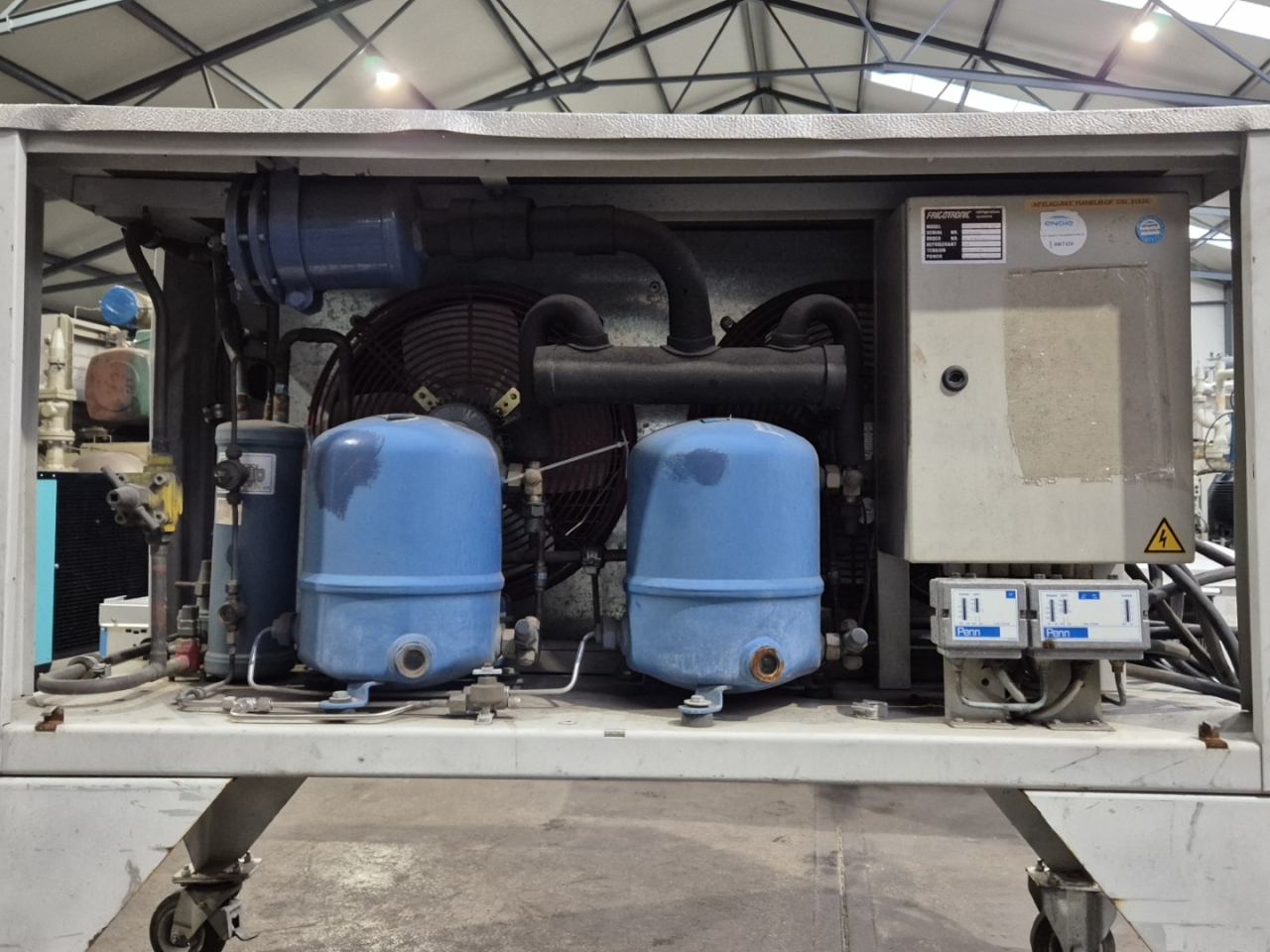

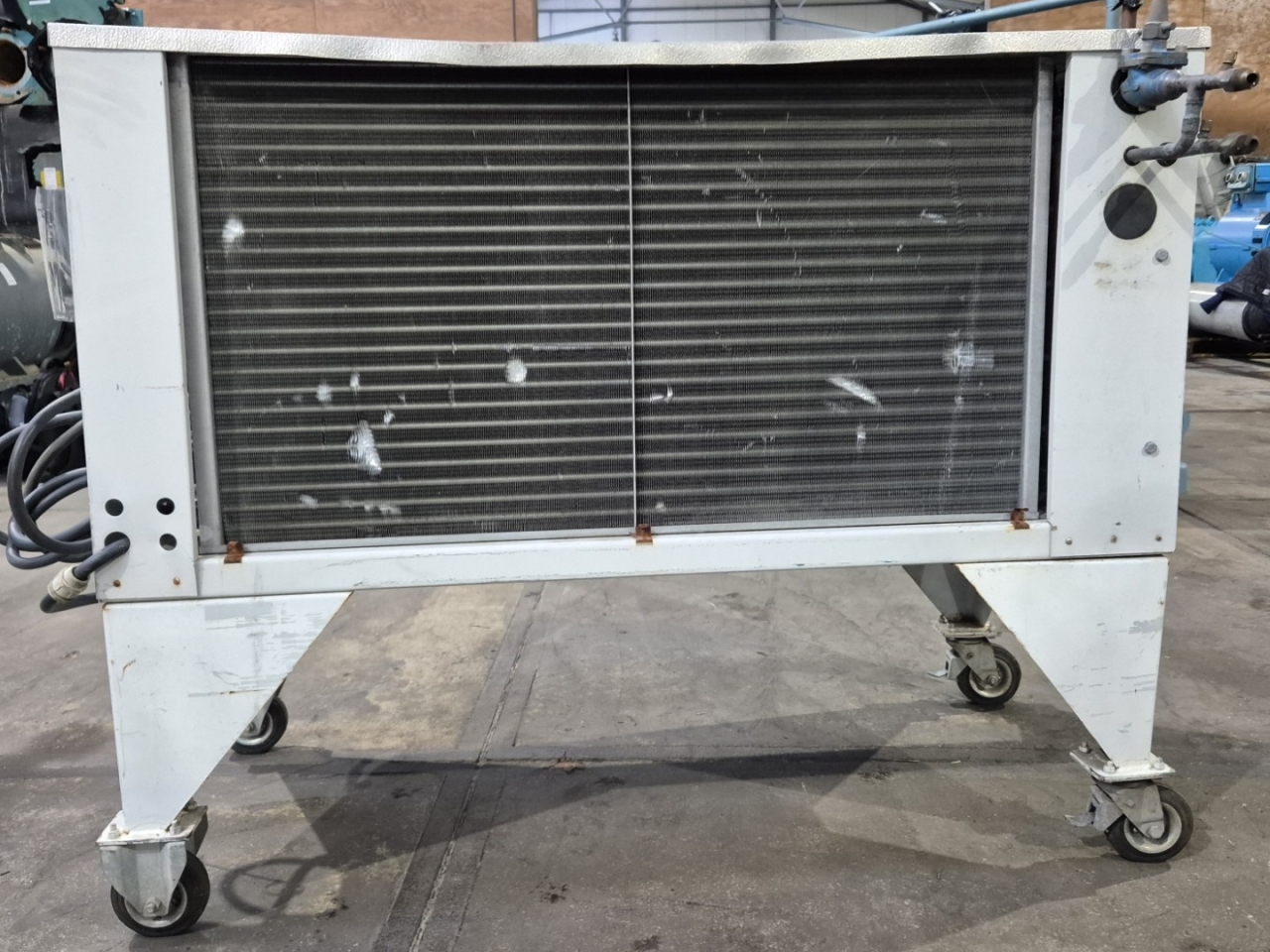

Used Freon condensing unit on Freon. Complete with 2 Maneurop MT 28 JE 4 VE piston compressors, condenser with 2 FMV Lamel S40-4PR23 fans - 50 Hz - 0,12 kW - 1500 RPM, oil separator, pressure and safety switches and a control cabinet. The compressors have a total displacement of 16,7 m³/h.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
