Bitzer 4TES-8Y-40P (70 Hz)
Bitzer 4TES-8Y-40P (70 Hz)
| 18462 | |
| Brand | Bitzer |
| Type | 4TES-8Y-40P (70 Hz) |
| Refrigerant | Freon |
| Refrigerant type | R134a |
| kW at 0ºC/+40ºC | 21,4* |
| kW at -5ºC/+40ºC | 17,1* |
| kW at -10ºC/+40ºC | 13,4* |
| kW at -20ºC/+40ºC | 7,8* |
| Pressure safety switches Hp/Lp/Op |
|
| Sight Glass |
|
| m3 / h | 41,3 |
| Remarks | | Y.o.b. 2016 |
| Remarks || | *Capacity based on Freon type: R134a |
| Weight in kg. | 143 |
| Sizes | 700x350x400 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer 4TES-8Y-40P (70 Hz)

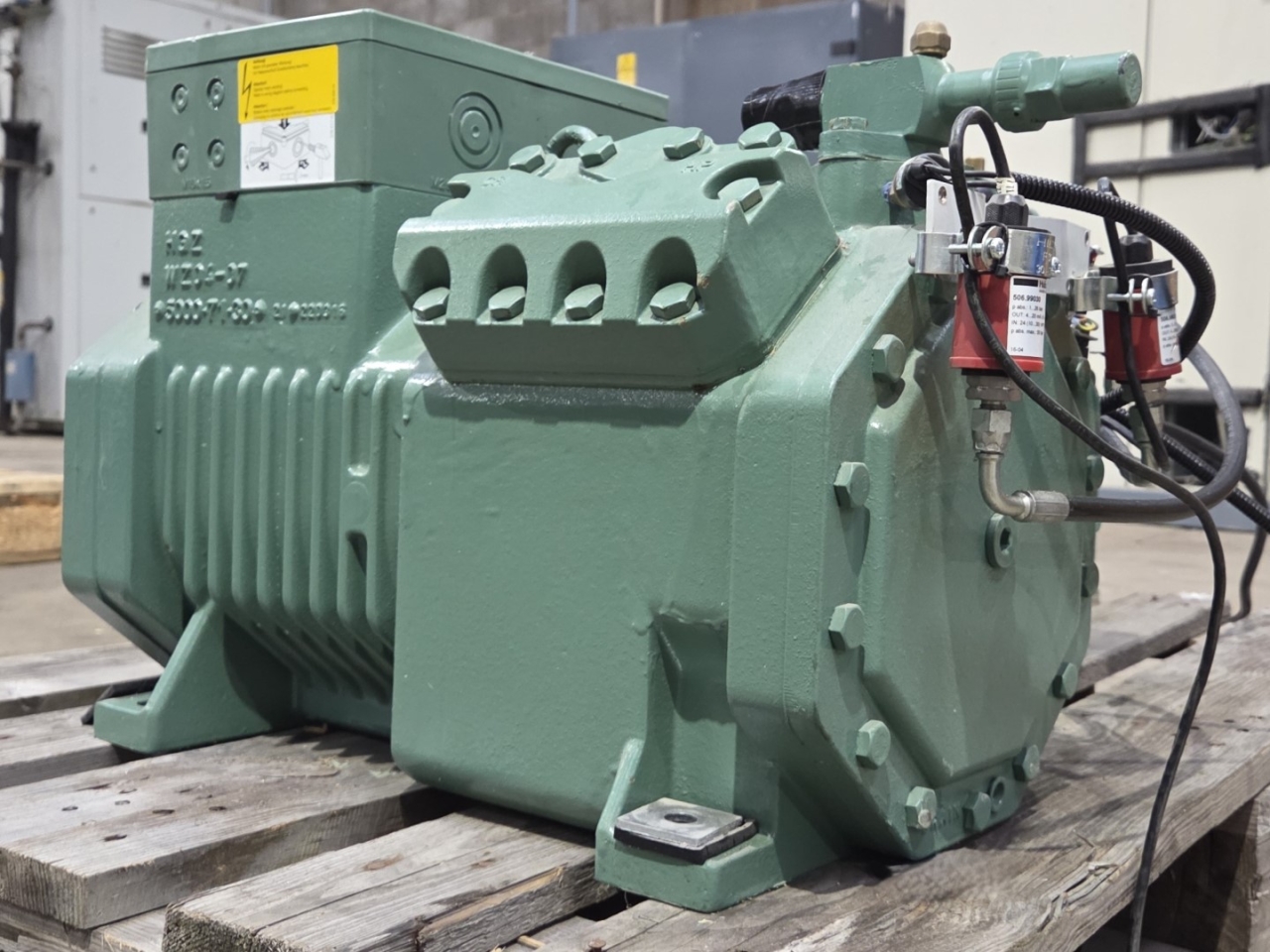

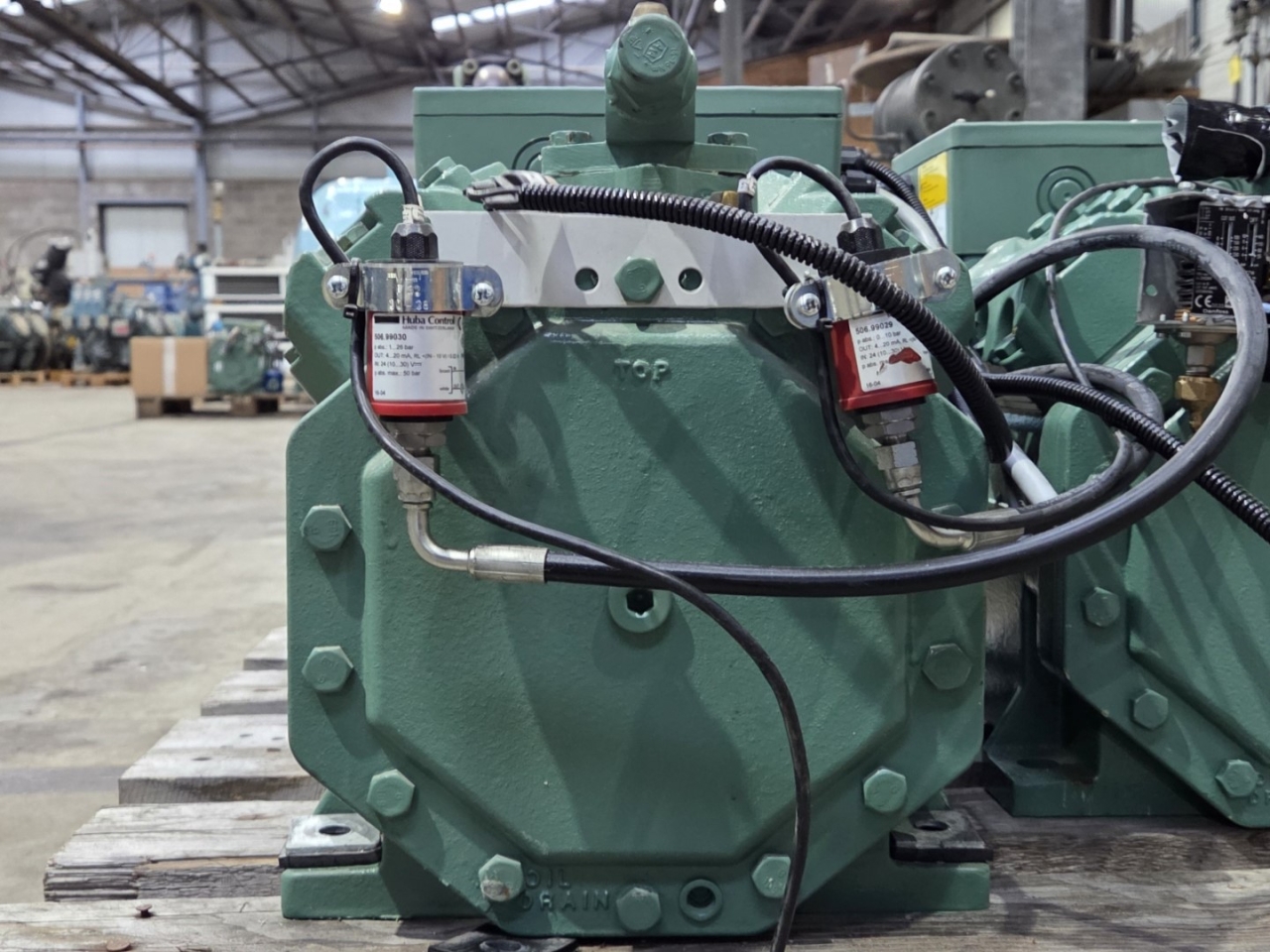

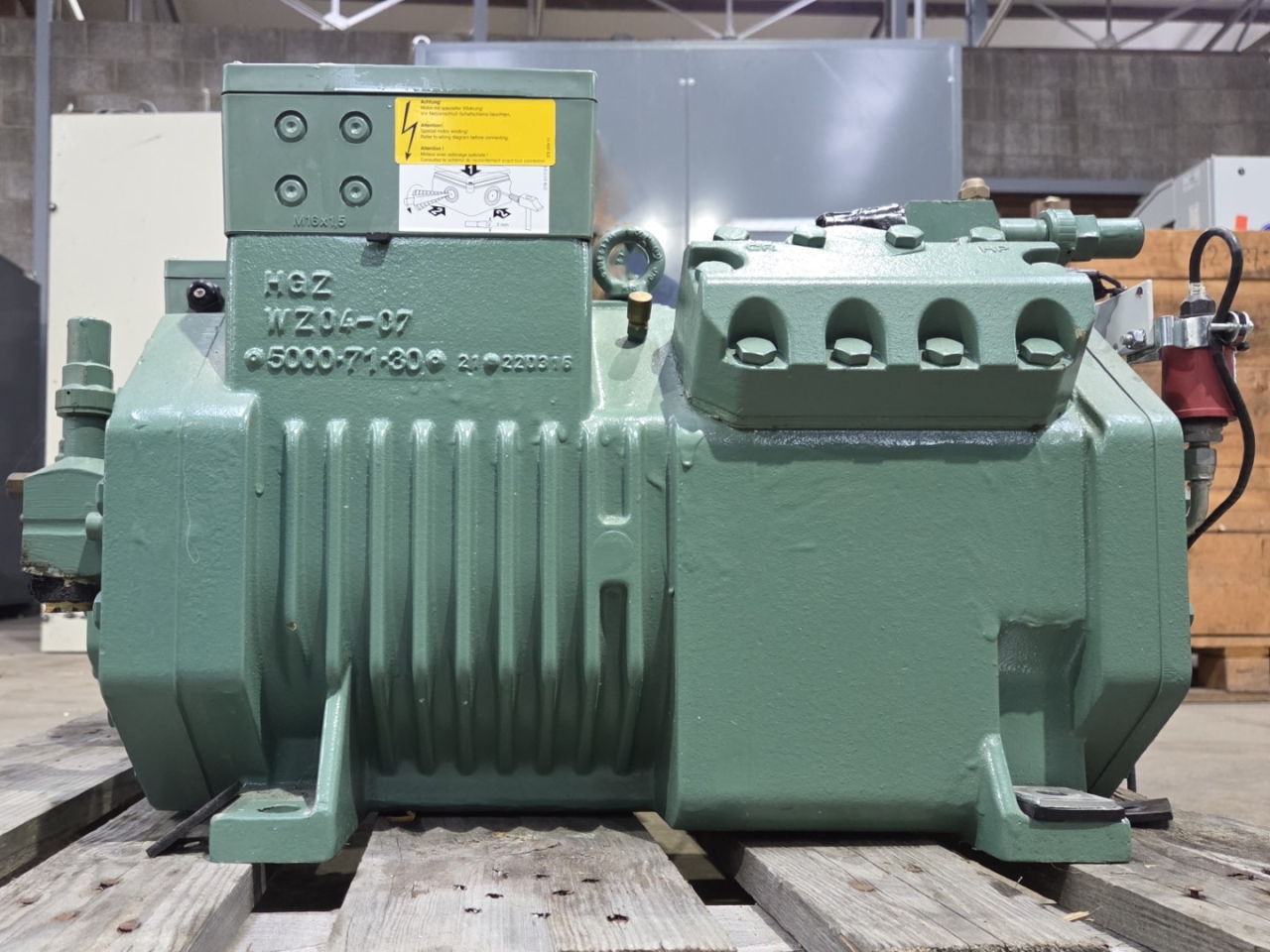

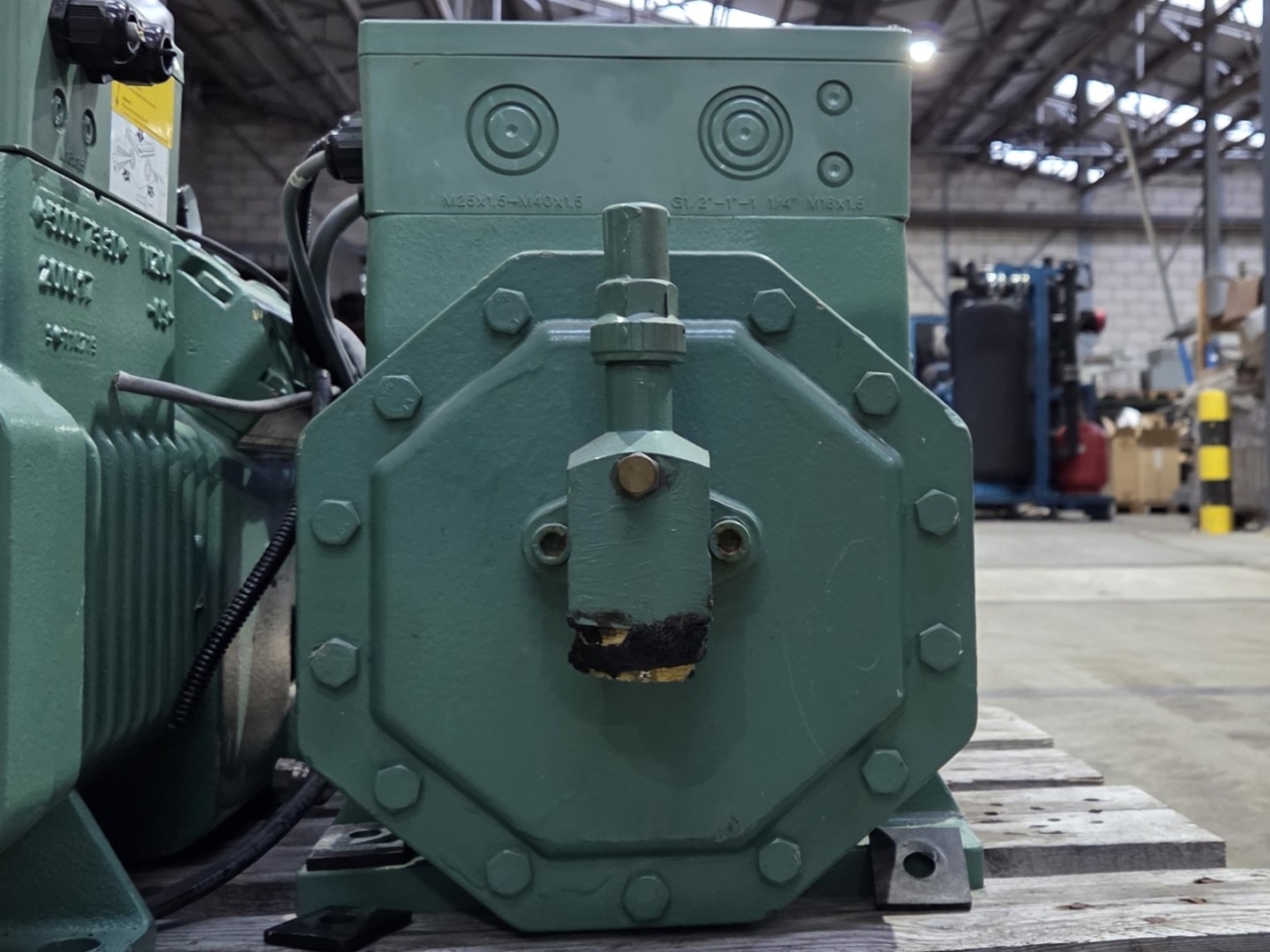

Used Bitzer 4TES-8Y-40P semi-hermetic reciprocating compressor on Freon. Complete with a pressure safety switches and a sight glass. The compressor has a displacement of 41,3 m³/h at 50 Hz & 58,4 m³/h at 70 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
