Bitzer HSN7451-60-40P (x3)
Bitzer HSN7451-60-40P (x3)
| 18569 | |
| Brand | Bitzer |
| Type | HSN7451-60-40P (x3) |
| Refrigerant | Freon |
| kW at -20ºC/+40ºC | 304,2 |
| kW at -30ºC/+40ºC | 207,0 |
| kW at -40ºC/+40ºC | 132,6 |
| kW at -45ºC/+40ºC | 102,6 |
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|

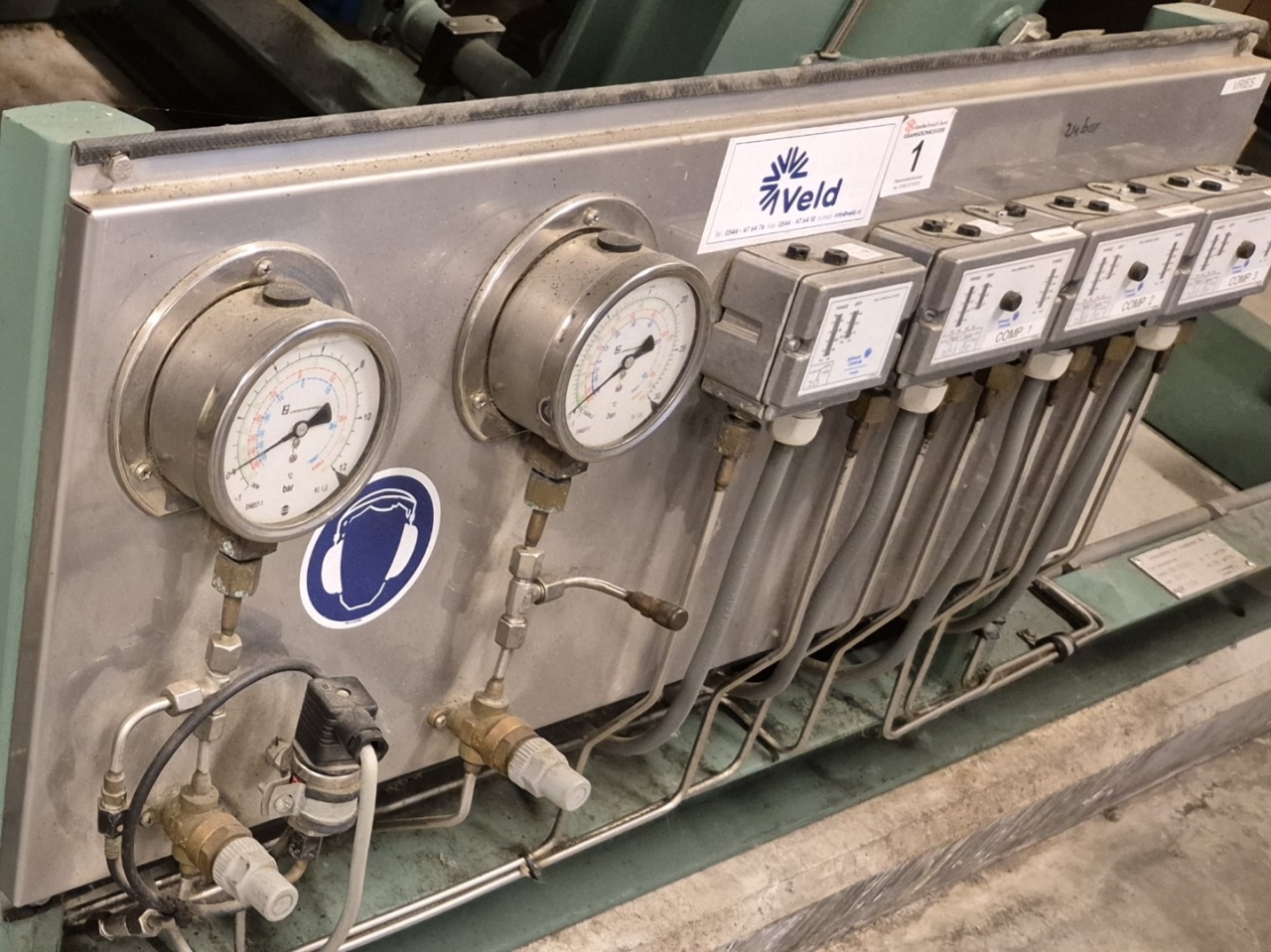

| Pressure gauges Hp/Lp/Op |
|
| Liquid receiver |
|
| Liquid receiver ltr. | 570 |
| Oil separator |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| Solenoid Valve |
|

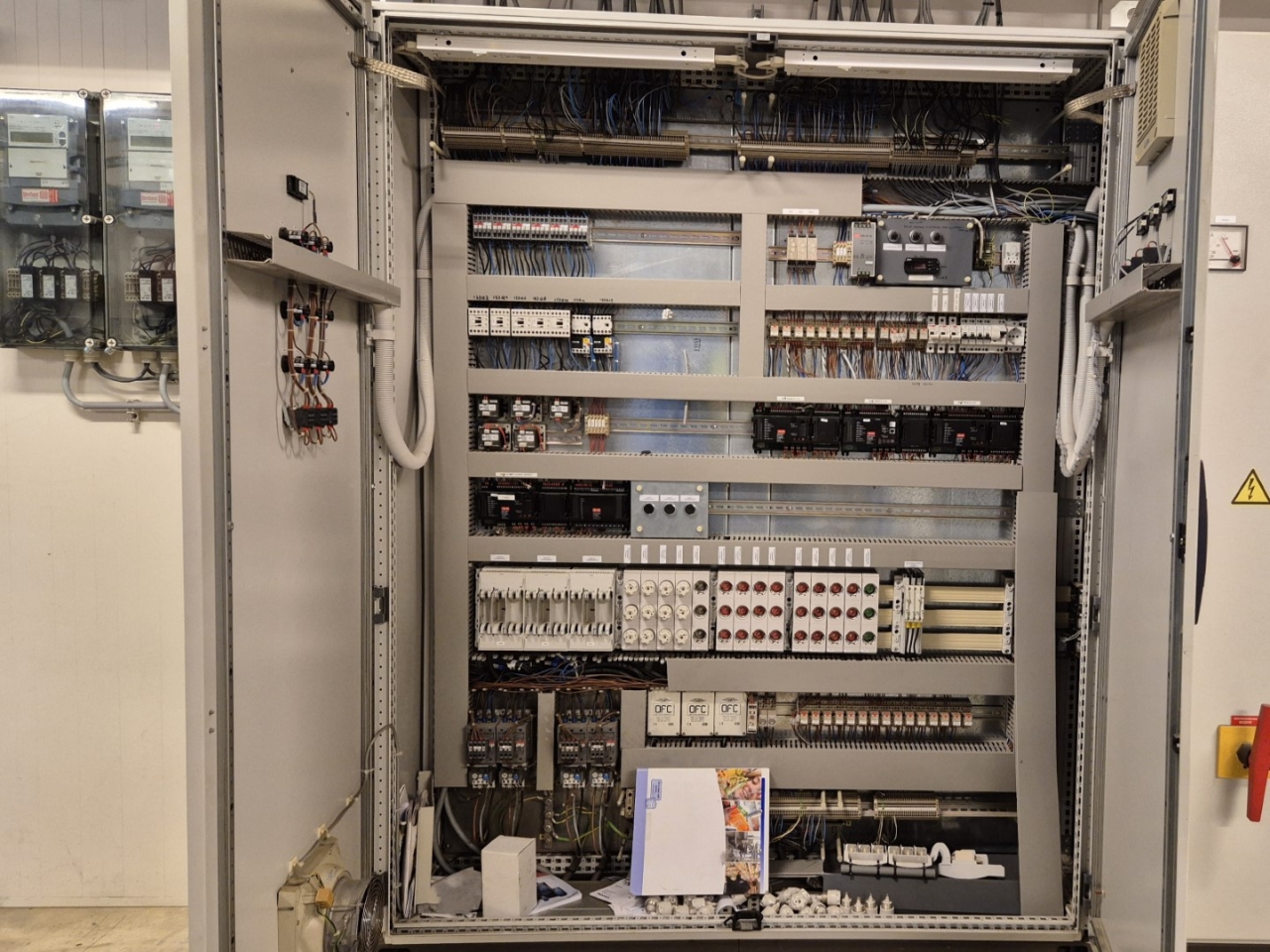

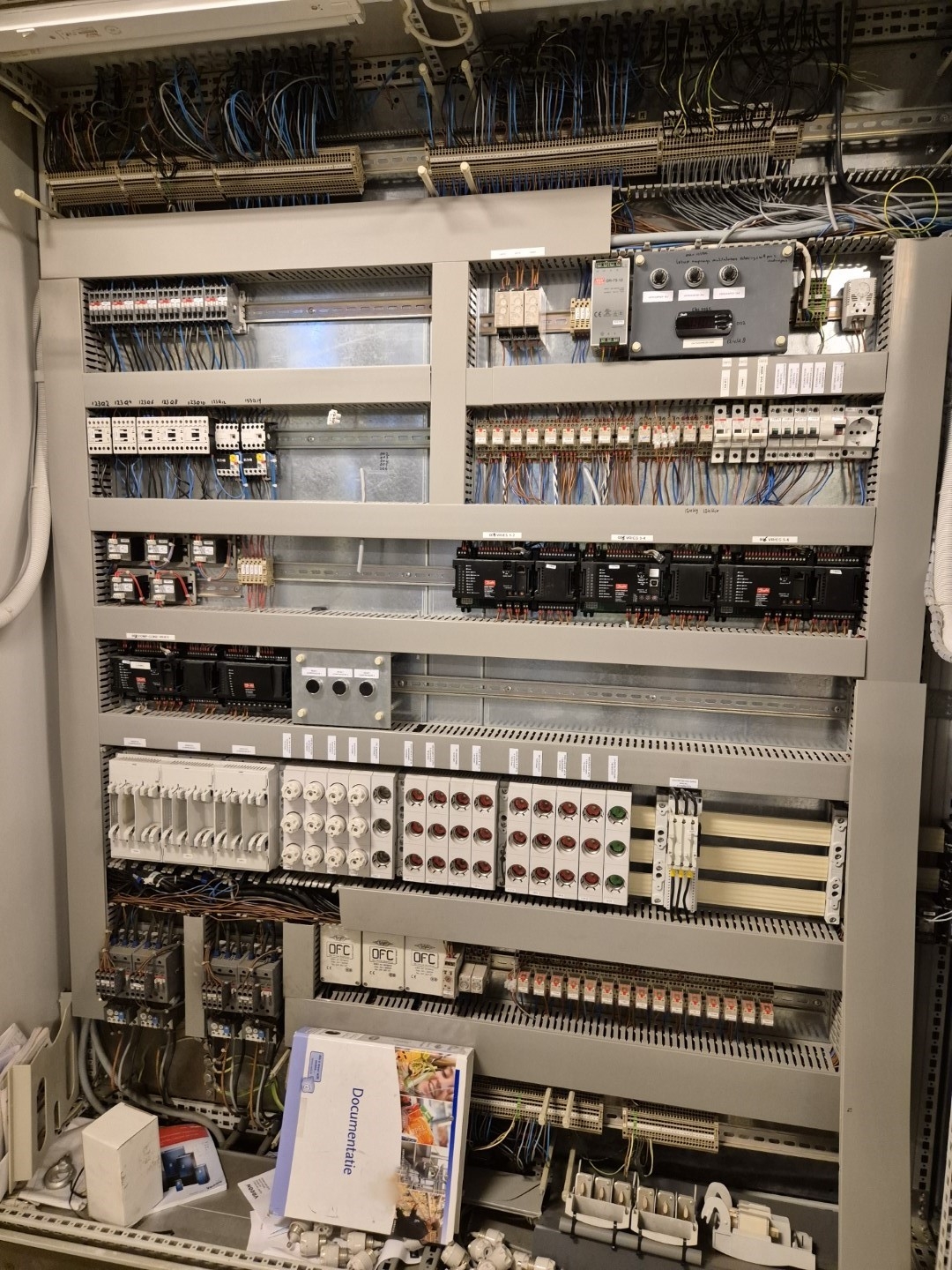

| Control panel |
|
| m3 / h | 576 |

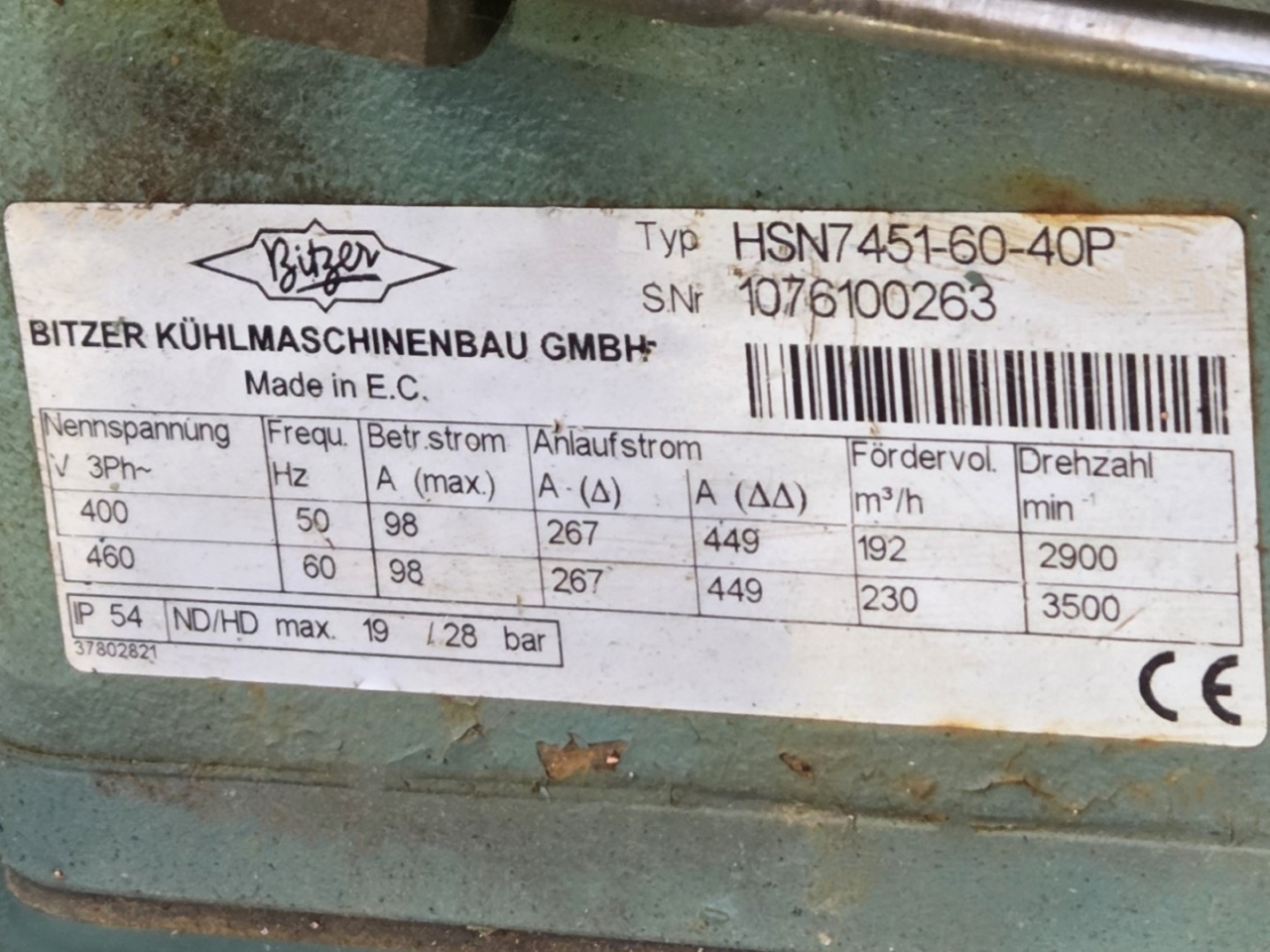

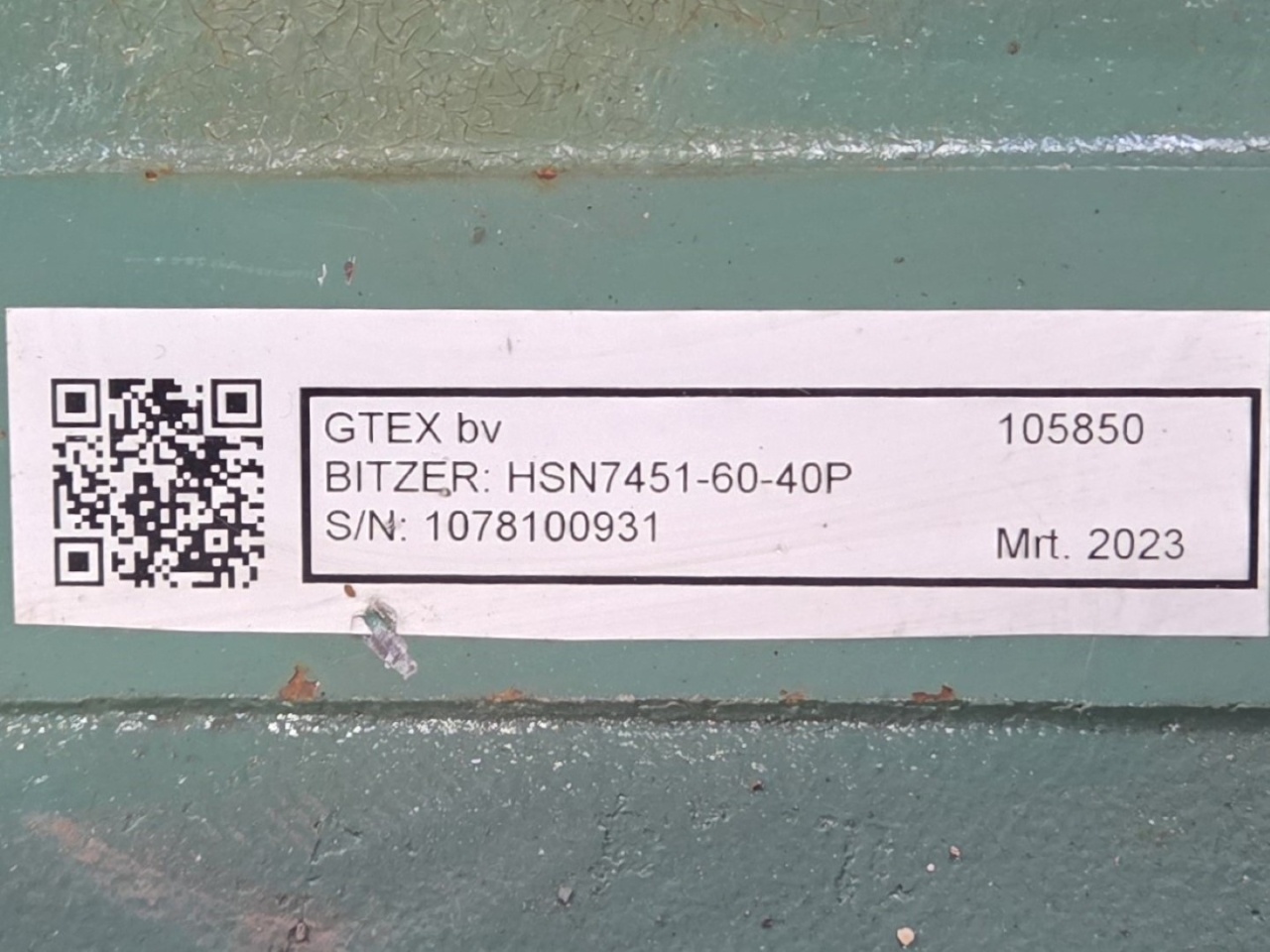

| Remarks | | Y.o.b. 2010 (s. nr: 1078100931,) & y.o.b. 2009 (s. nr: 1076100263) |

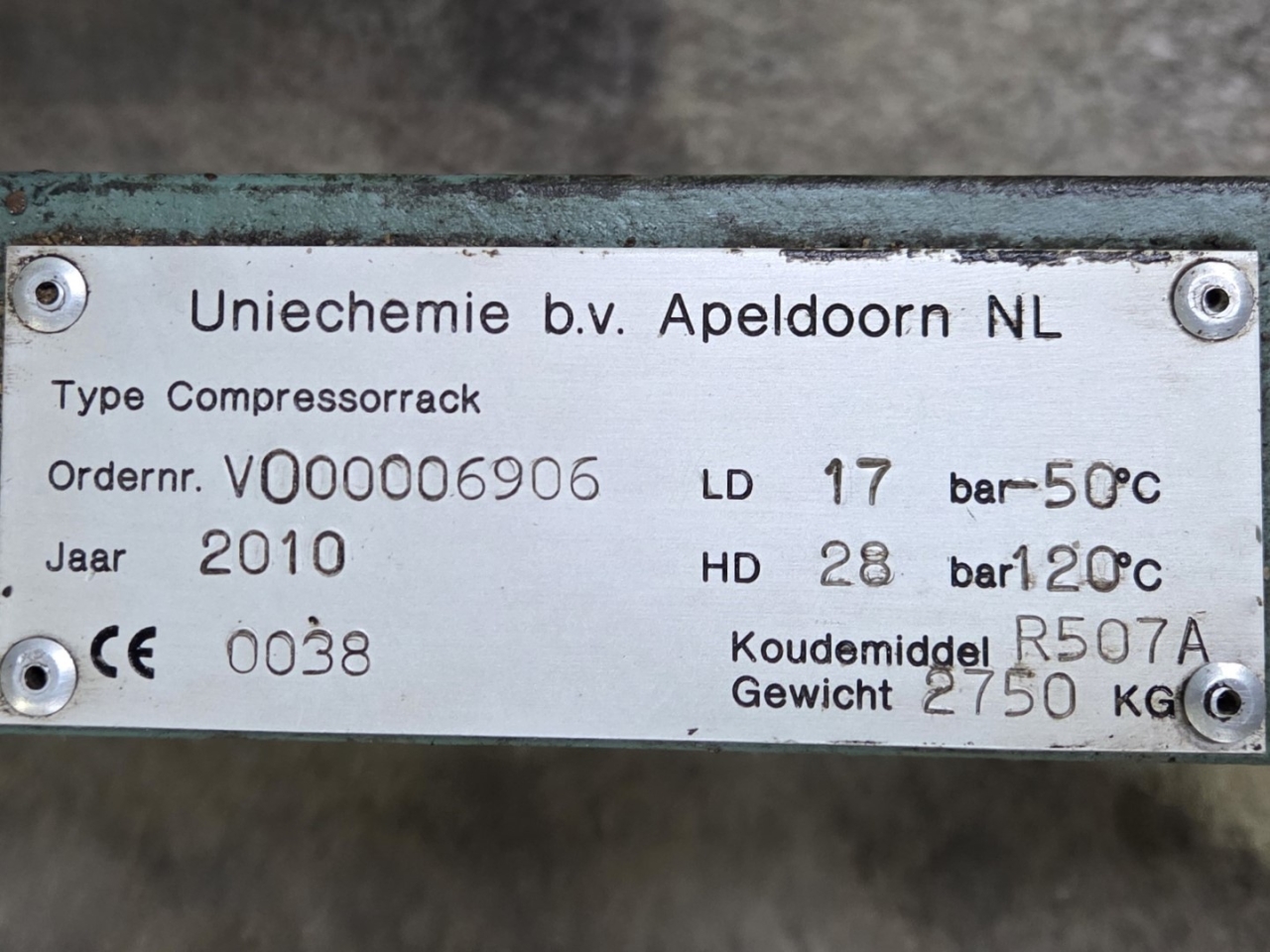

| Weight in kg. | 2750 |
| Package / Rack |
|
| Sizes | 3900x1400x2400 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer HSN7451-60-40P (x3)

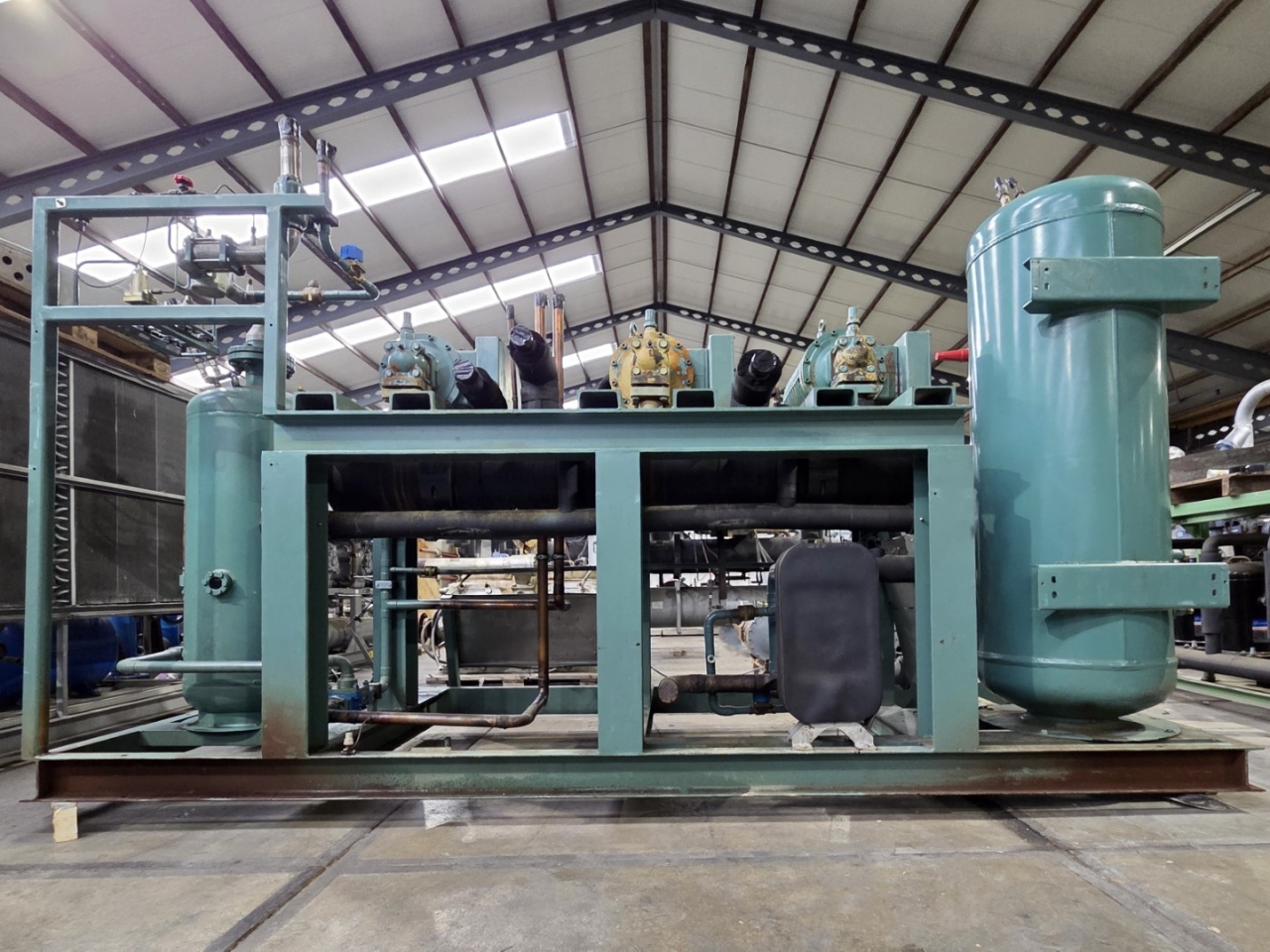

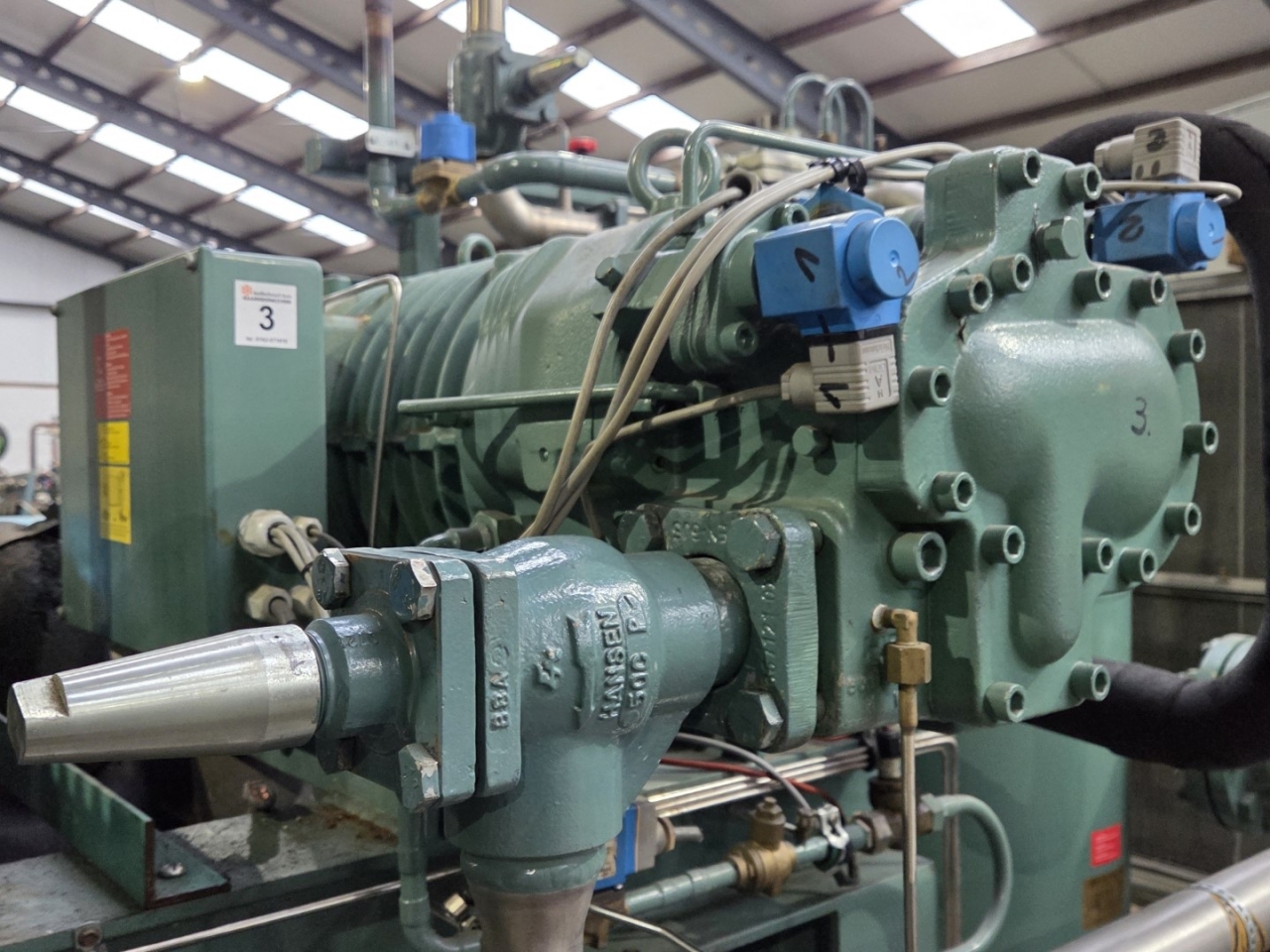

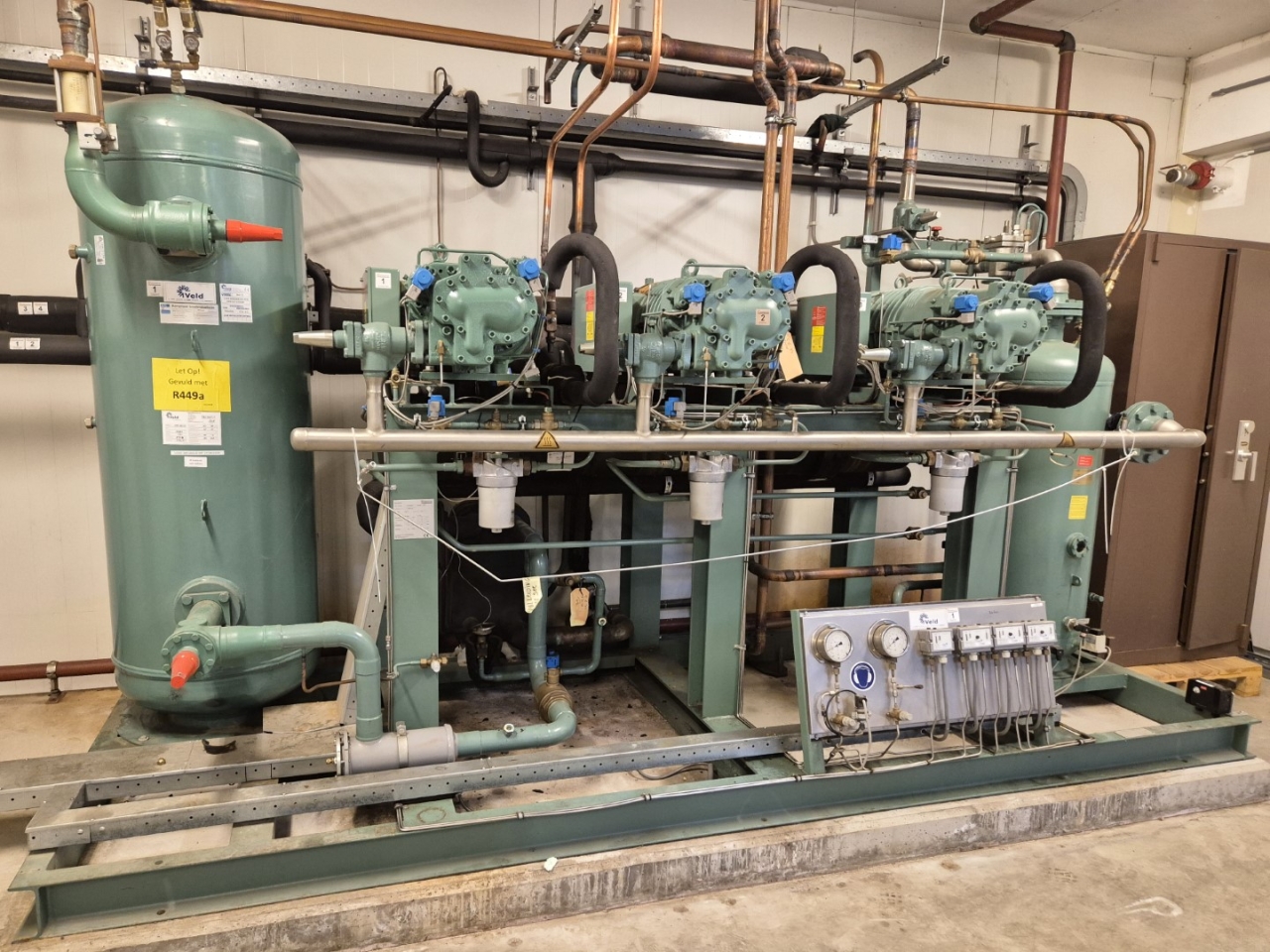

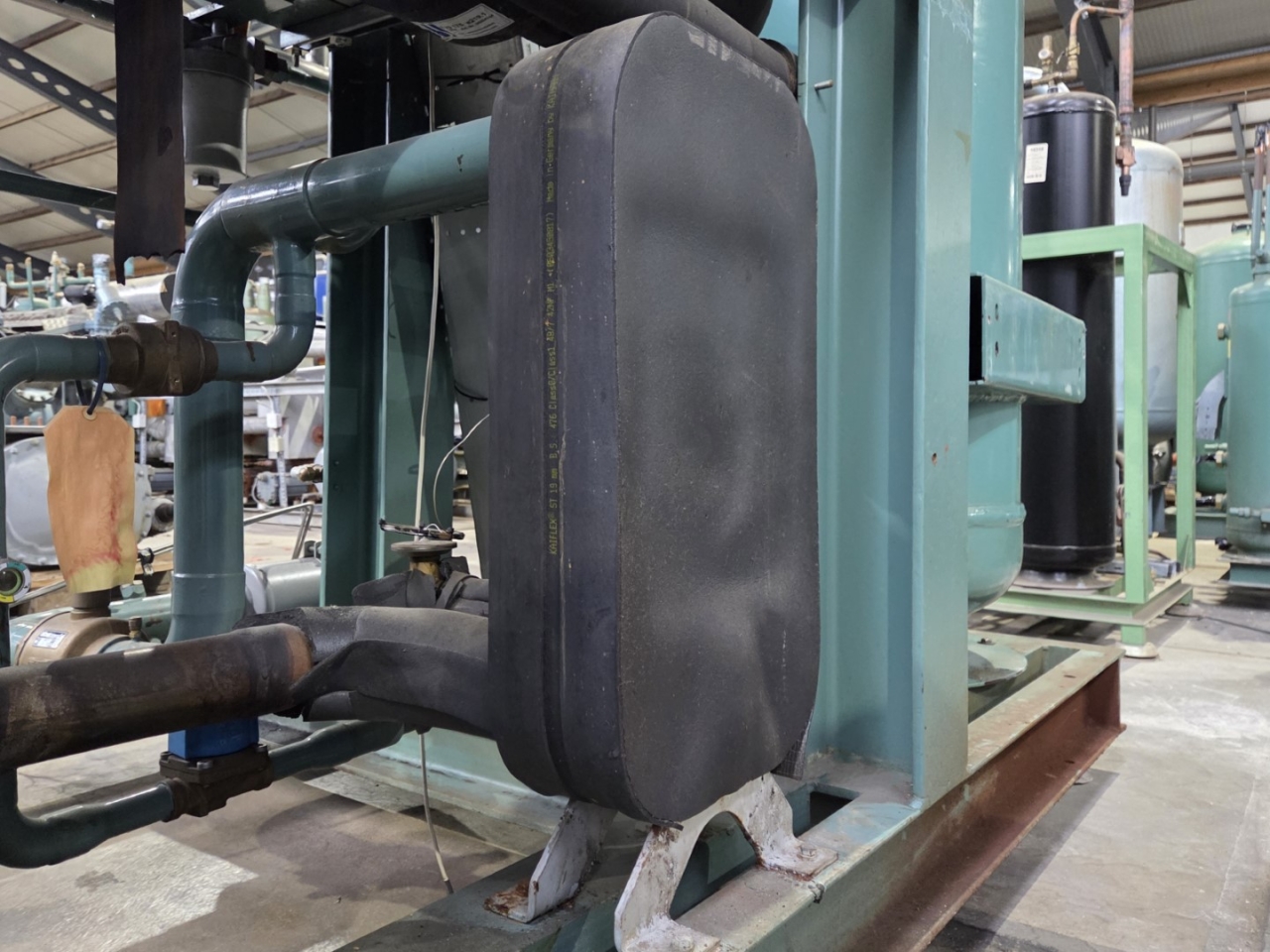

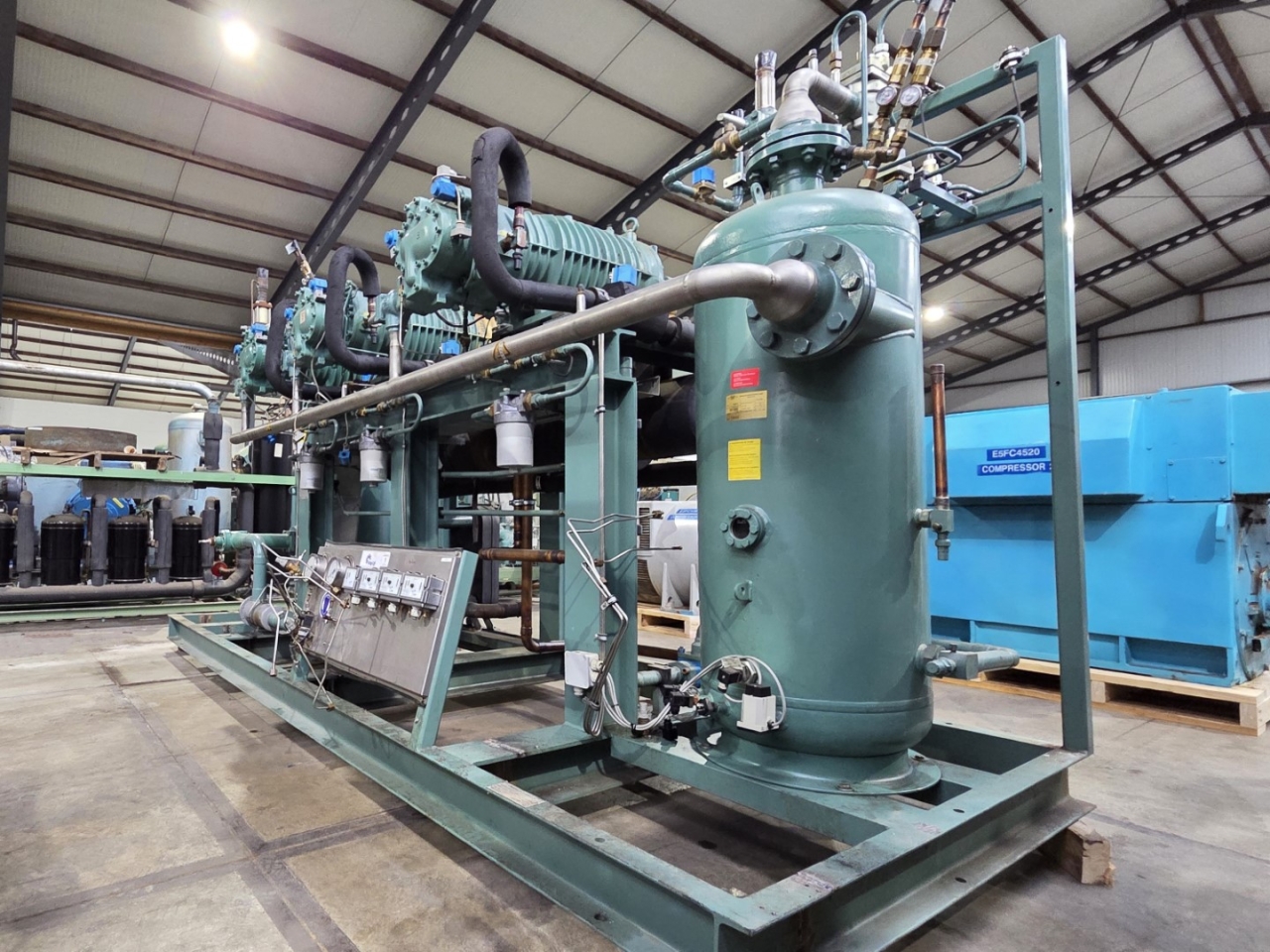

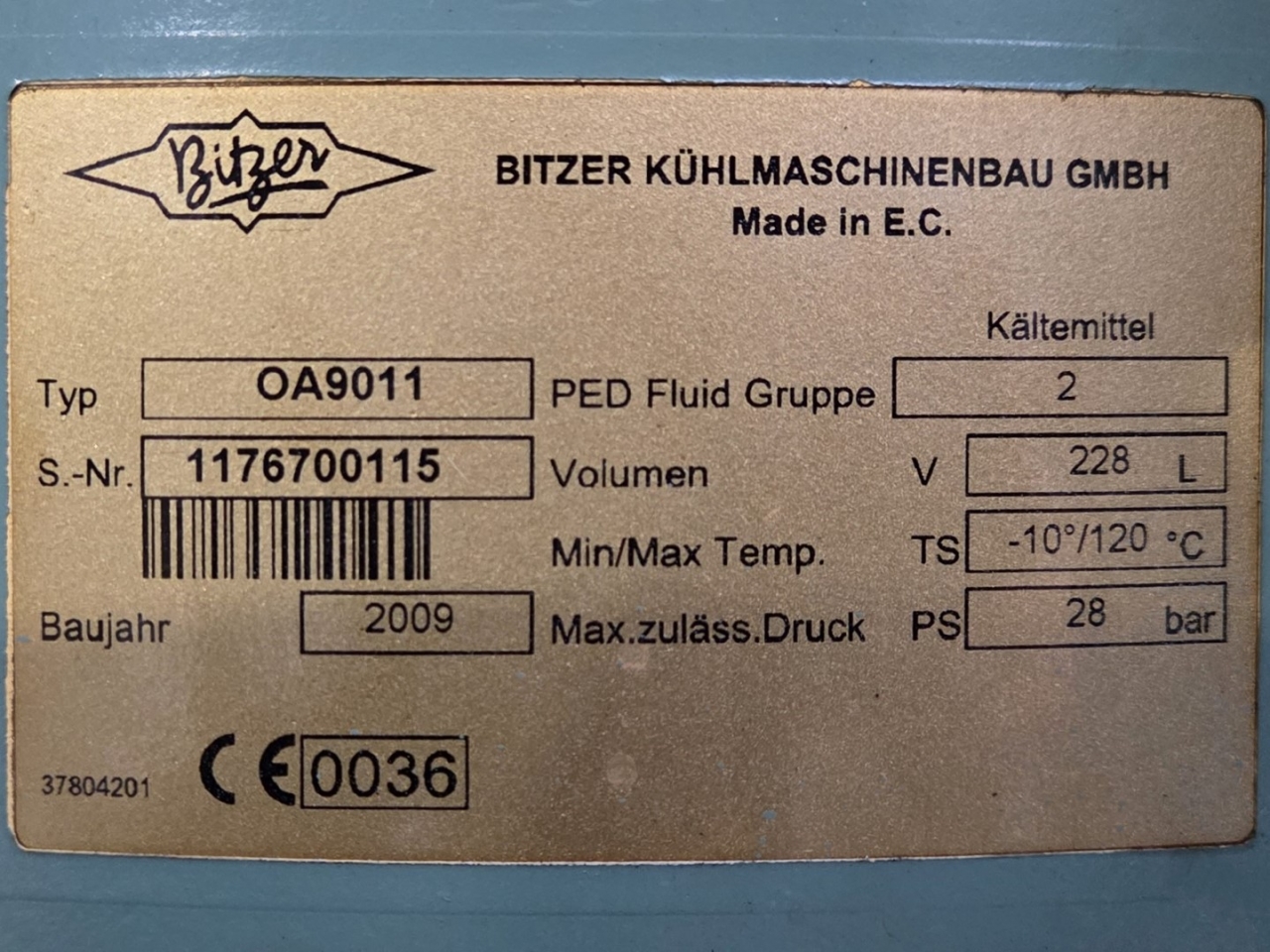

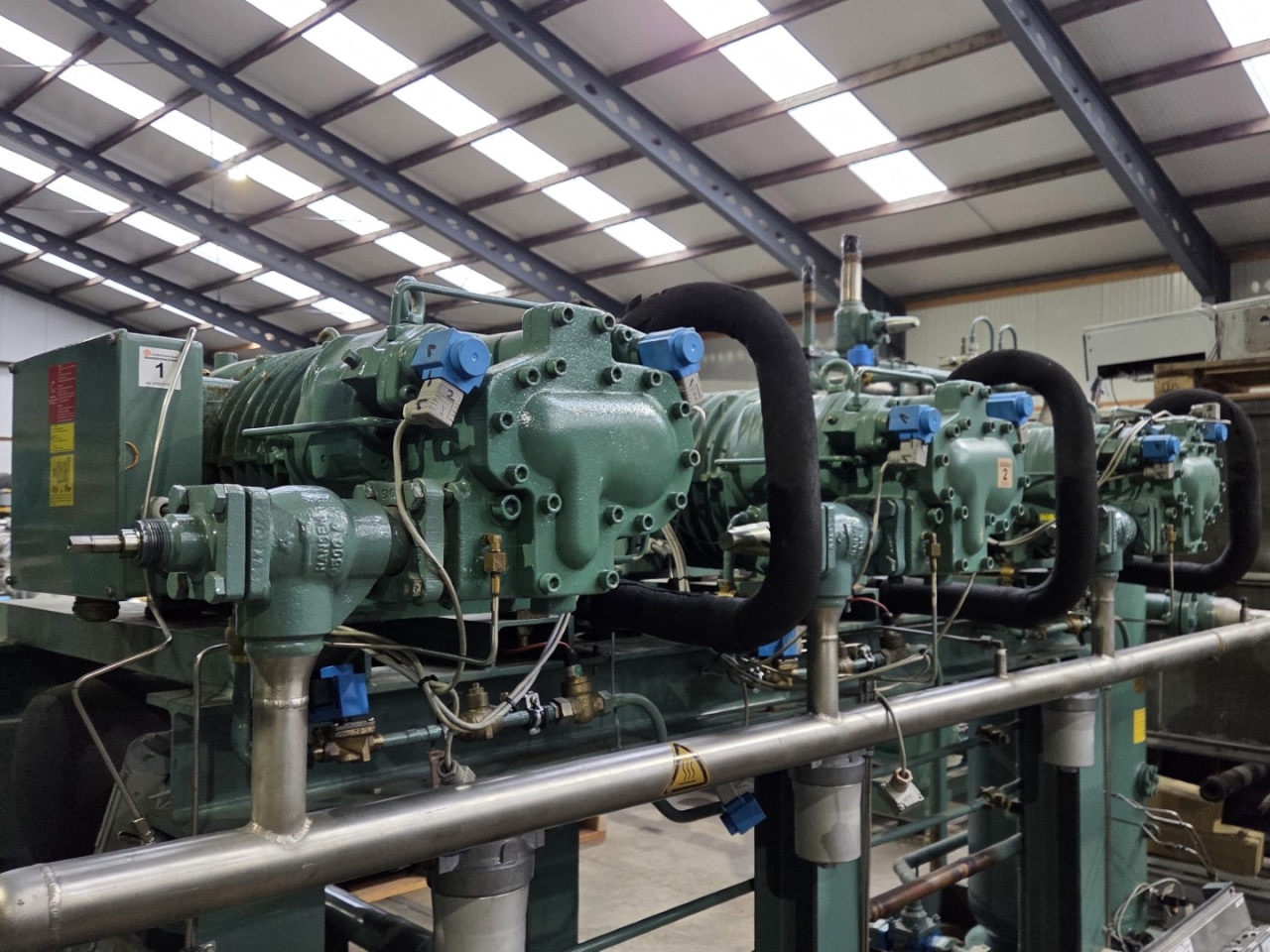

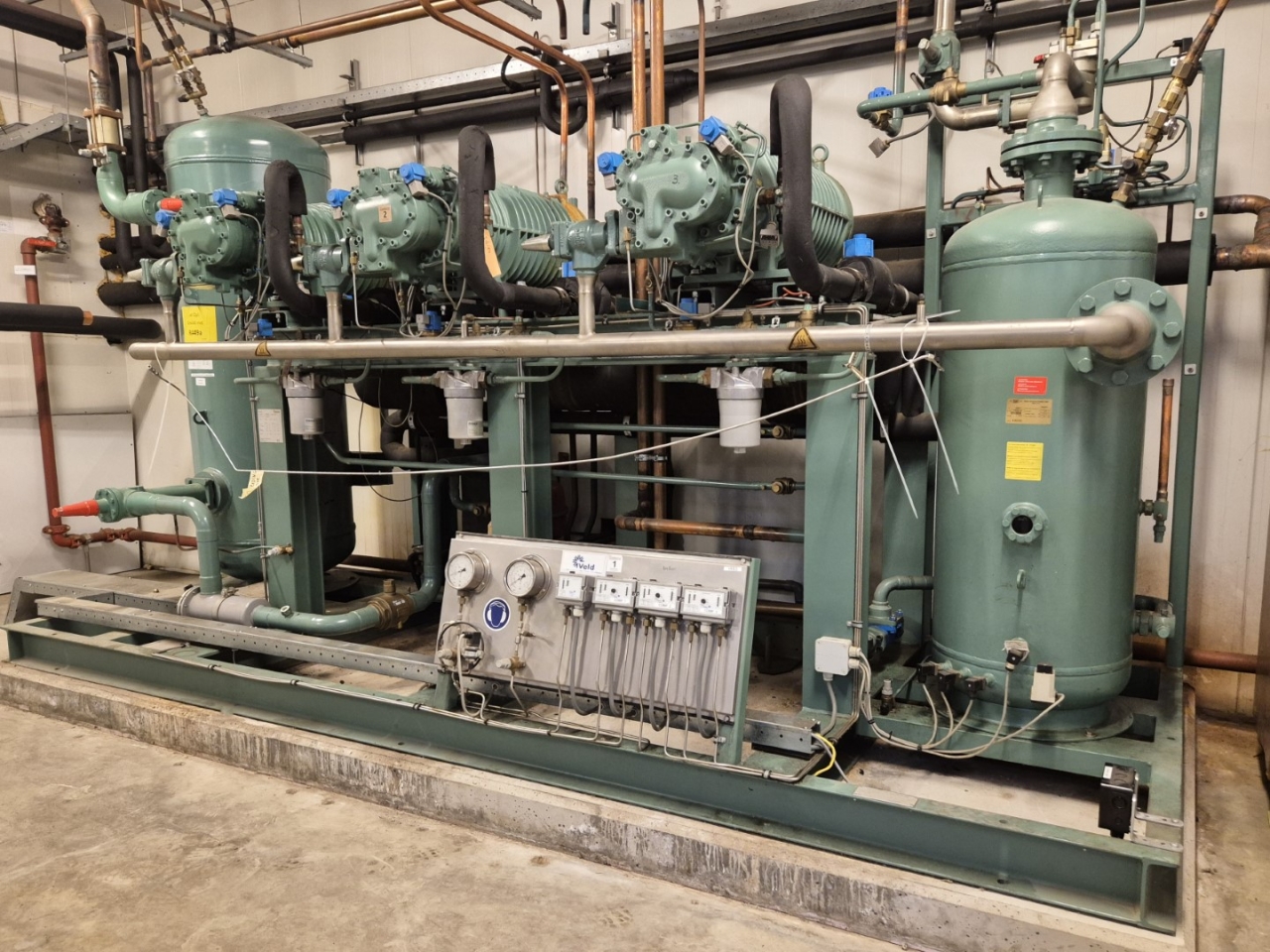

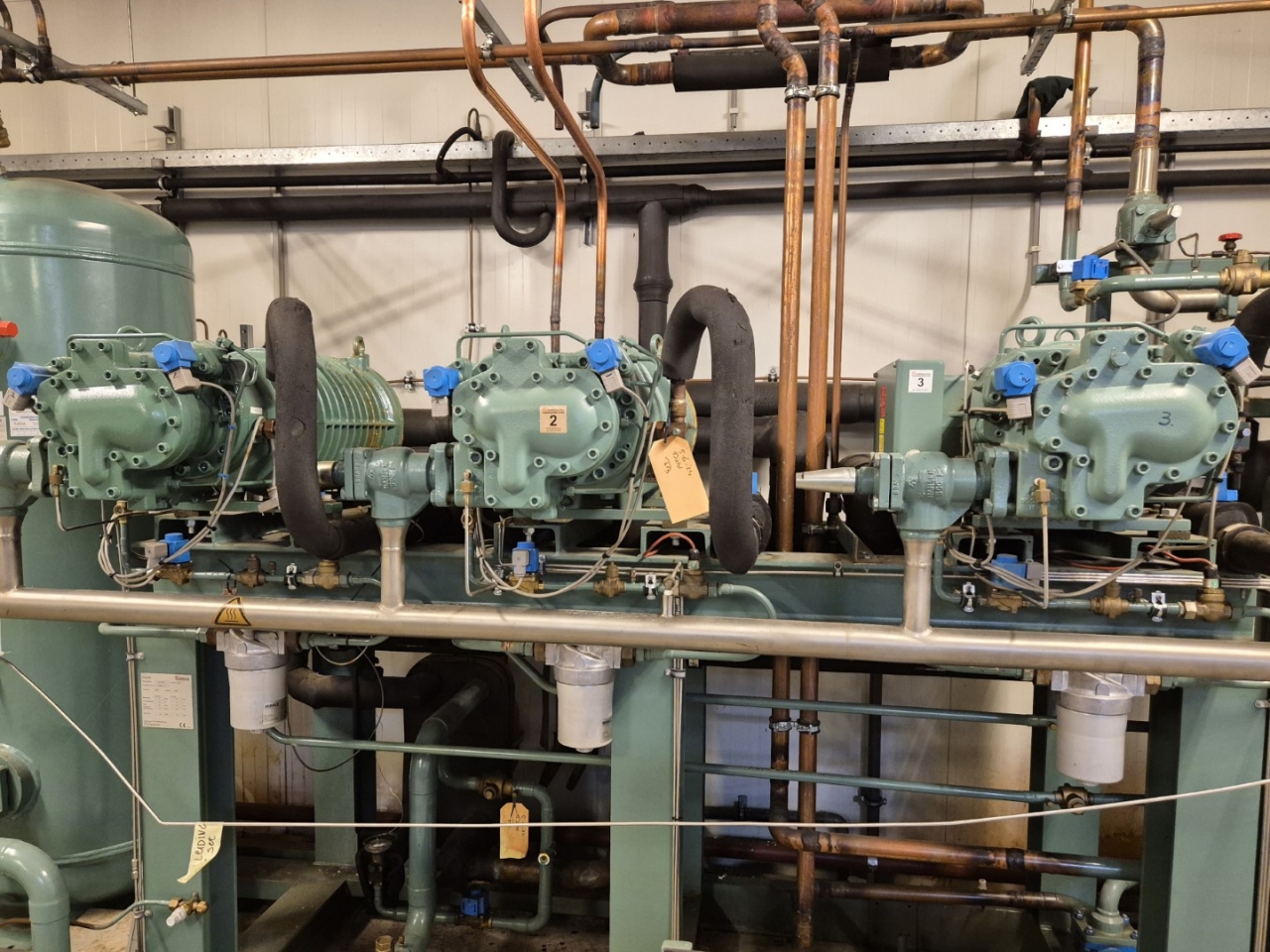

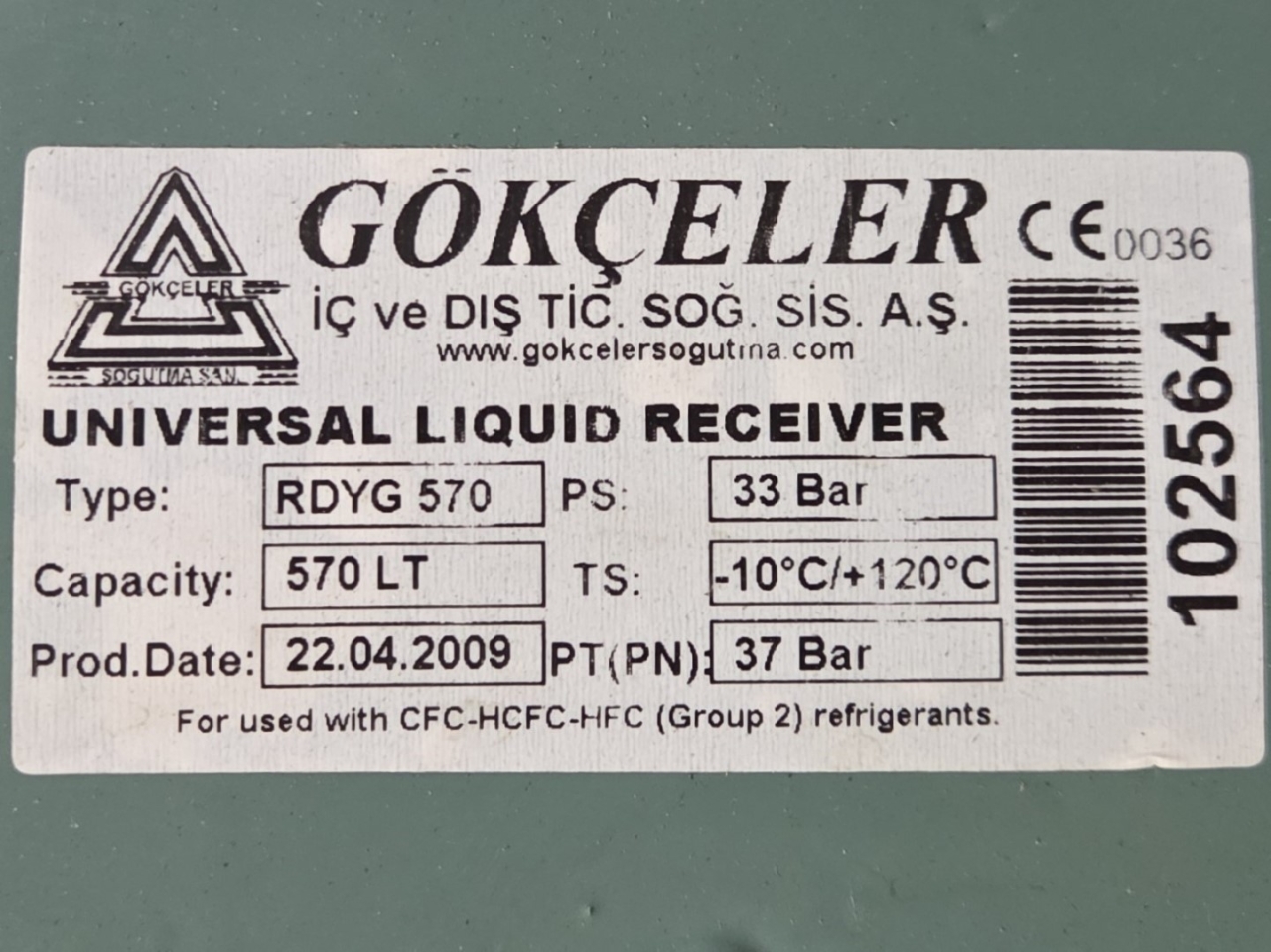

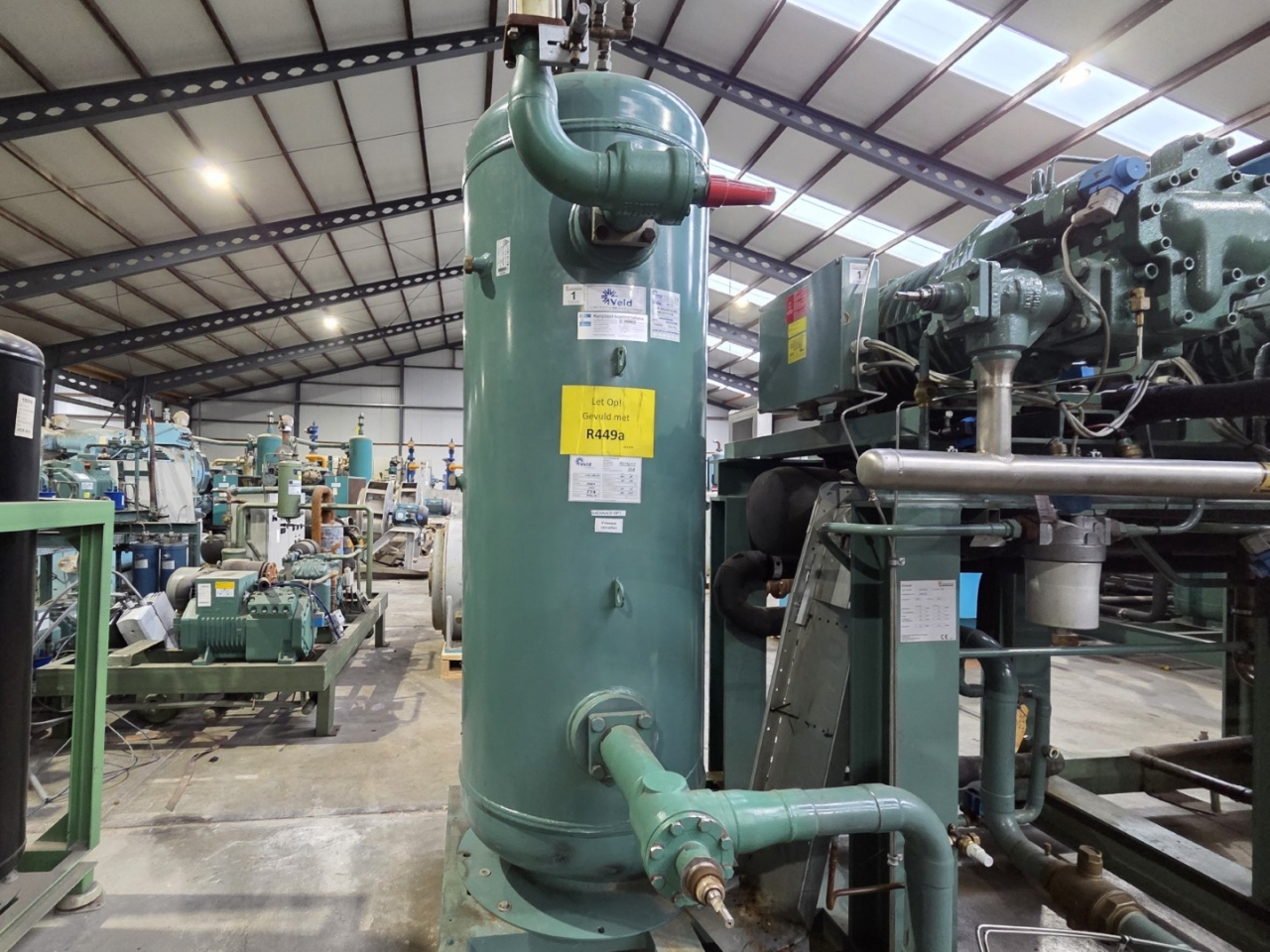

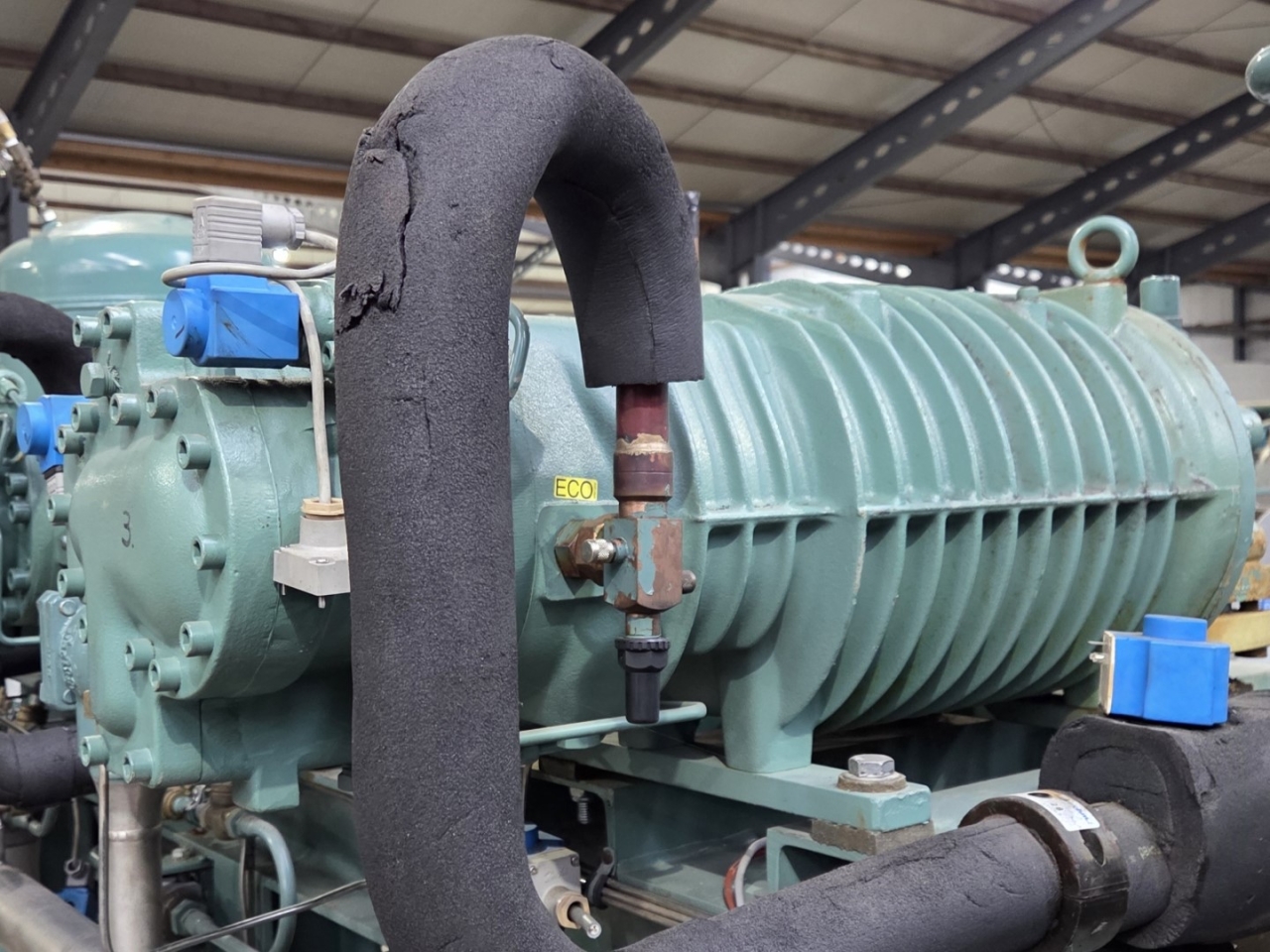

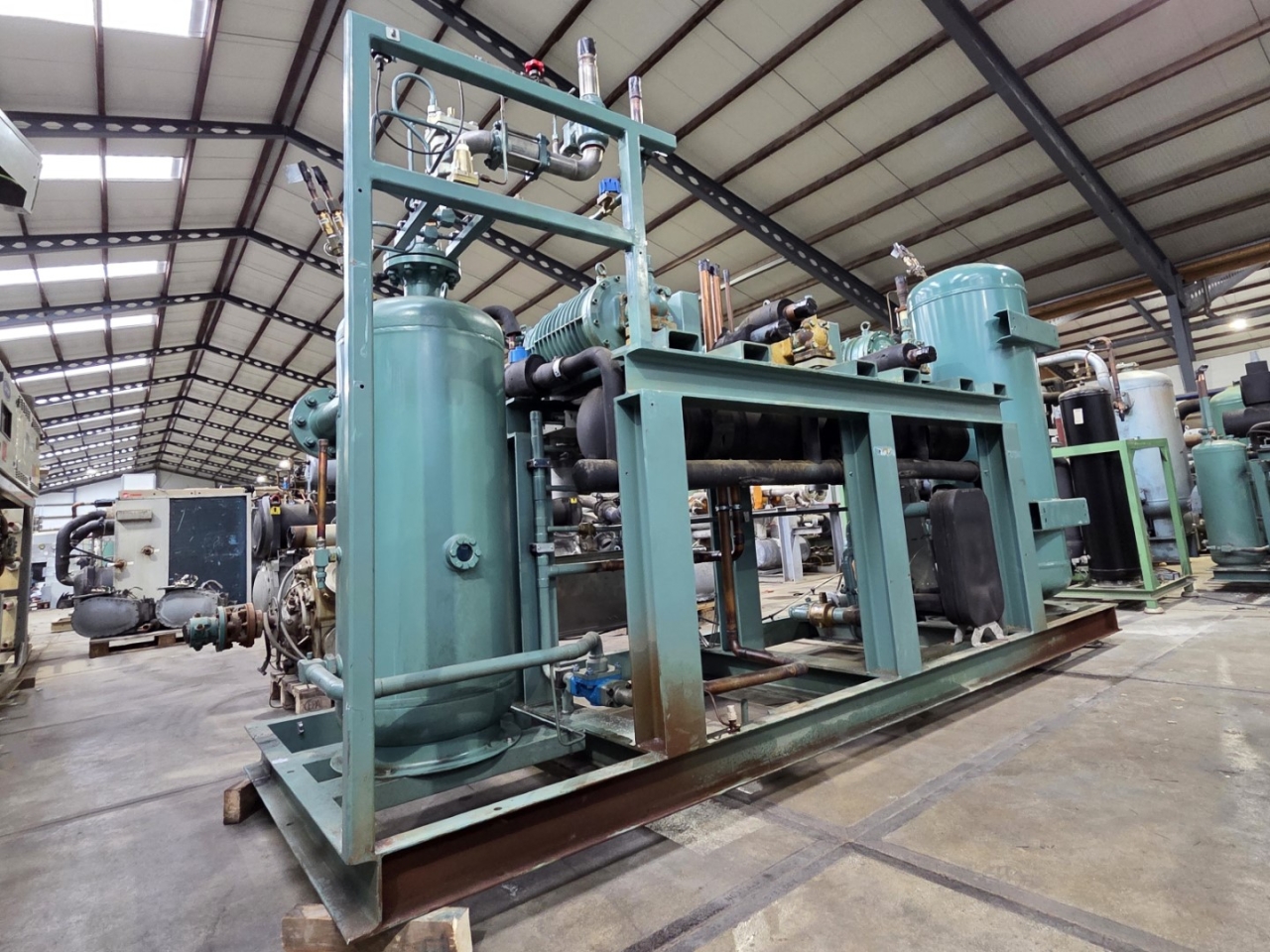

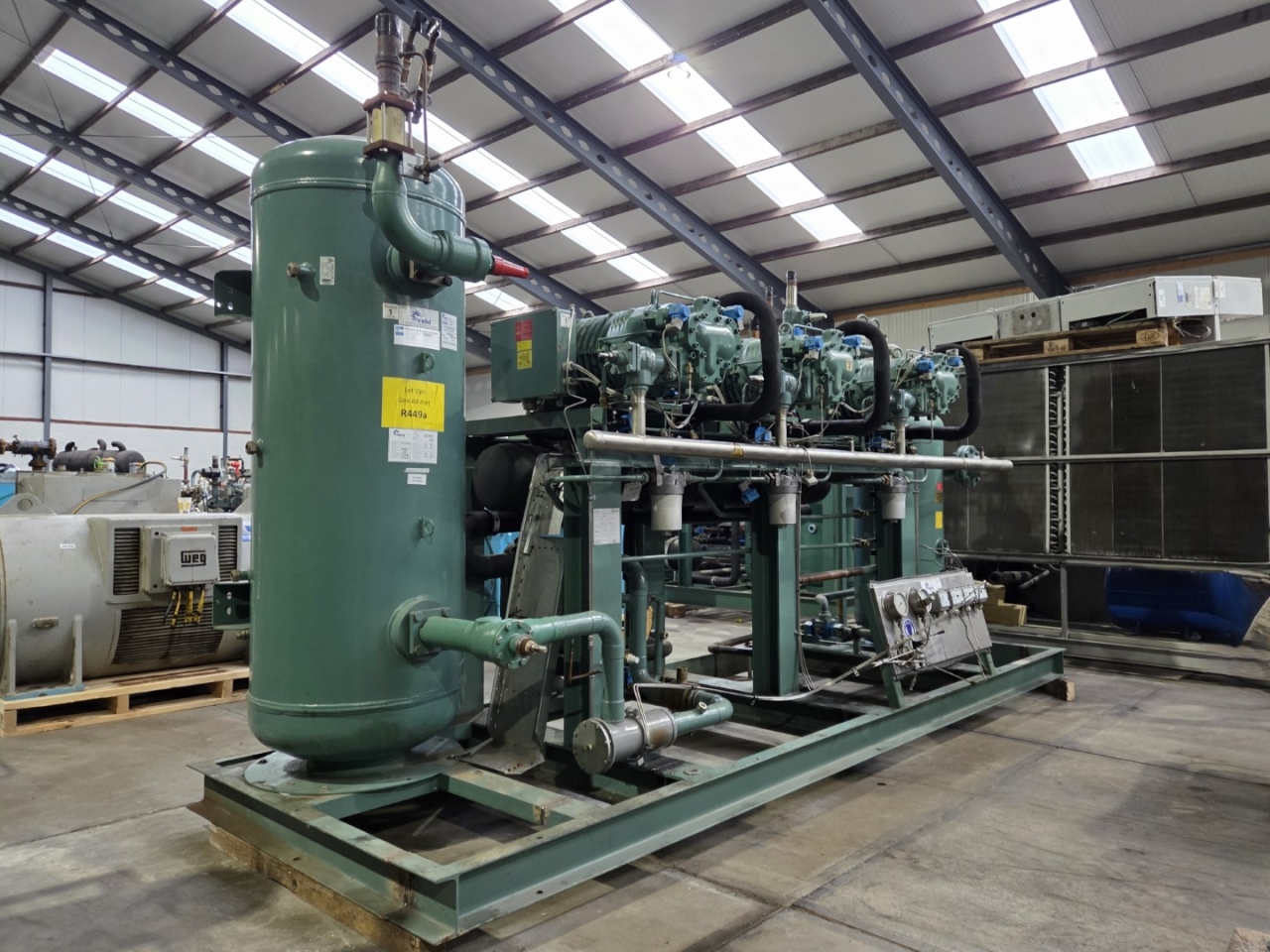

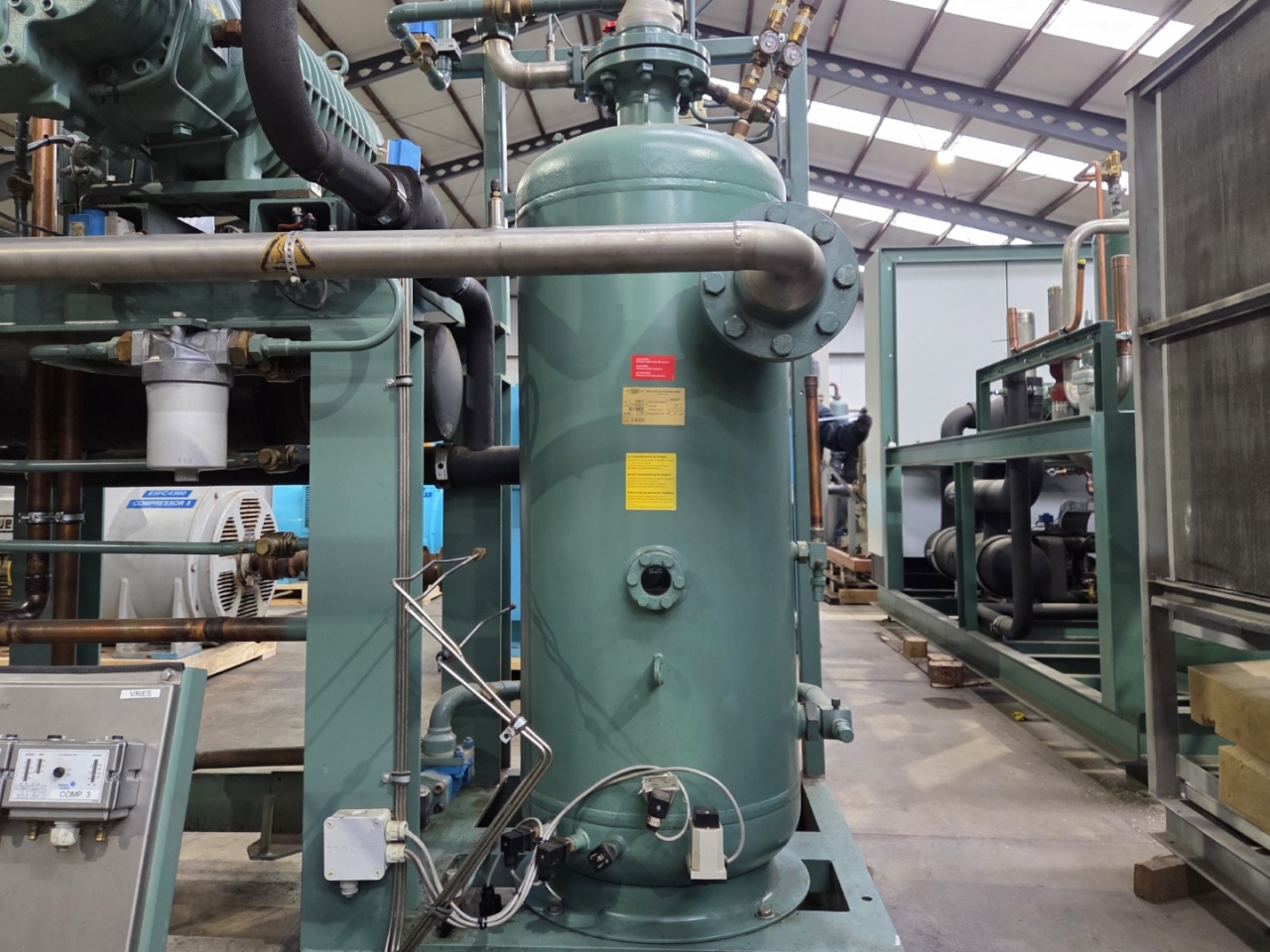

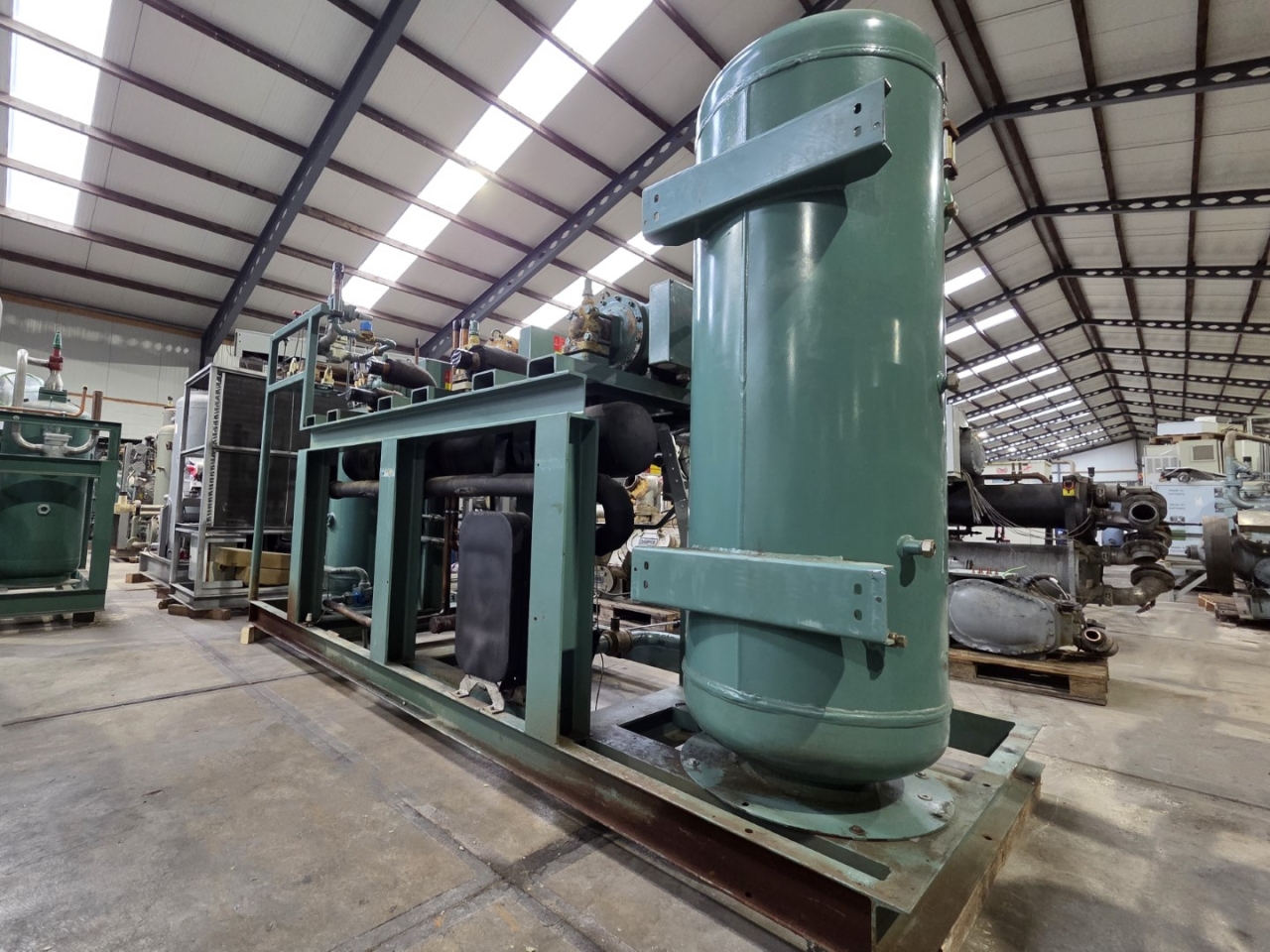

Used Bitzer HSN 7451-60-40P (x3) semi-hermetic screw compressor rack on Freon. Complete with a Hans Güntner RDYG 570 liquid receiver with a volume of 570 liters, Bitzer OA9011 oil separator, brazed heat exchanger as economizer, pressure and safety switches/gauges and a control cabinet. The compressors have a total displacement of 576 m³/h at 50 Hz & 690 m³/h at 60 Hz.
