Carrier 30 XA 0702
Carrier 30 XA 0702
| 18432 | |
| Brand | Carrier |
| Type | 30 XA 0702 |
| Product type | Air Cooled Chiller |
| Capacity kW | 674,0 |
| Capacity Tons | 191,6 |
| Refrigerant | Freon |
| Refrigerant Type | R134A |
| Weight in kg. |
Shipping weight: 6544 kg Operating weight: 6640 kg |
| Sizes | 7186x2253x2297 mm (LxWxH) |
| Compressor(s) type & model | 2 Carrier semi-hermetic screw compressors |
| Number of fans | 12 |
| Amount in stock | 1 |
Carrier 30 XA 0702

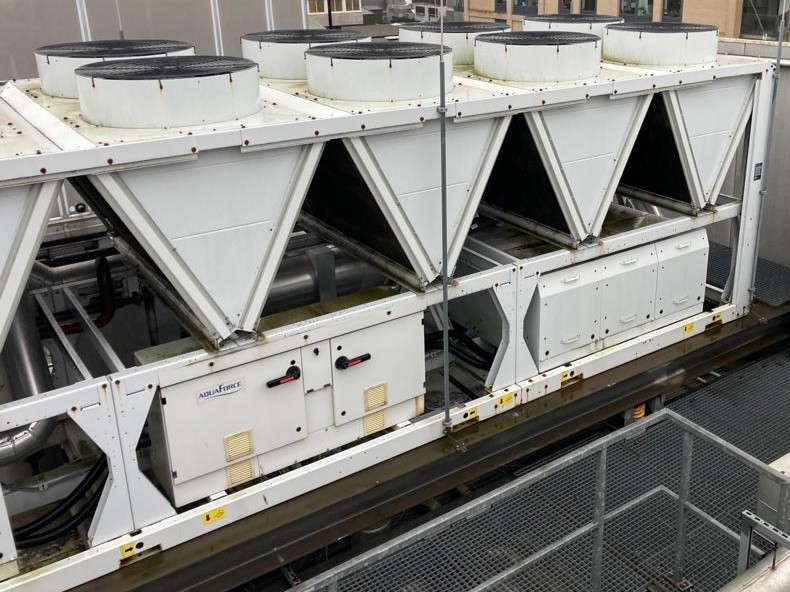

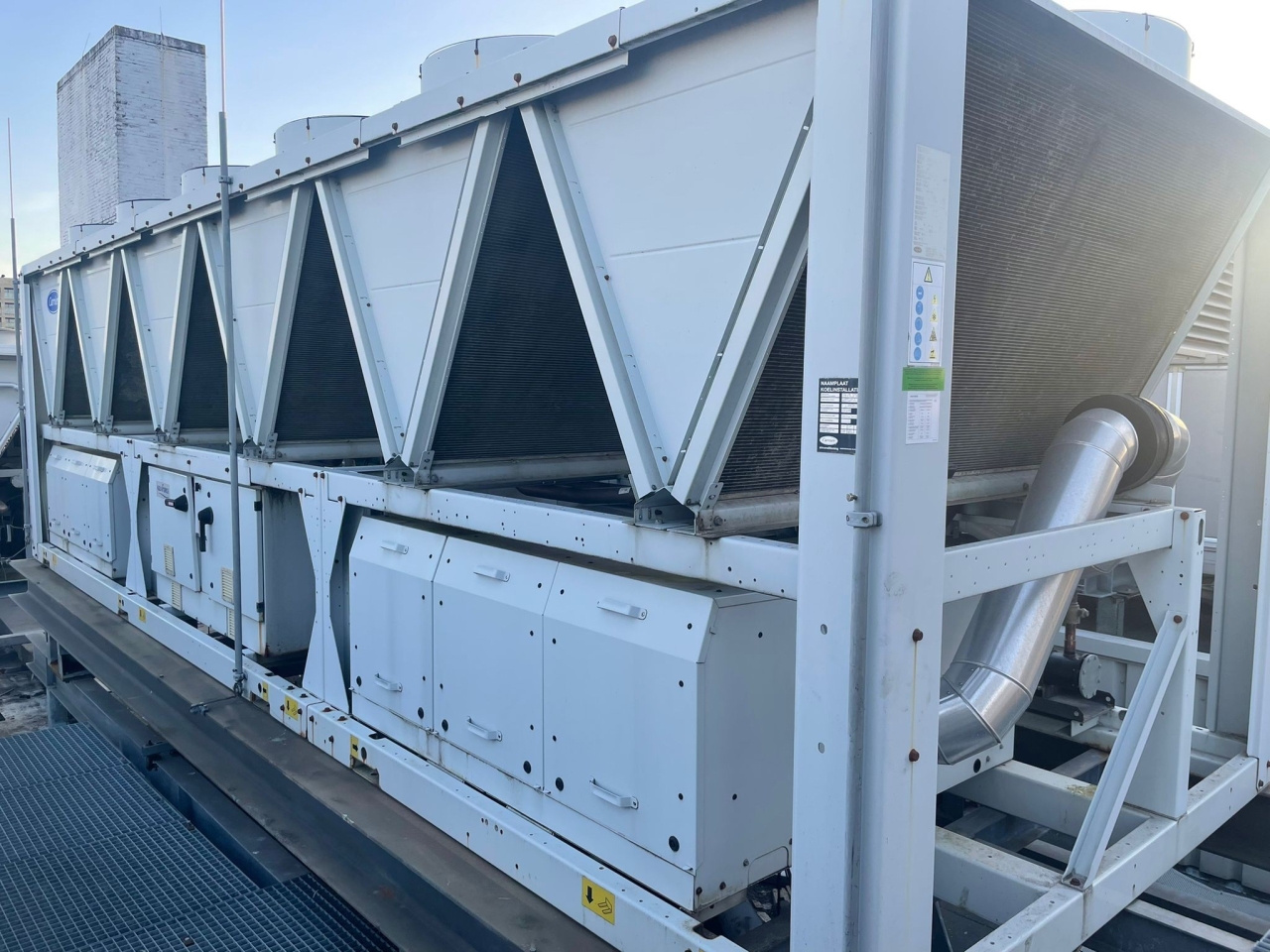

This used Carrier XA 0702 air-cooled chiller is a reliable and high-capacity cooling solution, designed for demanding industrial and commercial applications. Operating on R134a refrigerant, the unit delivers stable performance and efficient heat rejection.
The chiller is equipped with two Carrier semi-hermetic screw compressors, ensuring robust operation, redundancy, and long service life. Heat rejection is handled by a high-efficiency air-cooled condenser fitted with 12 axial fans, generating a total airflow of approximately 195,000 m³/h for optimal cooling efficiency.
On the water side, the unit features a shell-and-tube evaporator with a water flow rate of 21.1 l/s, providing effective and consistent chilled water production. Additionally, the chiller includes two brazed plate heat exchangers, enhancing system flexibility and thermal performance.
The unit is supplied complete with an integrated control cabinet, allowing straightforward installation and reliable system control.
This Carrier XA 0702 chiller is a proven, cost-effective solution for applications such as HVAC systems, process cooling, and industrial temperature control.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment solely if it has passed our extensive test. Warranty and industrial cleaning are included in your purchase. *If requested we are happy to arrange your shipment.
