ECO KCE94E4V.2222
|
18817 |
| Brand |
ECO
|
| Type |
KCE94E4V.2222
|
| Product type |
Air Cooled Gas Cooler
|
| kW |
163,0
|
| Number of Fans |
4
|
| RPM of the Fans |
525
|
| Refrigerant |
CO2
|
| Air Flow in m³/h |
50.100
|
| Surface (m2) |
560 m²
|
| Tube volume |
45 dm³
|
| Sizes |
6290x1290x1386 mm (LxWxH)
|
| Weight |
870 kg
|
| Remarks | |
Y.o.b. 2018
|
| Remarks || |
Comes with an EC declaration
|
| Amount in stock |
1 |
ECO KCE94E4V.2222

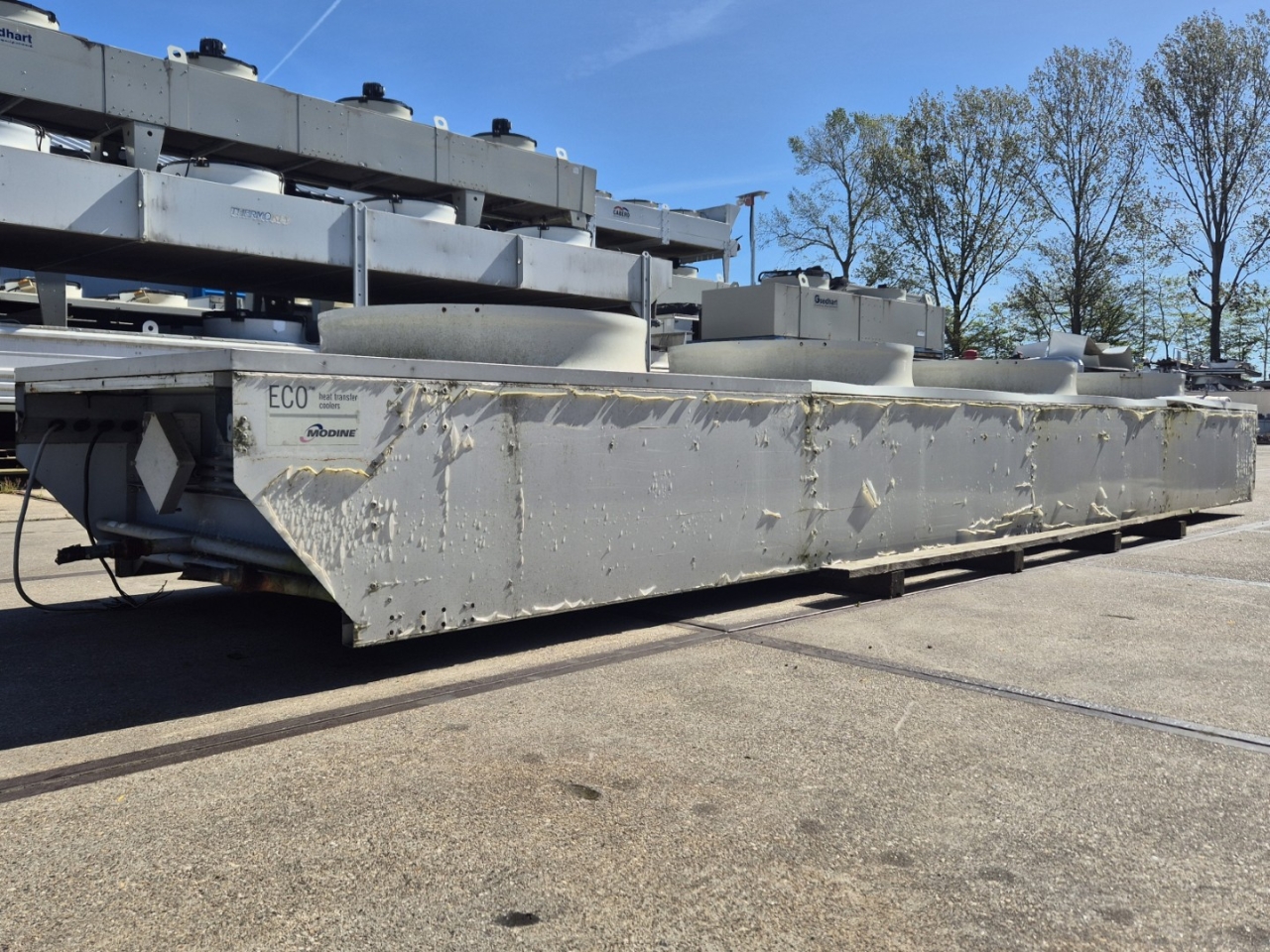

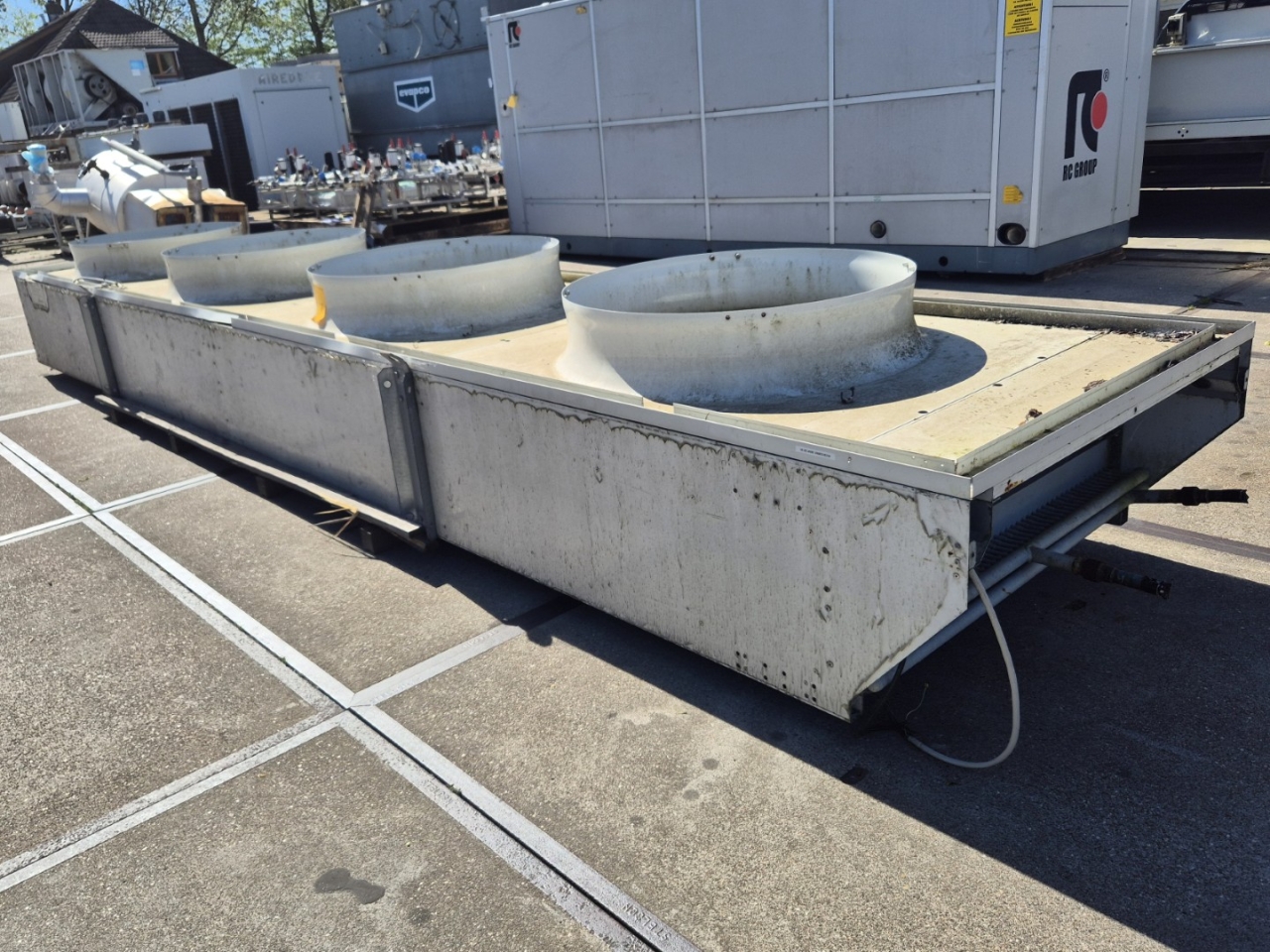

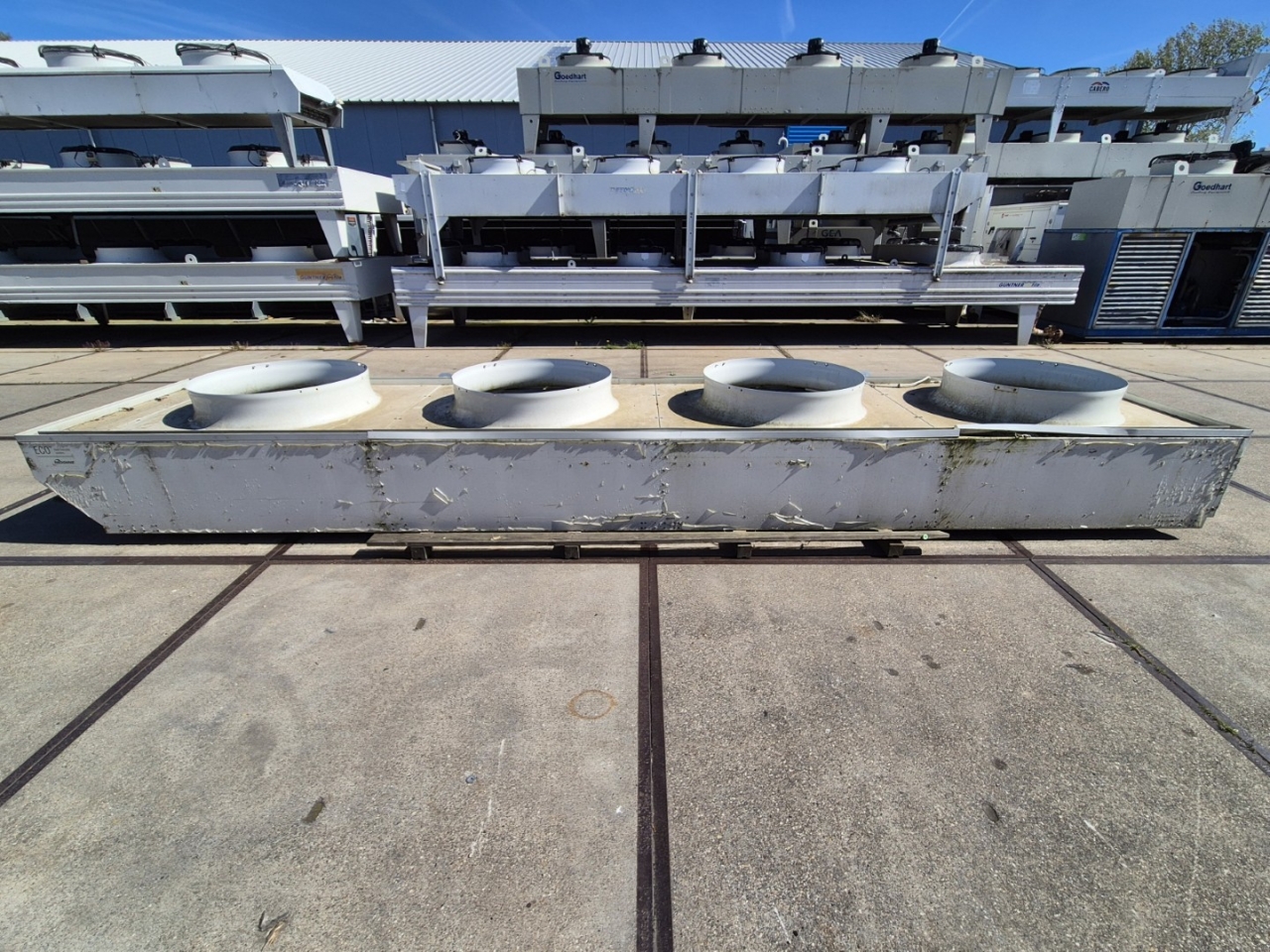

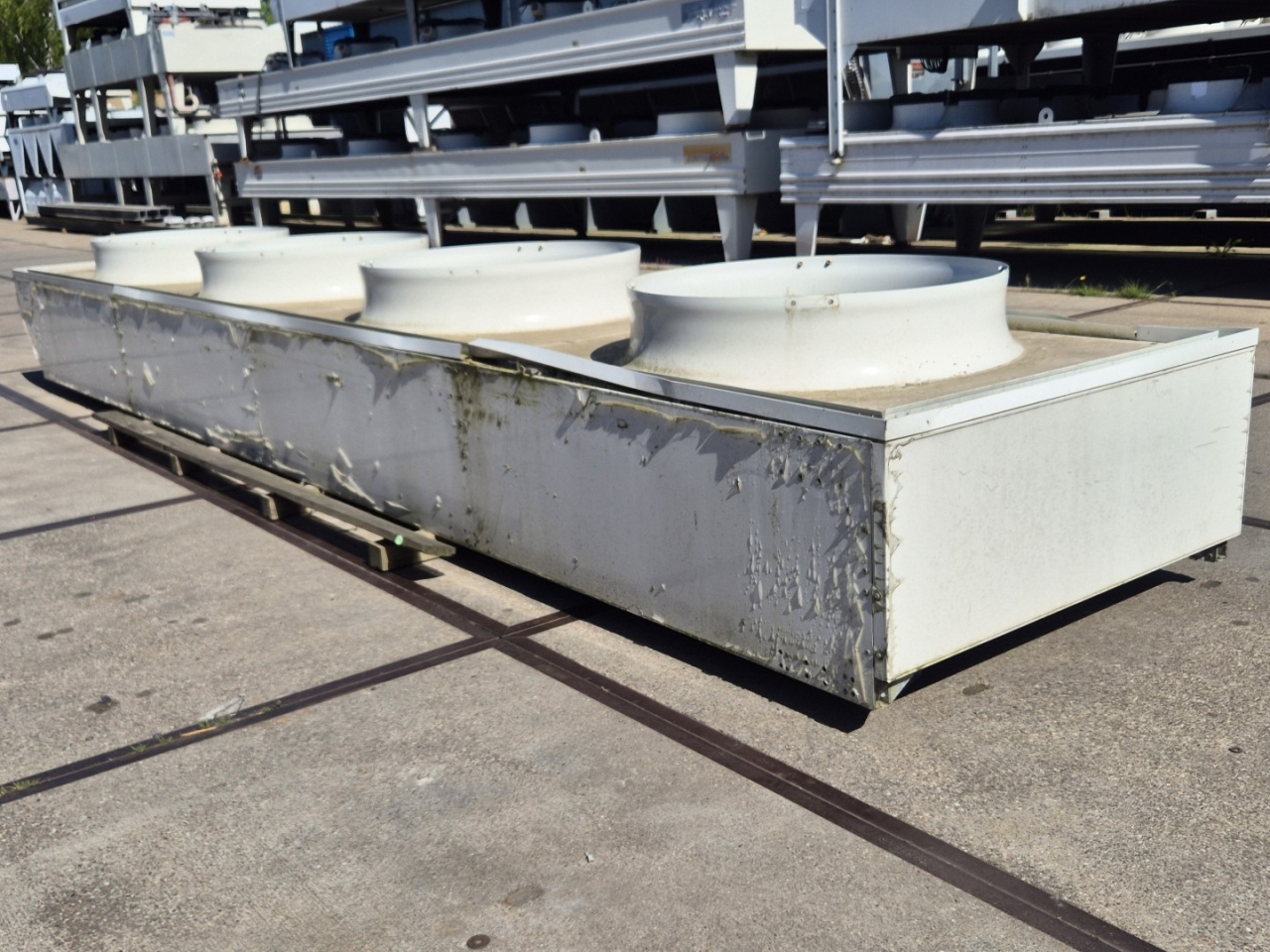

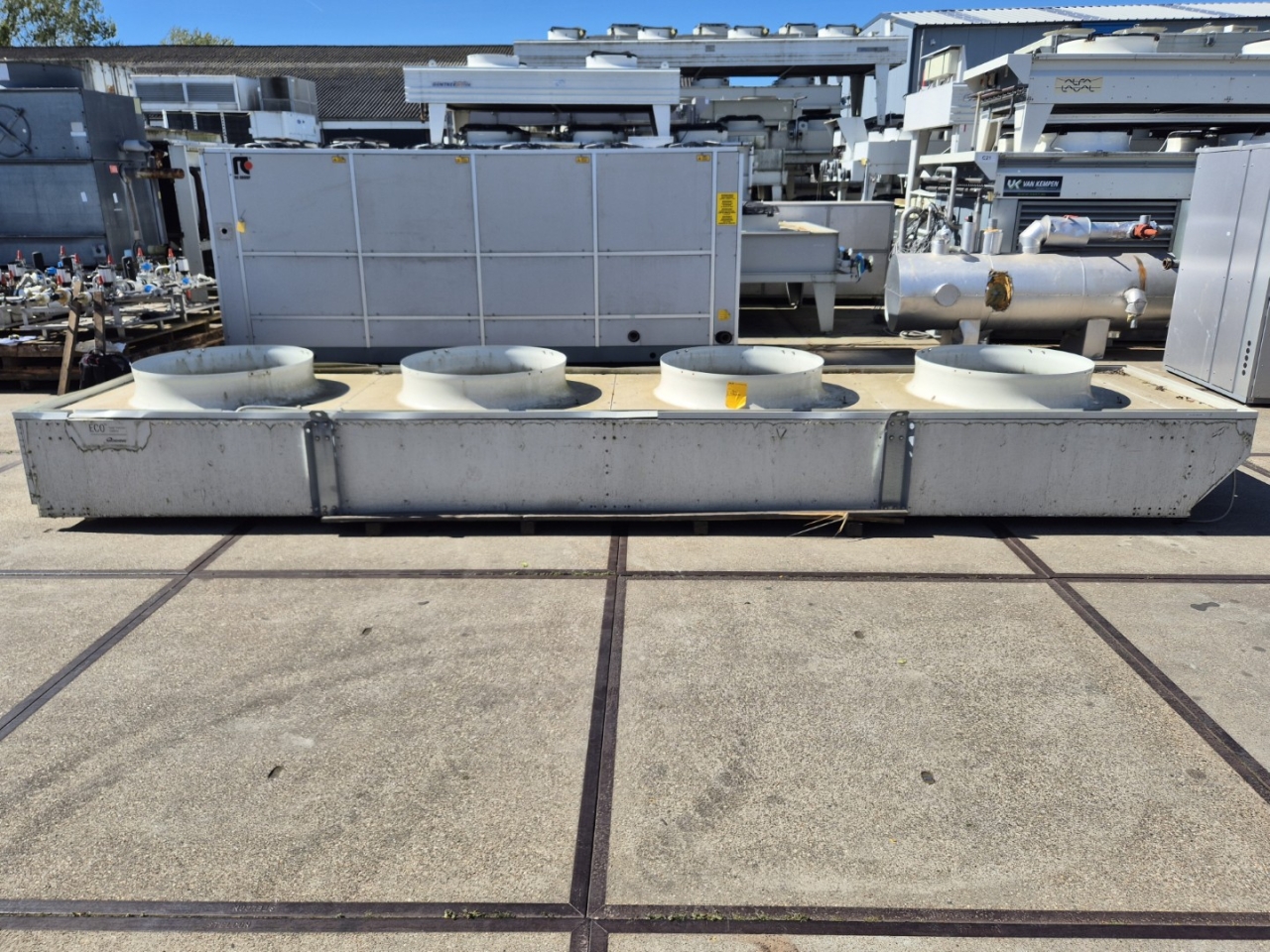

Used ECO KCE94E4V.2222 air cooled gas cooler for CO2 built in 2018. Originally this condenser had 4 fans with a RPM of 525 and an airflow of 50.100 m³/h. We can install fans again that achieve these requirements again.
*All components of this used condensors will be tested on good working, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform a industrial cleaning and rust spots will be covered. Also, we can arrange your shipment.
